Day 102 - Wing mirrors and reflectors

Today's weather forecast was sun with showers. Tomorrow's is showers with occasional sun. So I had to do something that would allow me to work around the showers - and decided to do the wing mirrors, and if there was time, the reflectors as well.

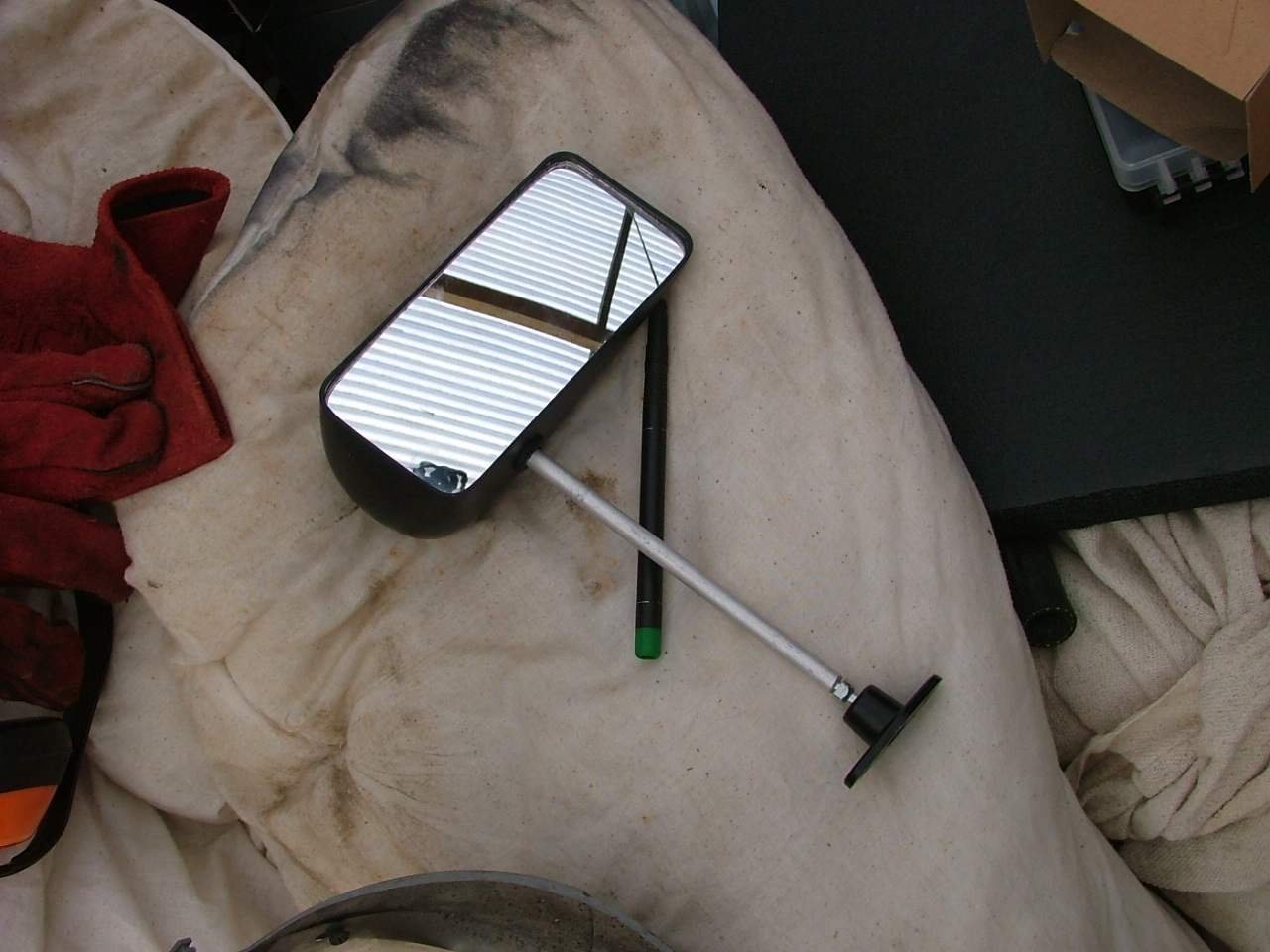

The first idea was to attach them to the windscreen pillar, like some Ultimas do:

Click to download

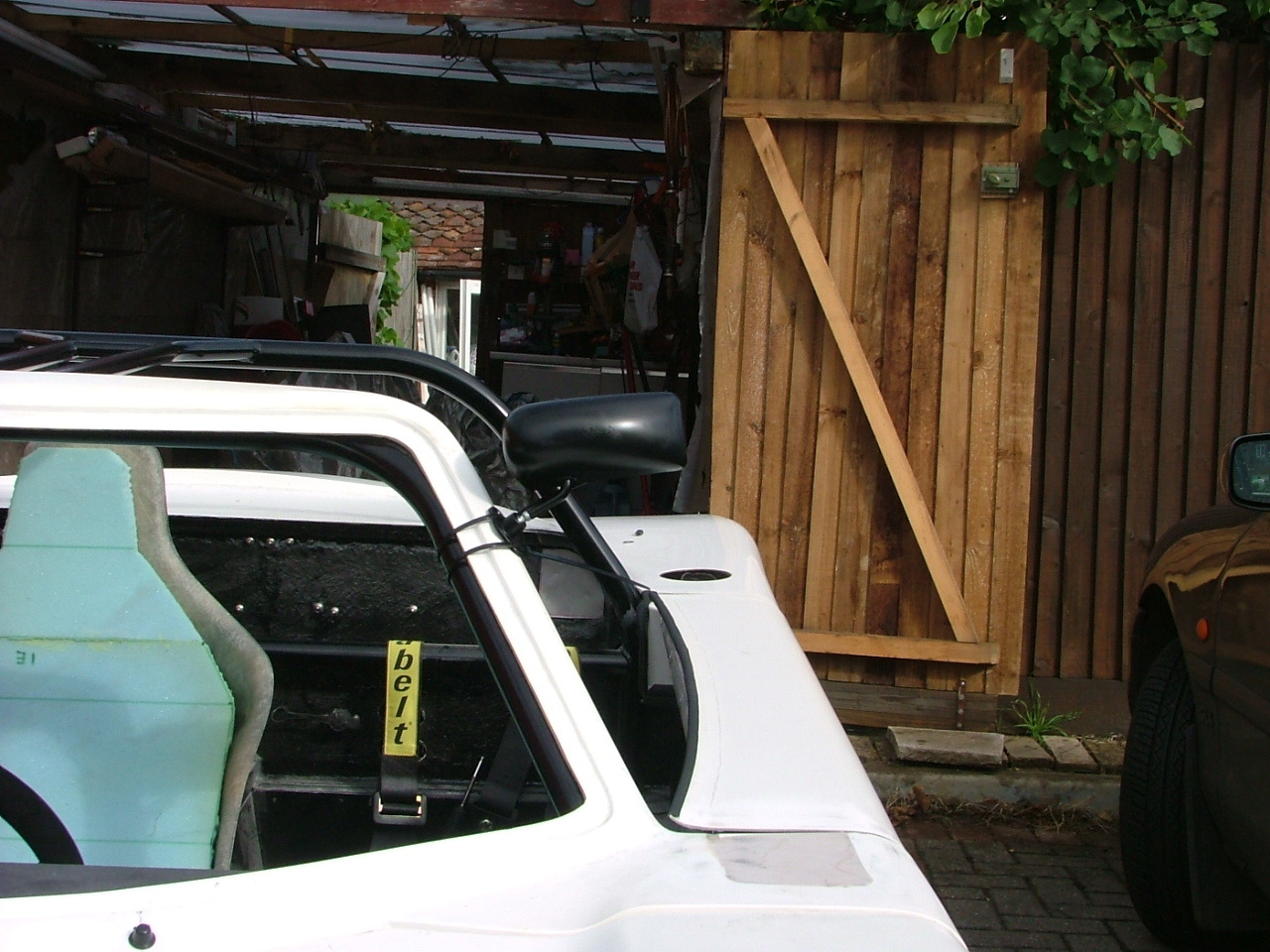

However, I'd need to bend the bar that comes with the wing mirror a bit, and also be careful of the door opening. As a result, I made my own poles, and proceeded to mount it like the demonstrator's mirrors:

Click to download

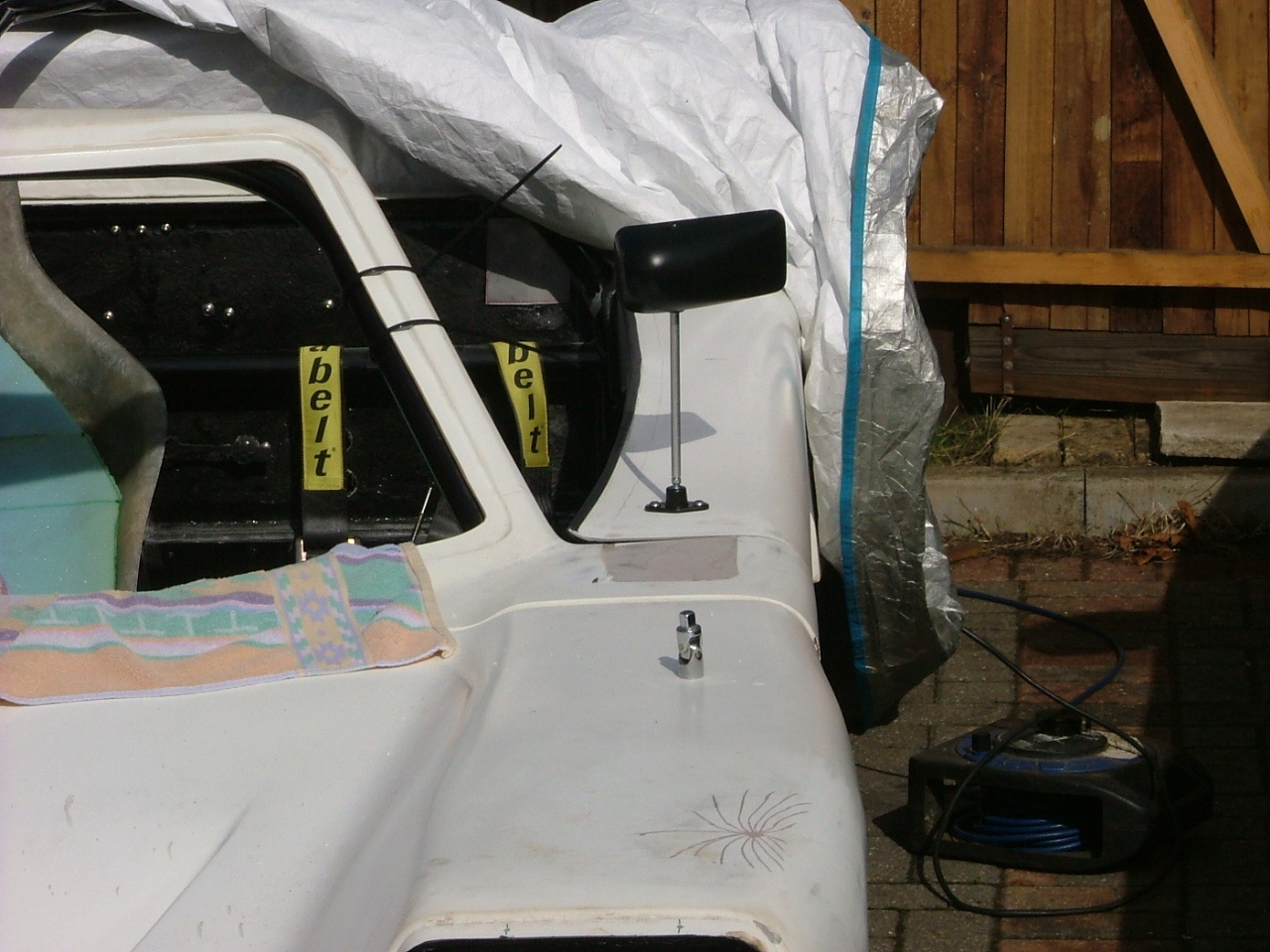

And attached to the body:

Click to download Click to download

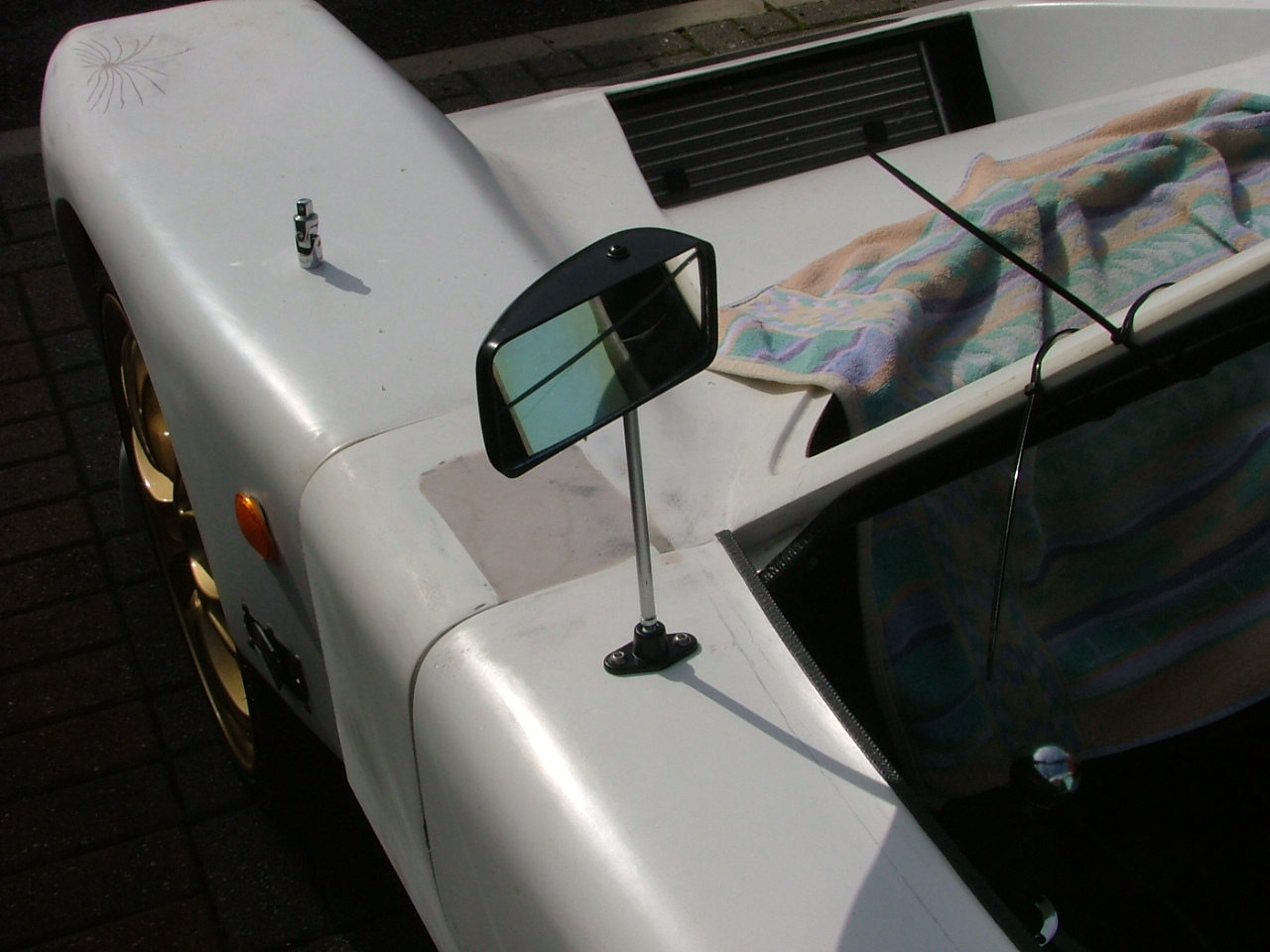

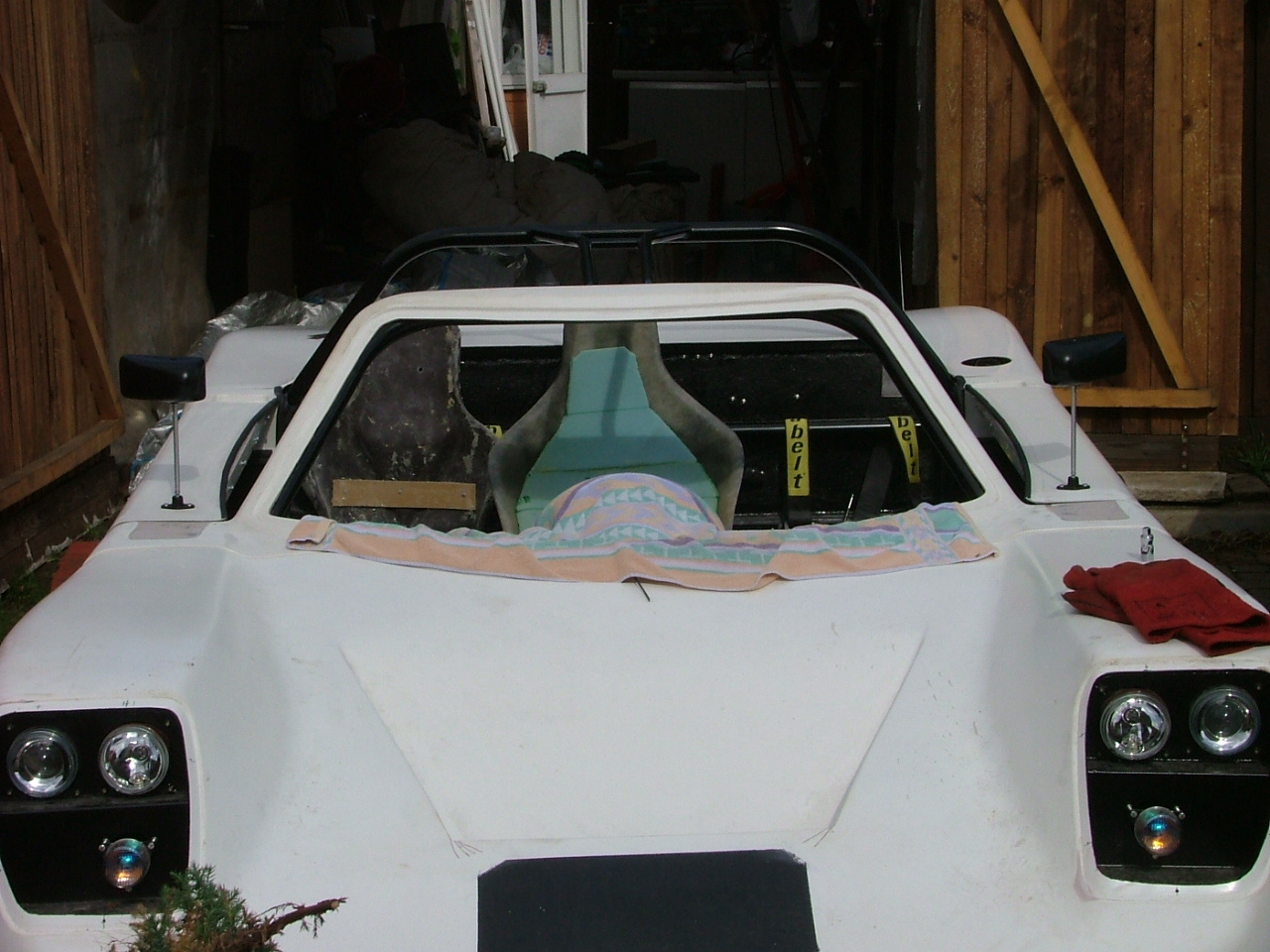

And then I did the other side:

Click to download Click to download

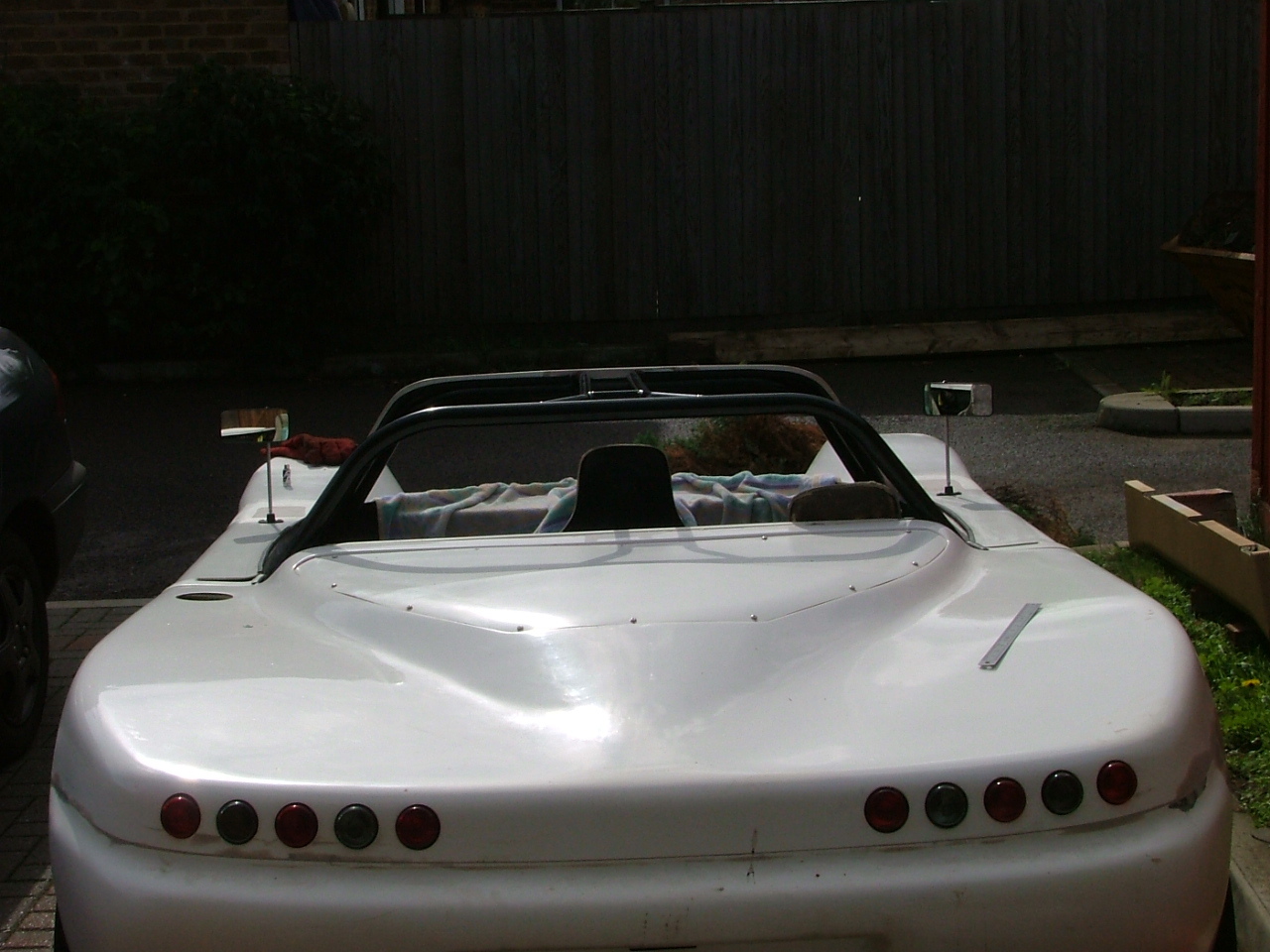

It's actually looking much more driveable now! So, to do the reflectors. These are from a 2003 VW Transporter:

Click to download

Initially, I was going to put them under the lights, but it looked very cramped. So, I put them on the bumper section (which is where they are on the Transporter as well):

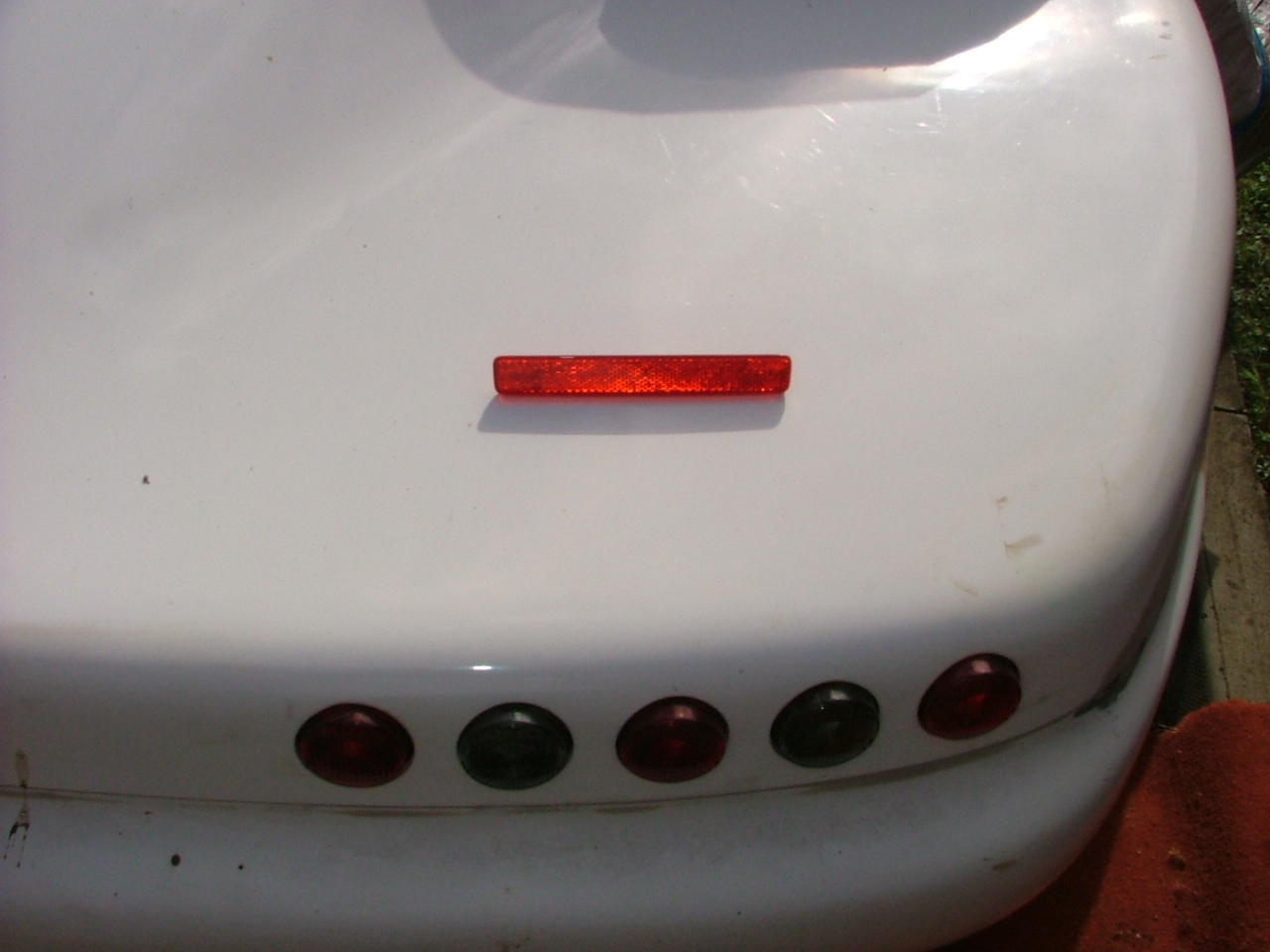

Click to download

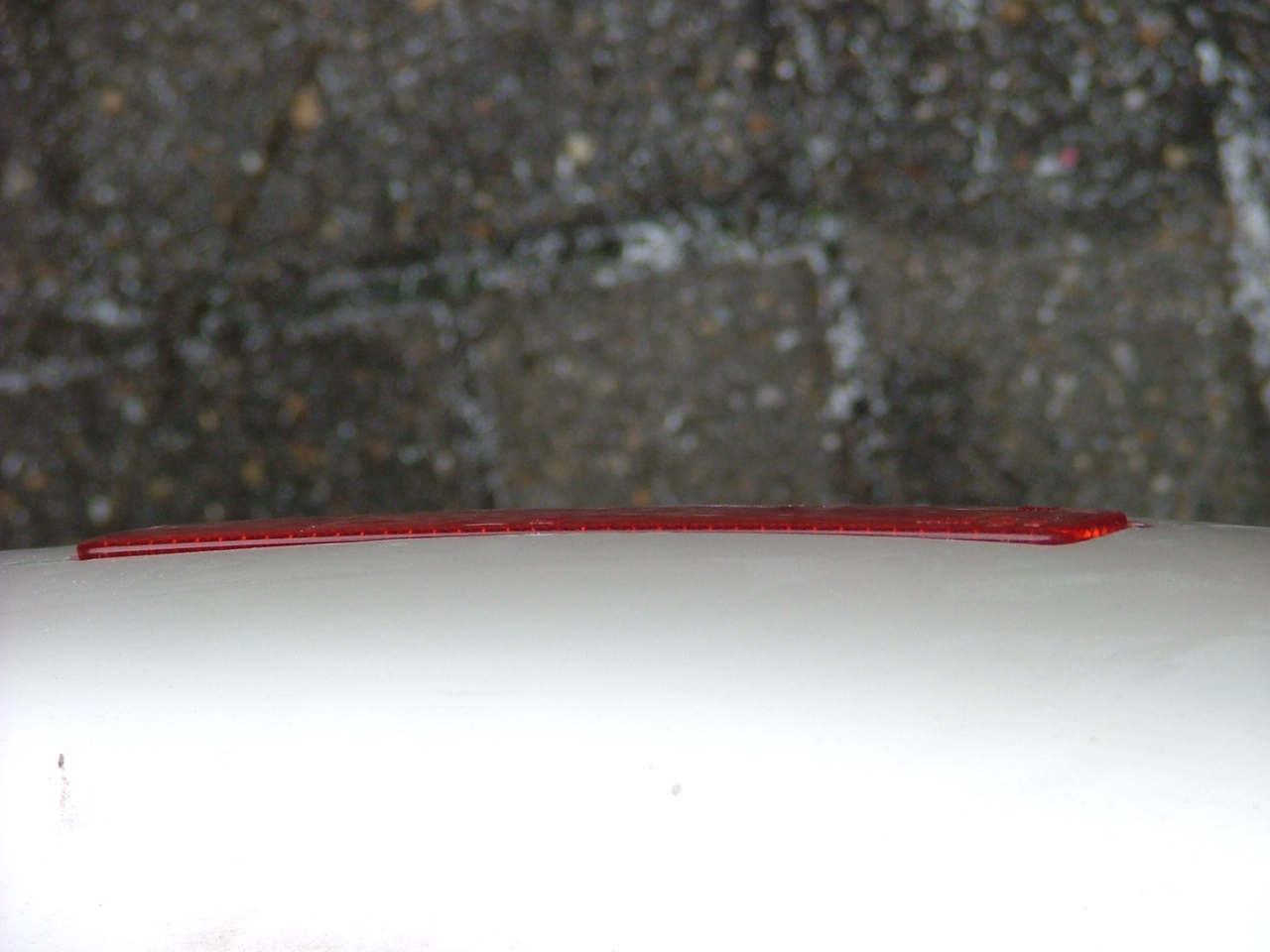

Now, there's two things wrong with this. Firstly, they're not quite level - the reason for this is that the pins that hold them aren't level. I didn't notice this until after I'd removed them from the bumper. Secondly, they're not central to the lights. This is actually more worrying; I'd measured it from the number plate section, which means that either the number plate hole is not central (and not my fault), or the lights aren't central (which is my fault).

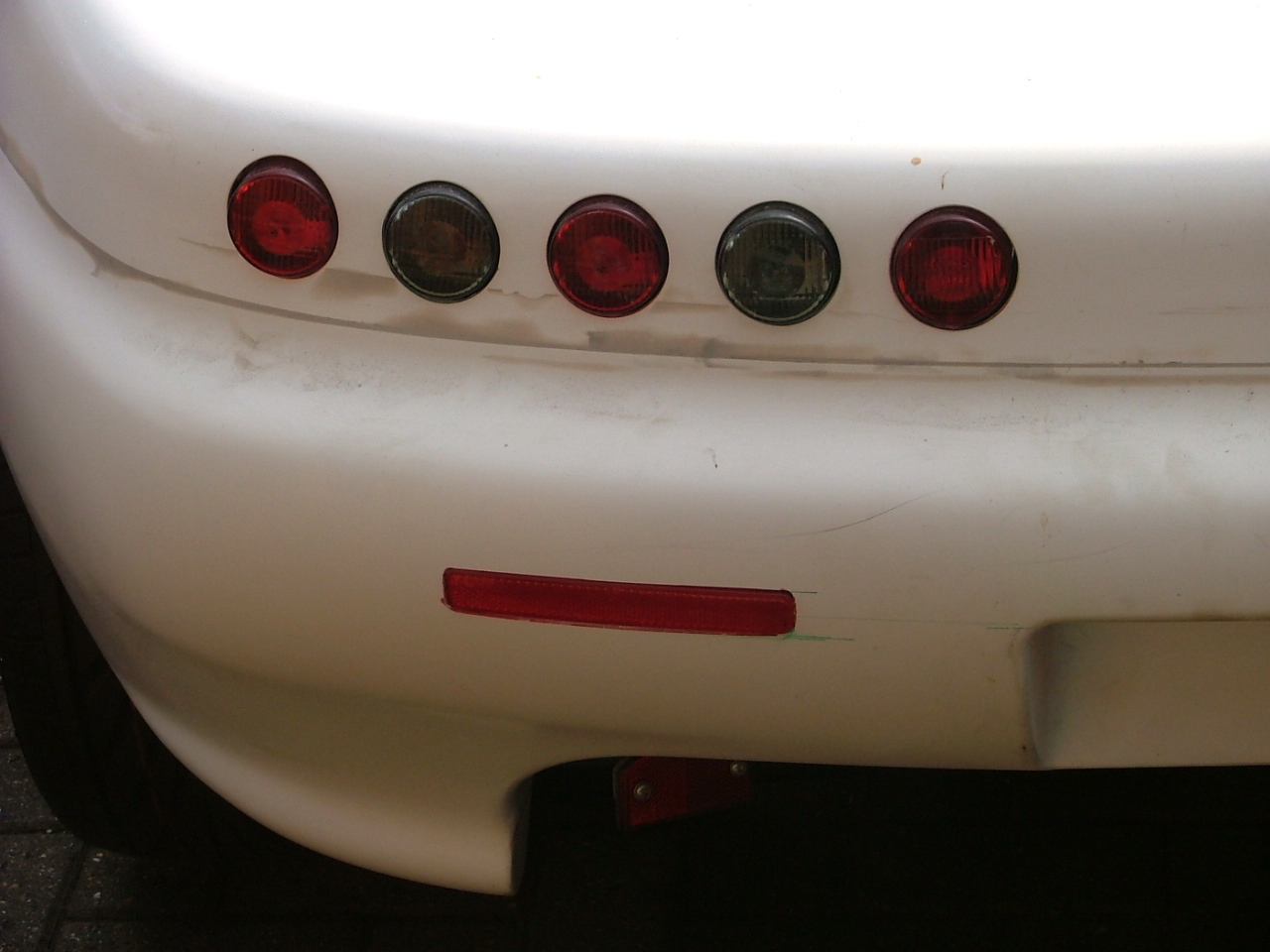

Moving the lights is now too difficult, so I decided to move the right hand reflector in a bit. I cut a hole the same shape and size of the reflector to allow me to inset the reflector - also like the Transporter!

Click to download Click to download

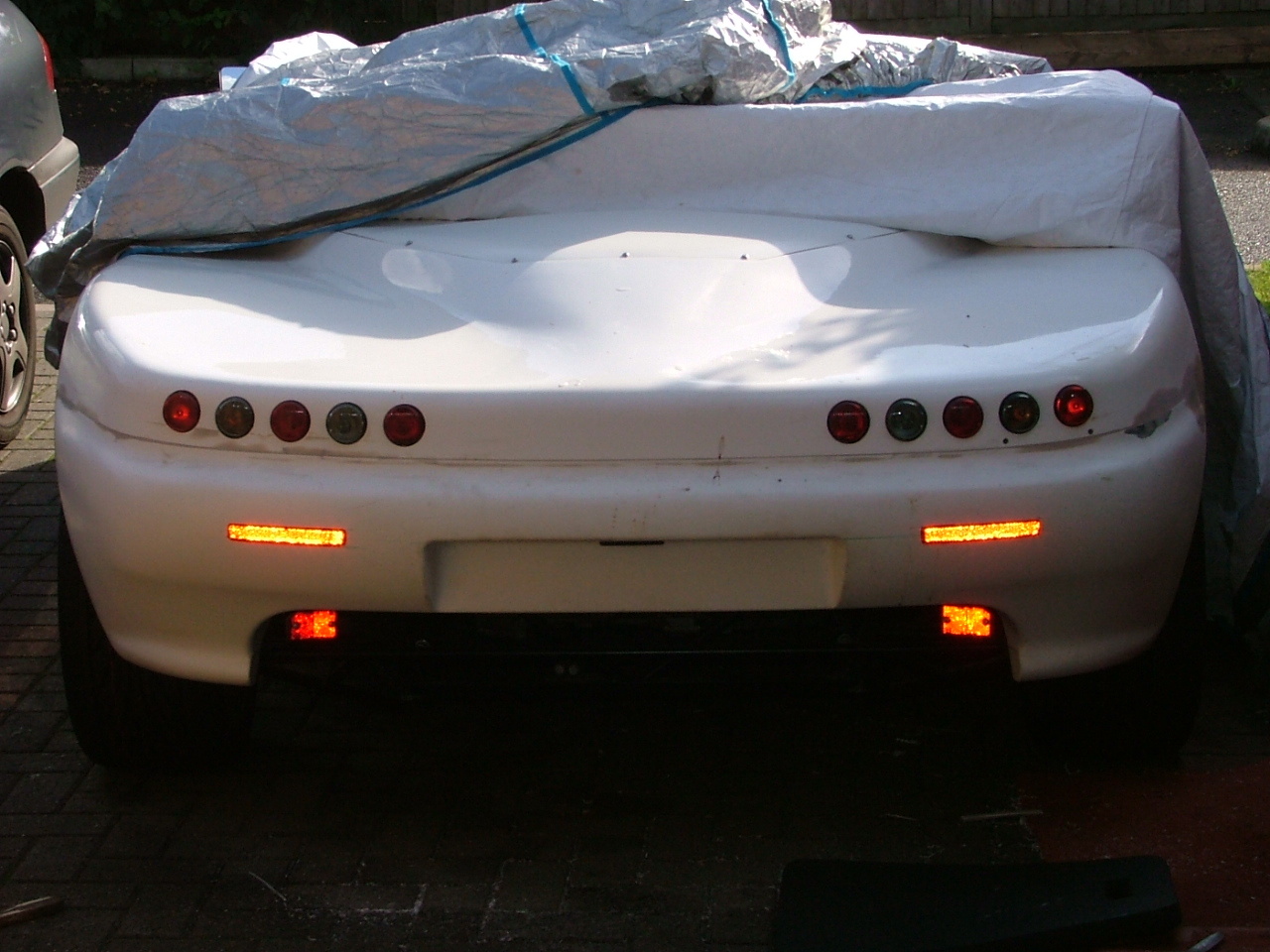

I then took a picture with the flash:

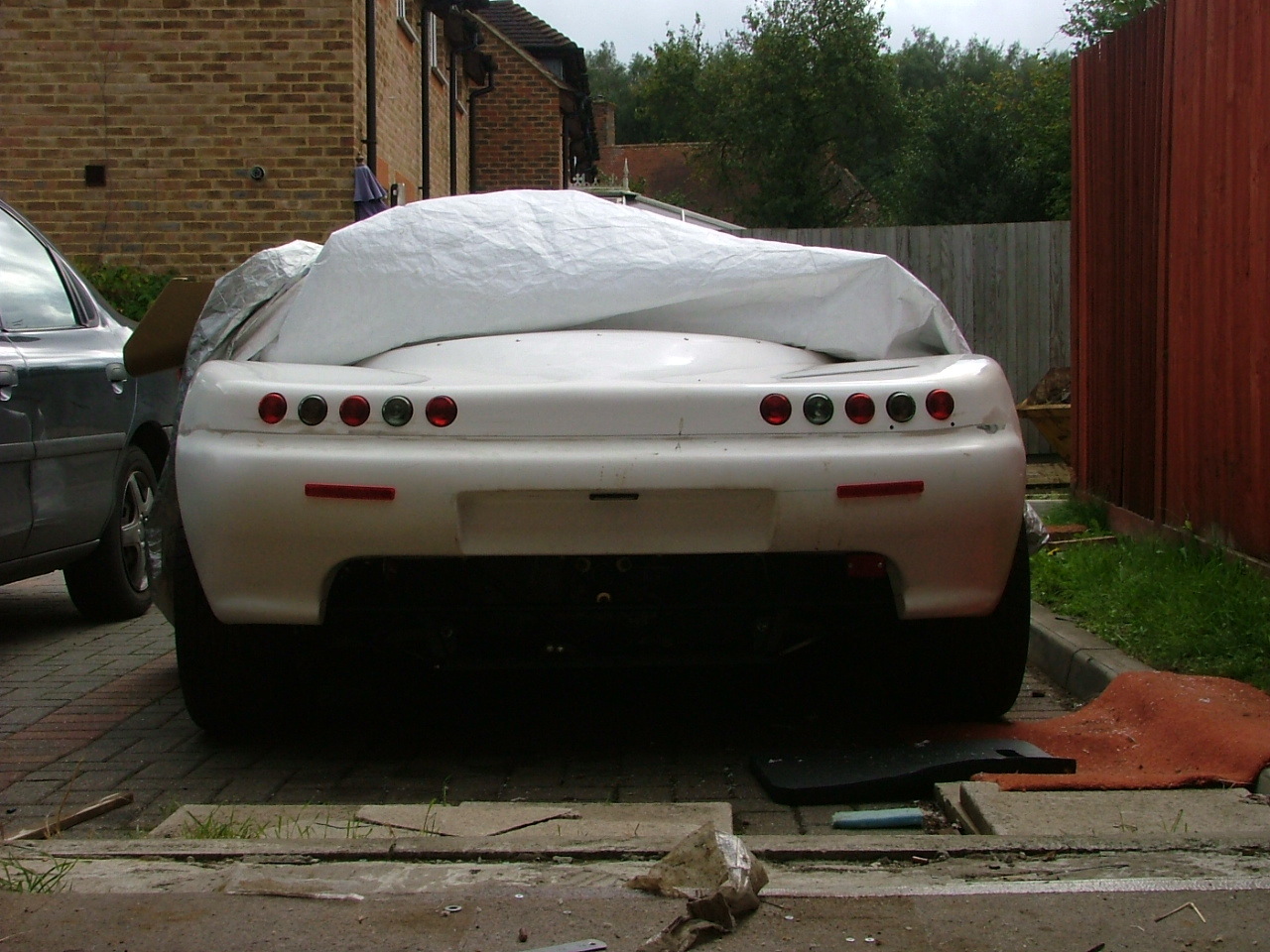

Click to download

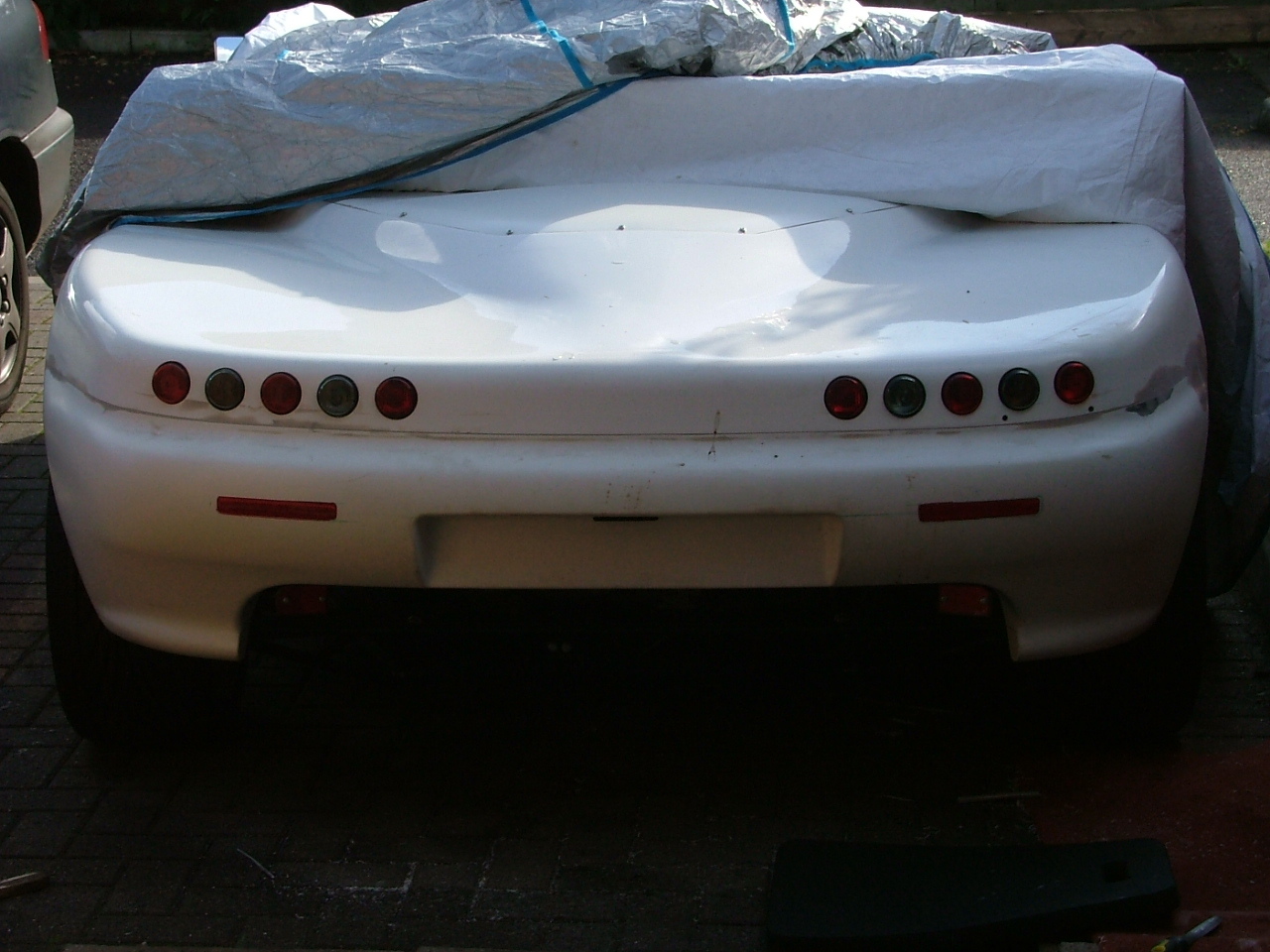

And also without:

Click to download

Oh, in case you're wondering, the earlier reflectors are in the wrong place (too far away from the sides).

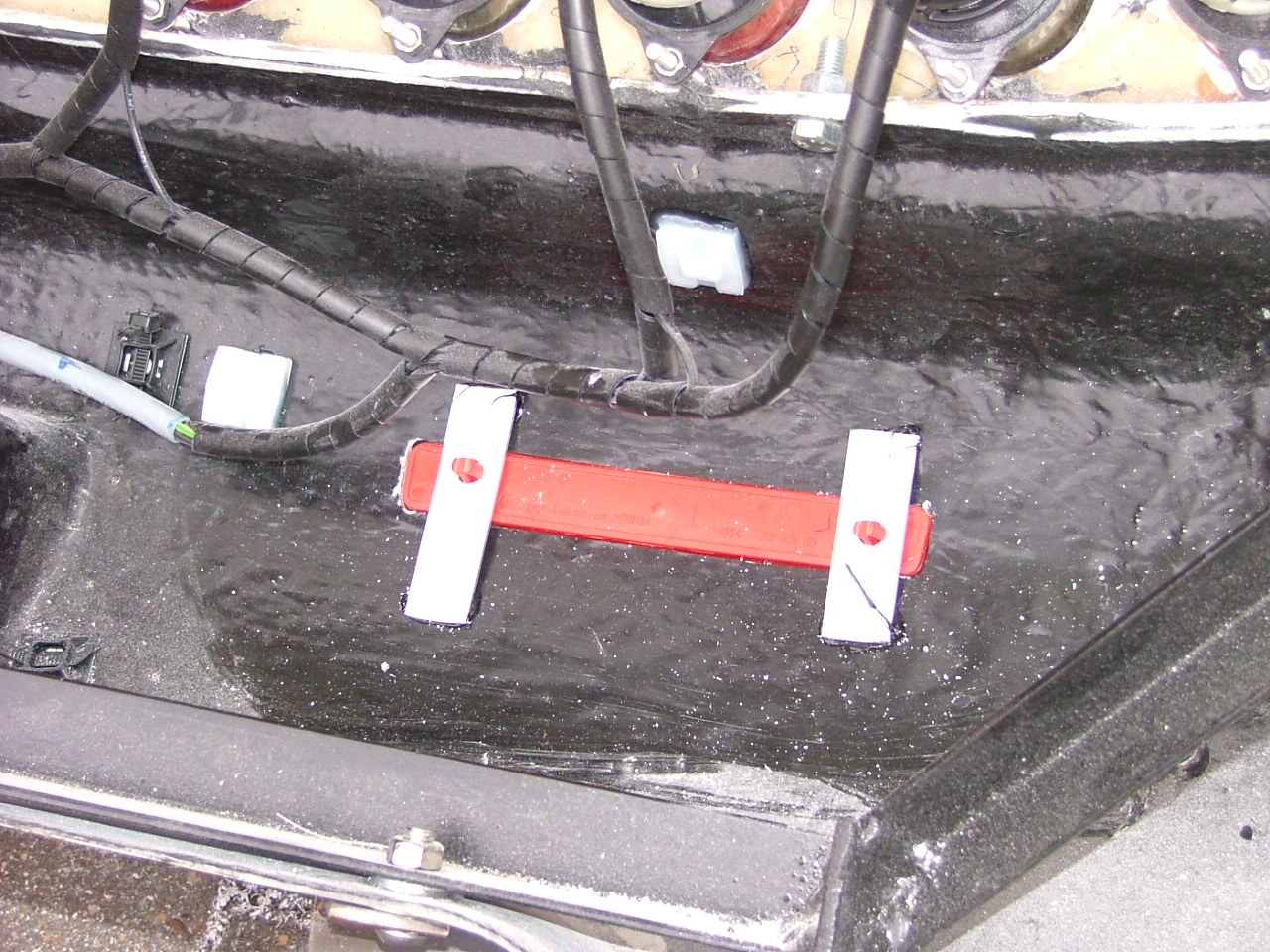

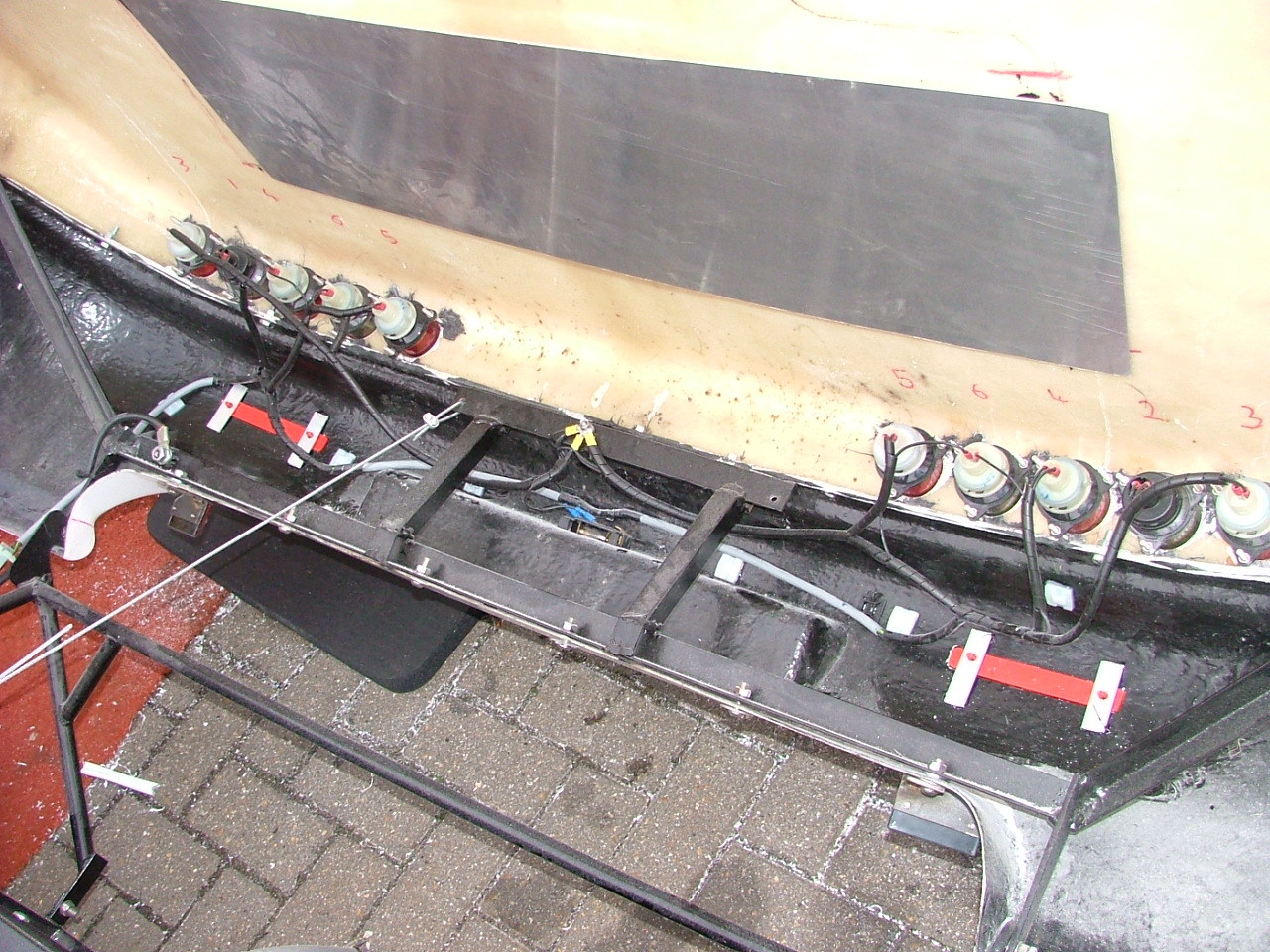

I then cut some aluminium lengths out, drilled some holes, and sikaflexed it down (I'll put some GRP over it later on):

Click to download

While I had the rear section open, I glued some special cable tie holders that are designed to be glued with epoxy resin in place. They've got teeth-like grips on the underside, and won't budge (assuming the epoxy holds):

Click to download
