Day 119 - Seat frames

Eventually (no thanks to the delivery company that was meant to deliver the seat frames on Saturday), they arrived, so I set about modifying the frames to fit.

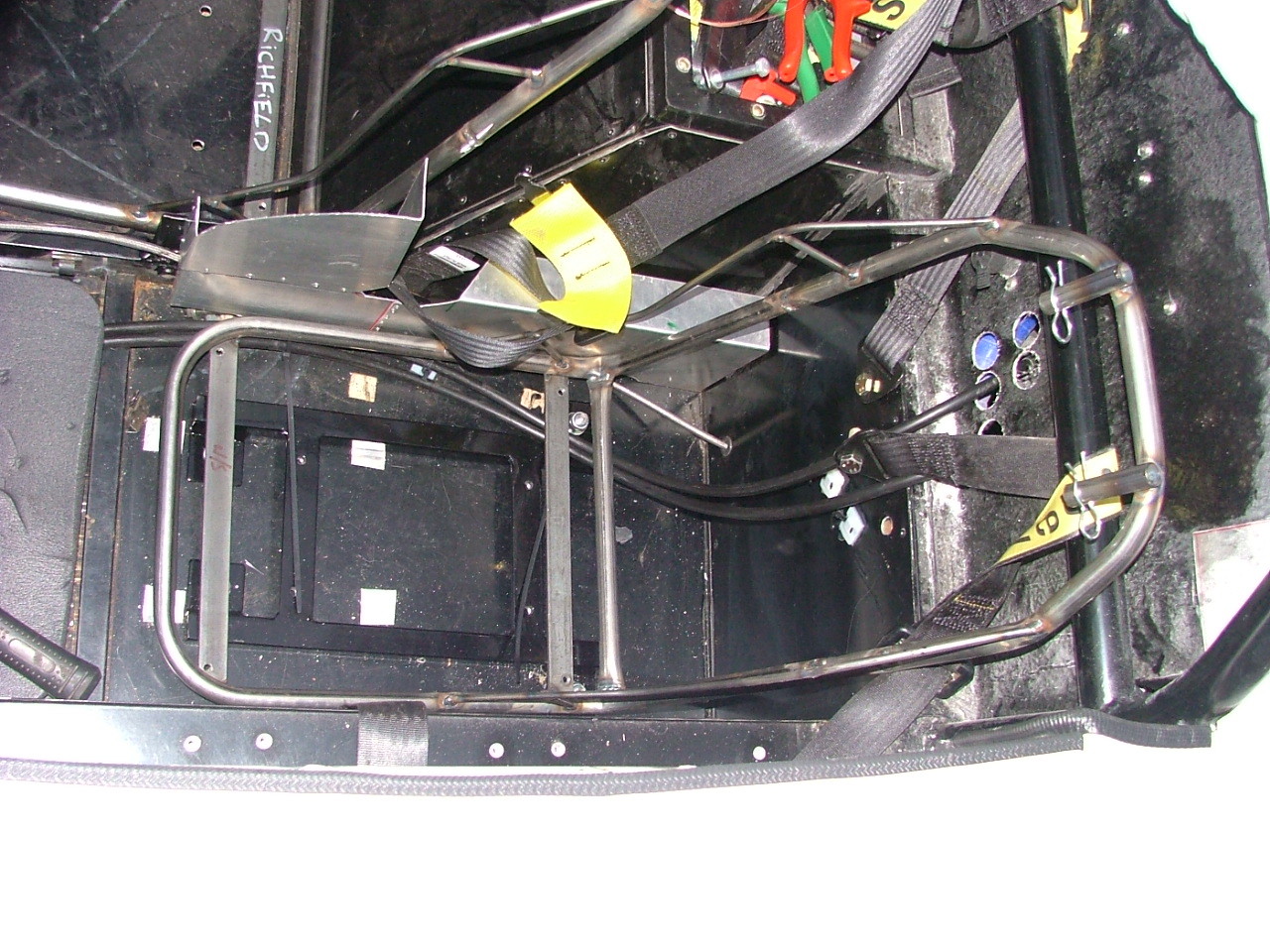

First of all, I called Richfield up to see how the headrests fitted. They go vertically, so I can move the seat pretty far back.

Click to download

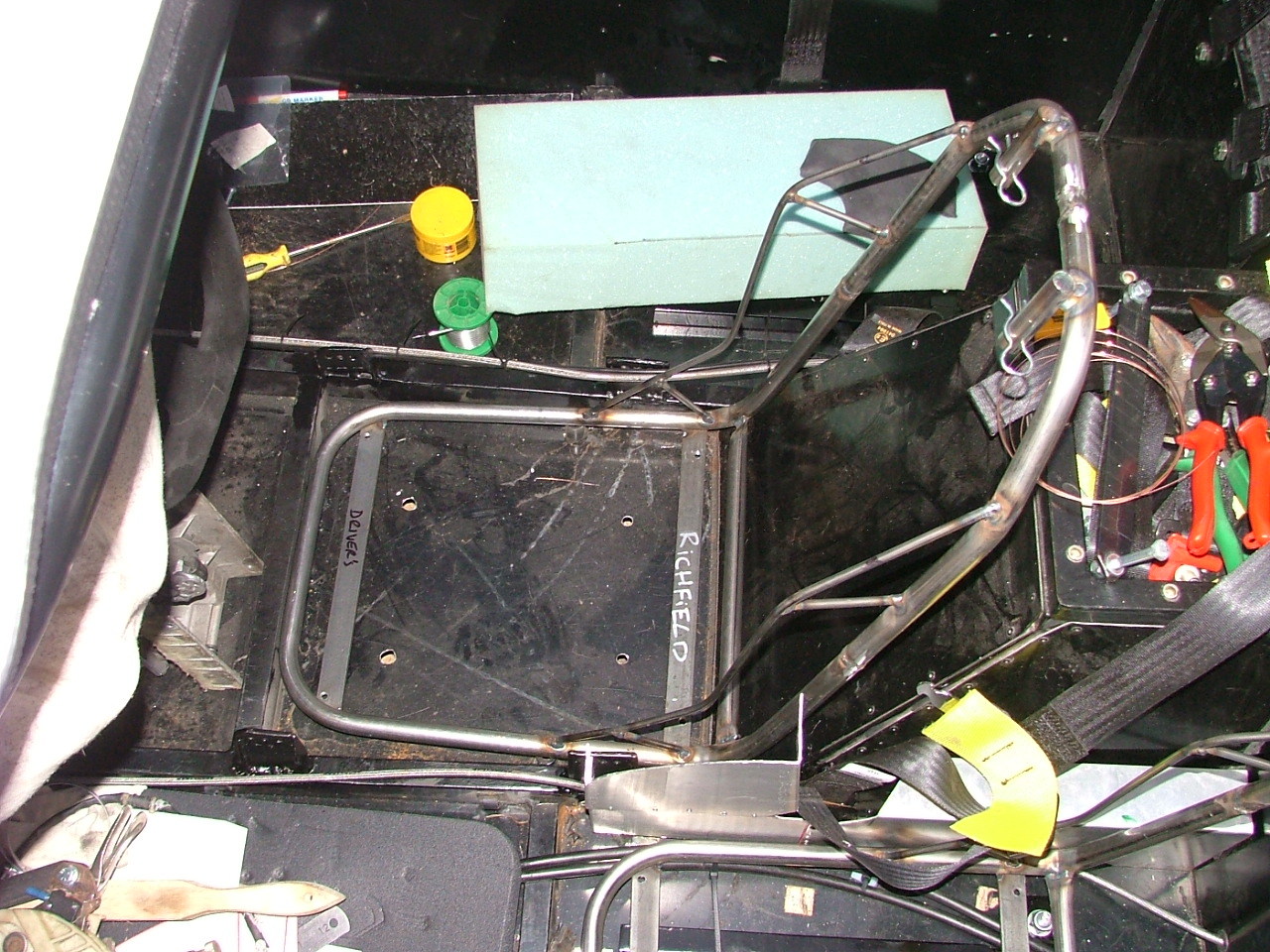

I also put the driver's seat roughly in place, to see how it goes together.

Click to download

I replaced the nylocks on the seat mounts, and welded captive nuts in place - this is for two reasons:

  1. The bars going across the width of the seat go over the nuts
  2. They would be difficult to get to with the seat in place

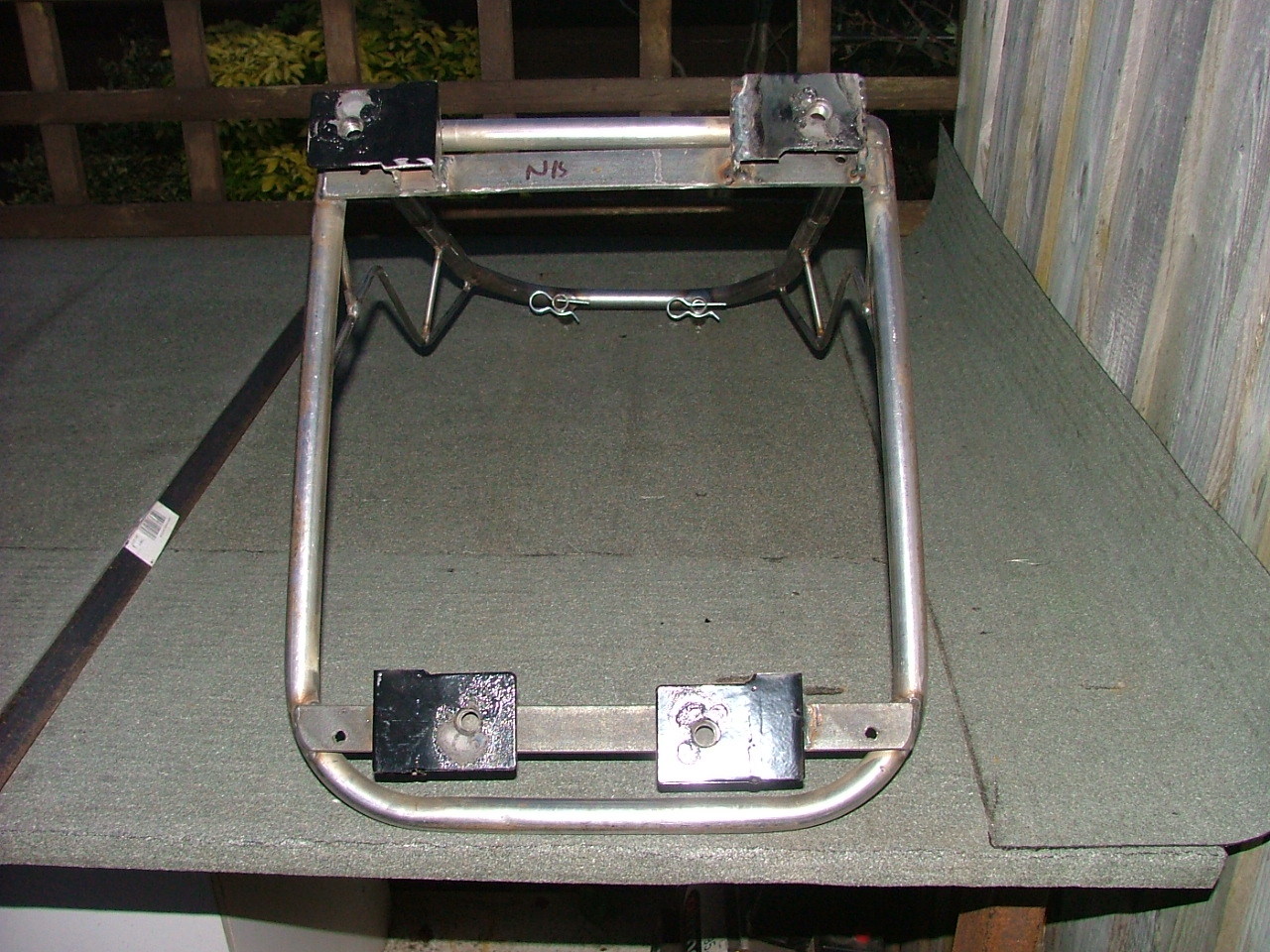

I welded the seat frame to the mounts, and cut away the bits that aren't necessary:

Click to download

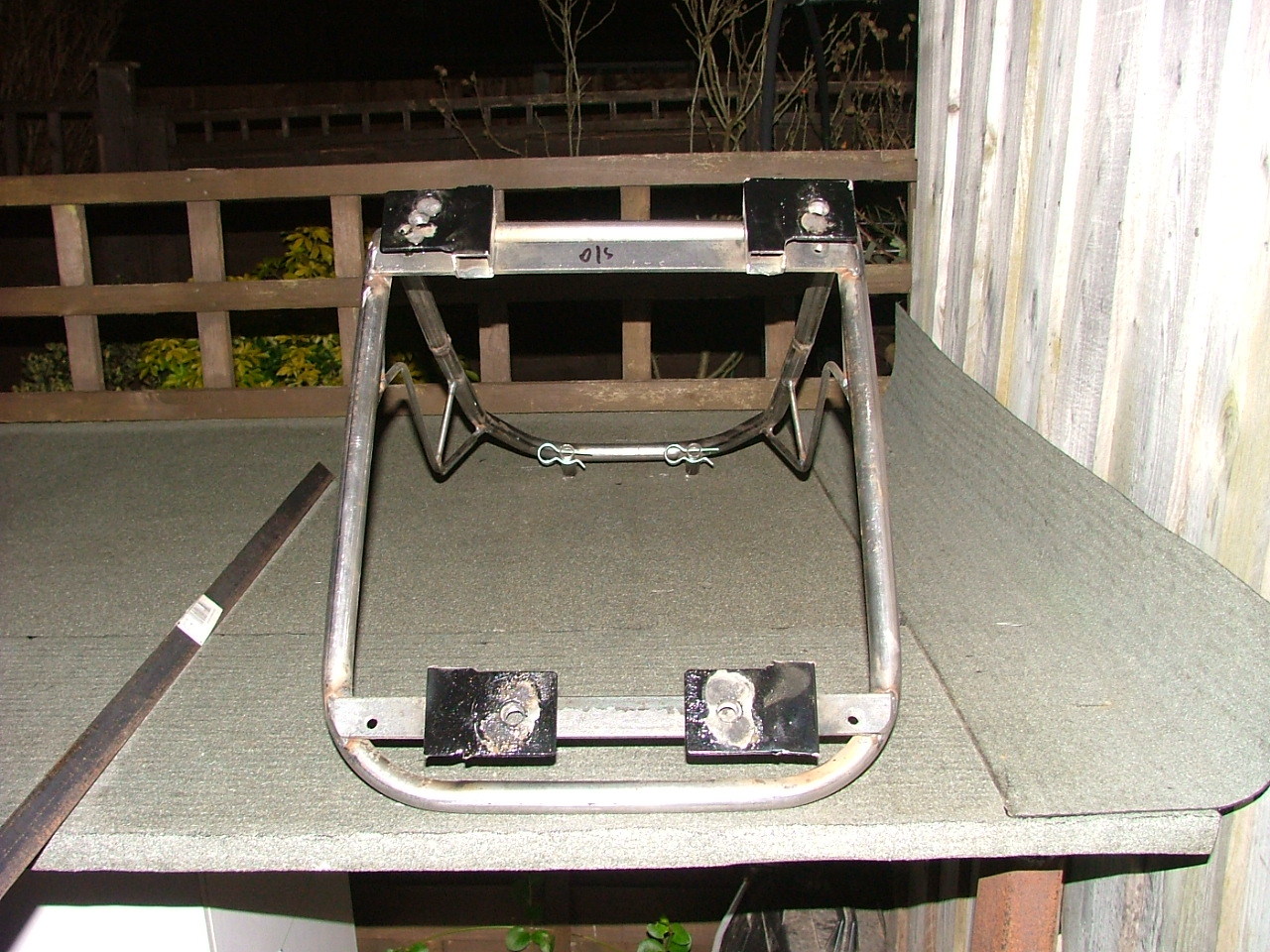

And I did the other side (which wasn't easy as the car was in the garage, and it made it difficult to undo the other bolts)

Click to download

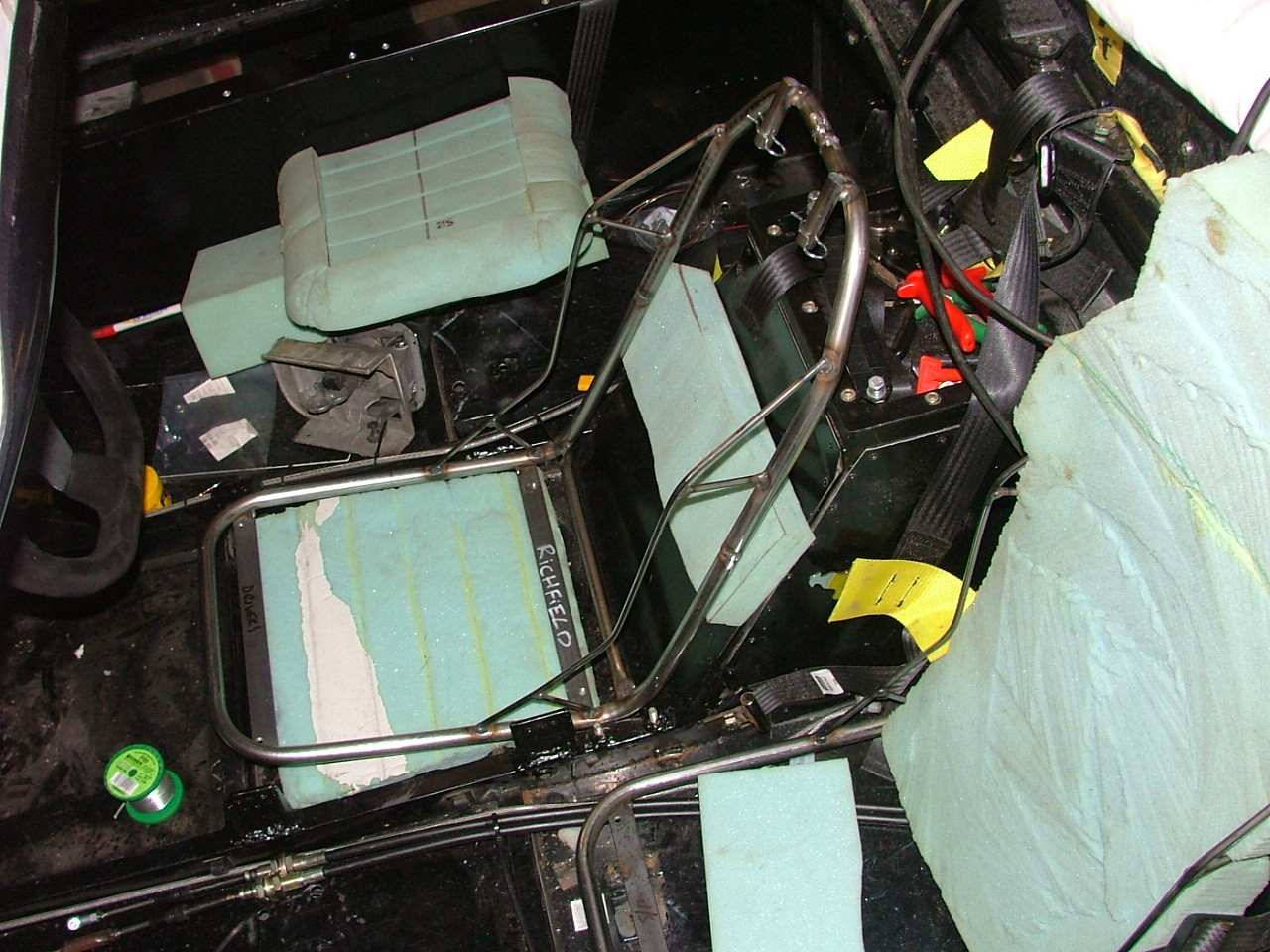

With the passenger seat in place, I used a bit of foam to work out the optimum place for the driver's seat. Since it's narrower than the Aeon GRP seat, it can move a little back in order to give me a bit more leg room.

Click to download

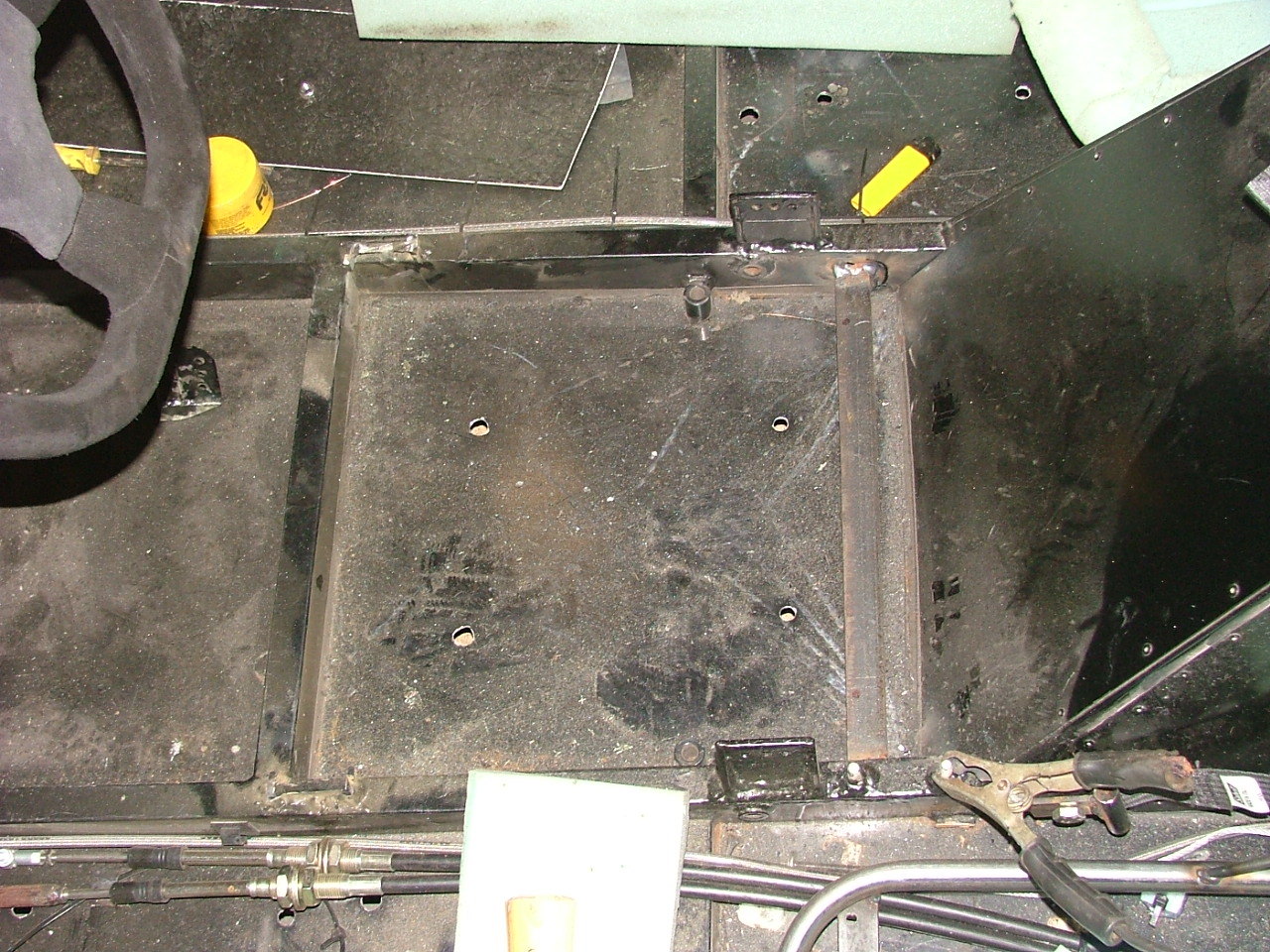

I then welded a length of right-angle steel to the chassis in order to take the rear bar (it's not terribly clear, I'm afraid).

Click to download

I called it a night - it's now quite dark (and reasonably cold - although the heater I used last year was working better than I thought in my garage).

Tomorrow, I'll do the front part, and on Wednesday, I'll go up to Richfield to drop off the seats (and pick up the GRP frames).
