Day 13 - Rear end and demisting

Rear end

I hadn't fitted the rear end hinge because it makes the car a little long. However, I decided to do it as a precursor to wiring the lights.

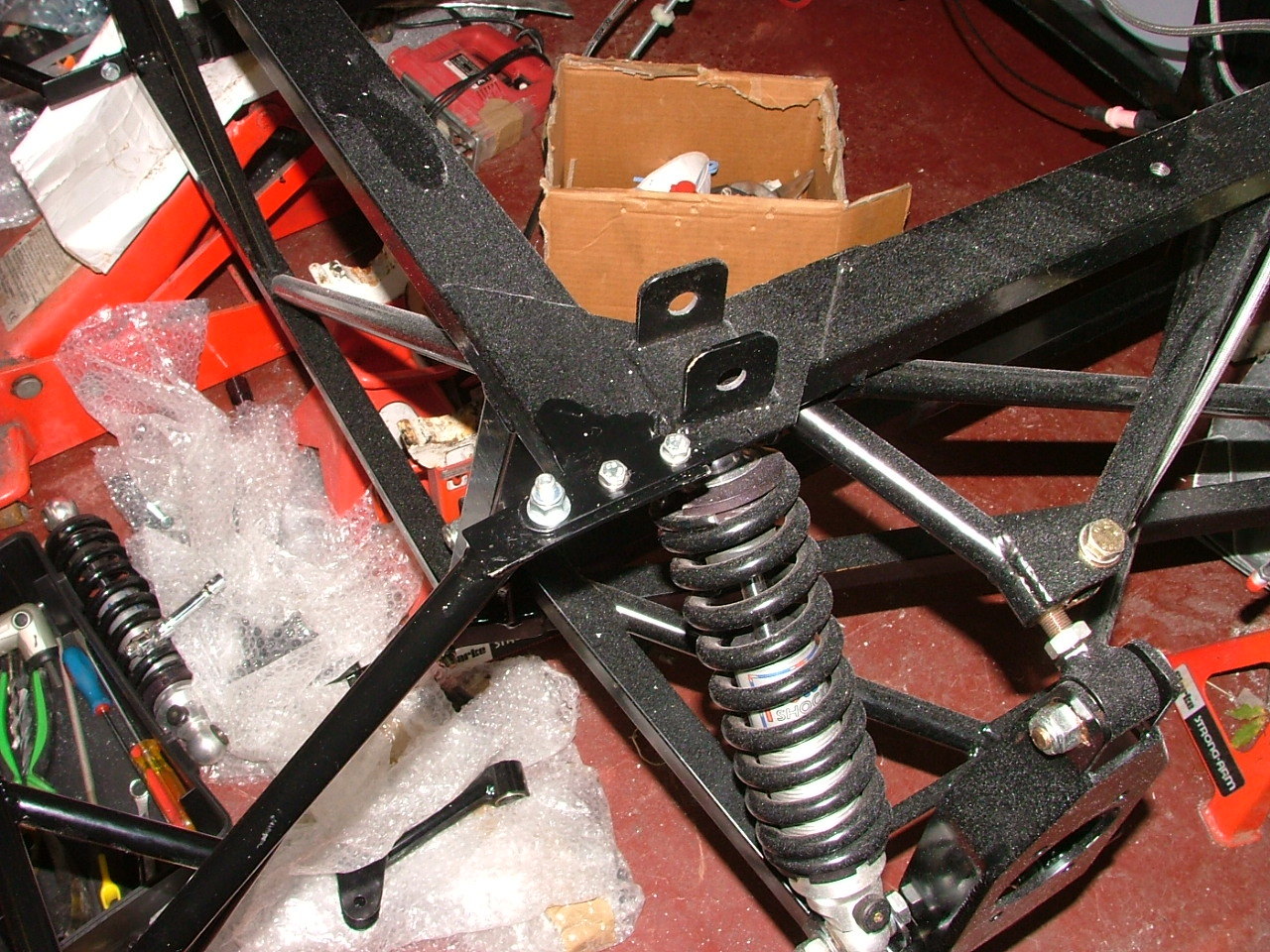

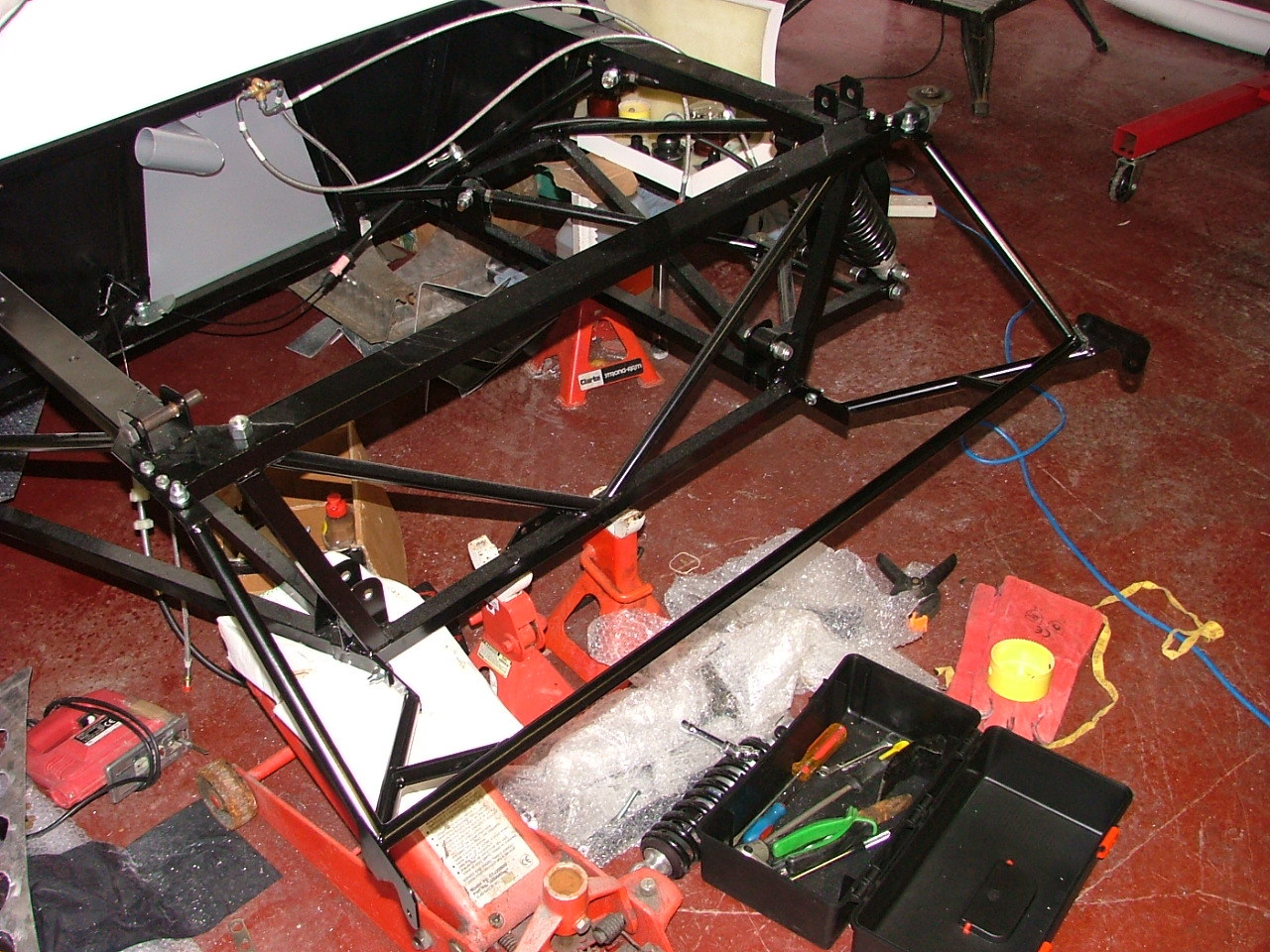

The first thing to fit was the hinge attachment to the chassis. Drilling 8 holes enabled it to fit the chassis.

Click to download Click to download

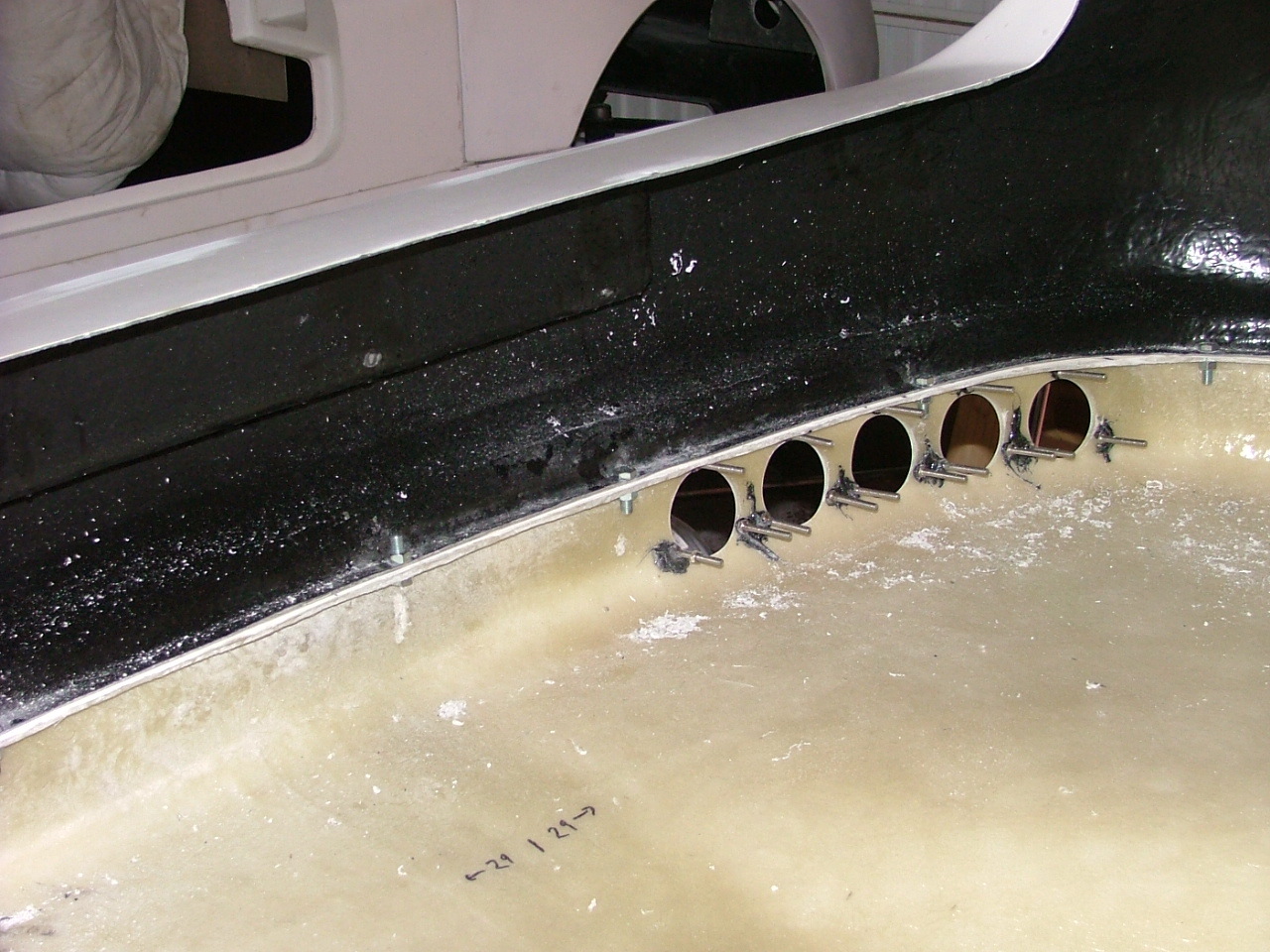

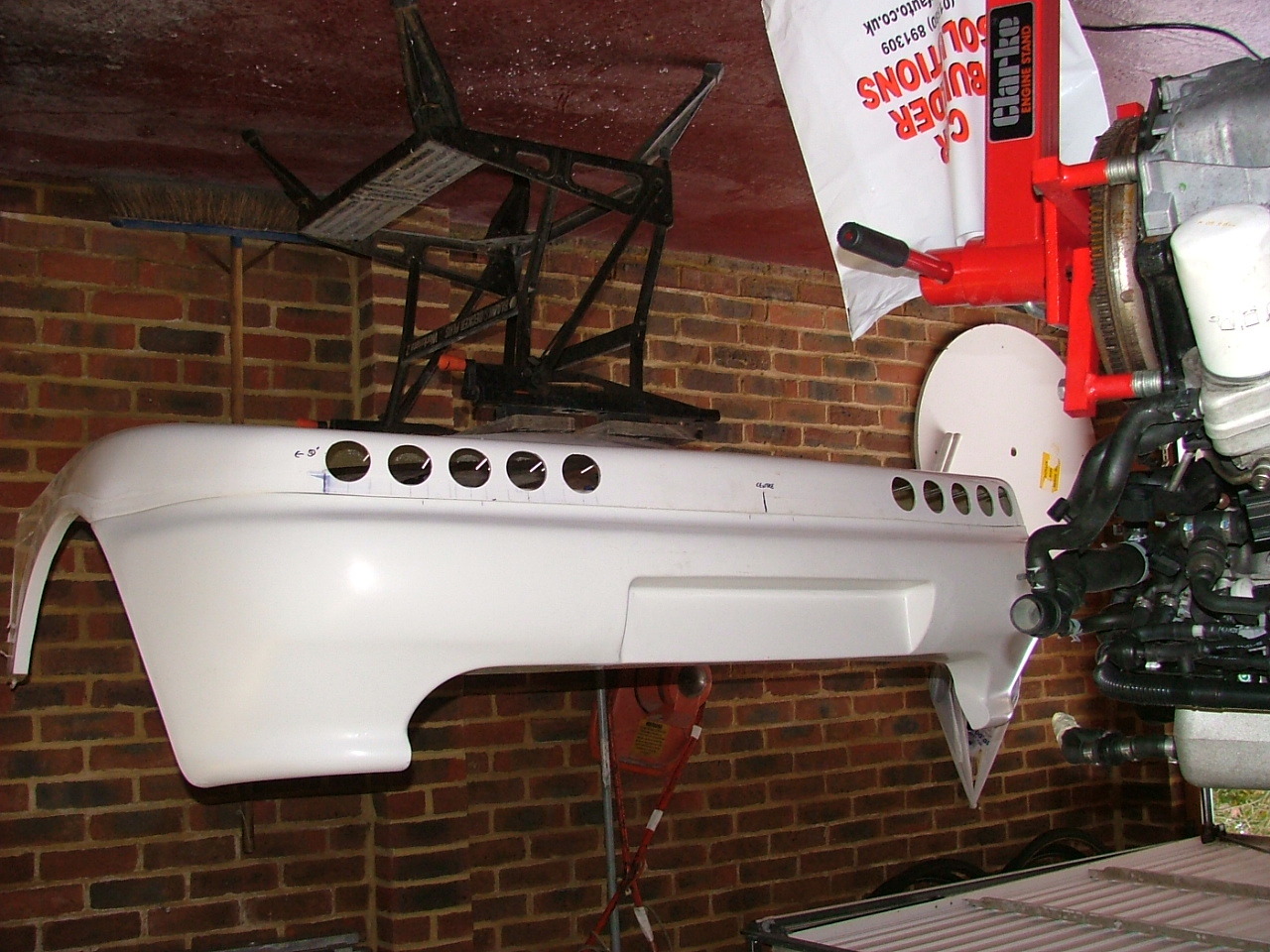

Next, the lower part of the rear section was bolted to the top part, prior to Sikaflexing the two together.

Click to download

Note that this picture is actually upsidedown!

Click to download

Demisting

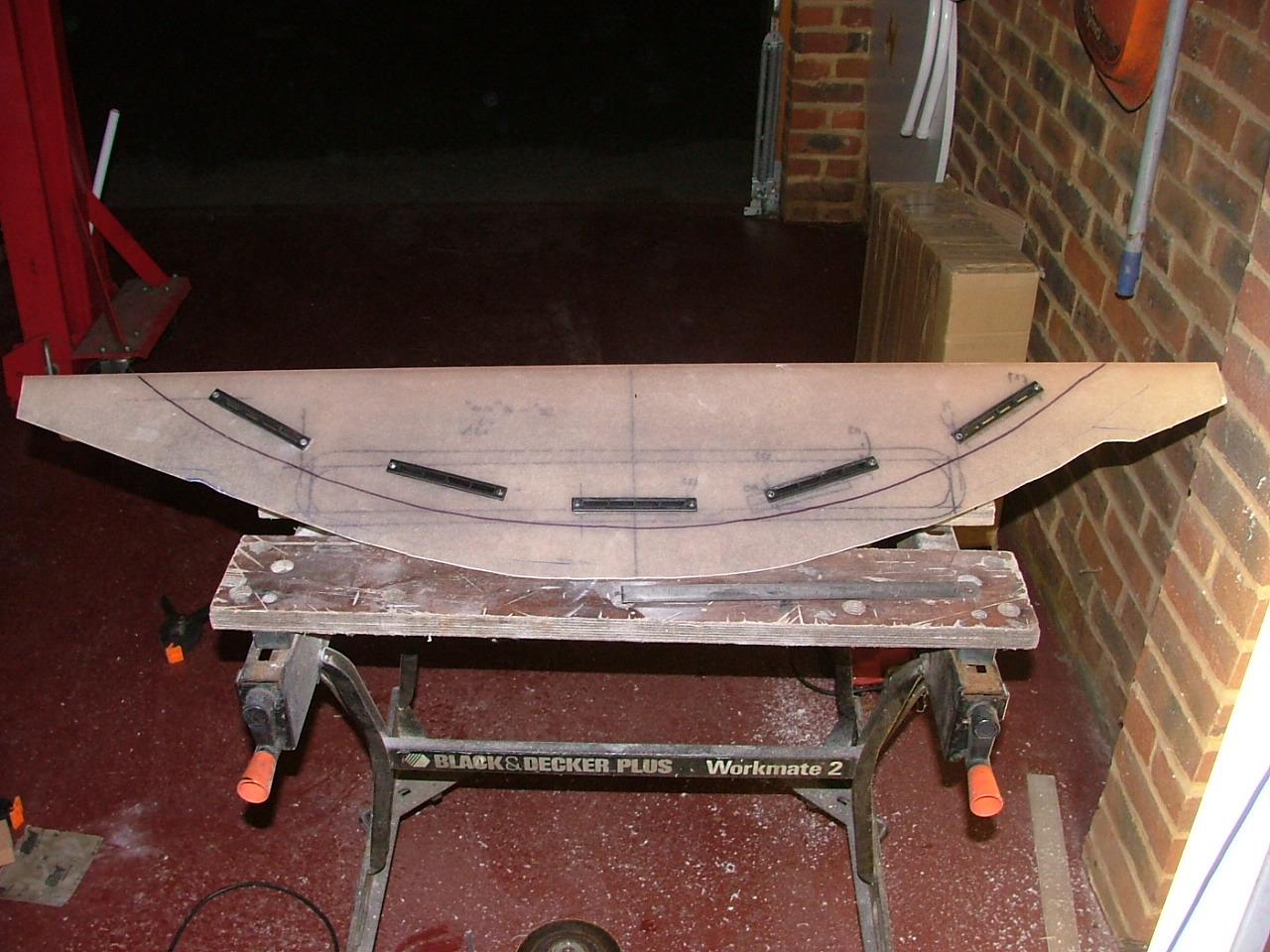

I drew around the base of the windscreen to give me the location for the demisting vents I'd bought earlier from Car Builder Solutions.

Click to download

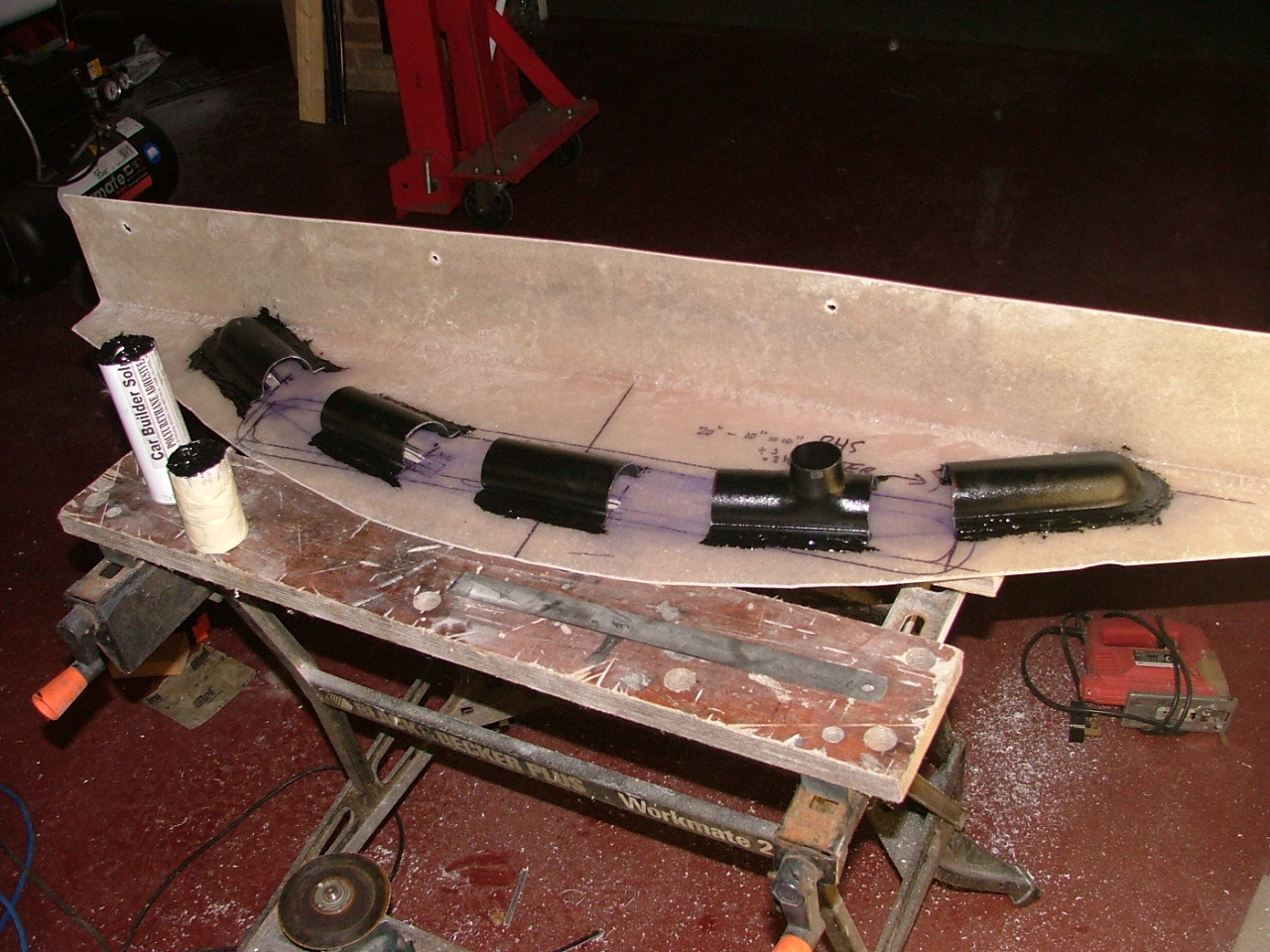

I then bonded a cut up demister plenum to the underside.

Click to download

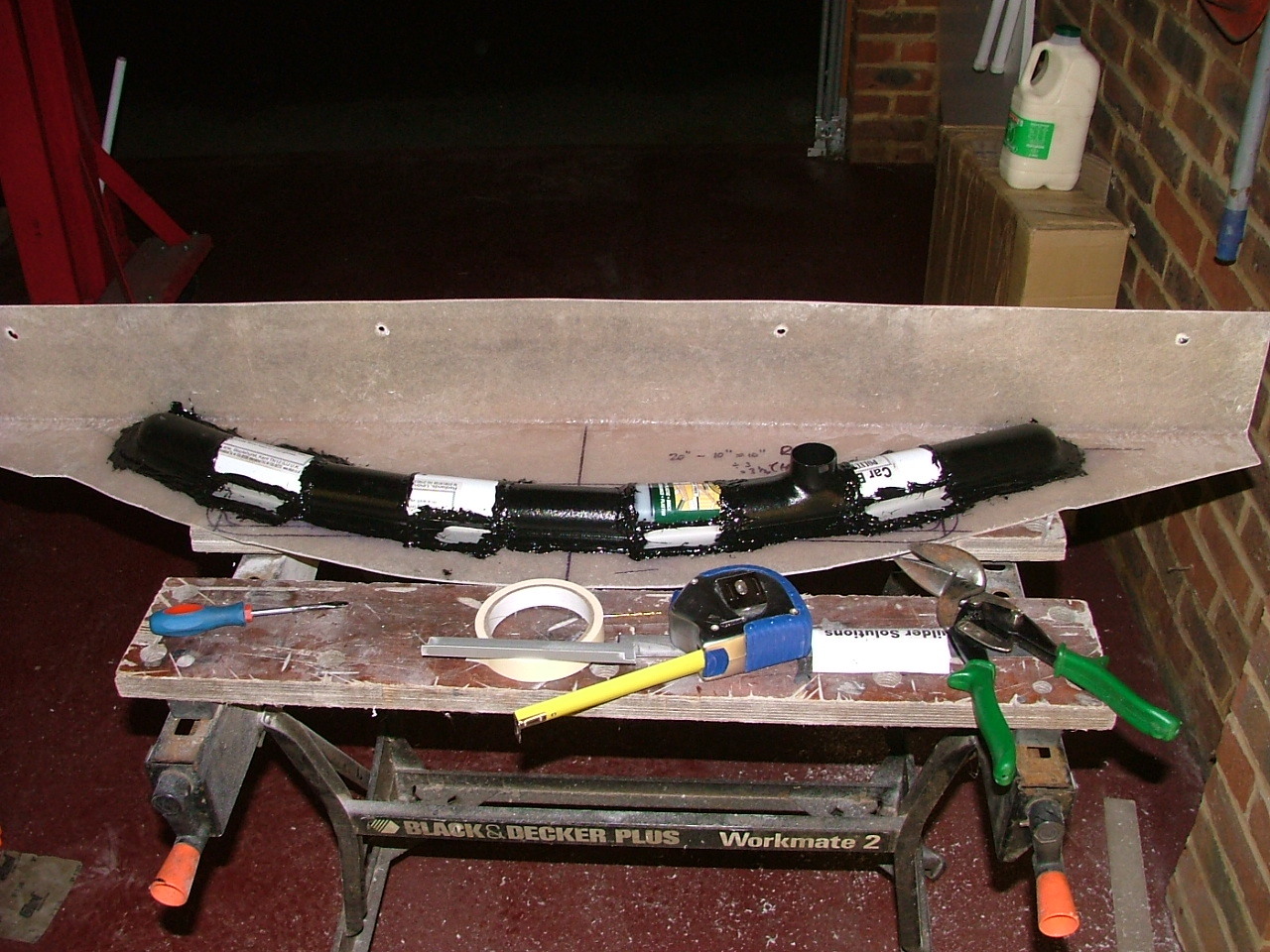

And then 'filled the gaps' with old bits of glue tubes (they're close to the same size). I'll paint it black later on to hide them.

Click to download

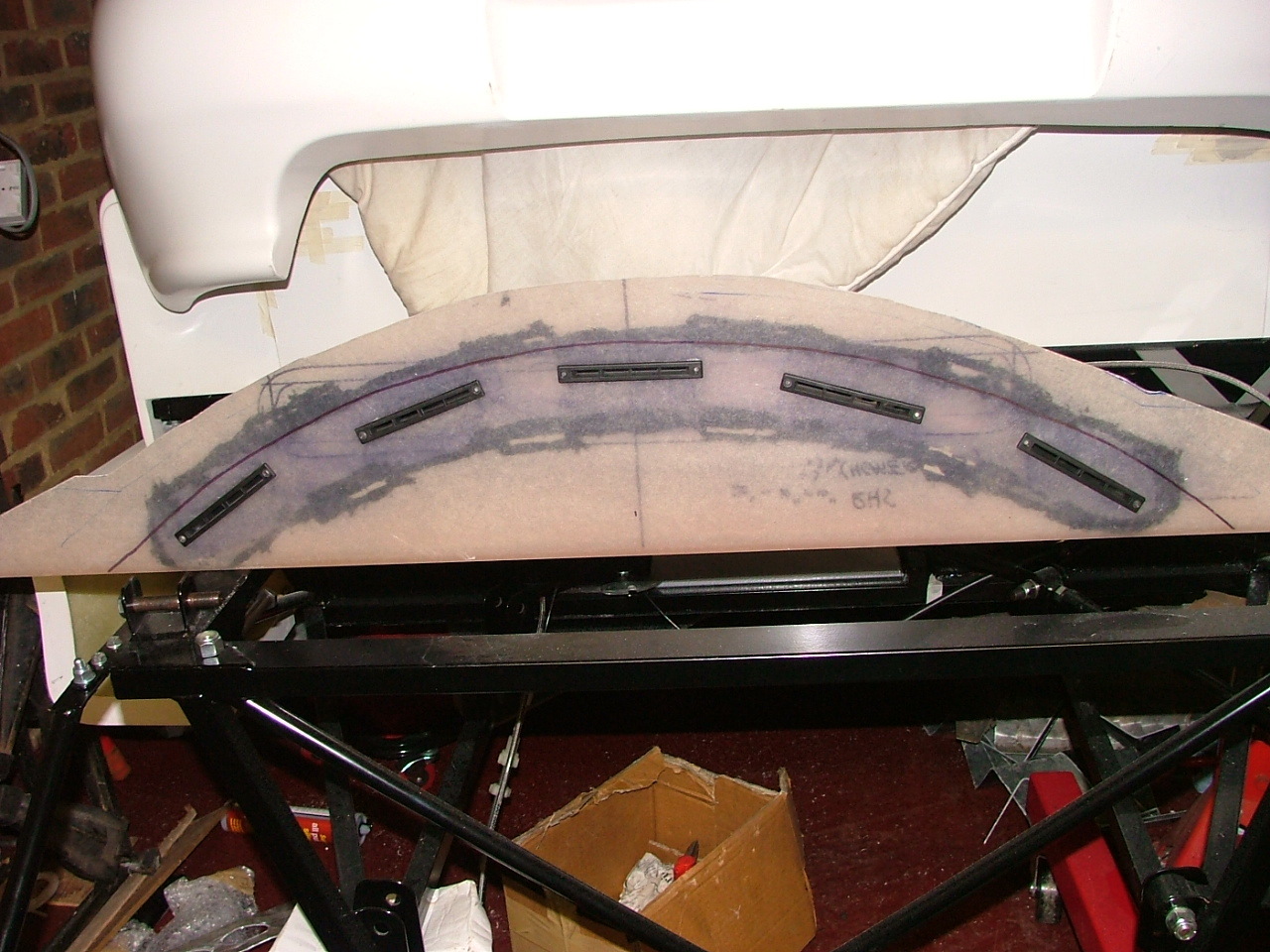

And from the other side (again). When it's painted, you won't see any of the bonding glue!

Click to download

I may have to move the inlet valve, as it's immediately above one of the vents - it all depends on how powerful the fan is.

Packing up

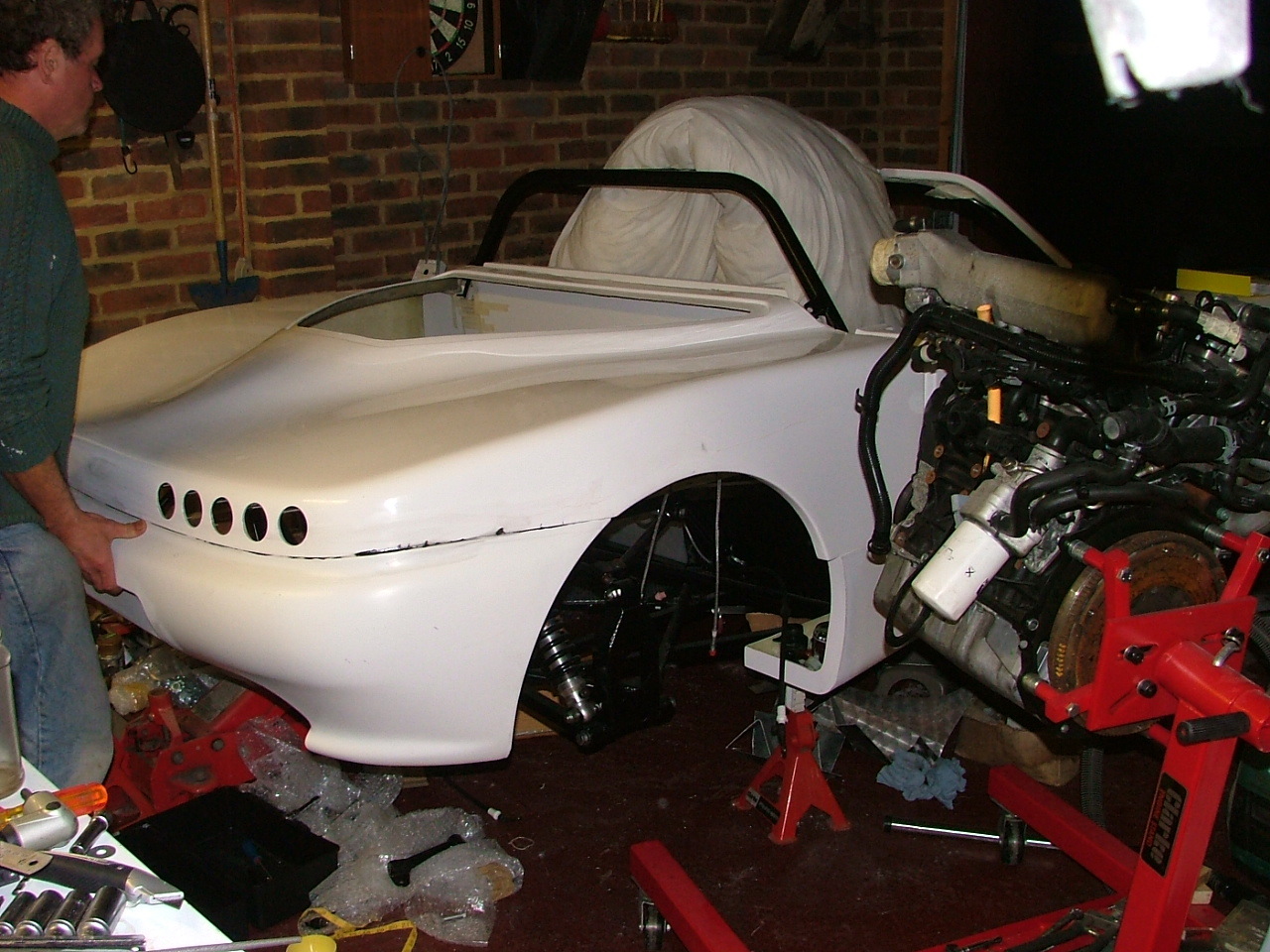

With the help of a neighbour of mine (Mark), I was able to take a picture of the rear end roughly in place.

Click to download
