Day 23 - Heater mounts and doors

Heater mounts

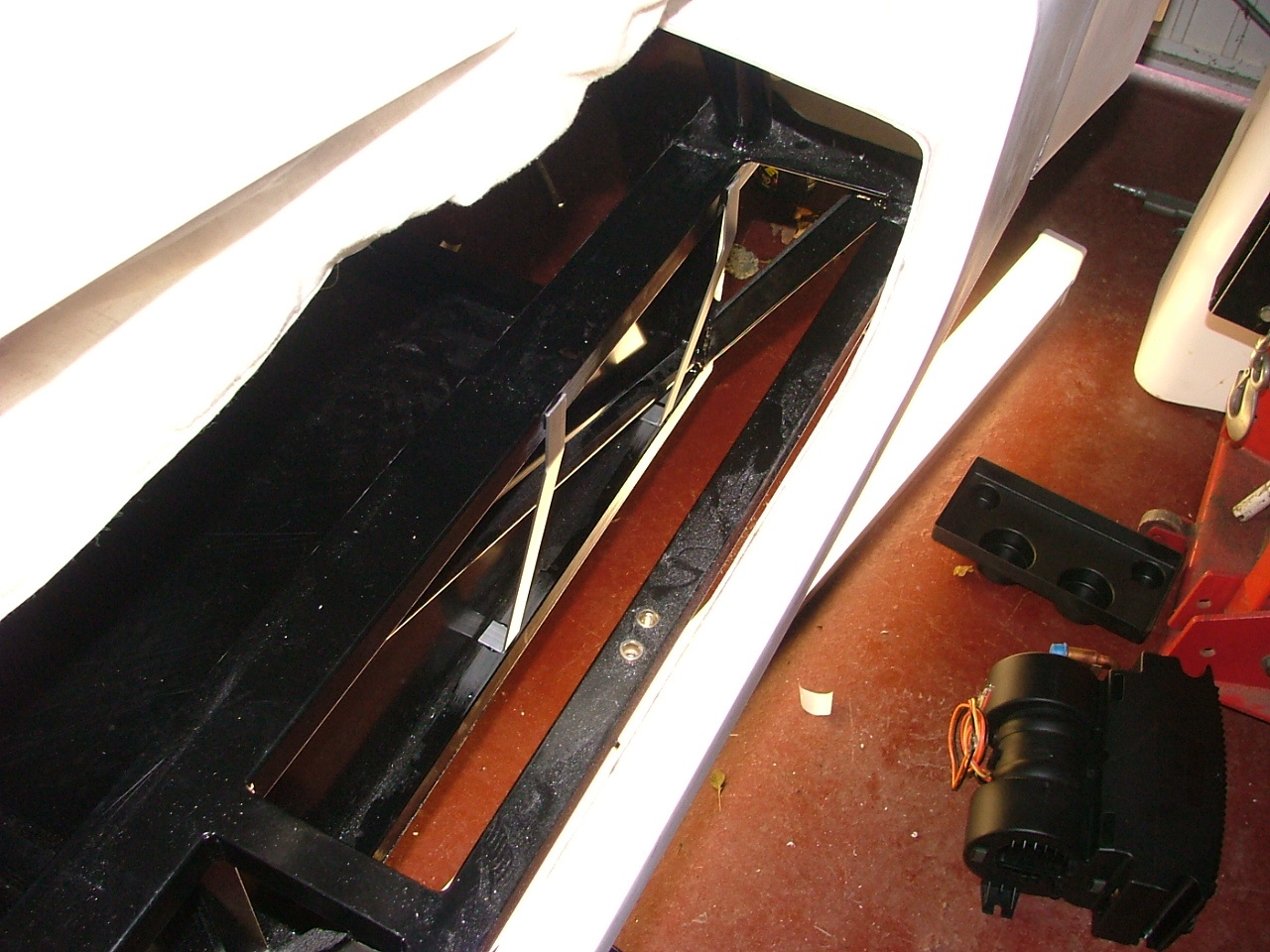

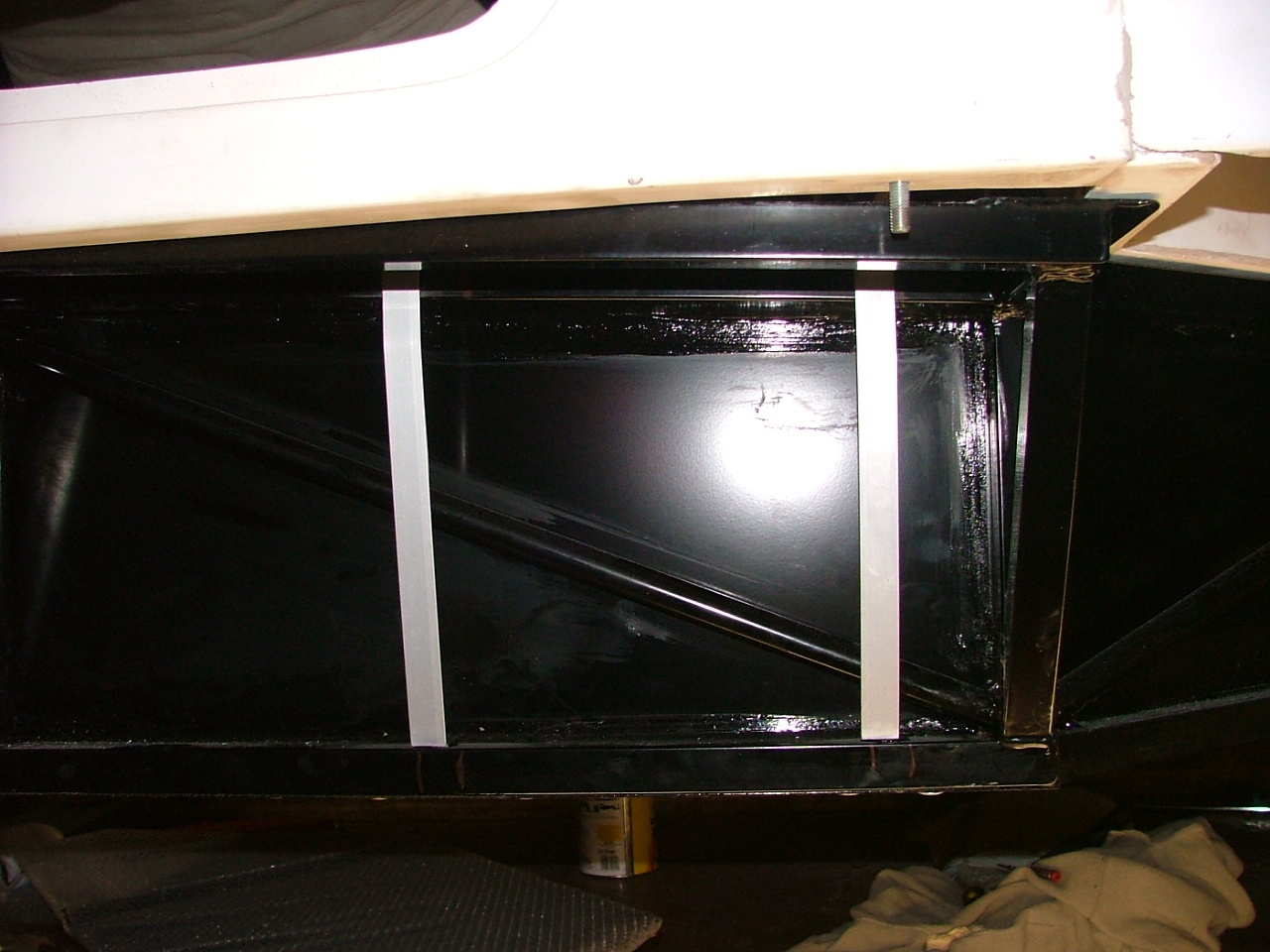

After a bit of thinking, I decided that the easiest way to mount the heater was with a couple of brackets bonded to the chassis. I had a fair amount of 25mm wide aluminium flat, so made some brackets out of this.

Click to download Click to download

Doors

The doors constituted the last major bits of GRP I needed to trim (although other bits need a slight trim and sand).

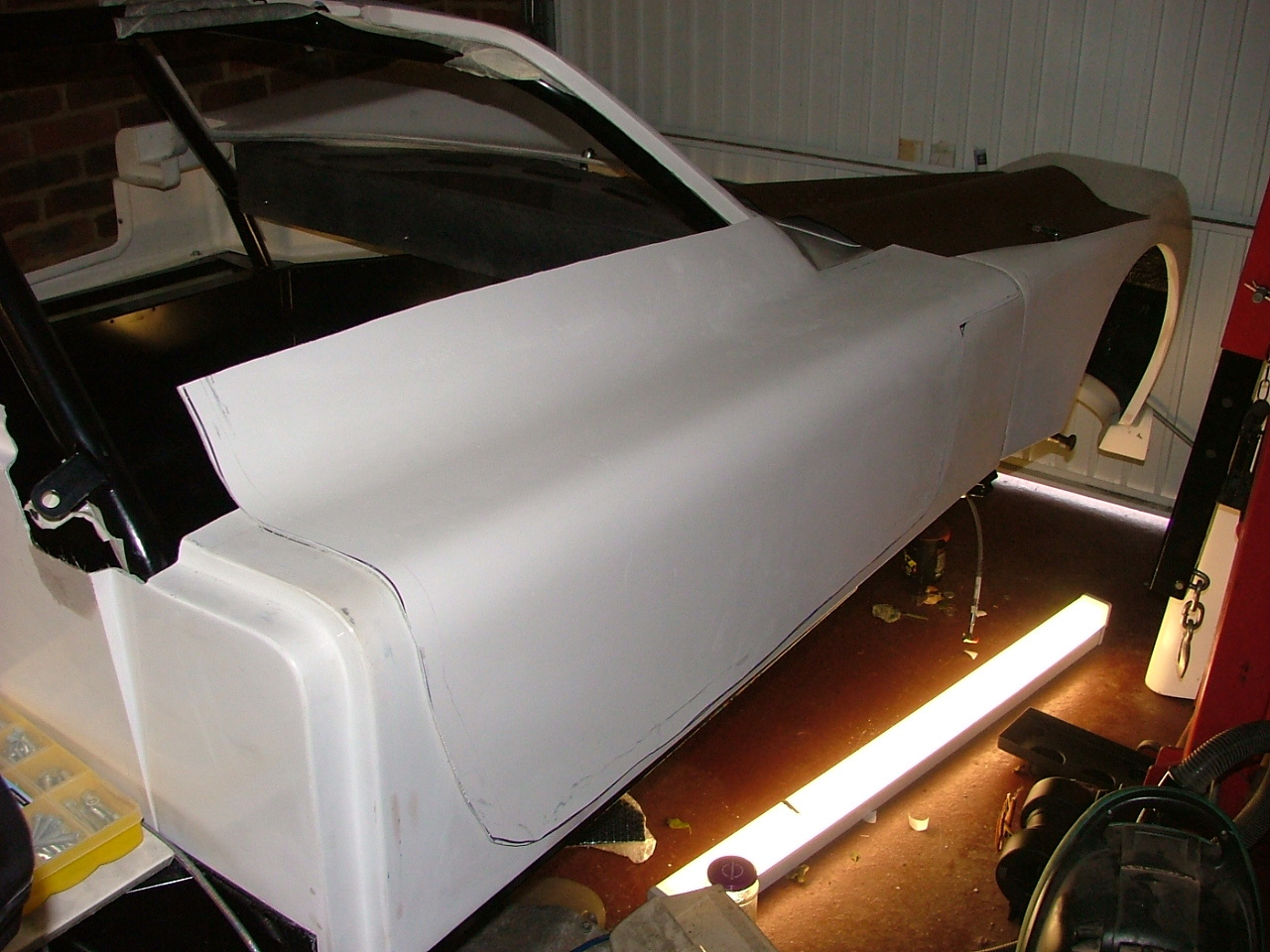

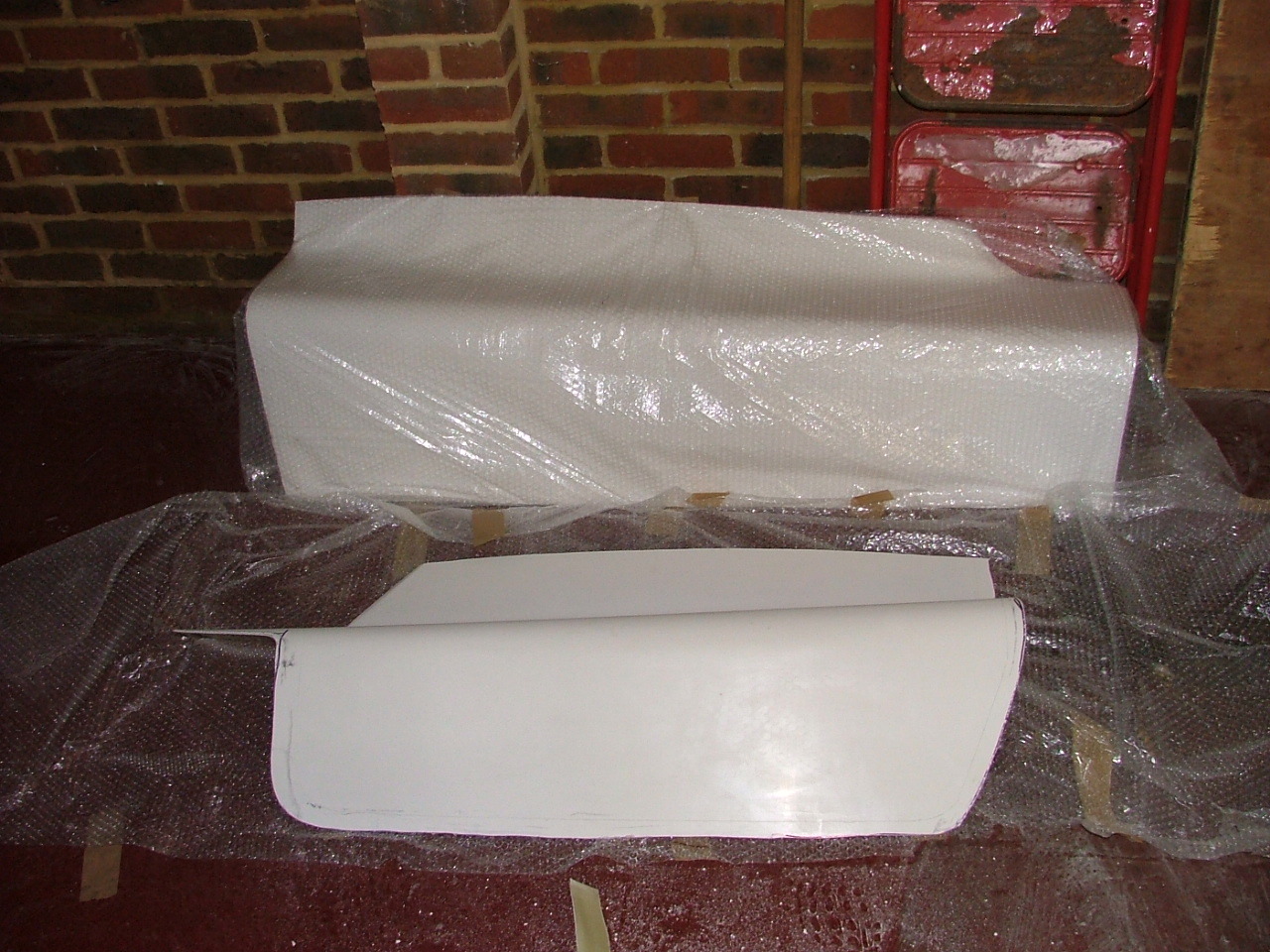

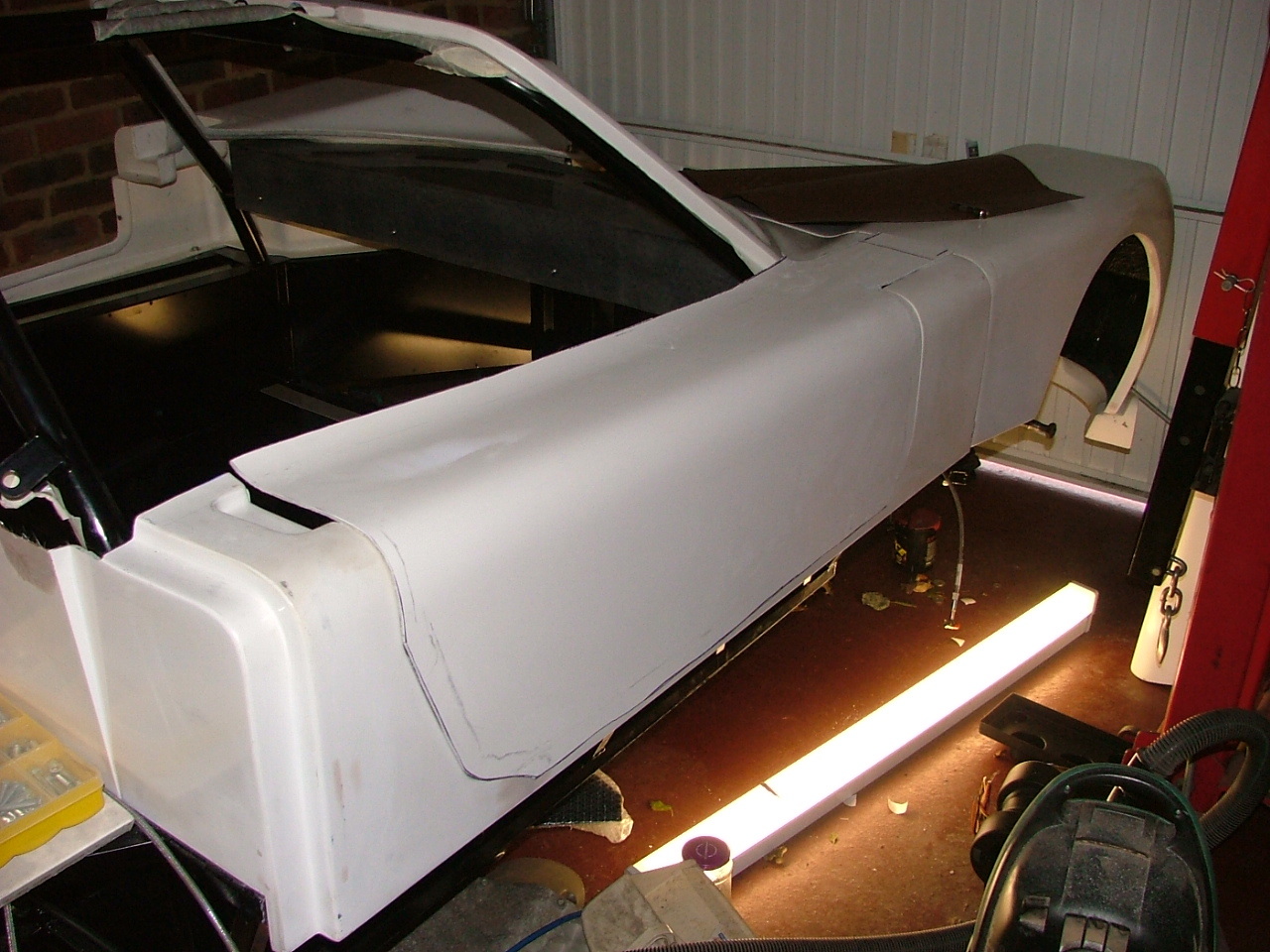

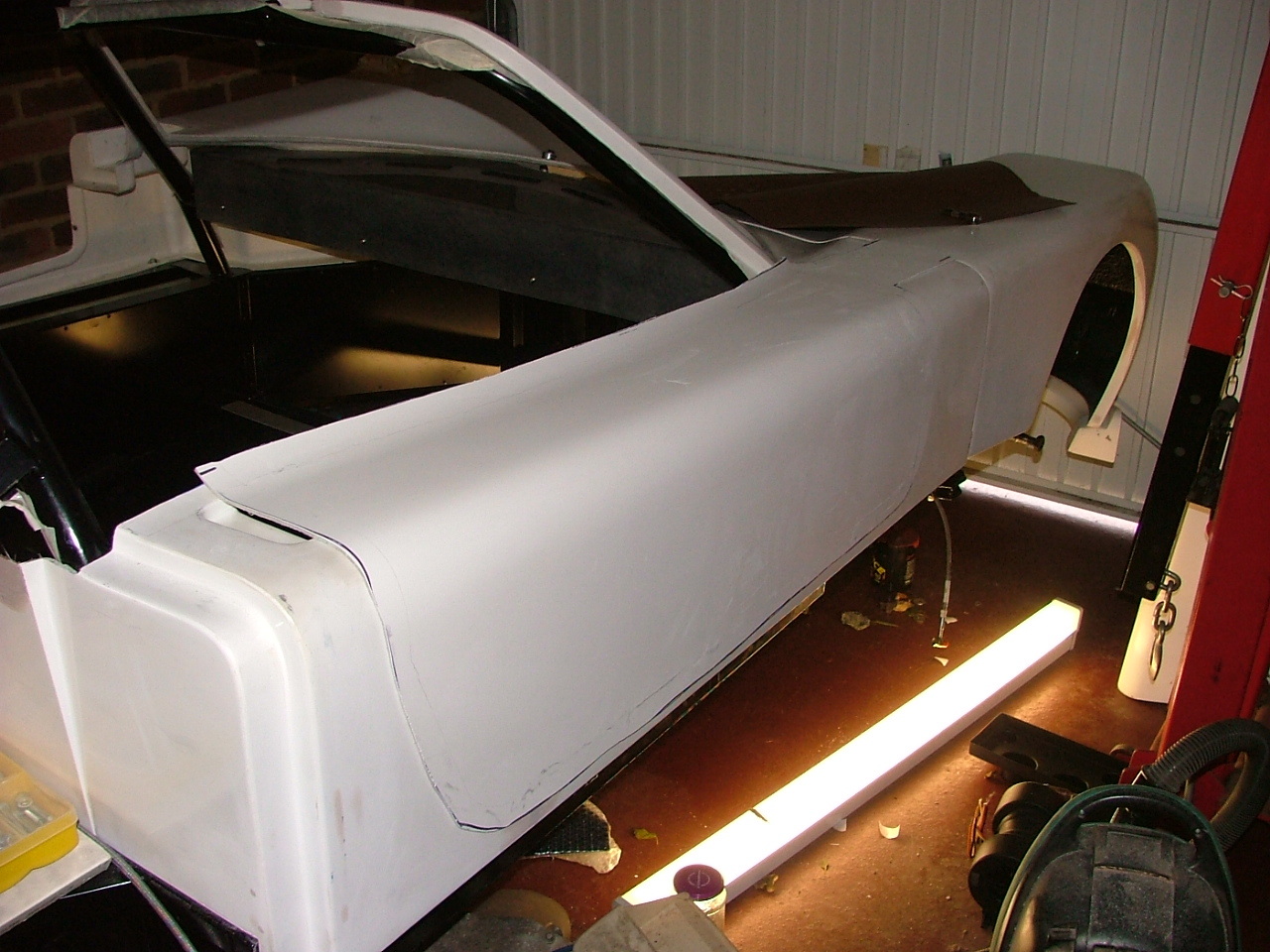

The first stage was to cut out around the lines on the GRP - above is the door before cutting, and below is the door with a 30mm bleed edge.

Click to download

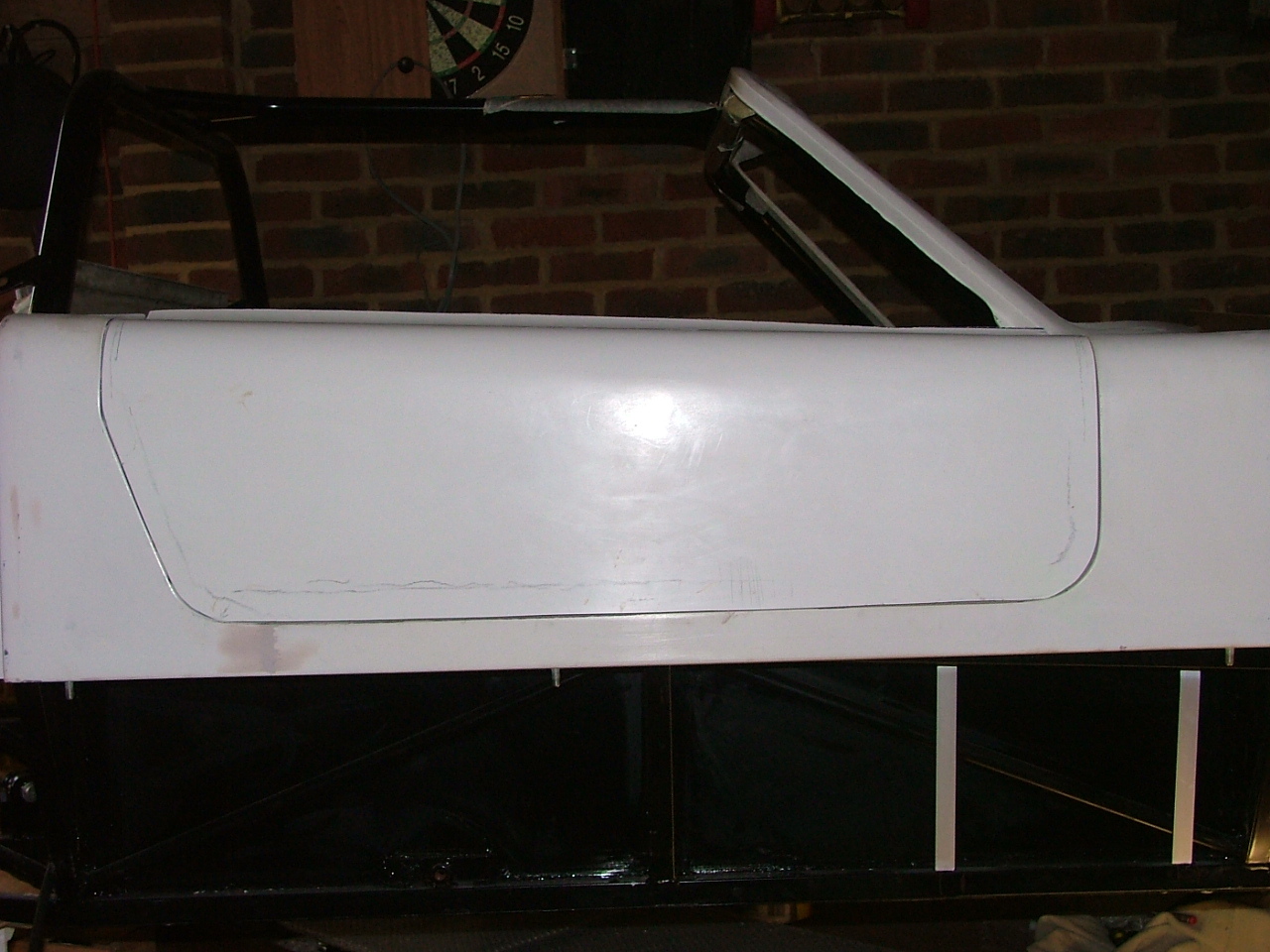

I started with the right hand door (this is easier to get to).

Click to download

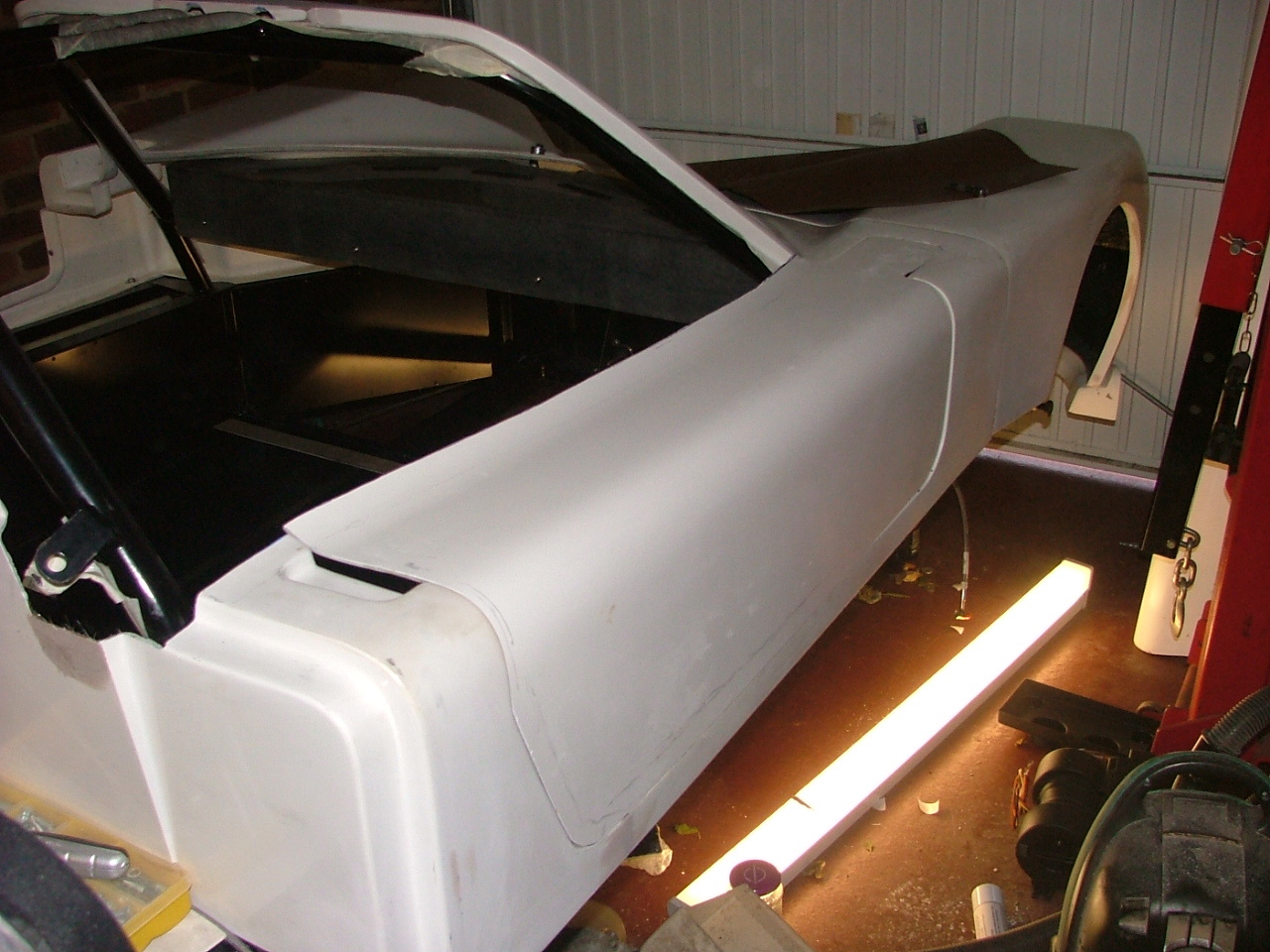

After a little more trimming

Click to download

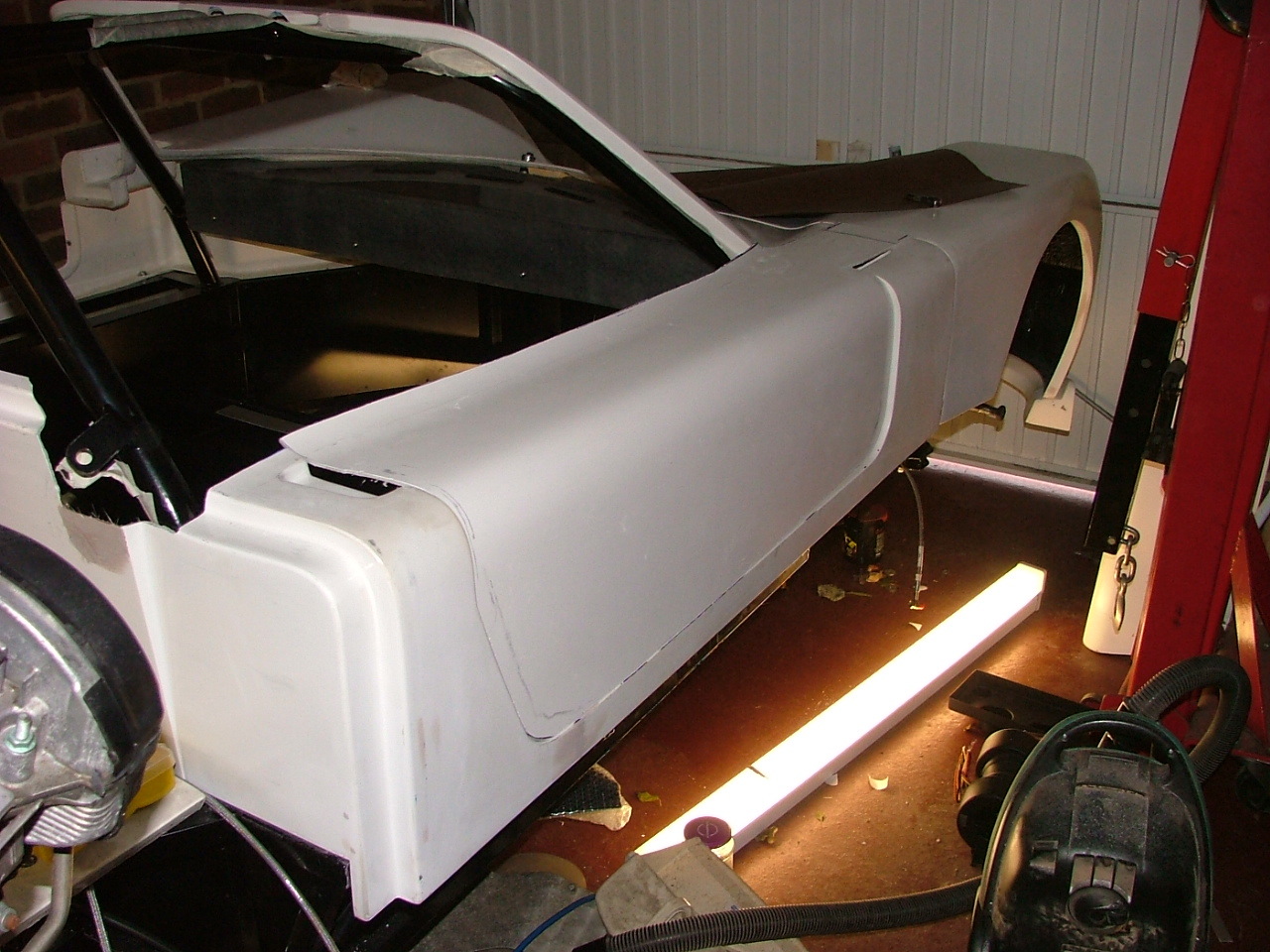

And some more...

Click to download

And yet more...

Click to download

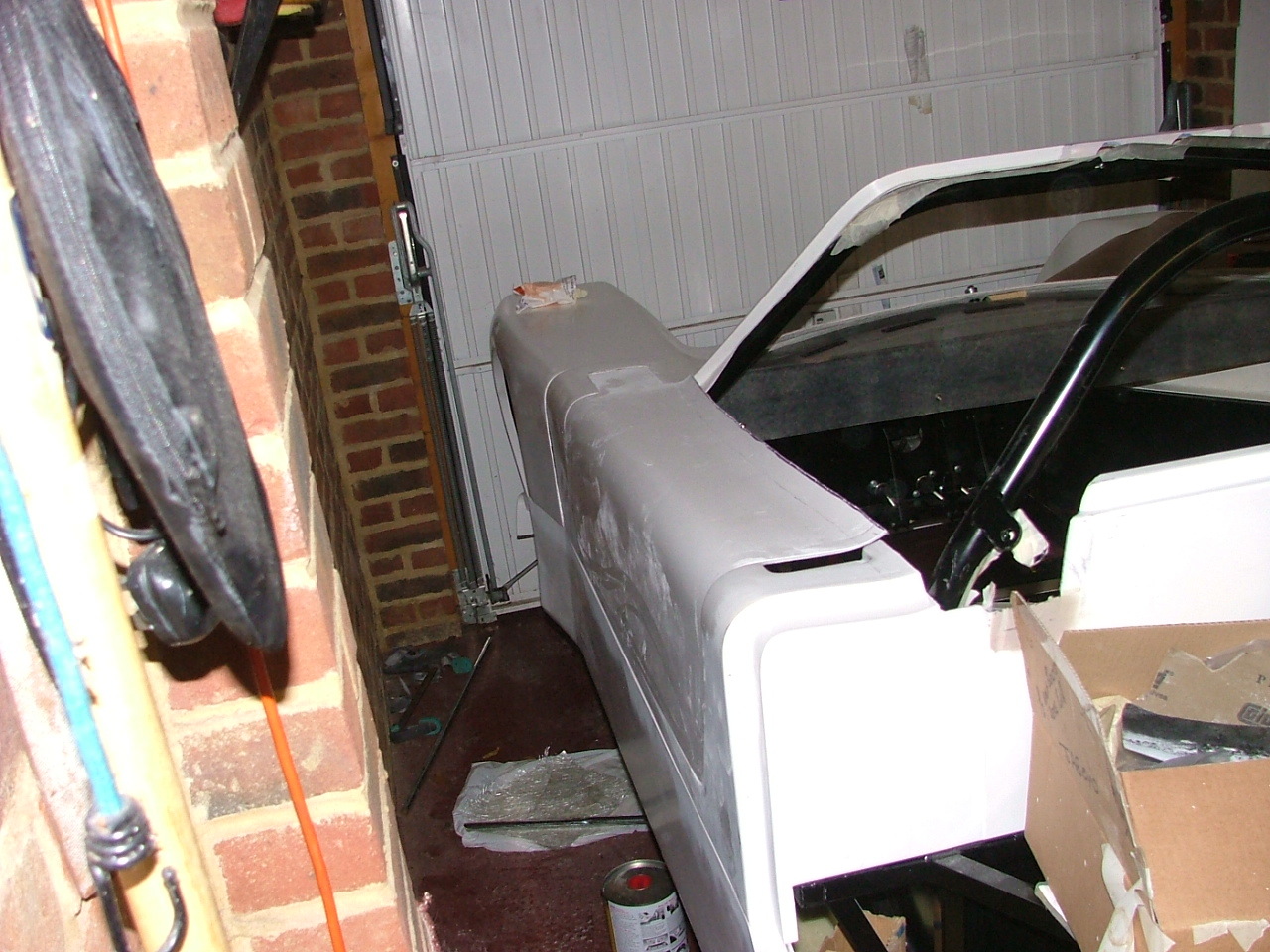

And after the final trim (note the top will need another trim, but I'll do that later on).

Click to download Click to download

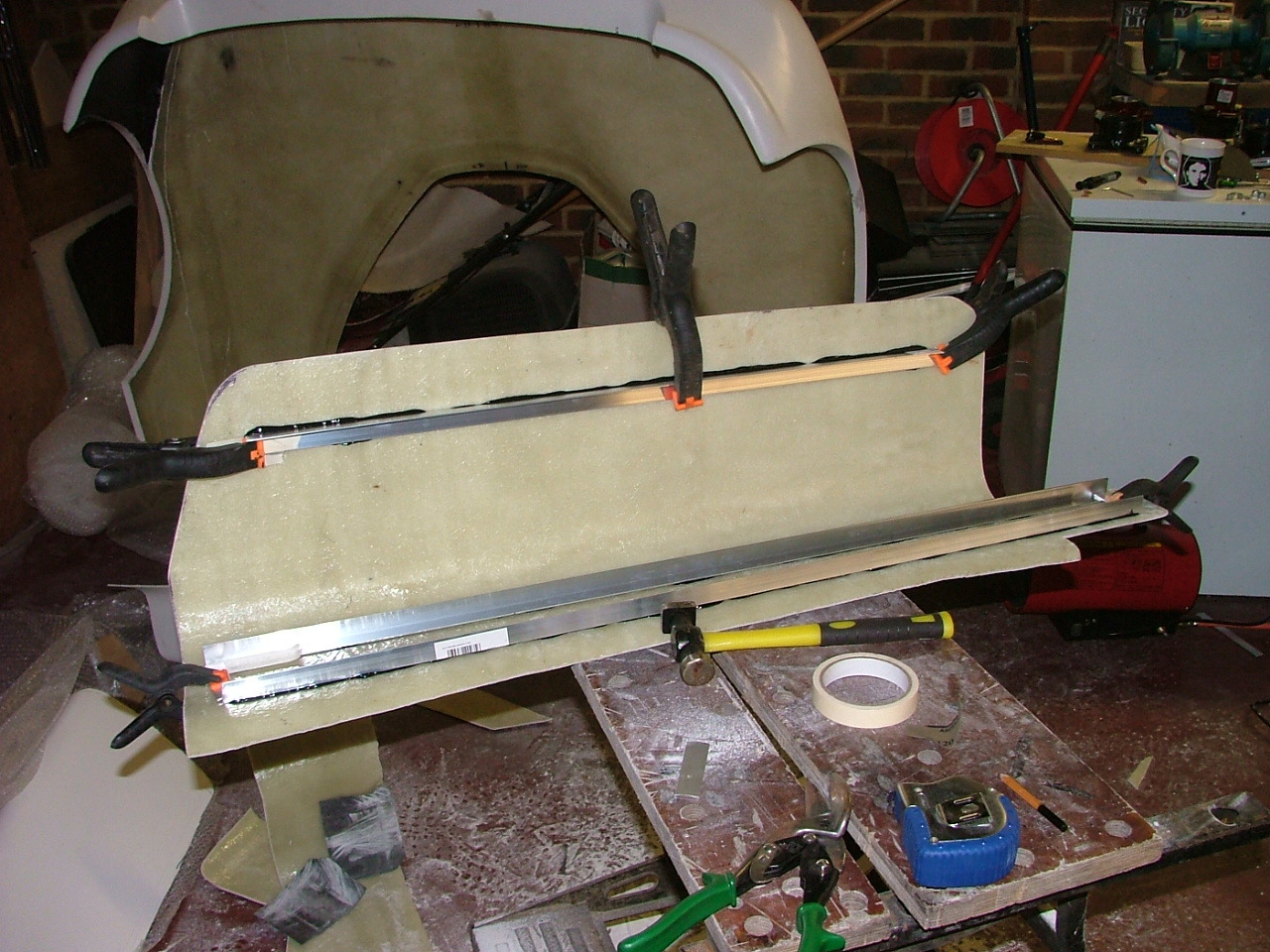

One of the things I didn't like about the demonstrator were the doors - they were quite wobbly. As an aim to improve this, I bonded some 25mm right-angle section aluminium to the inside of the door.

Click to download

This will also give me some place to mount the hinges and catch onto.

I then did the other door

Click to download

As I don't have enough clamps, I'll bond it during the week.
