Day 8 - Workshop visit and brakes

Workshop visit

Yesterday, I'd run out of things I wanted to do, and needed to see the demonstrator again to check on a few things. While I was making a list, I also made a list of some questions I had, and also some parts that I didn't seem to have.

I took a fair number of photos of key parts (brakes, engine, steering), and found that a box labelled "Jason" had been left behind - hence the missing parts!

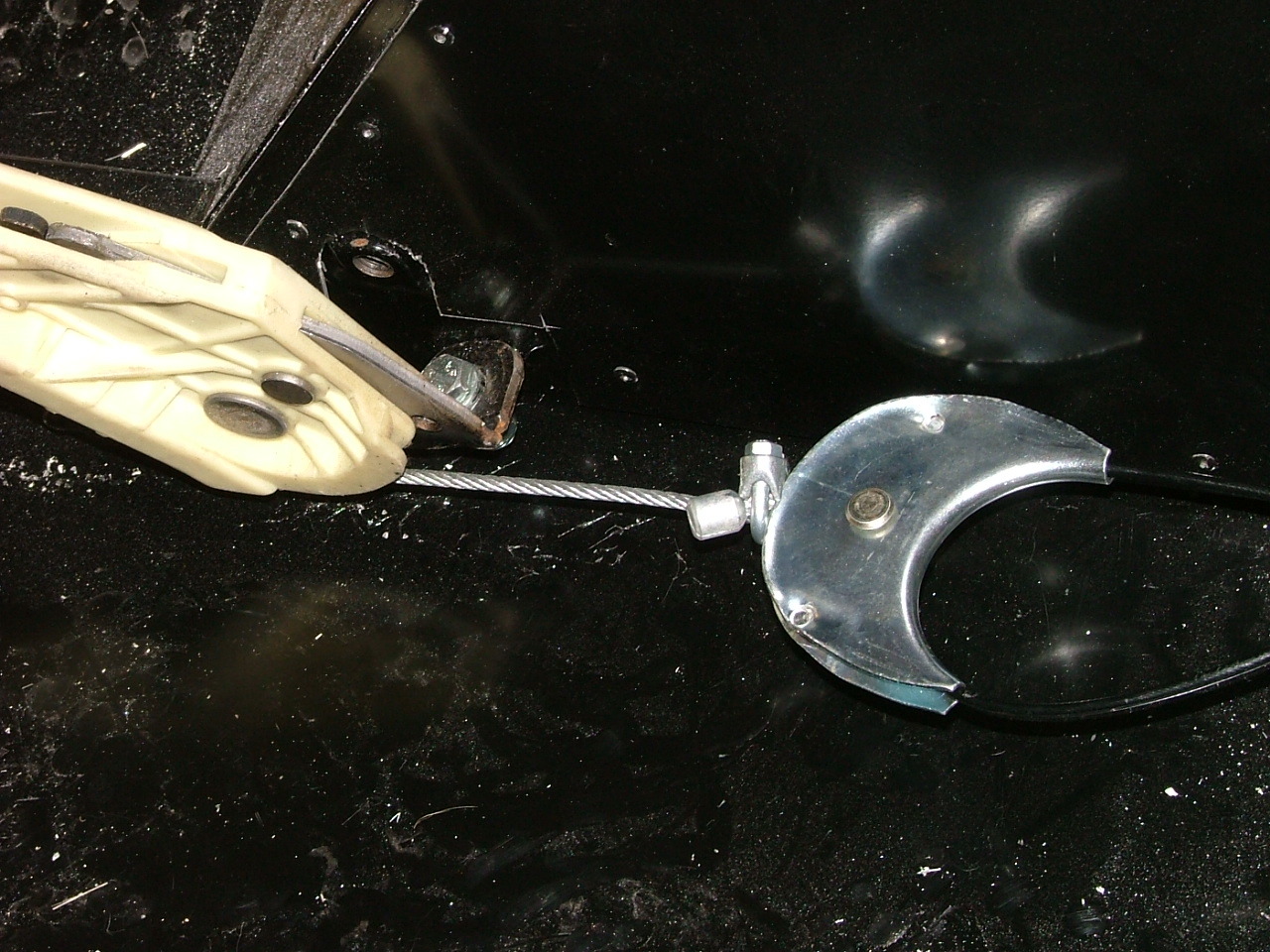

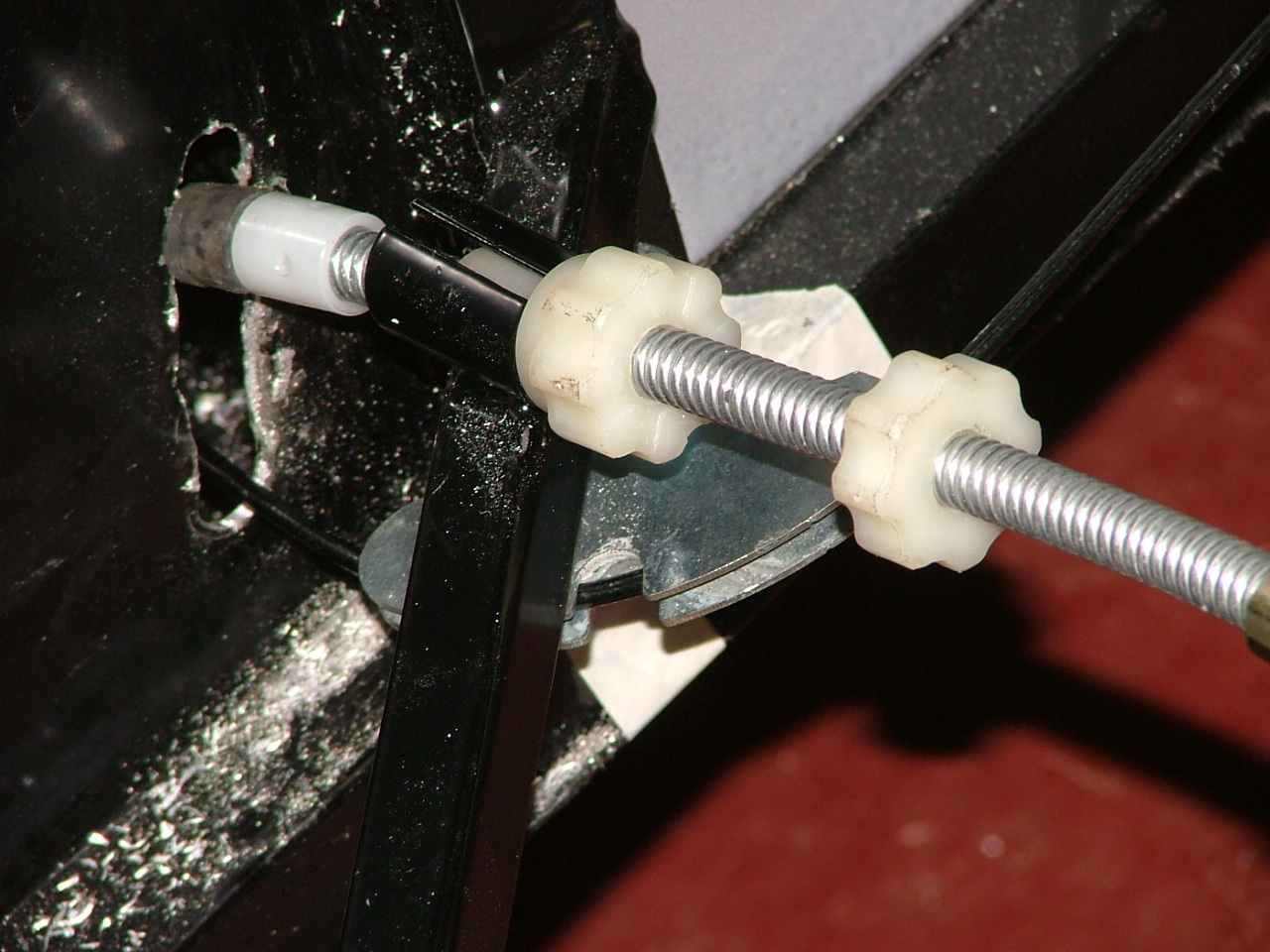

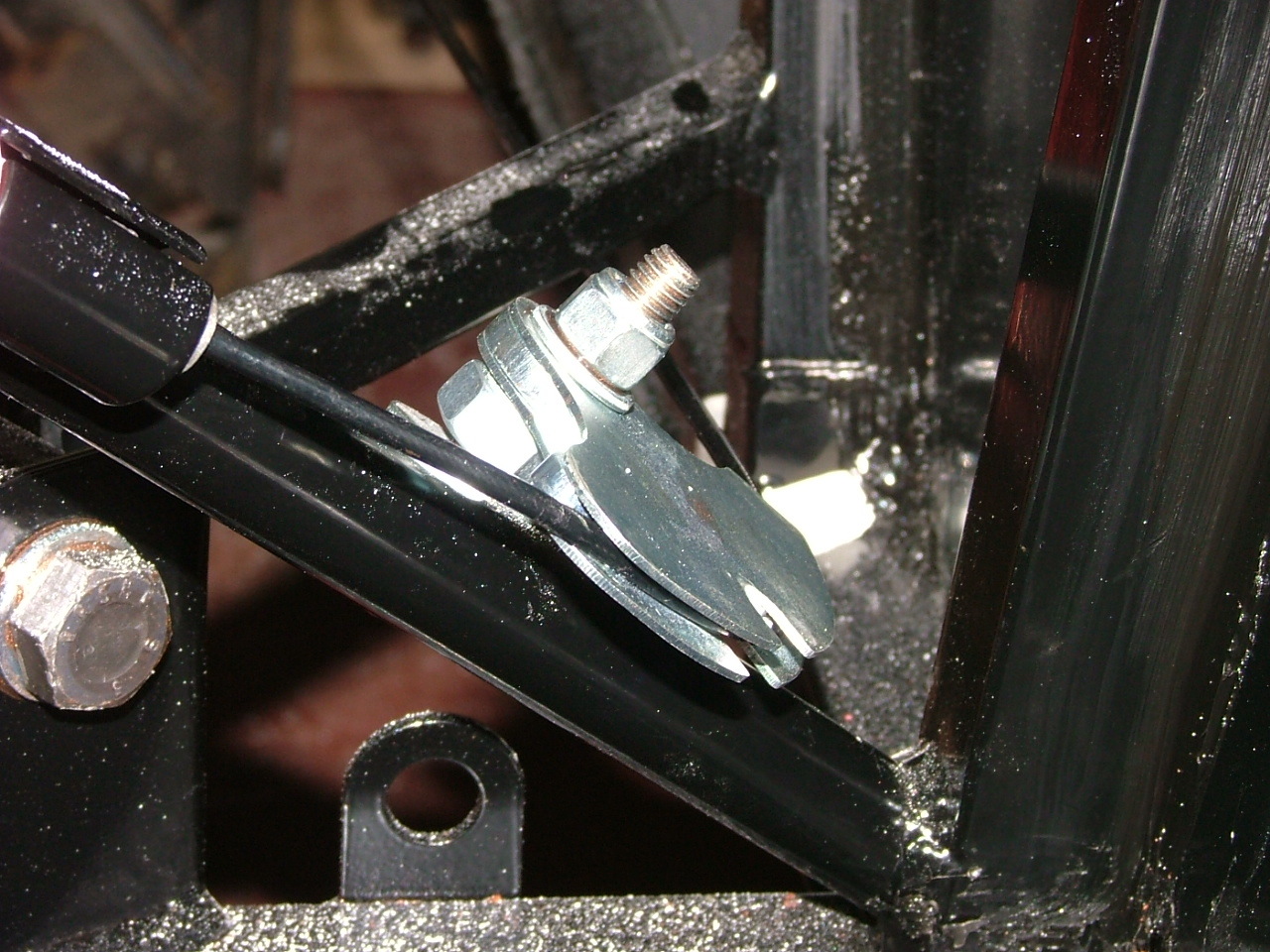

After checking a few points with John, I fitted the handbrake. There were some unidentifiable parts that turned out to be quadrants that guide the handbrake cables.

Click to download Click to download Click to download

Hydraulic cables

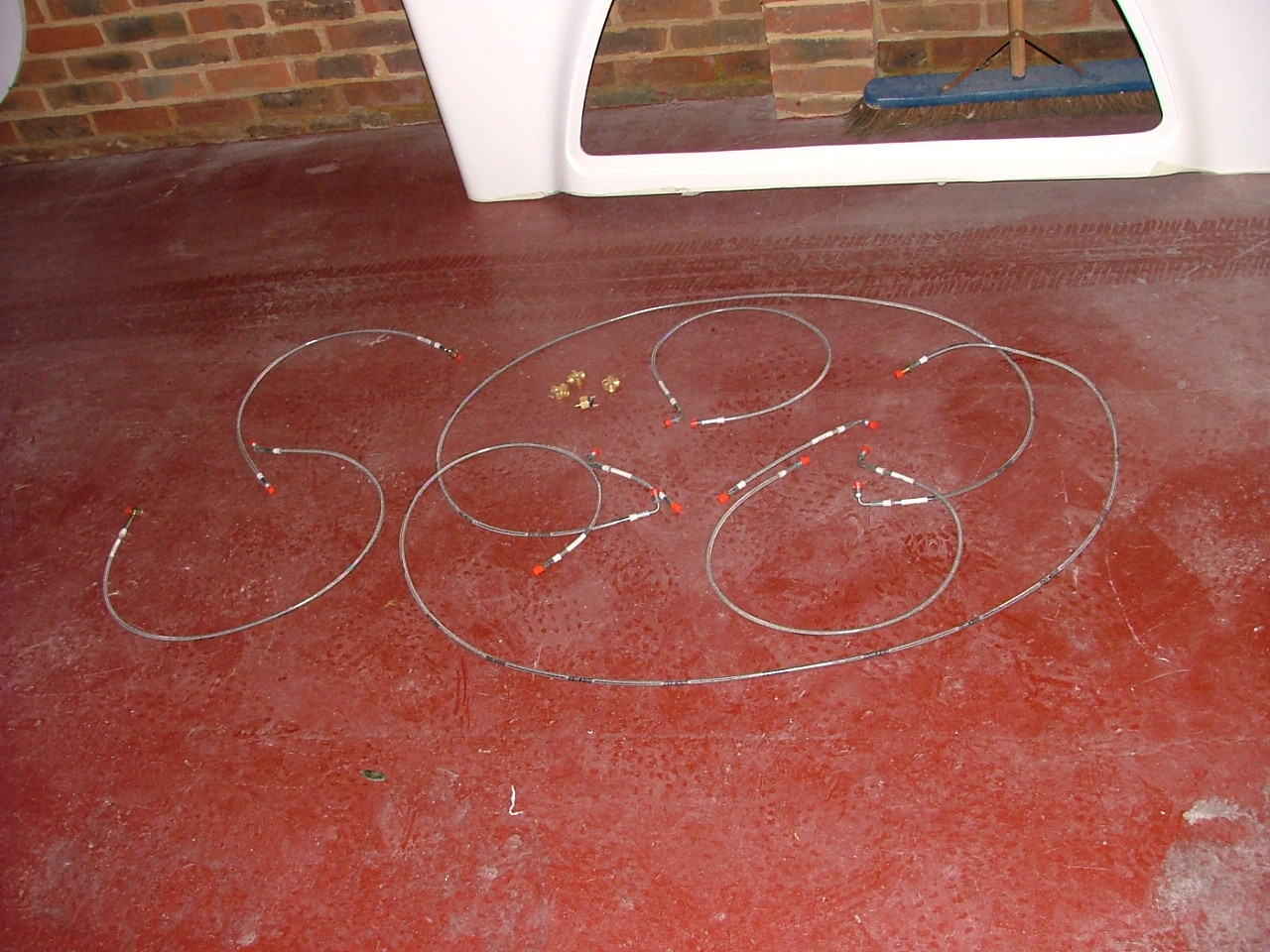

With the aid of the pictures, I fitted the hydraulic cables (brake and clutch). This is the collection of cables and bits before I fitted them.

Click to download

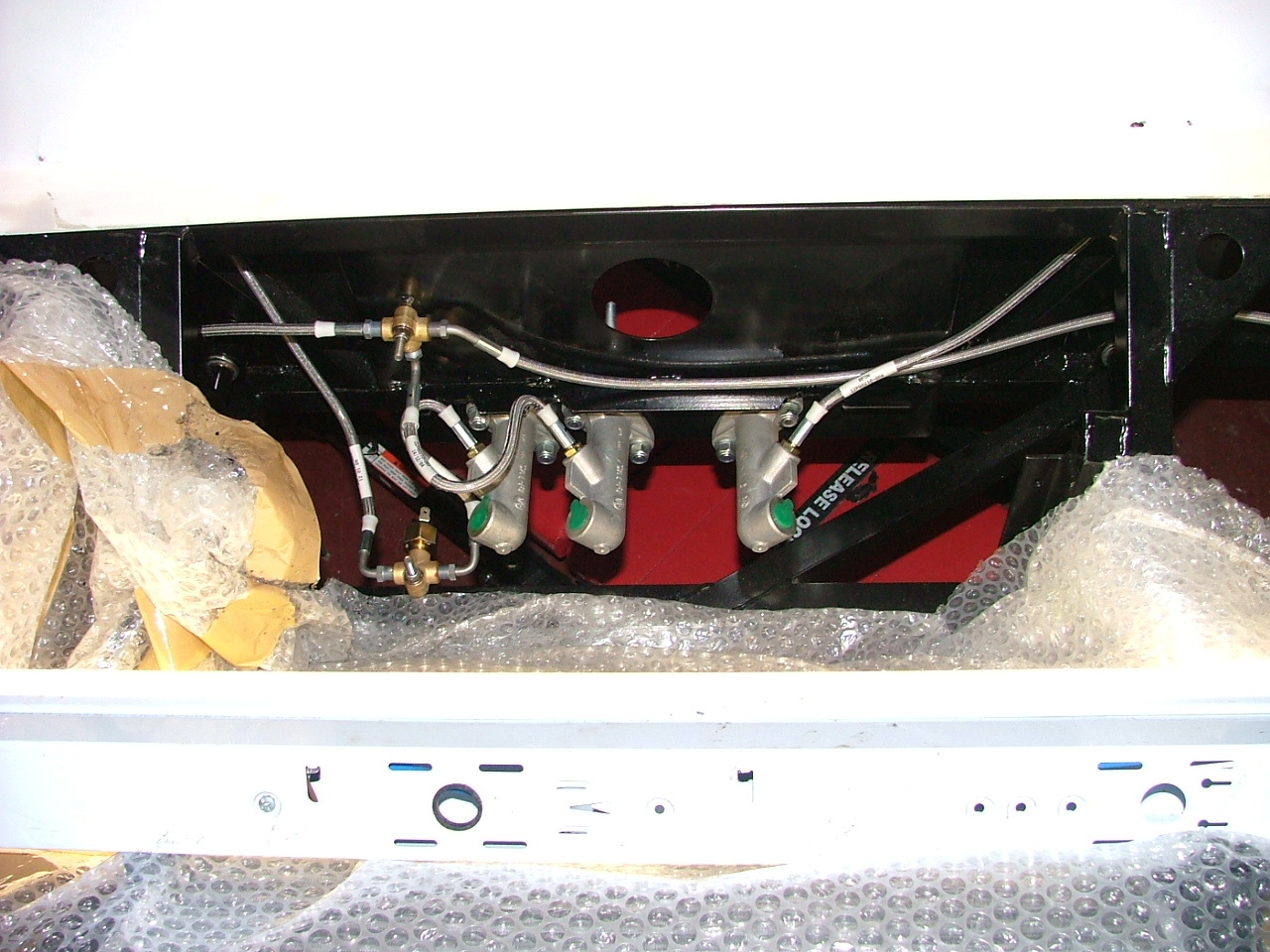

And then after fitting them

Click to download

The only thing I need to do is drill some holes to feed the rear brake and clutch cables through the body, as well as put some gromits in the handbrake holes.
