Day 106 - Gearbox, handbrake, gearstick and throttle cable

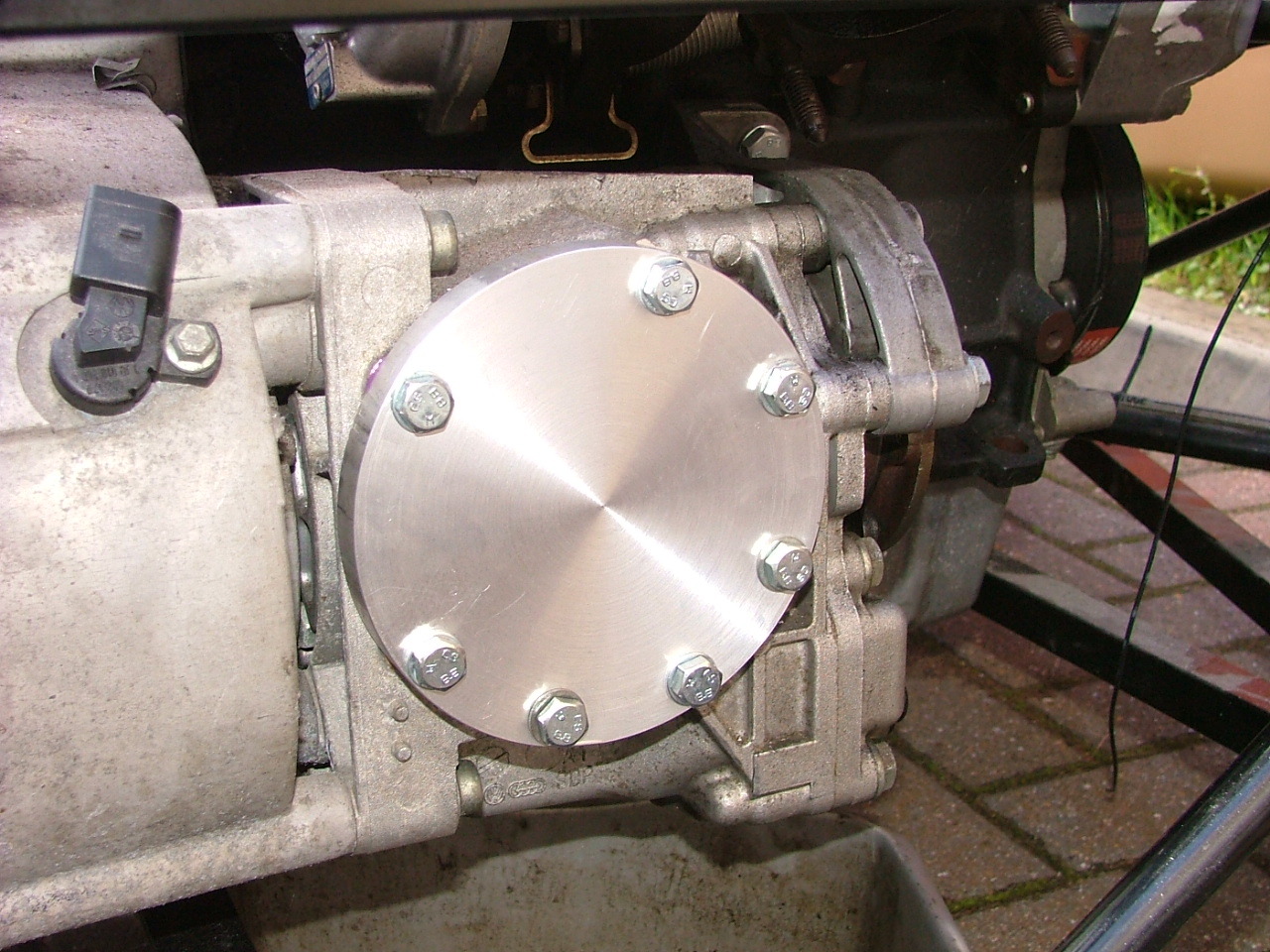

Yesterday, an unexpected parcel arrived - the blanking plate for the gearbox rear drive shaft. This allows me to remove the rear drive mechanism from the gearbox, turning it into a 2-wheel drive. This means the only major component I need are the drive shafts (although I do need to pick up the exhaust):

Click to download

Job done - finally!

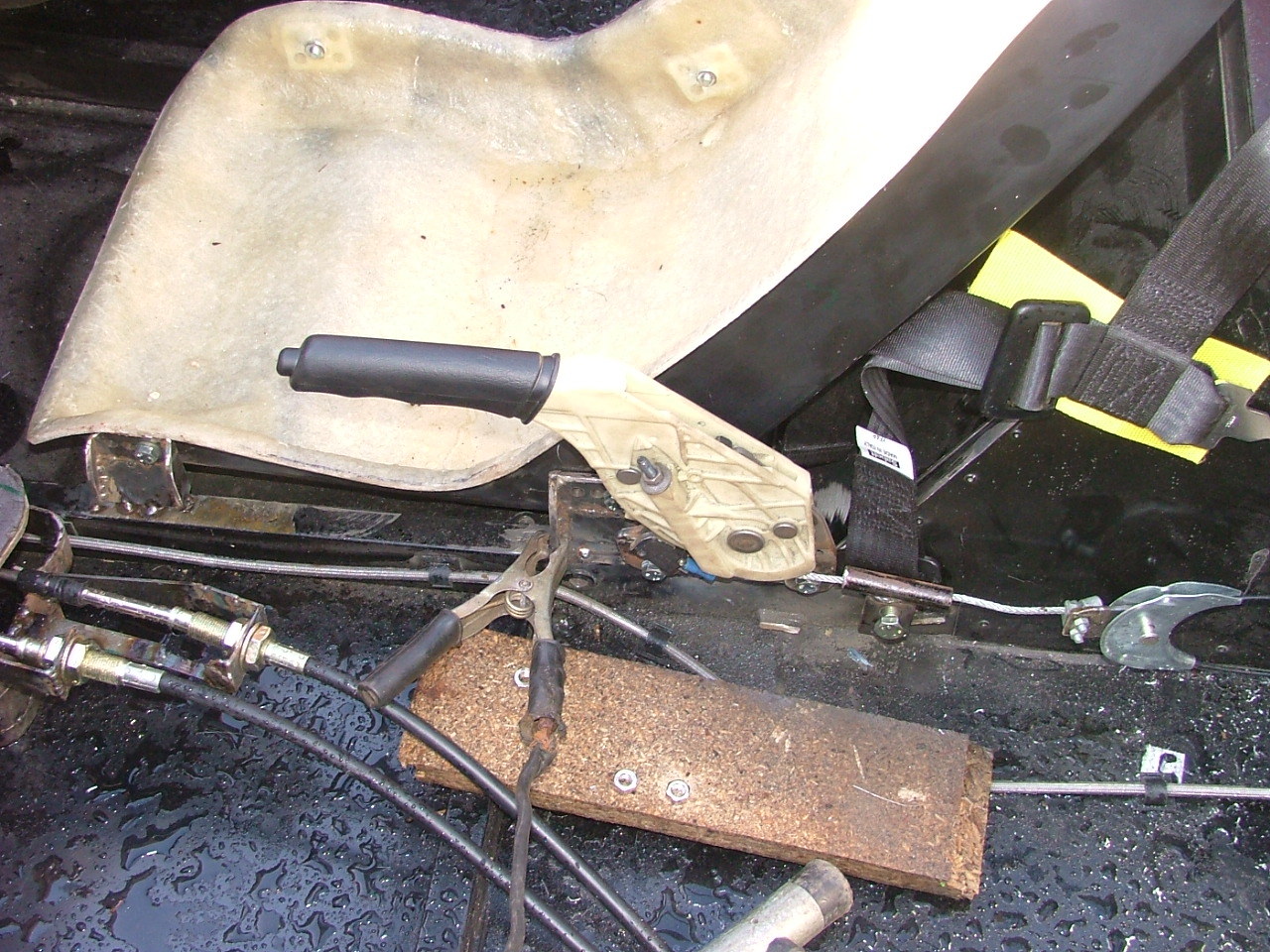

The next thing was to sort out the handbrake - after moving the seat forward, it also needed moving. So, I used a small length of right angle steel with some bolts welded to the chassis to hold the handbrake in place:

Click to download

As you can see, it had been raining - this was the pattern for today, and tomorrow it looks like it'll be exclusively rain - so time to crack on and get some more done.

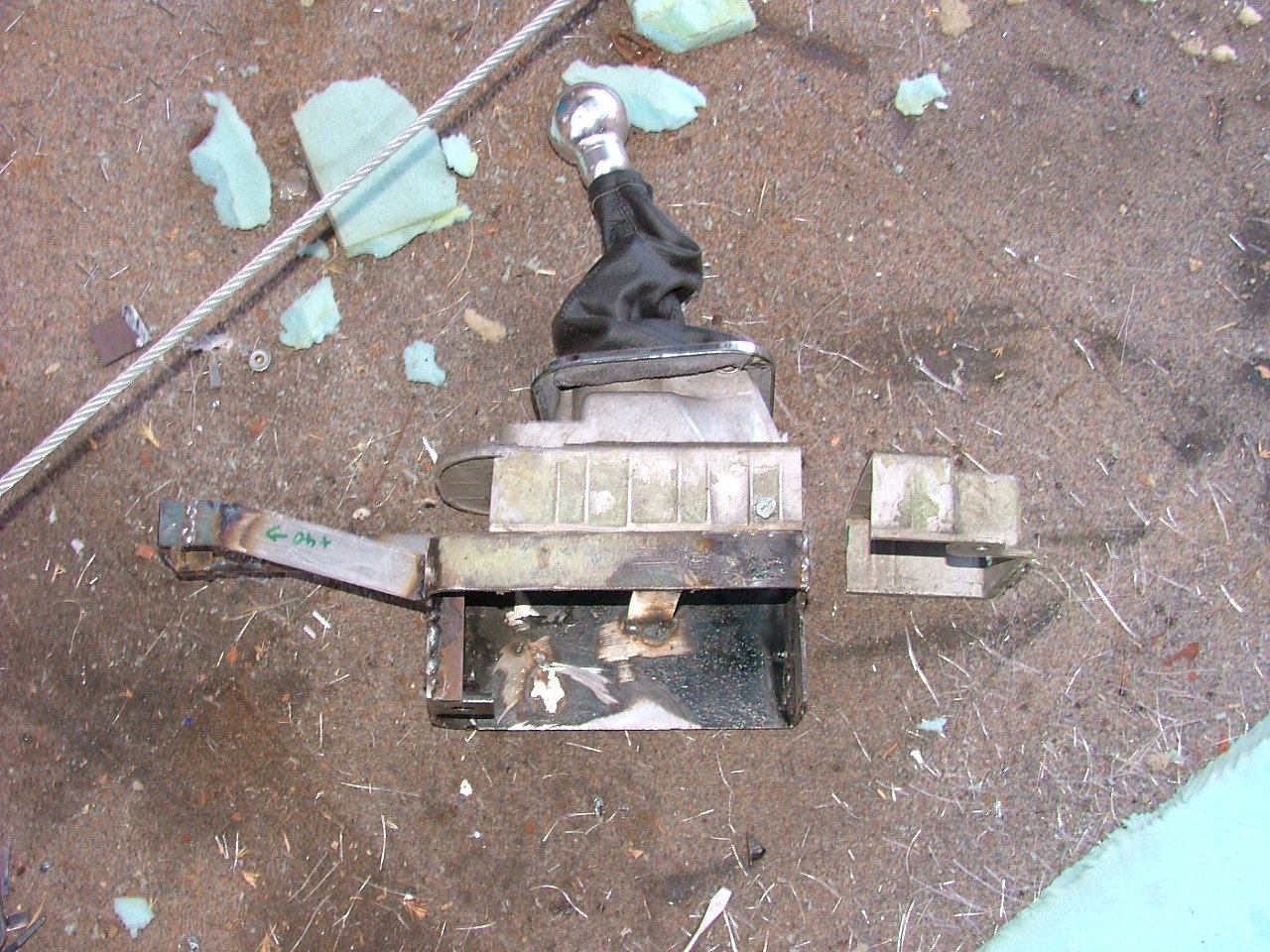

Now I knew that the new cables worked, I decided to cut the front of the gearbox off, to make it a bit shorter:

Click to download

I then welded some new tabs to the outside of the box to take some M8 bolts (which would mean a smaller profile under the chassis), drilled the floor for the new holes, and then forgot to take some picures...

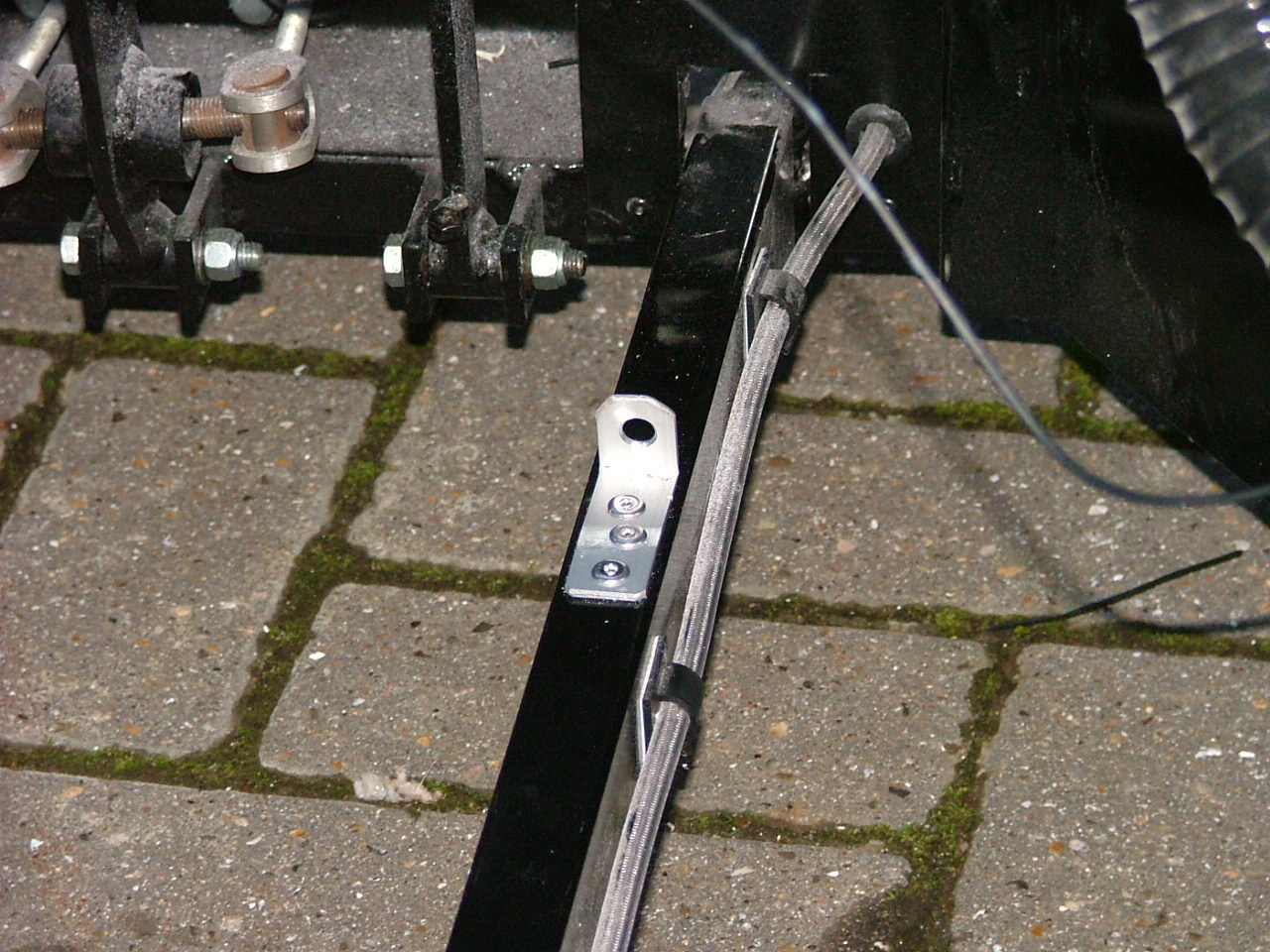

Anyway, it was getting late, and I thought I'd have a quick go at the throttle cable. Firstly, I needed a tab to hold the cable in place:

Click to download

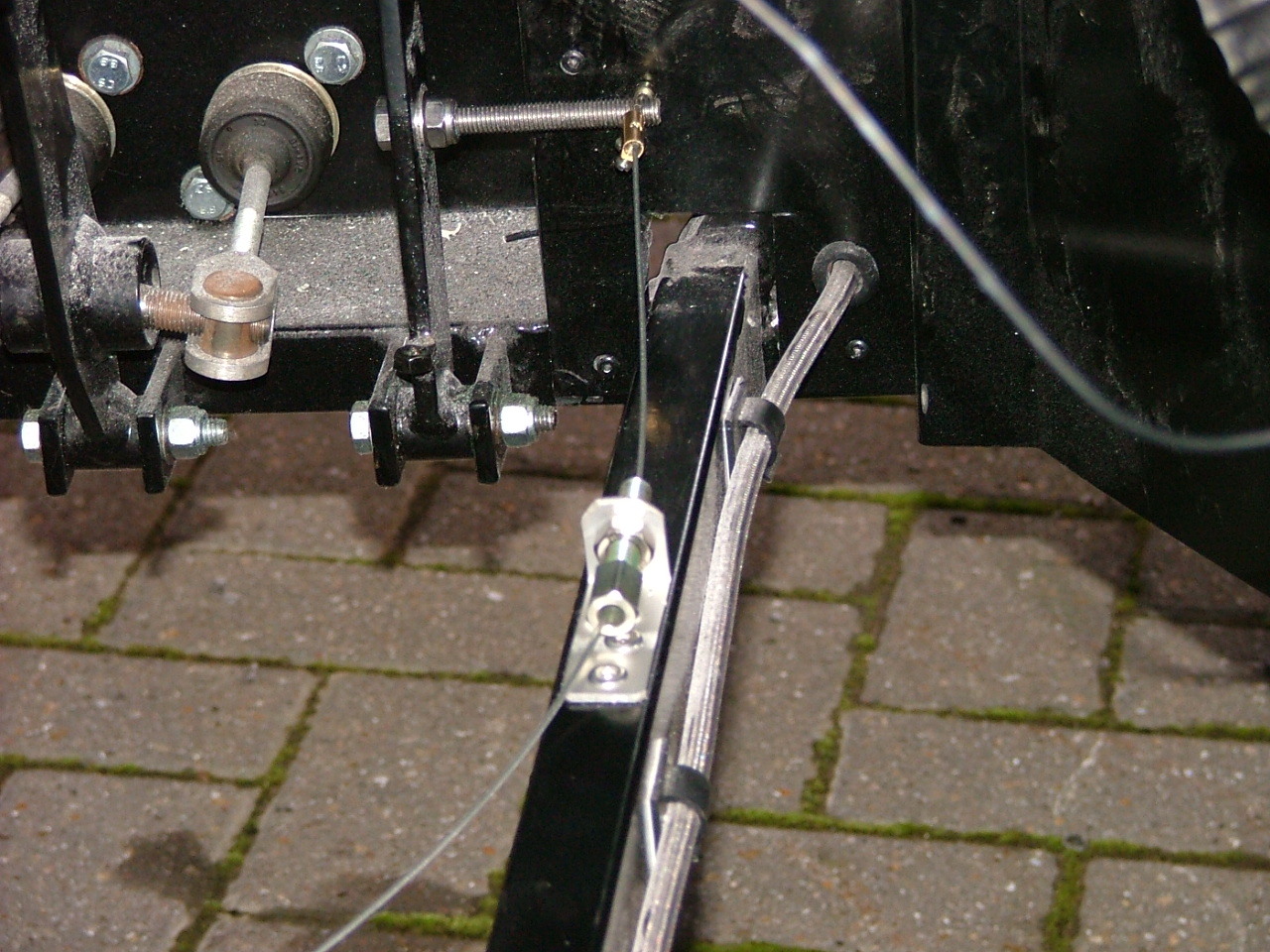

And then I used a long M8 bolt with a hole drilled in it, and fitted this end of the cable (and threaded it through the bracket).

Click to download

At that point in time, it started to rain again, so I put the car away. I don't think I'll have a chance to do any more on it tomorrow judging by the weather forecast, but I have positioned the car in such a way that the rear section should open.
