Day 117 - Fitting the powder coated bits

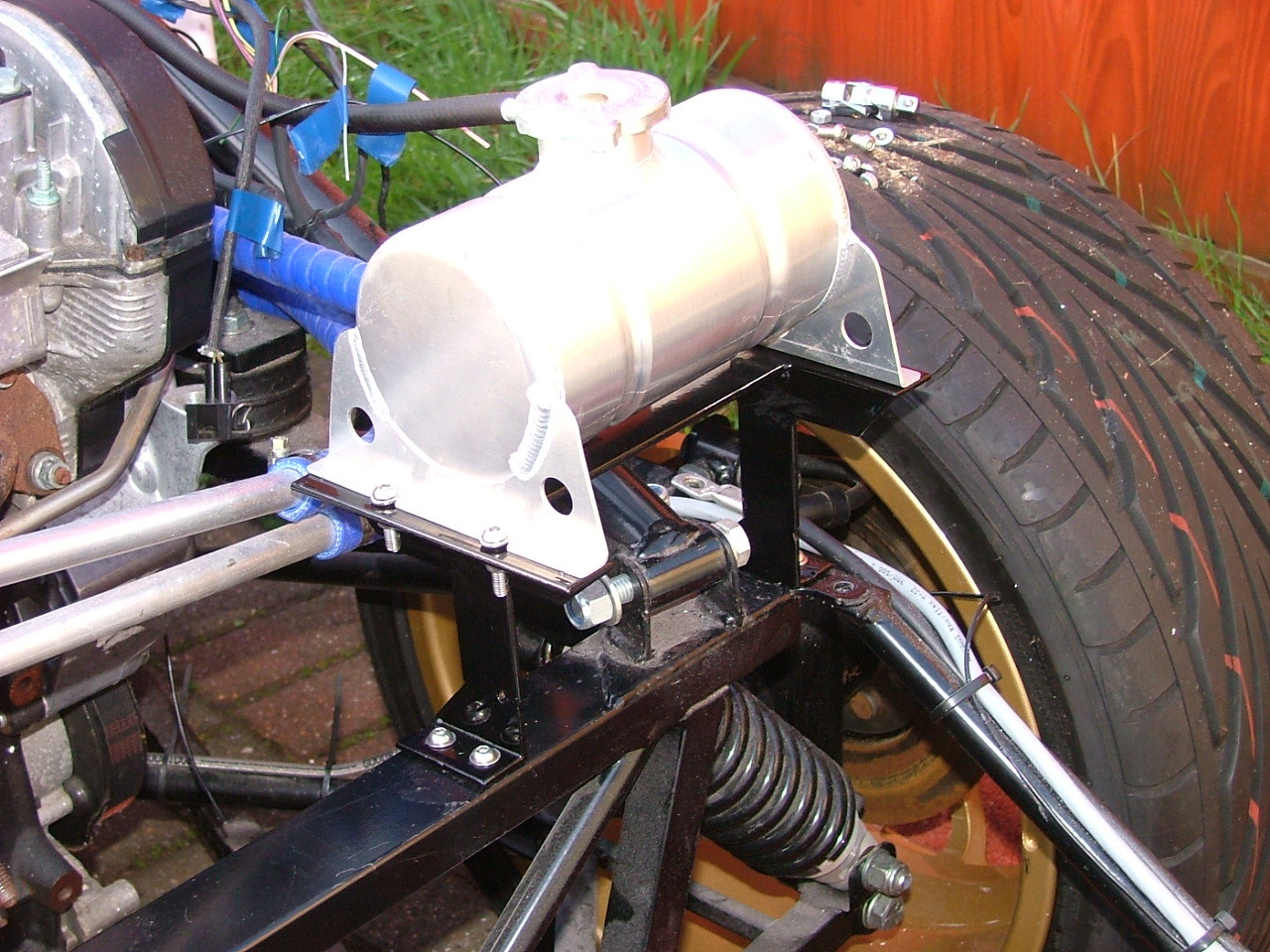

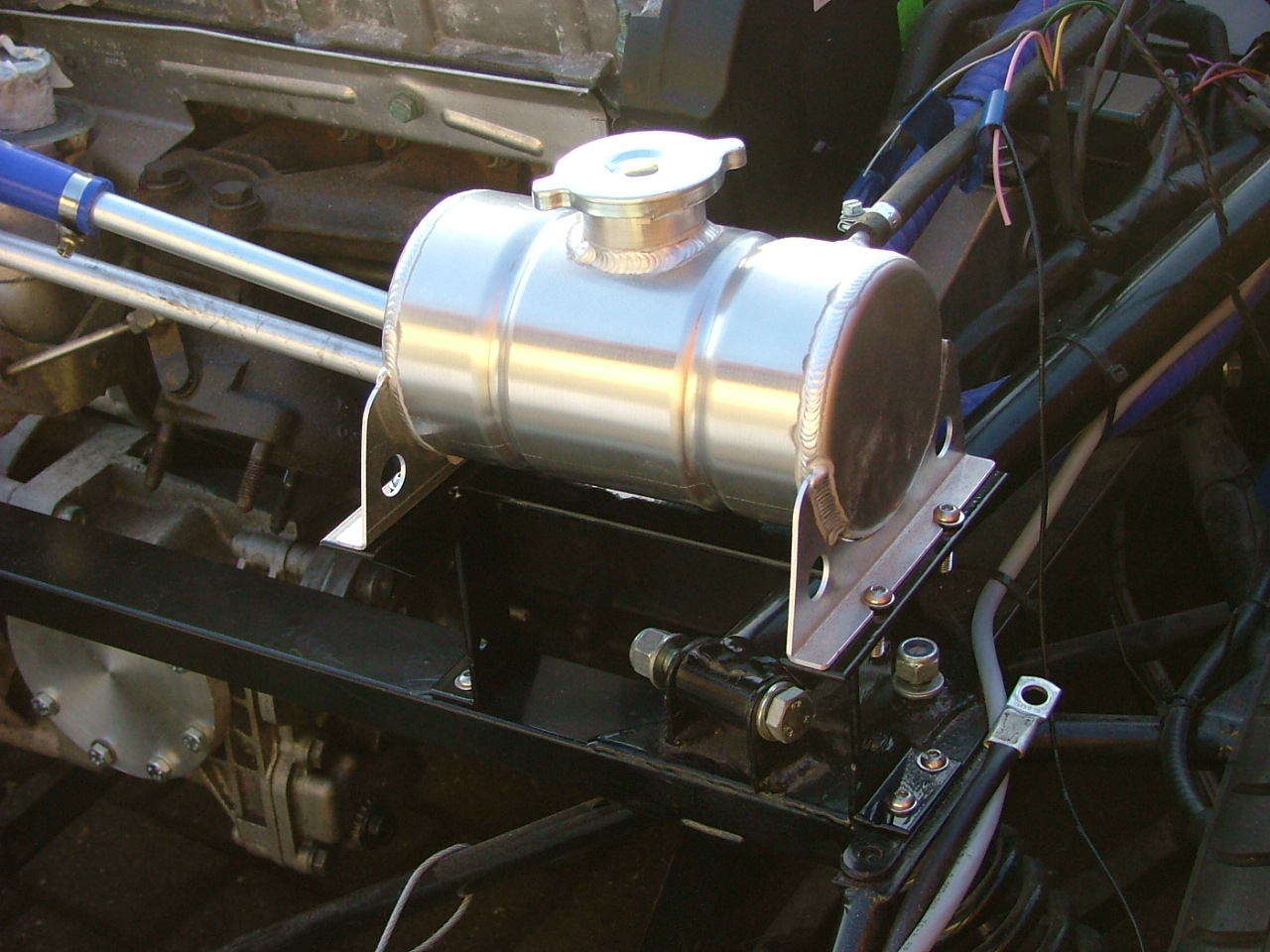

Since today was going to start off fine, I decided to have a go at fitting the powder coated bits I picked up earlier in the week, starting with the header tank holder (which would allow me to hold the rear section open correctly):

Click to download Click to download

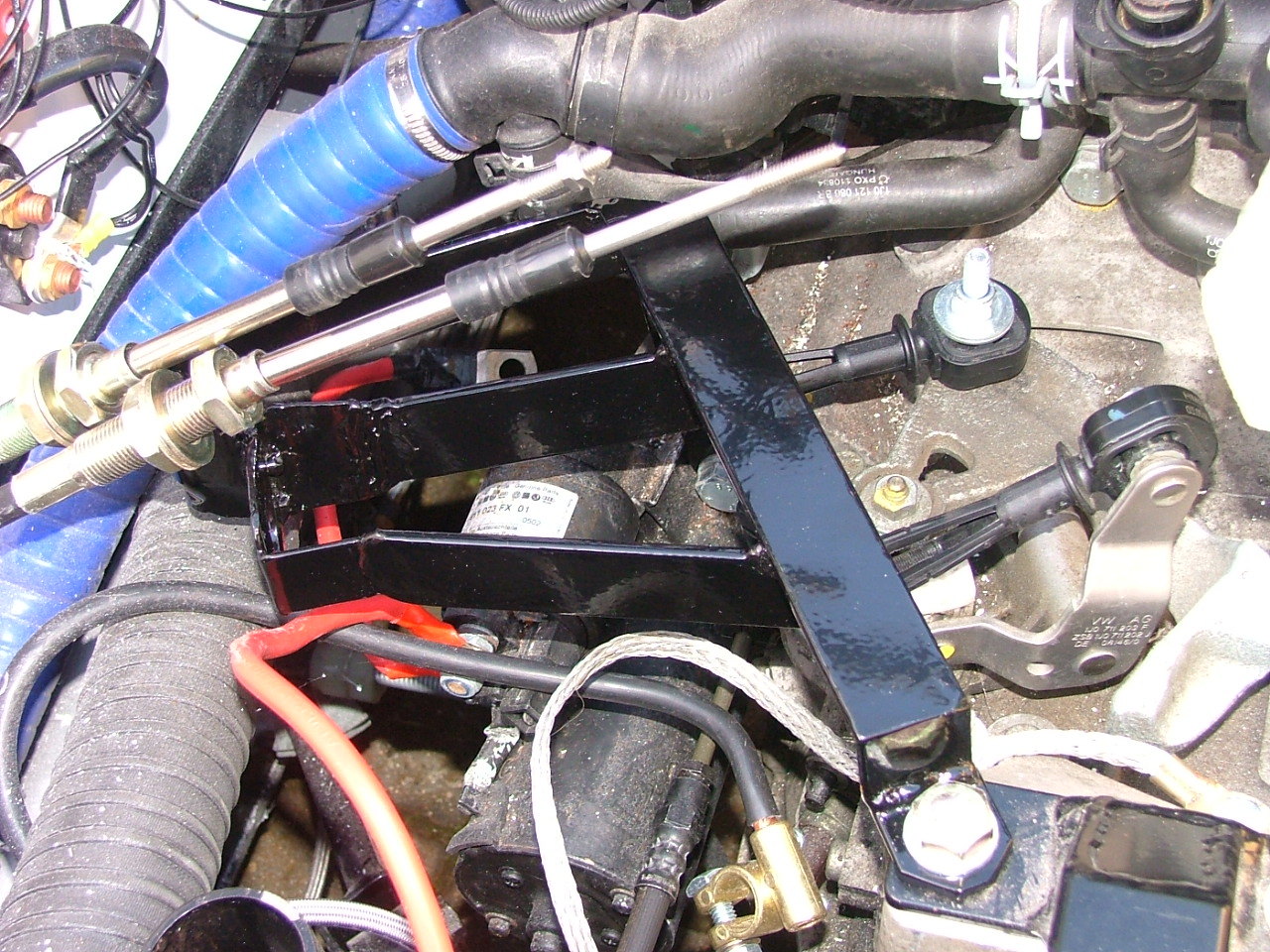

Then, I fitted the gearbox cable carrier:

Click to download

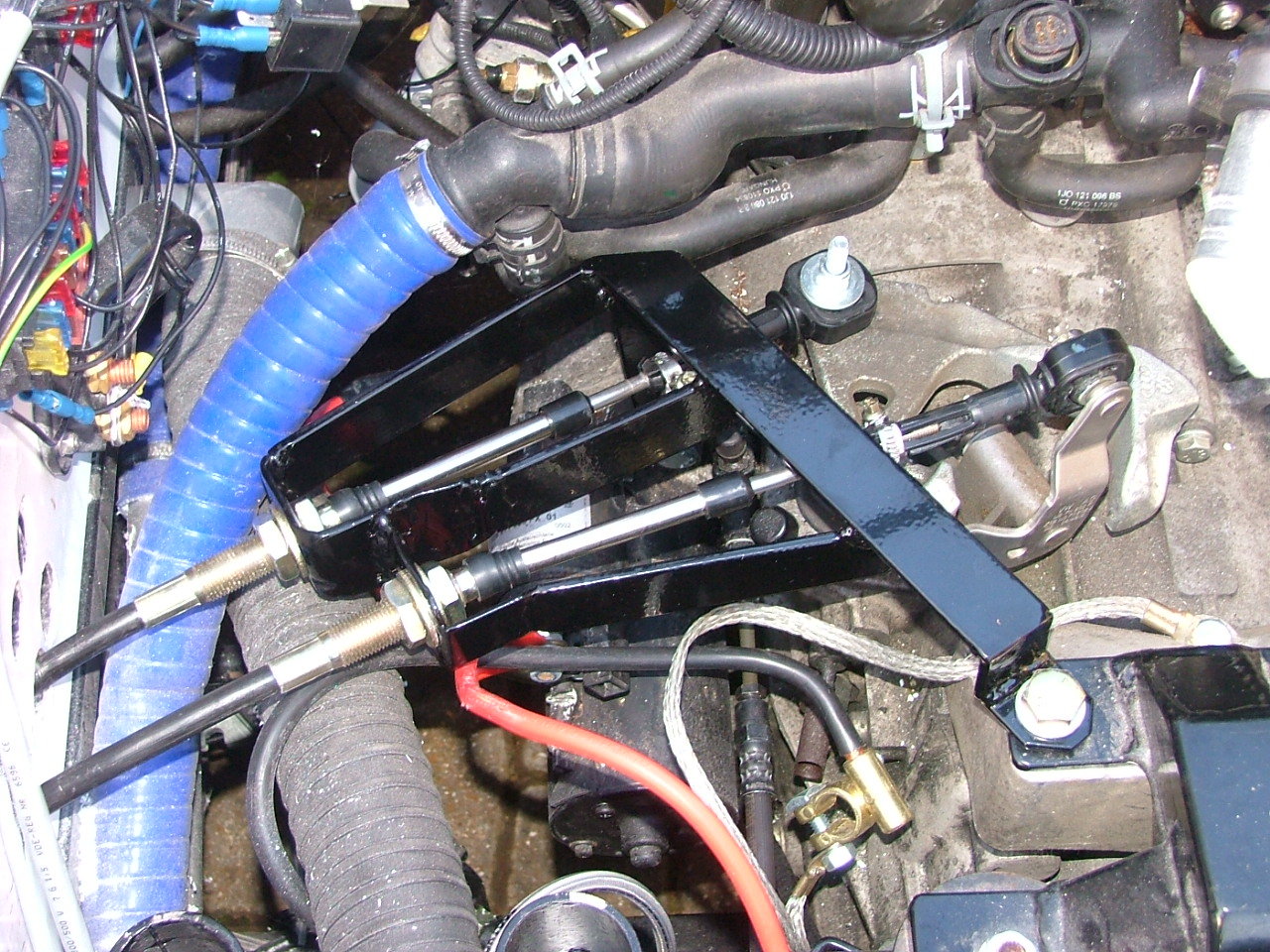

And then I put the cables in place:

Click to download

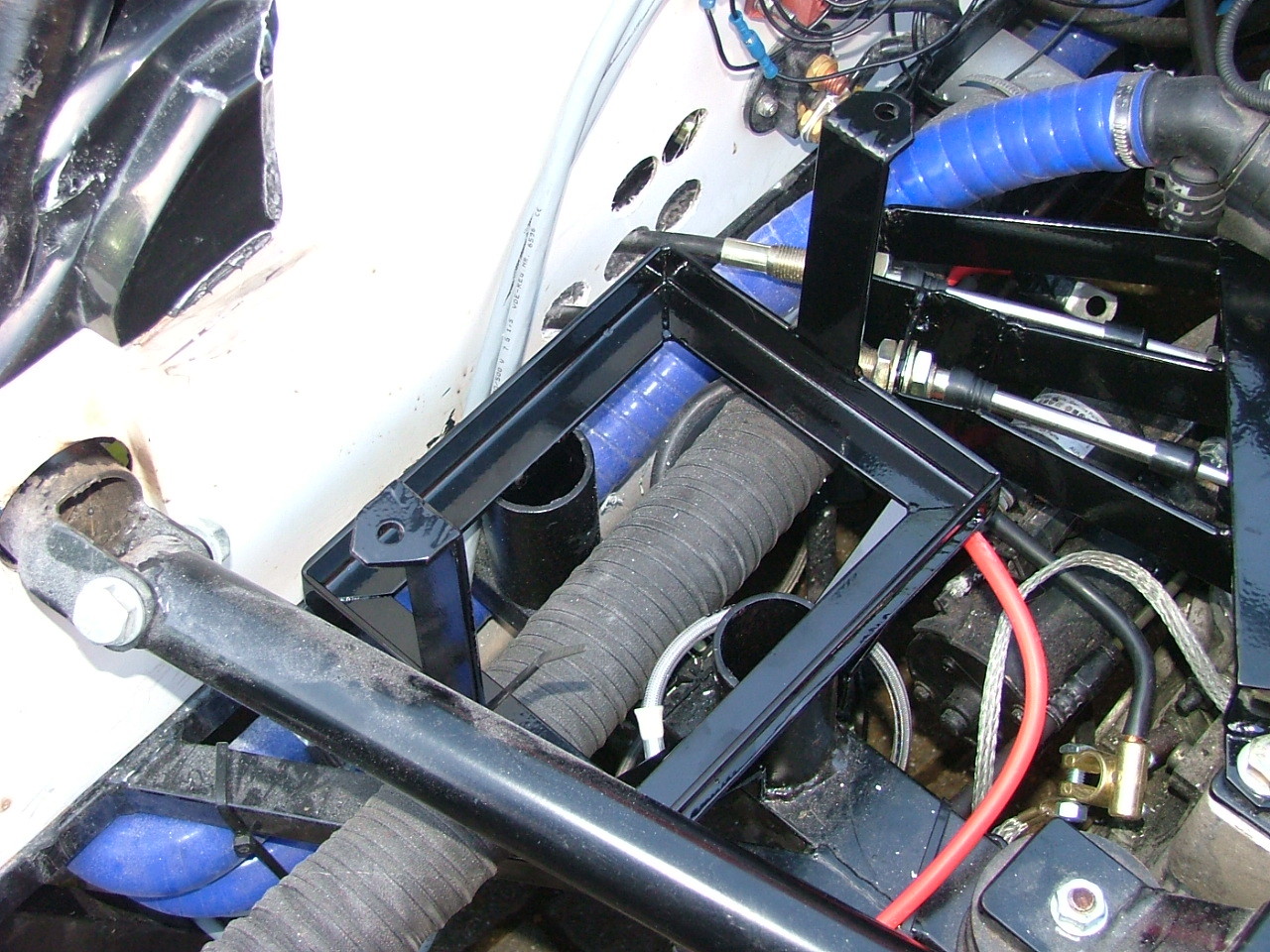

The battery holder was a bit of a struggle as the powder coating made the bolt more difficult to align:

Click to download

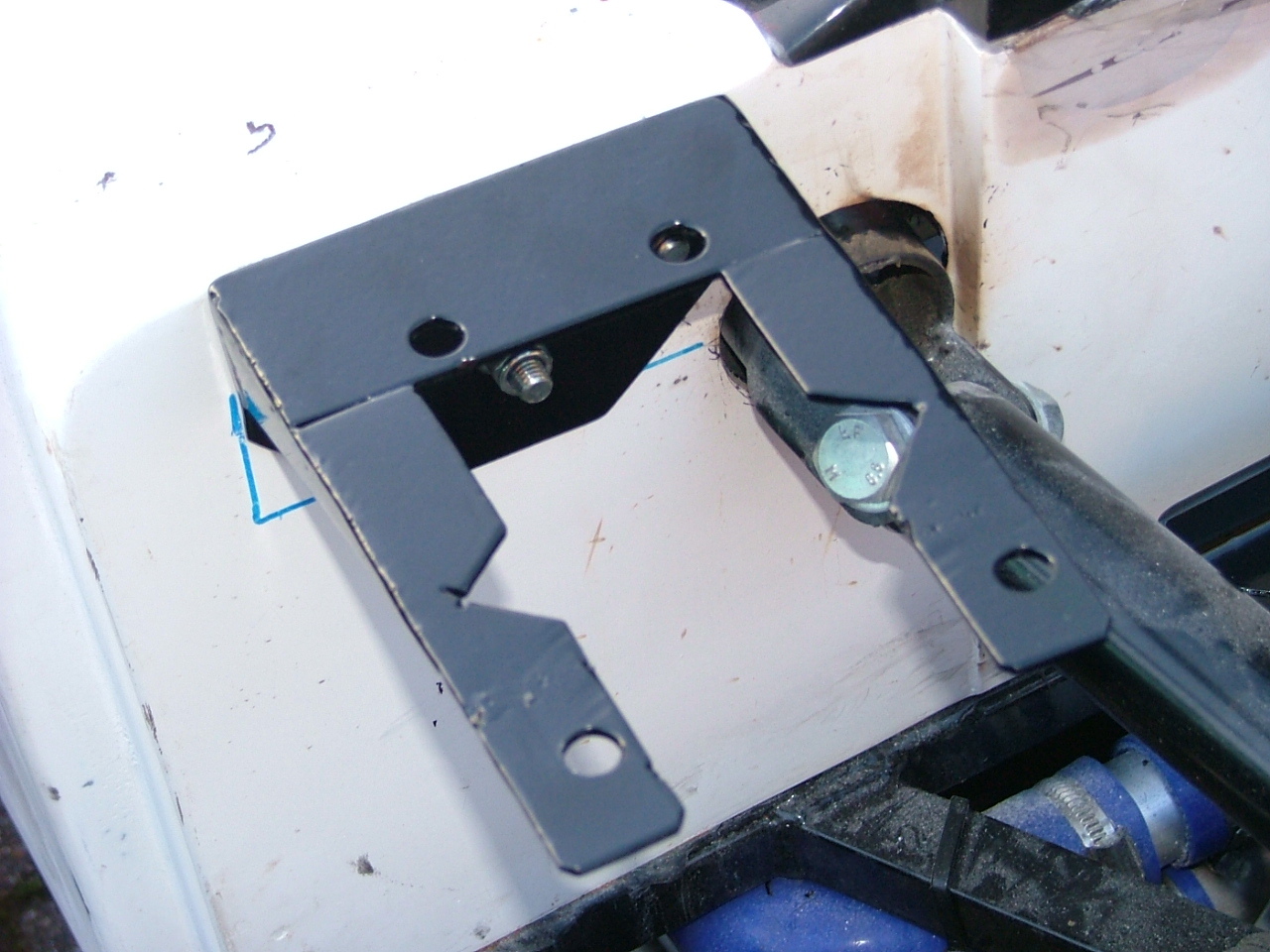

But the filler cap carrier needed a lot of work to make it fit:

Click to download

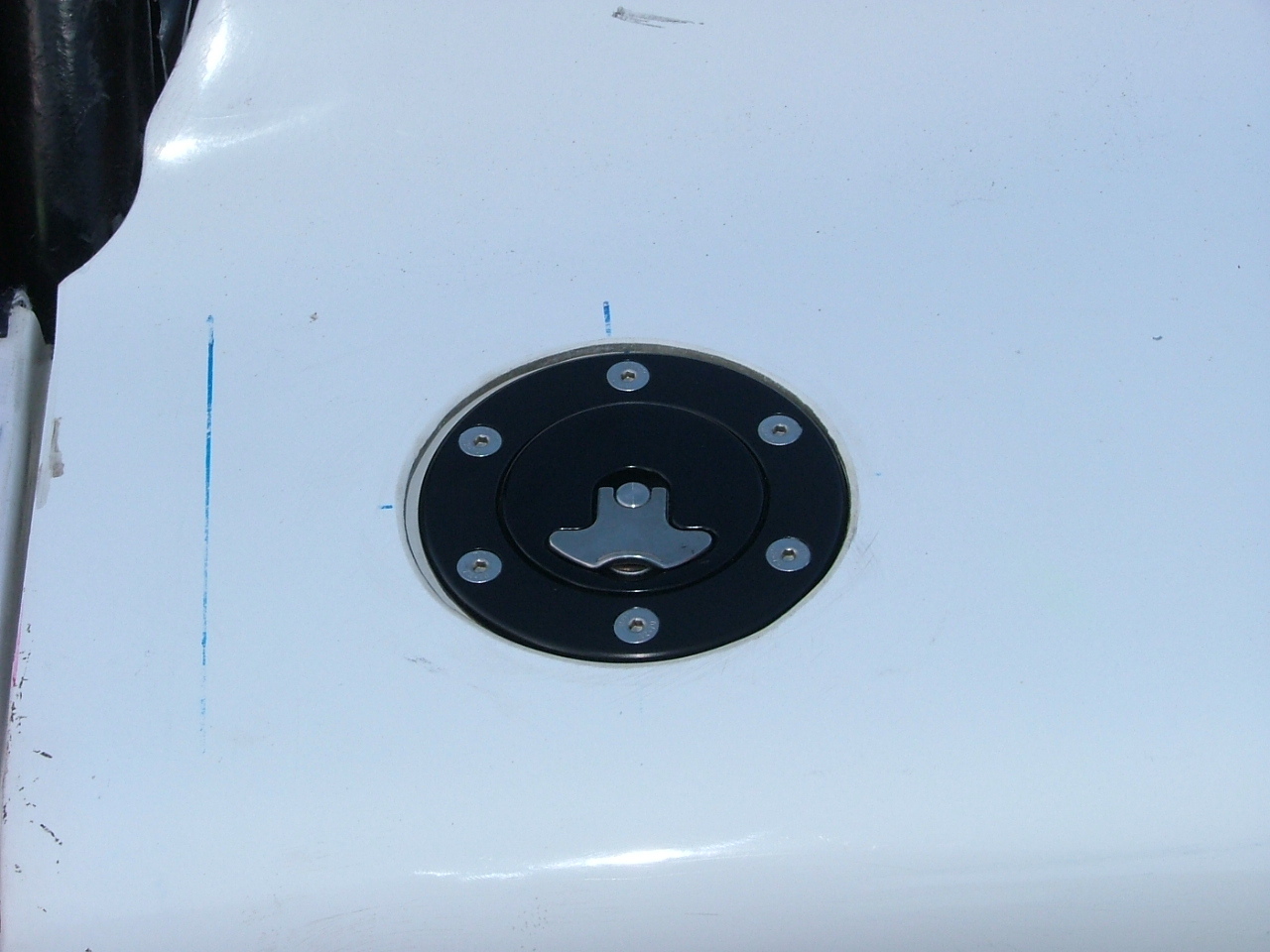

It eventually fitted though (needs to move a little to the front of the car, which I'll do later on):

Click to download

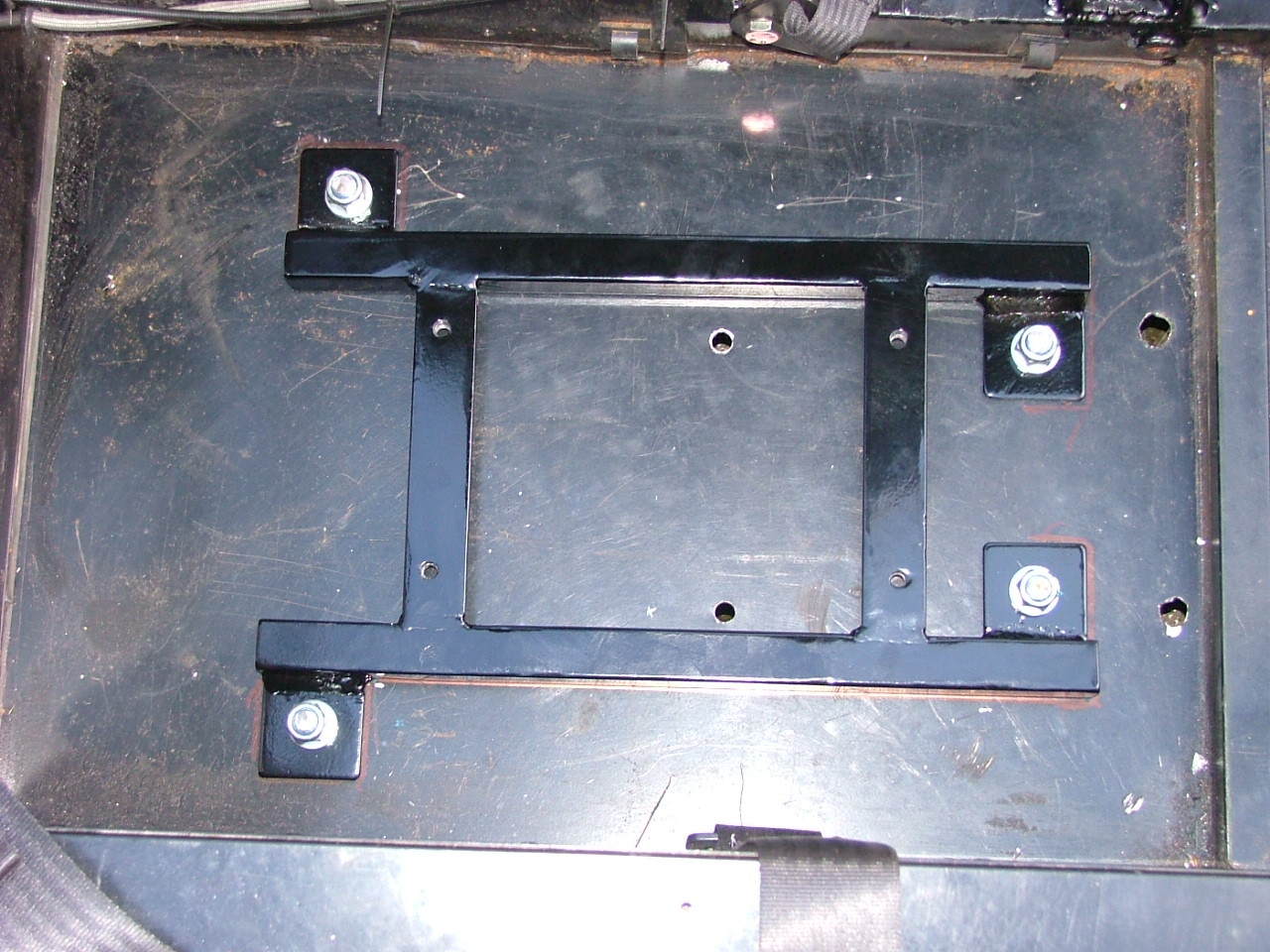

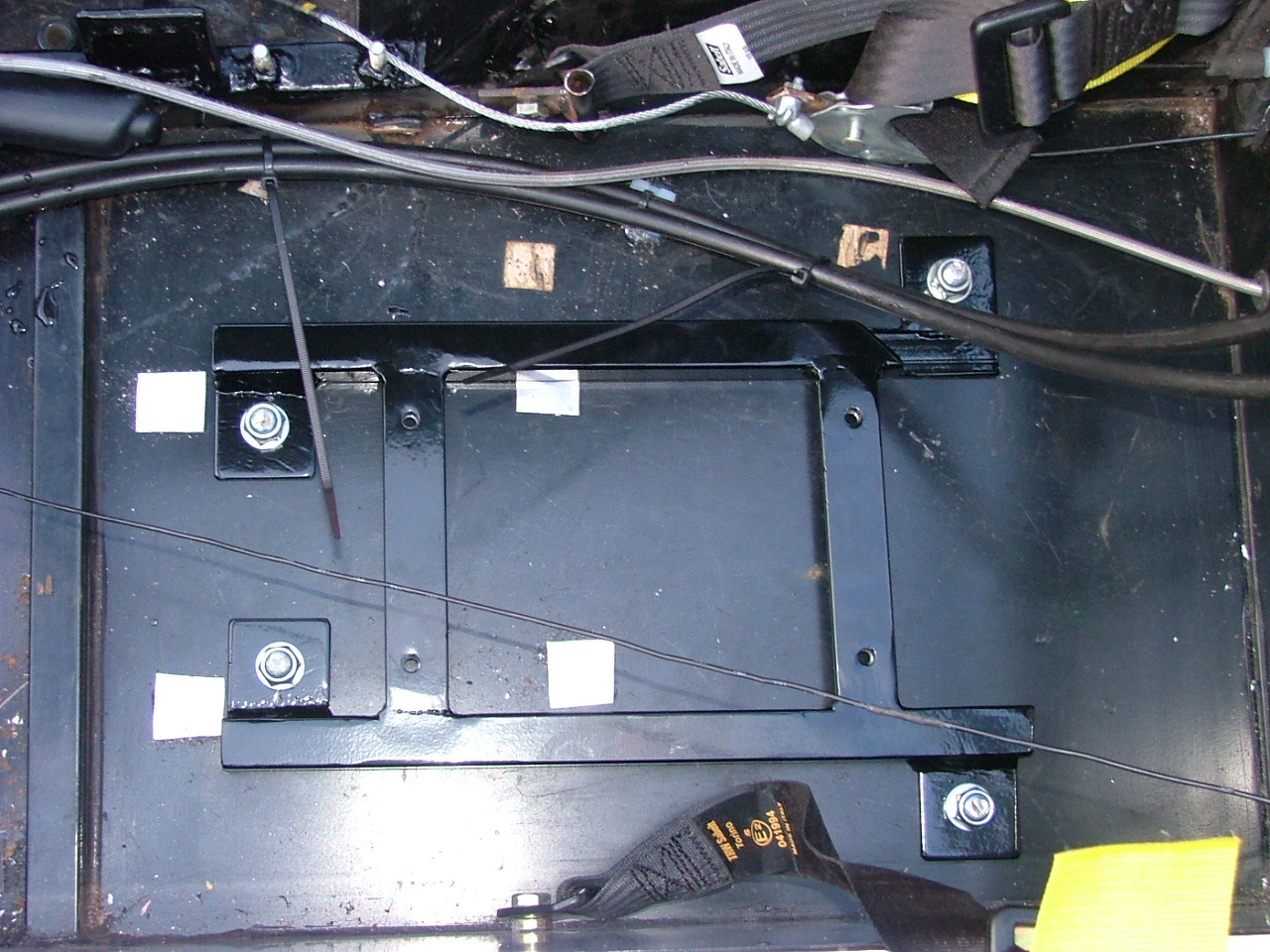

I then fitted the left-hand passenger's seat bracket:

Click to download

Then the right:

Click to download

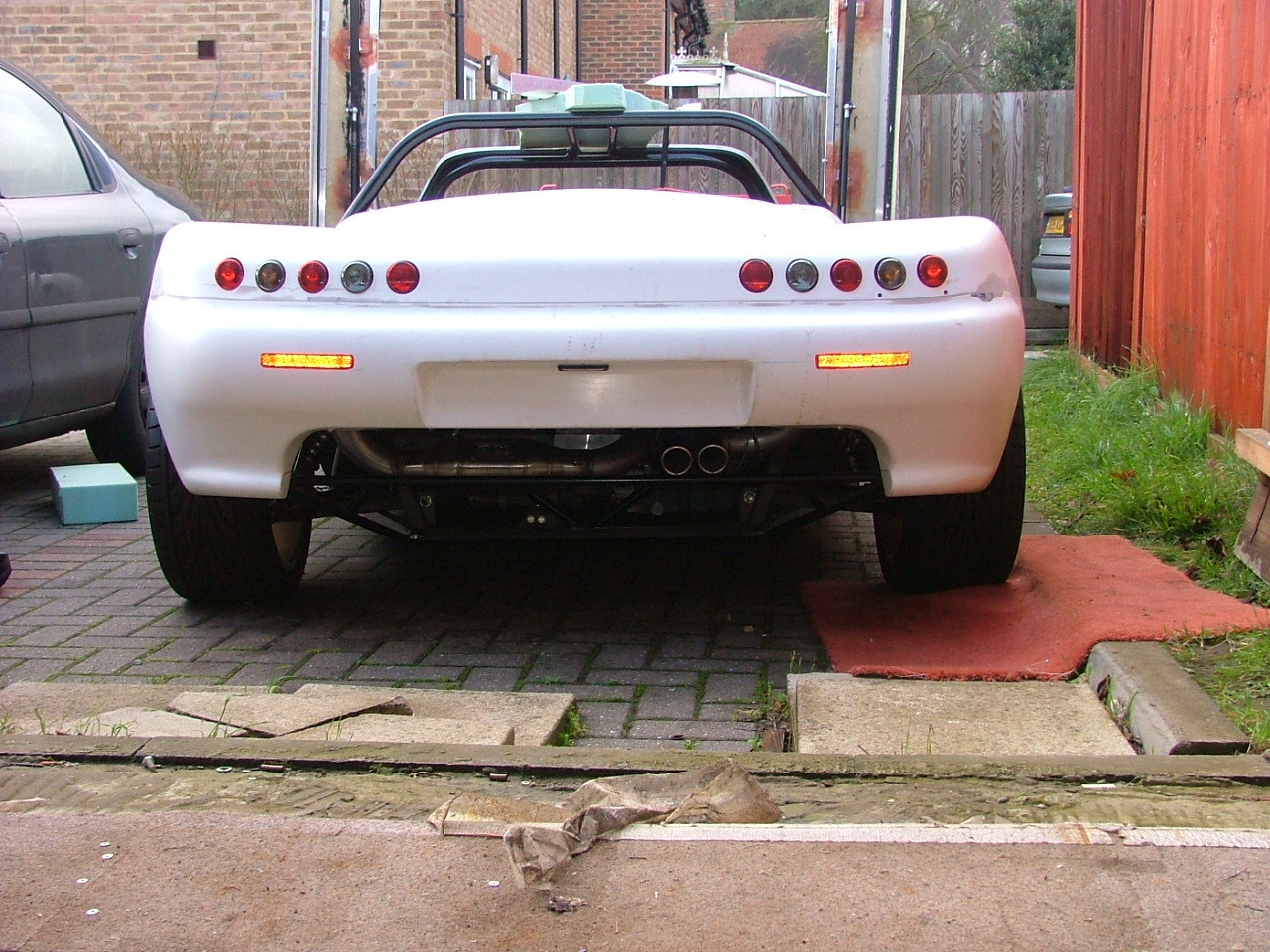

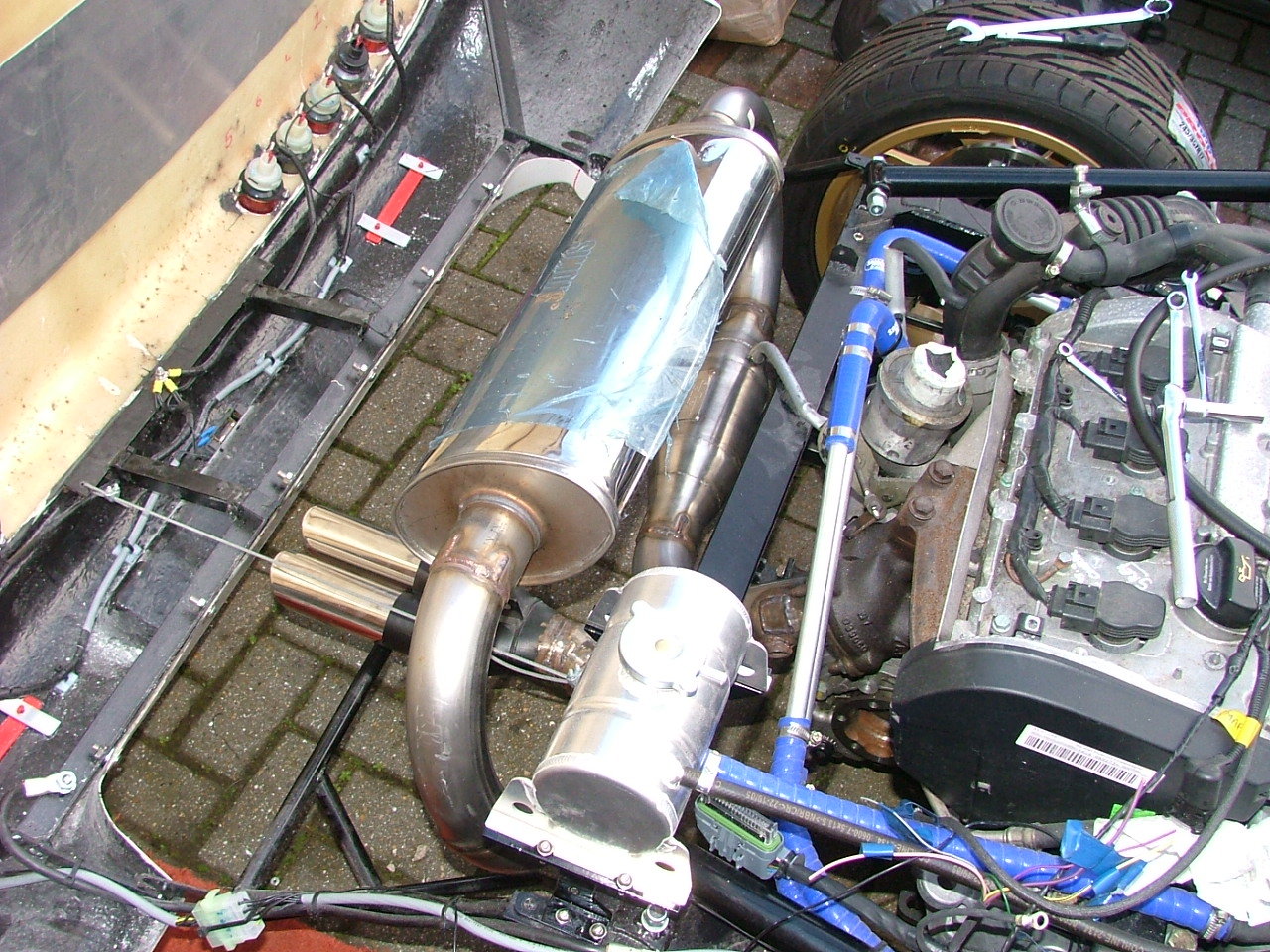

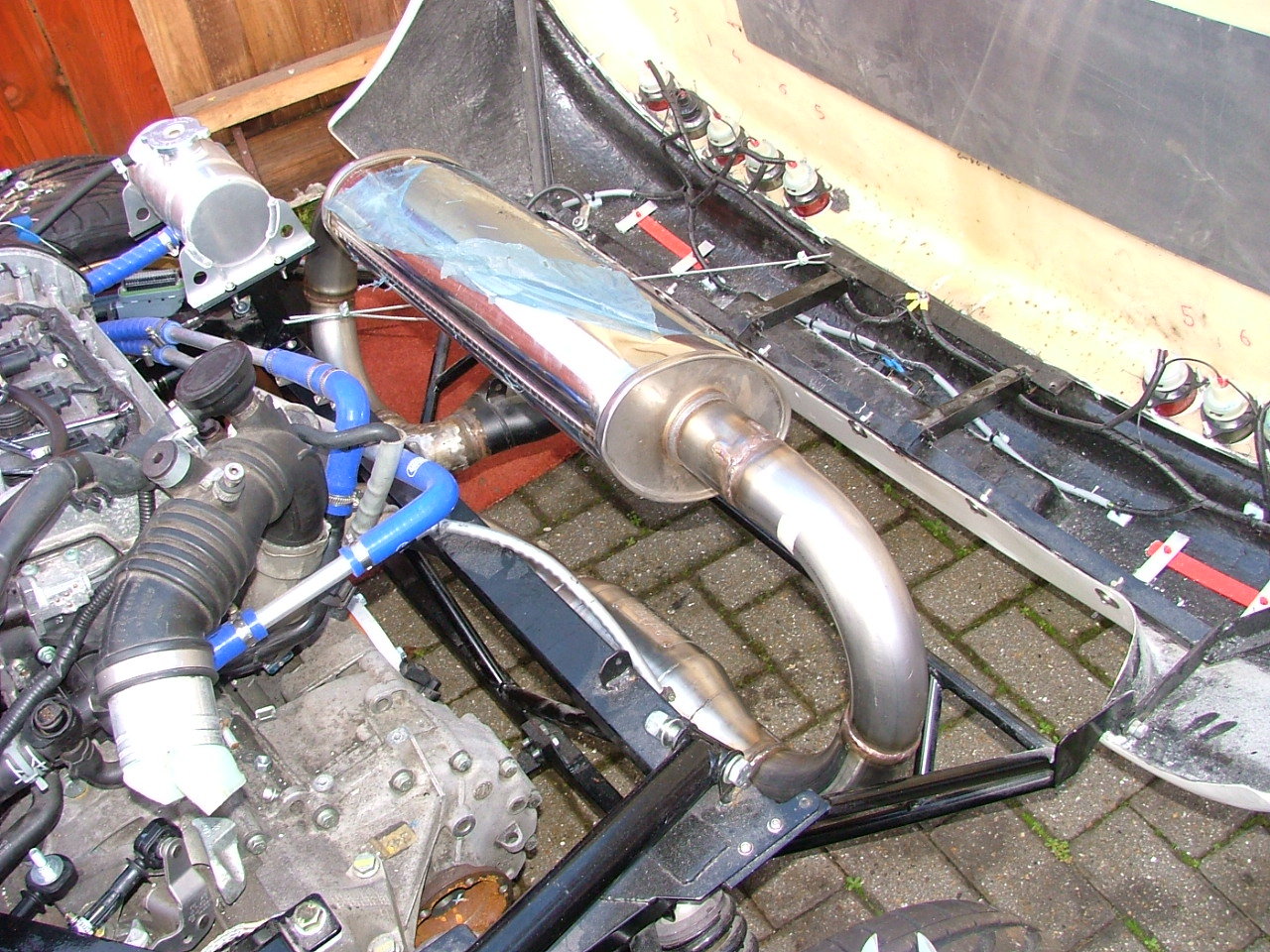

With all the major powder coated items fitted, I wanted to look at the exhaust, and how the mounting brackets should go:

Click to download Click to download Click to download

It looks like it's moved a bit - the exit pipes aren't level, and they've also dropped a bit, so it'll need to be moved.

Annoyingly, some dark clouds started to appear, so I stopped then - although it didn't rain until a couple of hours later. I'm not sure what tomorrow's forecast is; if it's fine, I may cut the end of the exhaust off, and try to correct it, as well as sort out the mounting points.
