Day 128 - Widening the inner wheel arch

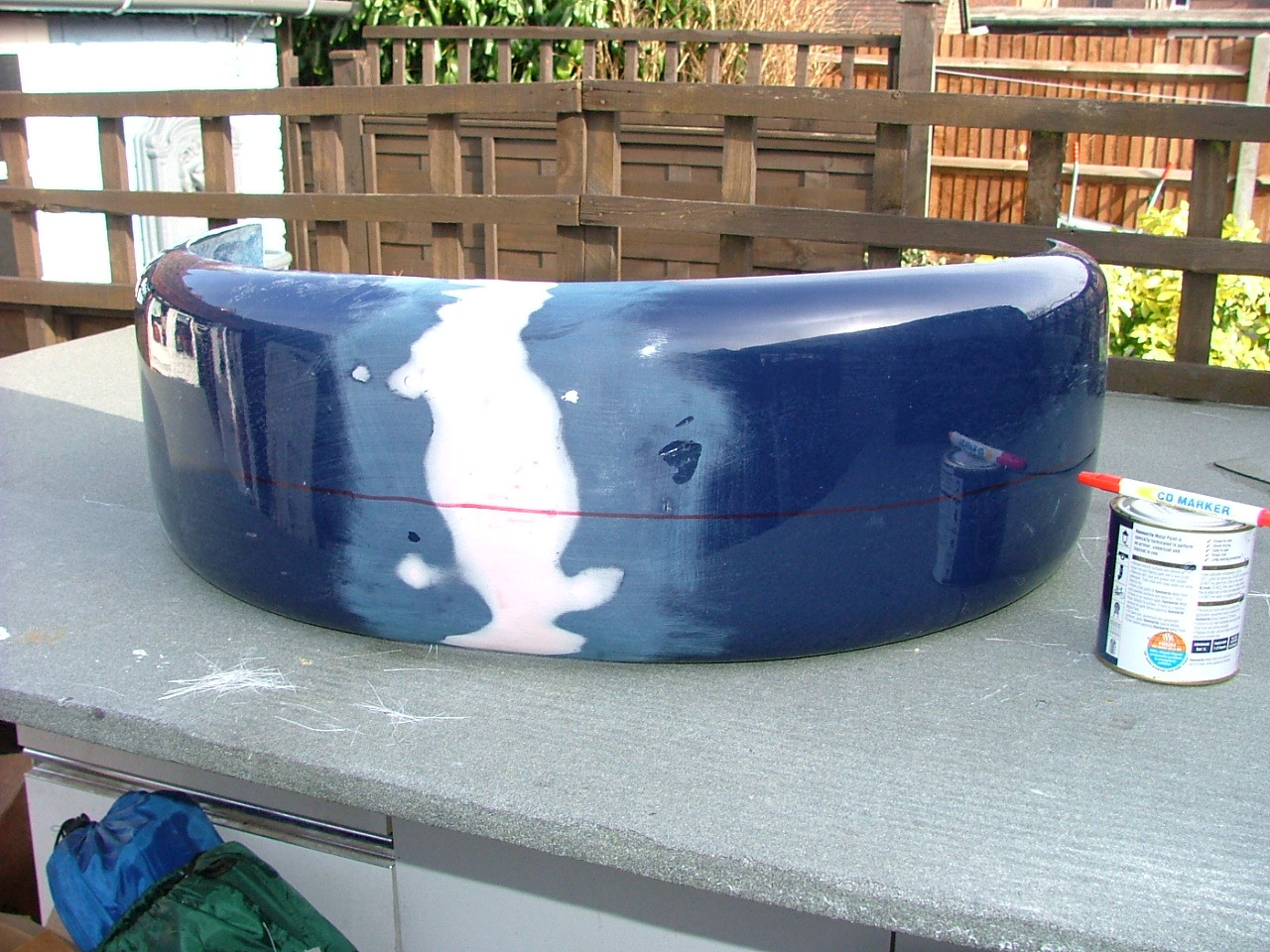

After measuring it against Mike's car, I decided that it really needed to be about 30mm wider, so I used a paint pot and a pen as a guide to make a nice, level cut.

Click to download

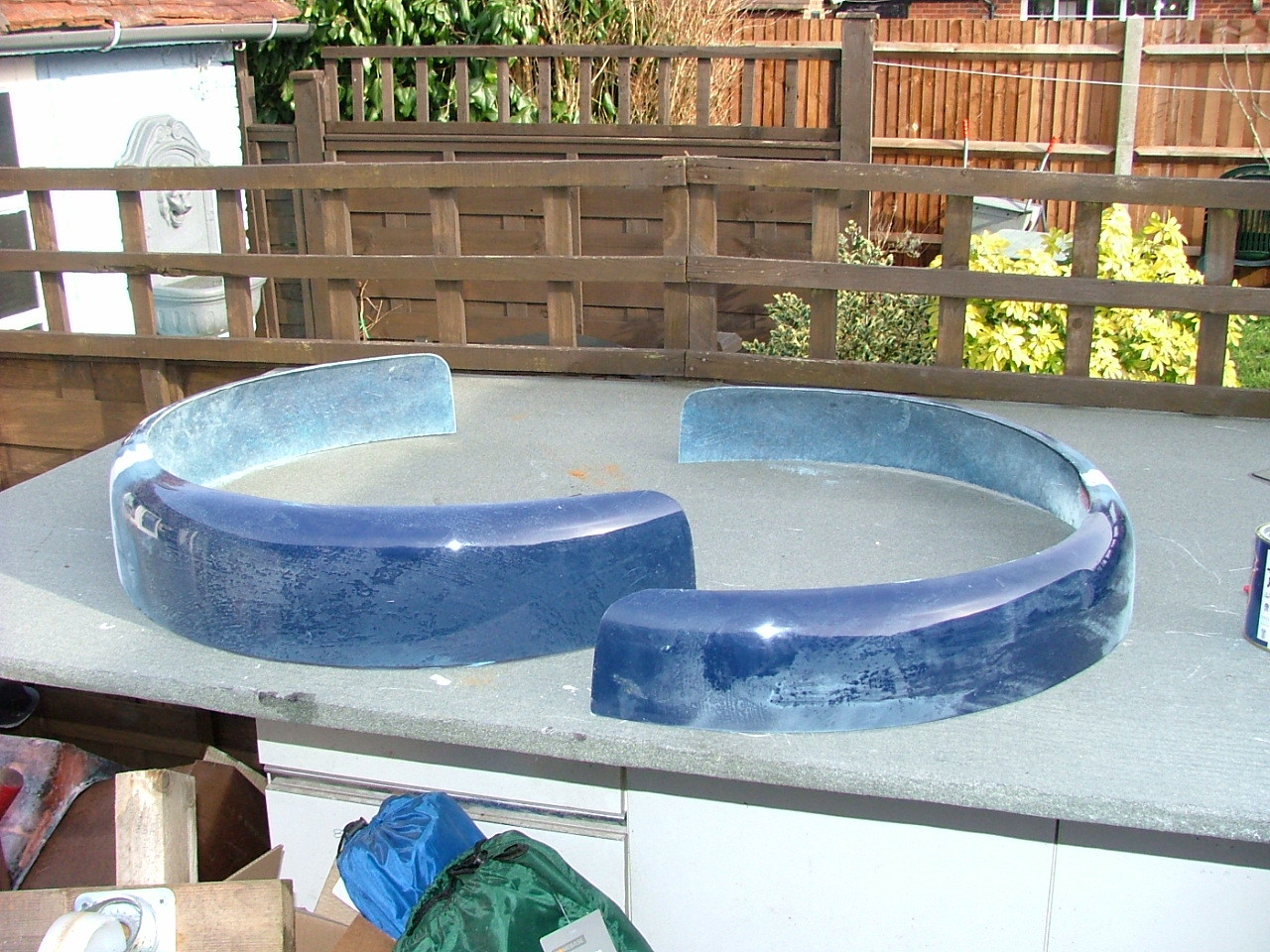

And then using an angle grinder, I cut it into two:

Click to download

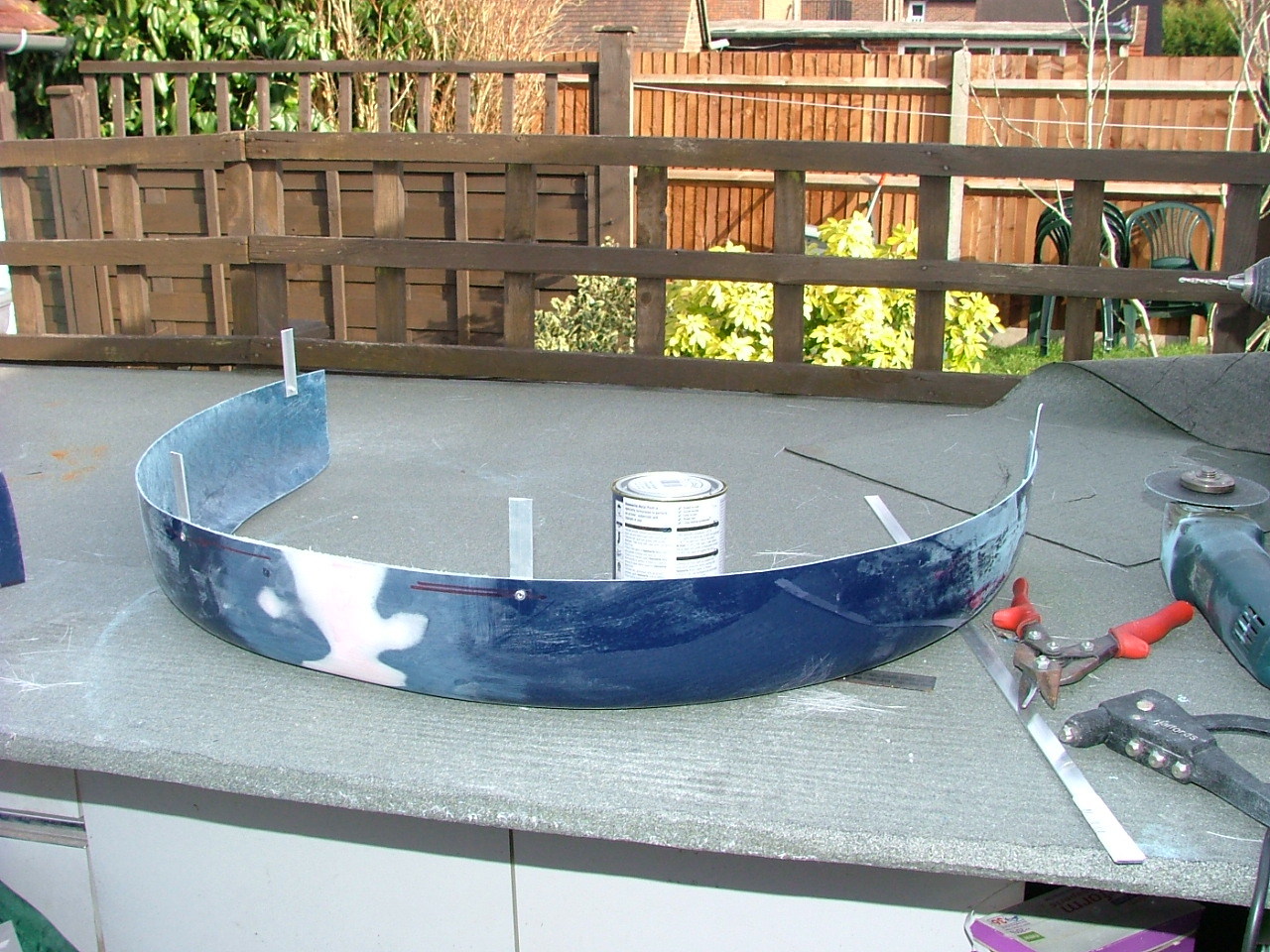

Using some 70mm lengths of aluminium, I made 4 joining pieces

Click to download

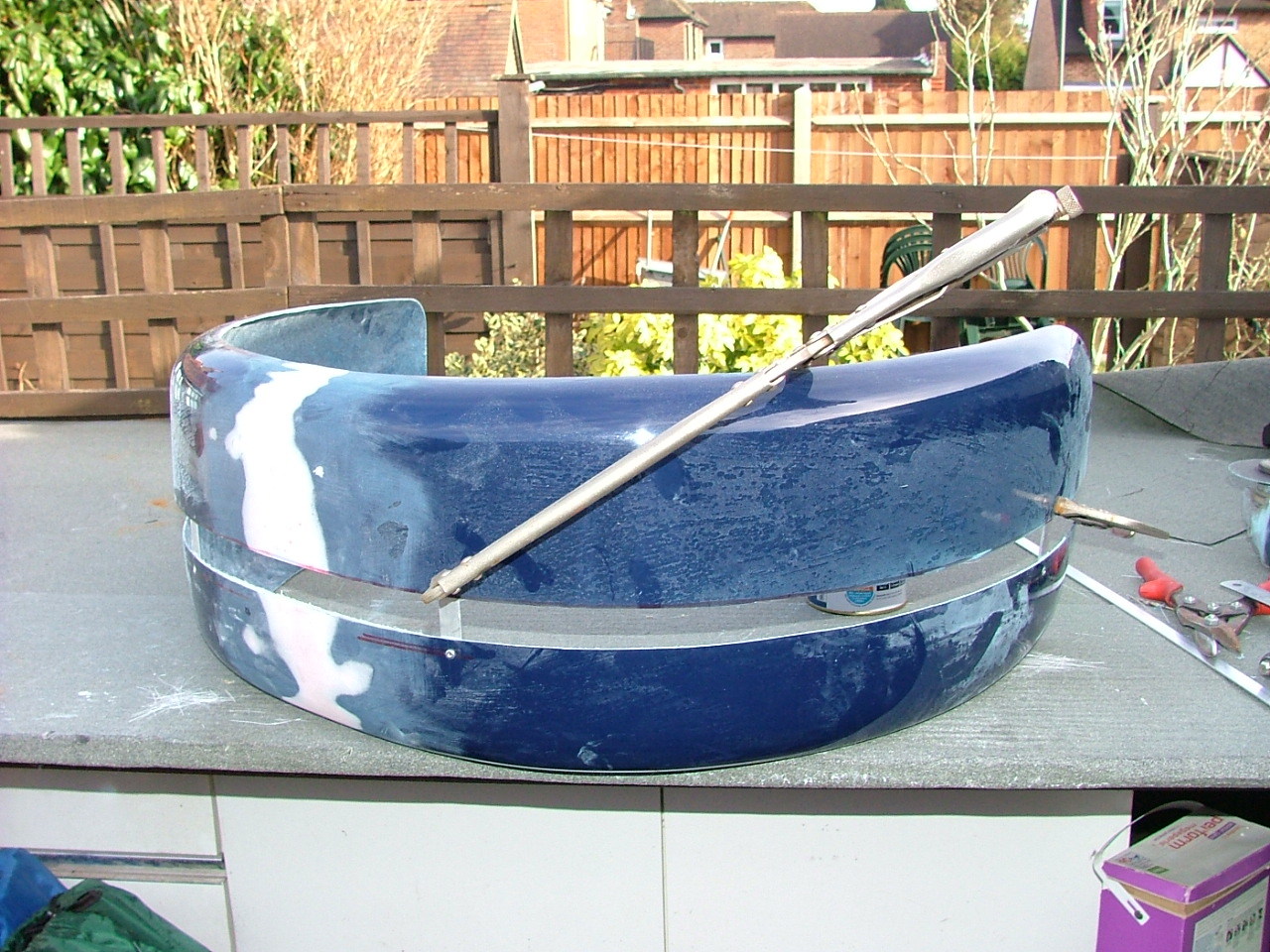

And then clamped 3 of them (so I could rivet the 4th)

Click to download

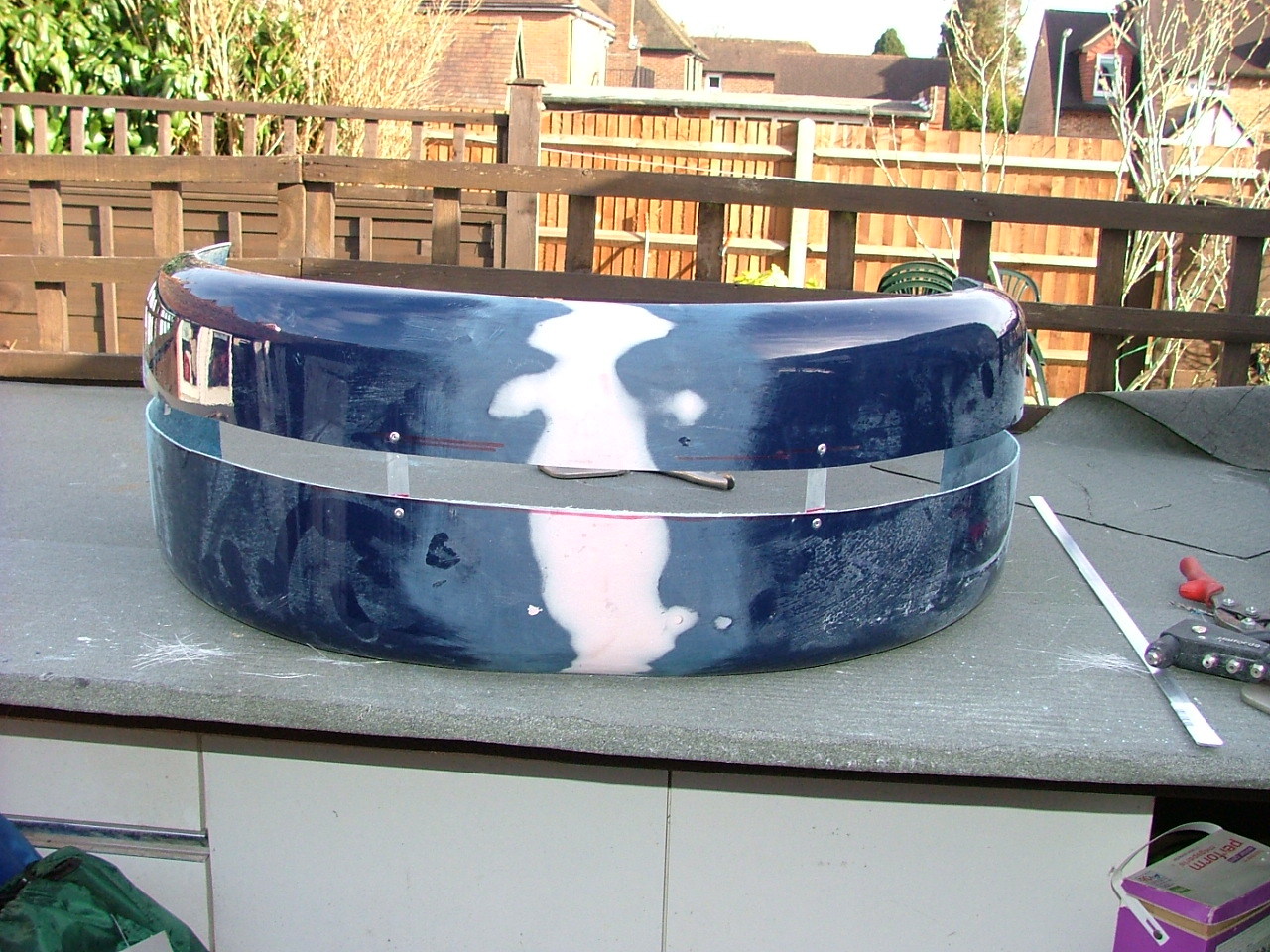

After rivetting all 4:

Click to download

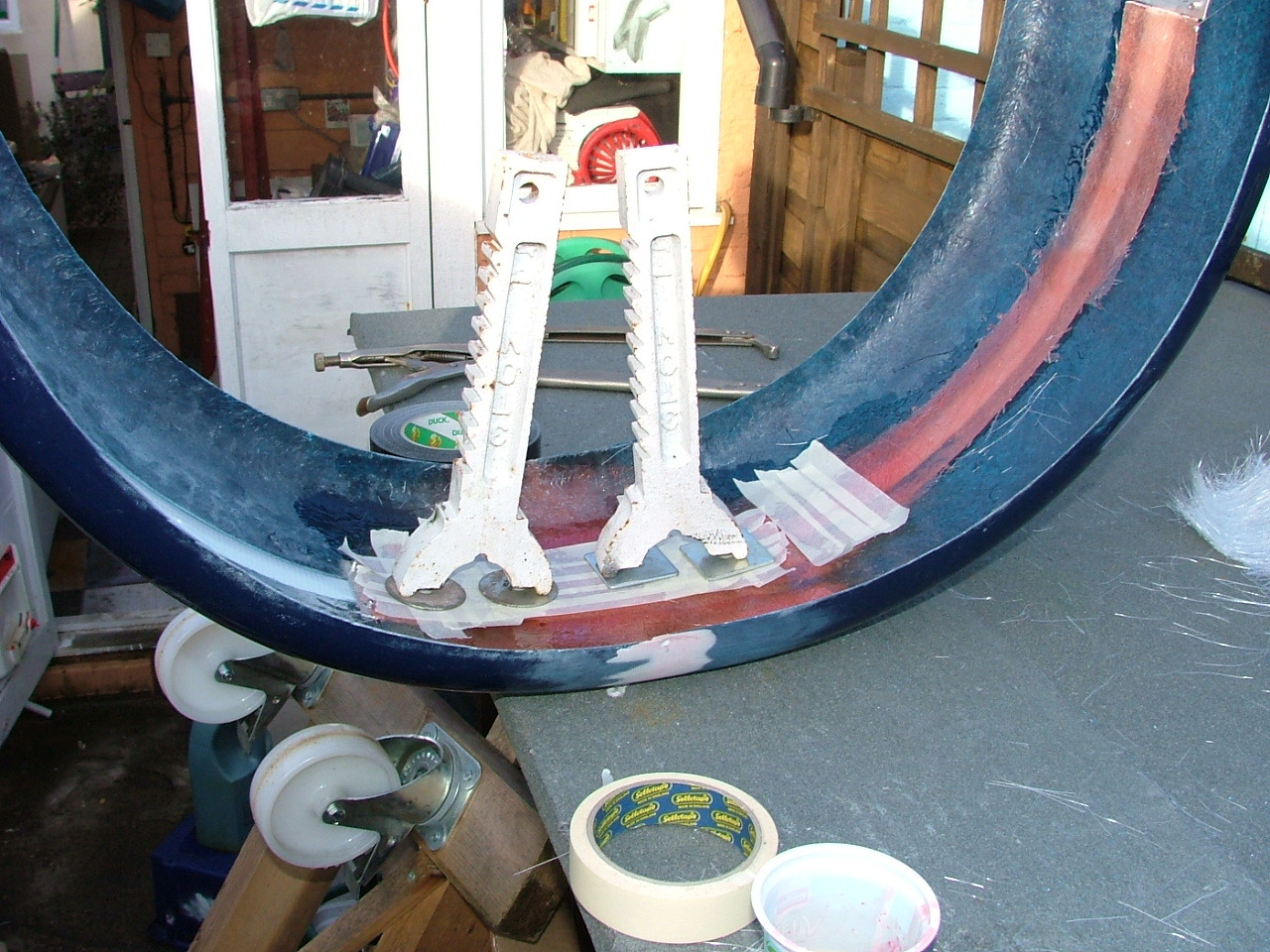

I then put tape on the outside, and used the bits I'd made earlier to fill the gaps:

Click to download
