Day 163 - Radiator fan and case for electrics

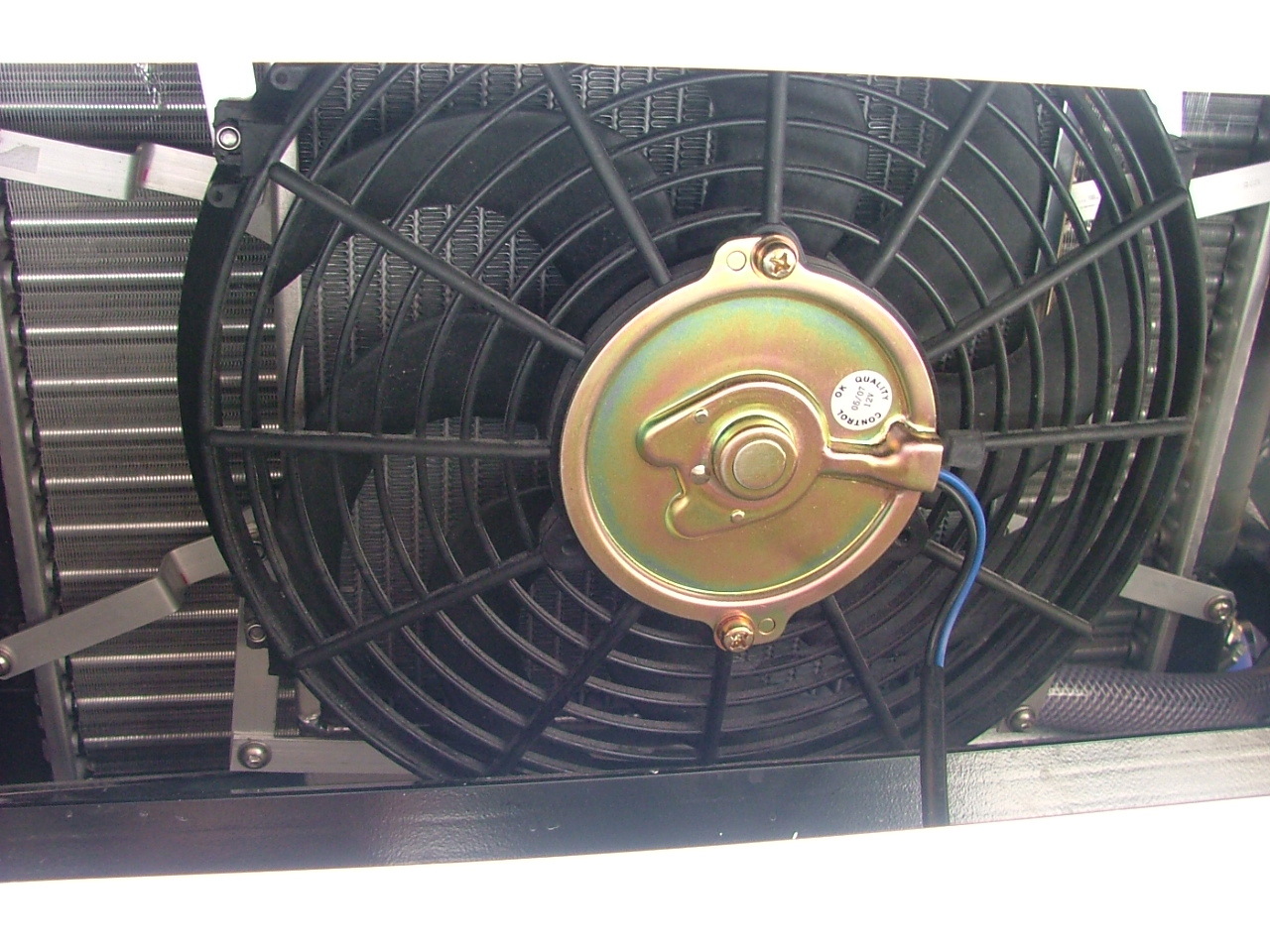

Yesterday, I'd overdone it in the weather, so I needed to have a reduced day today - the primary goal was to fit the radiator fan.Unfortunately, the fan I'd ordered for the charge cooler still hasn't turned up (I ordered it the beginning of April), and I decided to push chance, and fit the old one with some brackets (knowing my luck, the proper one will turn up tomorrow).

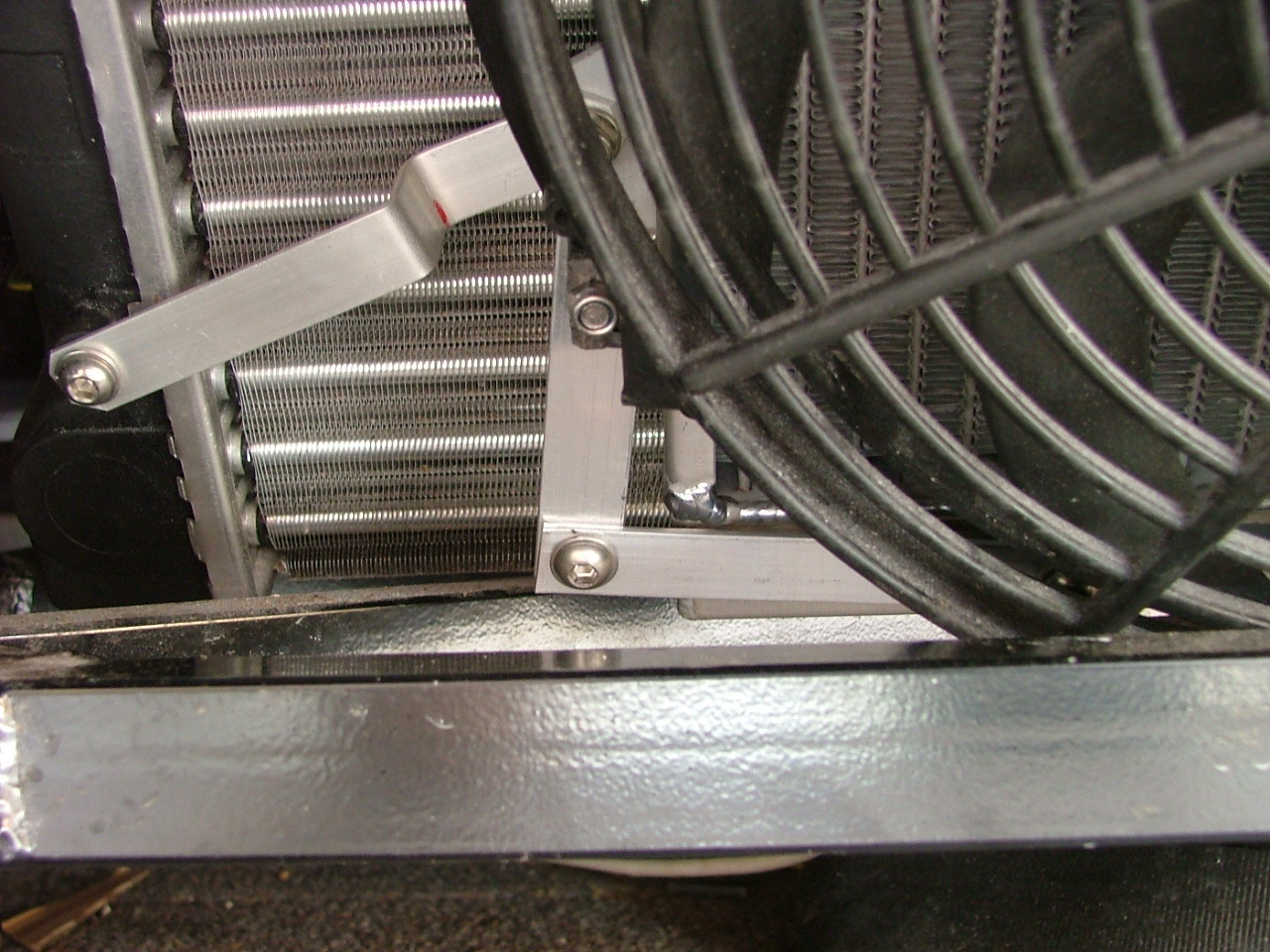

This is quite a bit bigger than the other one, and the mounting points are in a different place. I made a simple bracket - it's only temporary, and will allow me to get the engine mapped if it still hasn't turned up by then.

Click to download Click to download

The last bolt didn't want to do up, and I need to jack the car up. Since I need to take the sill off to do this, I decided to leave it until I've bought a long-reach, low-profile jack.

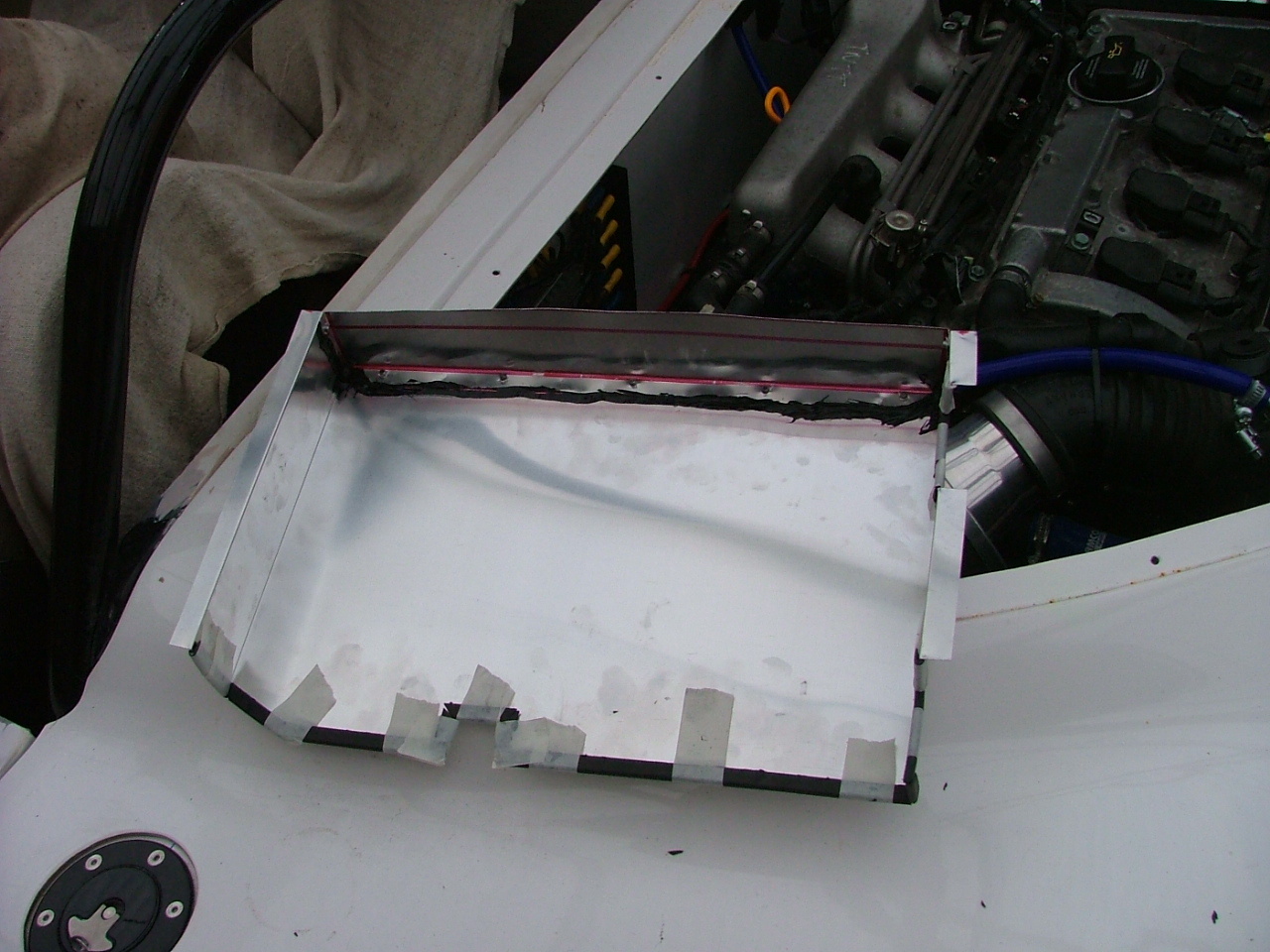

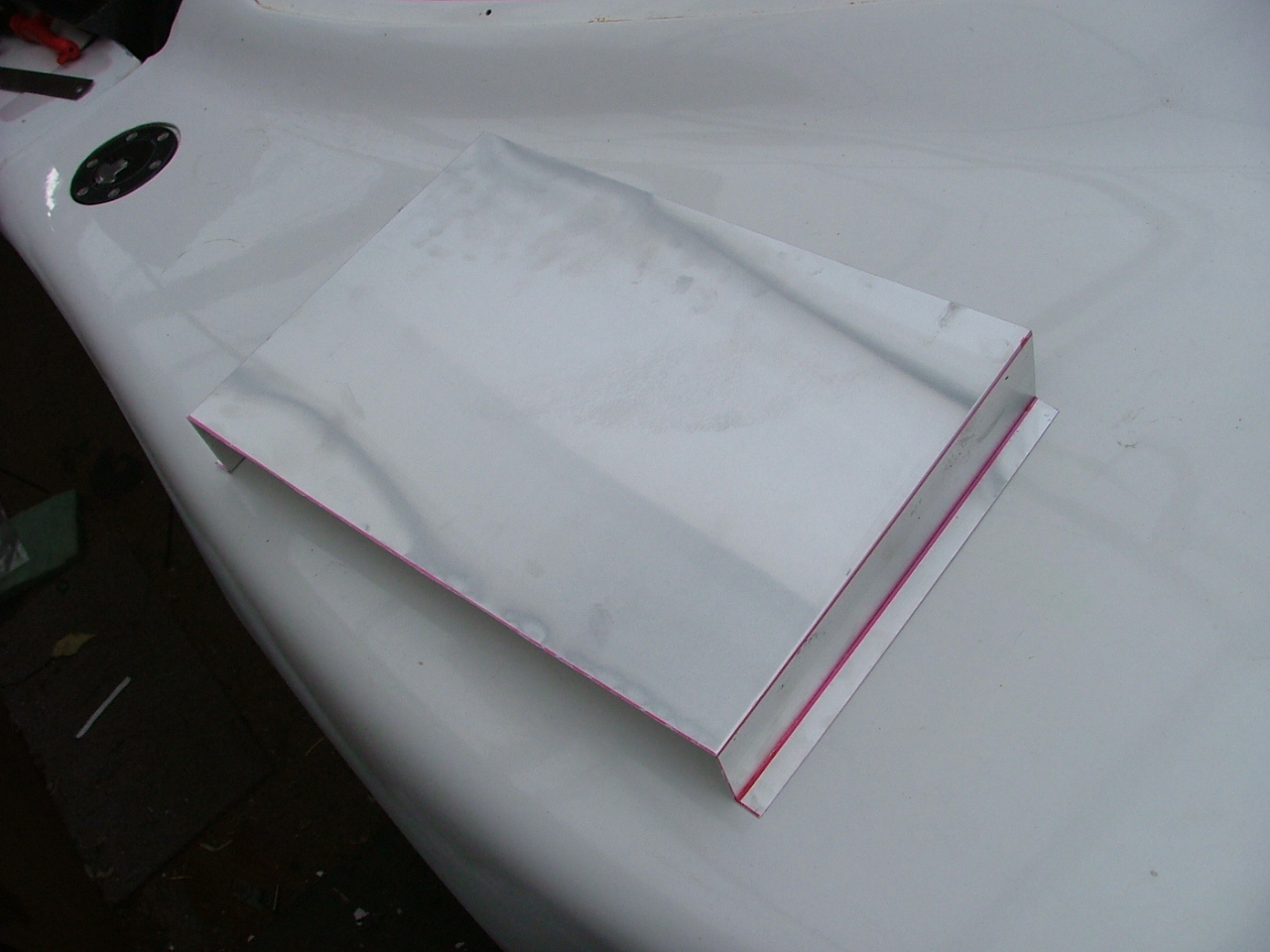

So, I started work on a cover for the electrics. This is made out of a sheet of aluminium, folded in 4 places...

Click to download

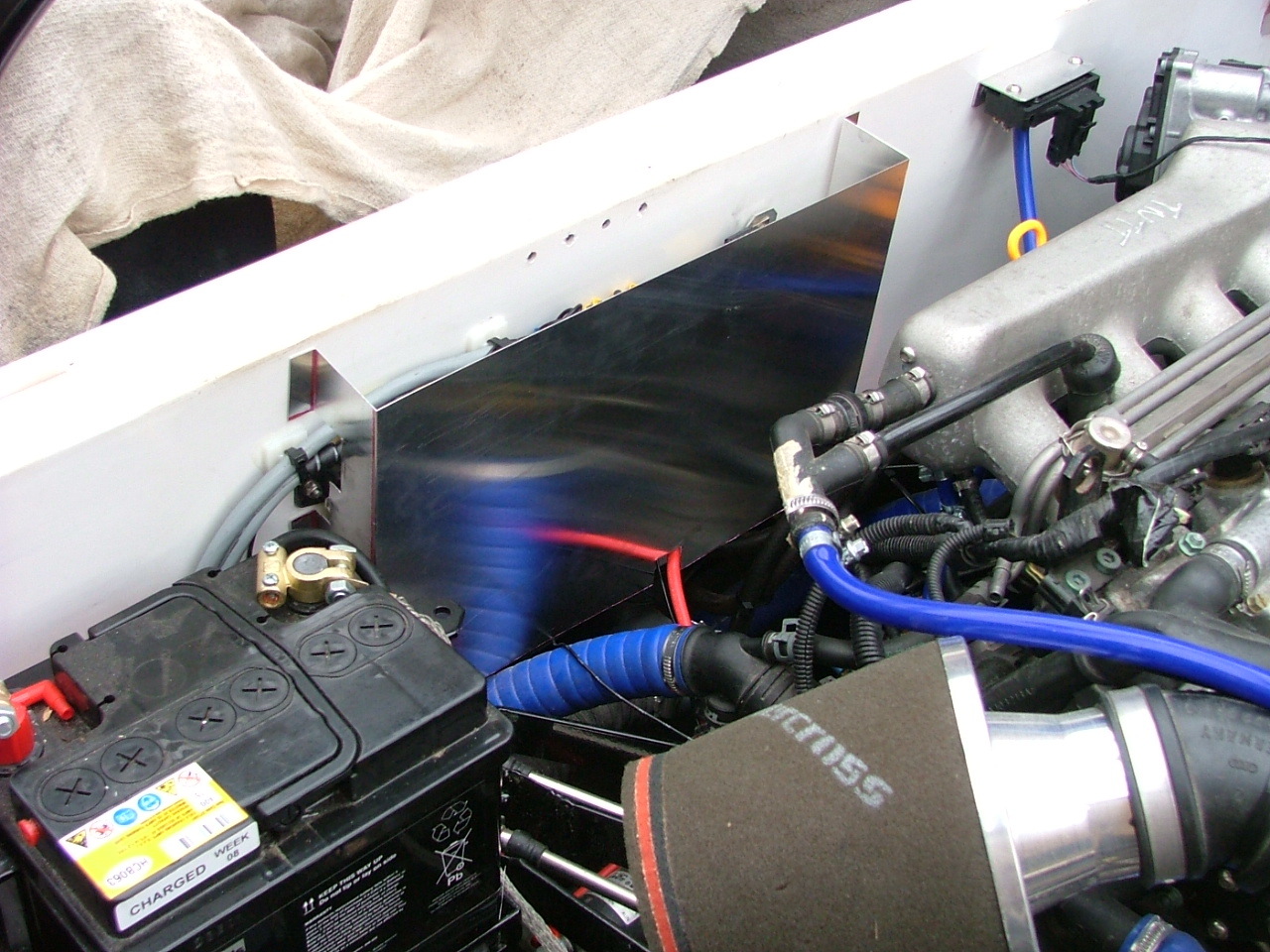

...with some cut-outs for the cables...

Click to download

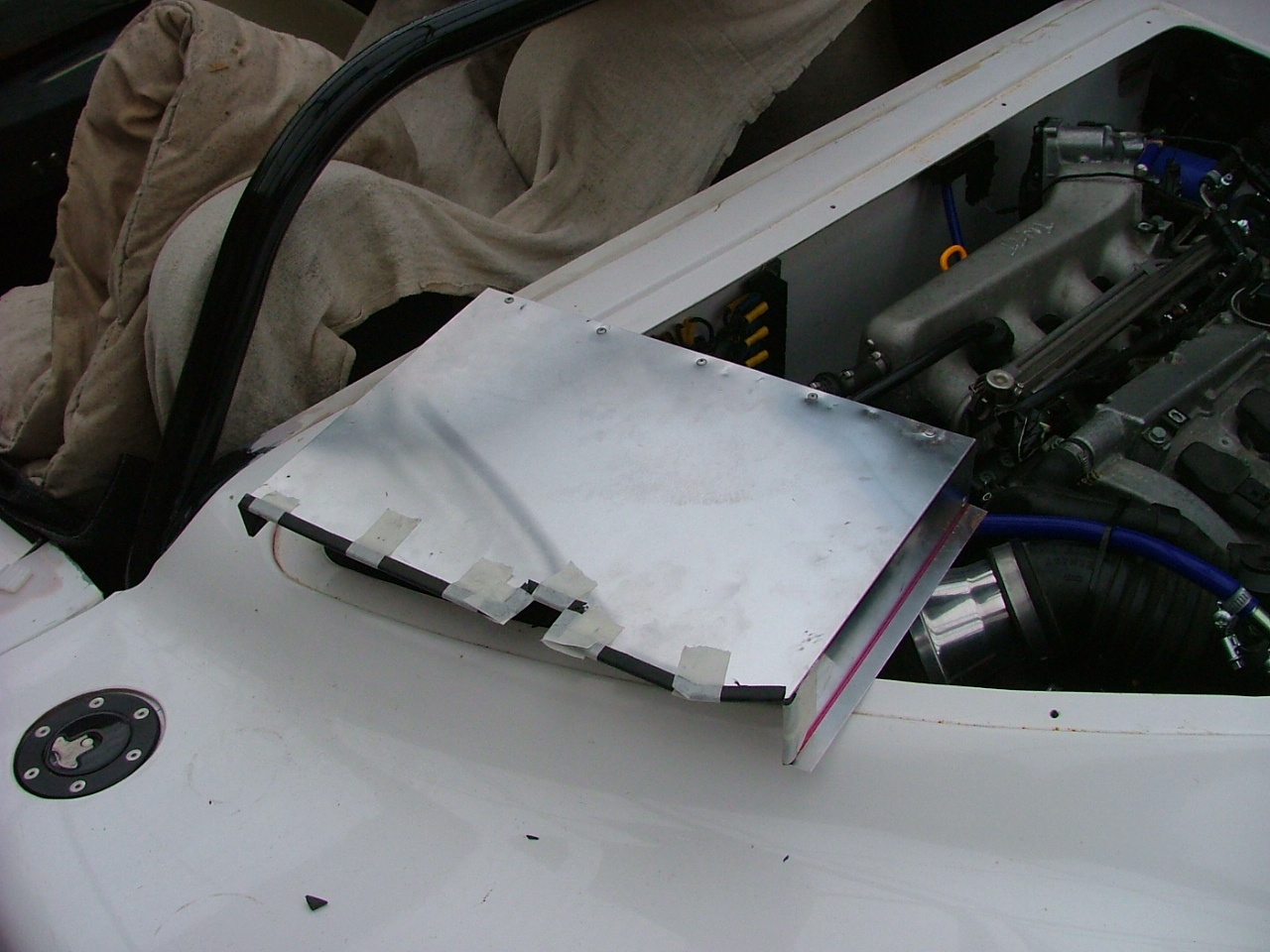

...a top plate...

Click to download

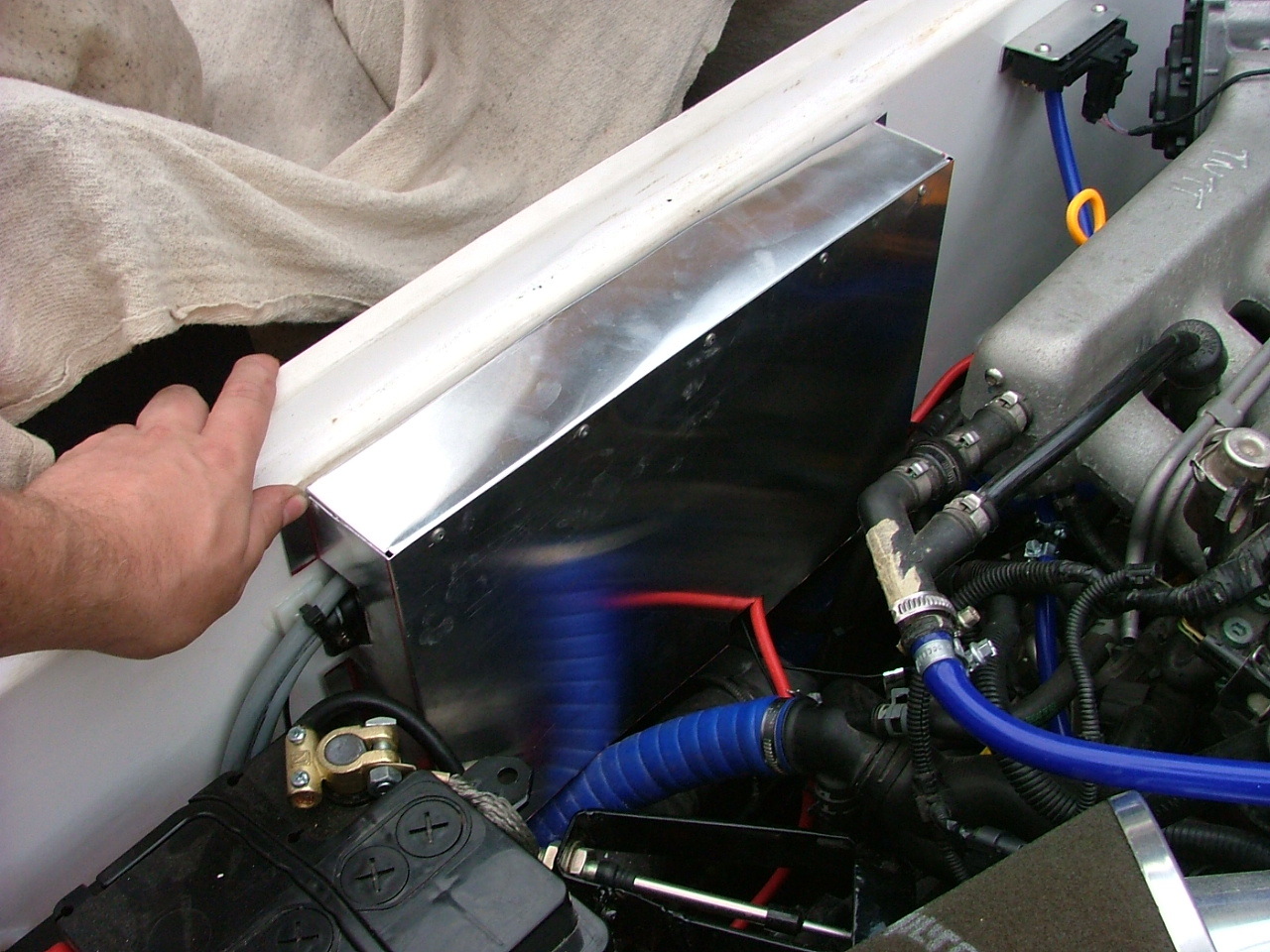

...and some rubber edging around the cutouts and bottom.

Click to download Click to download

I'll drill some holes in the bulkhead to take it later on.
