Day 110 - Seat mounts

Today started like day 2 - the clocks went back. This means that it's a year since I started building it (although 29th October 2005 was day 1, which is when I picked up the bits).

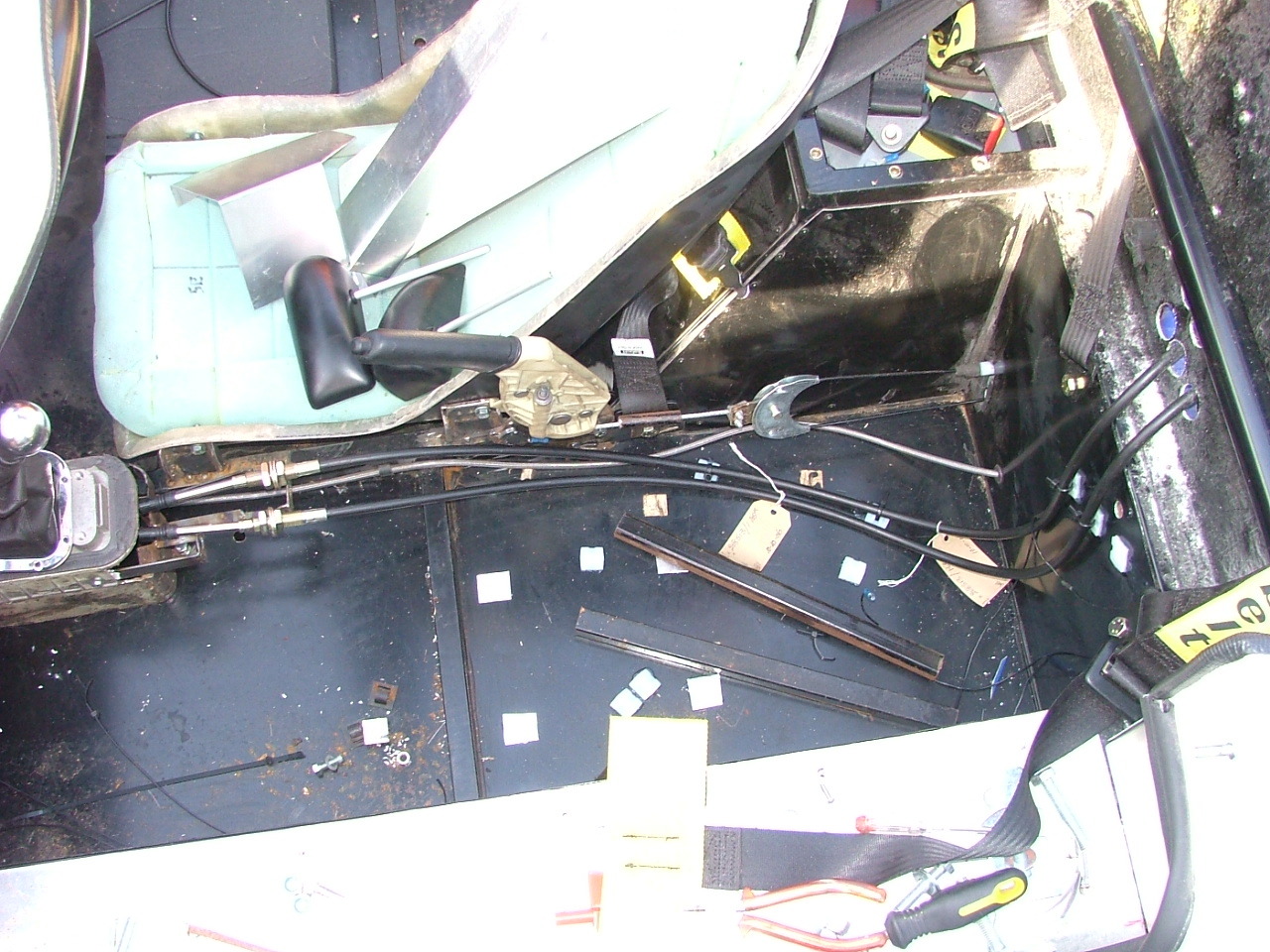

Since I'd like to get the seats sent of to be trimmed, I really wanted to get them finished today. The first thing was to check the routing of the gear cables. These need to go behind, and then under the seat.

Click to download

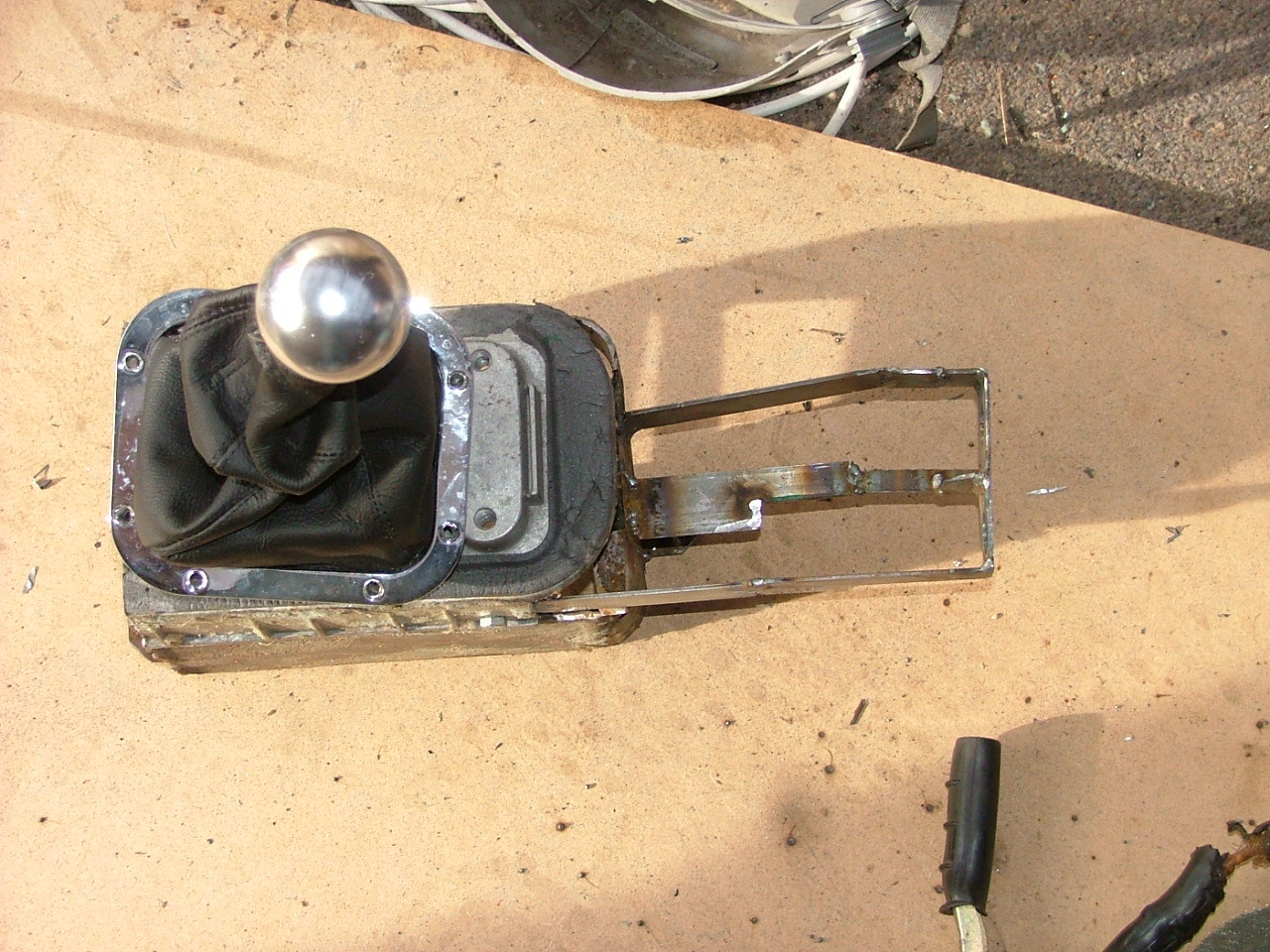

In order to give the best fit, I decided that the shorter cable needed to be slightly longer - the easiest way to do that was to move the end, and to do that, I needed to modify the gearbox again.

Click to download

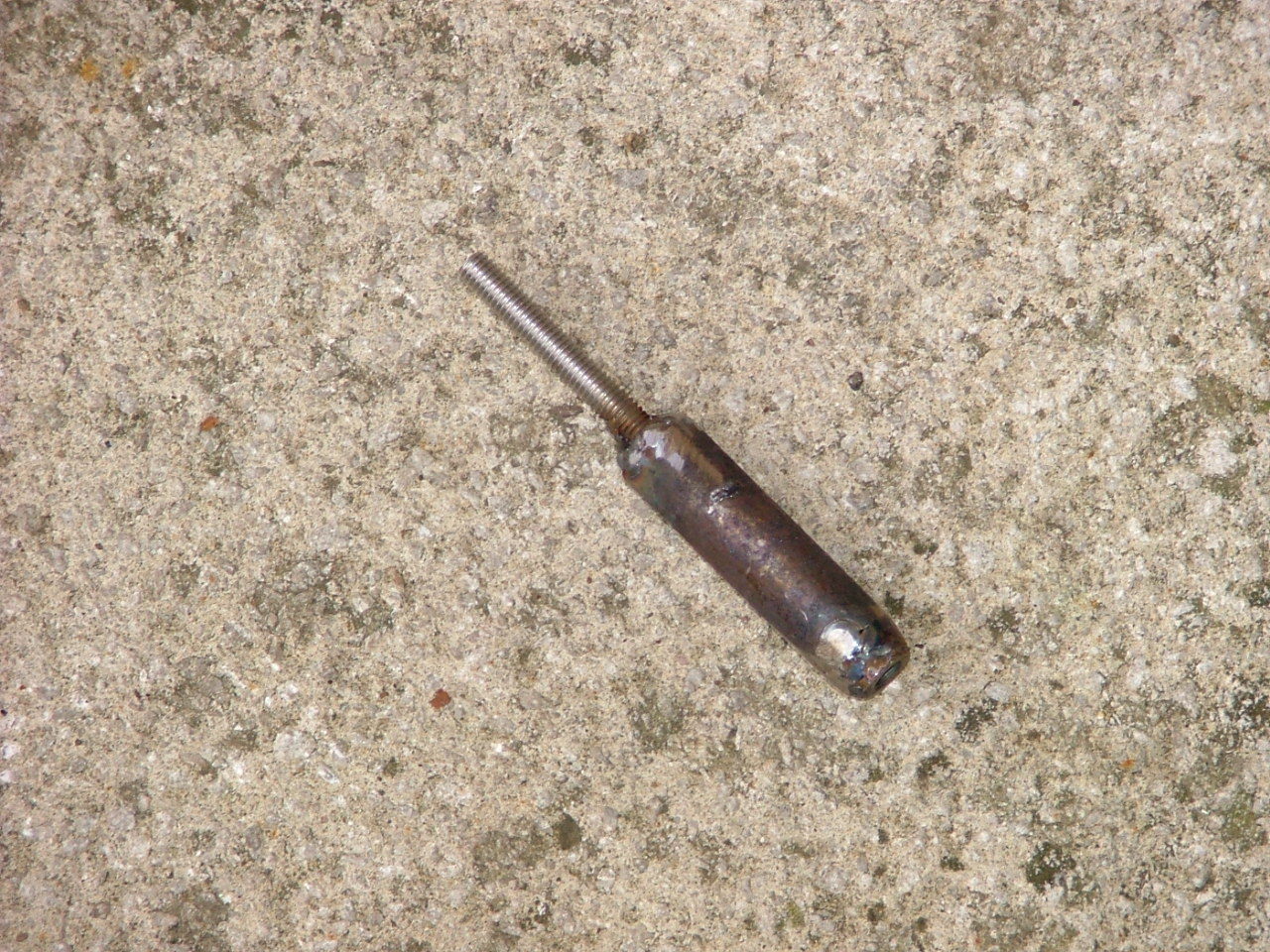

And to make the cable reach, I made an extension to the mechanism (this is exactly the same length that I moved it by [quite by accident, as it happens], which means it shouldn't require too much adjusting from its current place).

Click to download

I then had another trial fit of the seat.

Click to download

There's still a bit of space behind it...

Click to download

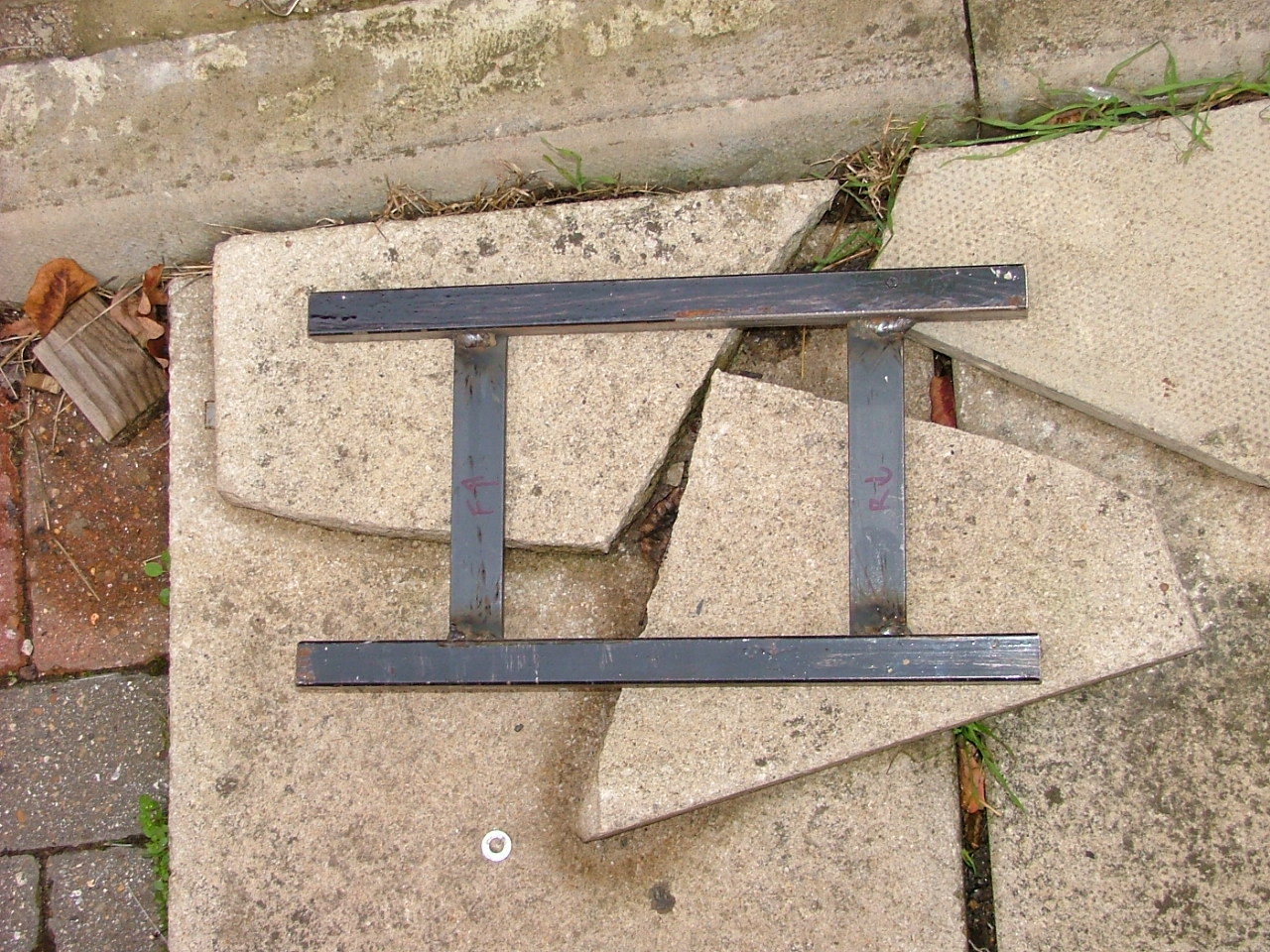

So, it was time to make the seat frames. The basic design was some 25mm box section steel with some 30x6mm flat sections:

Click to download

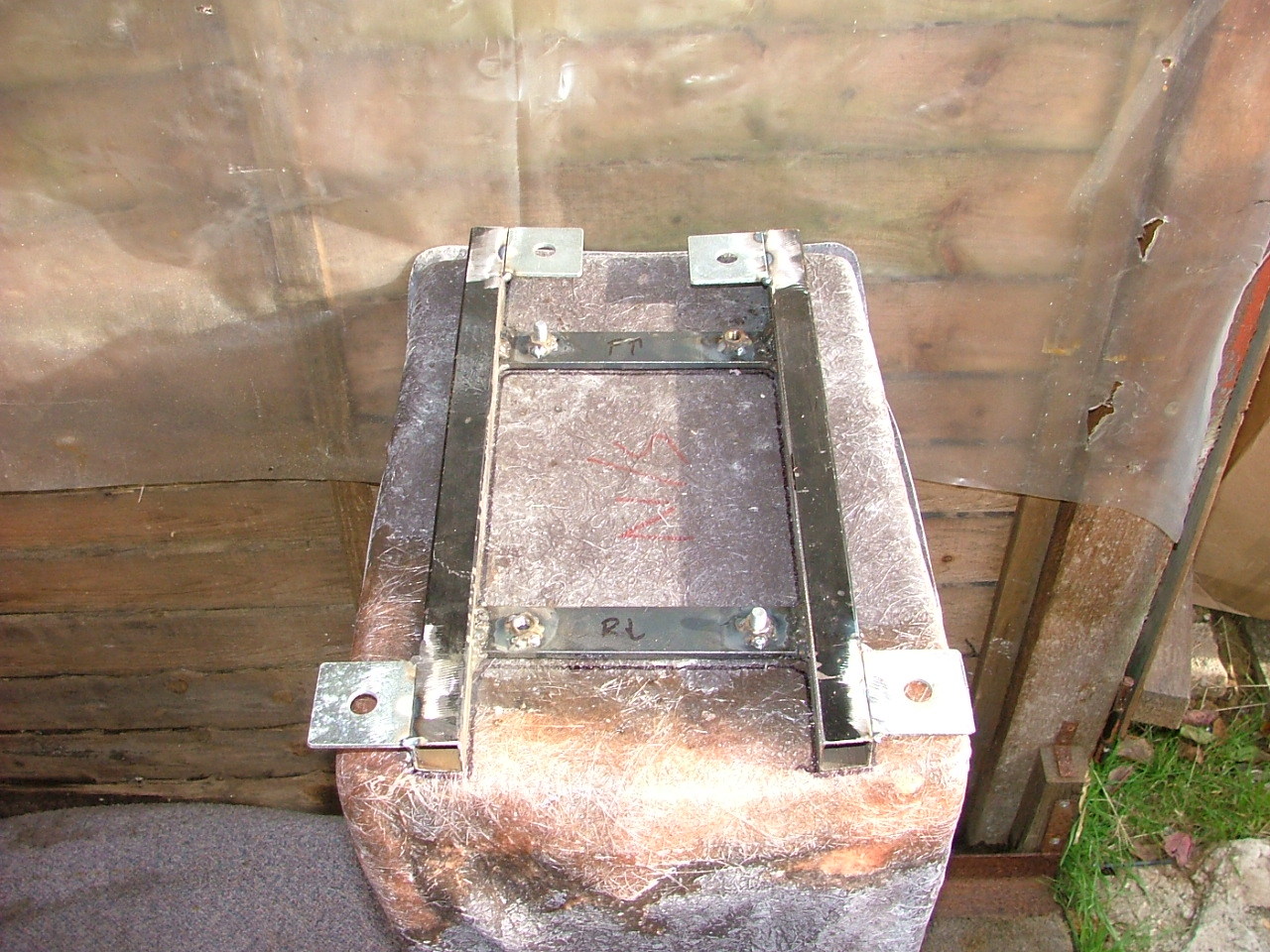

I drilled some holes, and then welded some captive nuts on them:

Click to download

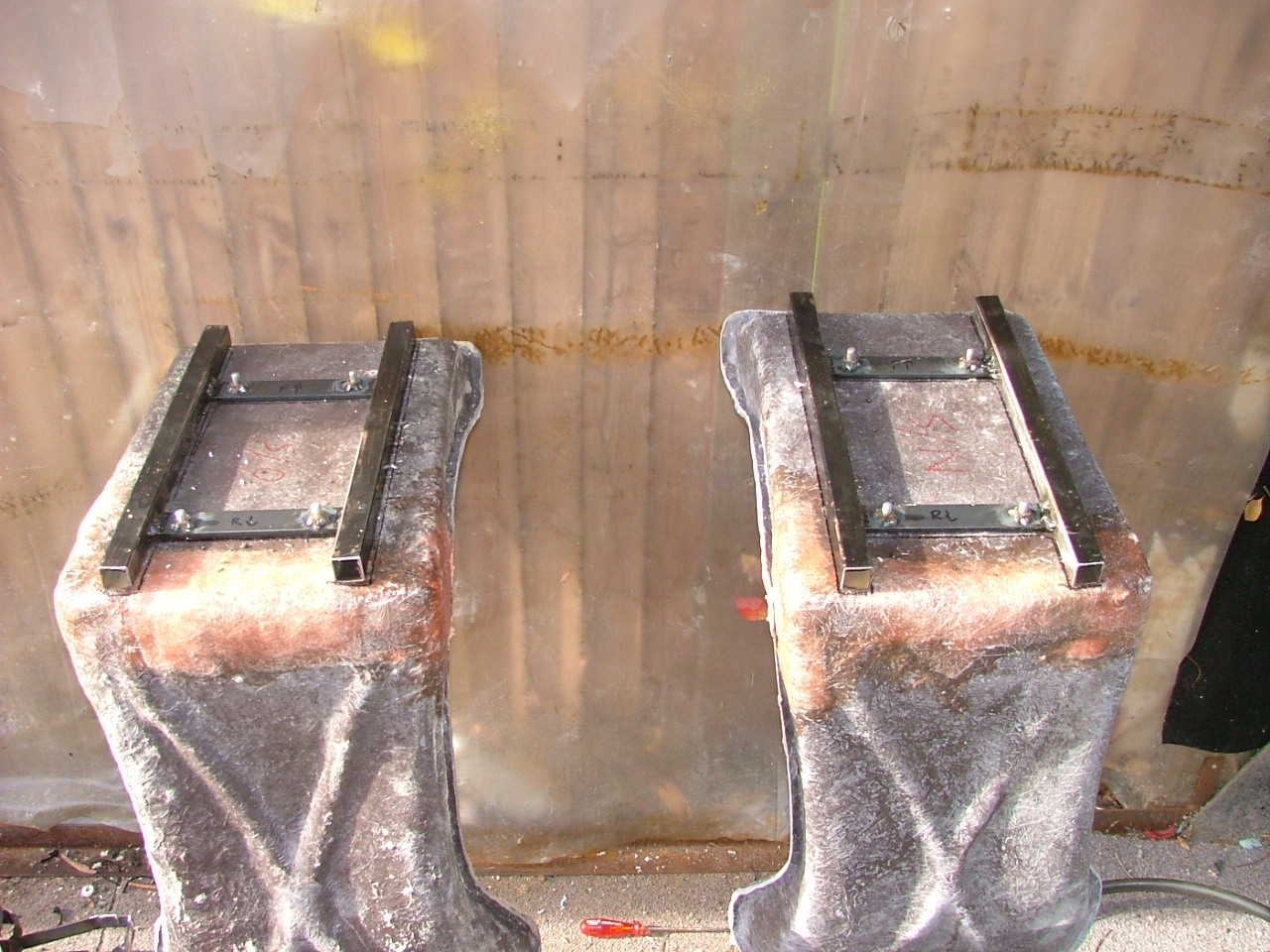

And then welded some big tabs onto it (for the floor mounting bolts)

Click to download

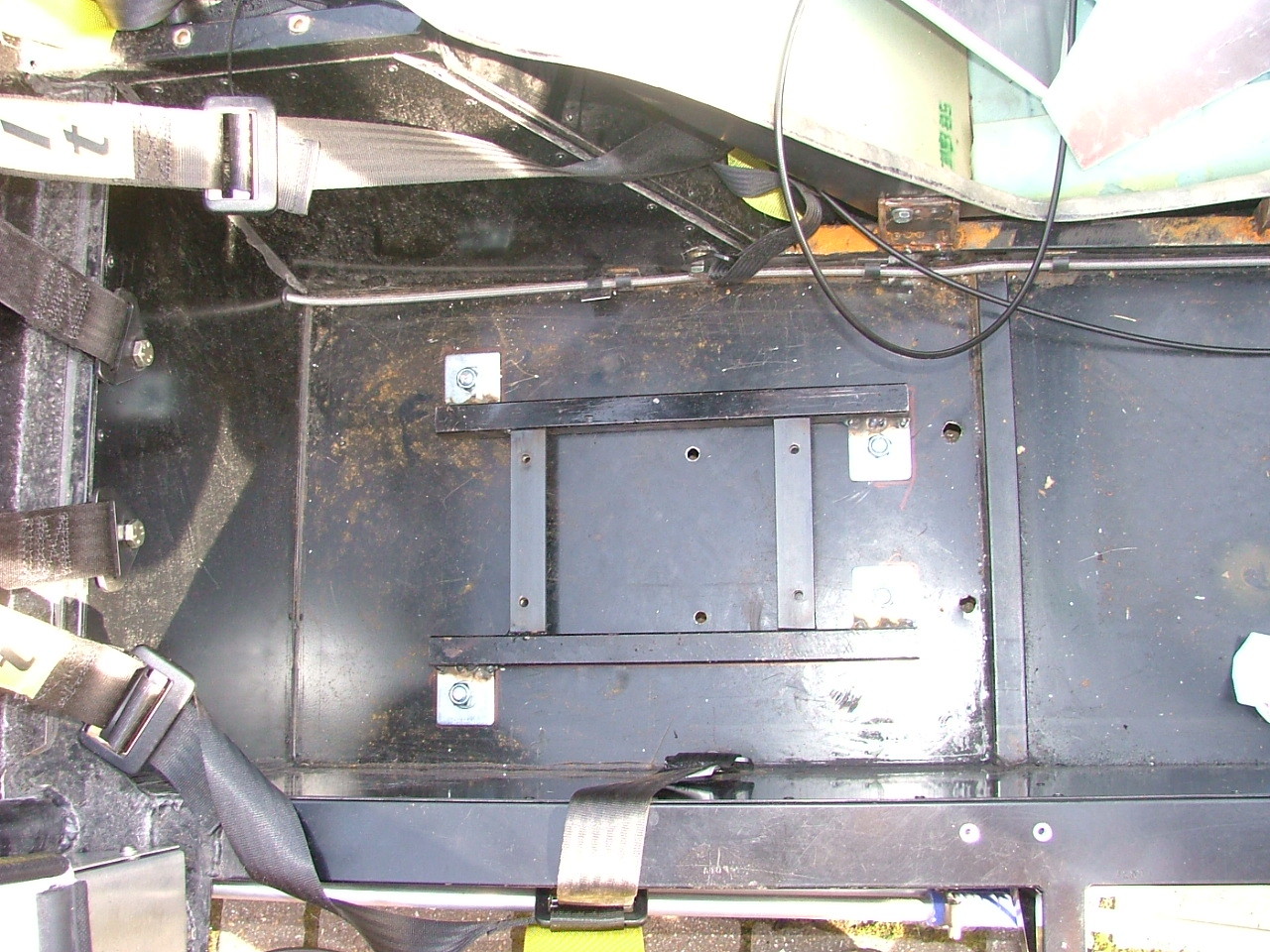

The offside is the easiest one to fit, and I used this to judge where the nearside one needed to go:

Click to download Click to download

This is where the nearside one needs to be:

Click to download

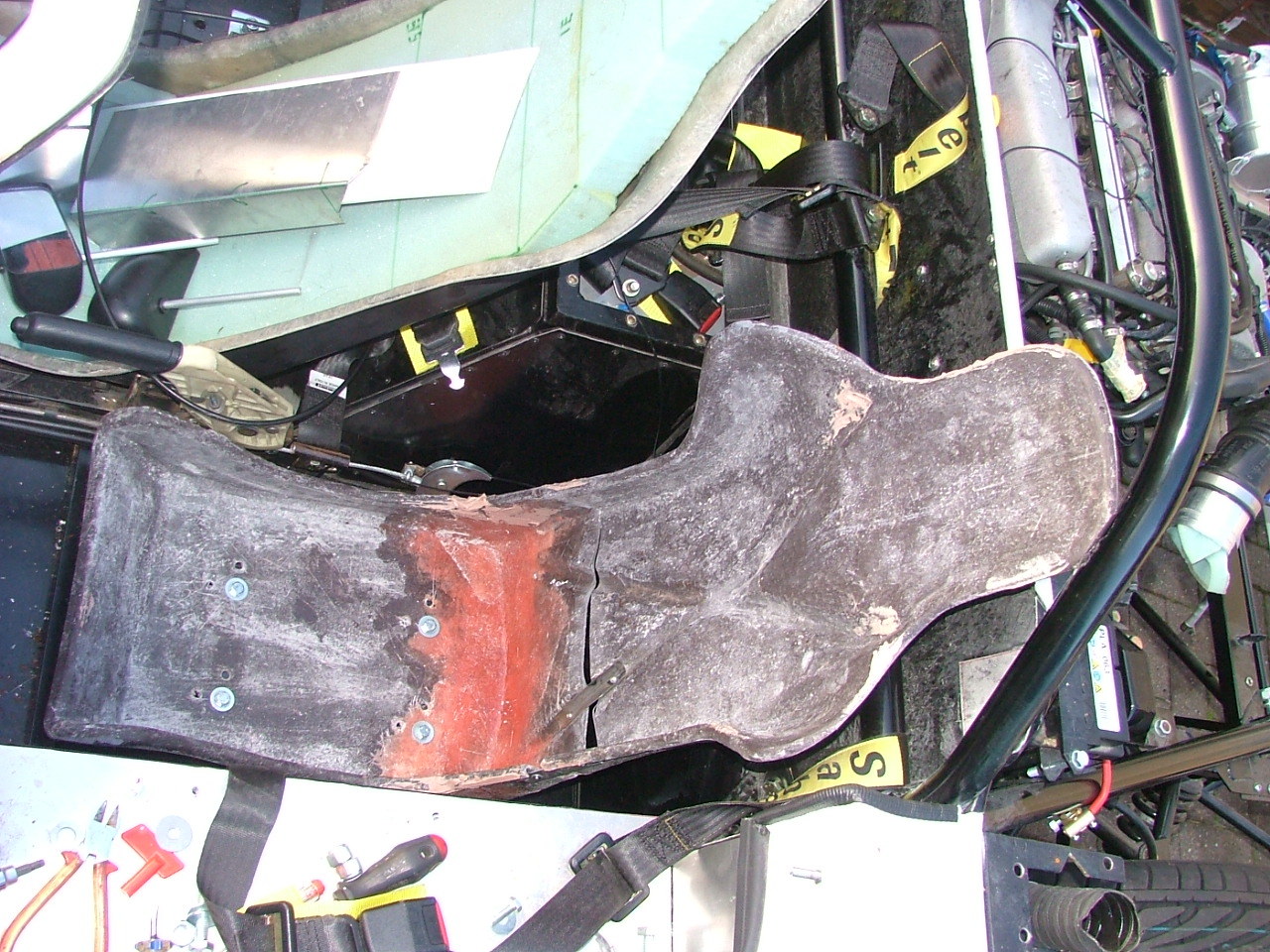

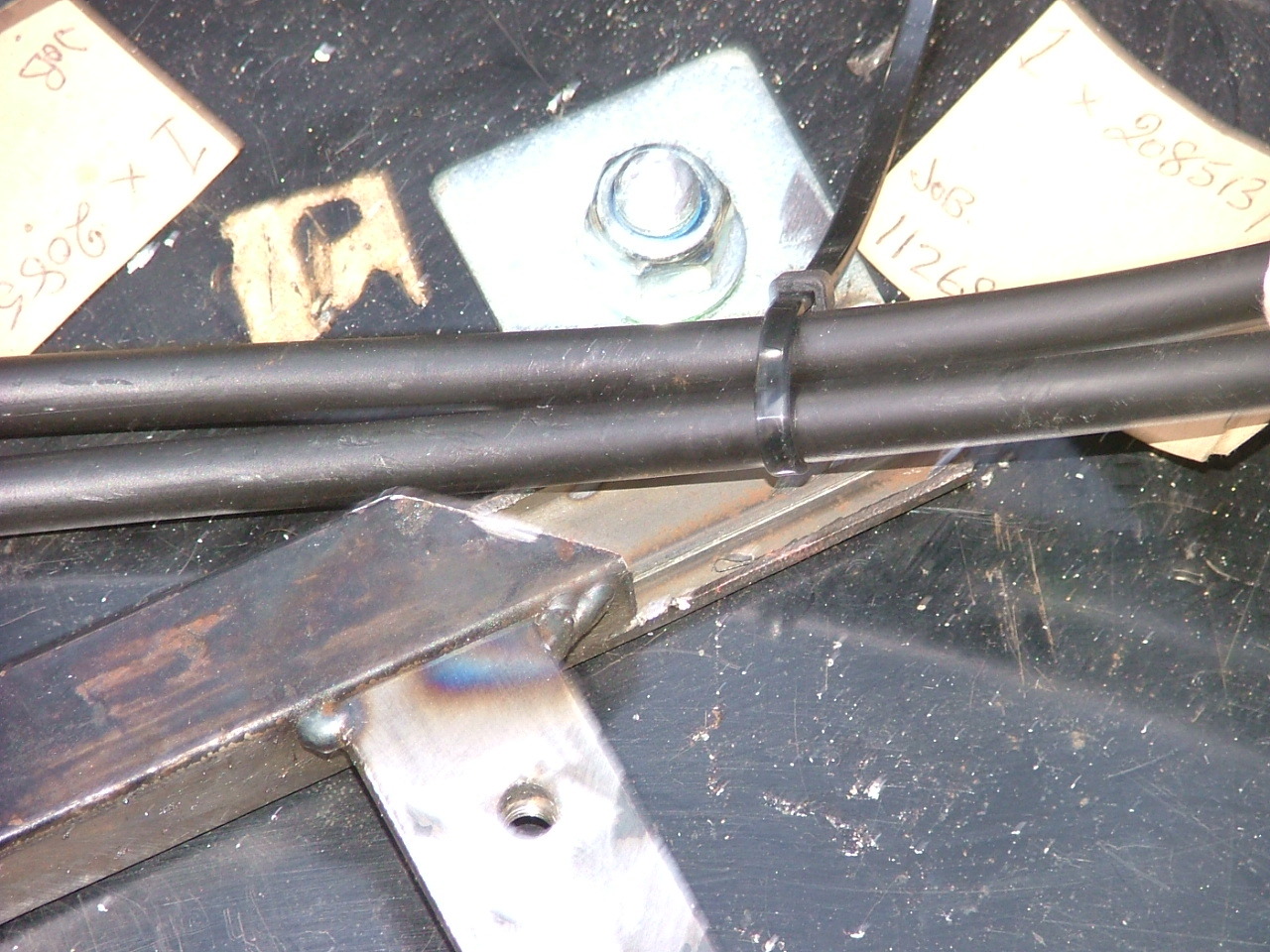

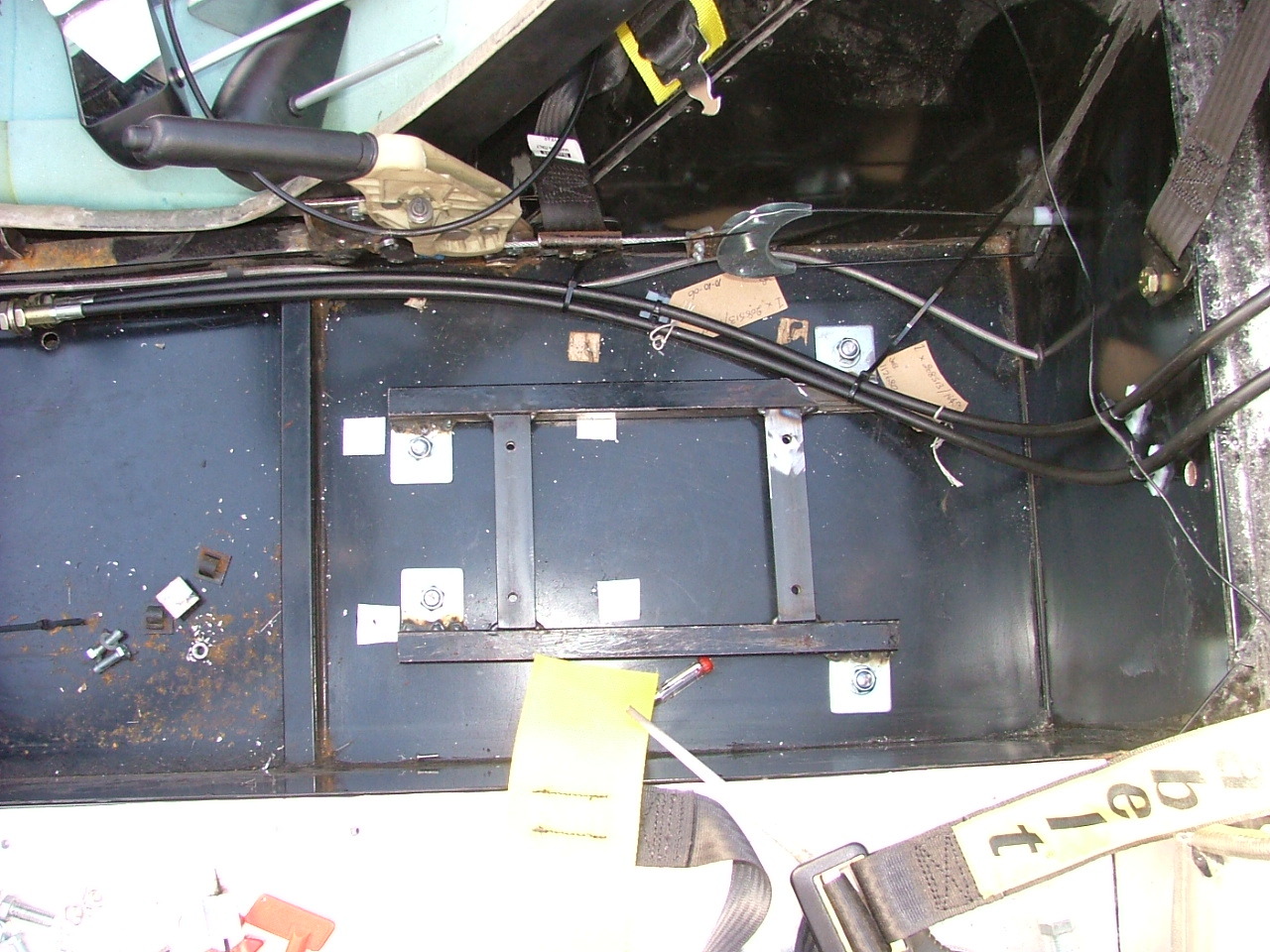

However, I needed to cut a small section away for the gear cables to flow past:

Click to download

I then fitted the seat.

Click to download

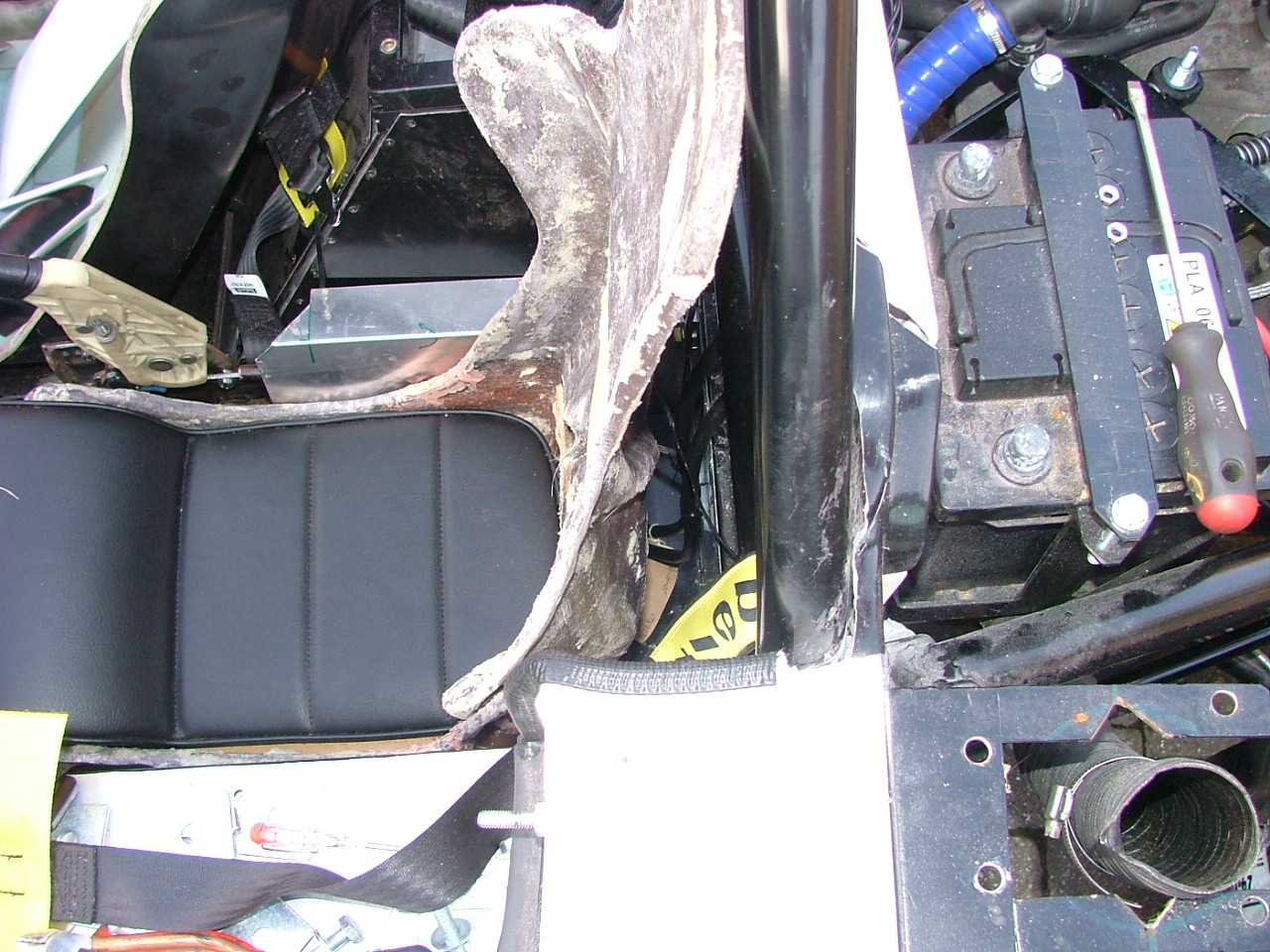

You may have spotted that there's a big slit in the seat. The reason for this is that it seems to lean to the right. On the offside, this is fine, but for the nearside, it wanted to get in the way of the roll bar (and I know which is going to give up soon!). Bending it the other way means it'll fit better. I think I noticed this when I put the original 3 seats in, so I'm guessing there's something wrong with Intatrim's moulds - it's not much (I measured across it, and it does seem to be square, but that could be something in the seat area which makes it square - but it definately looks wrong).
