Day 27 - D Day (Doors!)

Fitting the doors

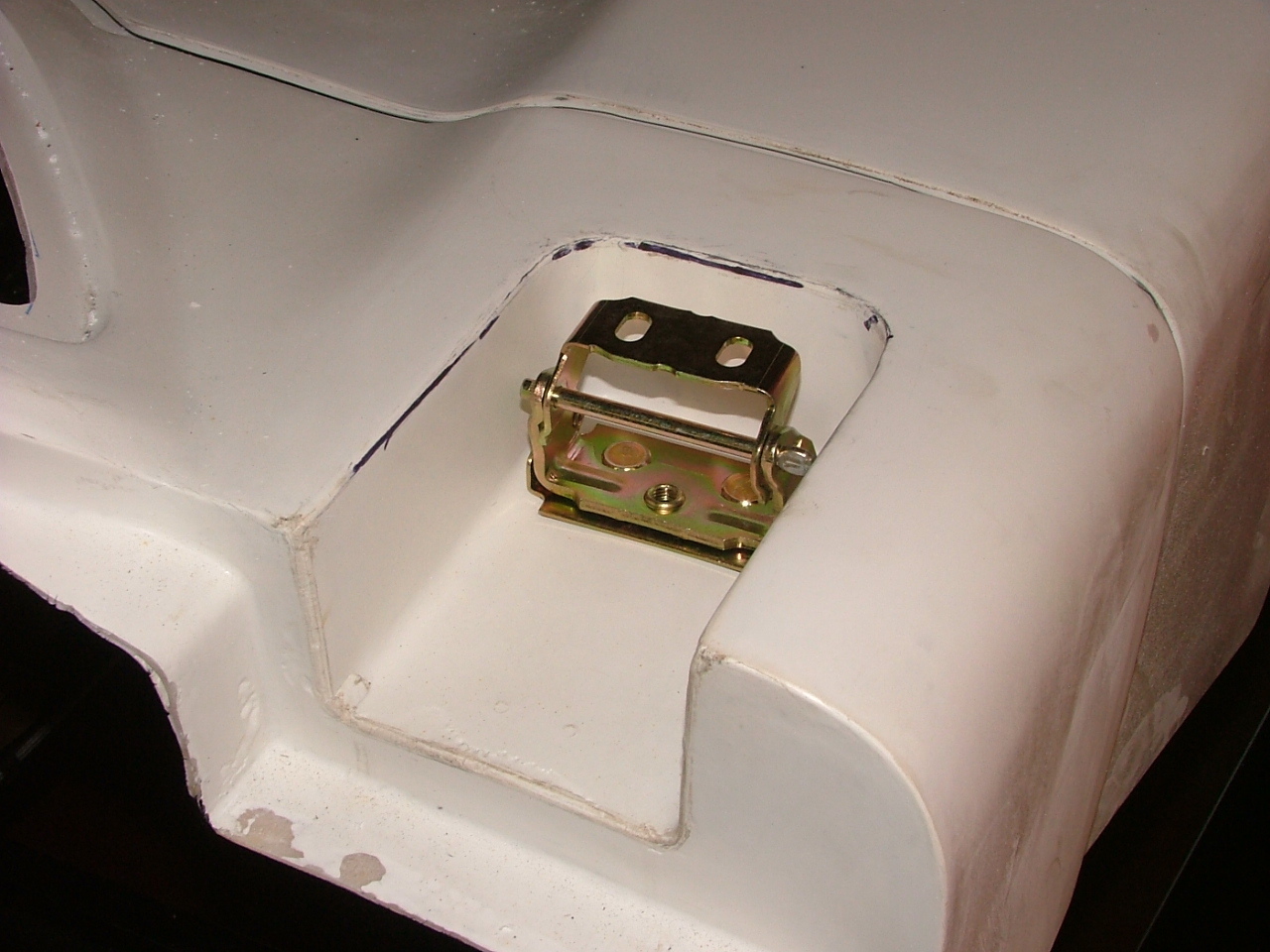

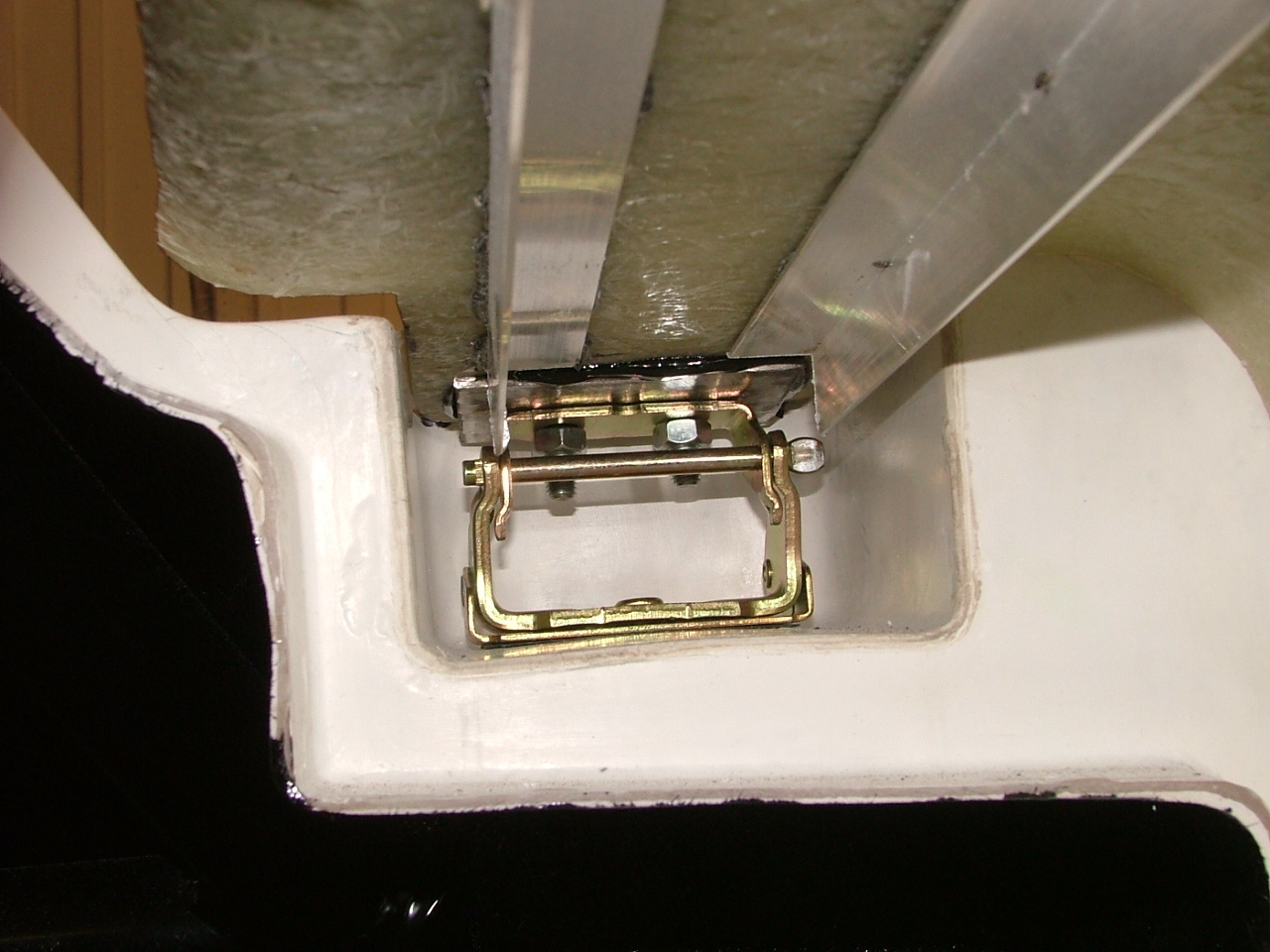

I'd decided last week that I would be doing the doors this weekend. First of all, fitting the hinge.

Click to download

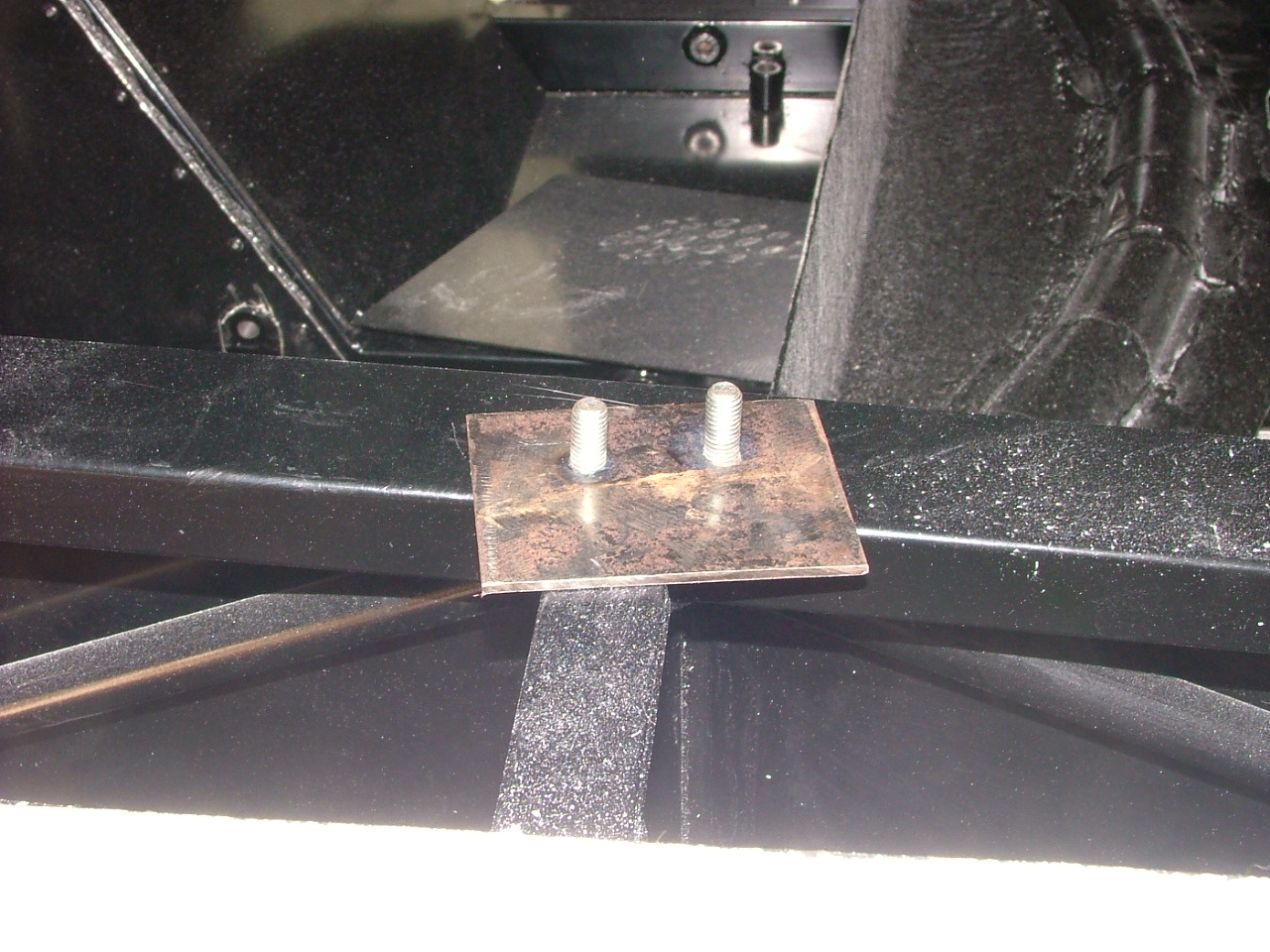

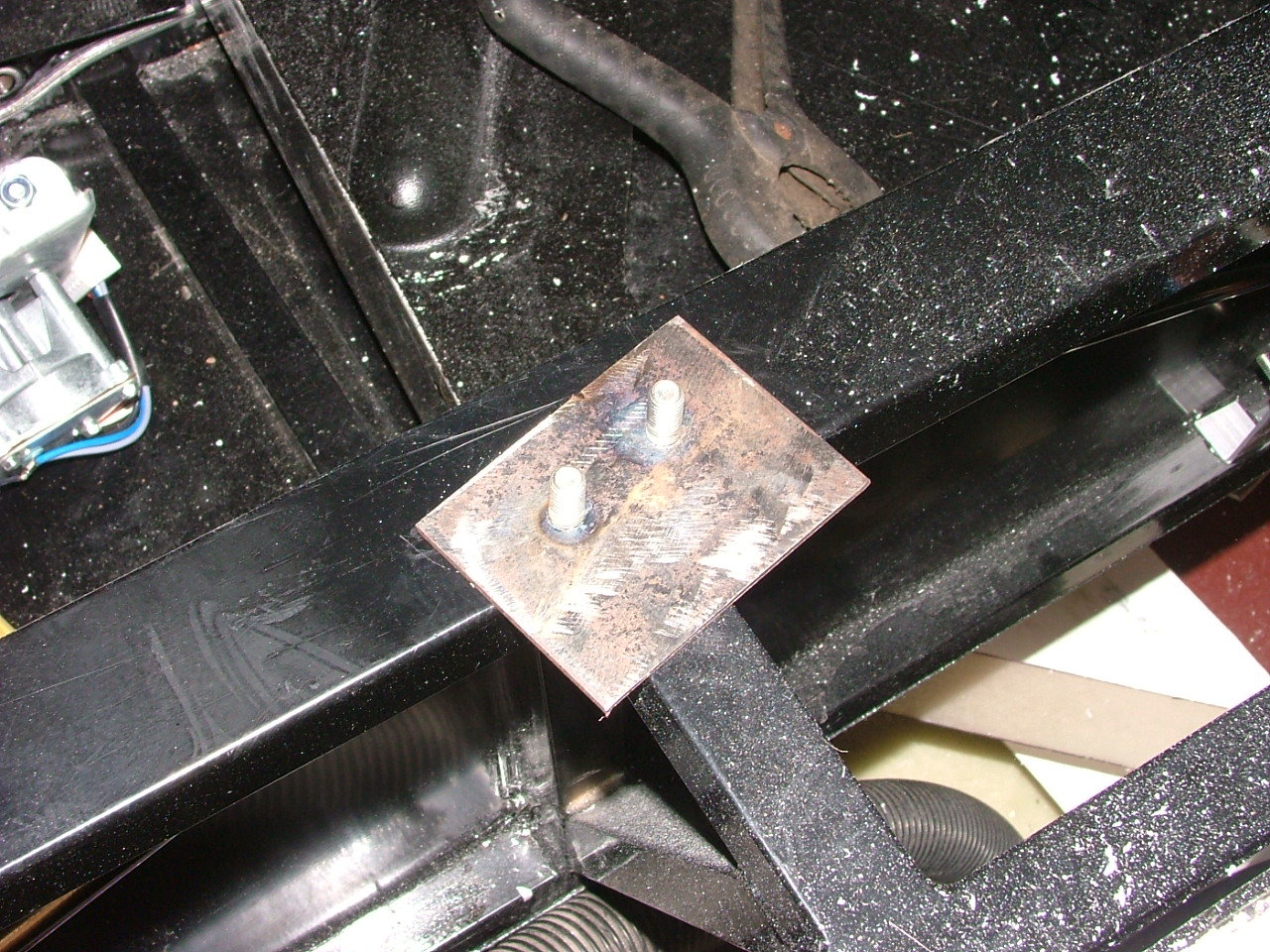

I then made a plate with some M8 bolts welded from the back for the door to be bonded to.

Click to download Click to download

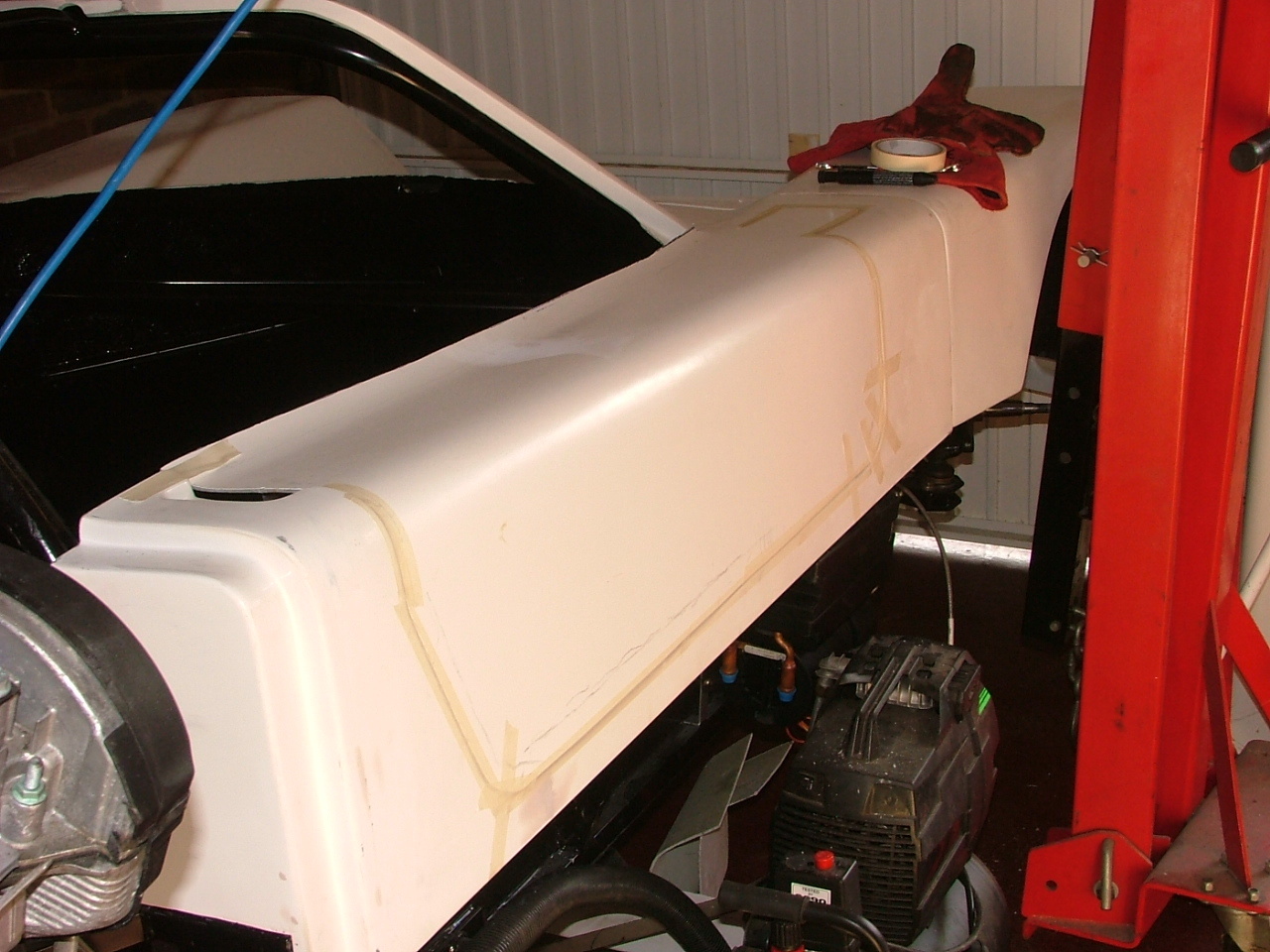

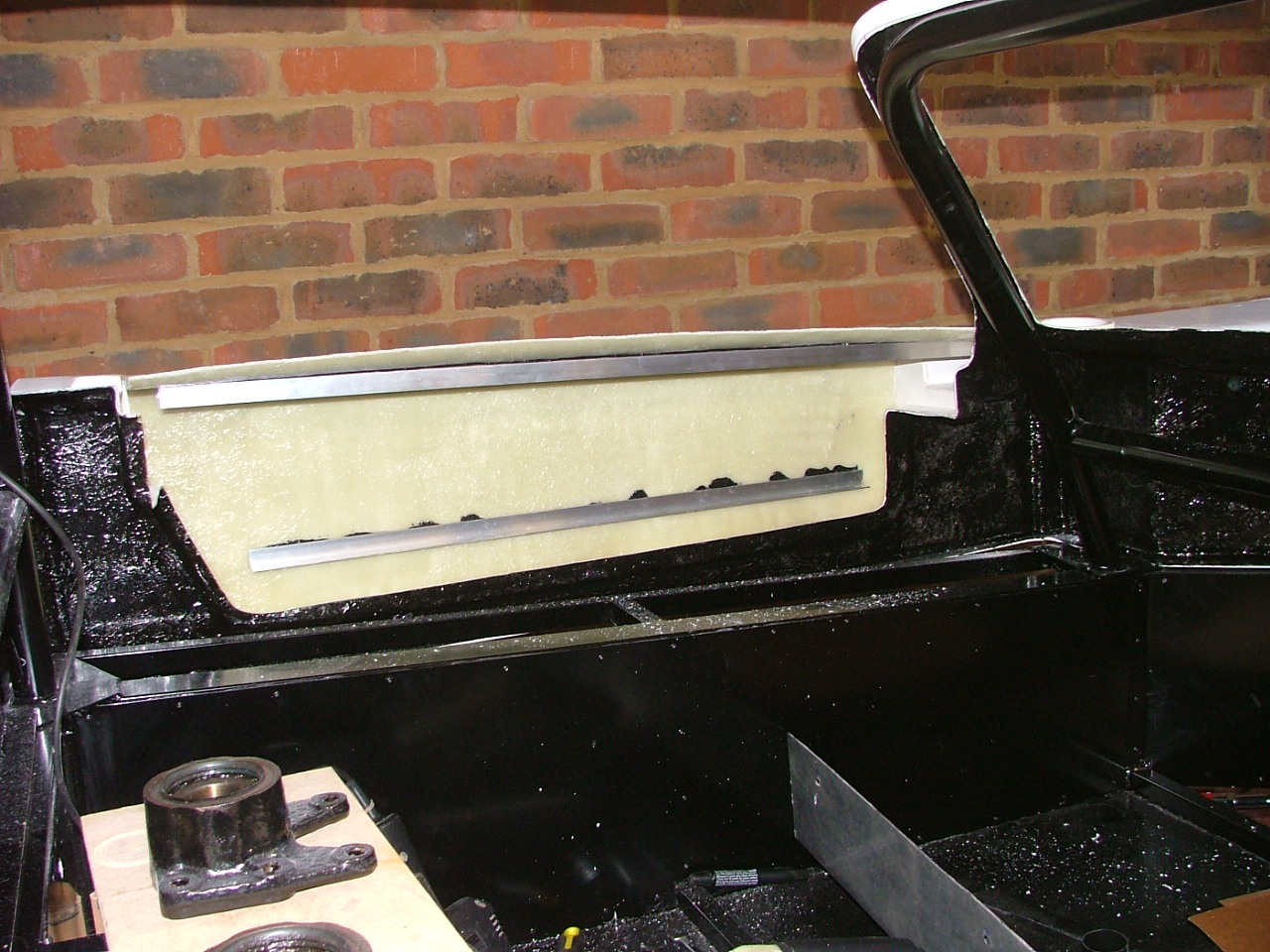

I then put a lot of Sikaflex on the plate, and then put the door onto it.

Click to download Click to download

And then the other door

Click to download

Lights

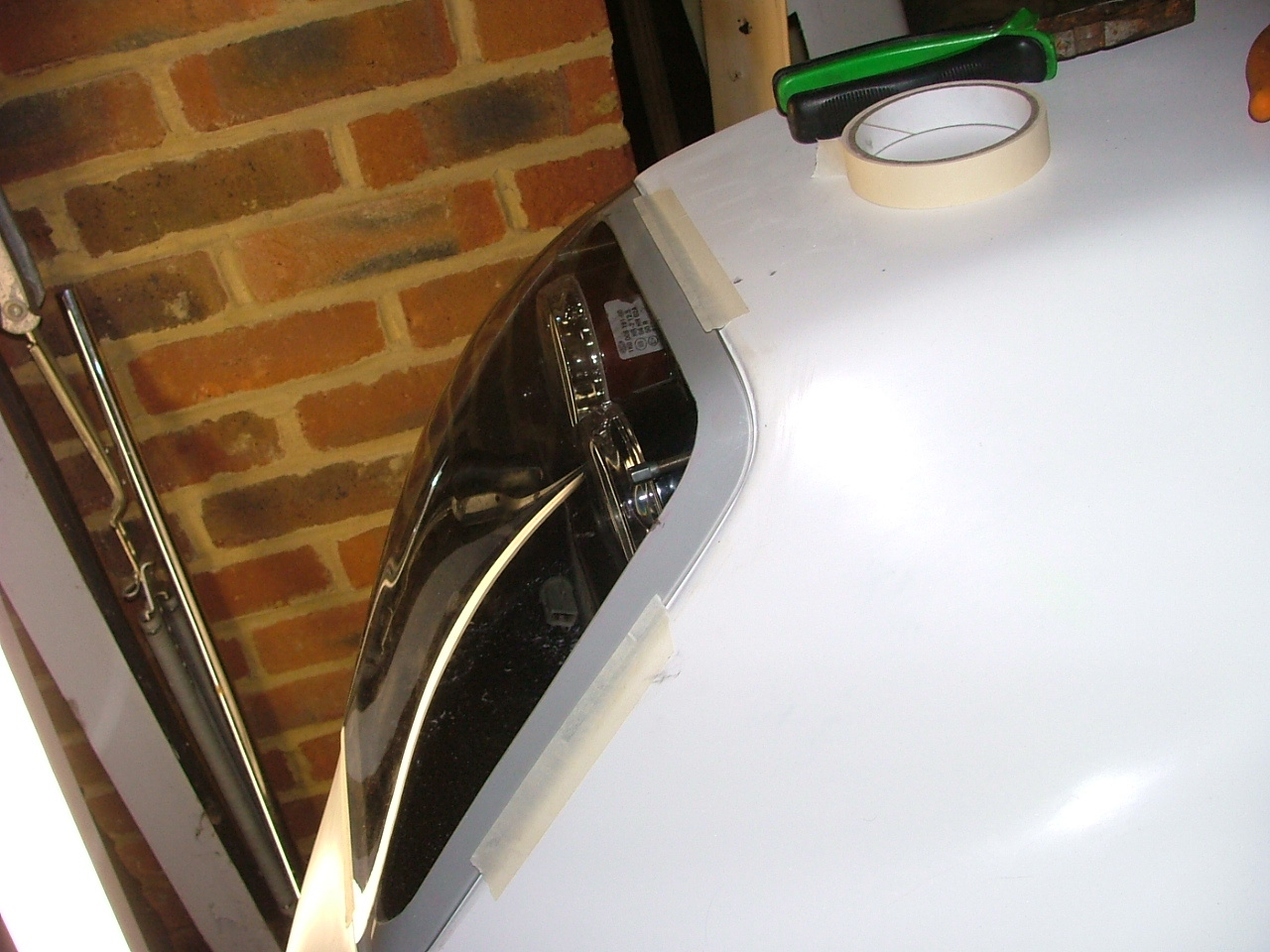

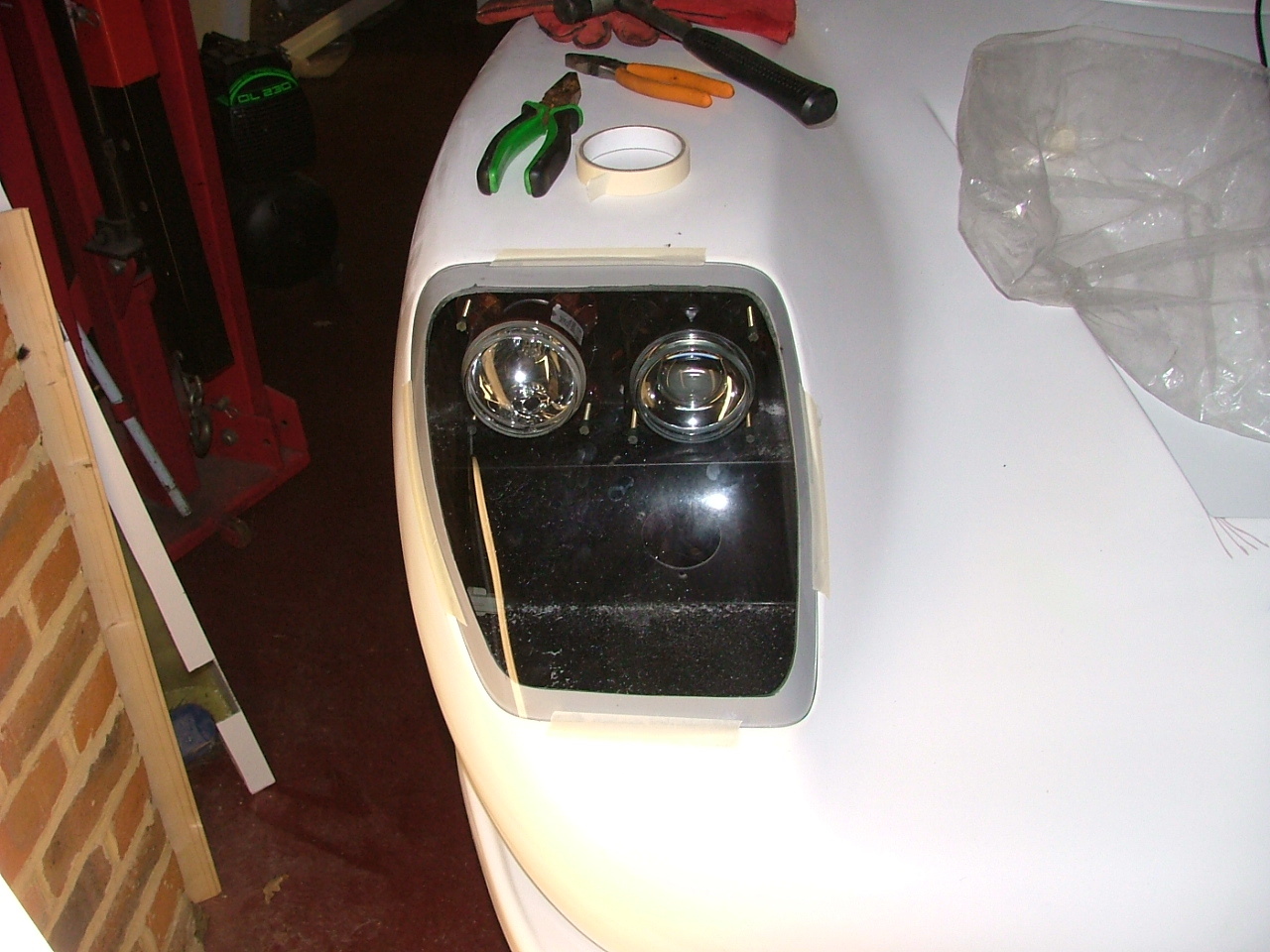

Once the door was in place, I started to mount the lights. You can mount the Hella lights either from the front, or from the rear. Because the light mounting GRP had shifted slightly while setting, I have to mount them from the front (which doesn't look as nice, and I may rework it slightly).

Click to download Click to download

It's very close to the lens cover!

Rear section

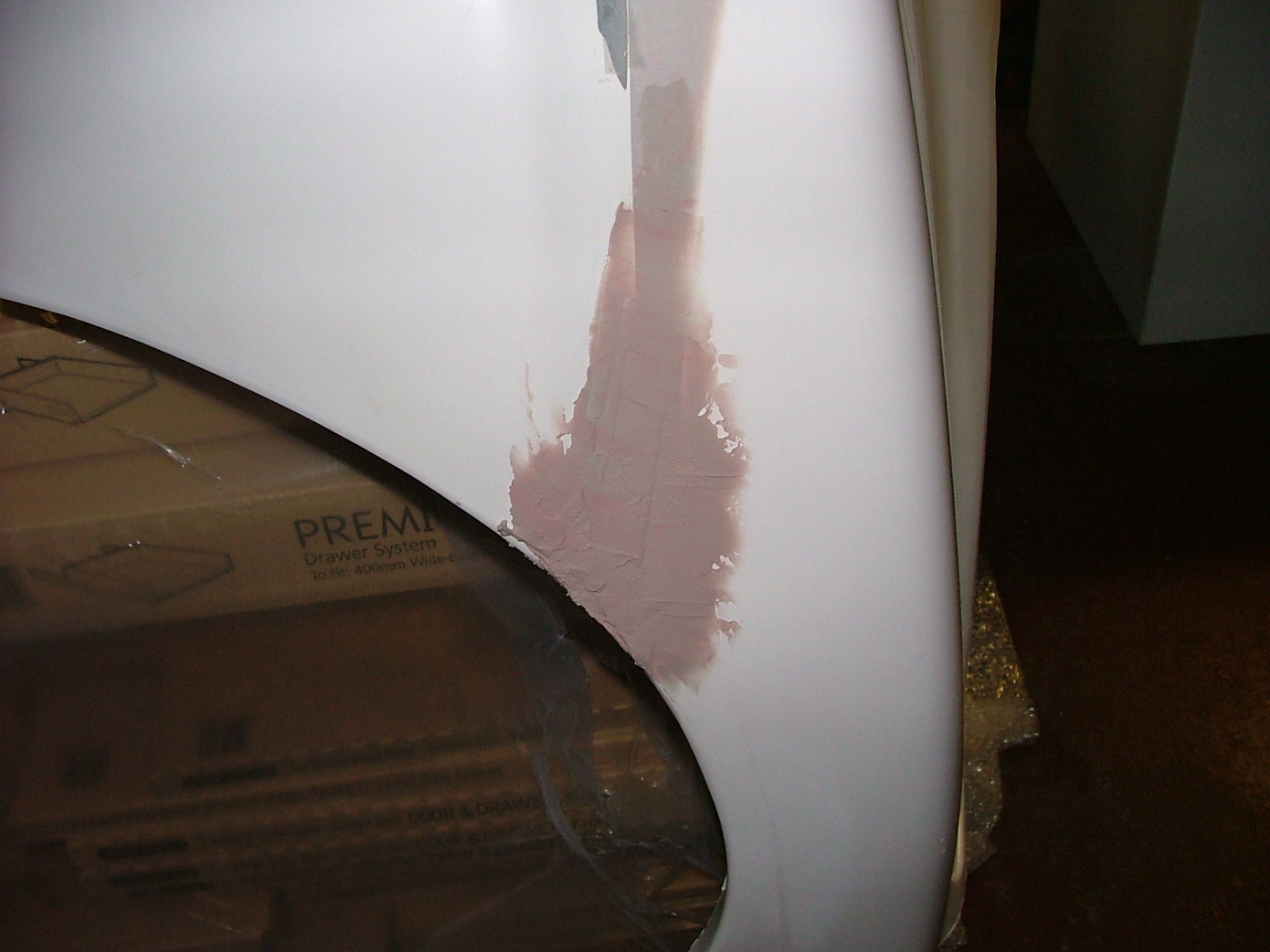

I also took the opportunity to slap on some more body filler to the back.

Click to download
