Day 100 - Seats (again!)

Last weekend, I fixed the Mondeo, and went to Donington (we didn't go in the Mondeo, and the car we did go in overheated - just what I wanted to avoid!).

I decided to sort out the seats - I'd sold two of the seats, and the plan was to modify the third and use it as a template.

However, when I took the cover off, there was a great stench, and I found I'd had an unwanted visitor.

Click to download

I moved him to under a bush in my garden (using a pair of welding gauntlets), made sure he was all right, and started work.

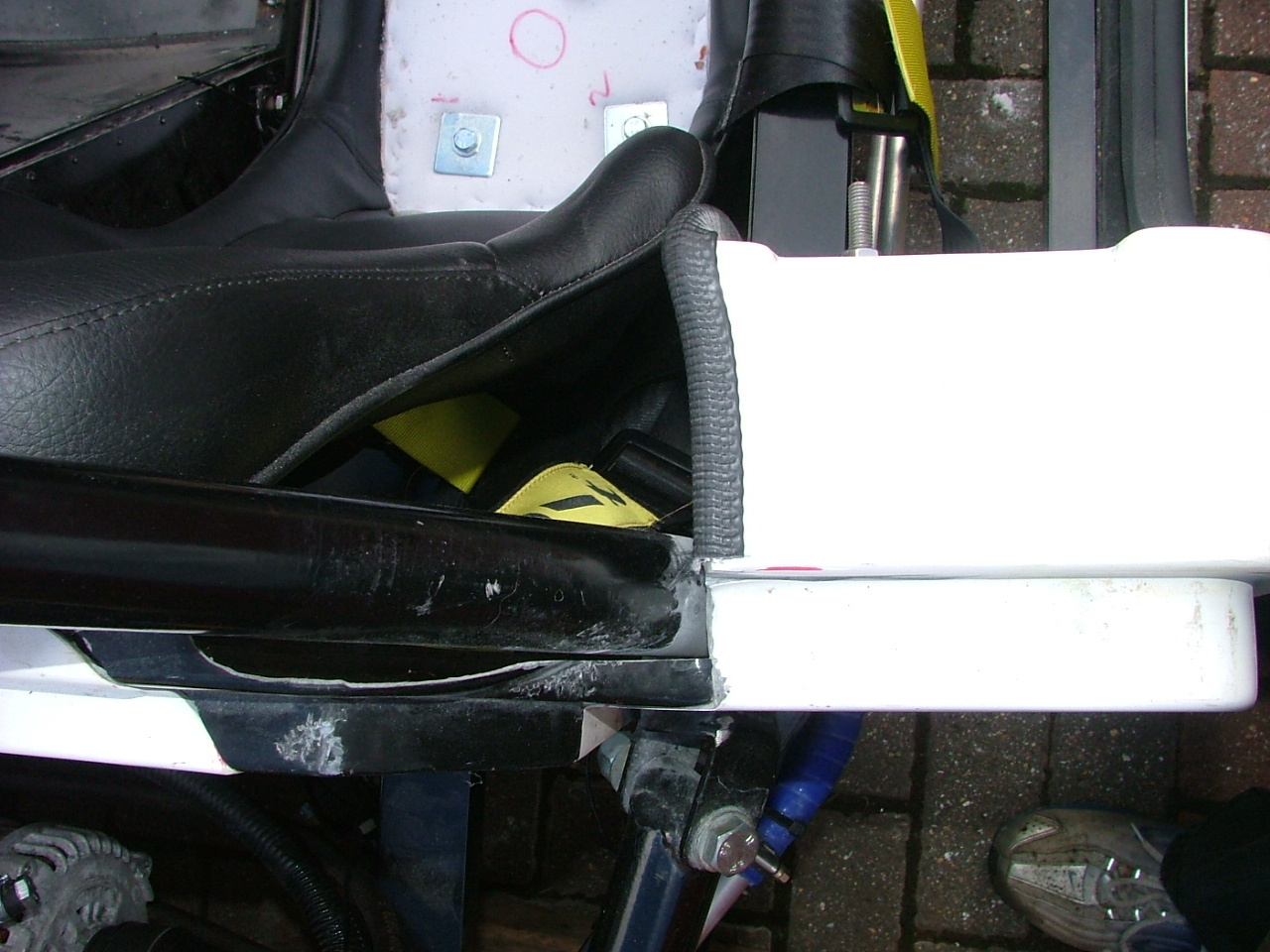

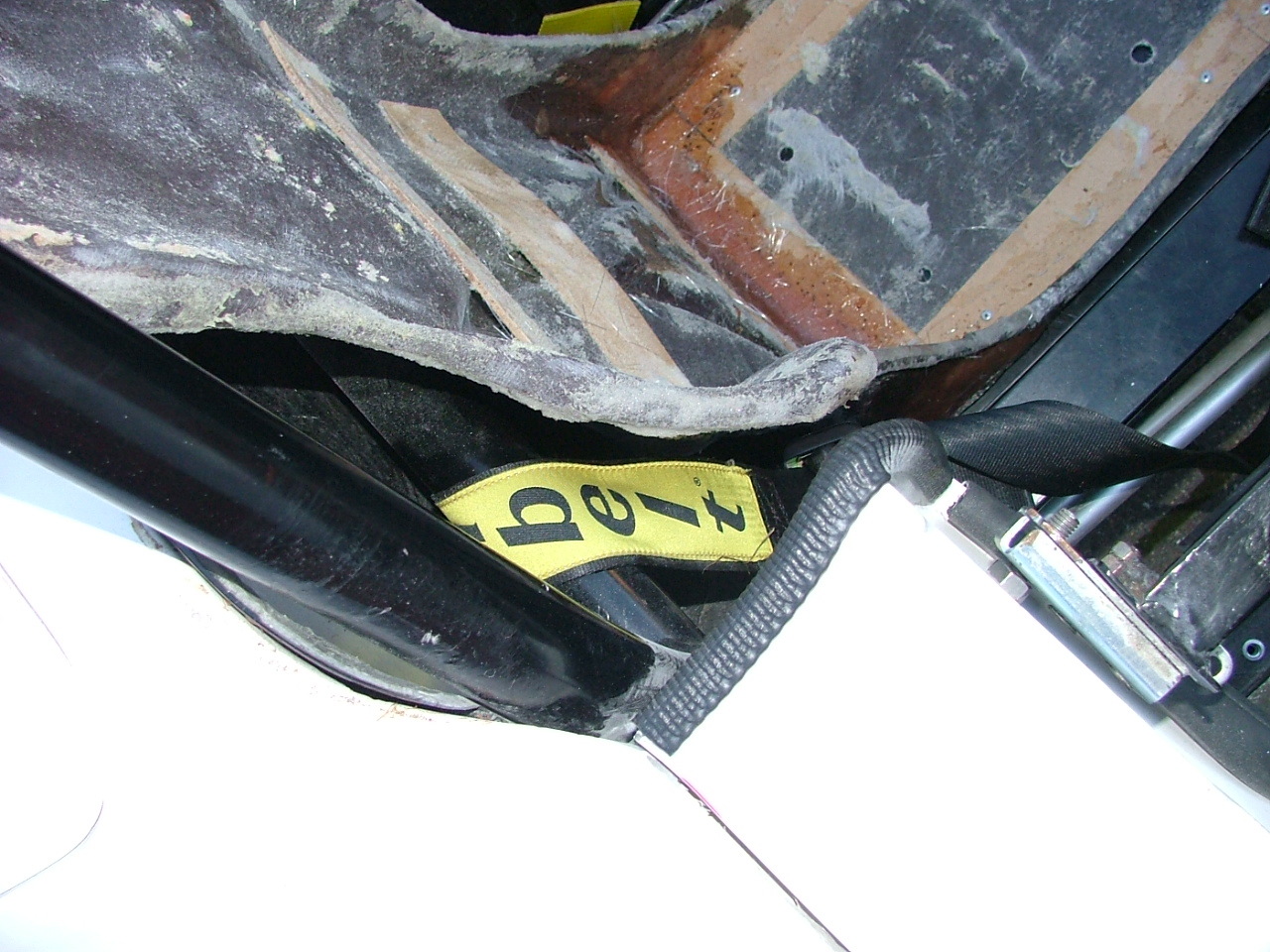

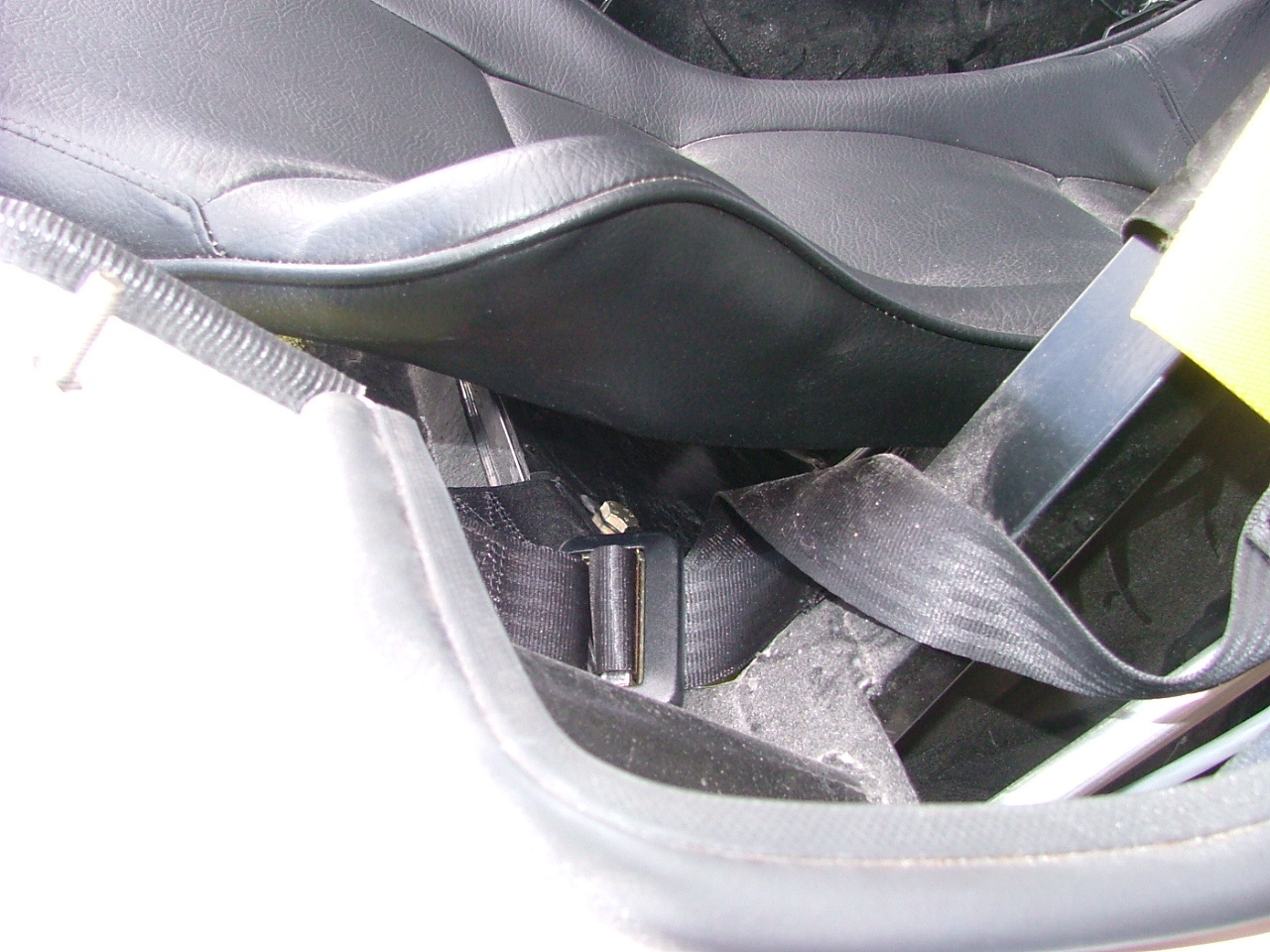

There's a lot of space behind the seat; it's fairly angled. Making it more vertical would give some space.

Click to download Click to download

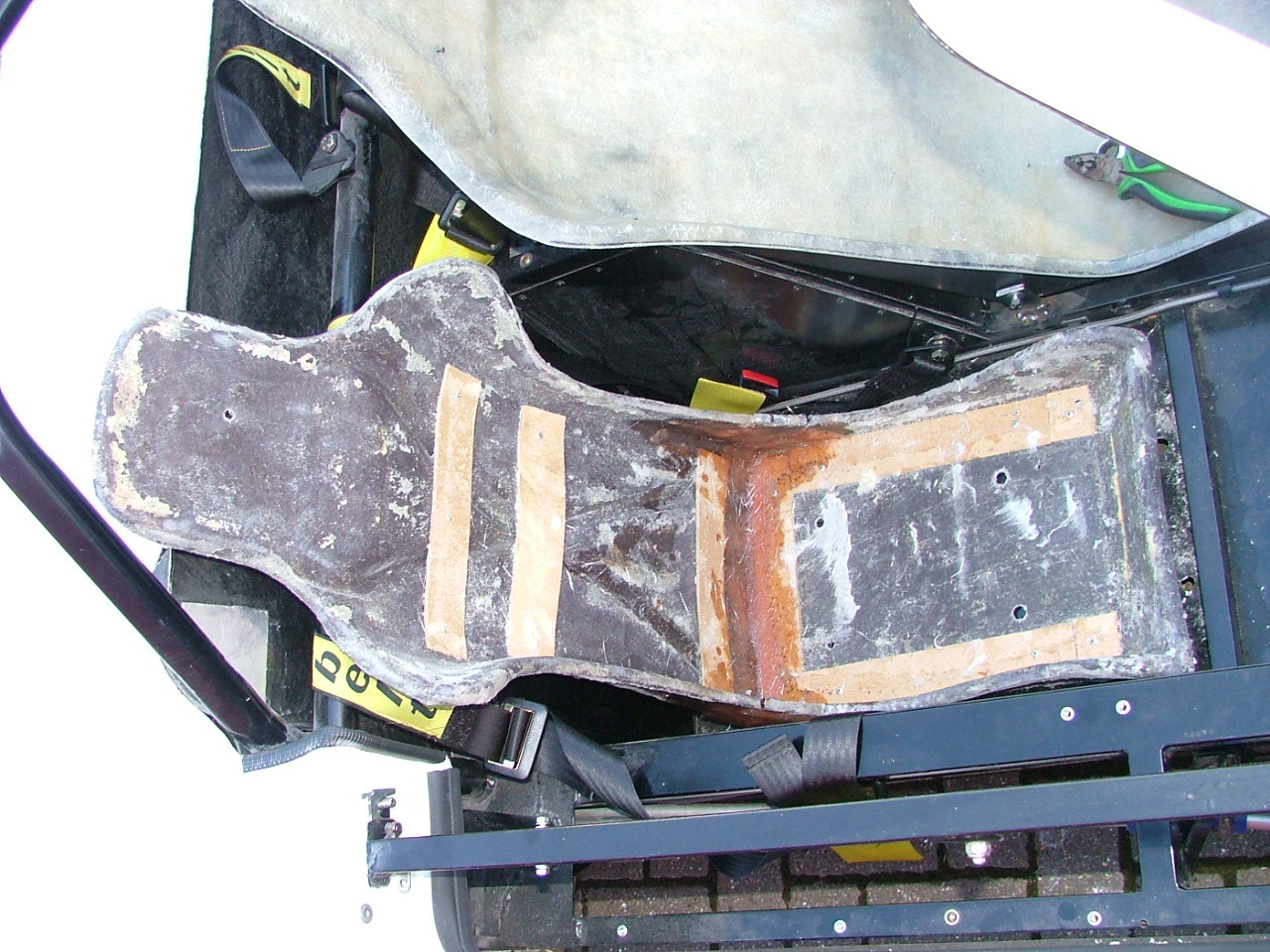

So, I stripped the seat and found that it wouldn't be easy to make a copy, so I'll see if I can buy a shell.

Click to download

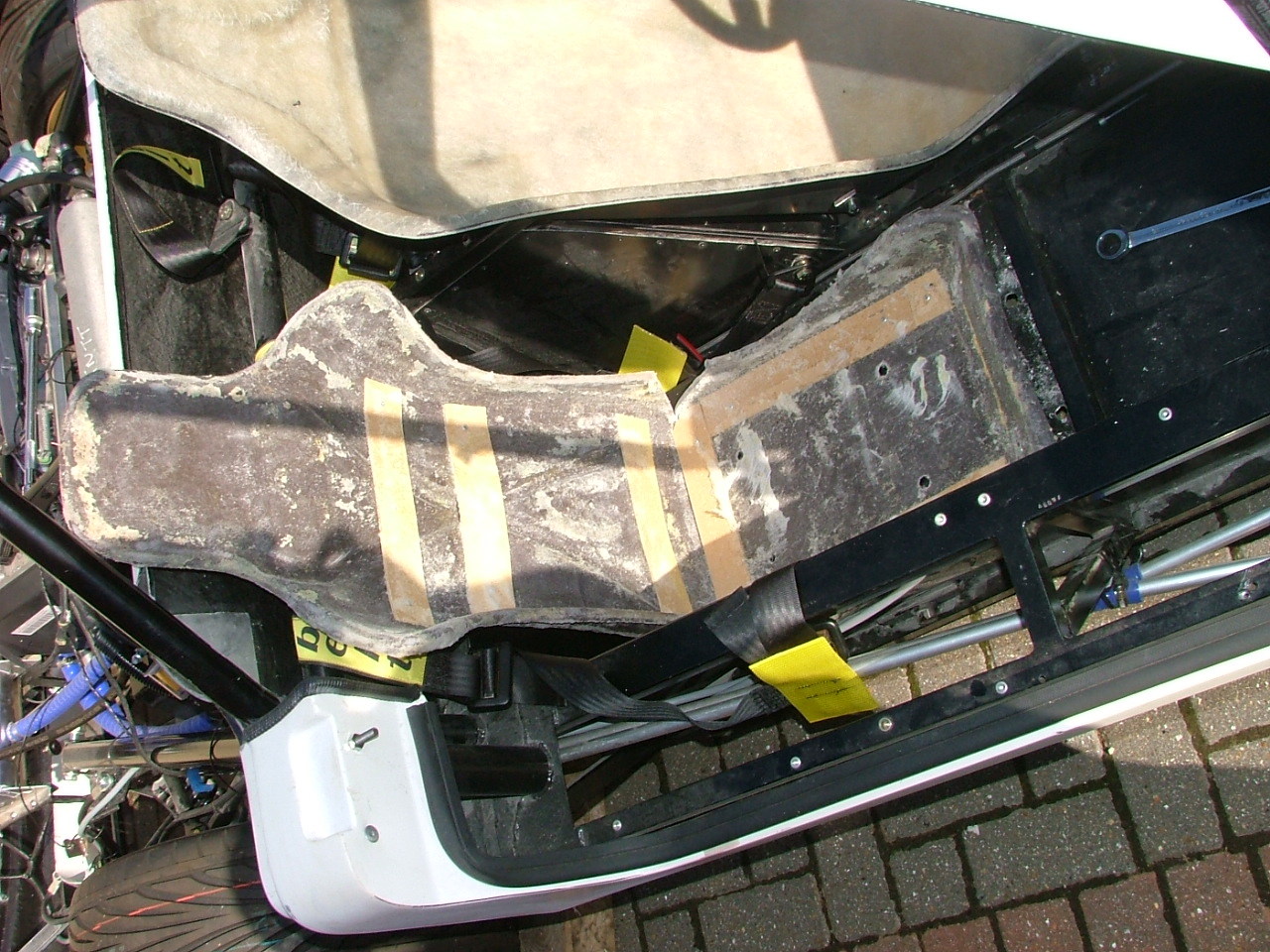

I cut some V sections out of the shell, and fitted it - the V sections were far wider than I needed them to be!

Click to download

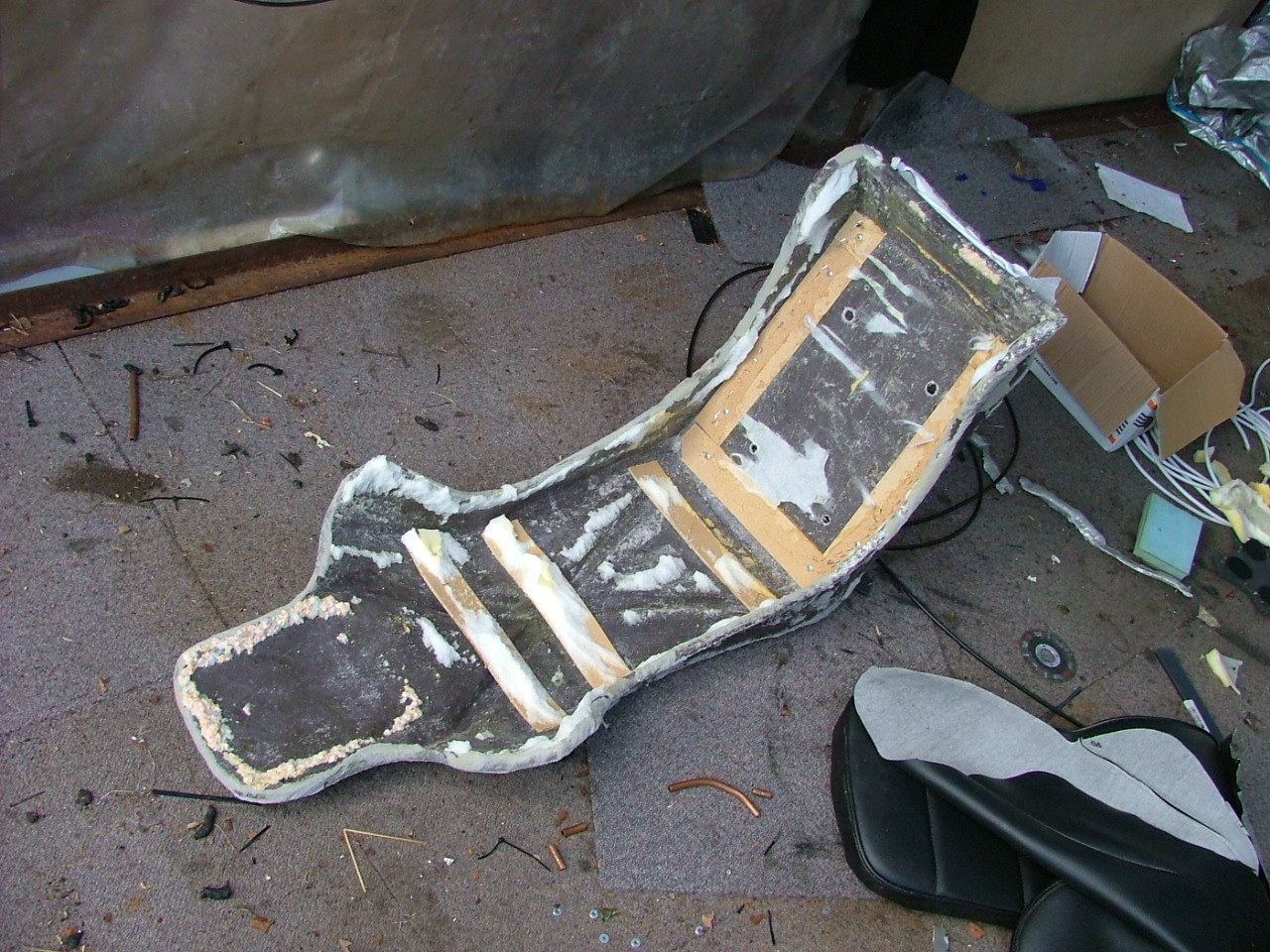

And then I bonded some GRP onto it to make it nice and strong.

Click to download

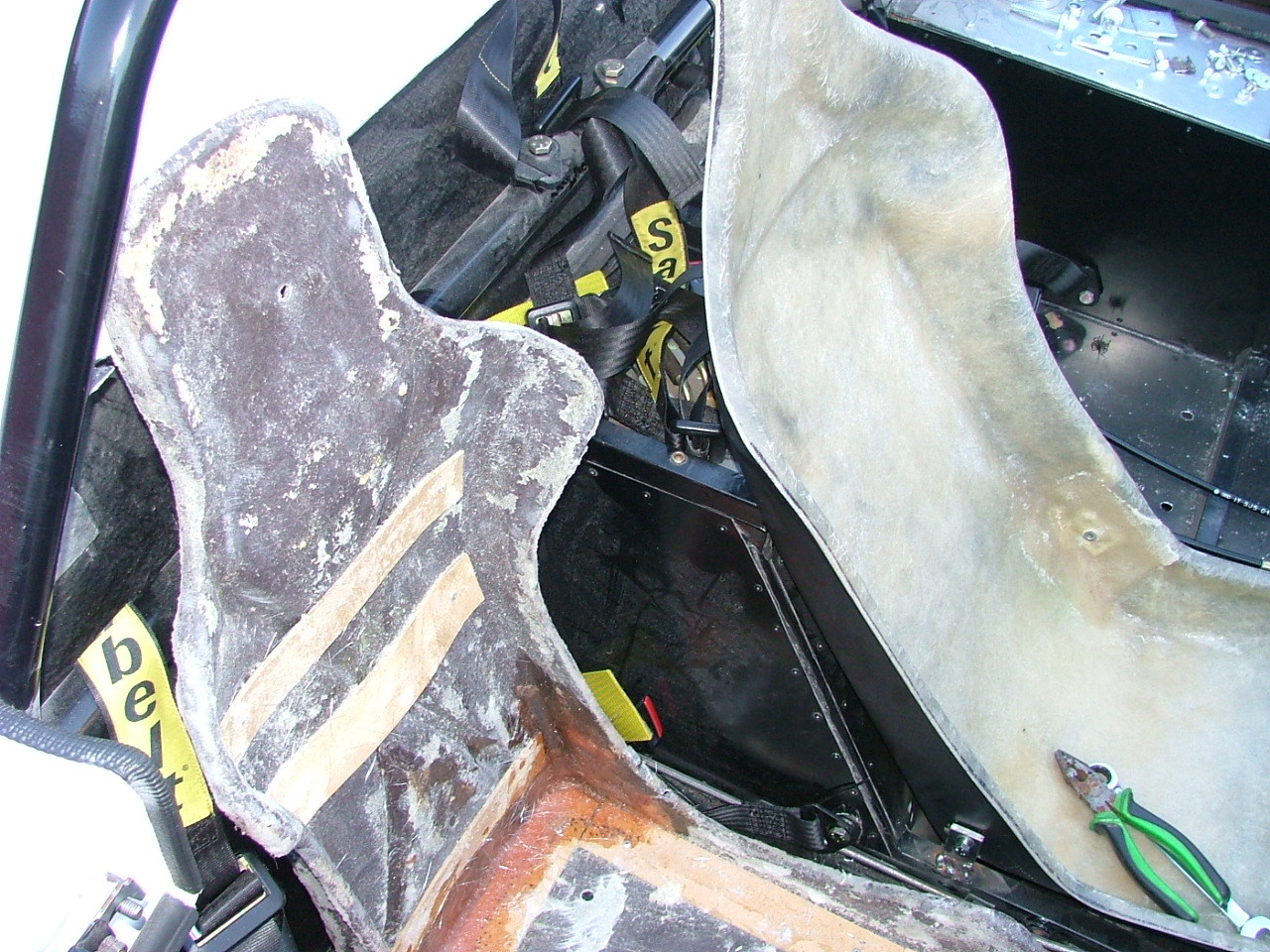

The space behind the seat has more or less gone.

Click to download Click to download

However, it's still a tight squeeze. The driver's seat needs to be moved forward.

Since I'd spent a lot of time stripping the seat and then building it back up again, I decided to tackle this tomorrow.
