Day 136 - More corner GRP work

Today's weather forecast was for snow at night, and there was rain in the morning. It was also a bit blustery, but I wanted to continue with the GRP work on the corners.

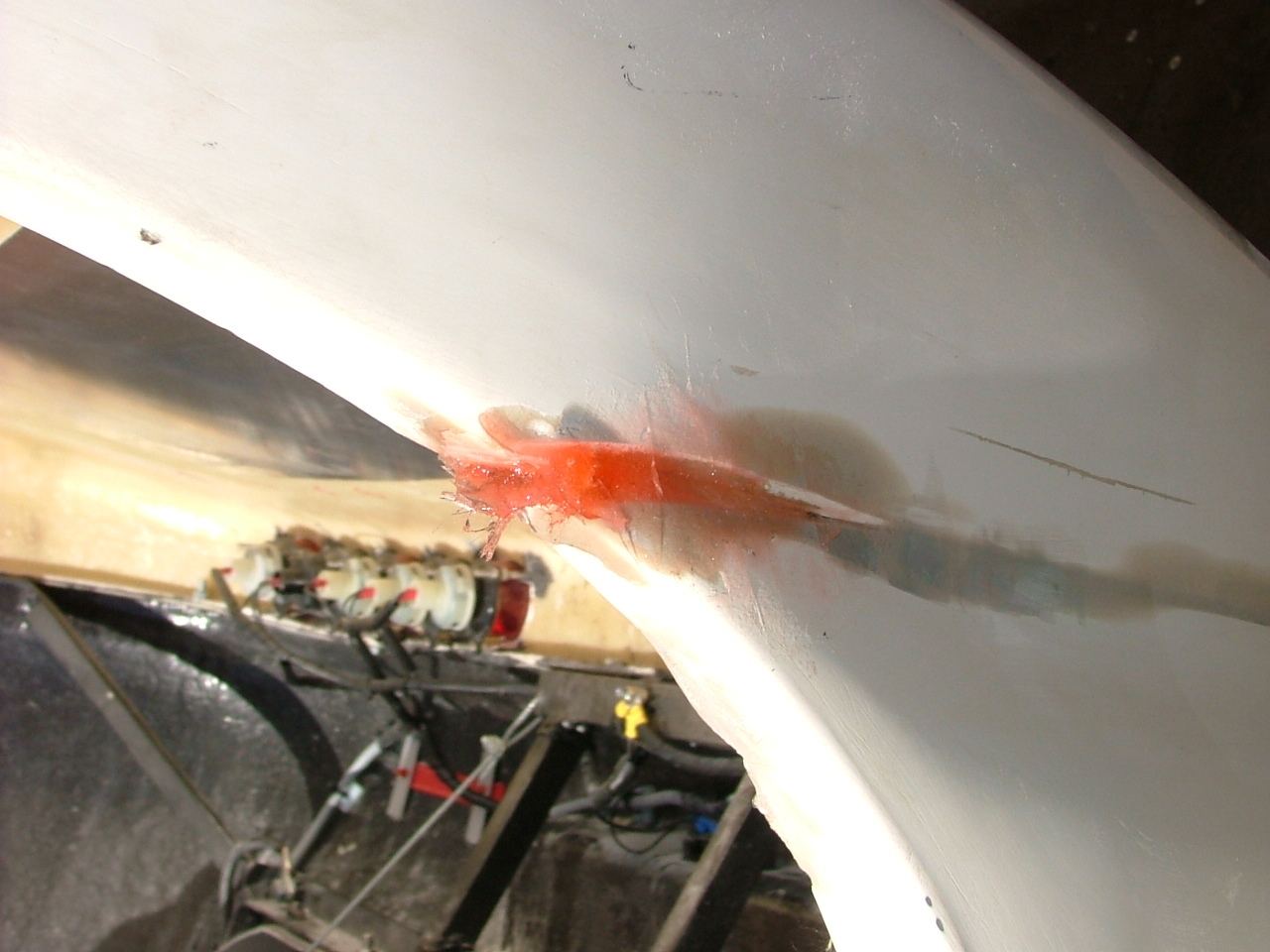

Having said that, I firstly put some GRP in the bit I'd ground and filed out:

Click to download

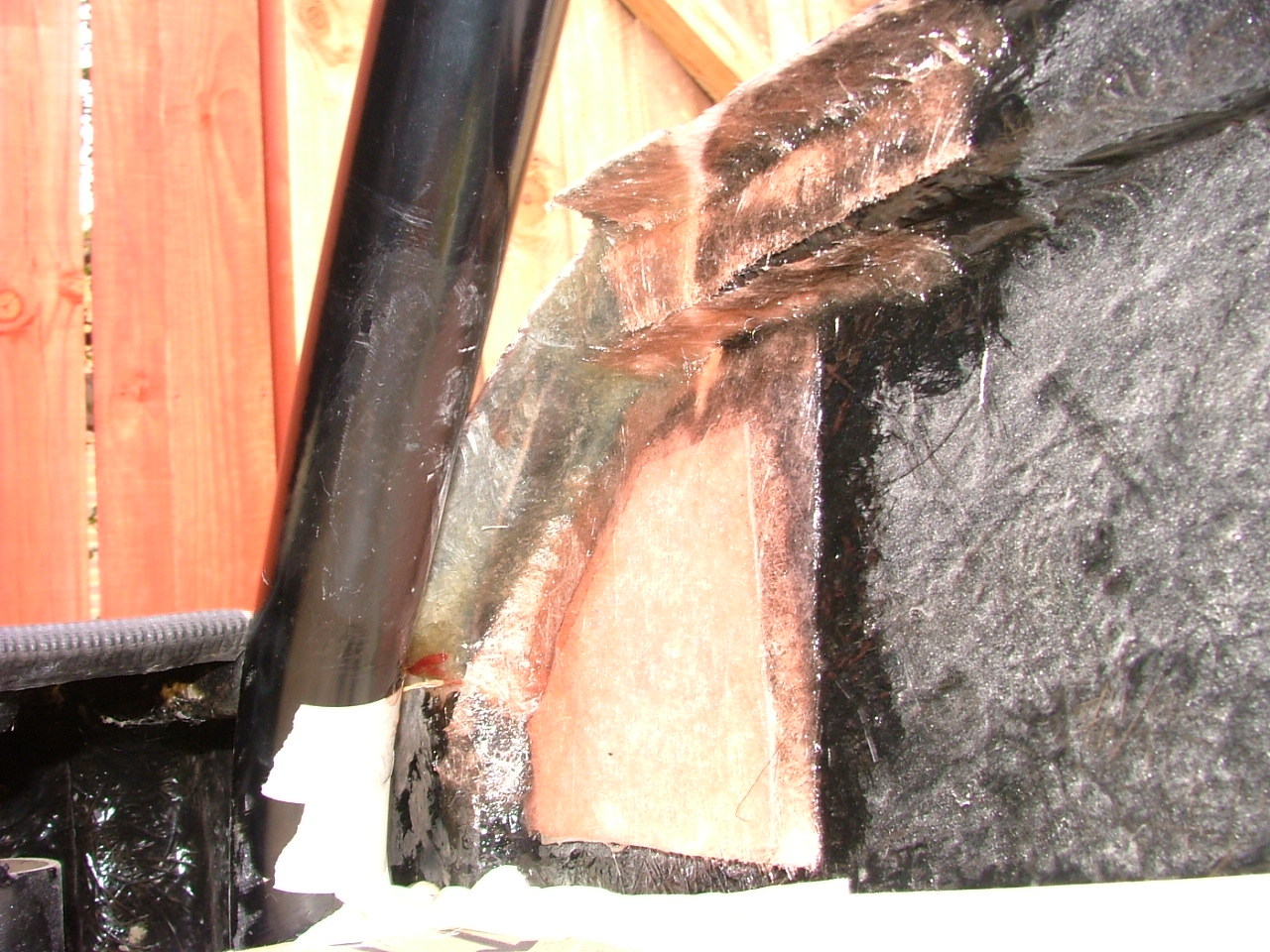

And I then started on the other side:

Click to download

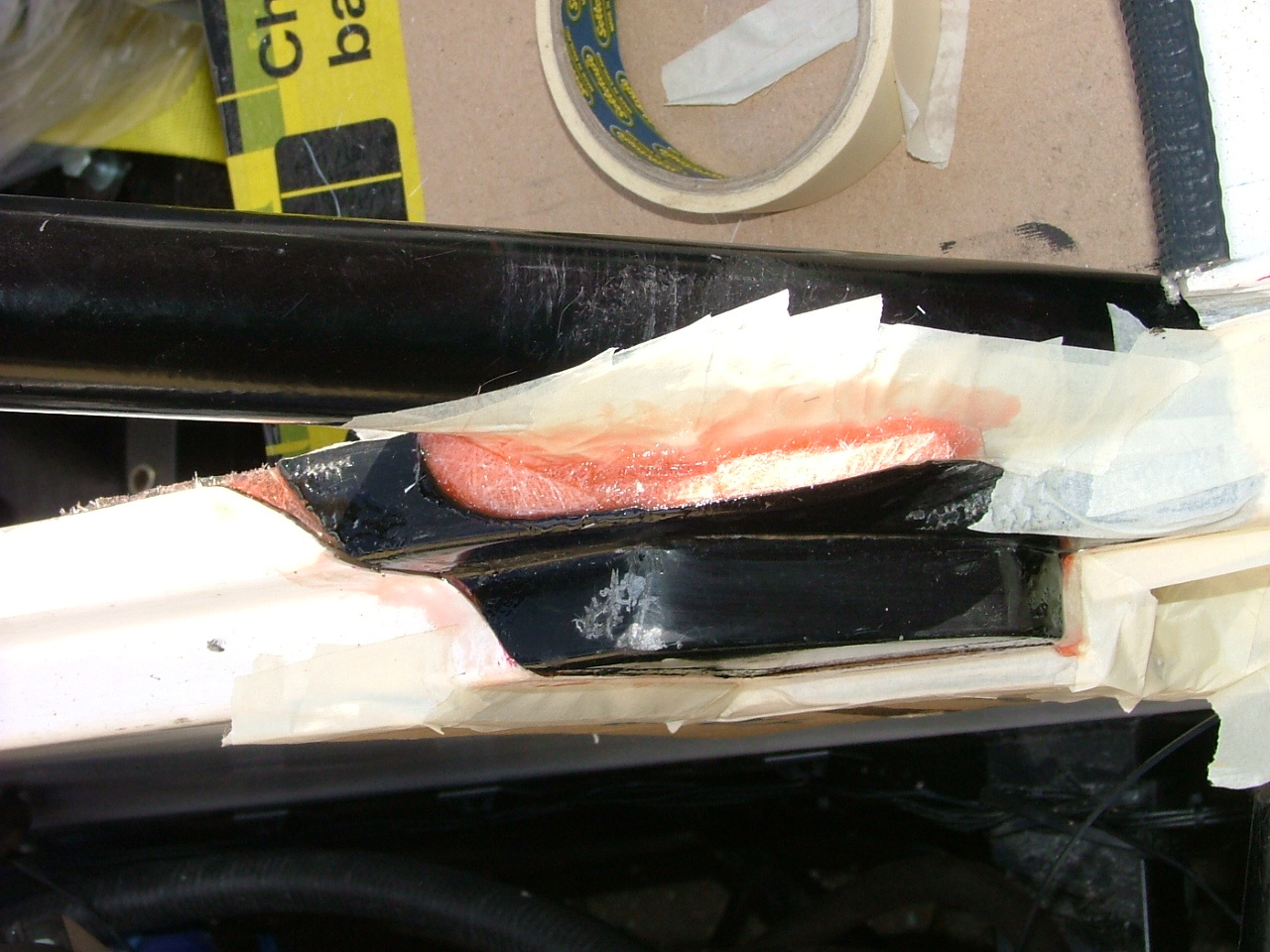

Now, when I grafted this corner in, I'd over-cut the GRP, so it needed to be rebuilt.

Click to download

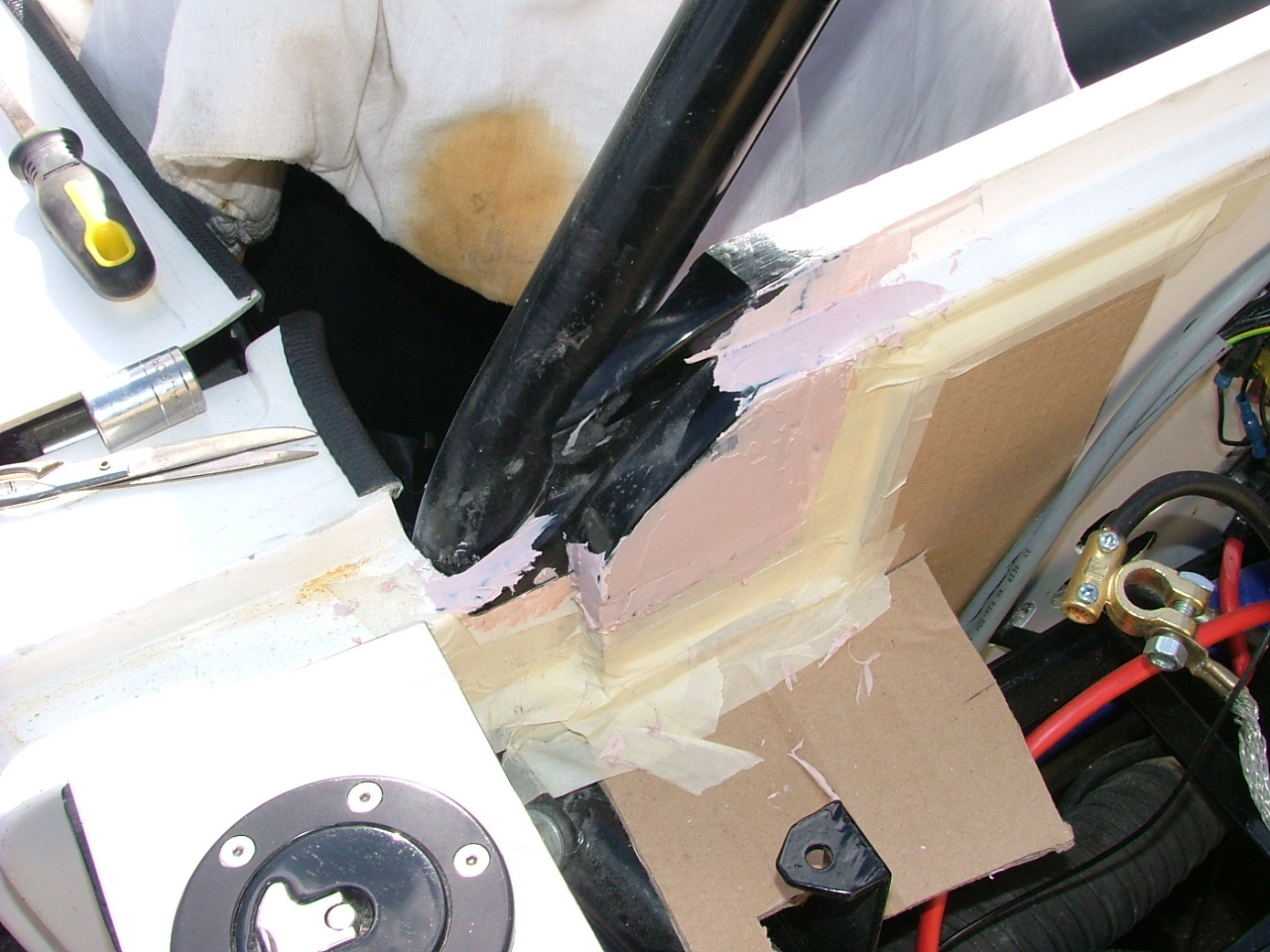

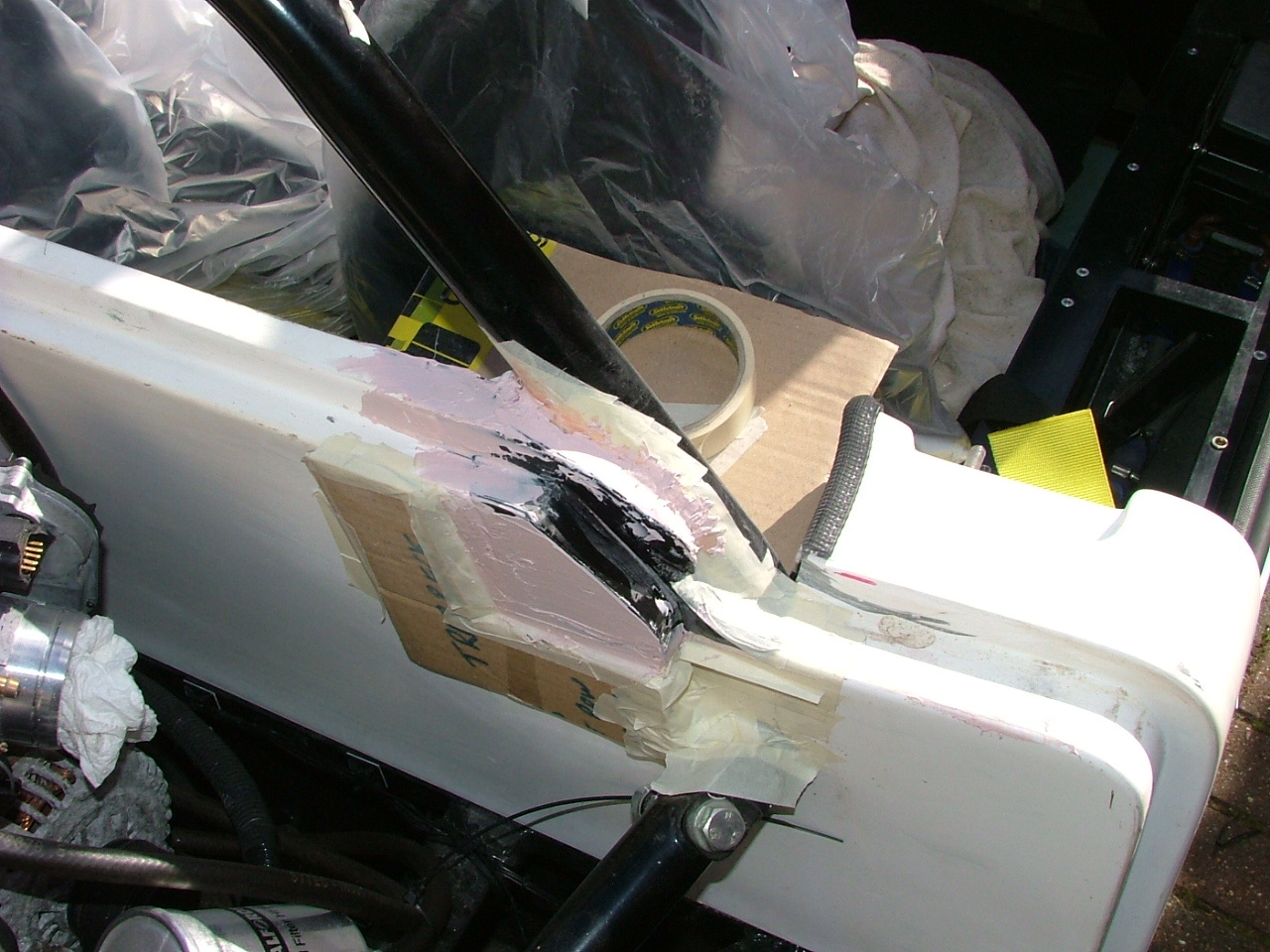

With that set, I put some body filler on the bits I'd done:

Click to download Click to download

I then turned my attention to the engine. I wanted to know if the actuator works, so I dismantled its connection to the exhaust, and both parts moved freely. This gave me a renewed confidence that the engine should work (yesterday, I'd discovered that the gearbox wasn't stuck, which was a relief).

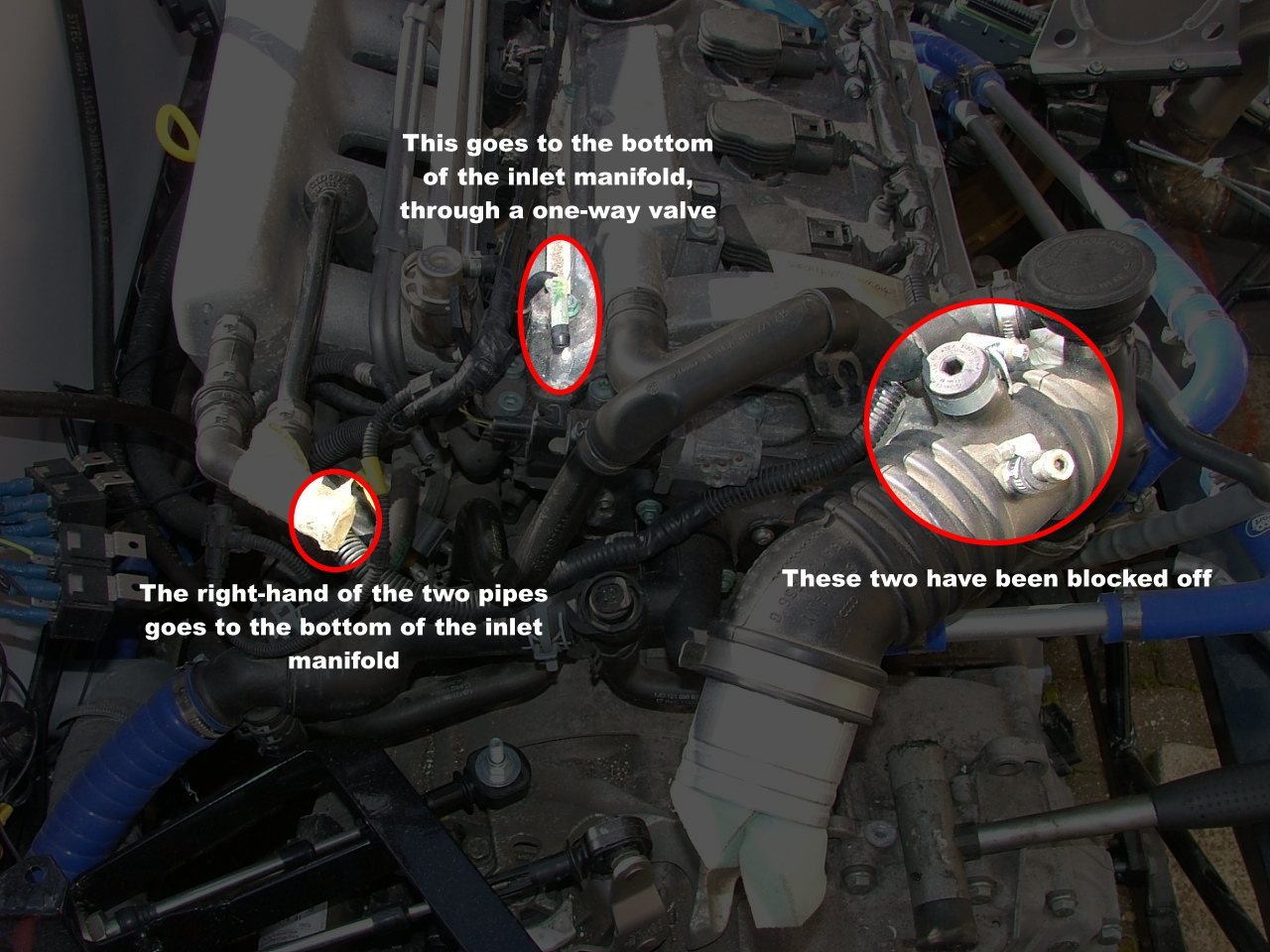

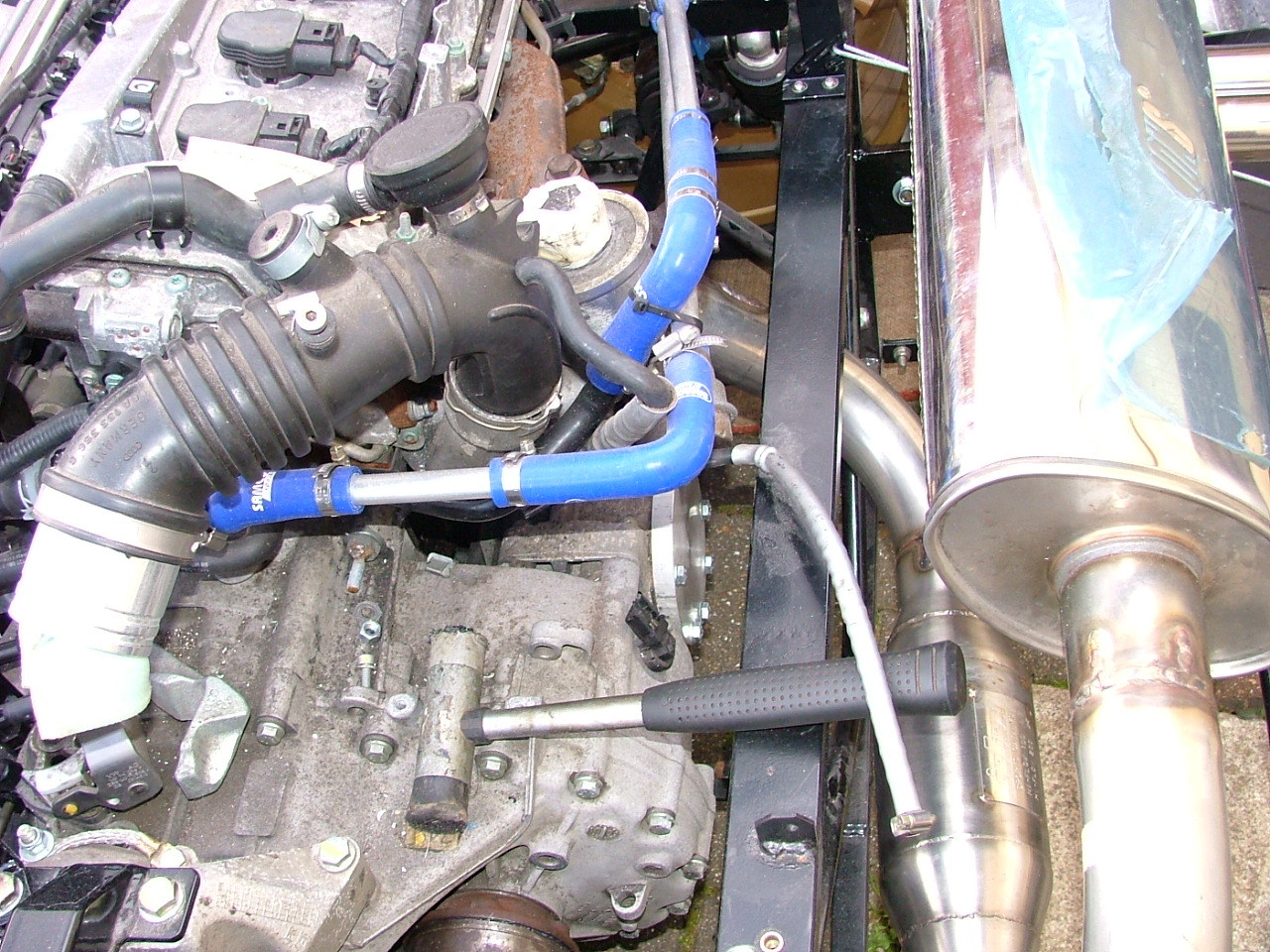

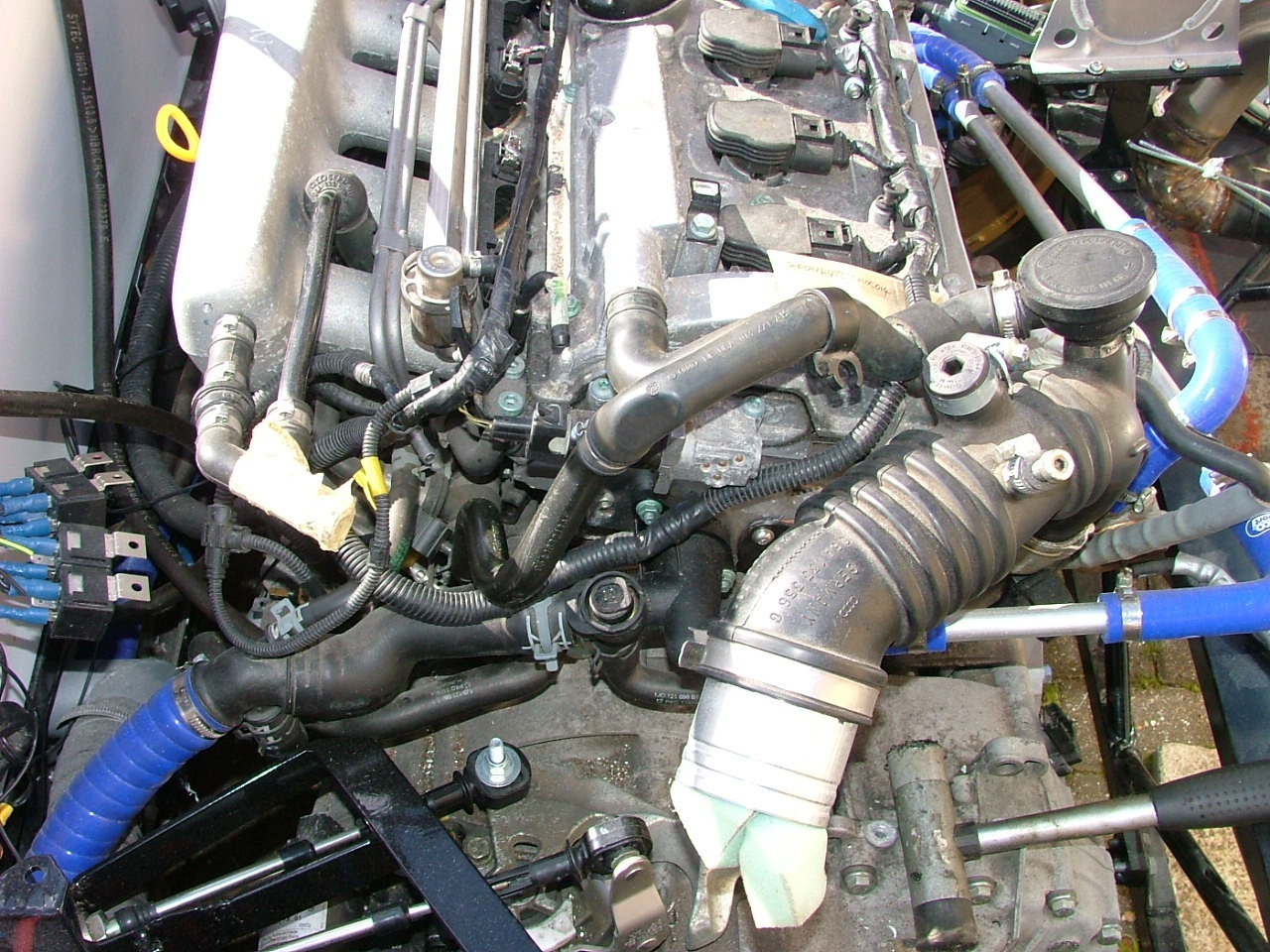

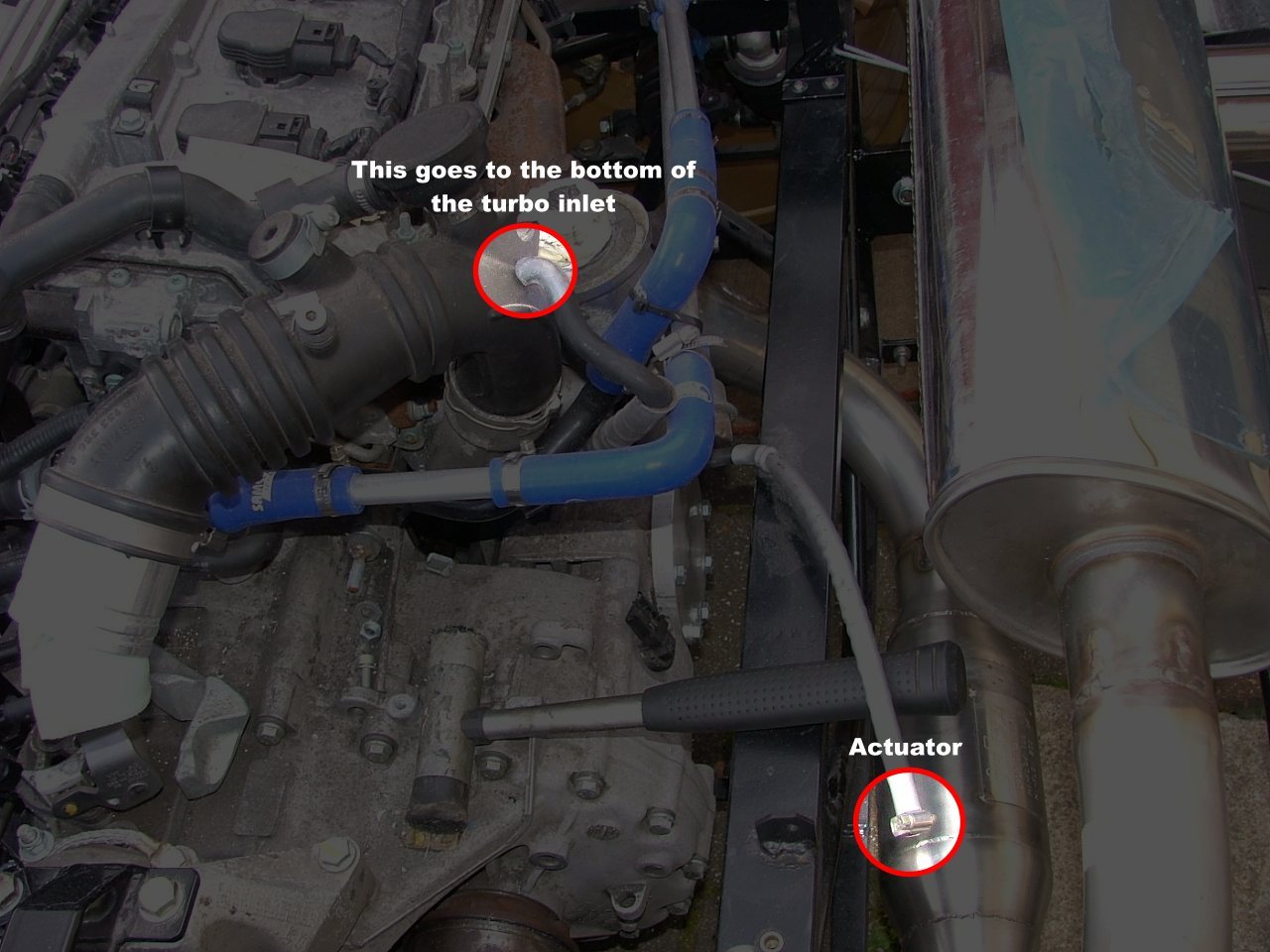

However, there's a few pipes I'm still not sure about some of the pipes. That'll be a job for Scooby to tell me, I hope :). Here's the original pictures, and annotated with the bits I need to find out about:

Click to download Click to download

Click to download Click to download

I'd really like to get the engine running in the next two weeks, and I'll be ordering my charge cooler this week...
