Day 141 - Bit of a random day

Today, I didn't really concentrate on anything - I just looked at the car until I found something that needed doing, and did it.

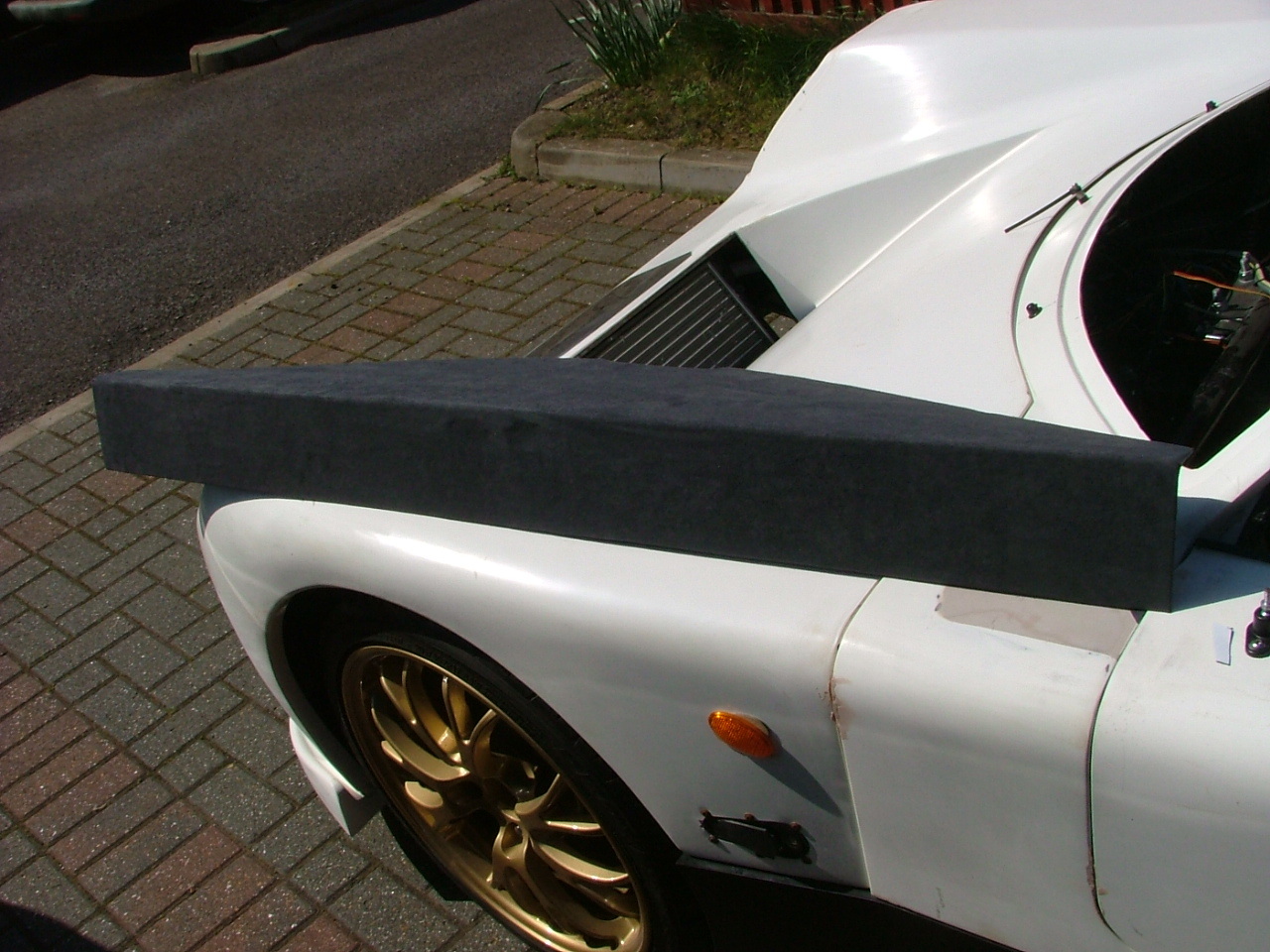

The first thing I did was recover the dashboard:

Click to download

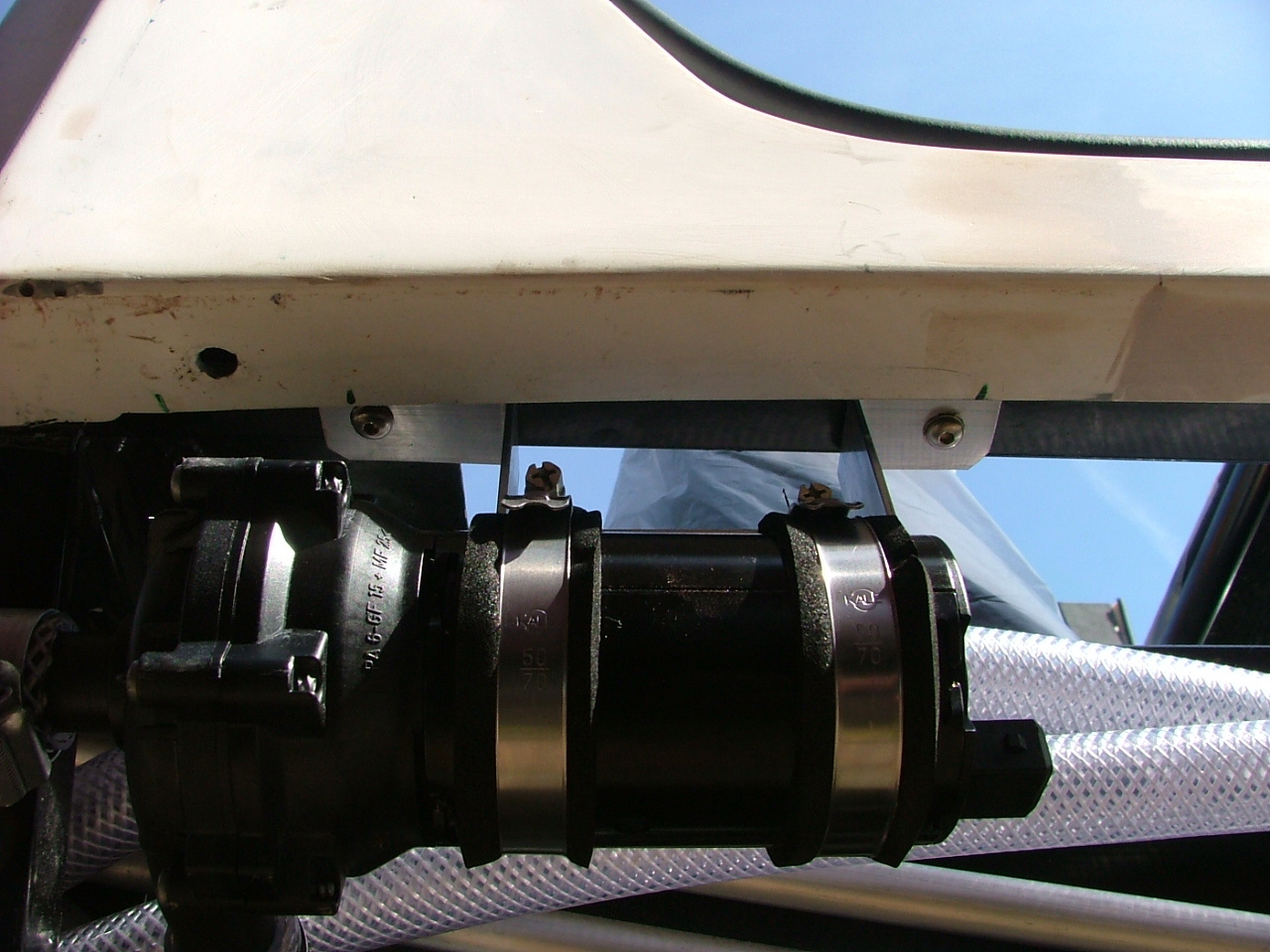

I then got the bolts for the sills fitting better by filing the slots a bit. While I was doing that, I put some rivnuts in for the charge cooler water pump:

Click to download

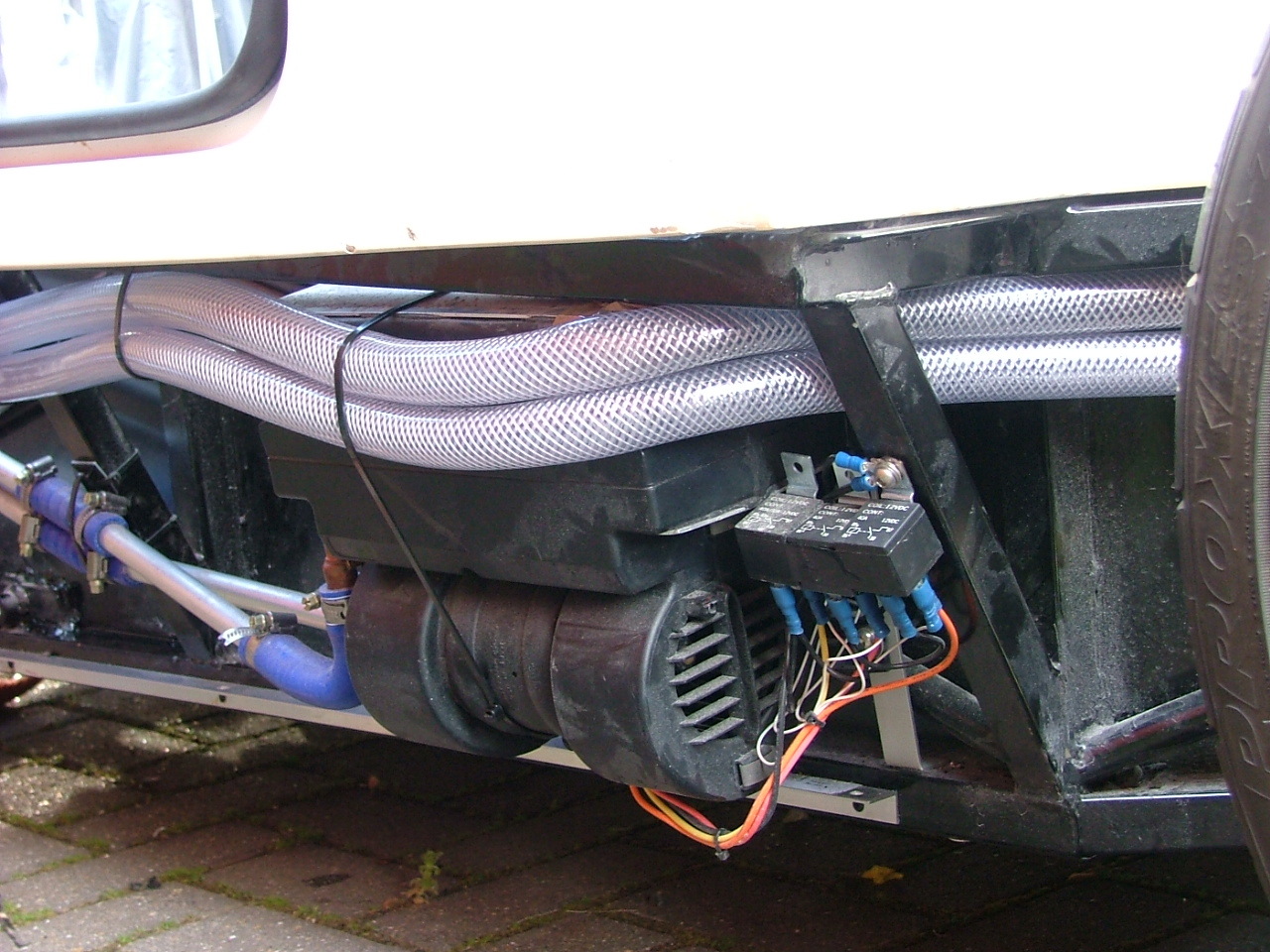

And I routed the water pipes that run to the front around the heater. I had to trim the corner down a bit to lessen the sharpness of the top pipe - it's made a huge difference in the clearance it now has.

Click to download

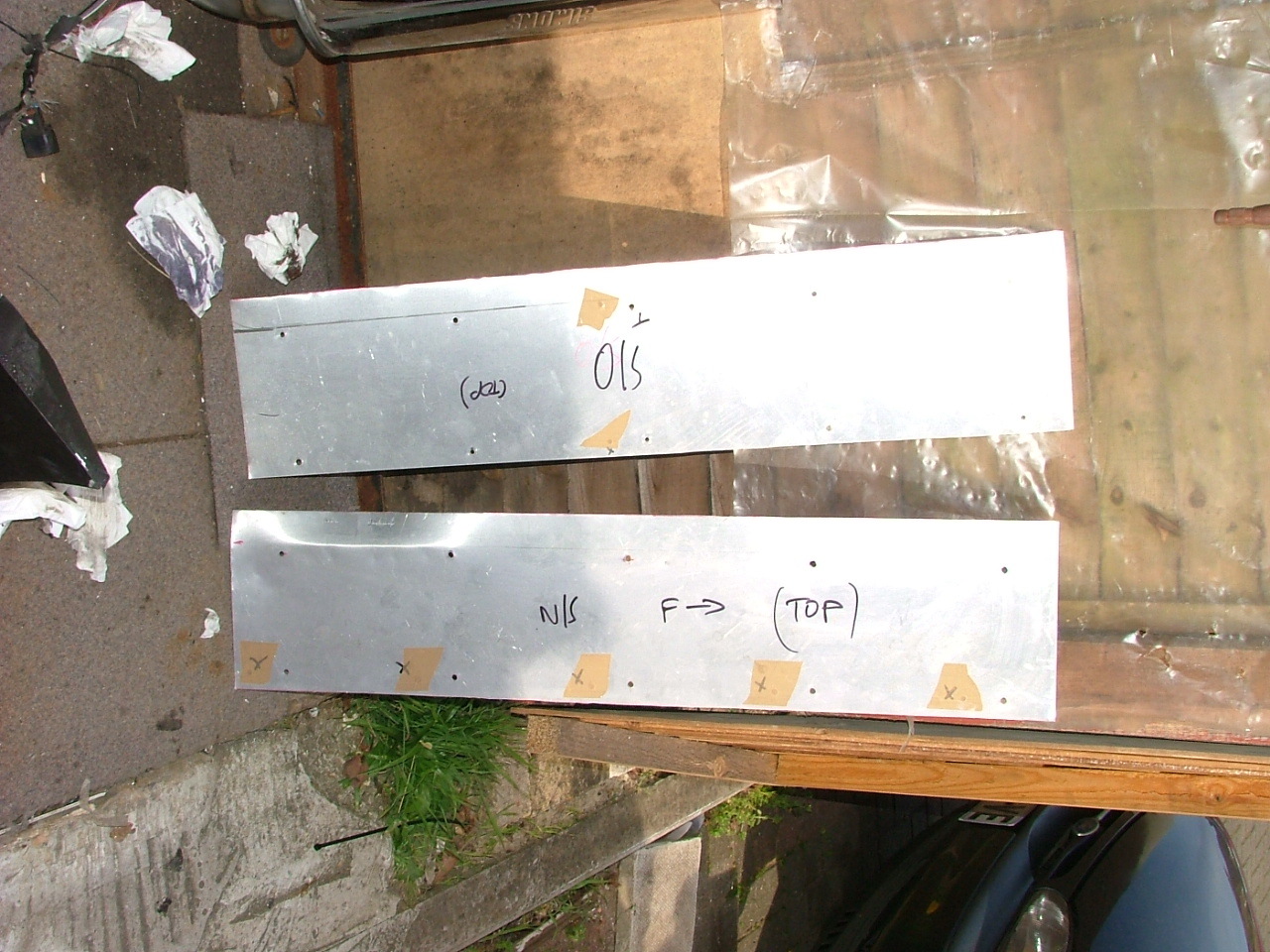

I then filed the holes for the sill covers to allow all the bolts to fit:

Click to download

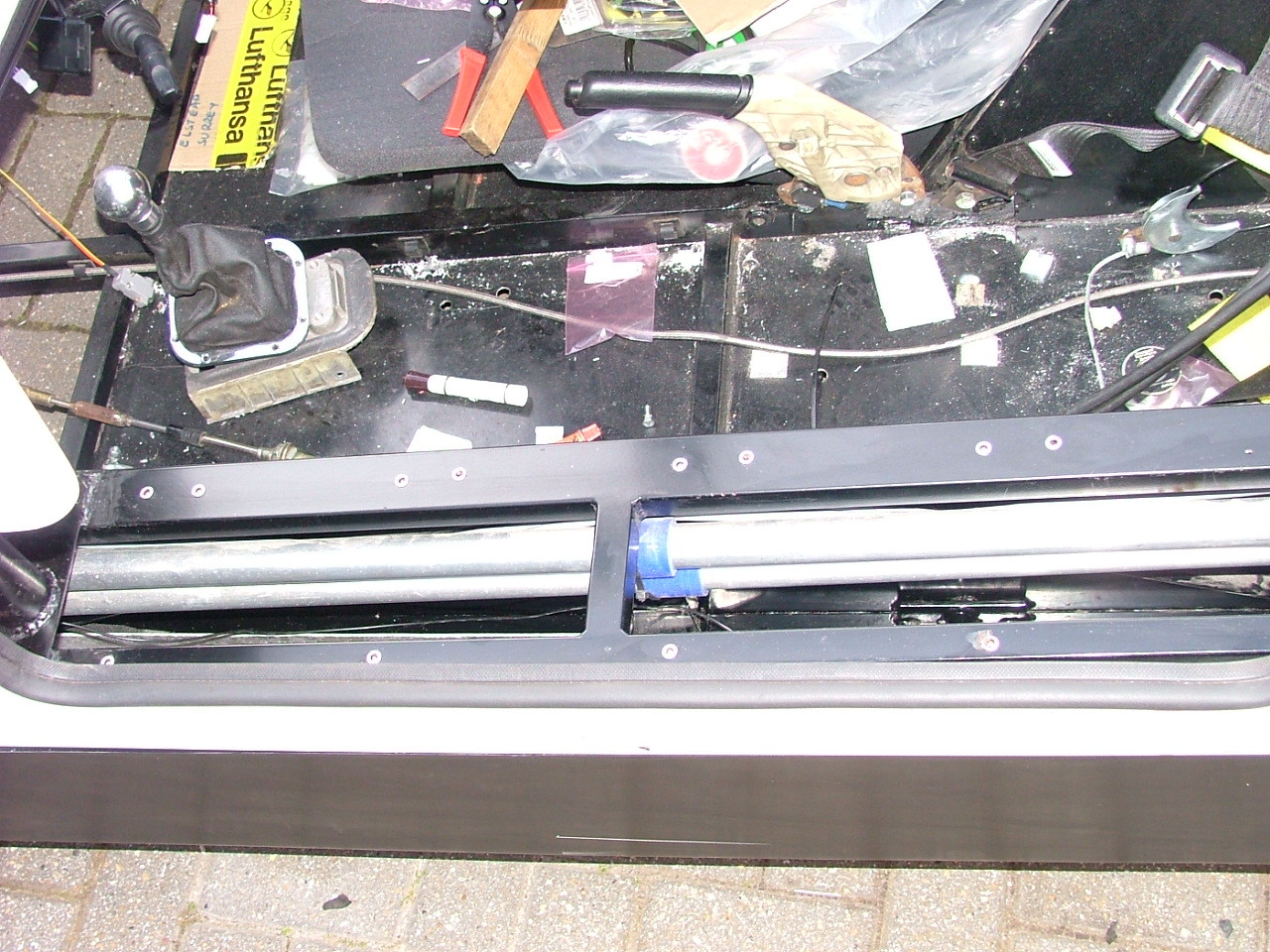

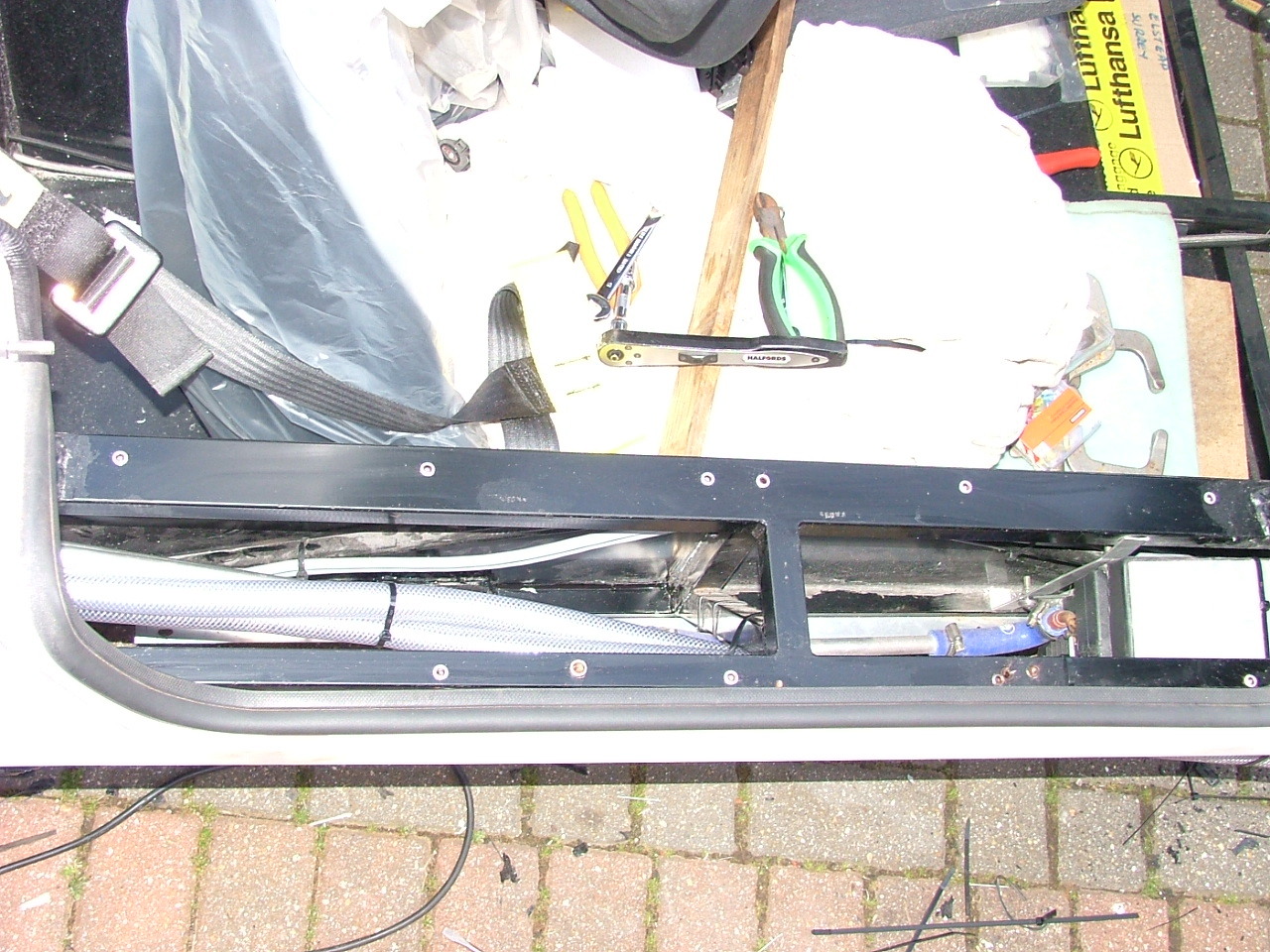

These are now ready to be covered, so I filled the rivnuts with copper grease:

Click to download Click to download

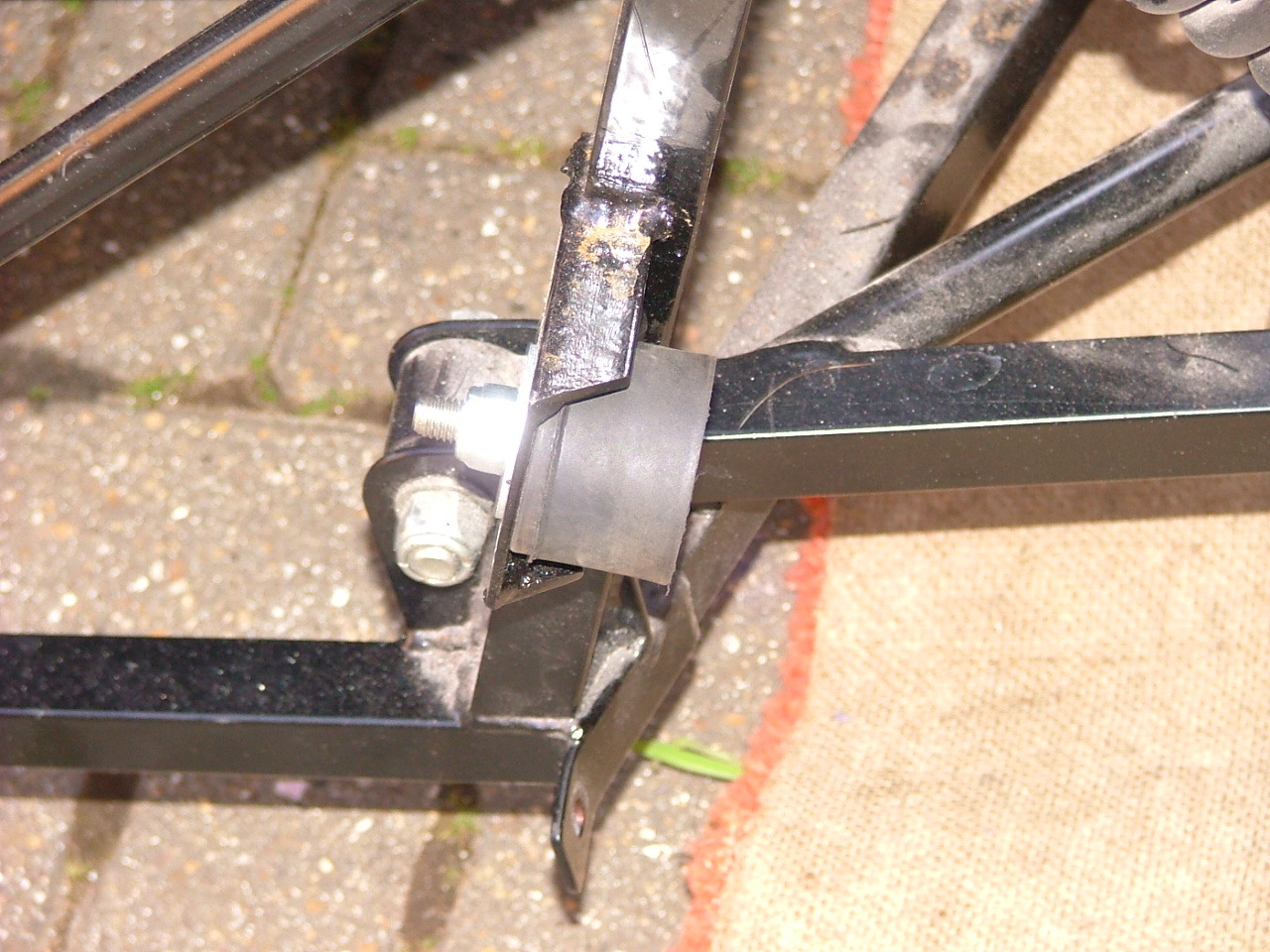

I fitted a new rubber mount for the exhaust pipe - this one has a male fitment one end, and a female the other. This will make it significantly easier to put the exhaust on.

Click to download

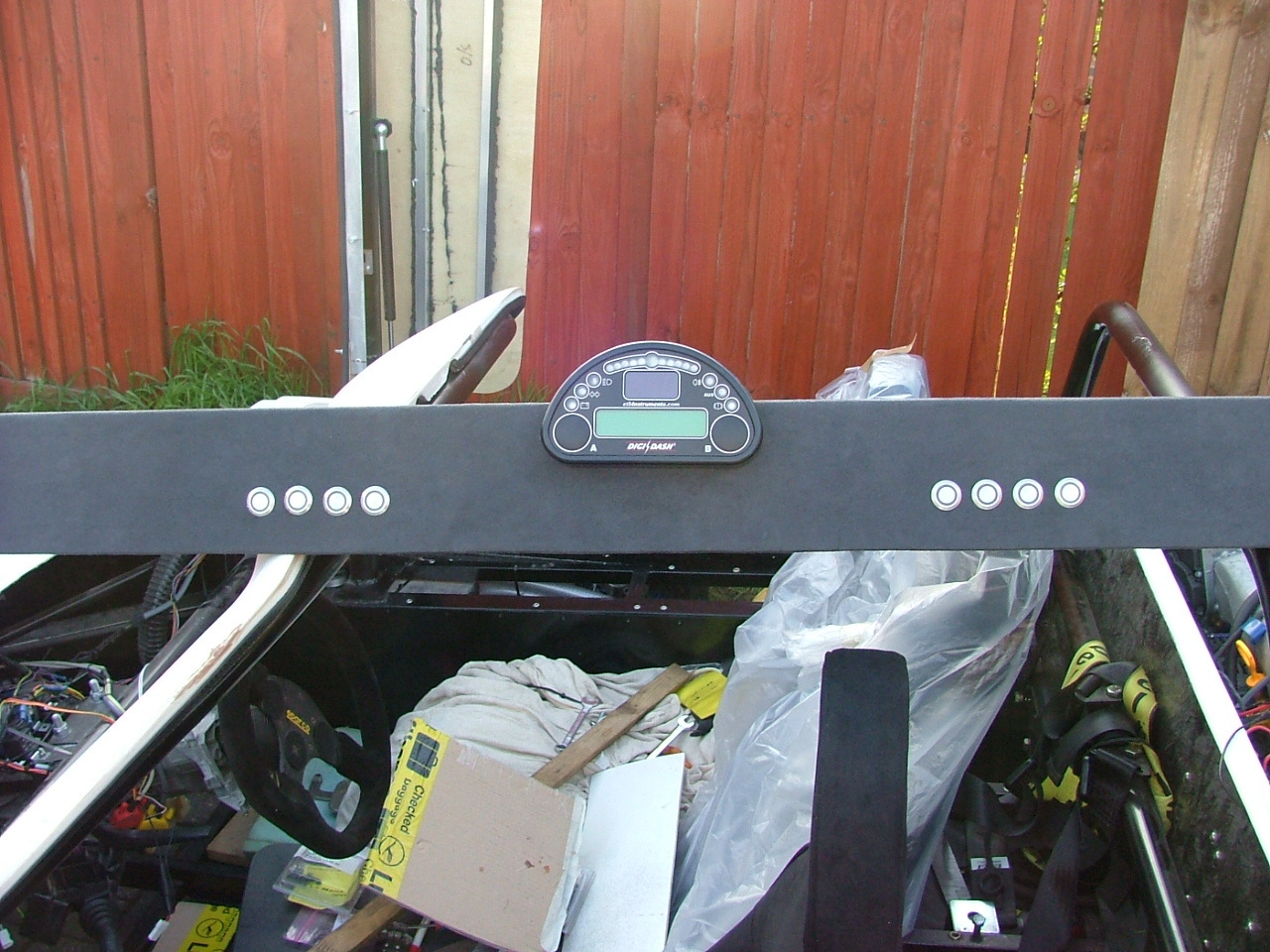

And finally, after it had been in the sun for the day, I cut the holes in the dashboard and put everything back on - including the new switches.

Click to download

I'll cover the sill covers tonight.
