Day 153 - Bit of a random day

I'm currently doing random things as my Mondeo isn't feeling very well, so I can't really go out and get bits until I get it fixed next week.

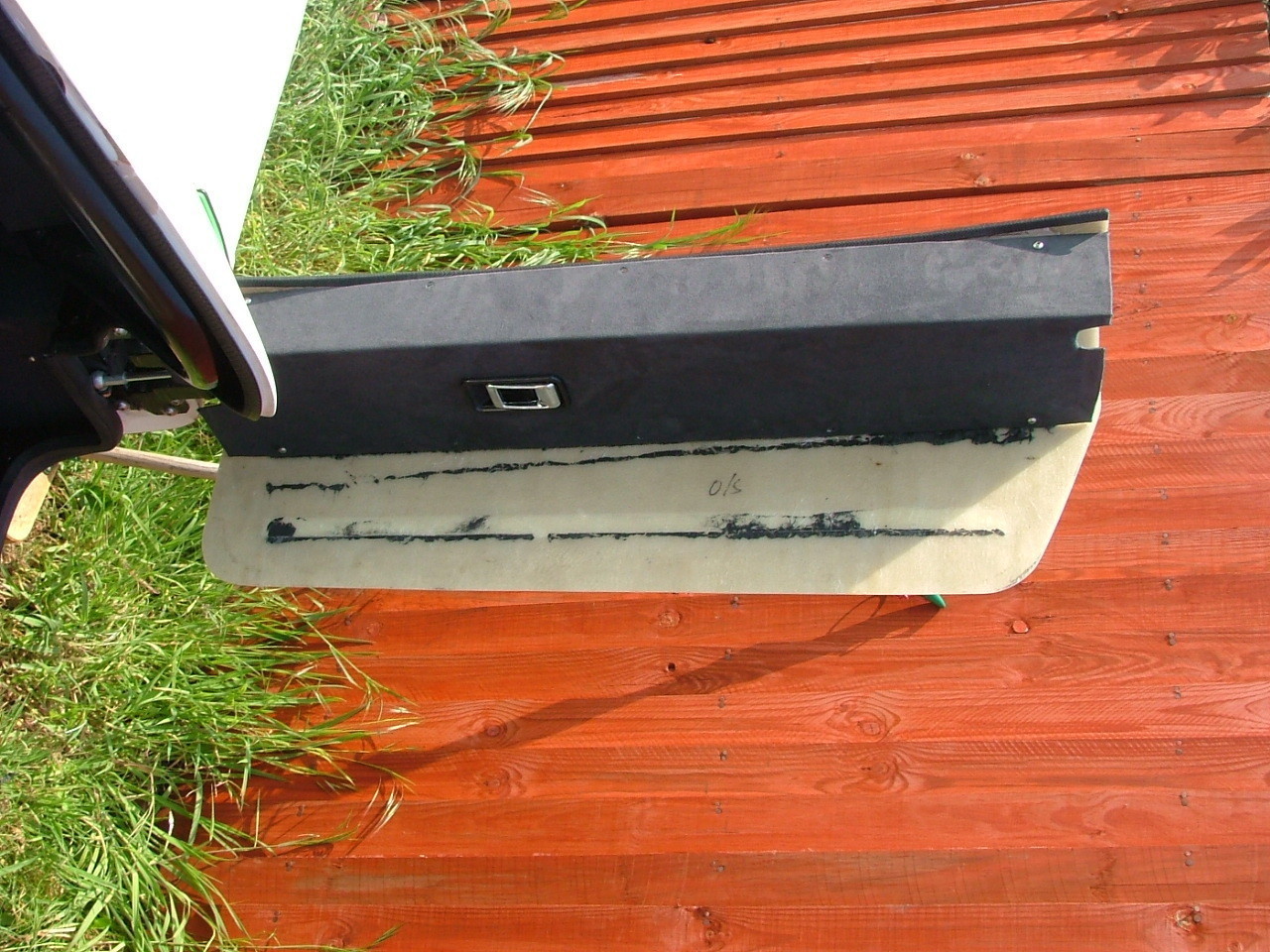

The first thing I did was remove the two right angle aluminium brackets in the doors, and fitted the wire that allows the door opening mechanism to release the latch (as I'd done on the other side quite a while ago).

Click to download

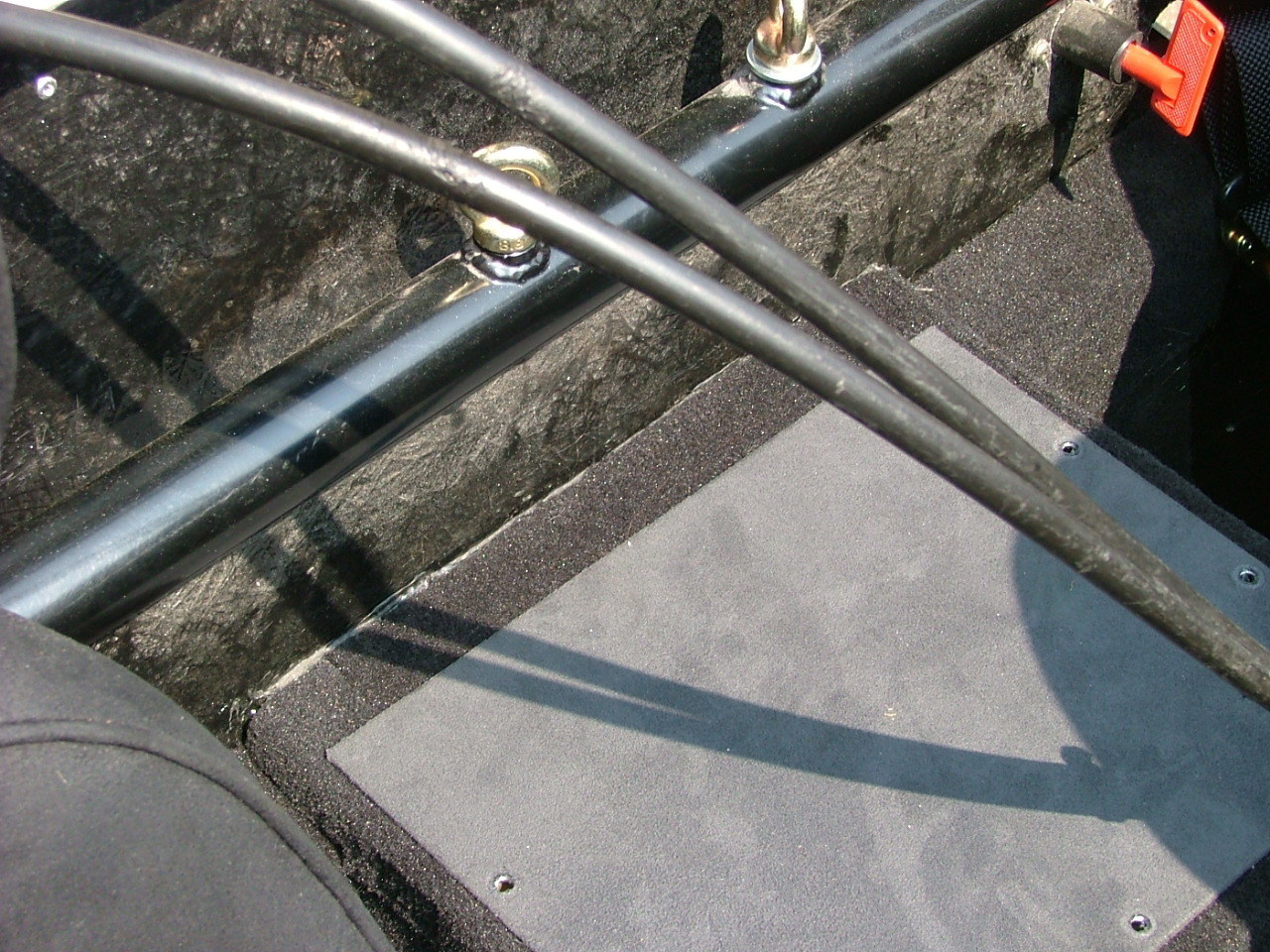

I also glued some more carpet on the back of the fuel tank panel.

Click to download

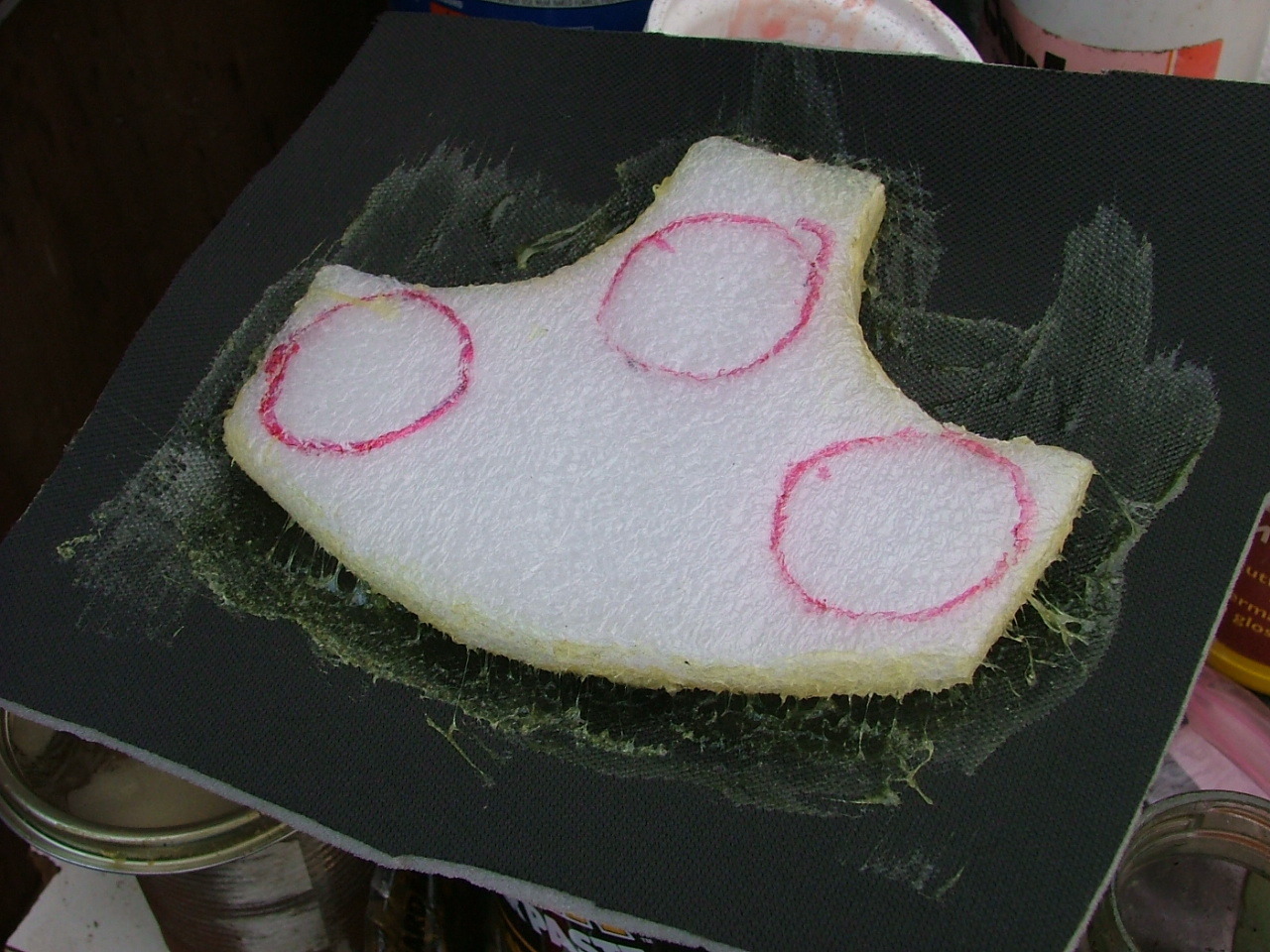

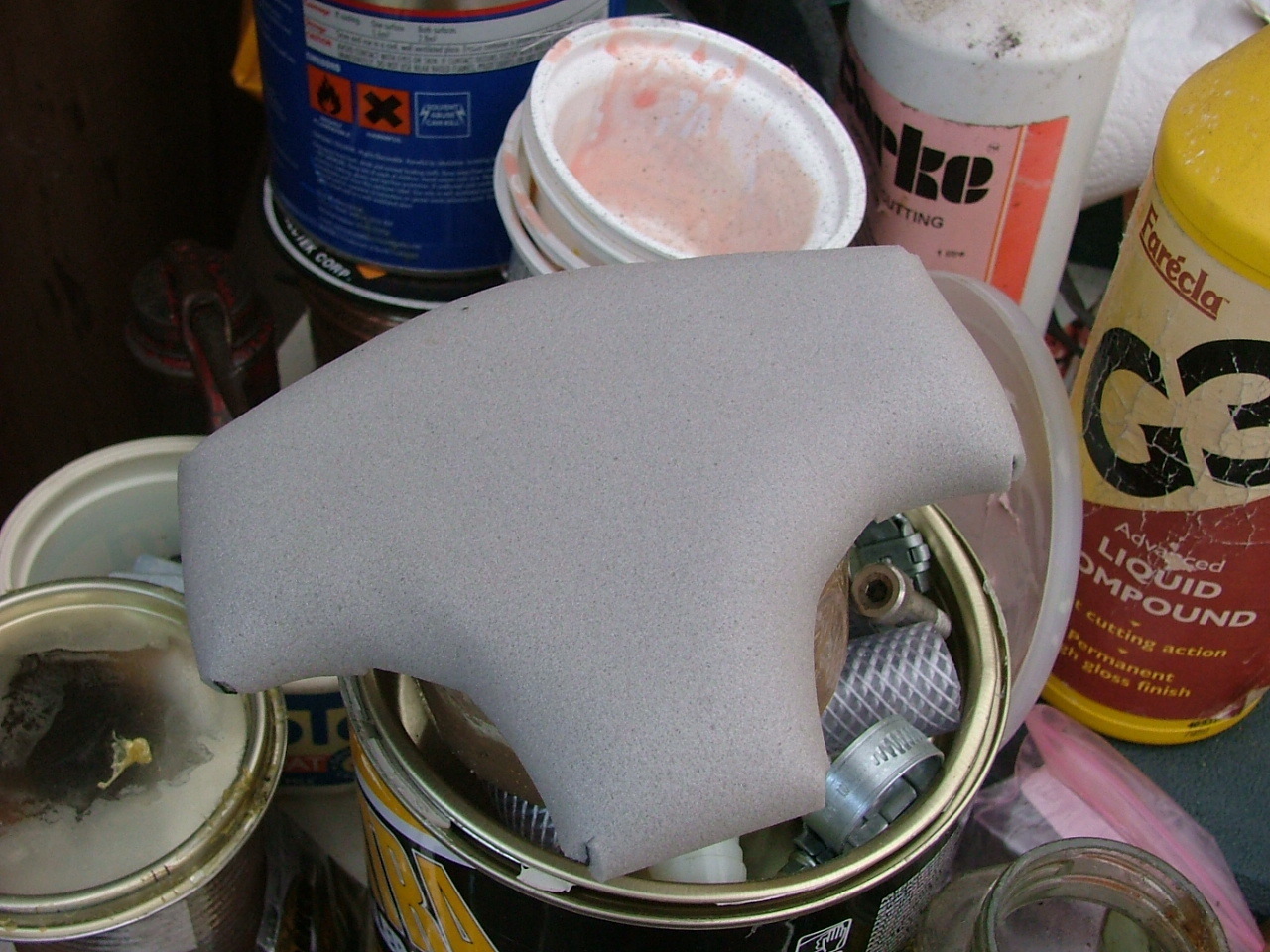

I then concentrated on the steering wheel pad - it had become a bit worn, and some angle grinding grit had become embedded in it (I must've misplaced it at some point during the build), so I stripped off the old Alicante, and since I now had some foam, I used that.

Click to download Click to download

Unfortunately, I ran out of contact adhesive at that point - I'll have to get some more when my car's back on the road.

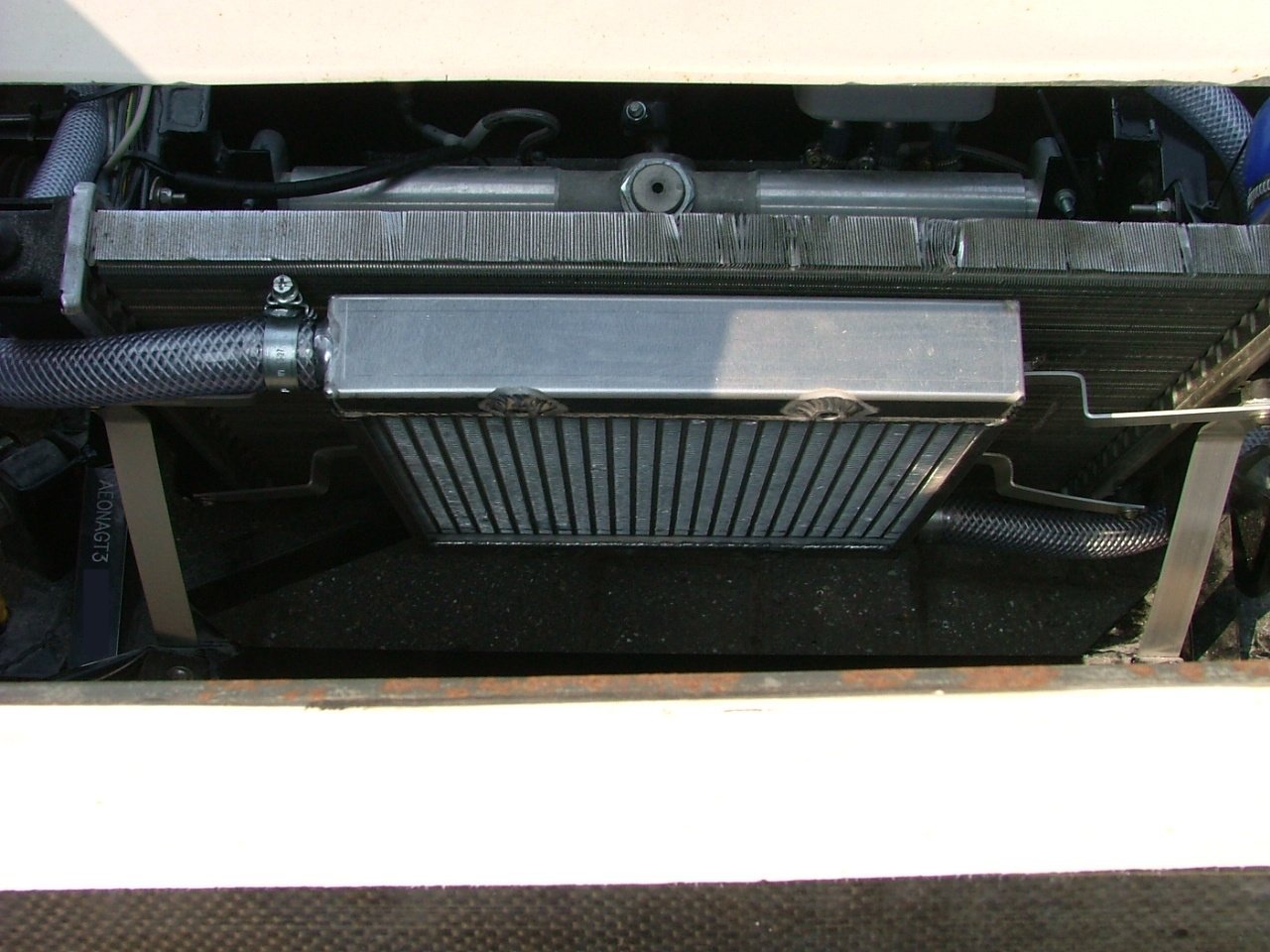

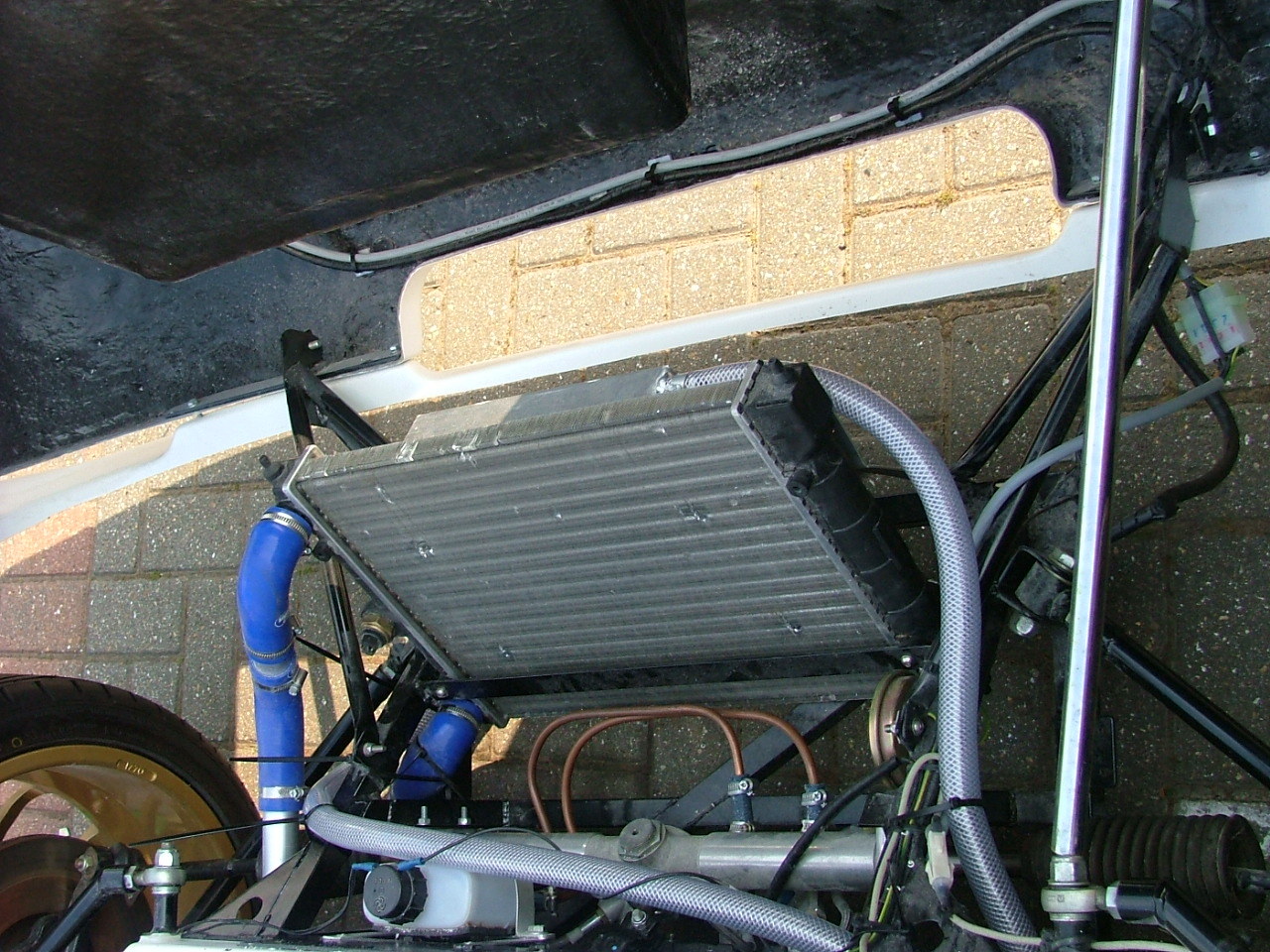

So, I fitted the hose pipes to the charge cooler radiator.

Click to download Click to download

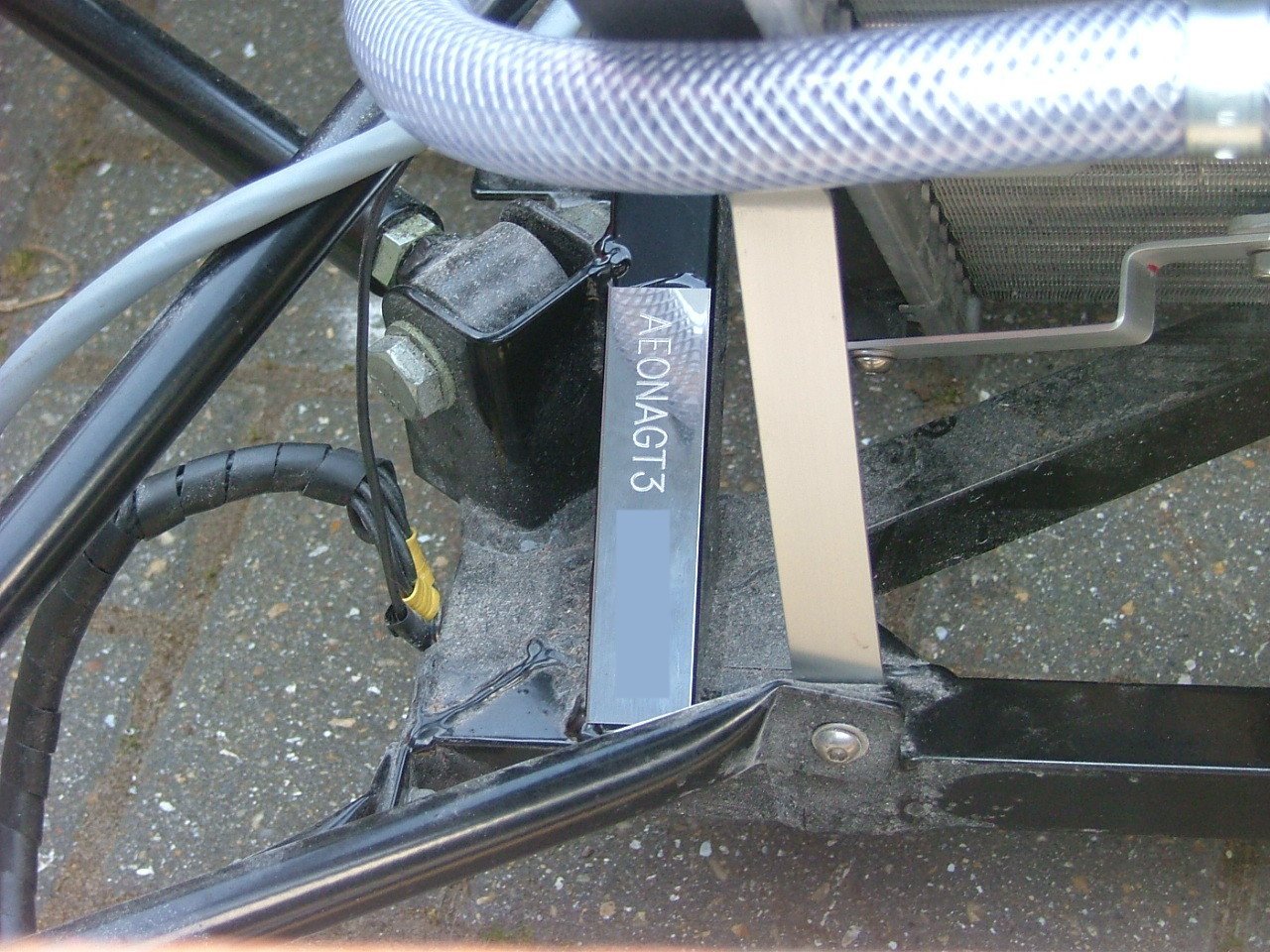

Amd while I was doing that, I stuck on one of the chassis plates I had made earlier.

Click to download

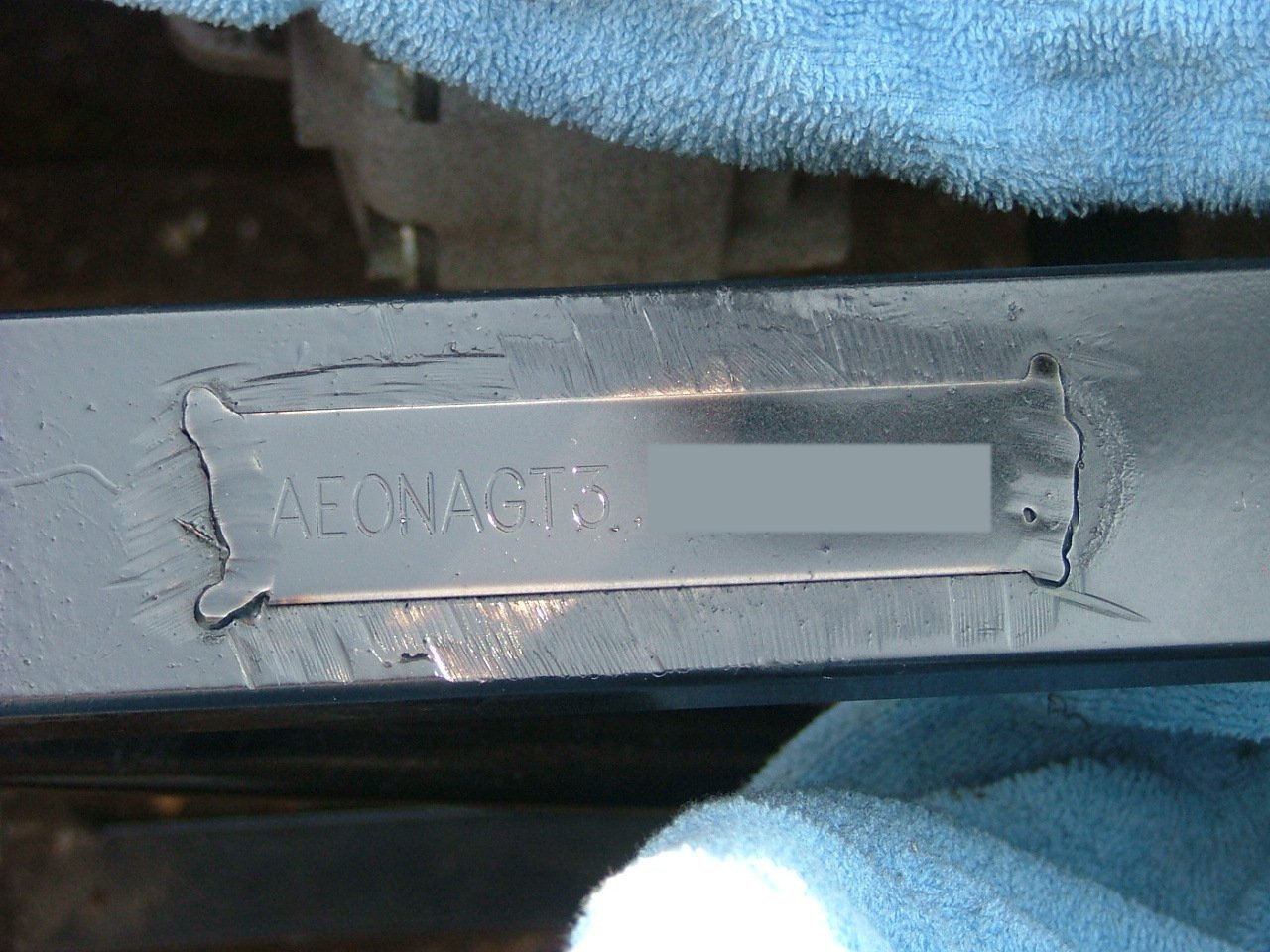

However, this one was welded in place, and painted.

Click to download

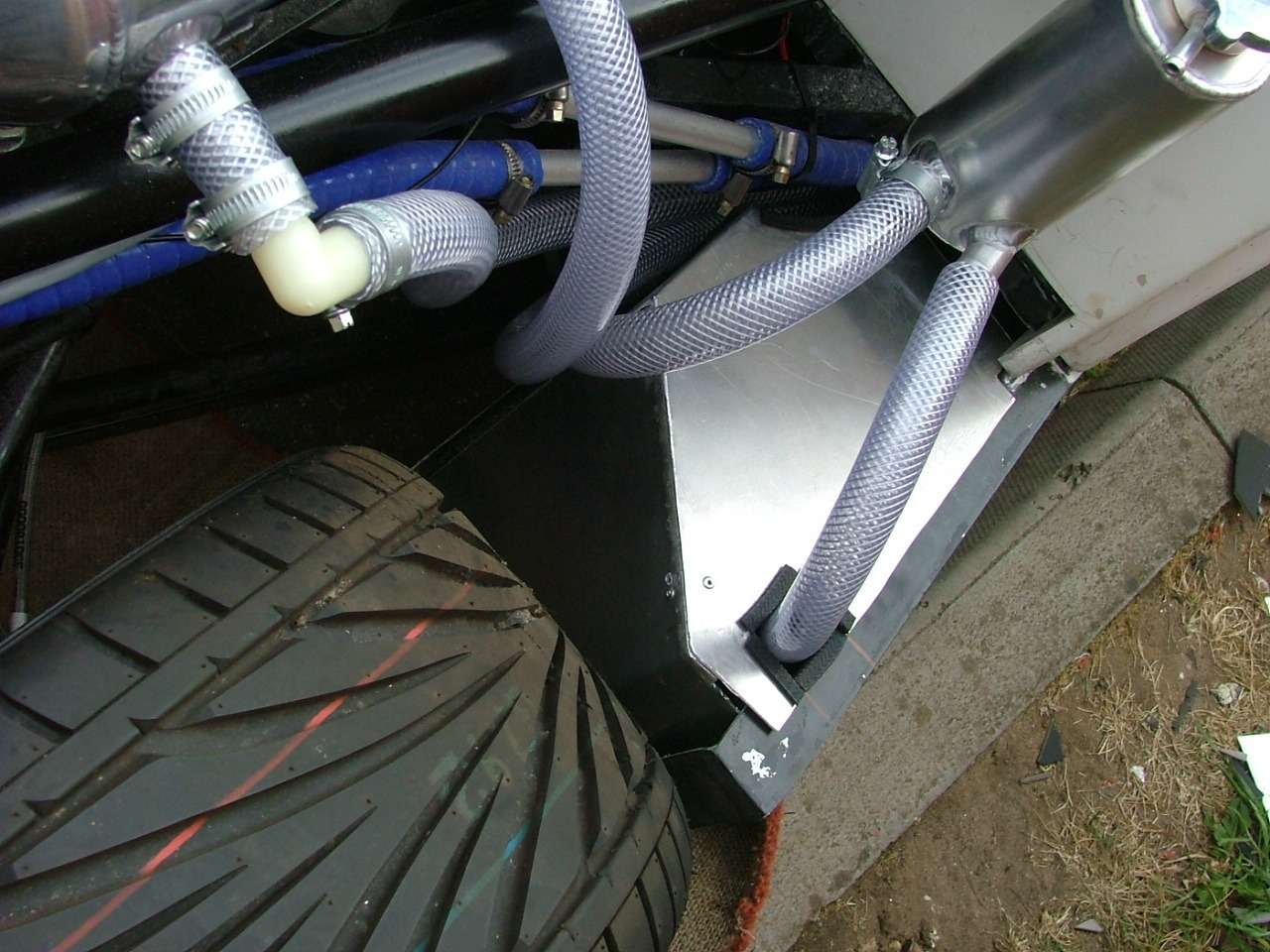

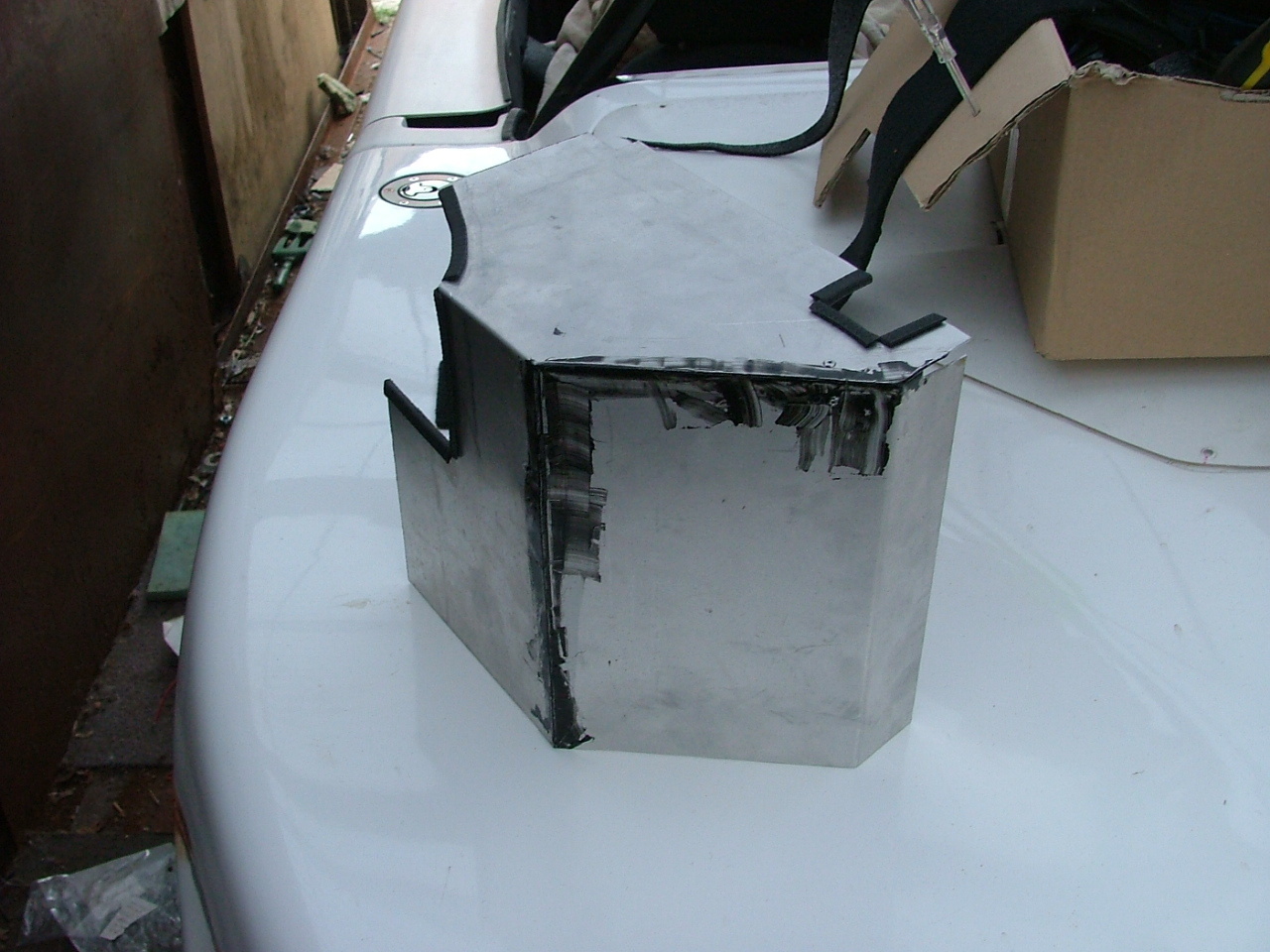

I then used another bit of aluminium to close off part of the charge cooler protection cover.

Click to download

Which I then used Sikaflex on to make it more waterproof.

Click to download

During this, I also did a bit of a tidy in the garage, which I'll continue later on.
