Day 154 - Front section, steering pad

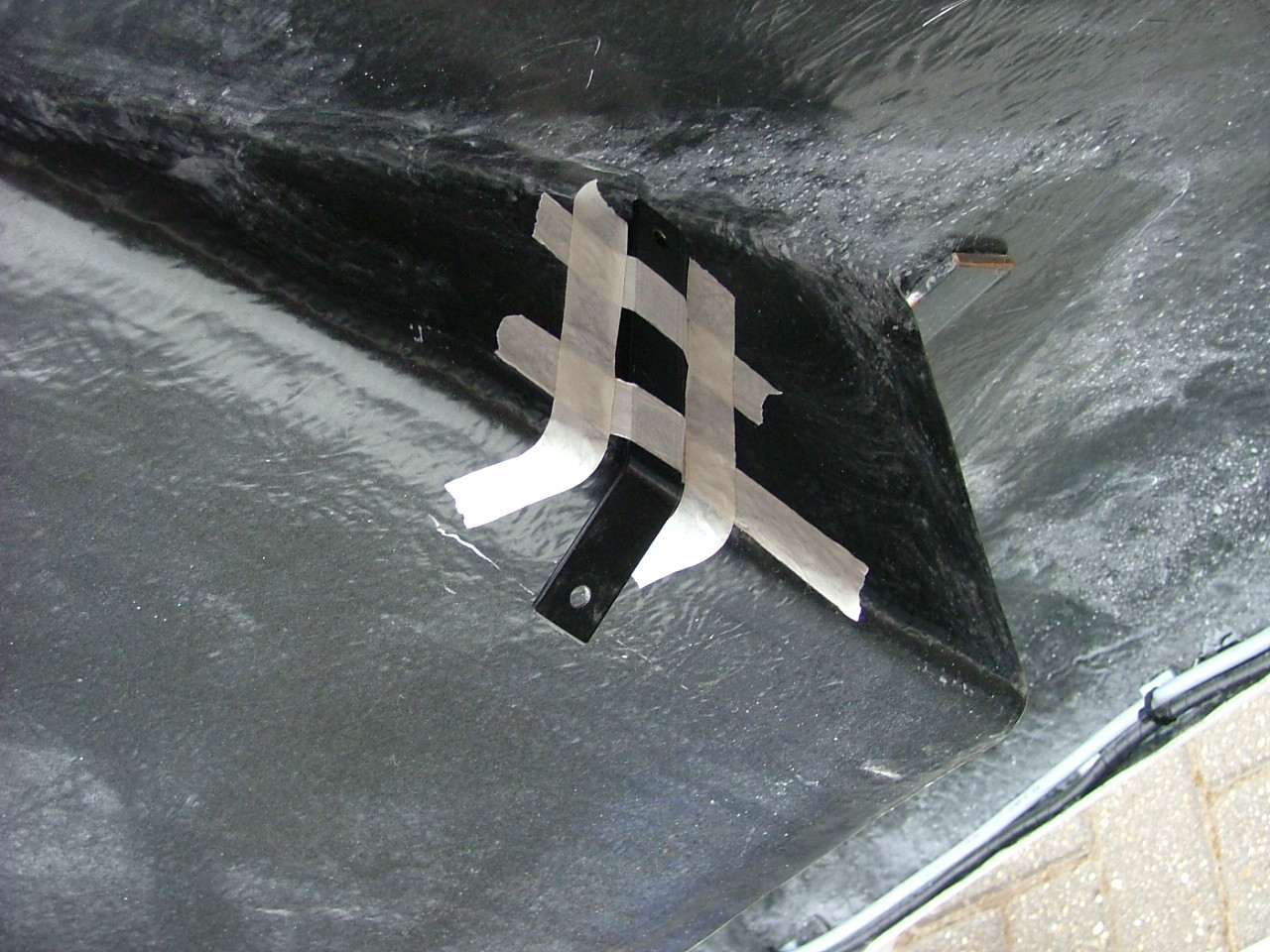

I wanted to allow the front section to be held open under its own weight (like the rear), so I used one of the old front radiator brackets, and taped it on to see if it would foul anything.

Click to download

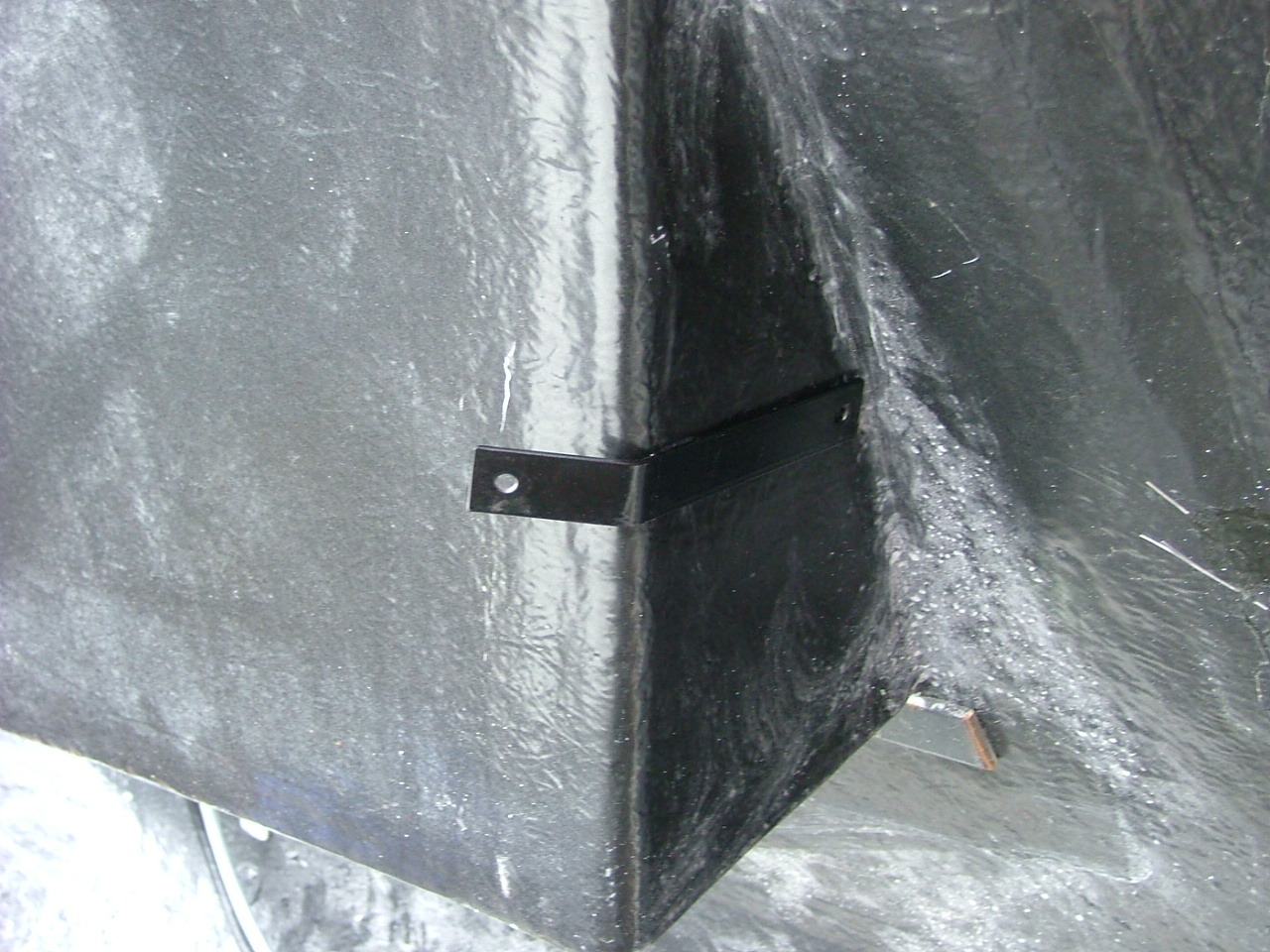

It didn't, so I first of all epoxied it in place...

Click to download

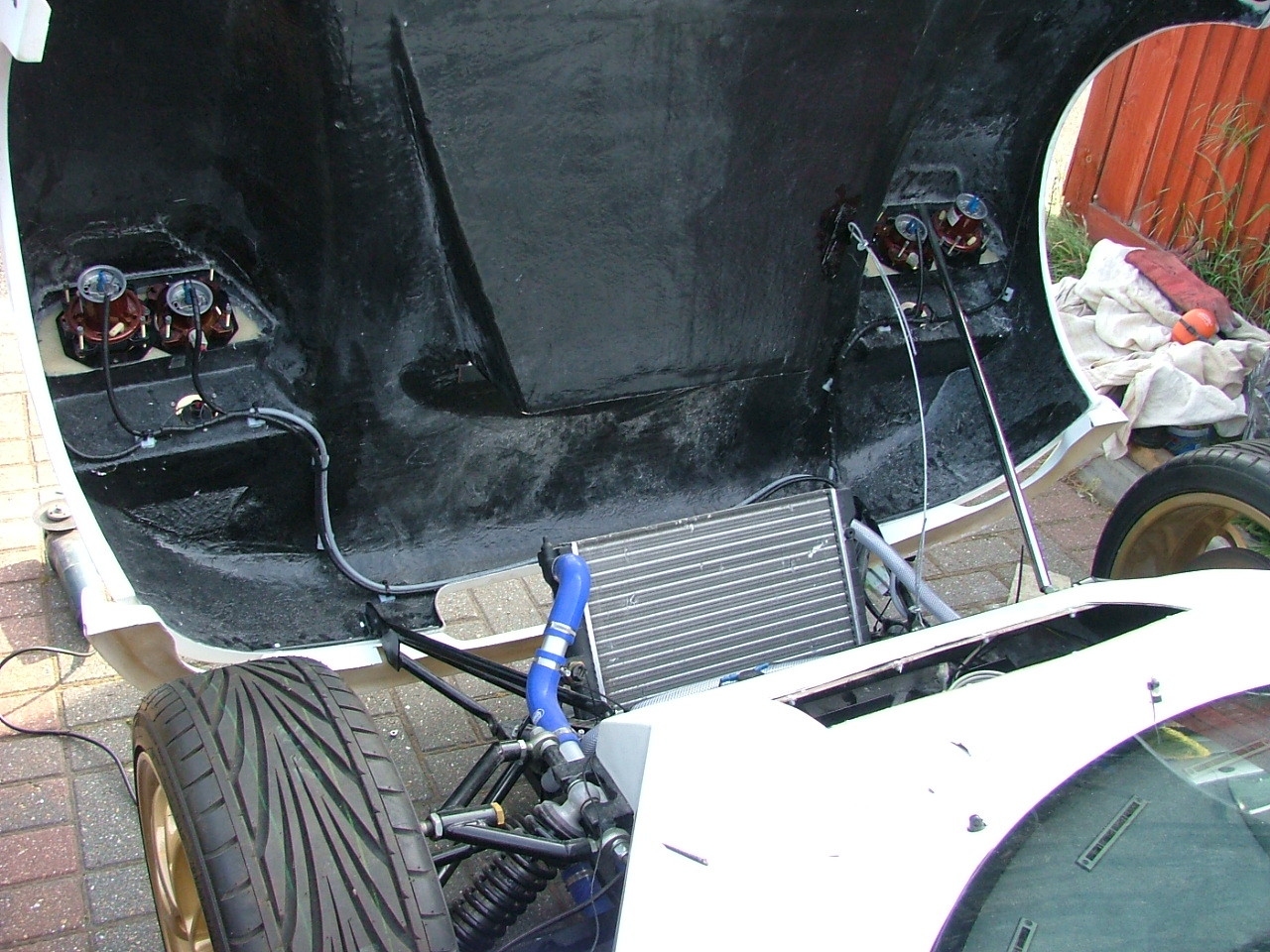

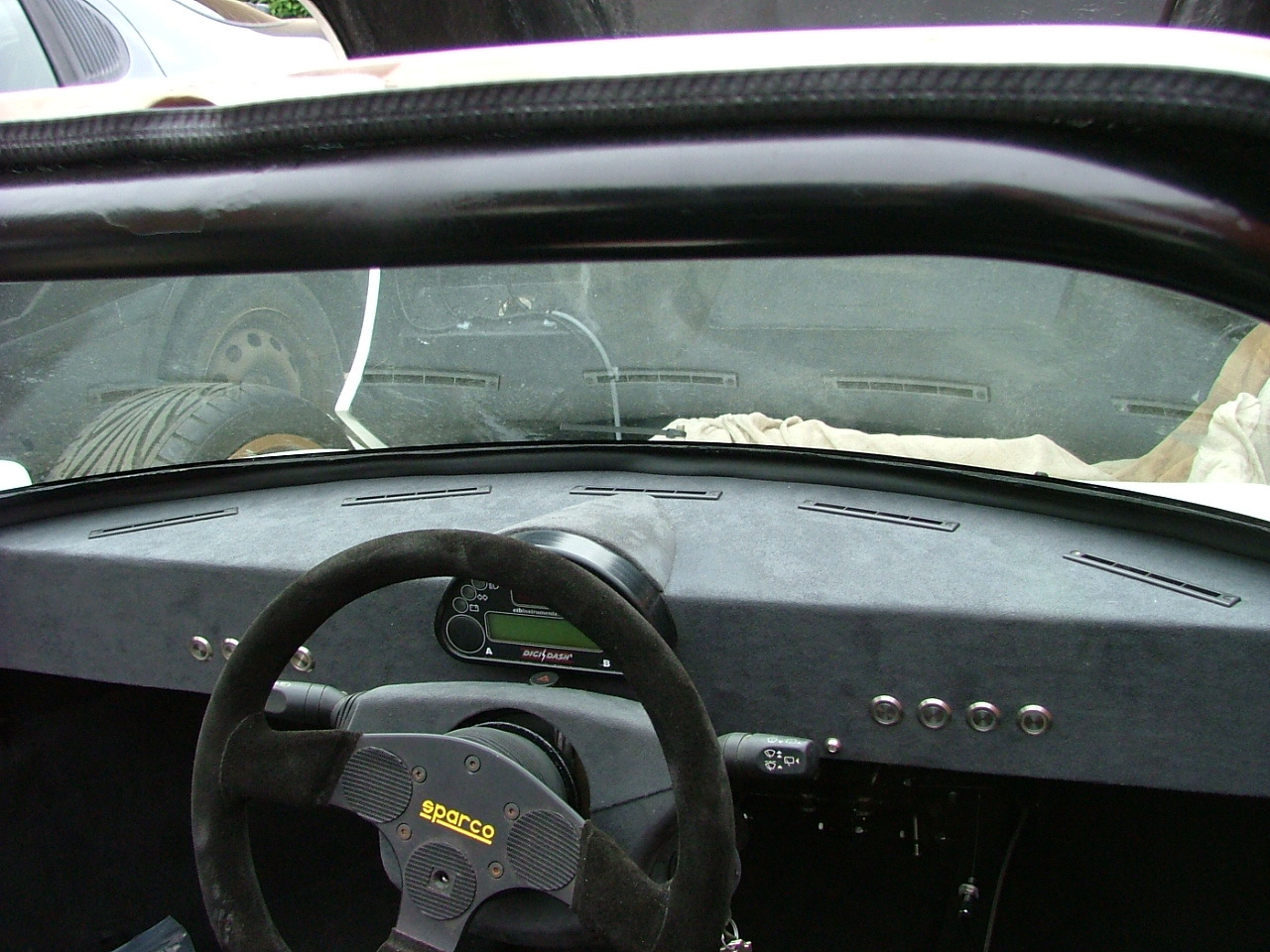

...and then put GRP over it. While it was setting, I fitted some quadrant rubber in the gap between the dashboard and the body to fill the gap.

Click to download

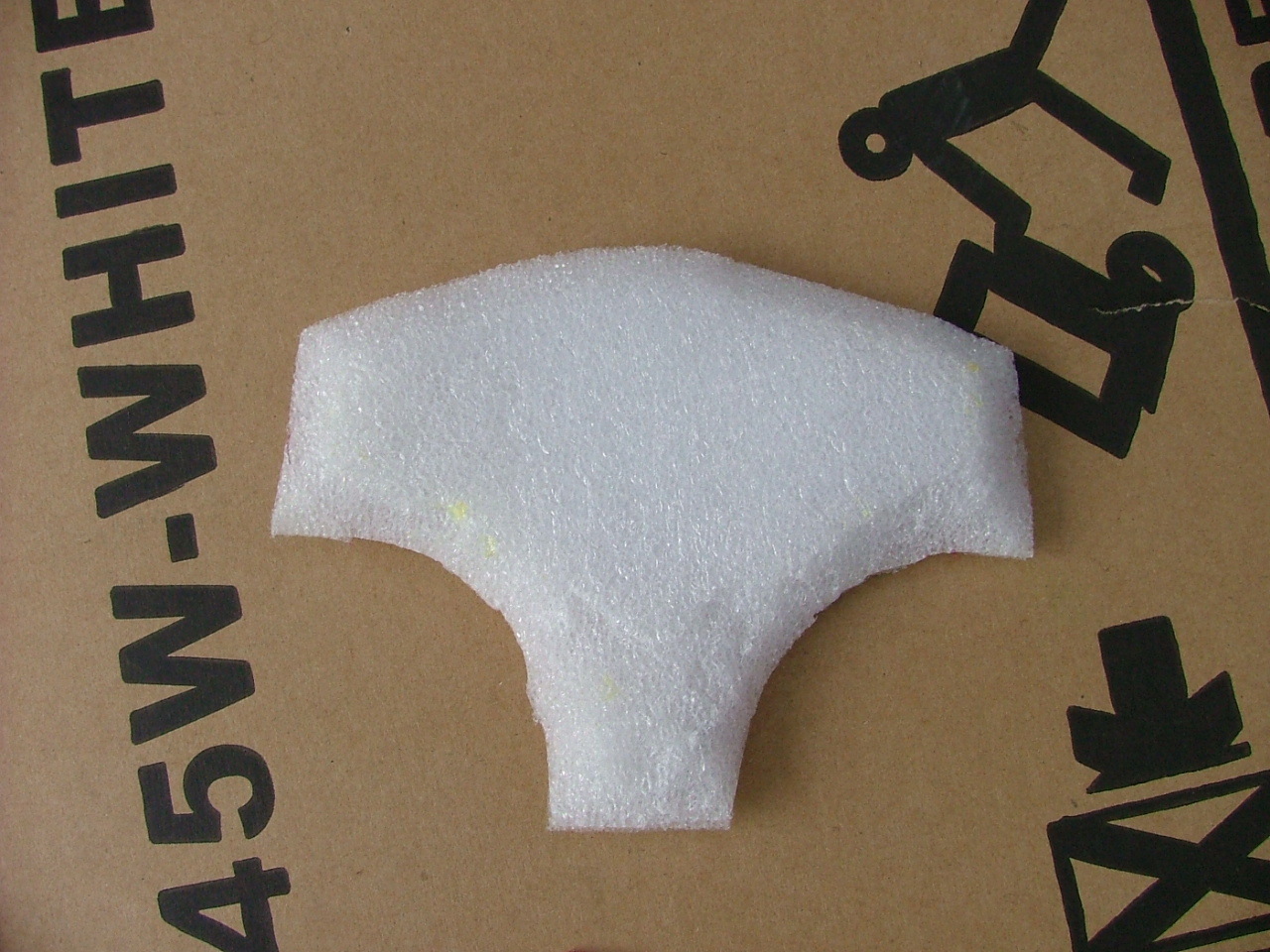

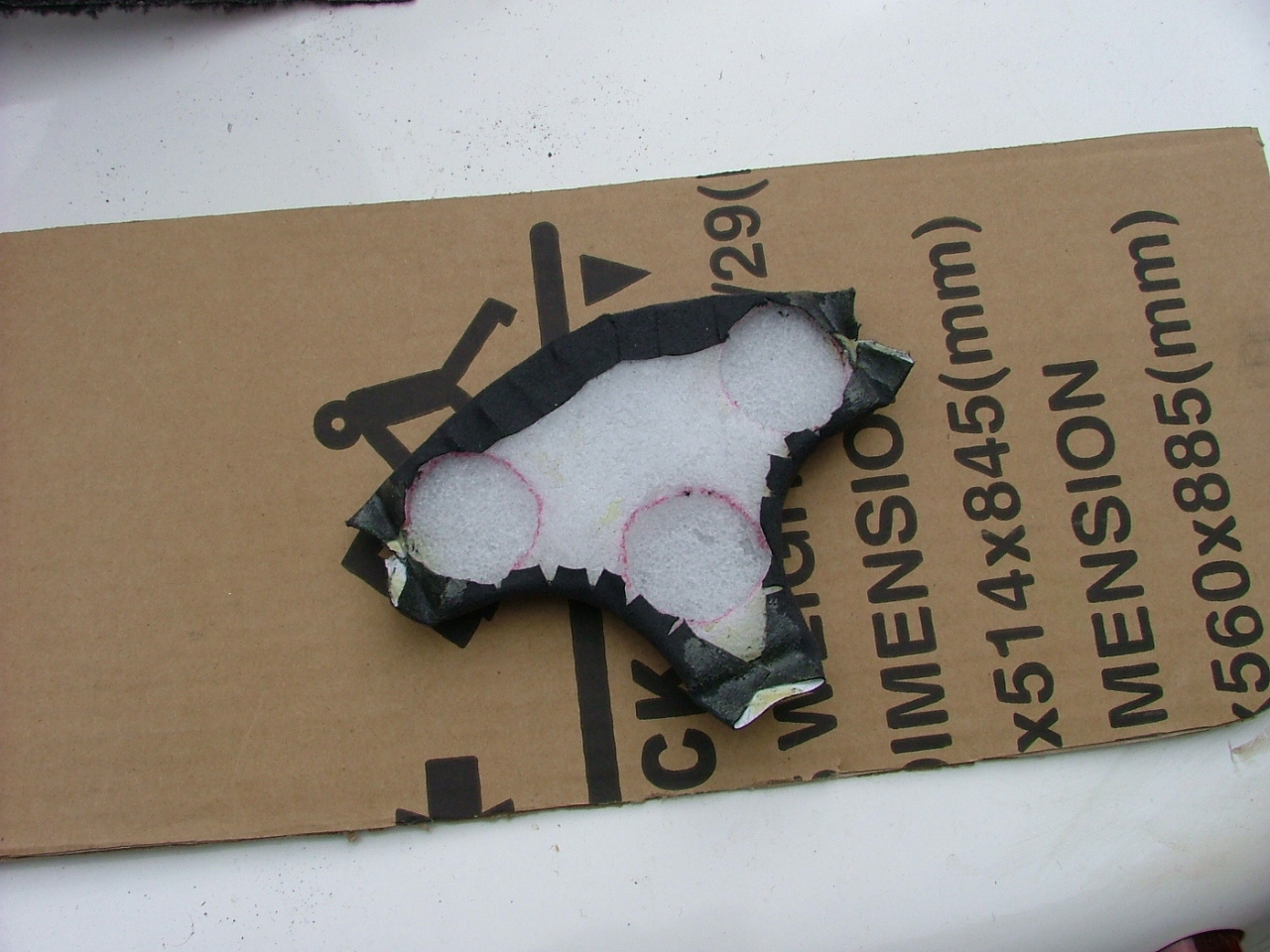

The earlier work on redoing the steering wheel pad didn't go very well, because I didn't have the right contact adhesive. I now had some, and proceeded to redo it, starting with stripping everything off, and removing 3mm from the outer edges.

Click to download

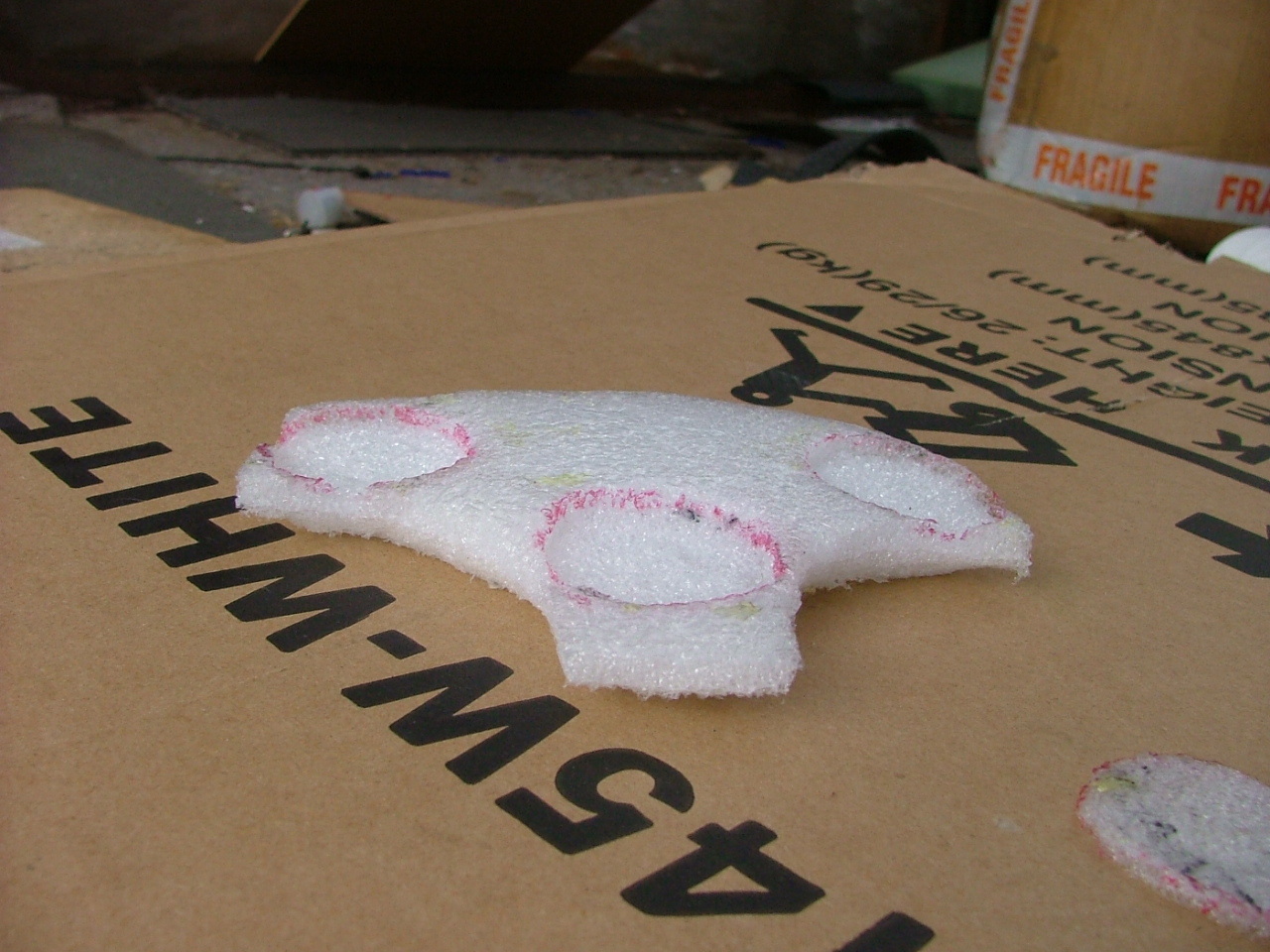

I also hollowed out the foam where the velcro pads are - allowing it to sit closer to the wheel itself.

Click to download

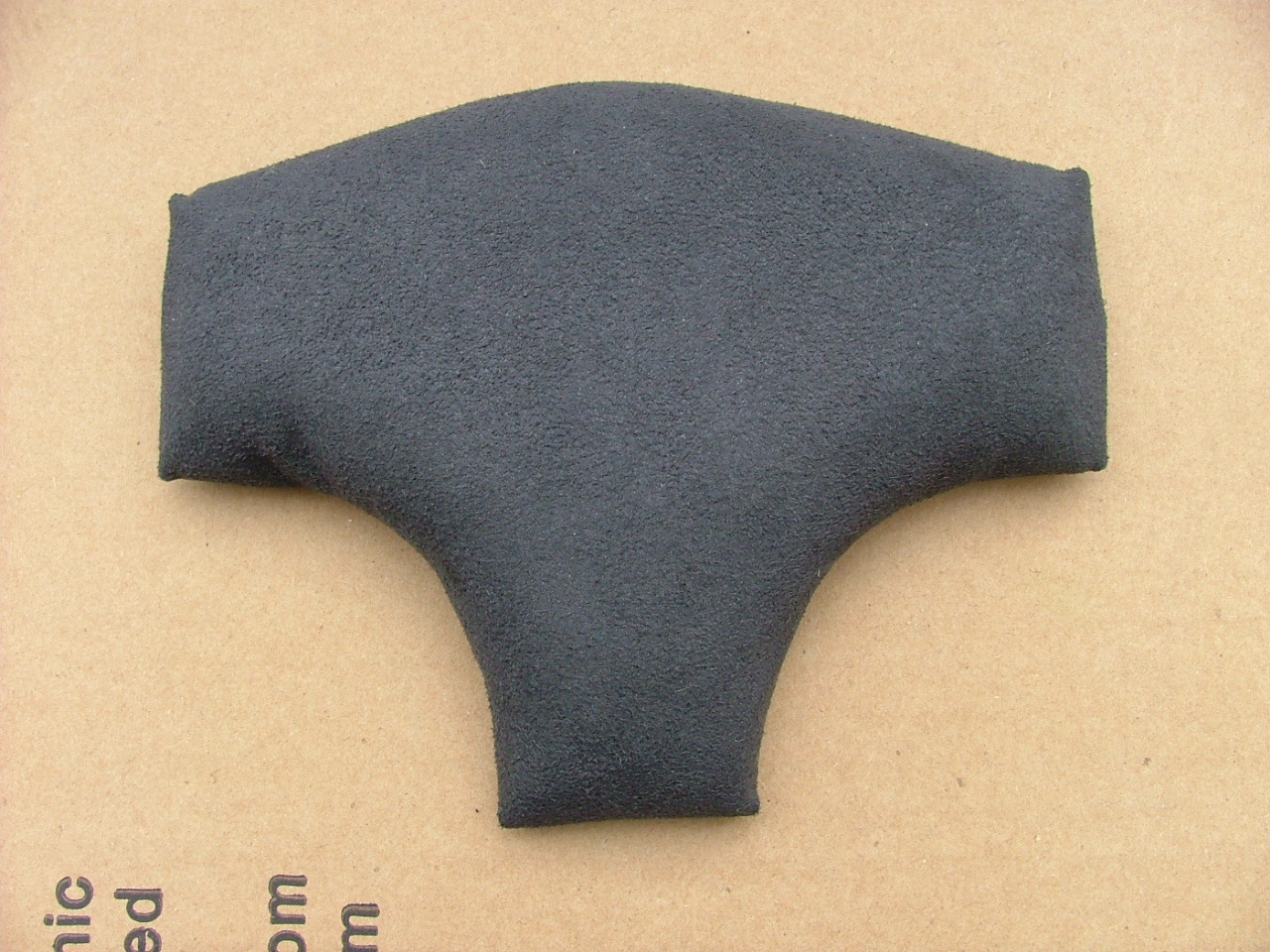

I covered it with foam (as before), and then with the alicante.

Click to download

And from the front.

Click to download

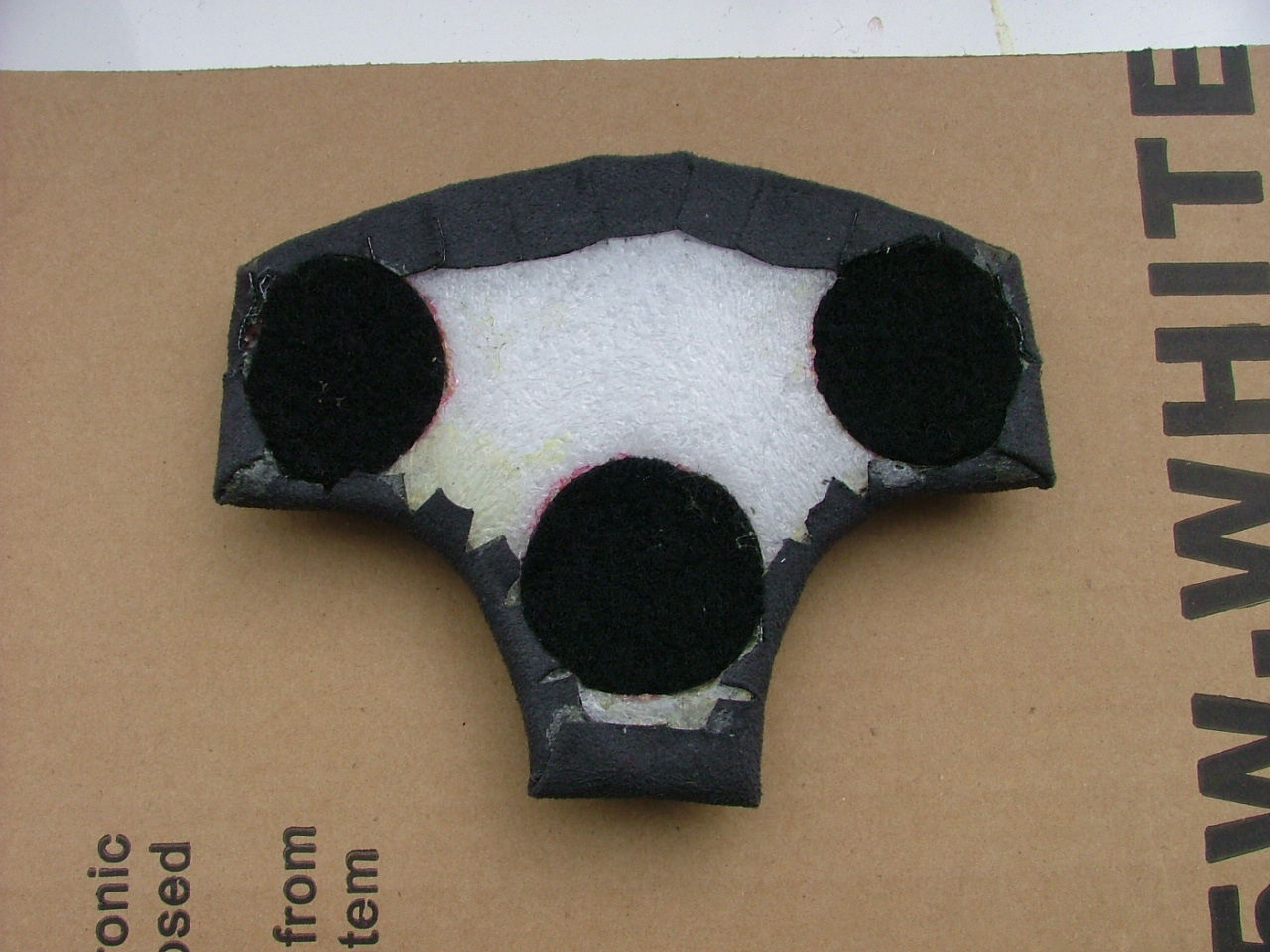

I then trimmed and used contact adhesive on the velcro pads.

Click to download

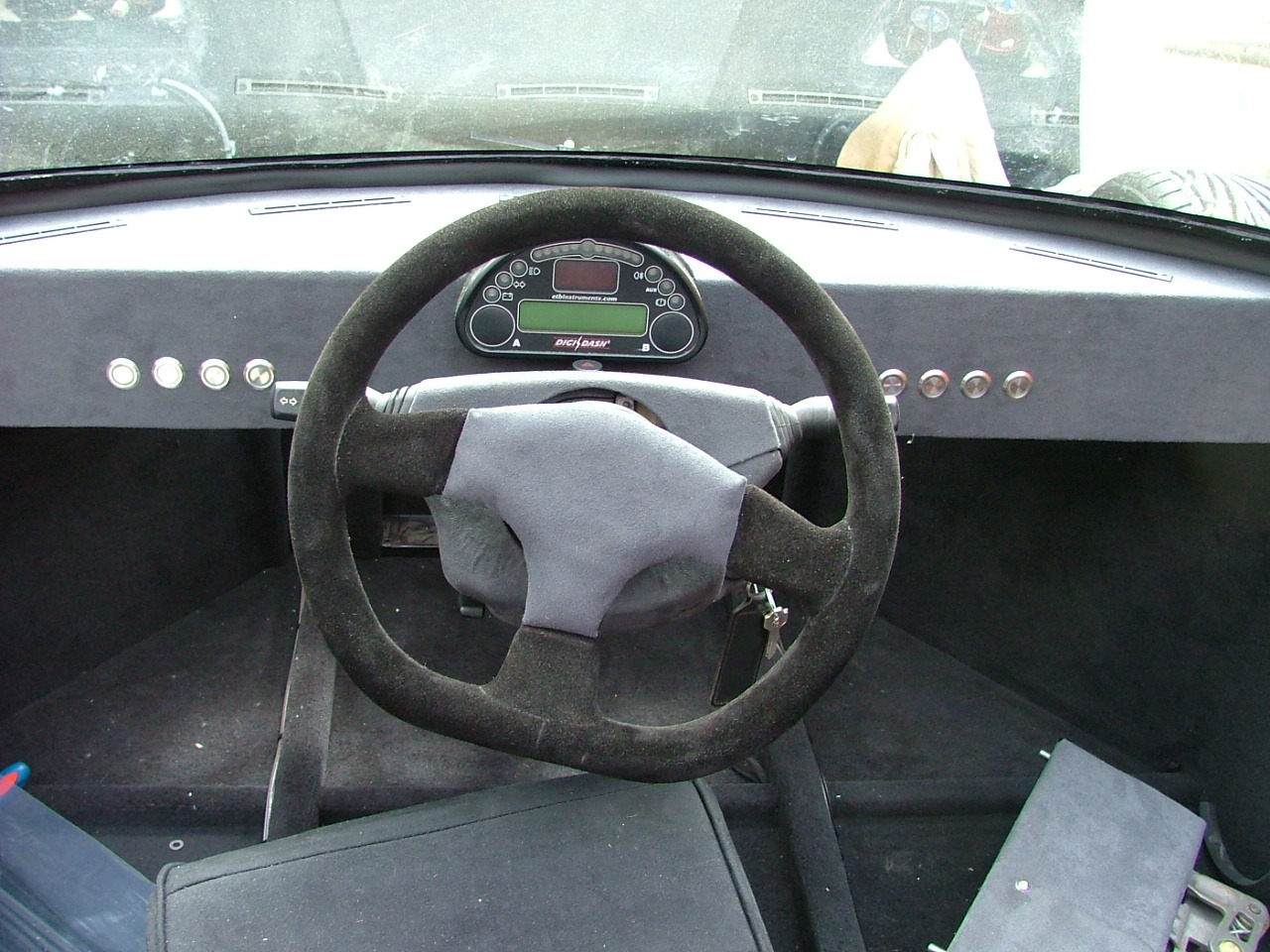

And then on the wheel.

Click to download

I carpetted the inside of the doors, using a template I'd made a while ago, and also put some alicante on the top of the door.

Click to download

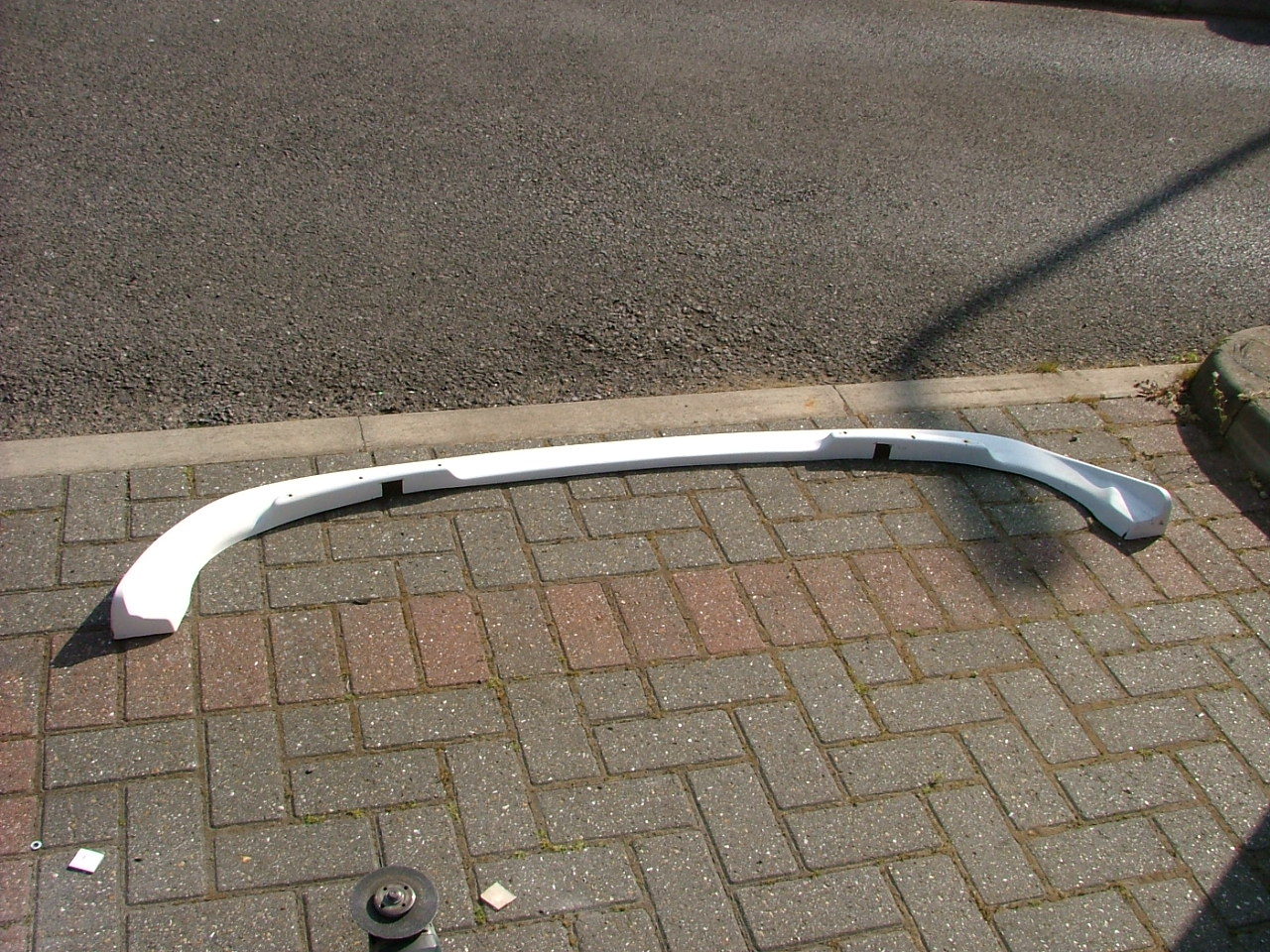

The front splitter was getting in the way of it opening, so I took it off, and cut some bits out.

Click to download

Unfortunately, it still didn't help it opening that much, because the metal bracket now prevents it opening more.

Click to download

I'll look at using some gas springs...
