Day 160 - Rollup (bodywork)

Last weekend was a complete washout - I was able to spend about 2 hours on the car (while it was spitting with rain) before it came down for the entire weekend. This was quite anoying because I was hoping to finish it off (still some missing bits though).

Because of this, I've bundled the short amount of work I did into today's work (I had to go and see John in Kent in the morning - so the two even themselves out!)

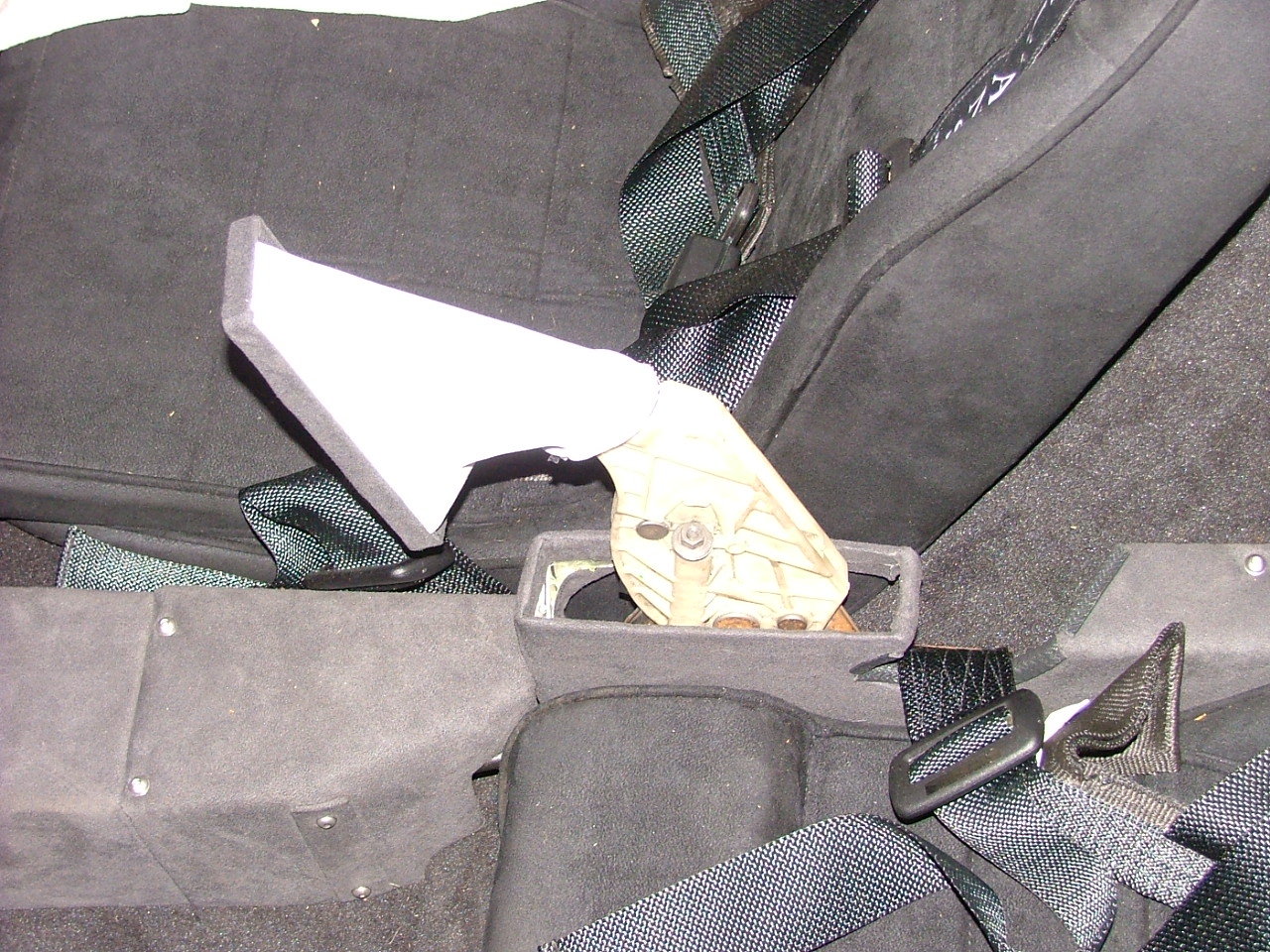

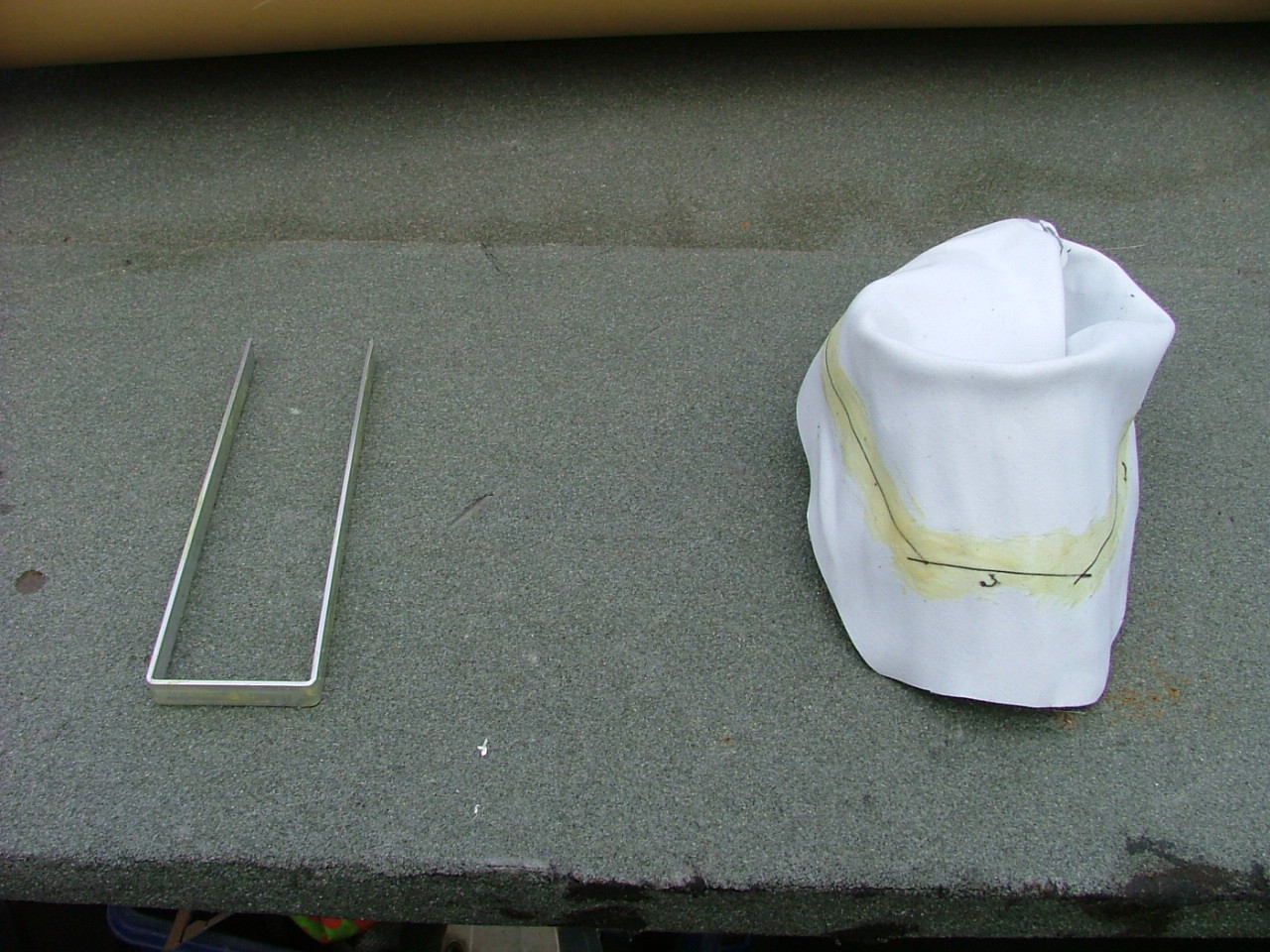

The handbrake gaiter I'm really having problems with - this is the first attempt, starting with the frame and the gaiter (insideout):

Click to download

Fitting it with a cable-tie required it to be fitted insideout.

Click to download

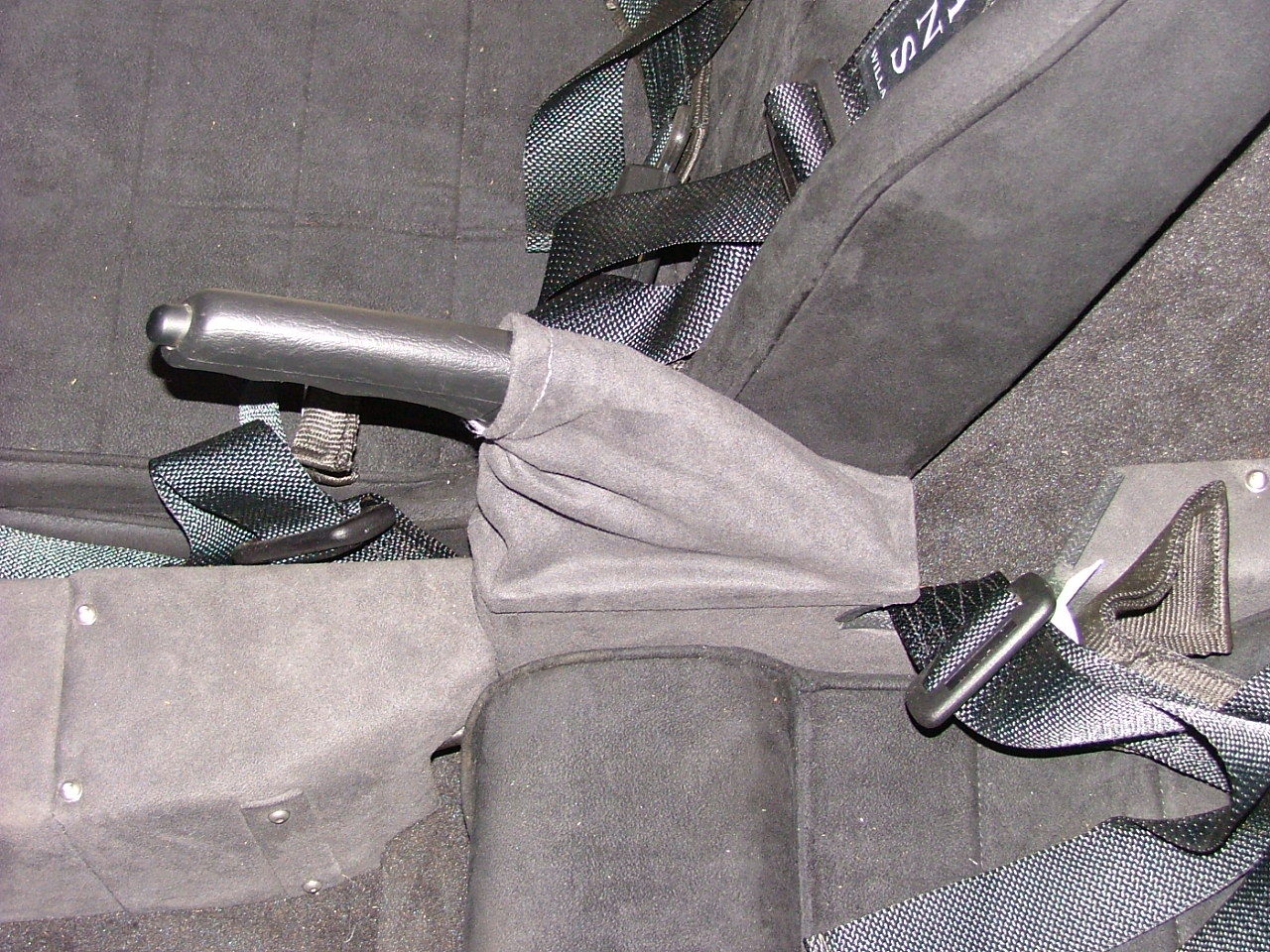

And with the frame in place.

Click to download

Unfortunately, at the lowest position, it's too stretched at the back - so I made another one (using elastic instead of a cable tie, since the cable tie was too big, and could cause SVA failure). And that was stretched in te middle. Since I'm running out of Alicante, I'll use some other material to get this right. I think that I need to have the back of it kinked, rather than straight - which means sewing in four places (rather than just the one). I made the Karma's handbrake gaiter like that - but this needs a bit more preparation.

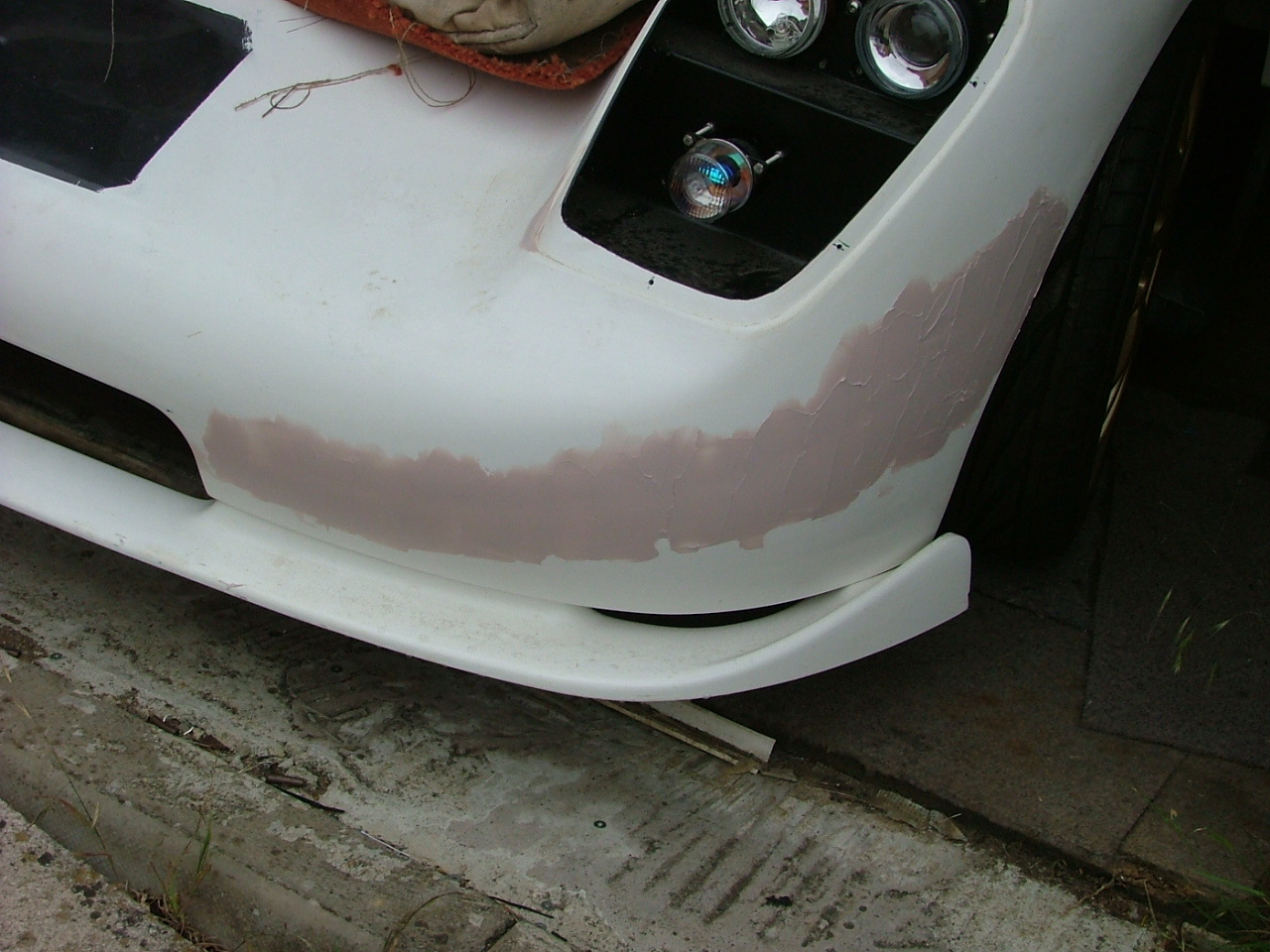

I wanted to prepare the bodywork for painting - I'd been told of a pin-hole in the front that the painter would like me to remove, but seeing as there's a bit of a mould join line, I decided the best course of action was to simply put a layer of body filler over the join, and see where it took me.

Click to download Click to download

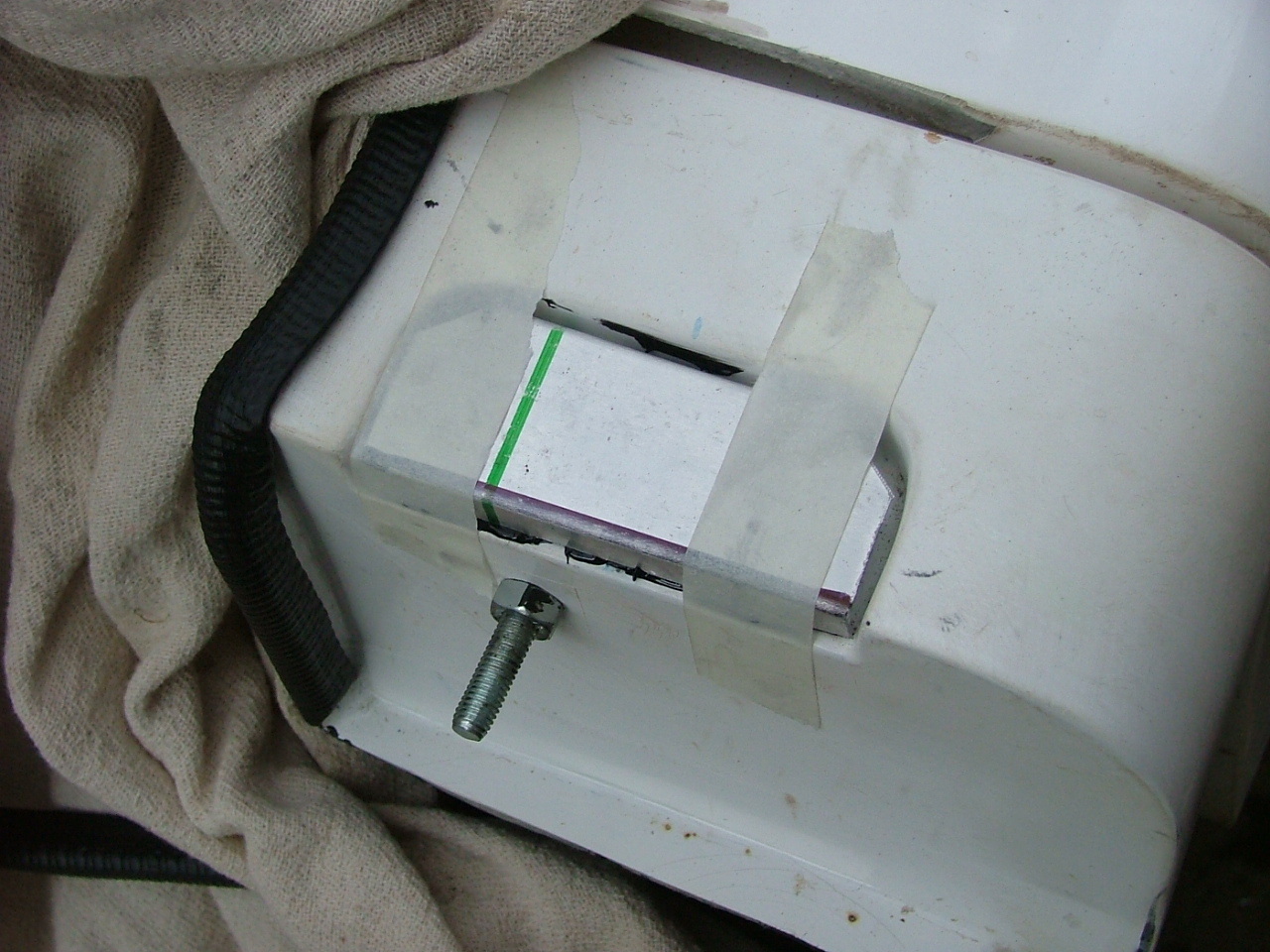

While the body filler was going off, I made some aluminium frames to go into the mid-section, where there is a cut-out (probably for a door opening mechanism)..

Click to download

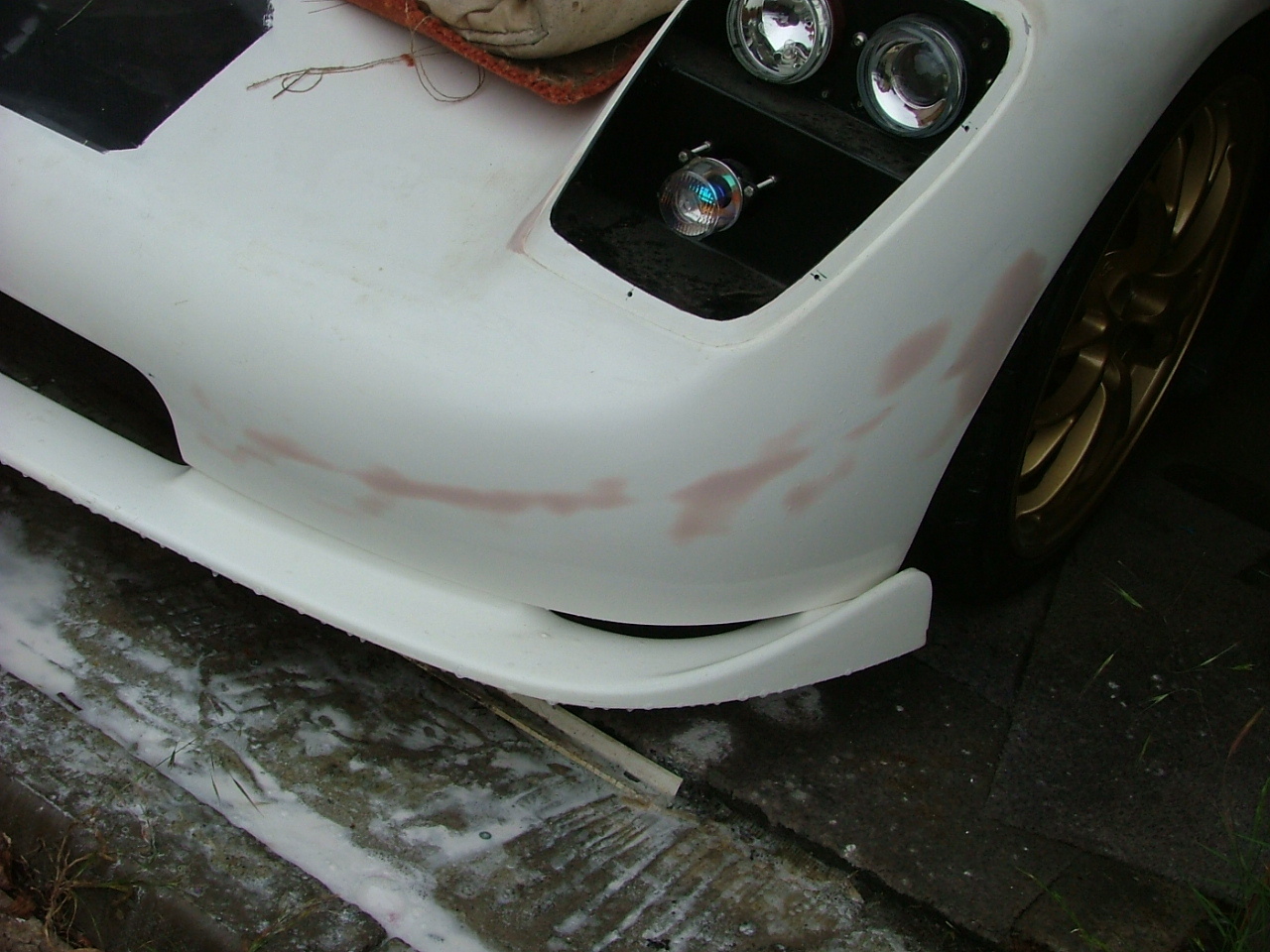

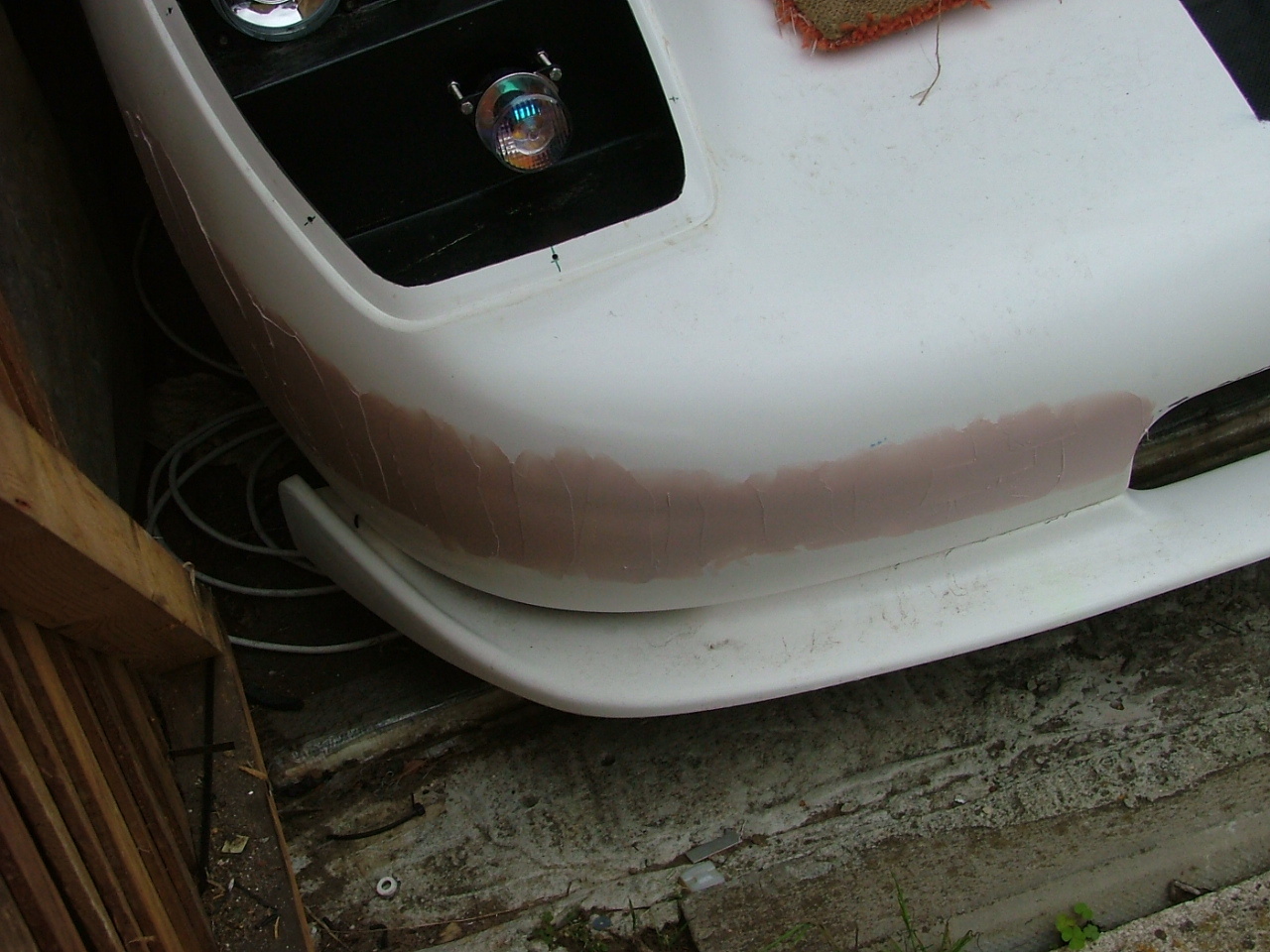

While the sikaflex was setting for those, I sanded down the nearside filler.

Click to download

It was after this that the rain came down, so work had to stop for the weekend.

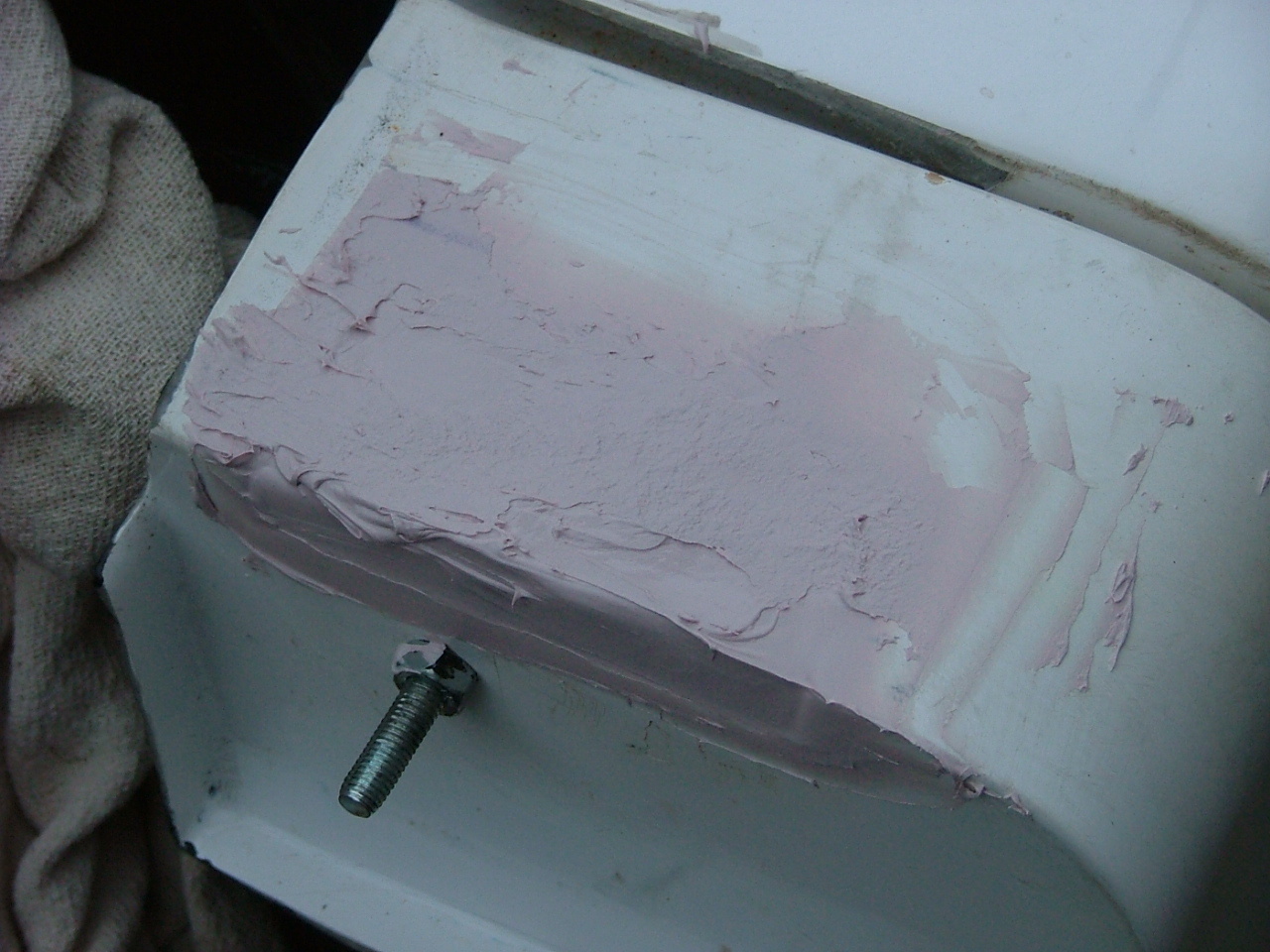

During the week, I put some body filler over the aluminium frames.

Click to download

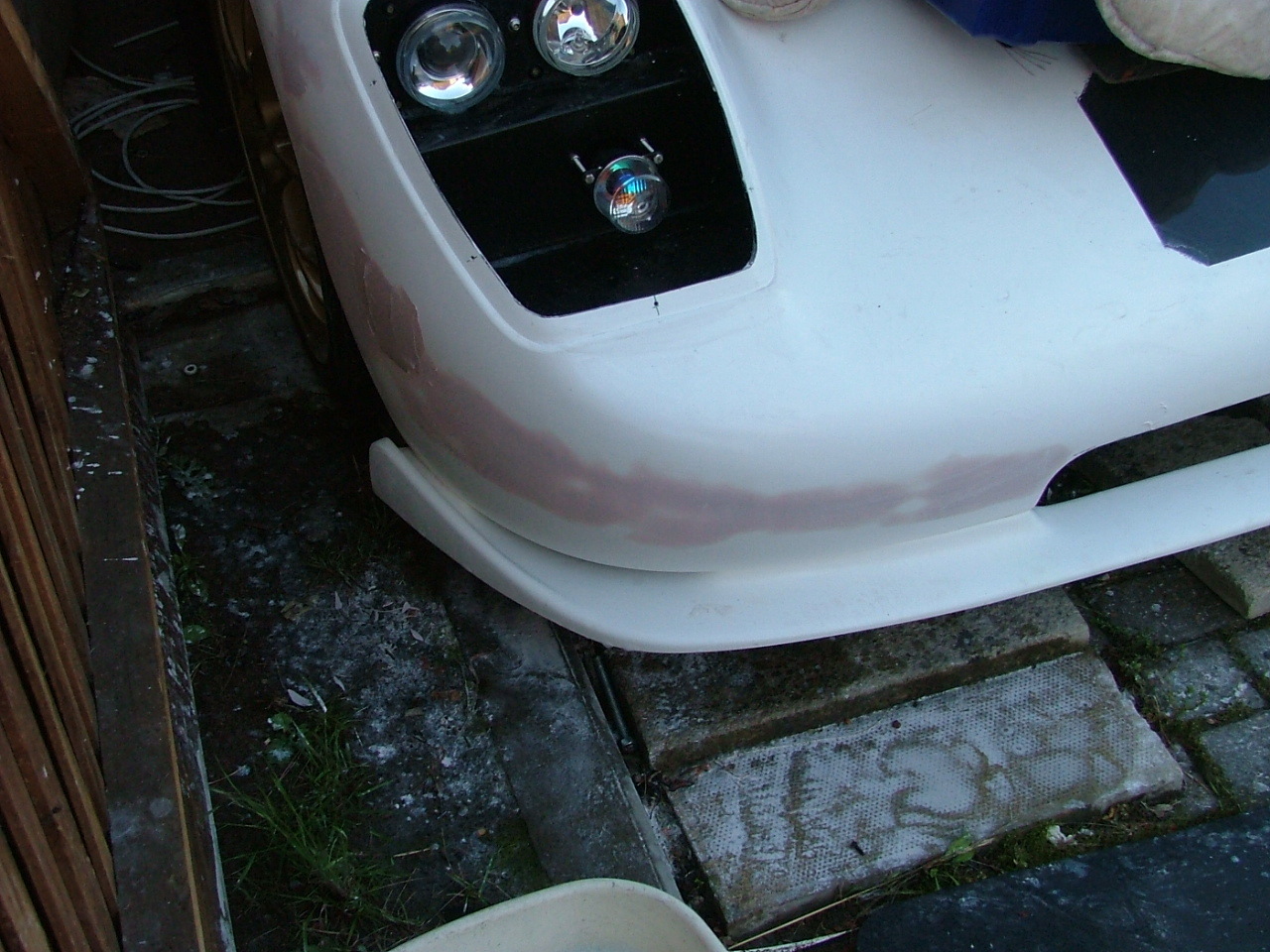

Today, I sanded down the offside - this was the first stage, after I'd found the pin-hole and put some more body filler on it.

Click to download

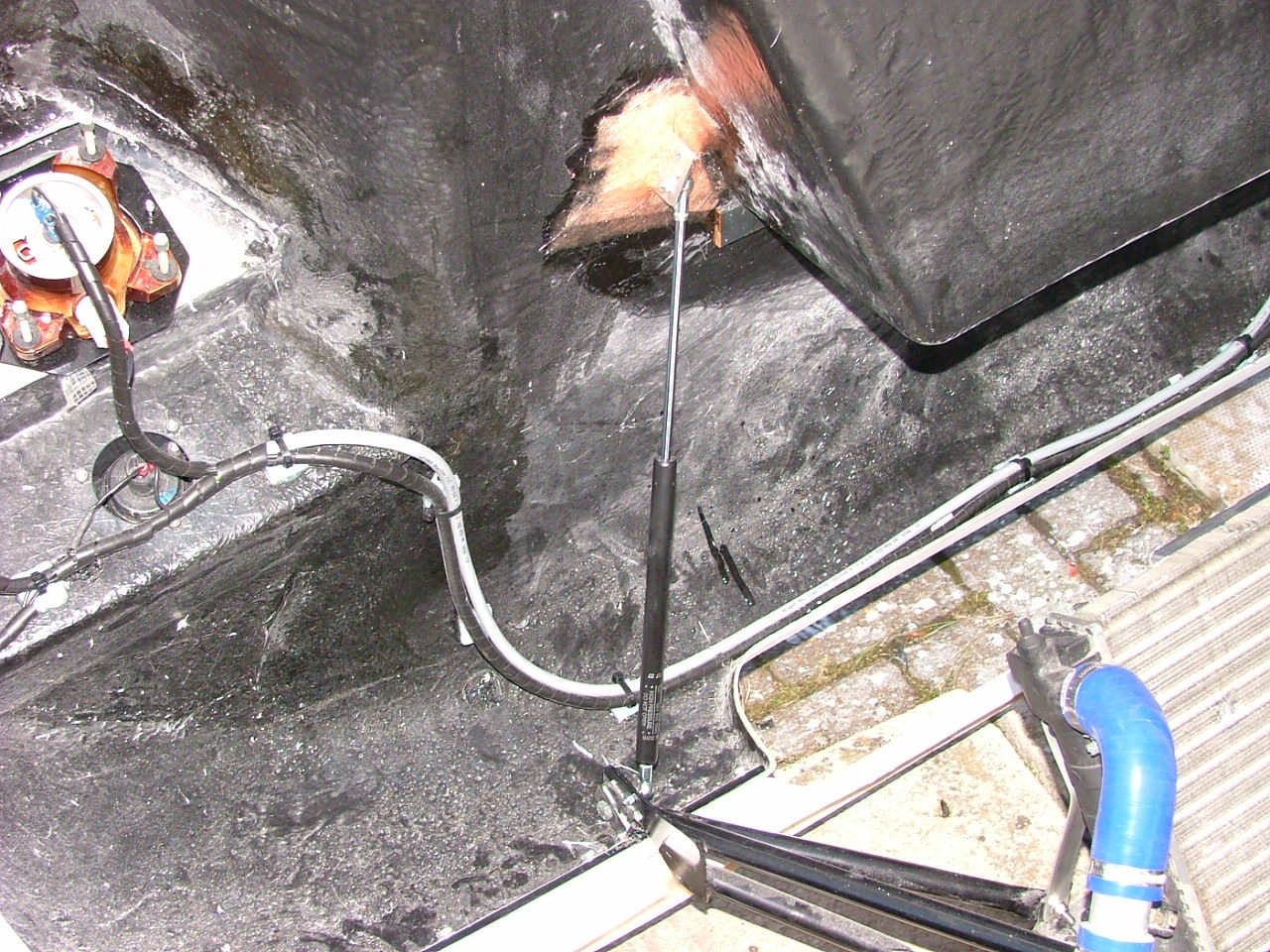

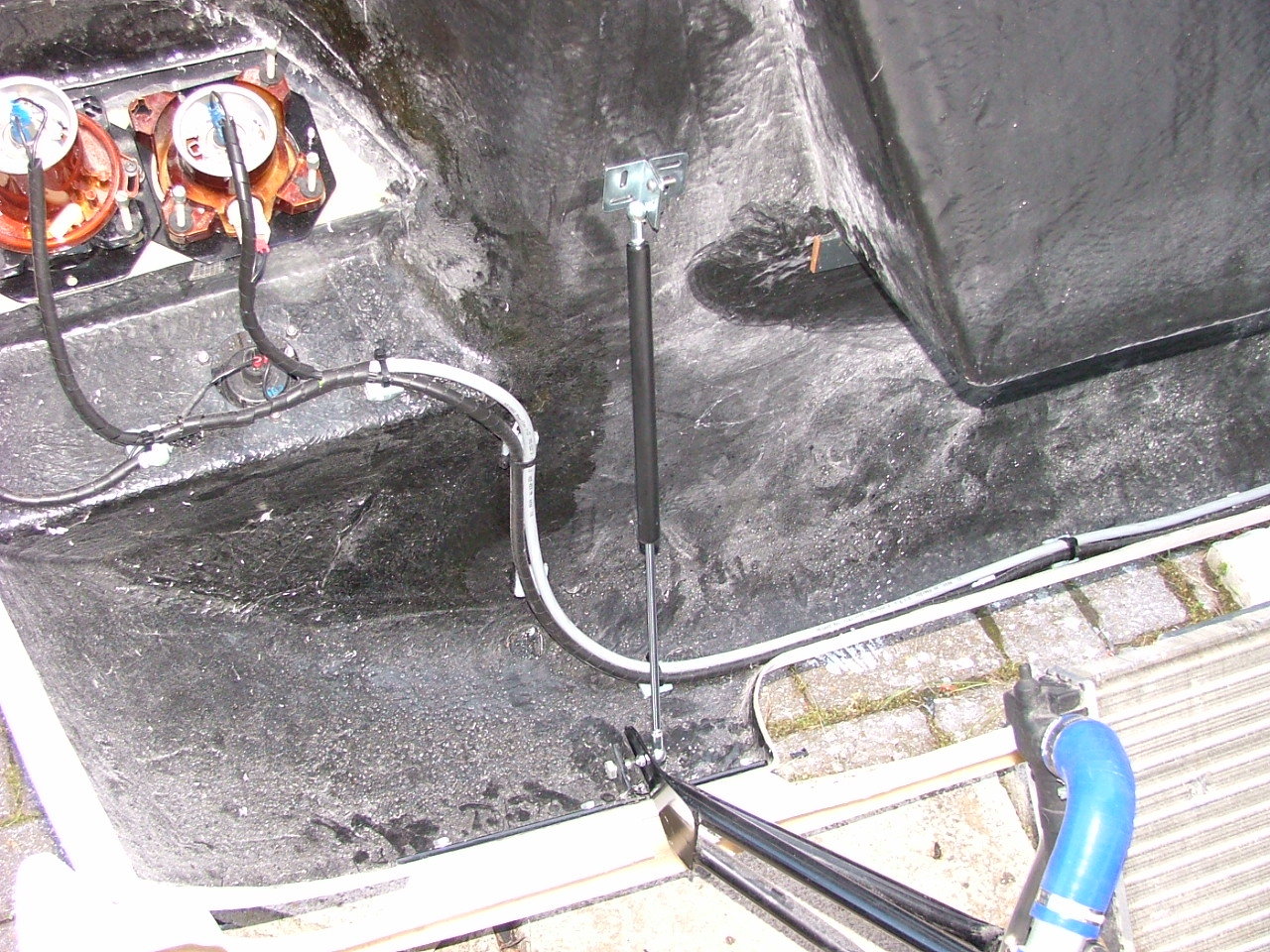

At least, I hope I found it!. While that was setting, I started work on putting a gas spring in the front to hold it open.

Click to download

And after I'd put GRP on the bracket (I moved it over, so the wheel shouldn't touch it).

Click to download

Kif has decided that the Aeon is a great place to sleep (the first time I realised it, he was sleeping on the seats, after sneaking in under the cover - so the cover is now only over the seats).

Click to download

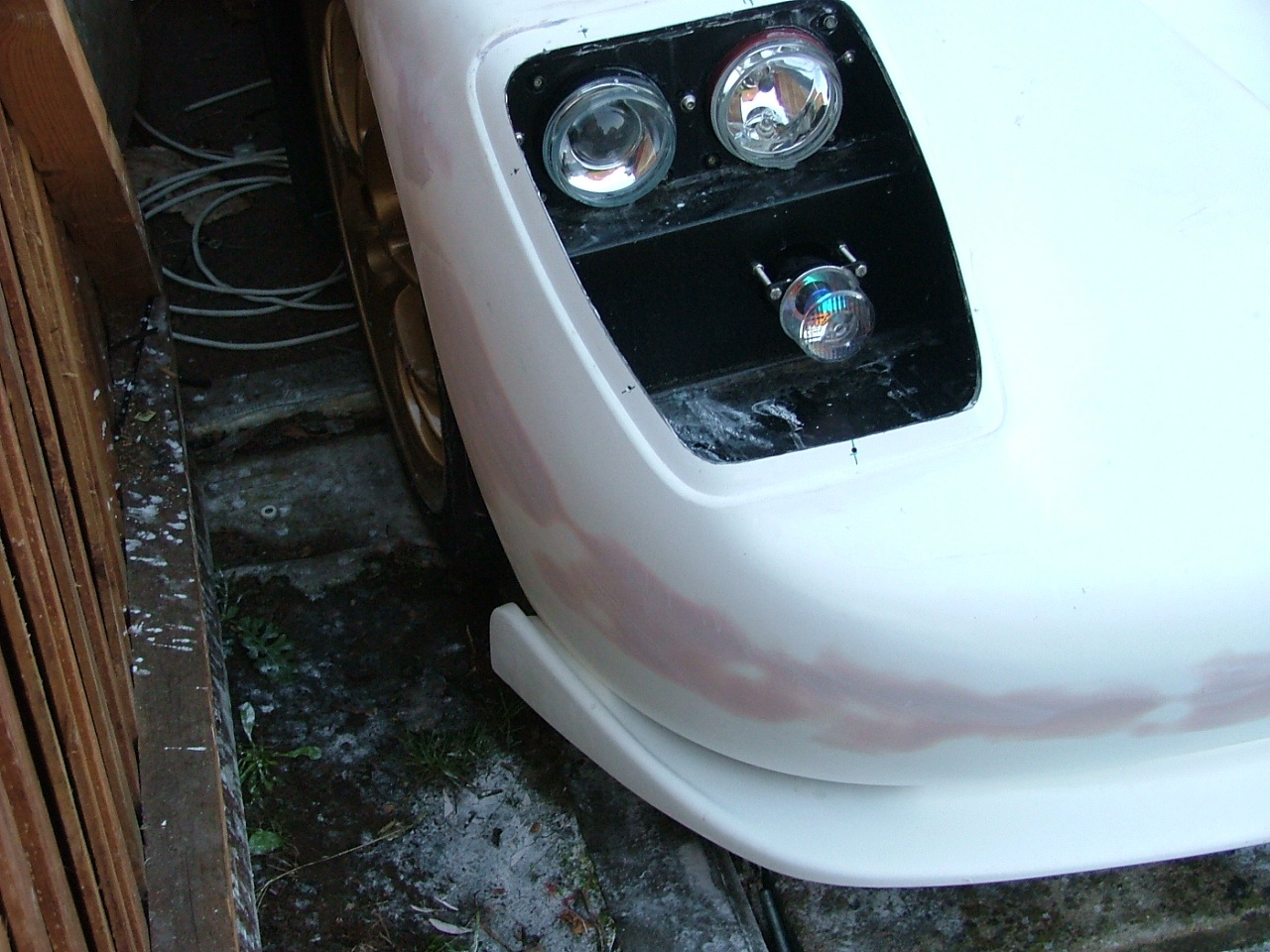

I then sanded down the extra body filler over the pinhole. If it isn't perfect, it'll still save the painter some work.

Click to download

Tomorrow, I'll sand down some of the rear bits which I've put some more body filler on, and also have a go at the filler over the aluminium frames. I also need to add a second gas spring, because it's pushing the front over slightly. They may also need to be moved a bit as well.
