Day 19 - Wiring (part 3)

Bits turn up

I've ordered some bits to allow me to do more of the wiring - it's very cold in the evenings now.

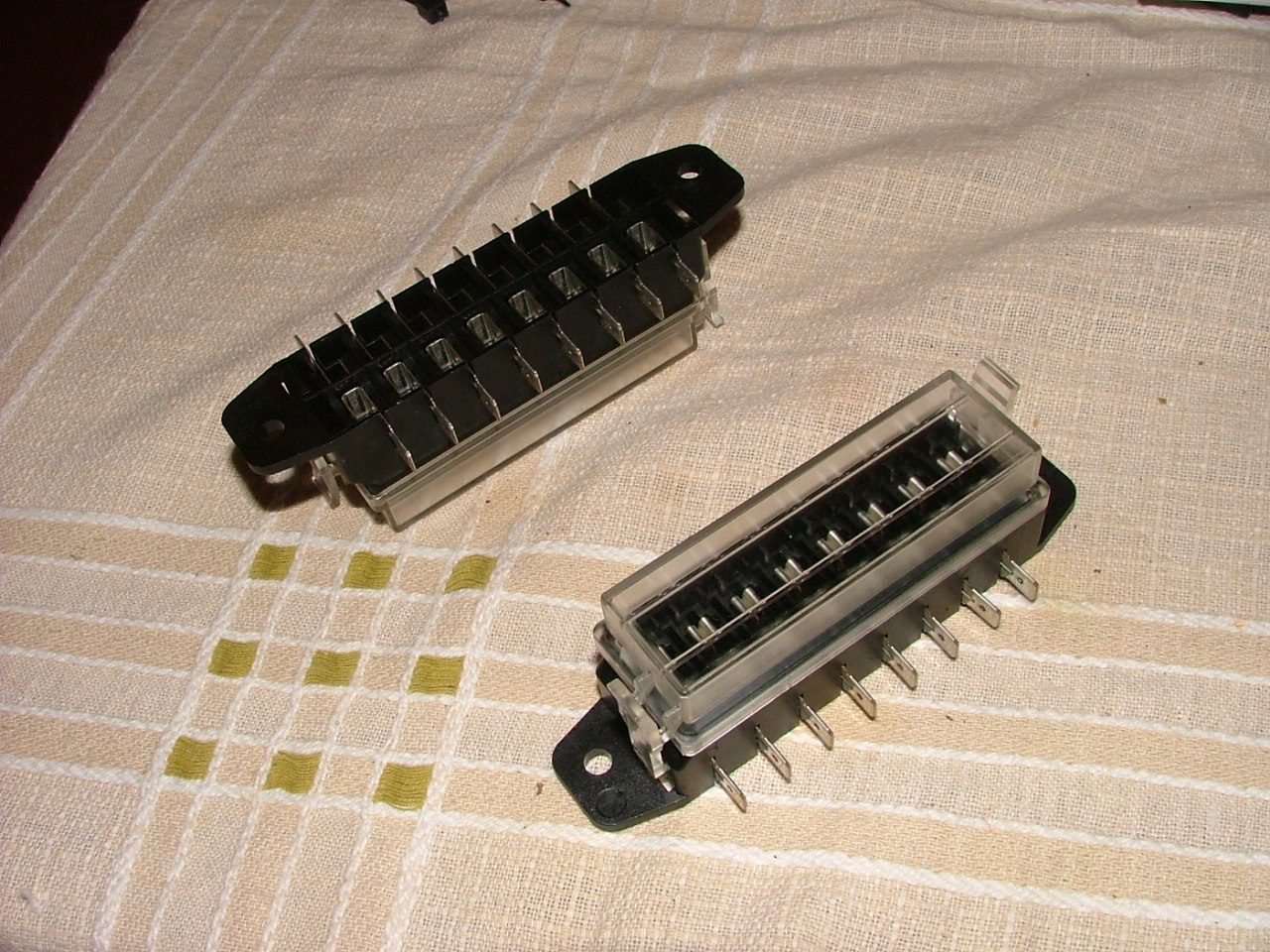

Fuse boxes

These are two 8-way fuse boxes, which are about a quarter of the price of a 16-way fuse box!

Click to download

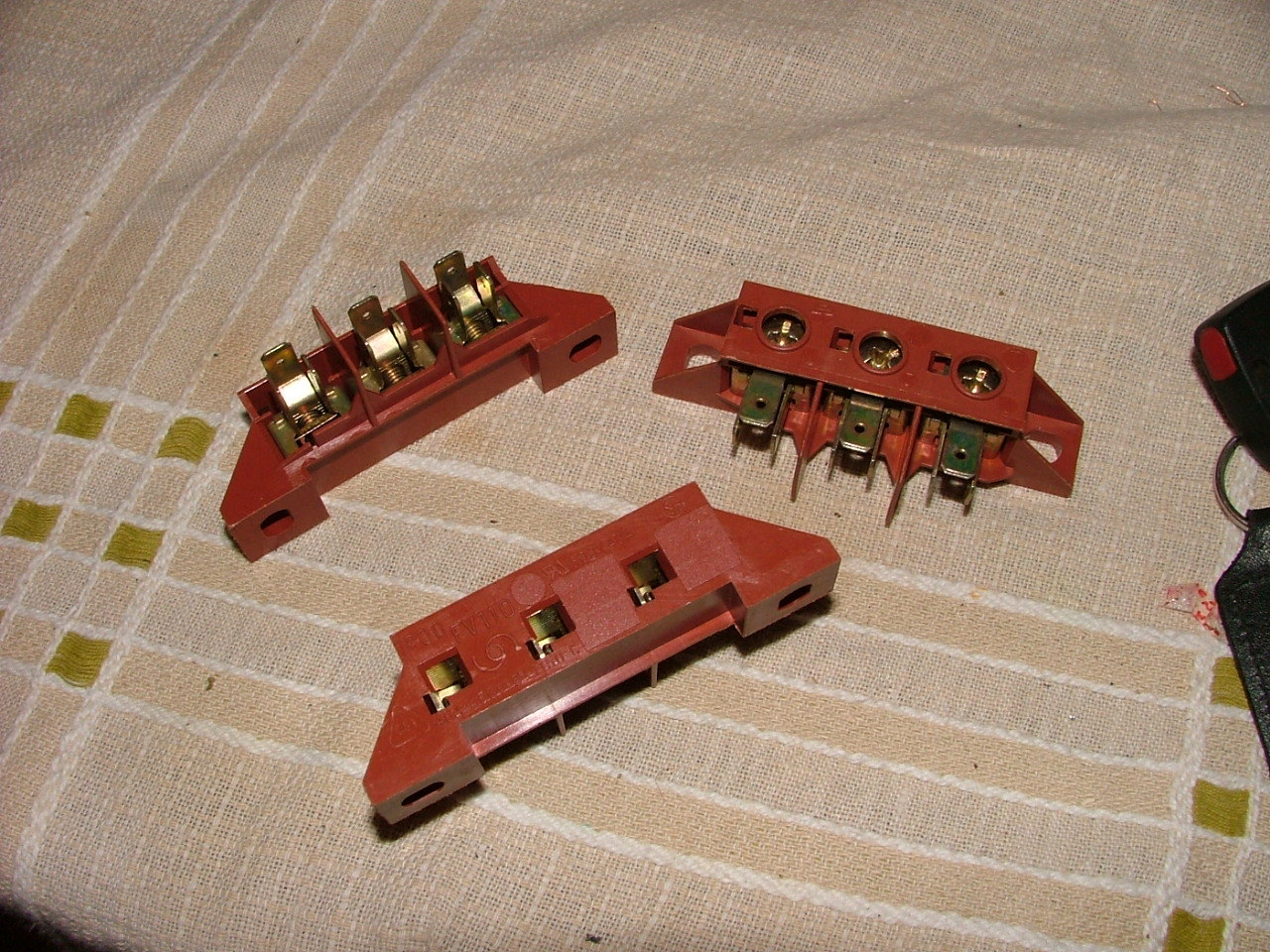

Distribution units

These are actually used for mains electricity wiring, but can handle 40A. I'll be using them for distributing power.

Click to download

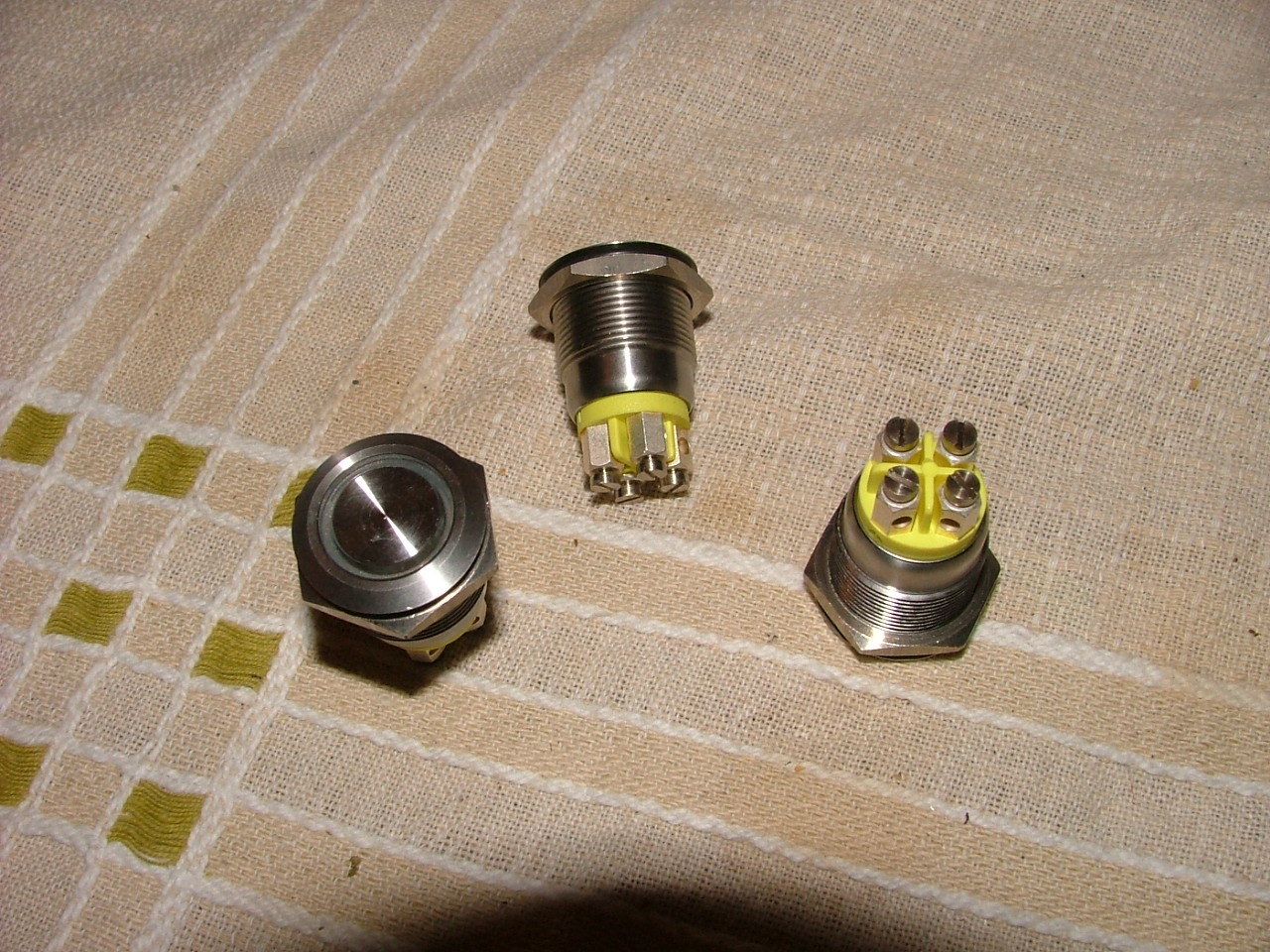

Switches

I like these. They're stainless steel switches with an embedded LED ring. They also have a very low profile, which makes them ideal for SVA.

One will be used for side lights, another for dip, and the last for fog light.

Click to download

I may get another for the heater - or I may use one of the unused functions on the wiper stalk (rear wiper/washer).

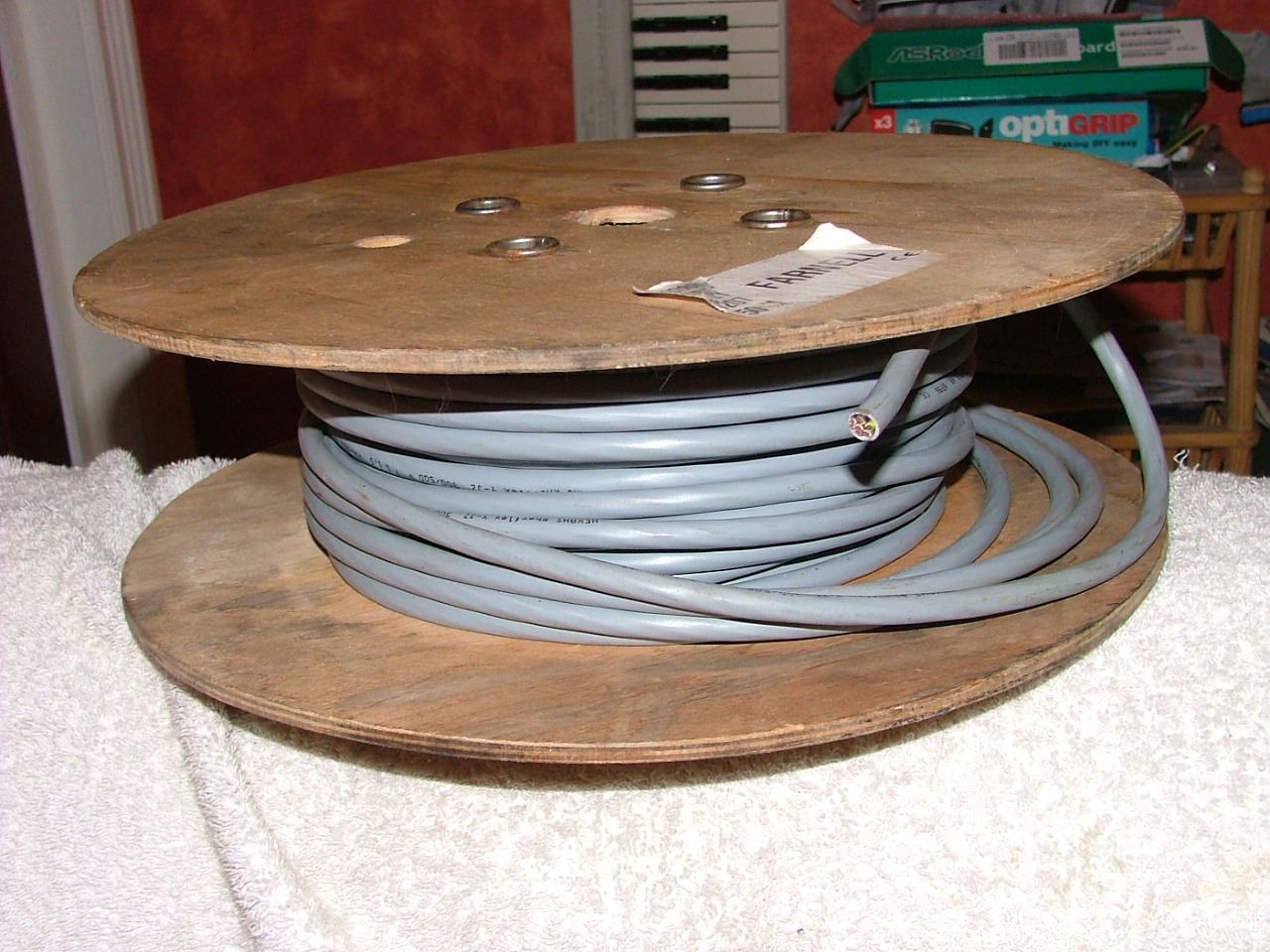

The cable

It may seem pretty boring - this is the cable that I'll be using. It's a 7-core cable, like a trailer wire, except it can supply 13A (the highest current supply except for engine related stuff is just over 9A).

Click to download

I like using this cable, because it provides a very convenient way to get 7 cables up or down the car in one bunch, without having to resort to loom tape, or spiral-wrap. You also don't need to have a plethora of different colour cables!
