Day 3 - panelling

Panelling

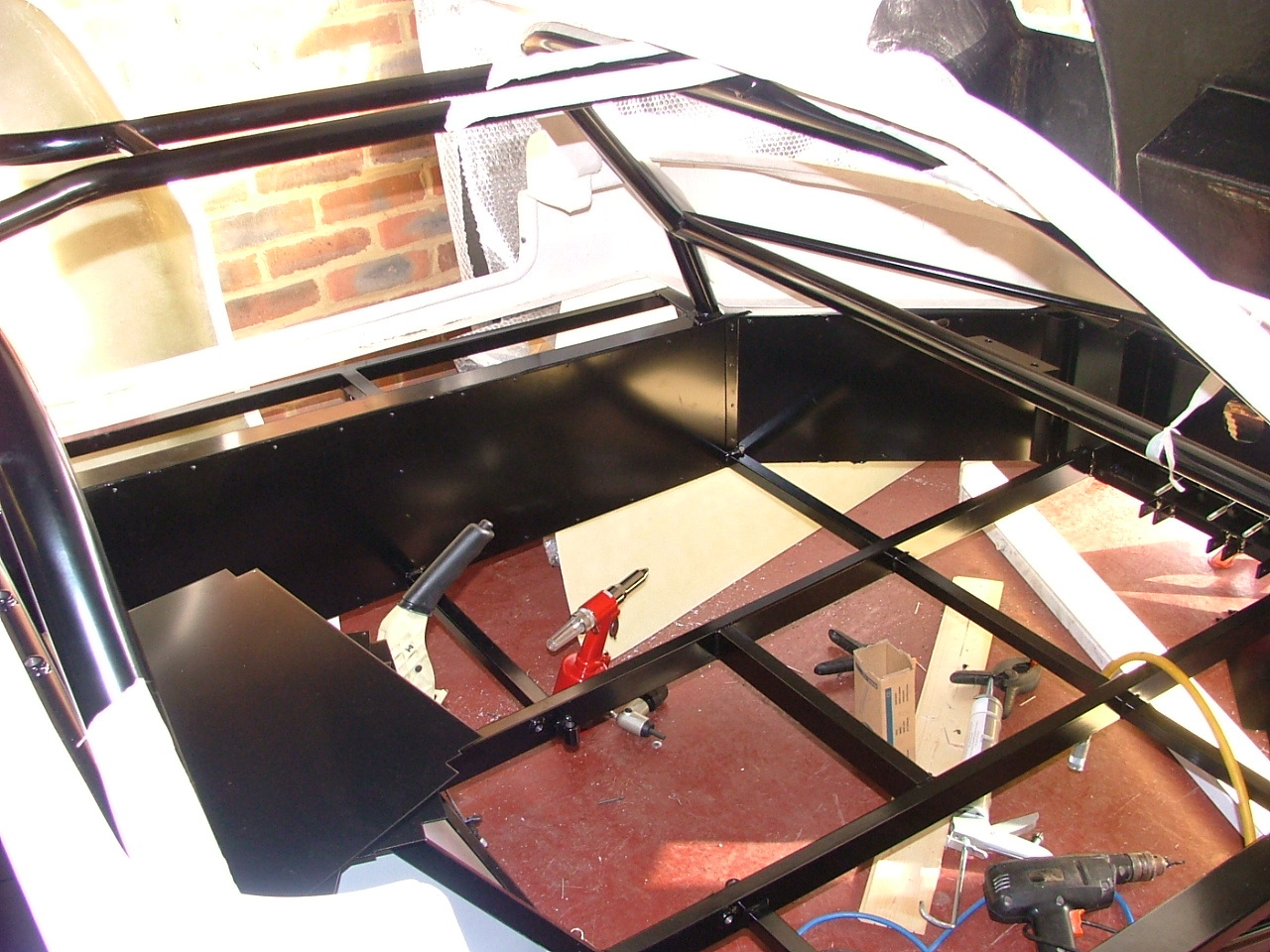

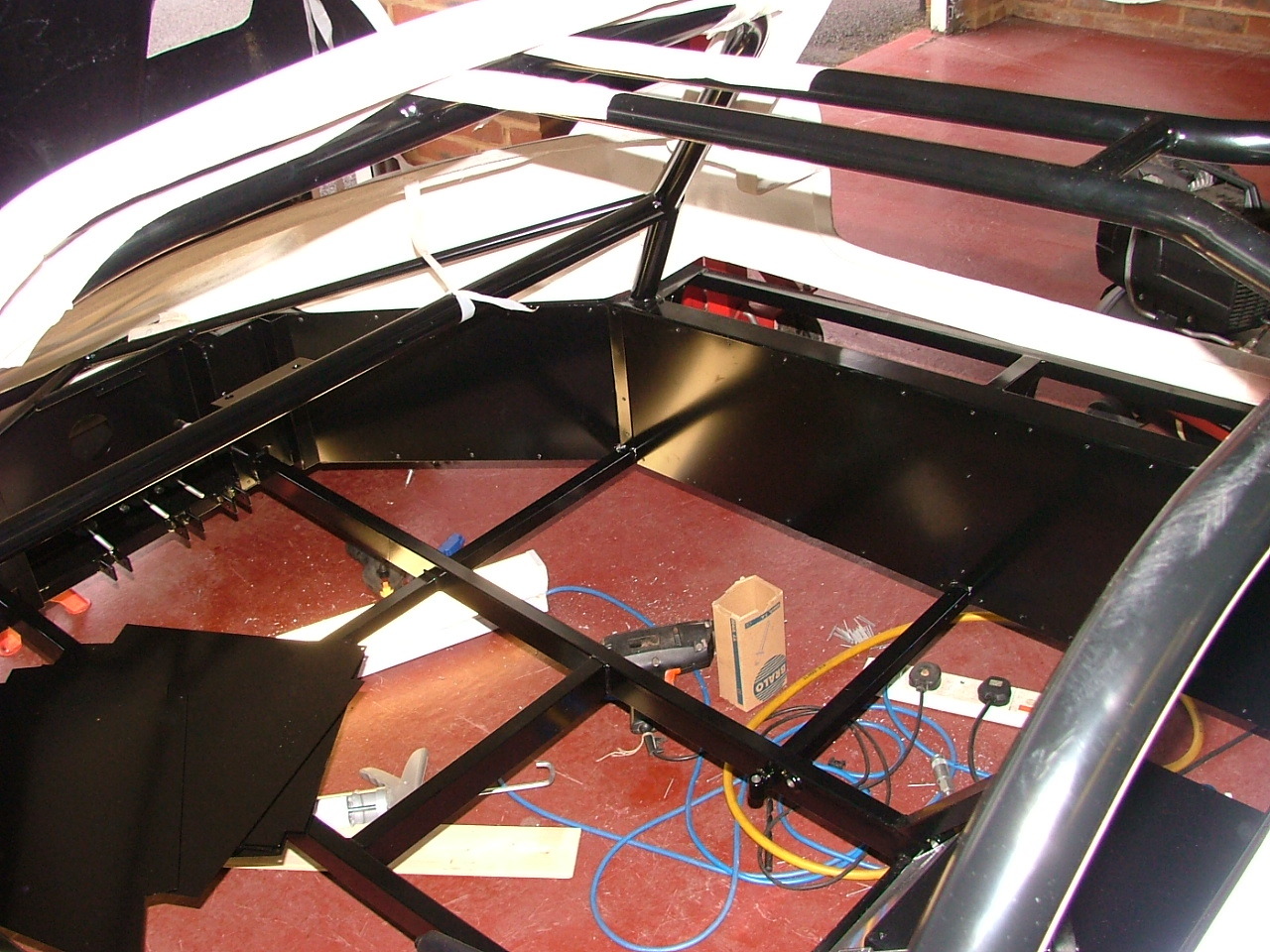

Today was spent panelling the car - there's a lot of rivets to do, so I bought an air rivetter (as well as the drill bits I needed yesterday, and a replacement for the rivnut gun I broke).

Click to download Click to download

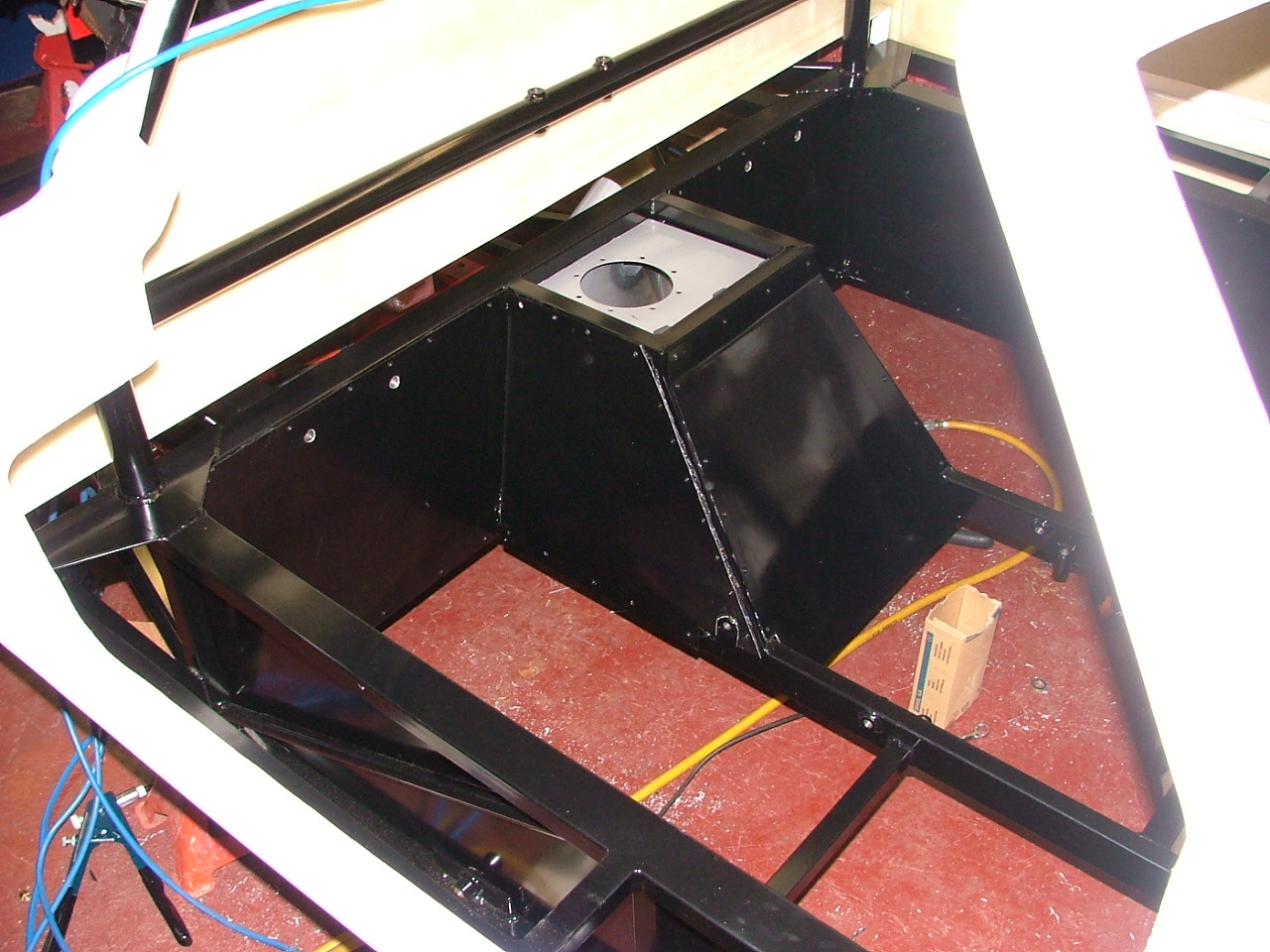

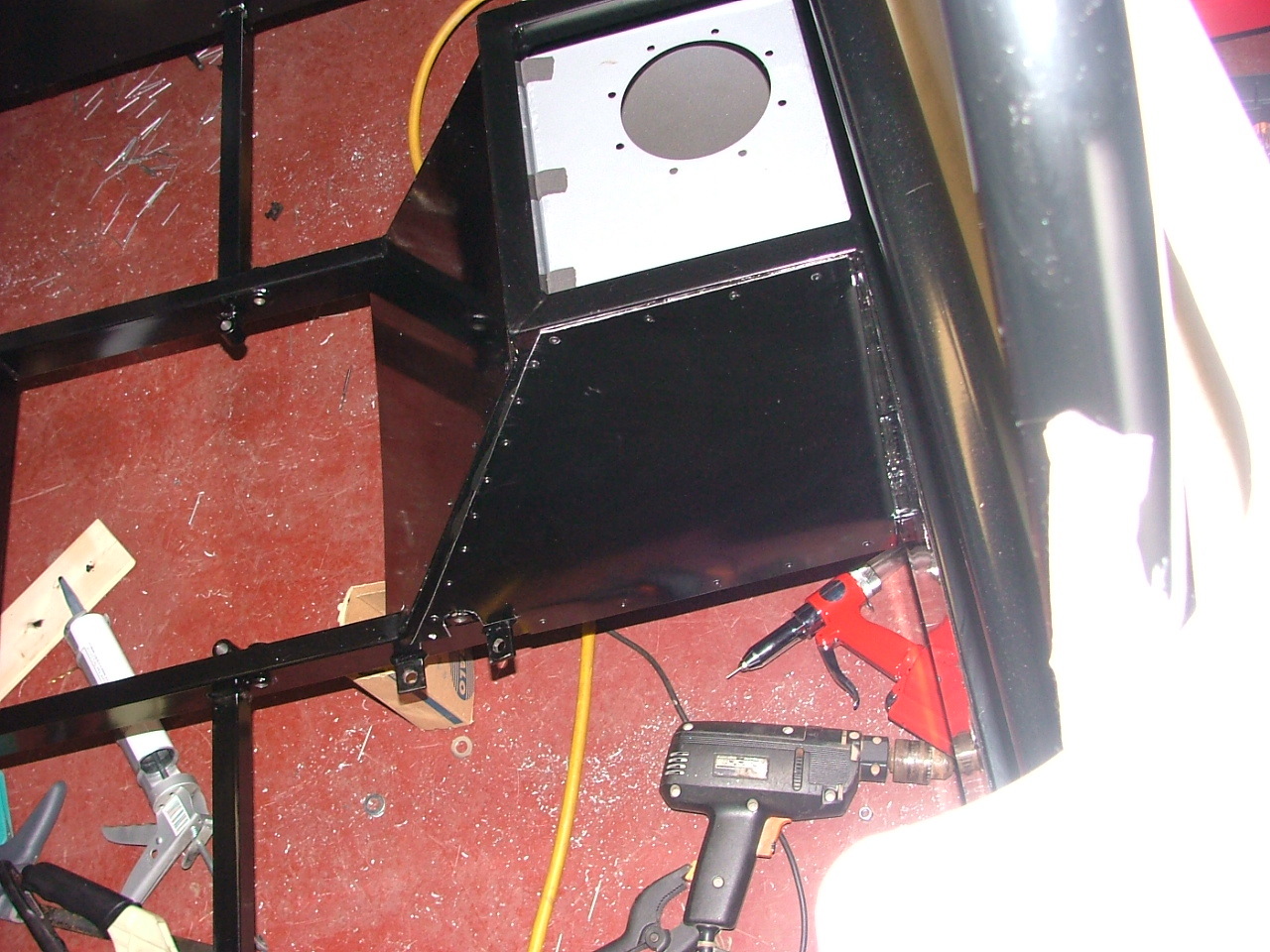

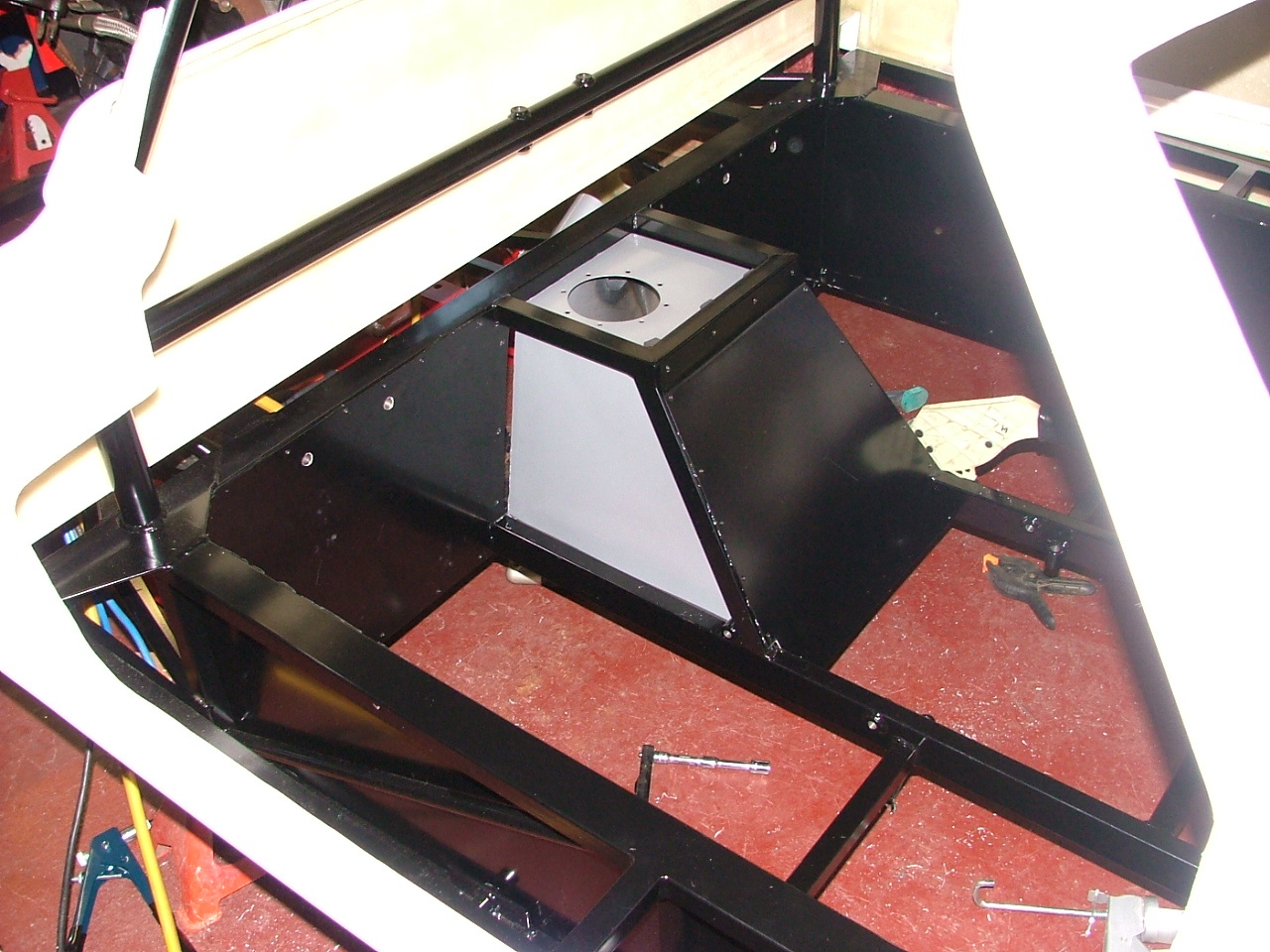

The rear panels needed folding - and having a right-angled drill convertor helped to get in the really tight spaces.

Click to download Click to download Click to download

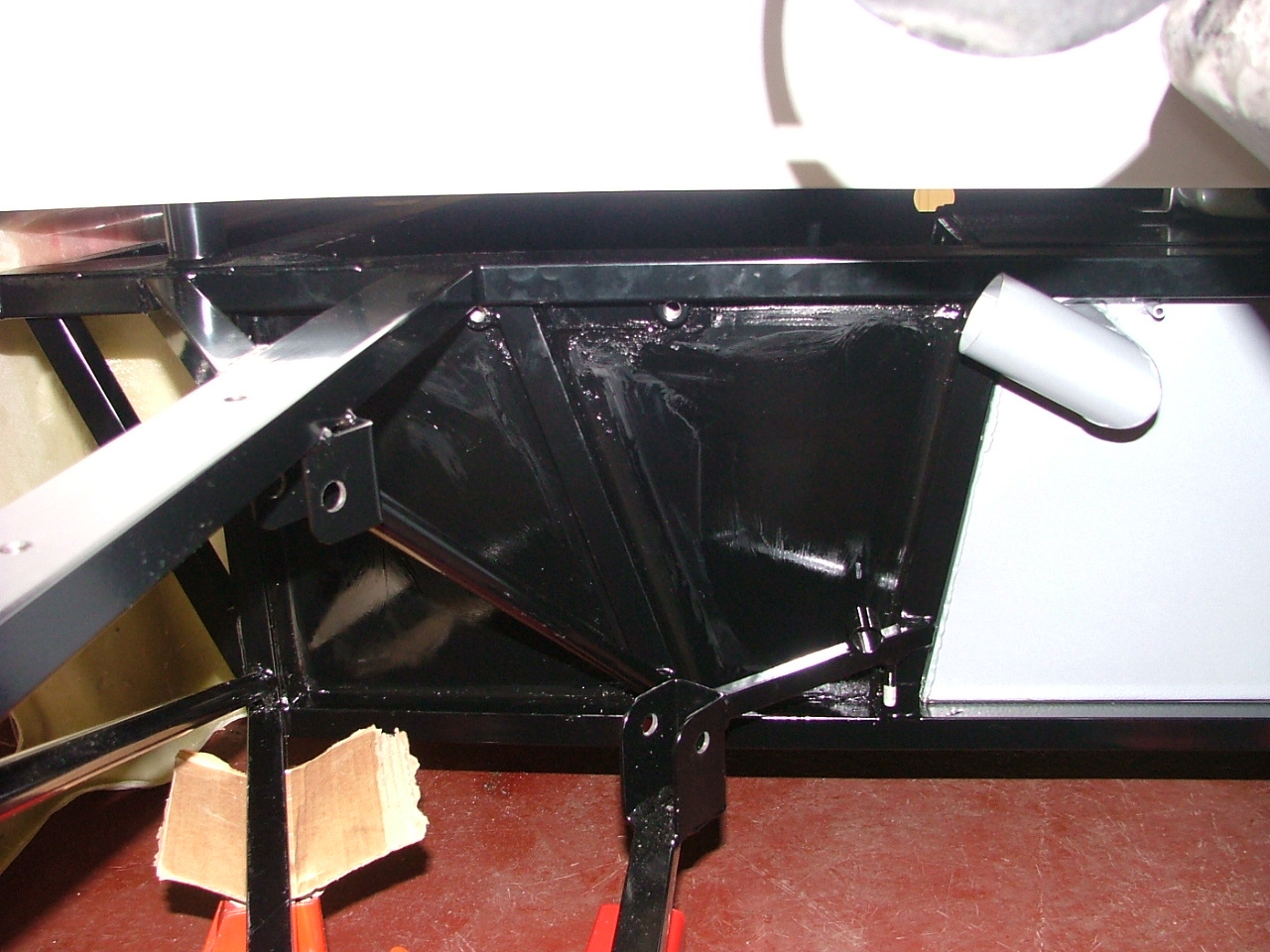

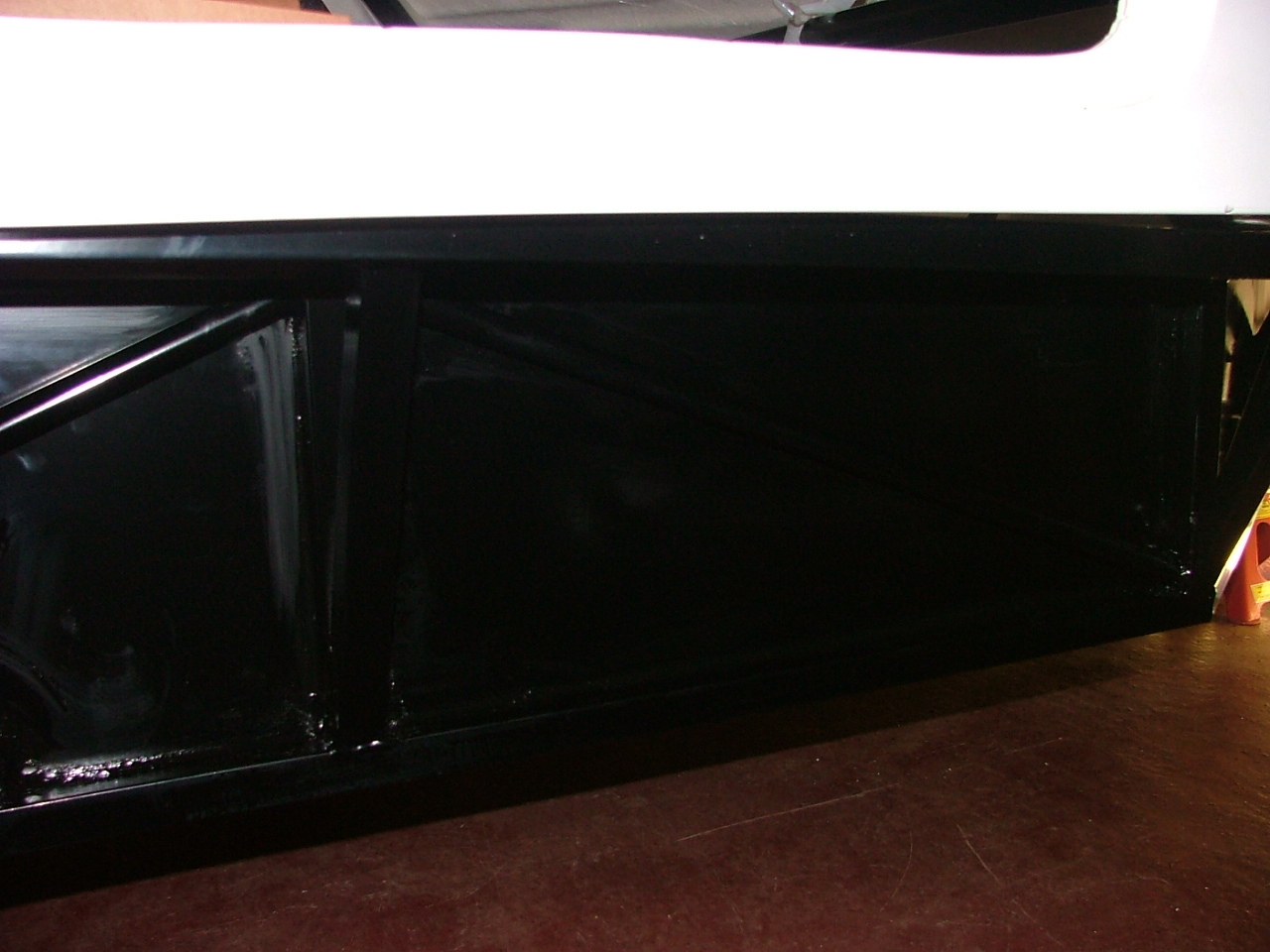

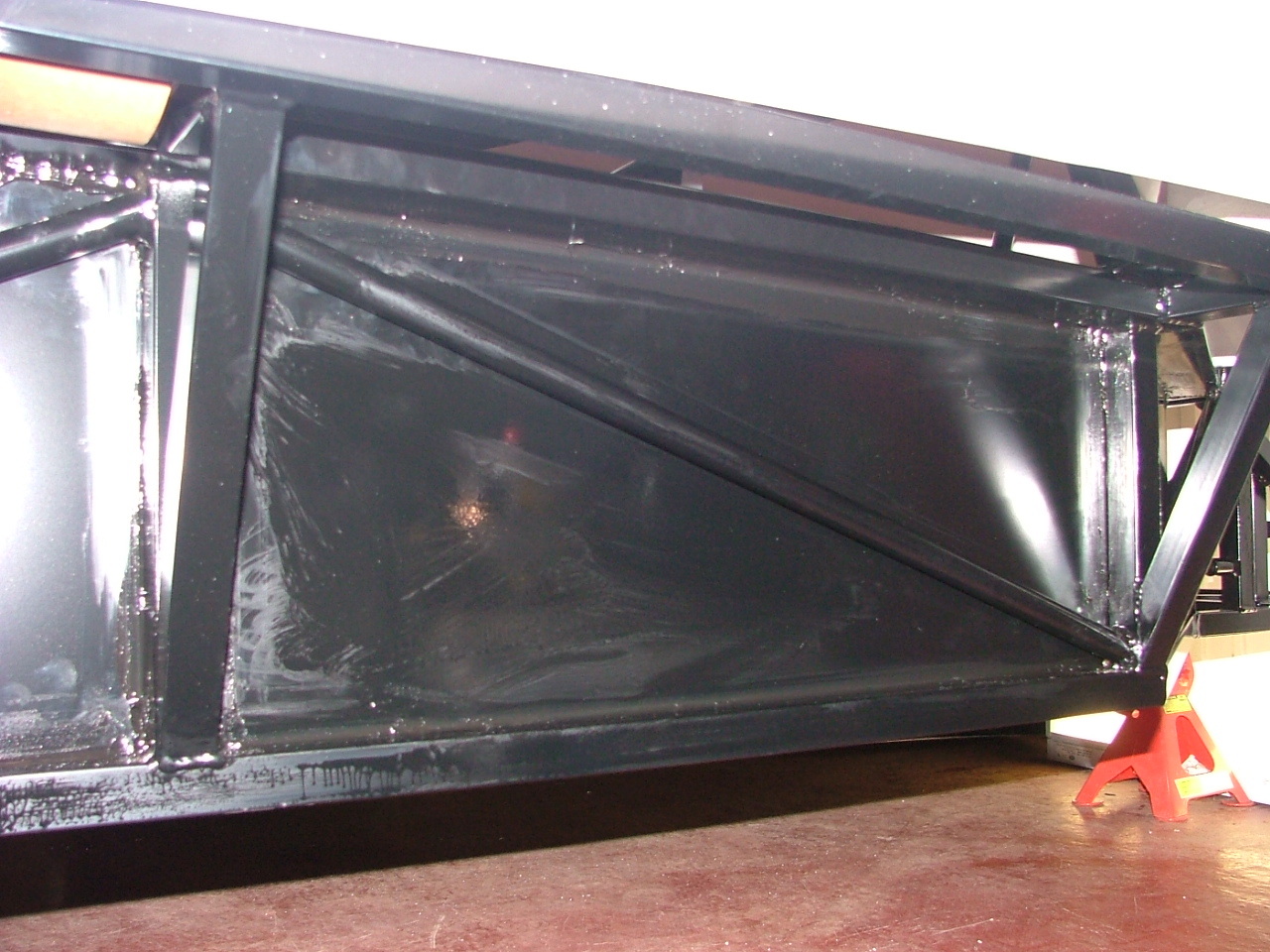

After fixing the panels, I put silicon sealant around the parts which will be exposed to the outside, as well as some of the interior joins.

Click to download Click to download Click to download

Note that the white spirit I was using to clean the panels hadn't evaporated by the time I took the pictures (so it looks a little streaky).
