Day 34 - Reservoir, Light pods, horn and handbrake panel

Reservoir

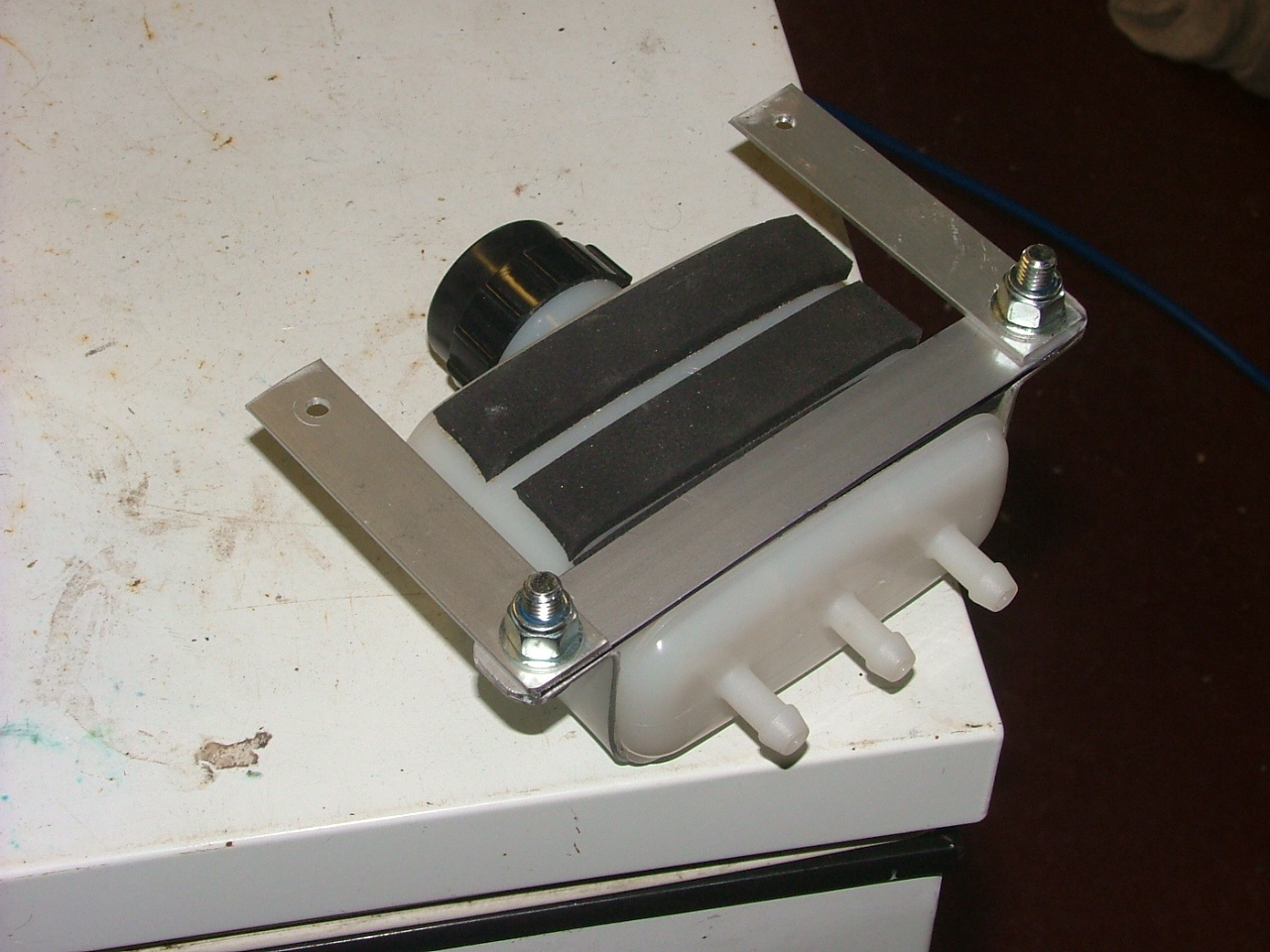

I'd started work on the brake/clutch fluid reservoir very early on - however, I hadn't gotten around to fitting it. I made a bracket with a couple of tags which can be rivetted to the chasis.

Click to download

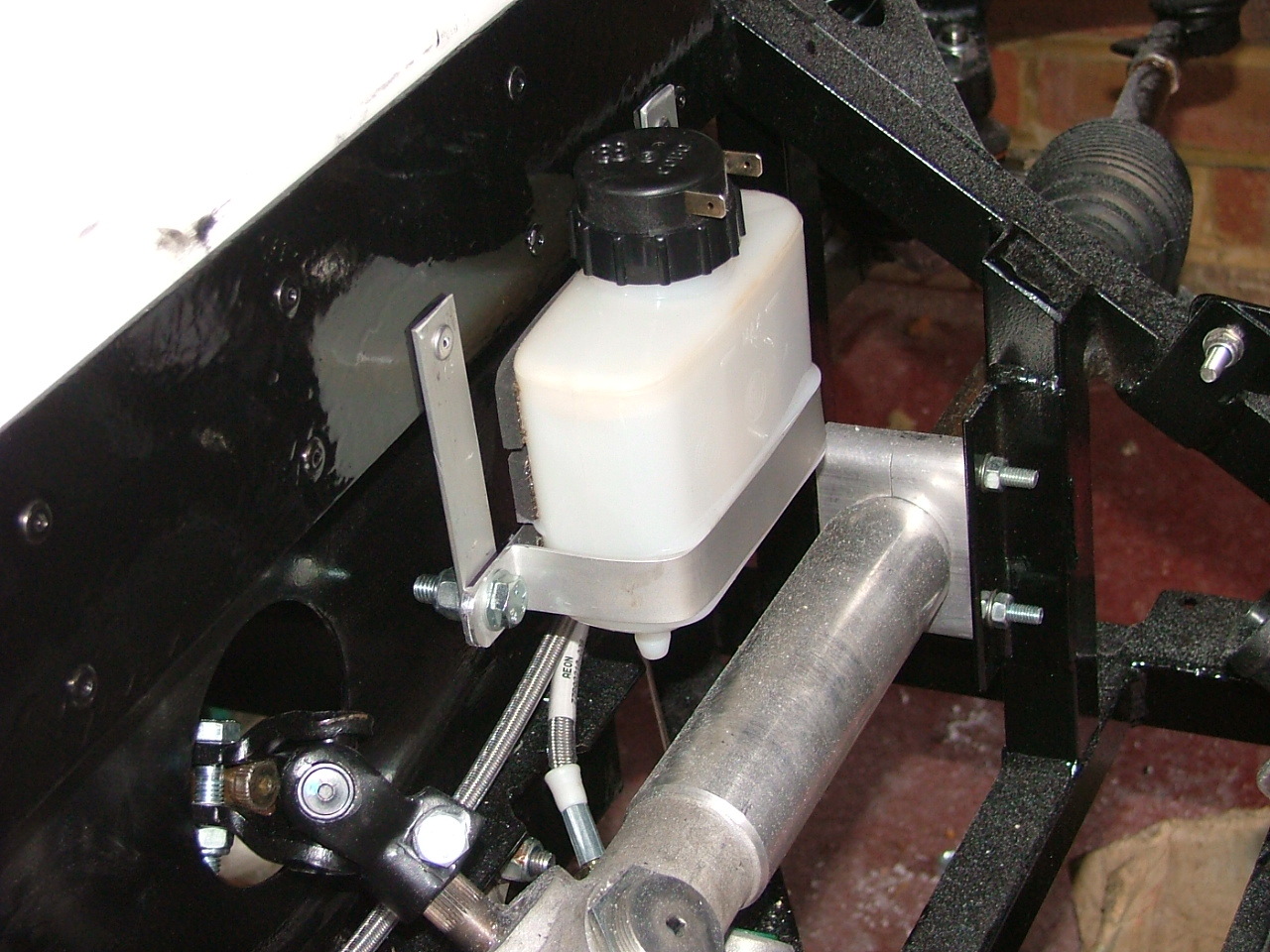

I then rivetted it to the mounting plate at the front of the body.

Click to download

Light pods

I put a lot of Sikaflex around the gaps in the light pods (I didn't take any pictures - there's not enough differences from the earlier work on it).

Horn

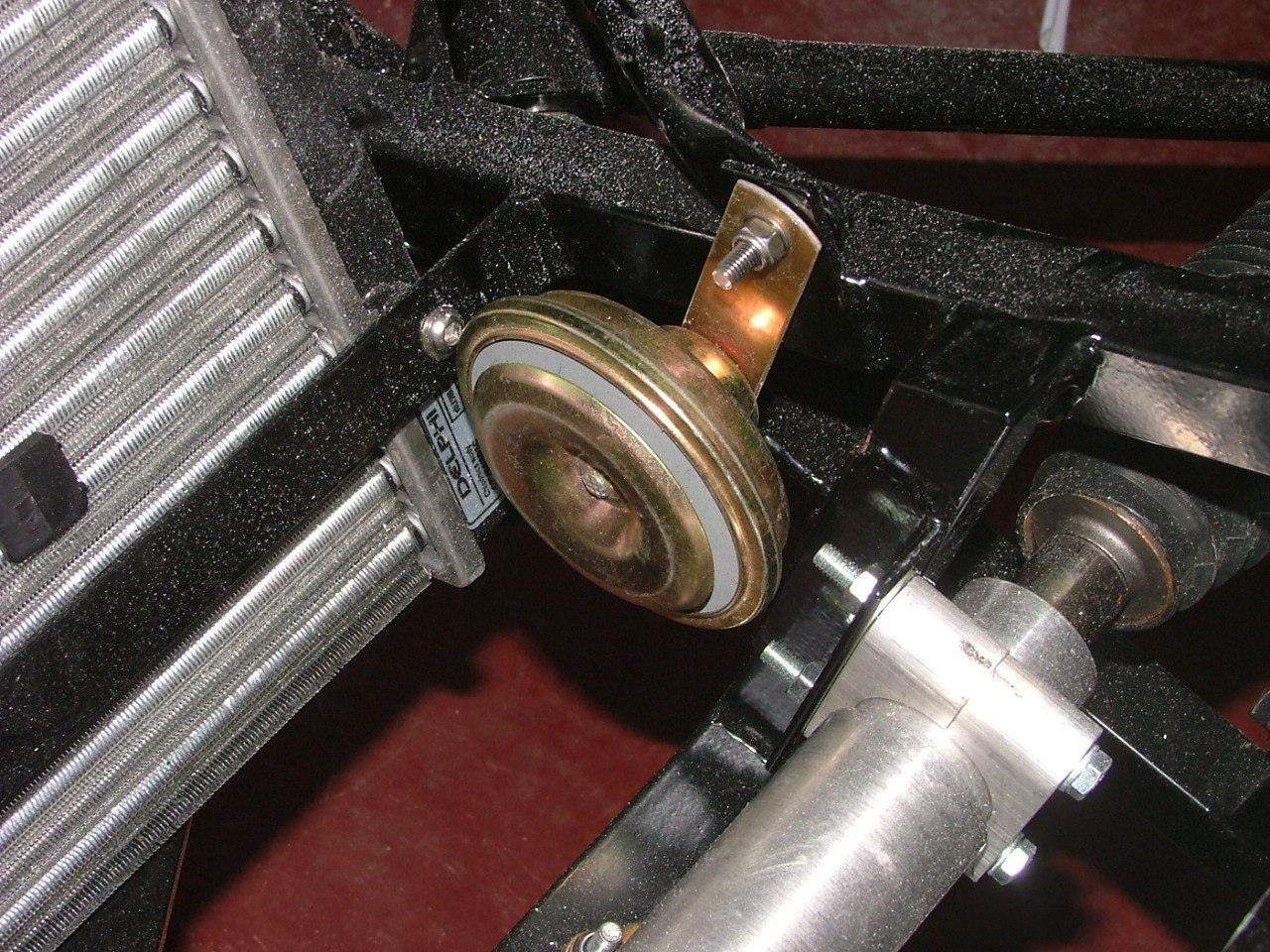

The horn needed fitting, and now was as good a time as any. I found a spot behind the radiator.

Click to download

Handbrake panel

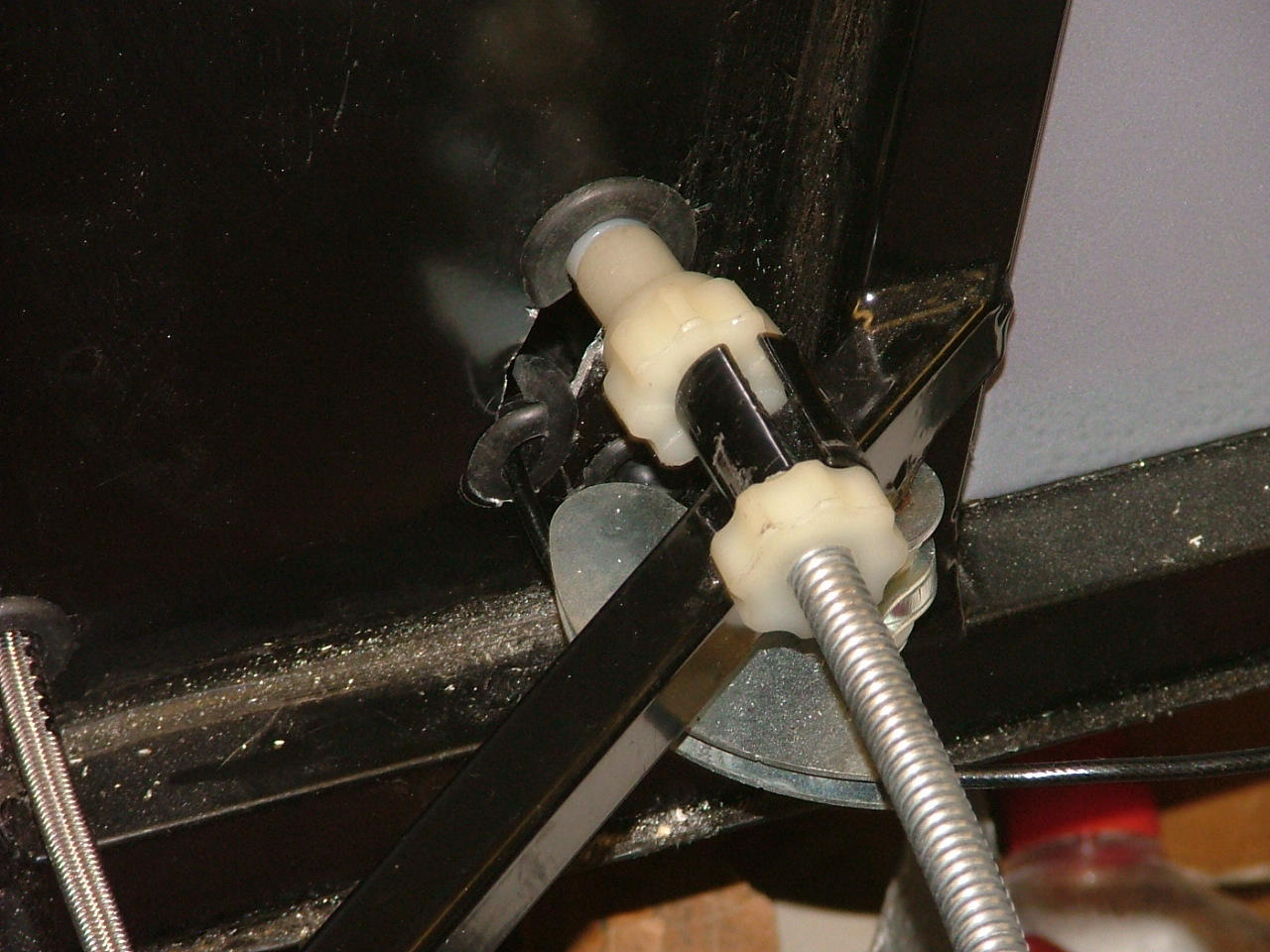

I'd wanted to make a large gromit to fit the handbrake panel, but it didn't quite come out correctly.

Click to download

Luckily, Aeon's open day is Thursday, so I'll have a look to see how they did it then. If the weather's okay, that is!
