Day 47 - Gearbox and catches

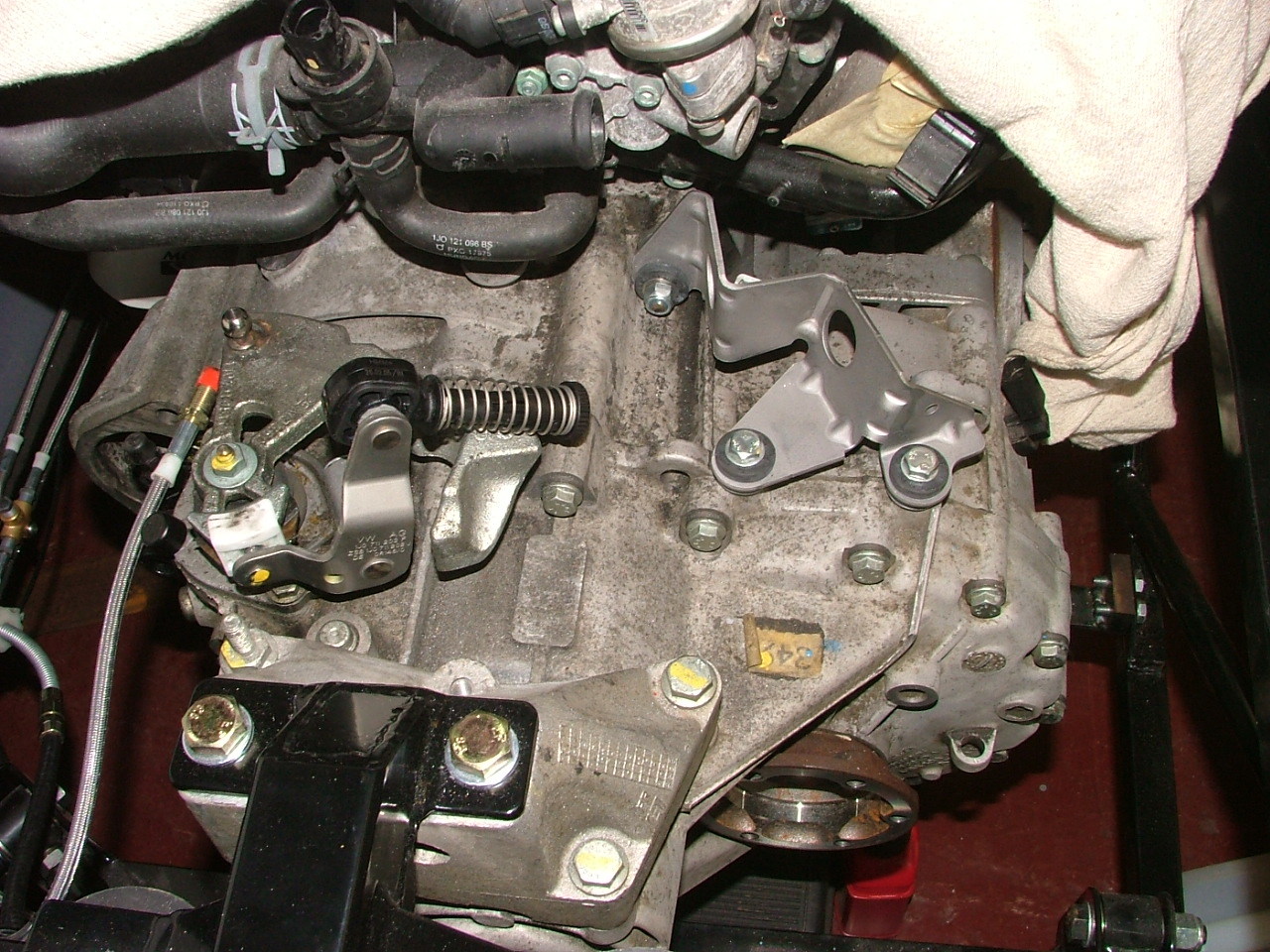

Some important gearbox parts turned up - the selector mechanism and the bracket that holds the cables in place. I think you can tell what the new parts are!

Click to download

After that, I started to cut holes in the front and rear sections to take the Aerocatches. I could've put them on the top, but I decided to put them on the sides, with plates on the side pod sections to hold the pin in place.

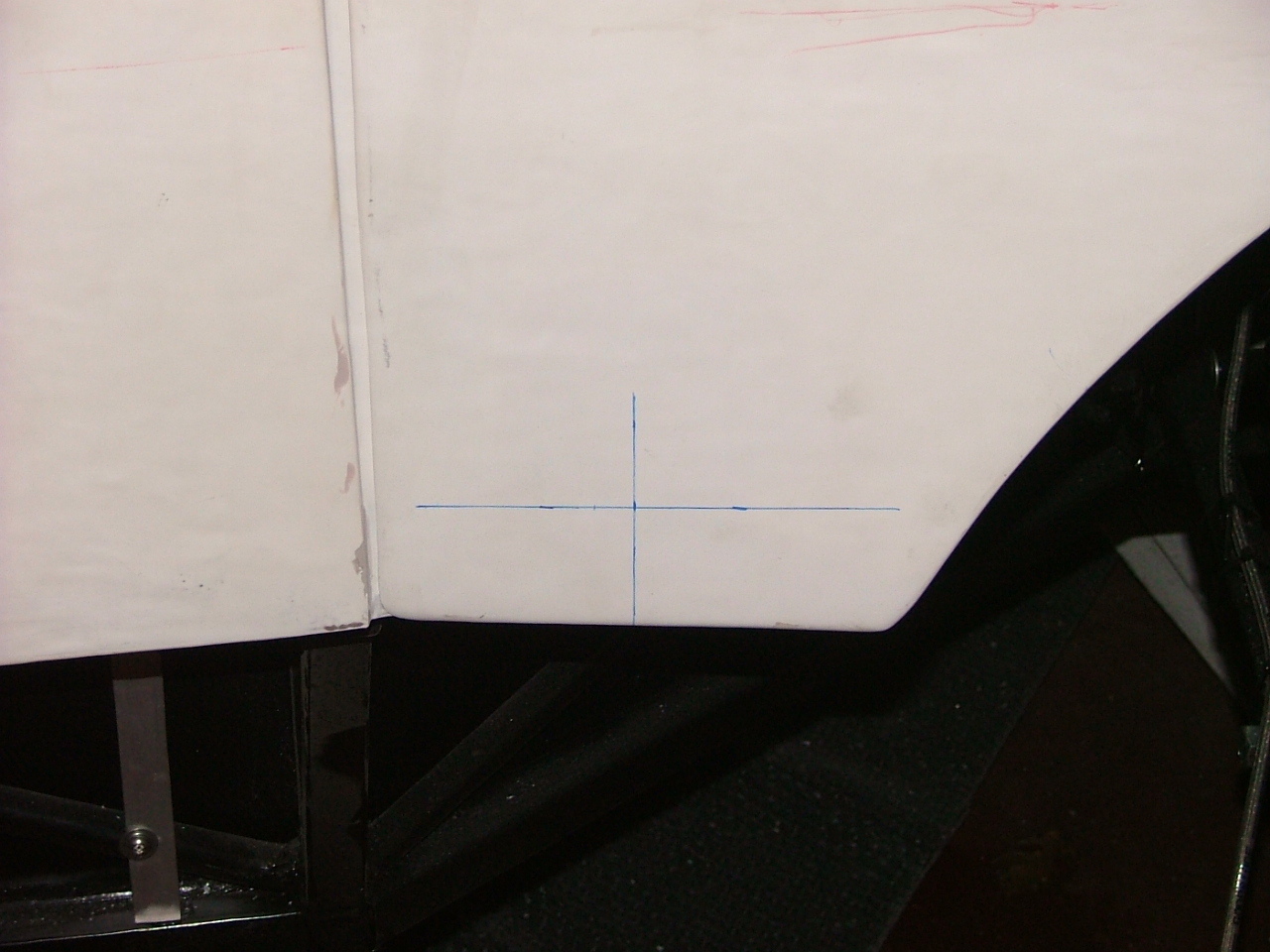

First of all, measuring 2" up from the bottom of the panel, and 90mm from the edge (3" was too near, 4" was too far - I like to mix and match my measurements!)

Click to download

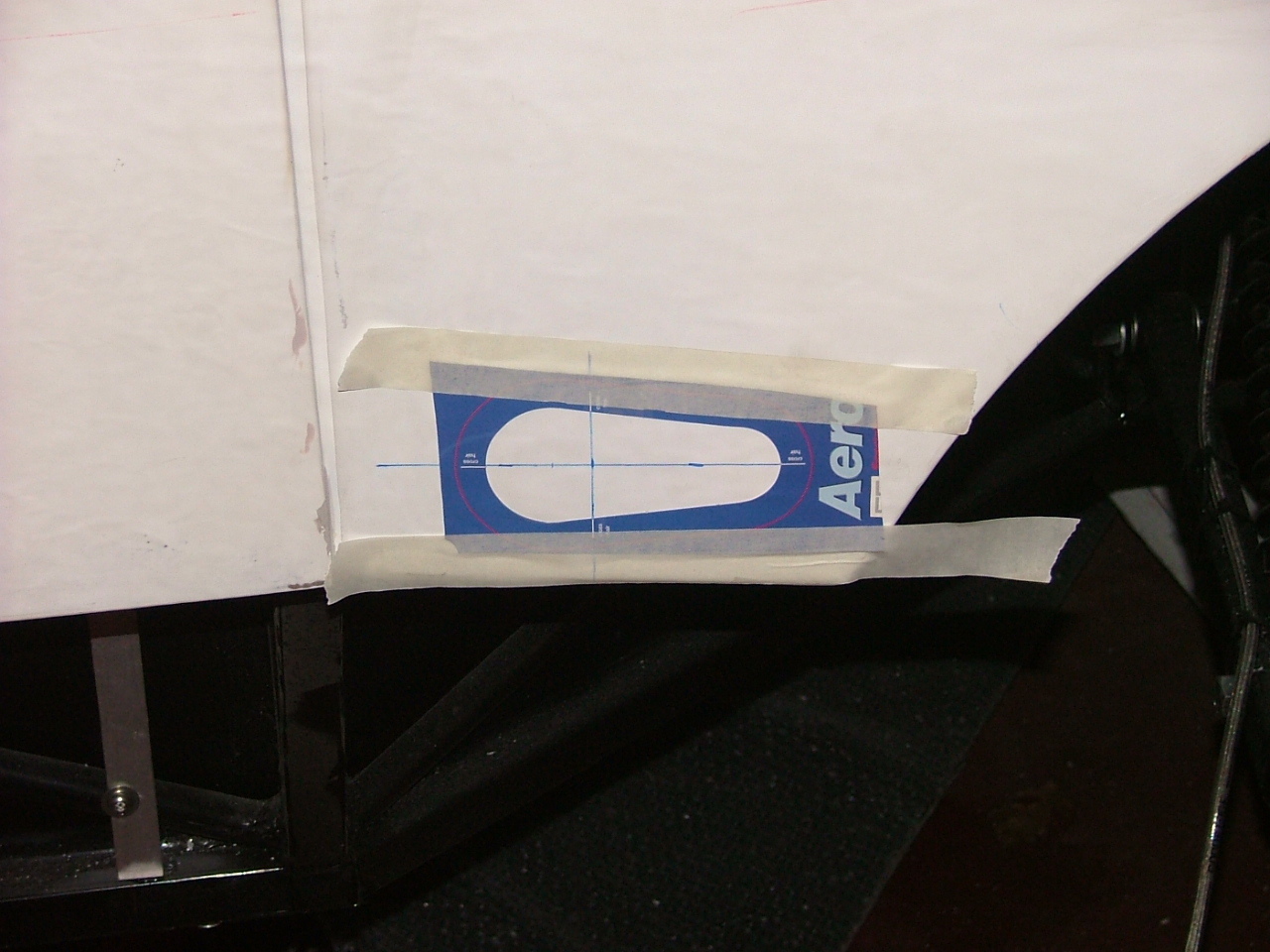

And then, placing the (supplied) template on the cross-hairs.

Click to download

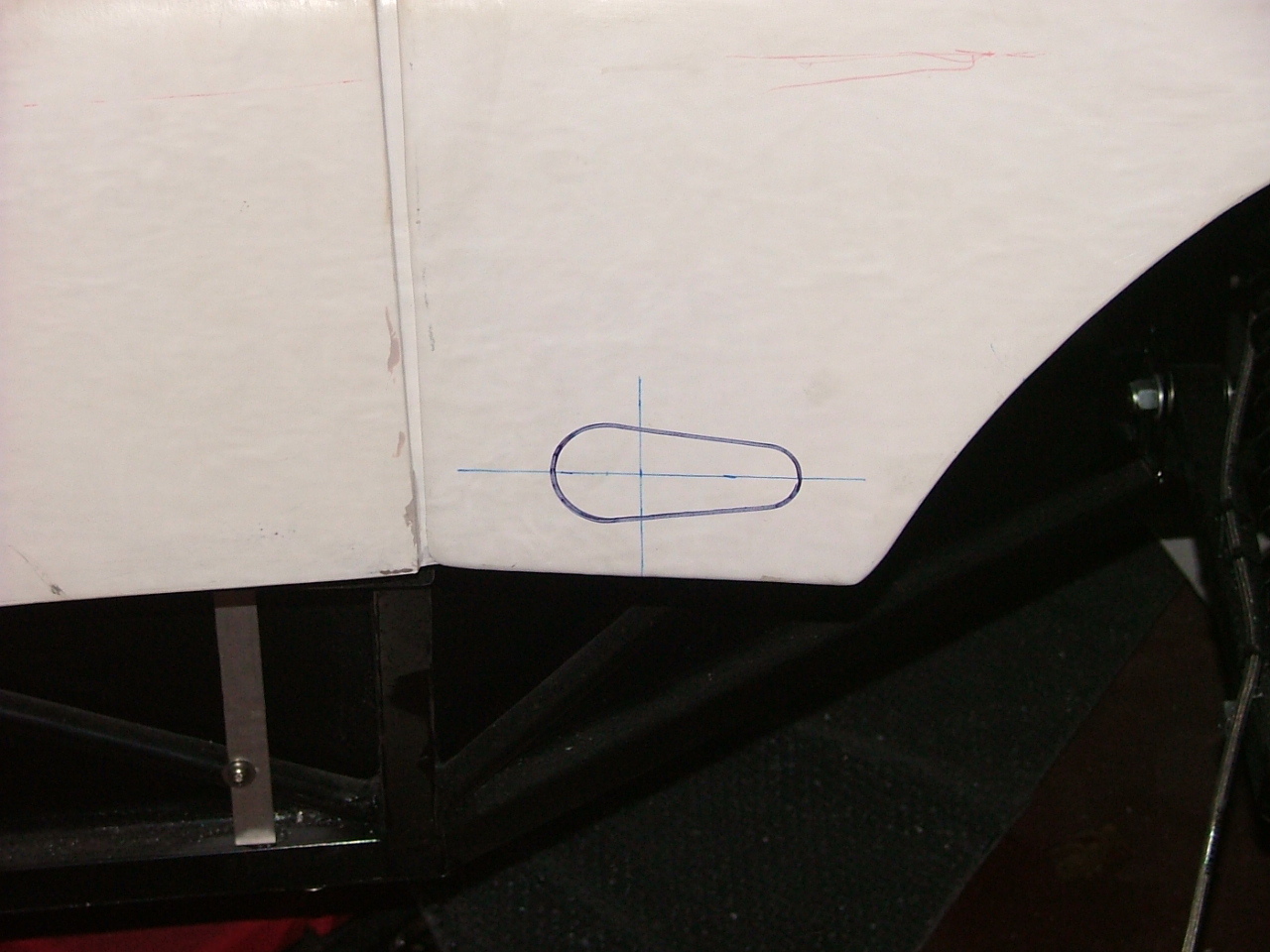

Drawing around it, and removing the template left the cutting line.

Click to download

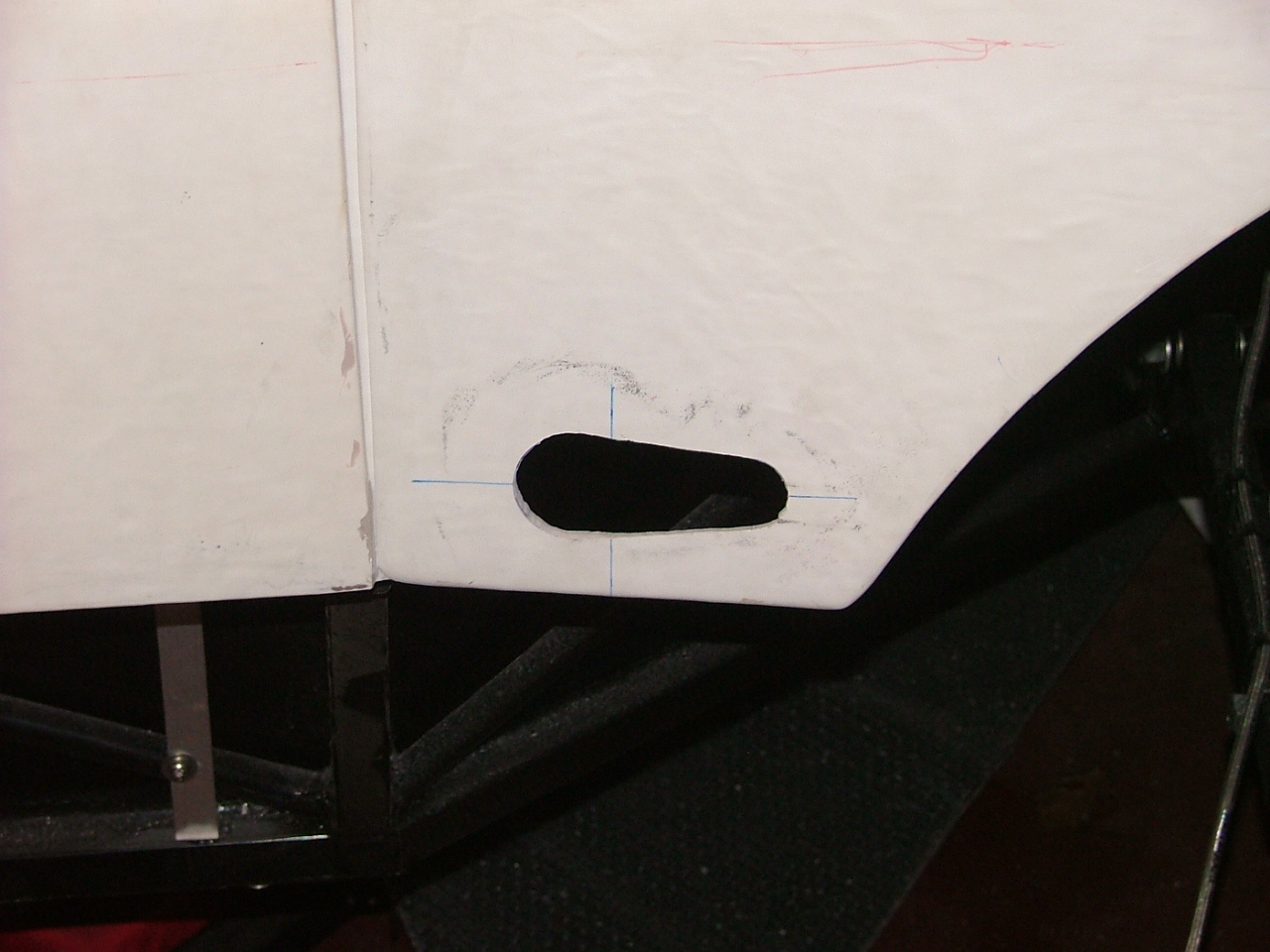

And then with a jigsaw (using the special GRP blade)

Click to download

Unfortunately, it's too thick in places for the Aerocatch to be mounted flush...

Click to download

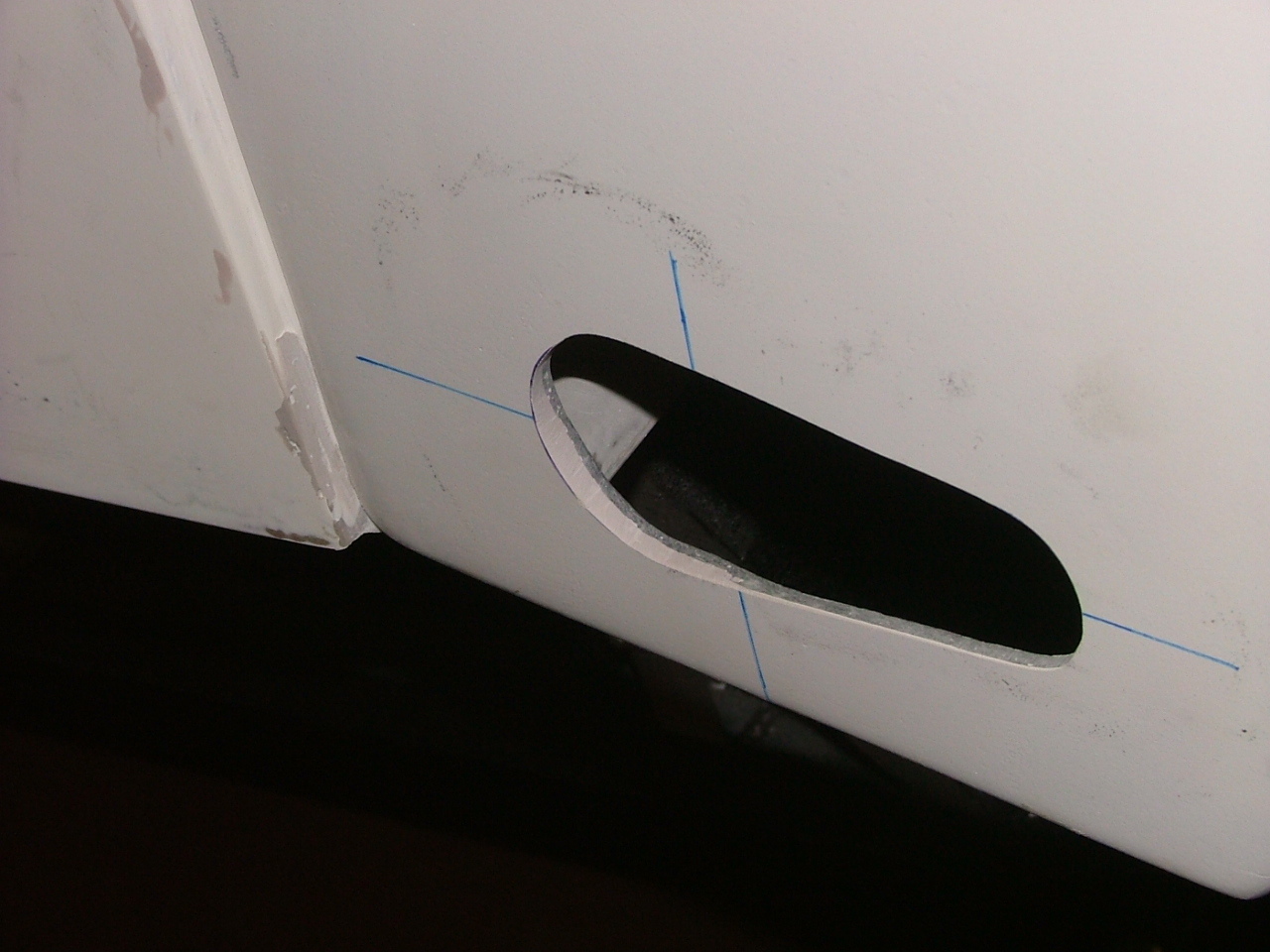

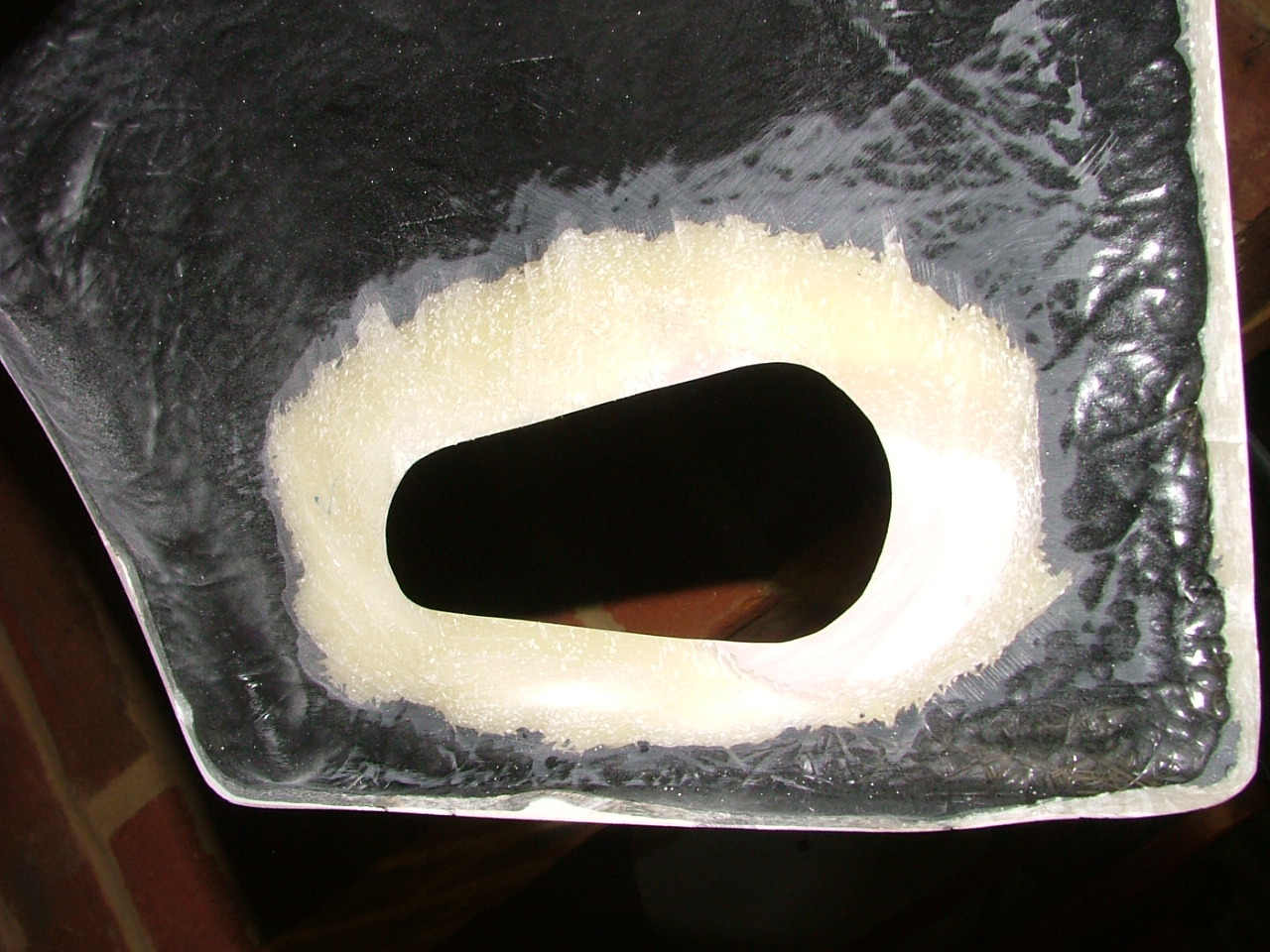

...So using an angle grinder with a sanding disk, I sanded the edges away so that it could fit.

Click to download

Repeating this for the other 3 catches.

Click to download Click to download

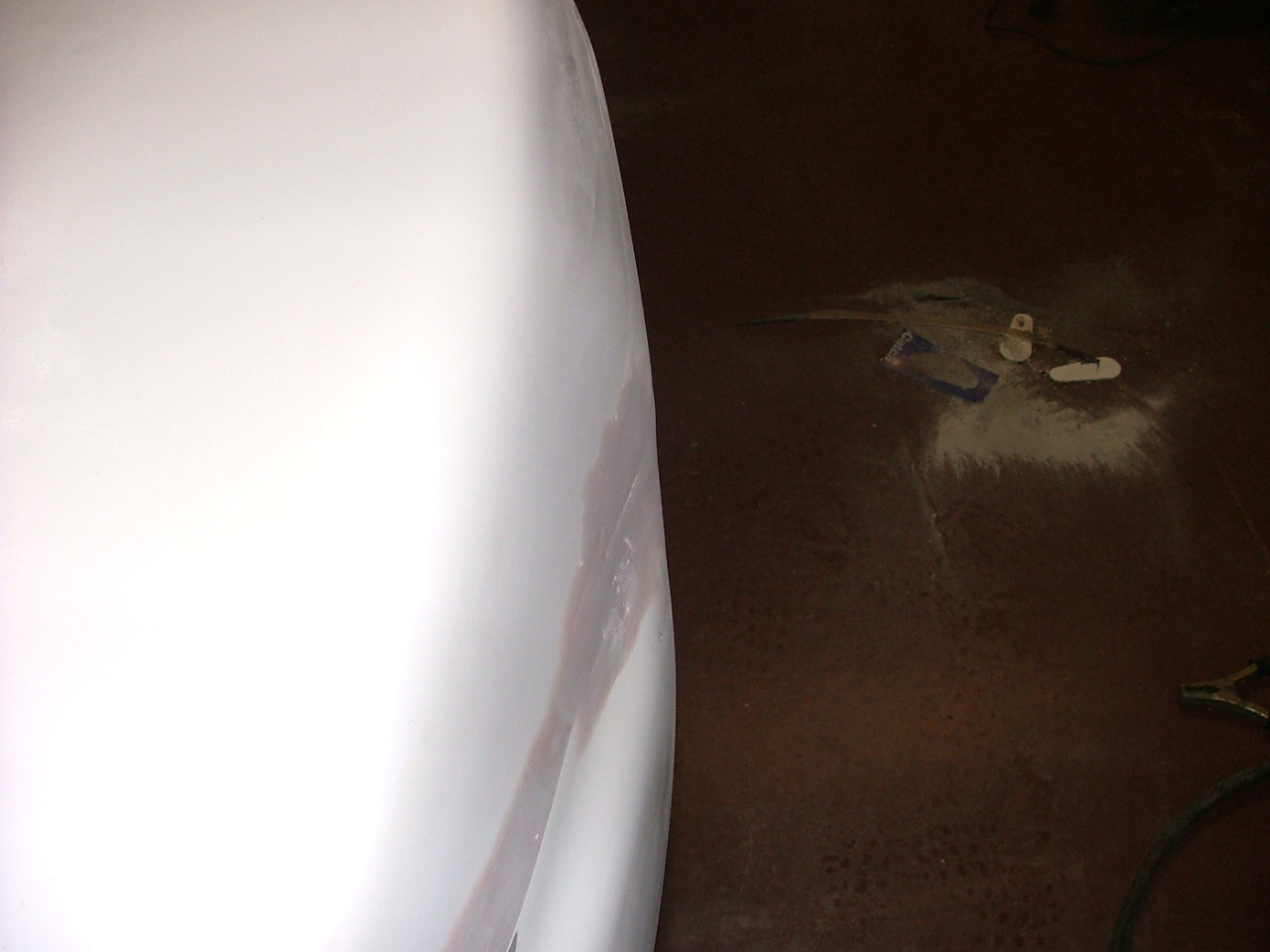

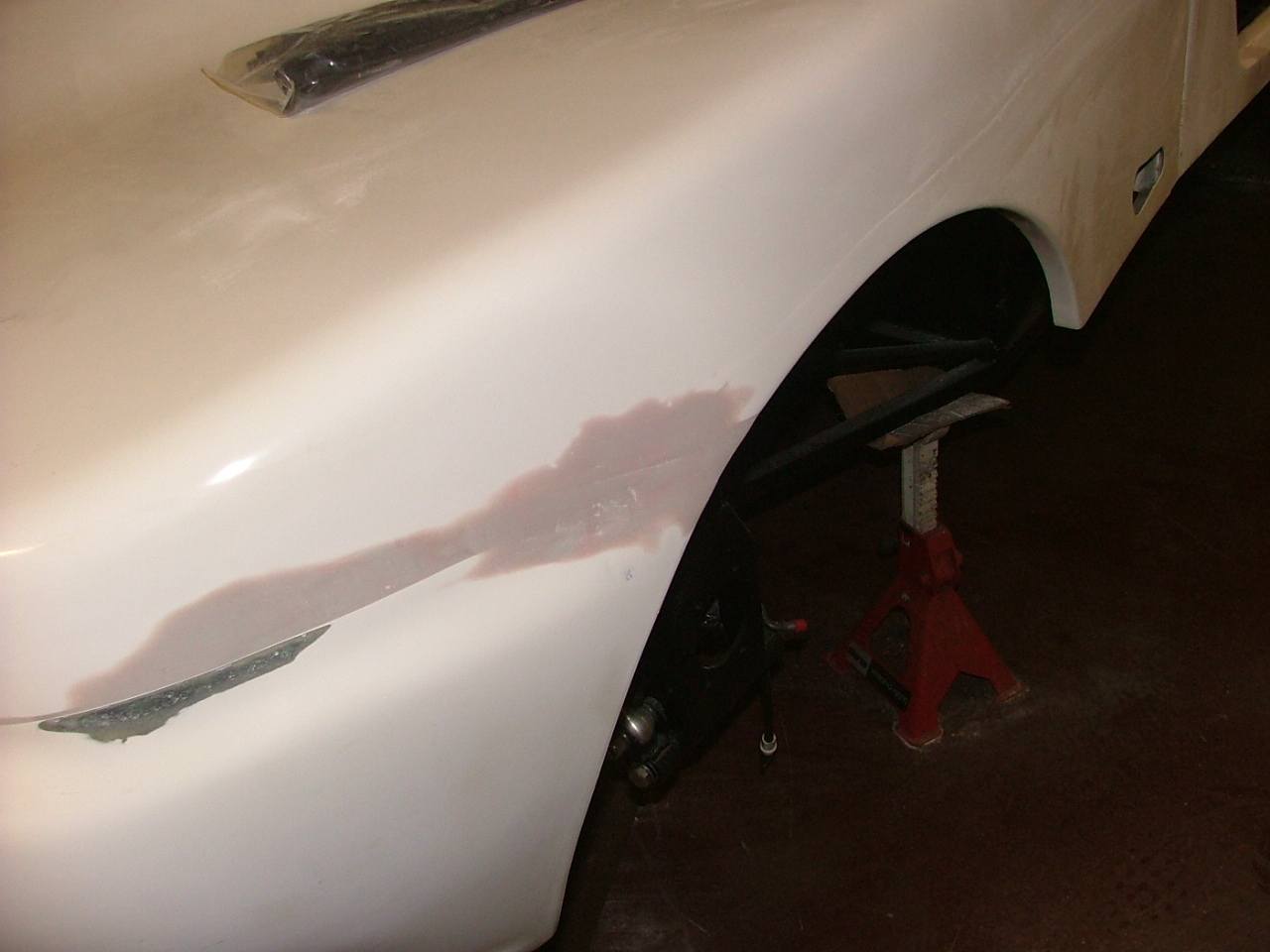

With the four holes cut out, I started to sand the body filler that I'd placed on the rear section. It still needs some more filler, in order for it to be a nice flush fit.

Click to download Click to download

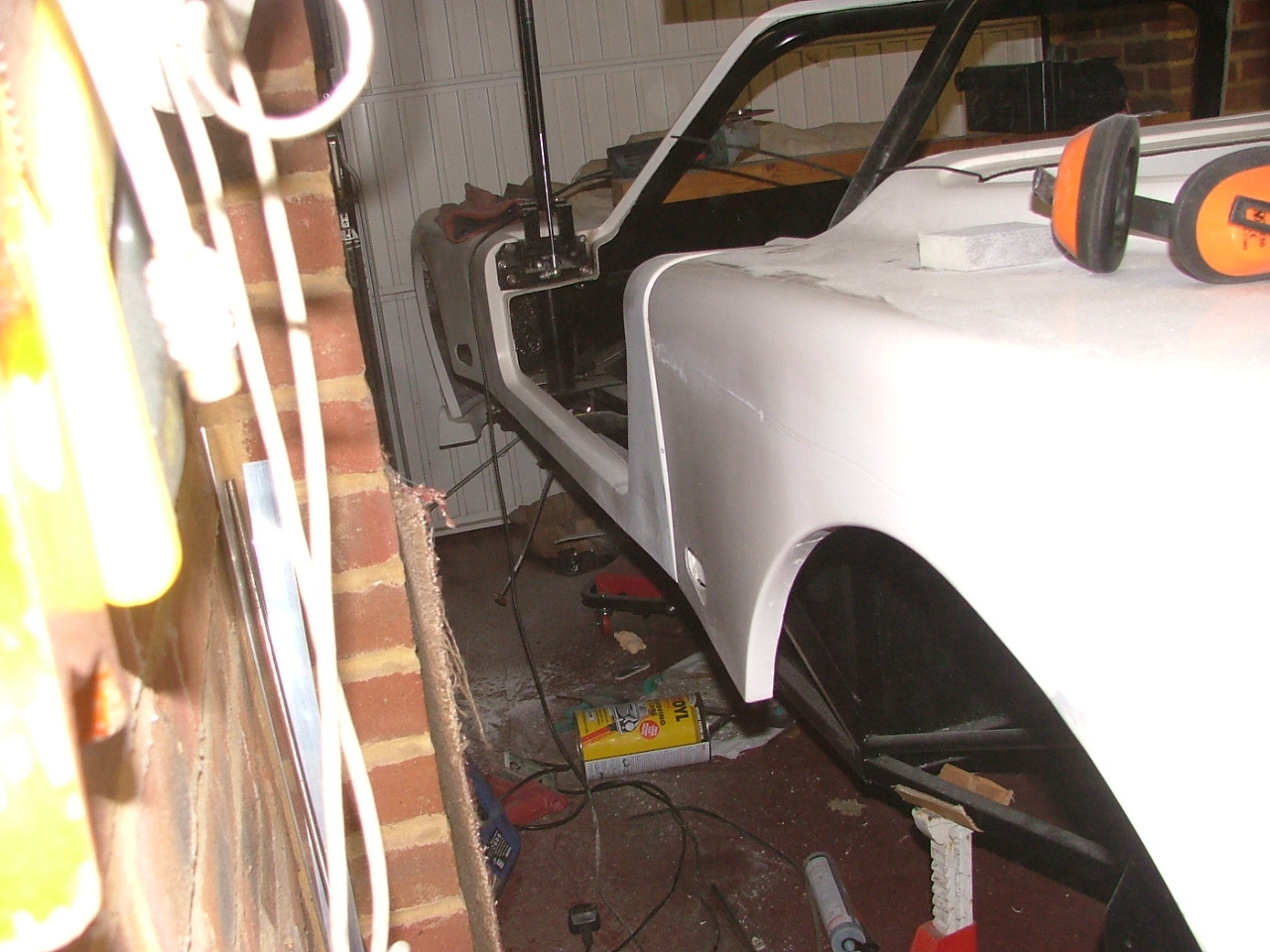

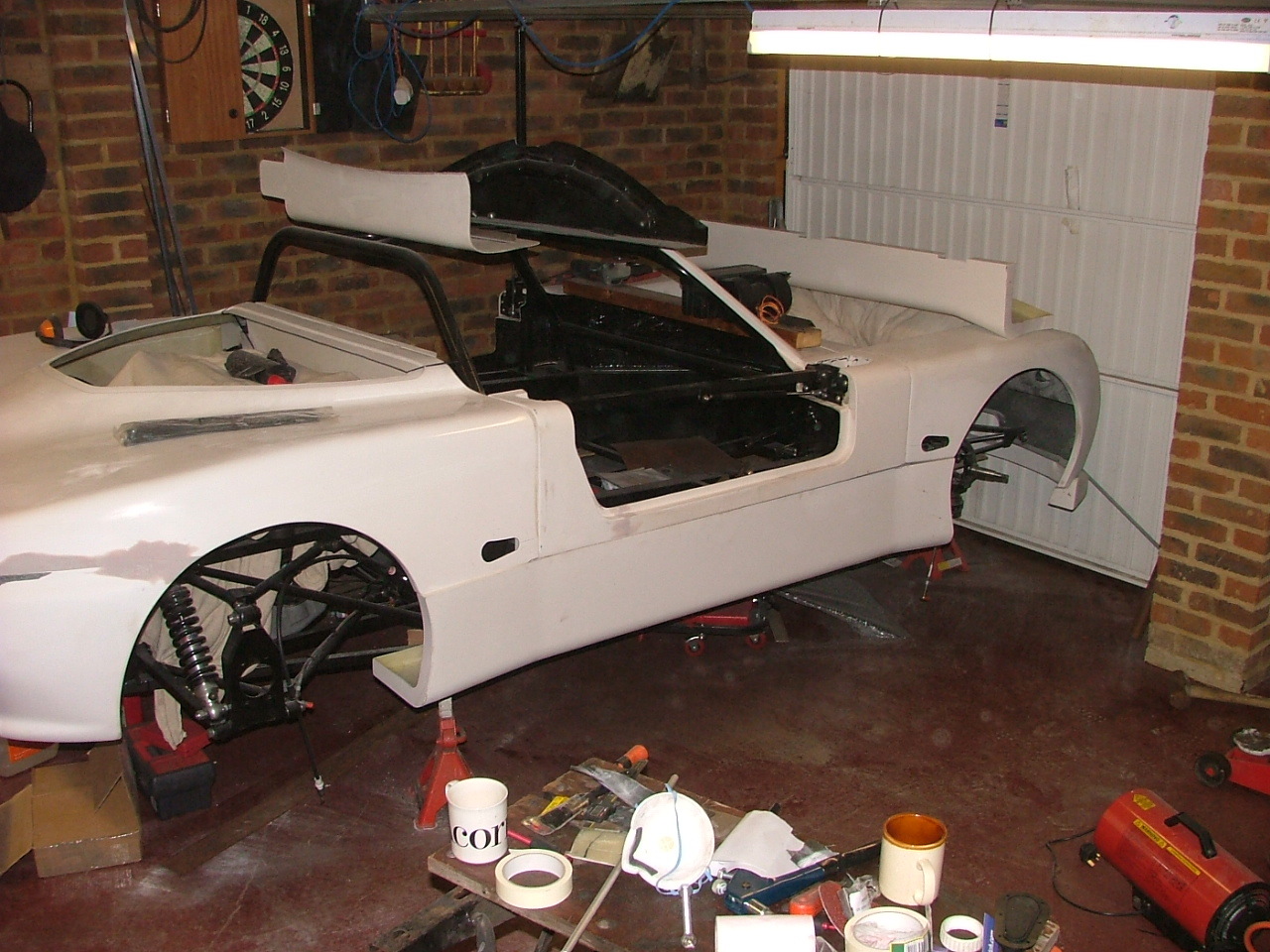

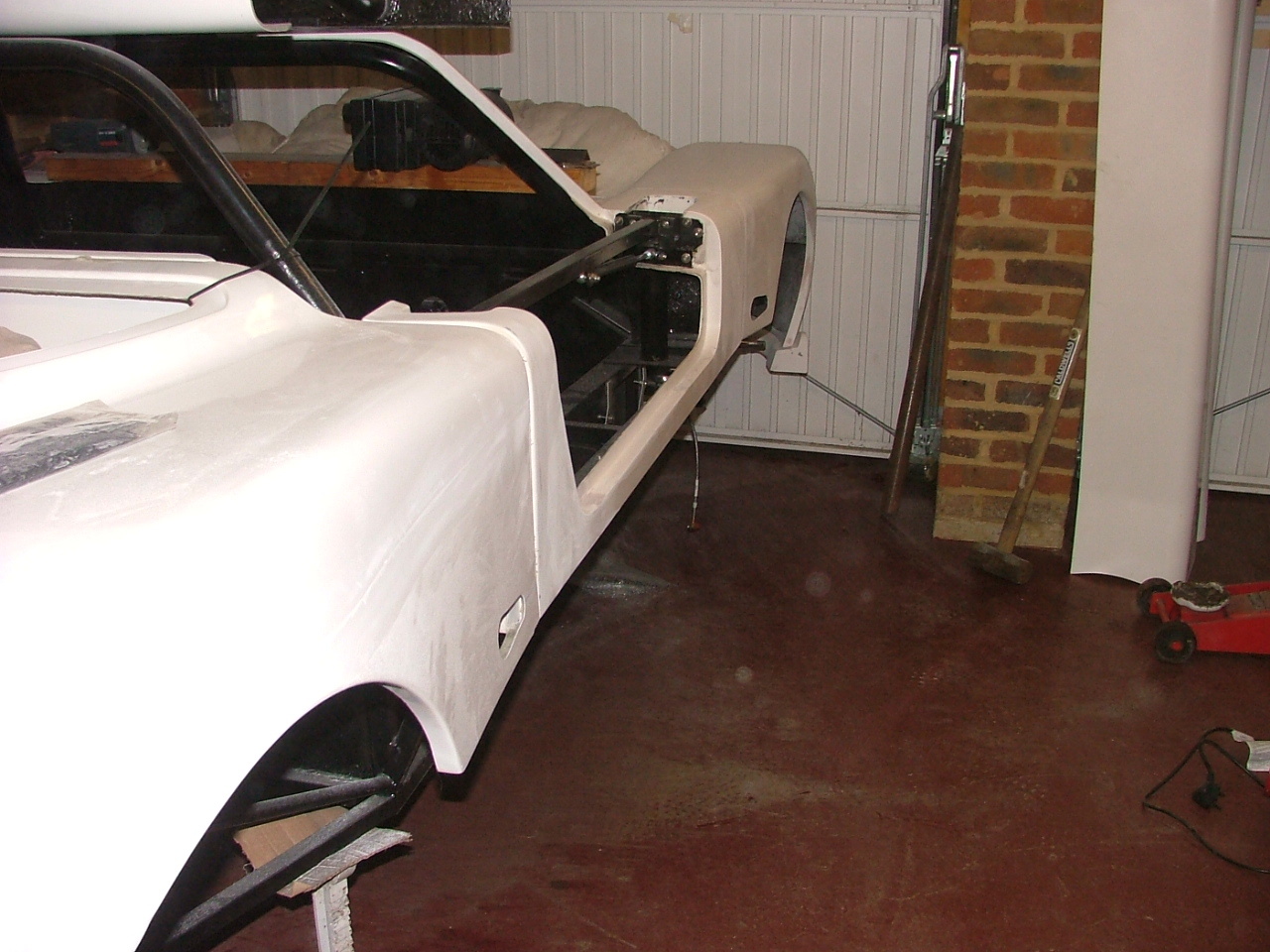

I then put the side pod on to see what it looked like

Click to download

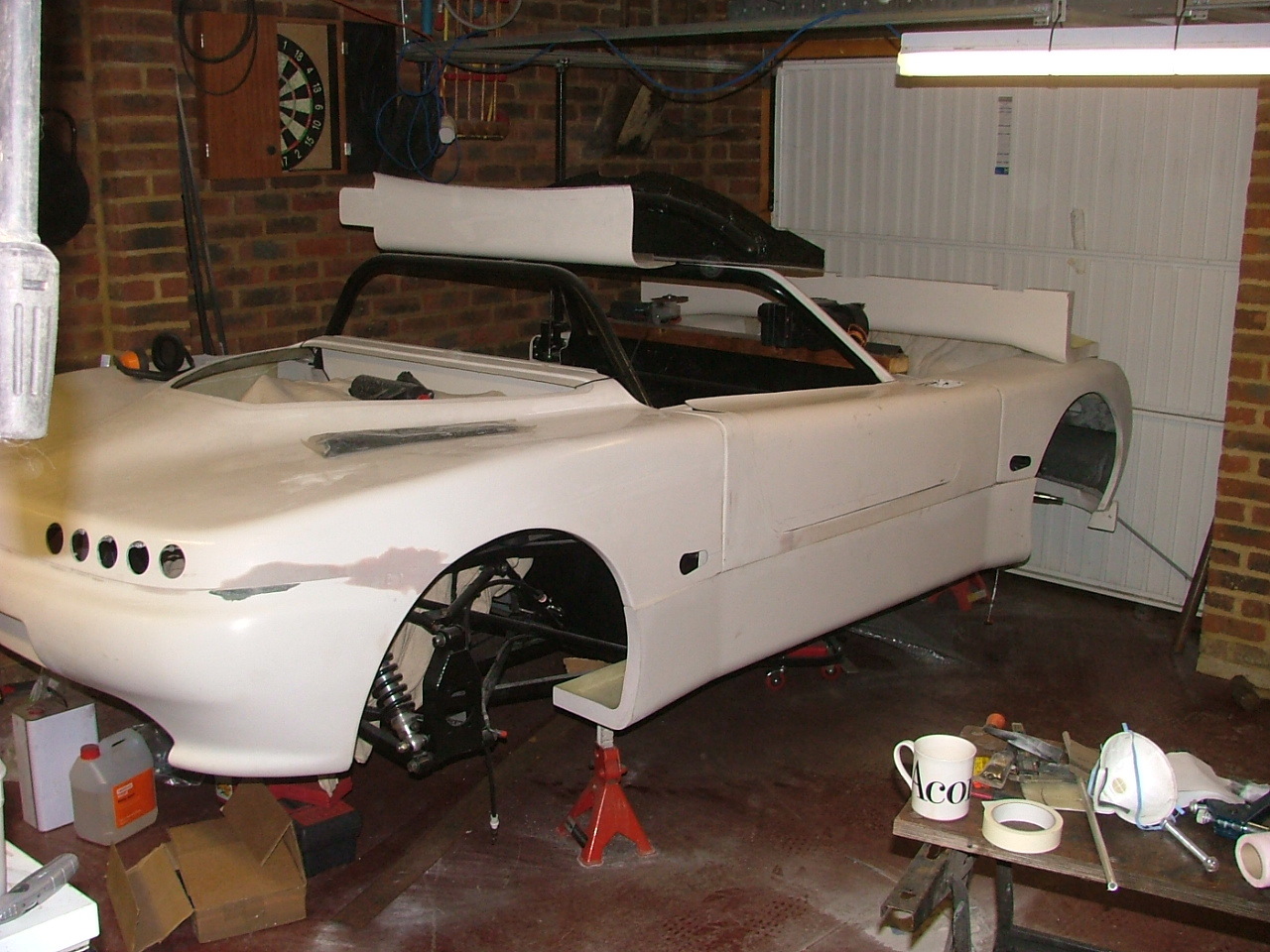

And then the door.

Click to download

Tomorrow, John's hopefully going to arrive, so I'll have a tidy up, and maybe fit the dashboard - tonight I'll try to finish off the electronics.
