Day 54 - Steering wheel and column cover

Since my neighbour's daughter's car was in the other half of the garage with some kind of oil blockage problem (best not to start it!), I decided that I'd minimise the amount of mess I'd make - so, I didn't do a whole lot of work this weekend.

I had an old steering wheel boss that was for a Fiesta kicking around, as well as another one for a different kind of Ford that I found outside my friend's workshop - no-one seems to make a boss for a Mondeo, but I'd heard that you can use a Sierra boss and file it. Where you file it I don't know, but I thought it would be worth starting with the ones I had.

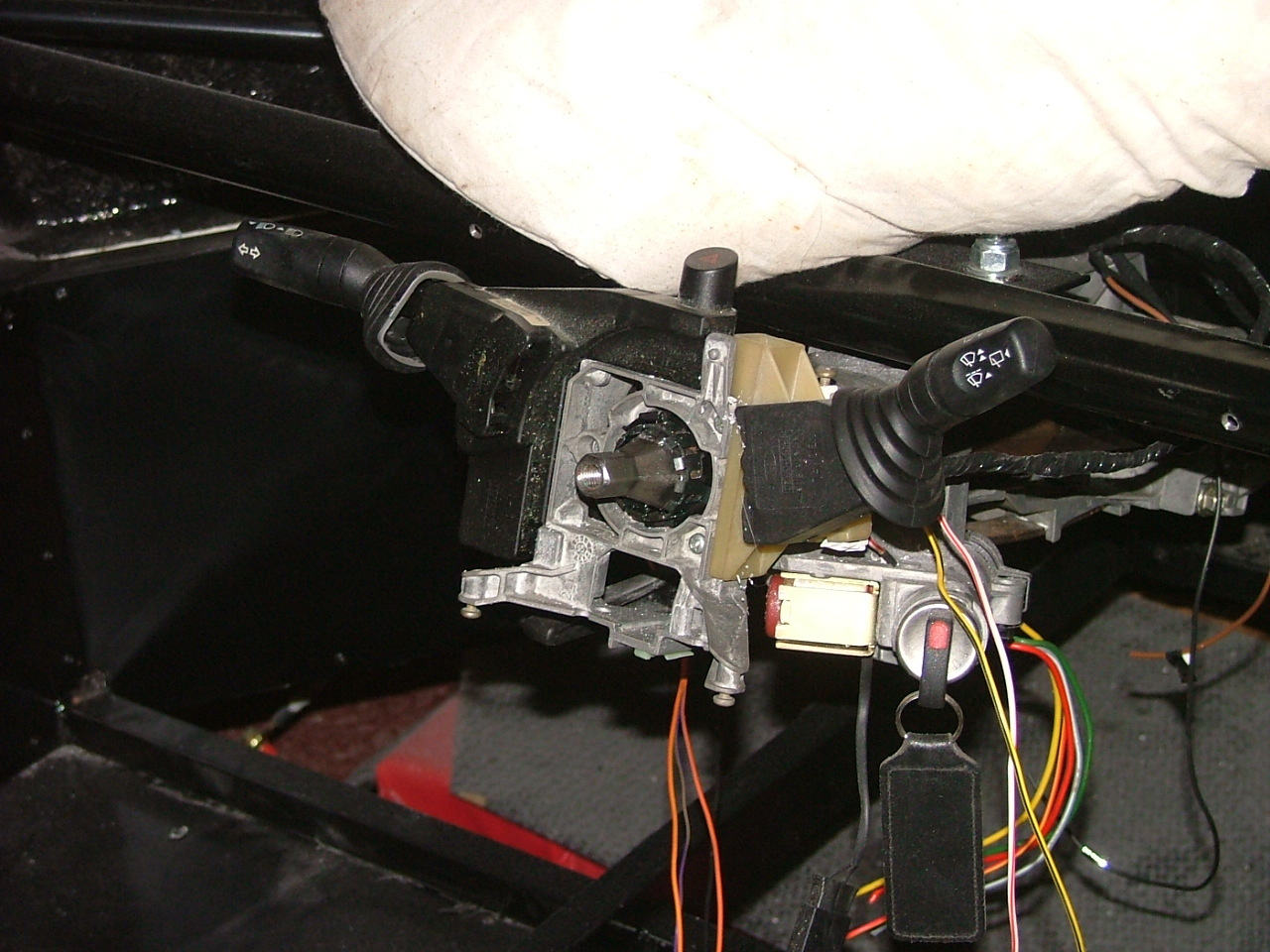

The first thing to do was to remove the current steering column.

Click to download

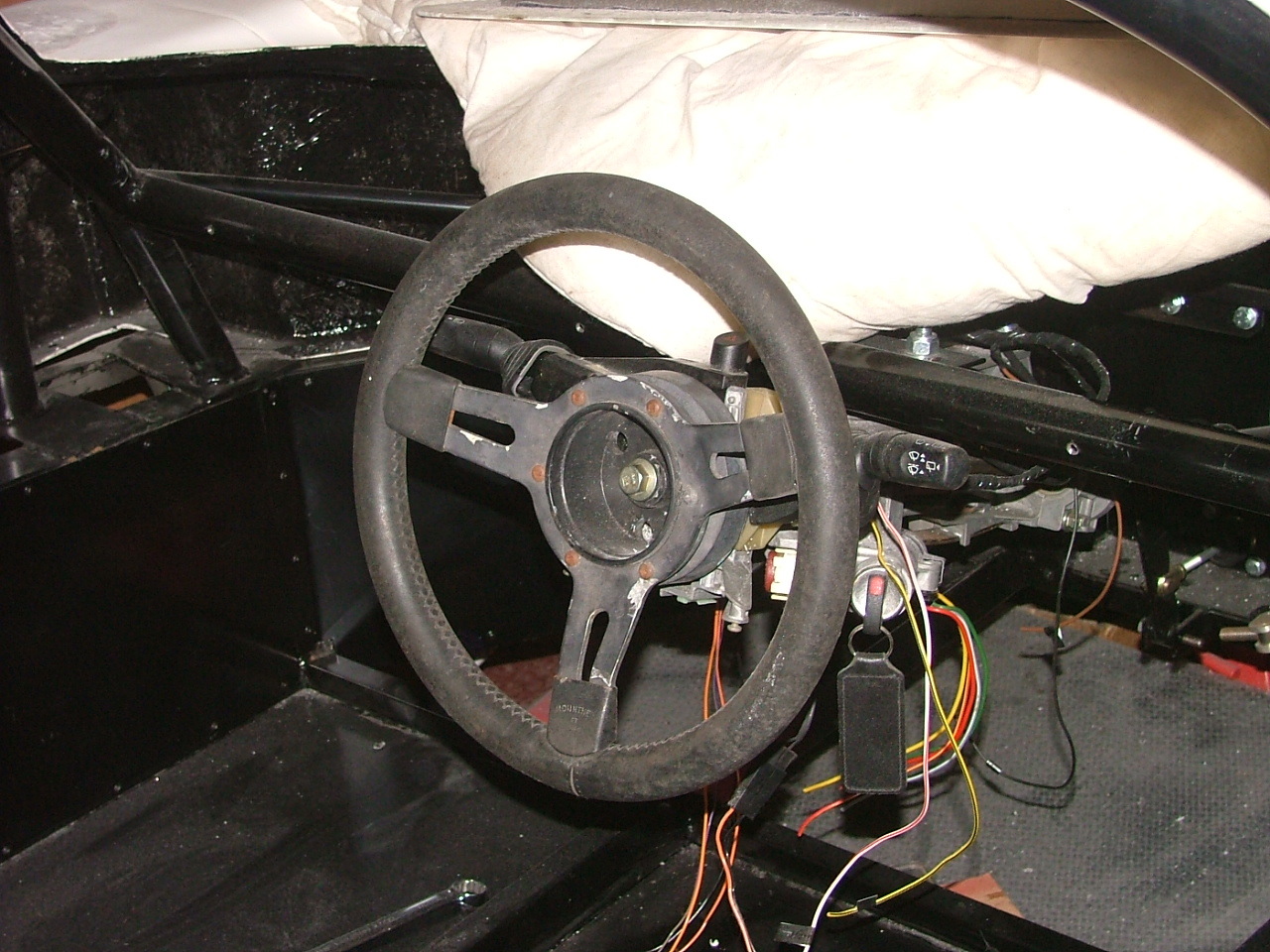

The existing boss needed drilling to fit over the central hex section with a 17mm drill bit.

Click to download

I won't be using that wheel - it's the best spare I have!

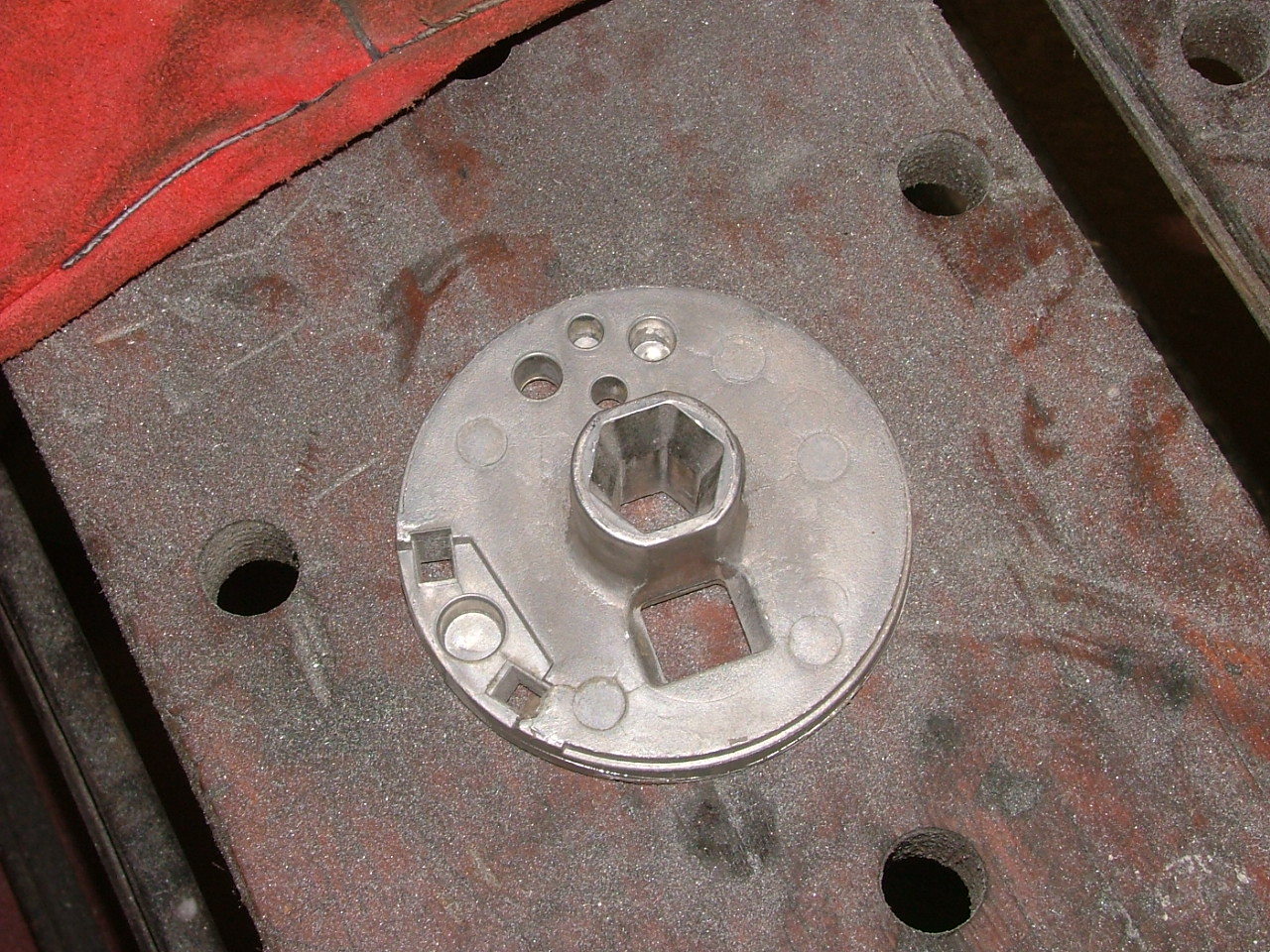

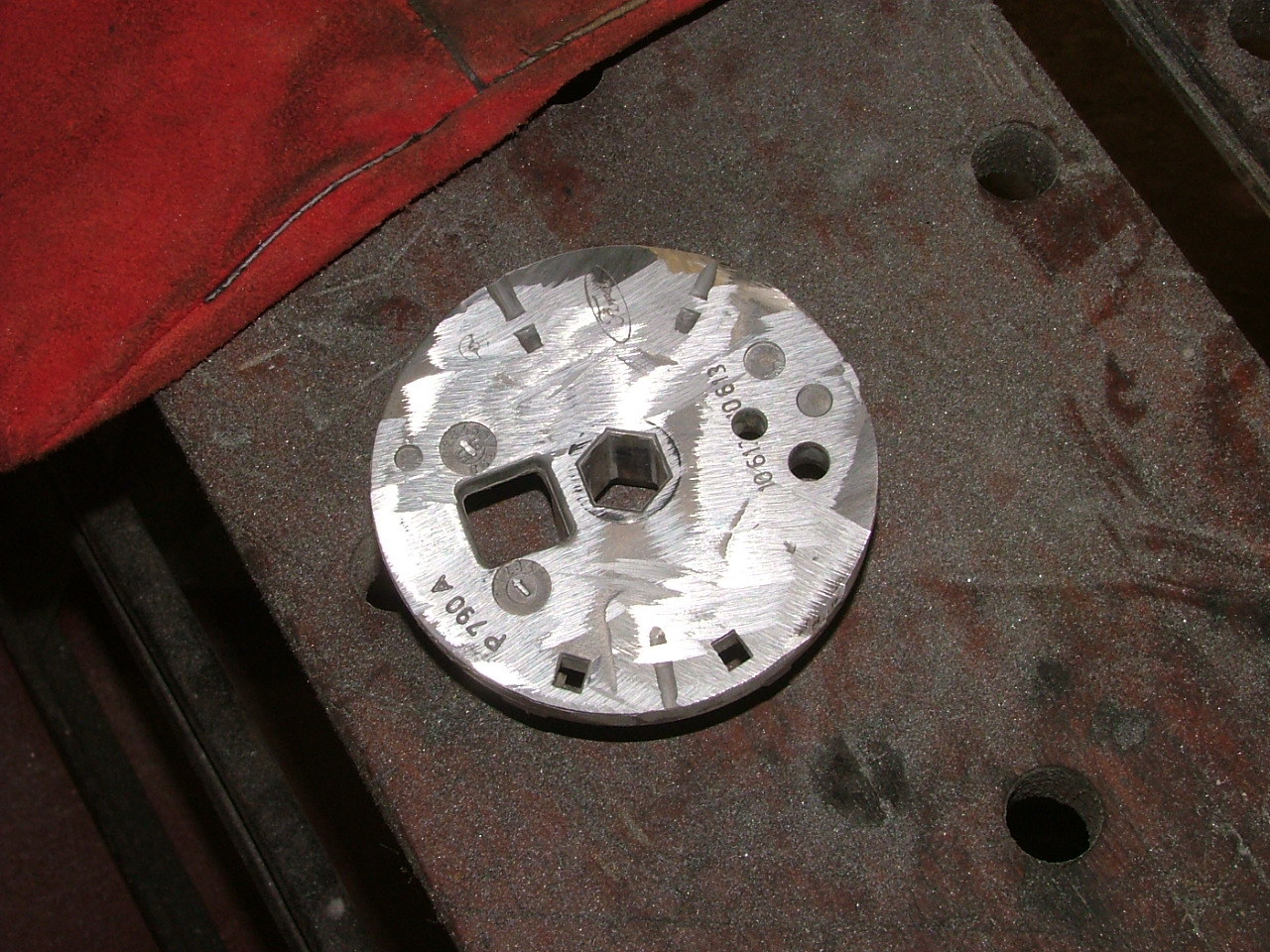

However, the rear section needed a 25mm hexagonal conical shaft; it was currently 20mm. This meant a lot of filing - so I decided to cut up the existing Mondeo steering wheel and use it as the boss backplate (the other Fiesta boss splits into two).

Click to download Click to download

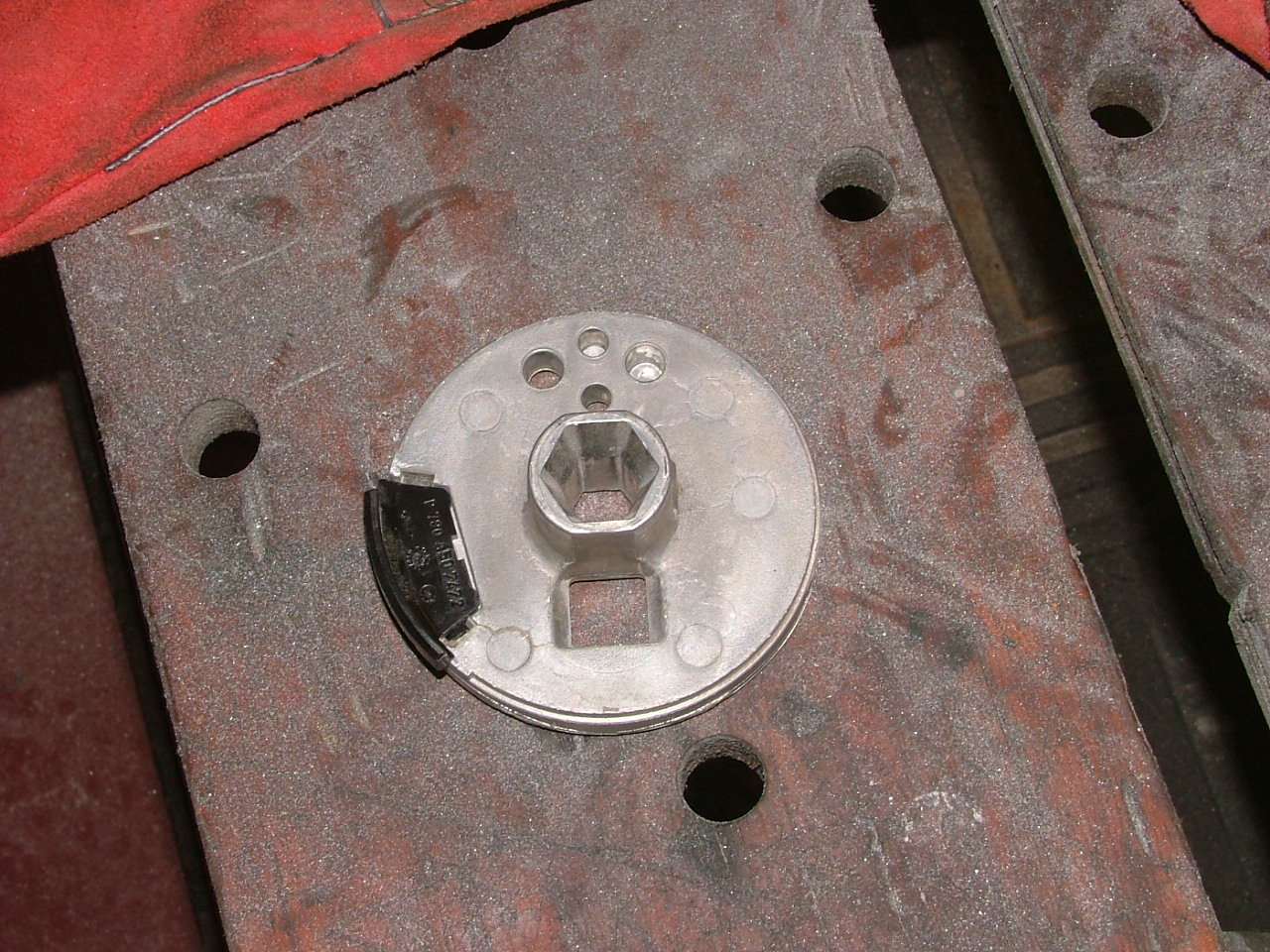

There are two advantages in using this - firstly, it'll fit with no modifications required, and secondly with the addition of a plastic clip-on part, it'll cancel the indicators.

Click to download

Now, I need to find a Suede/Alcantara steering wheel.

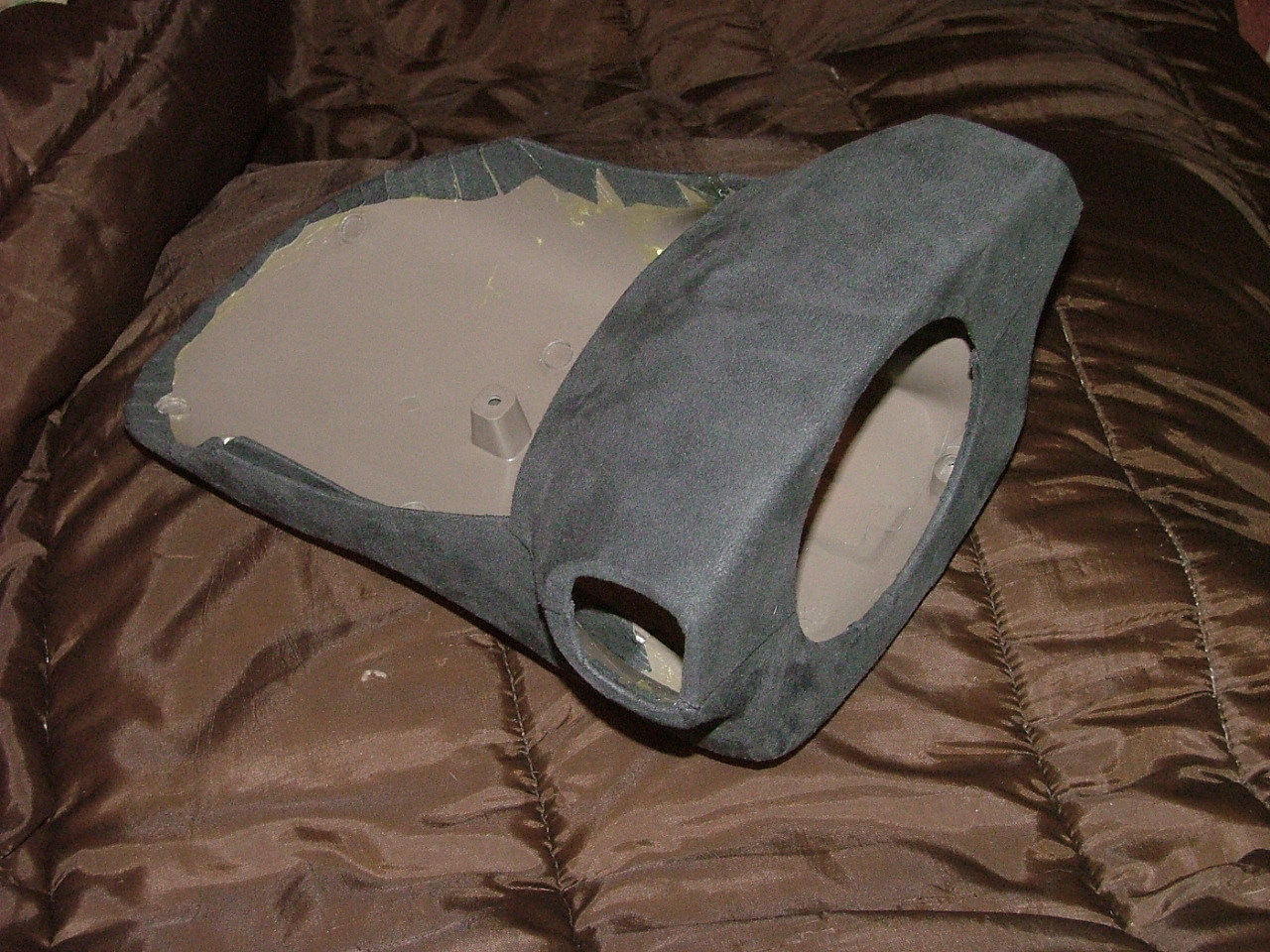

I did a quick tidy up of the area, and then trimmed the back of the top part of the steering column cover. This means it'll fit against the dashboard.

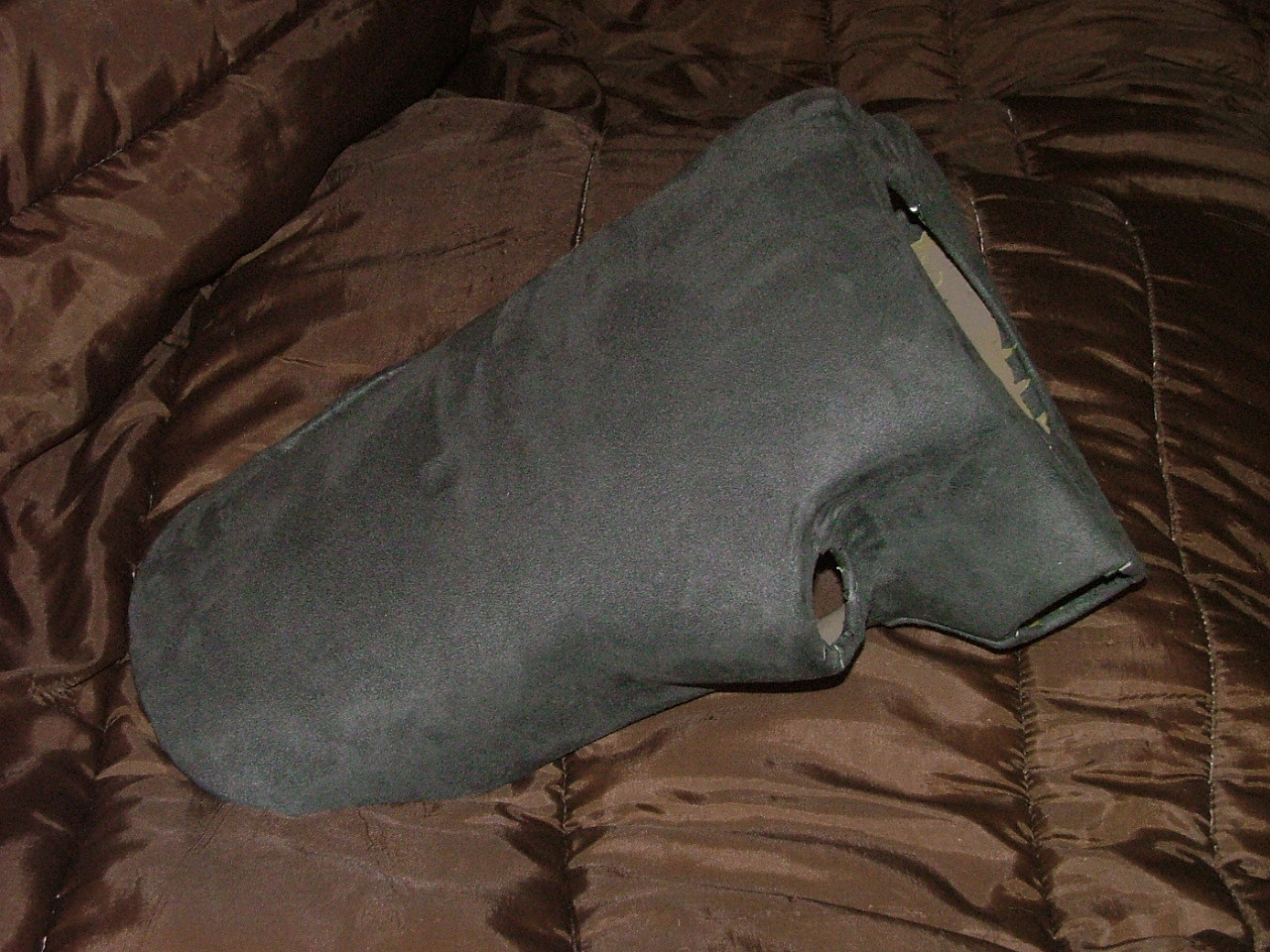

The cover was a little difficult to cover, as there are quite a few compound curves. However, it looks good!

Click to download Click to download
