Fitting the hinge

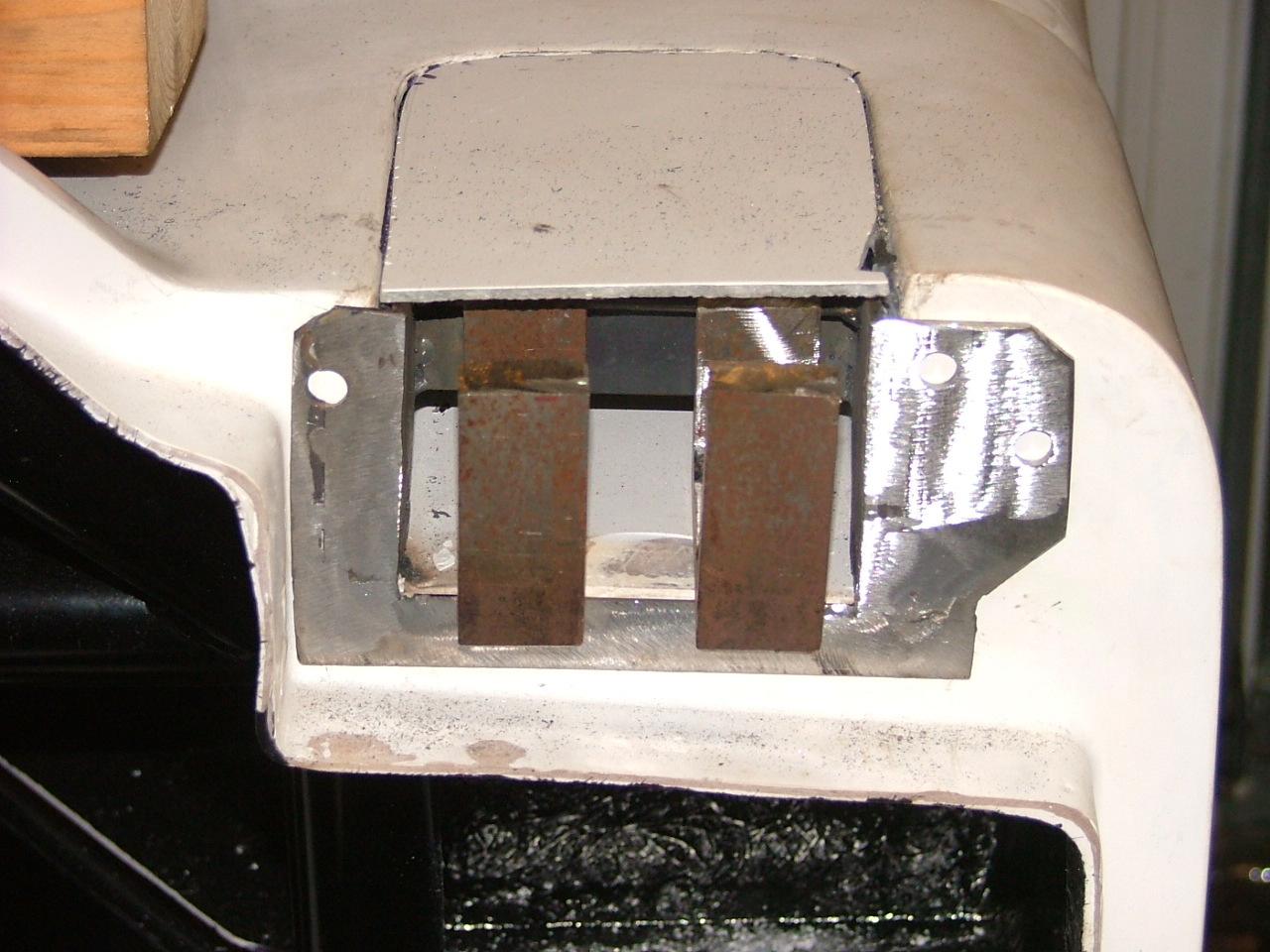

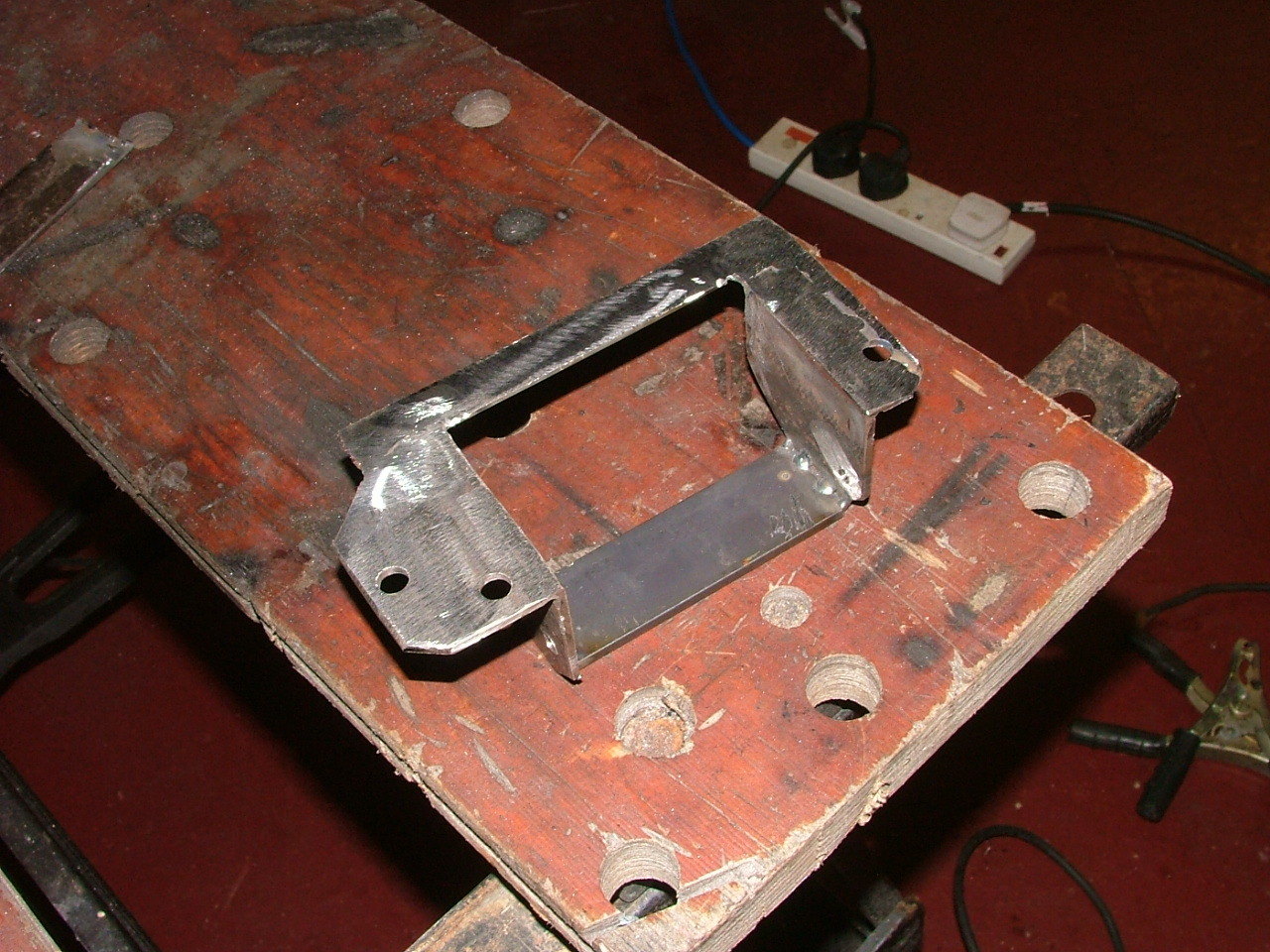

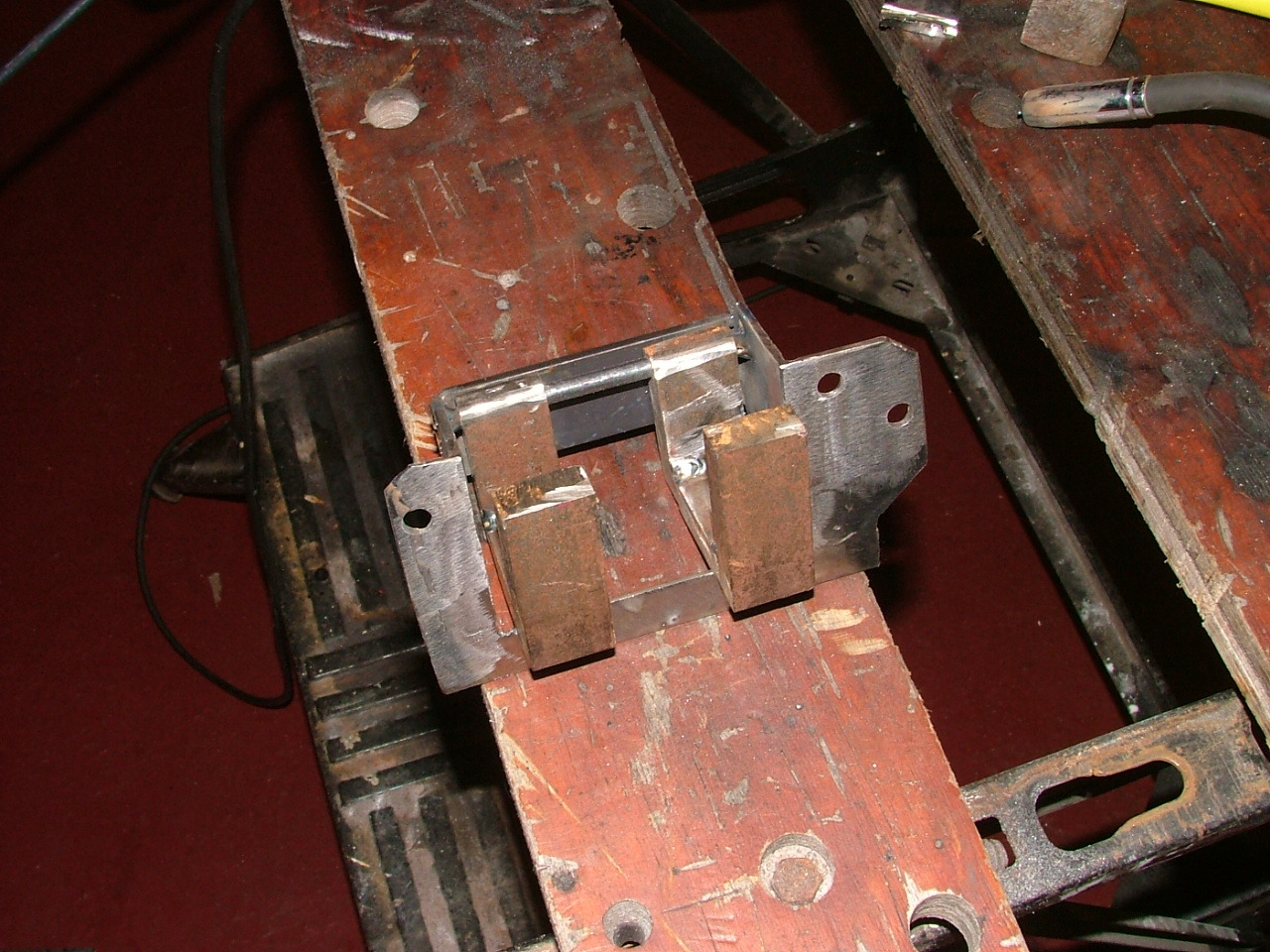

The hinge bracket I'd made earlier needed some modifications - I hadn't accounted for the thickness of the lower right angle section, so I decided to remove it, and replace it with a flat piece instead.

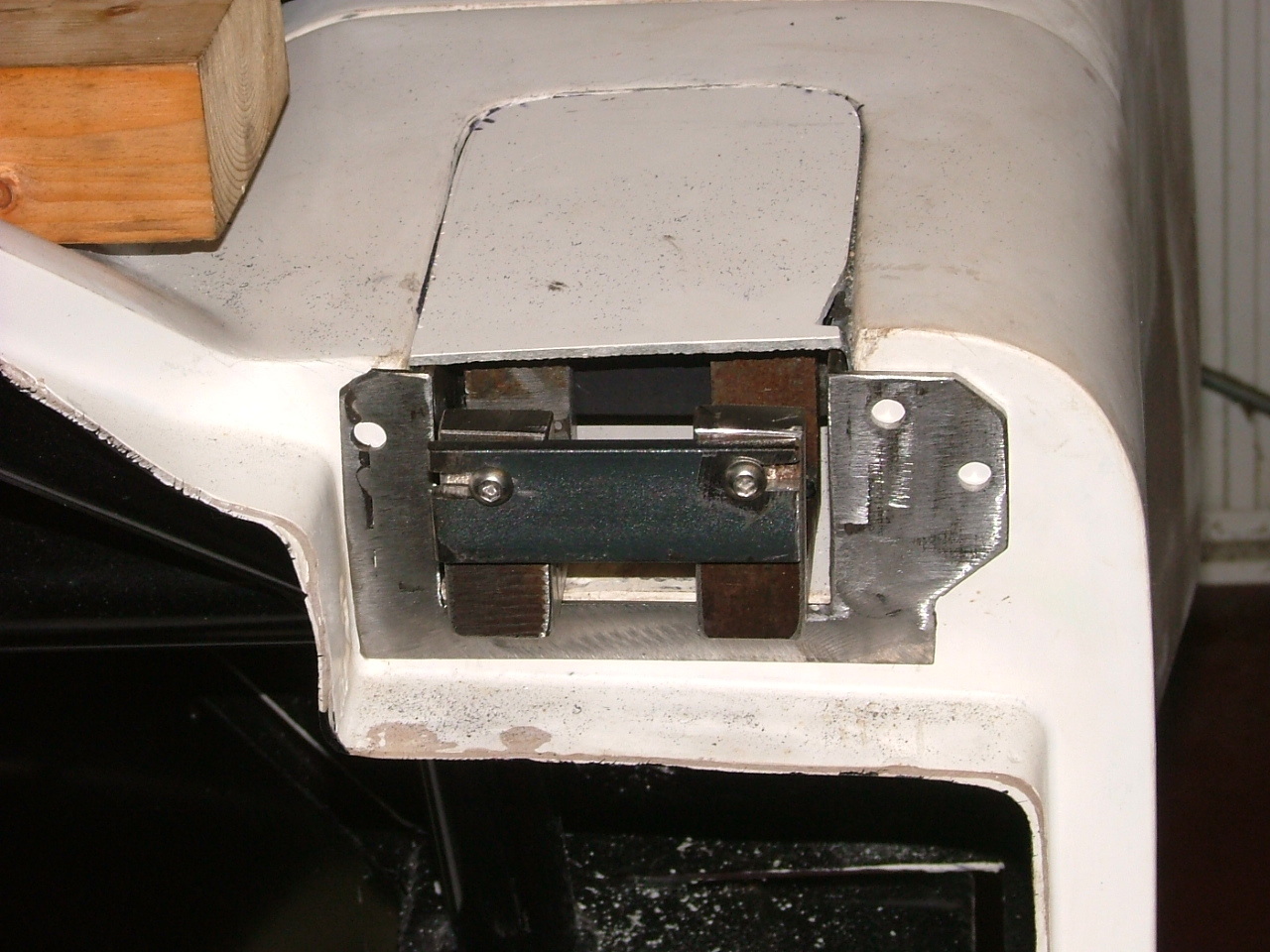

I then used a 6mm rod as the hinge back.

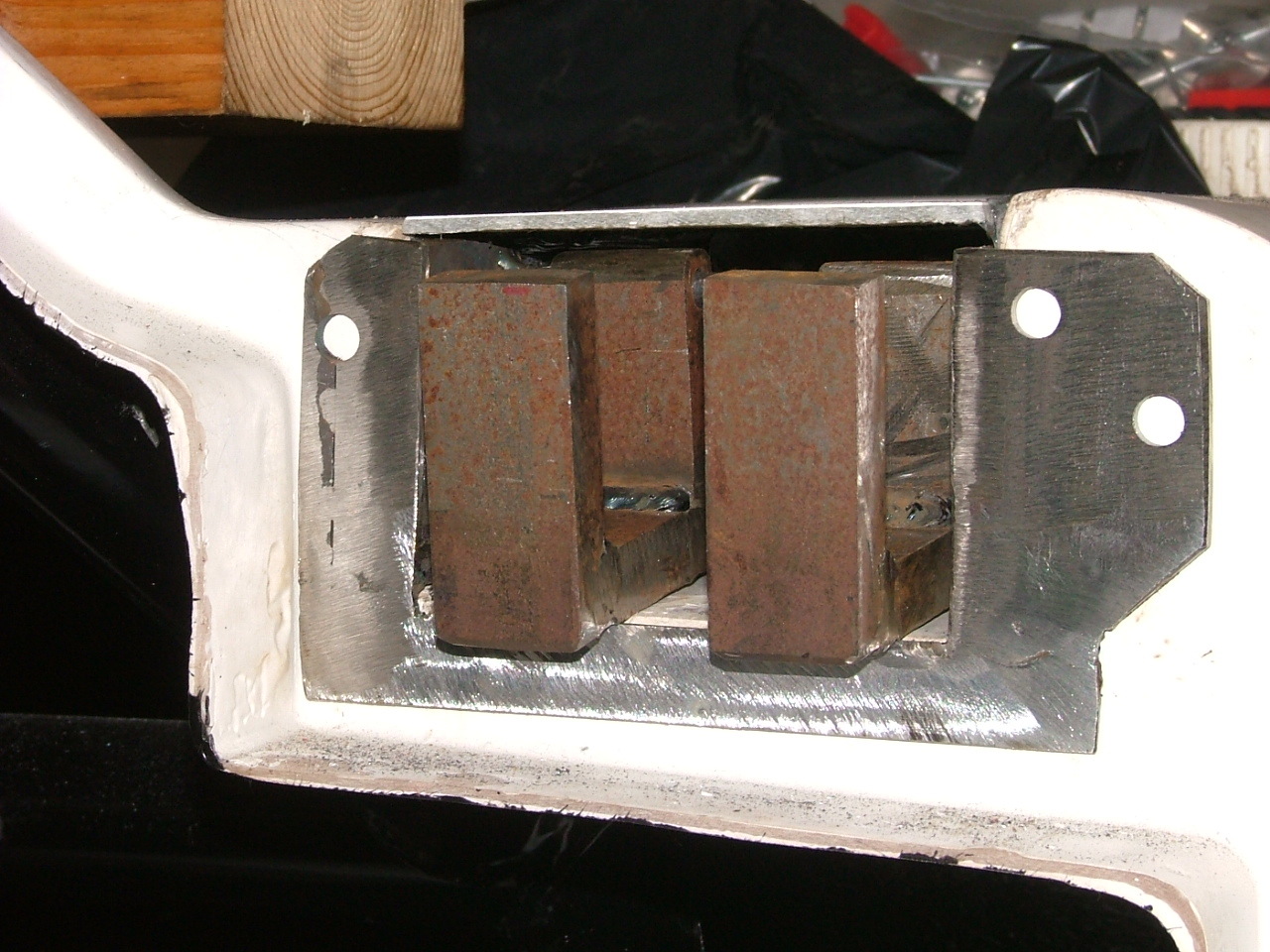

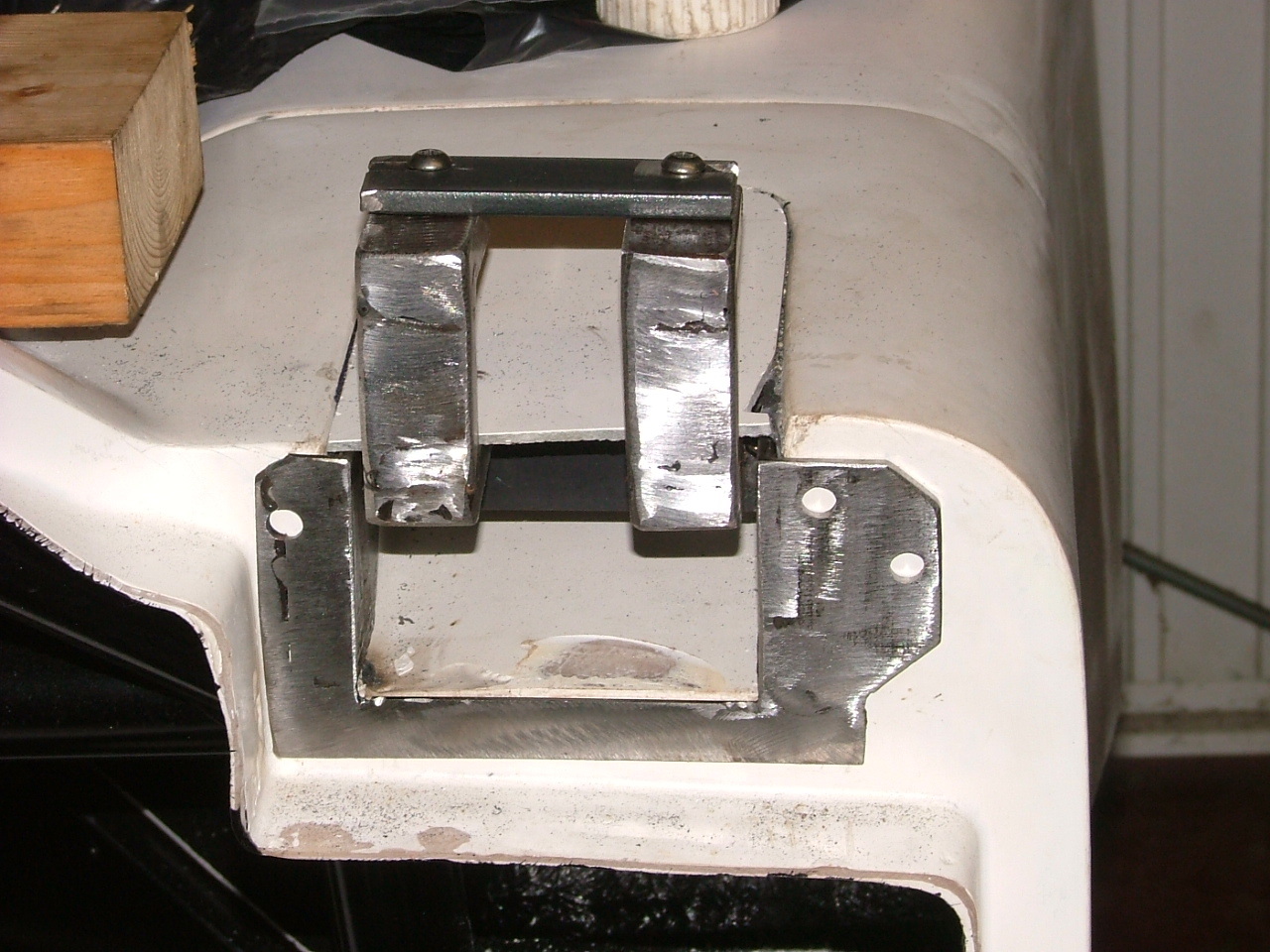

Using a very thick plate and some 6mm bolts to join the two hinges.

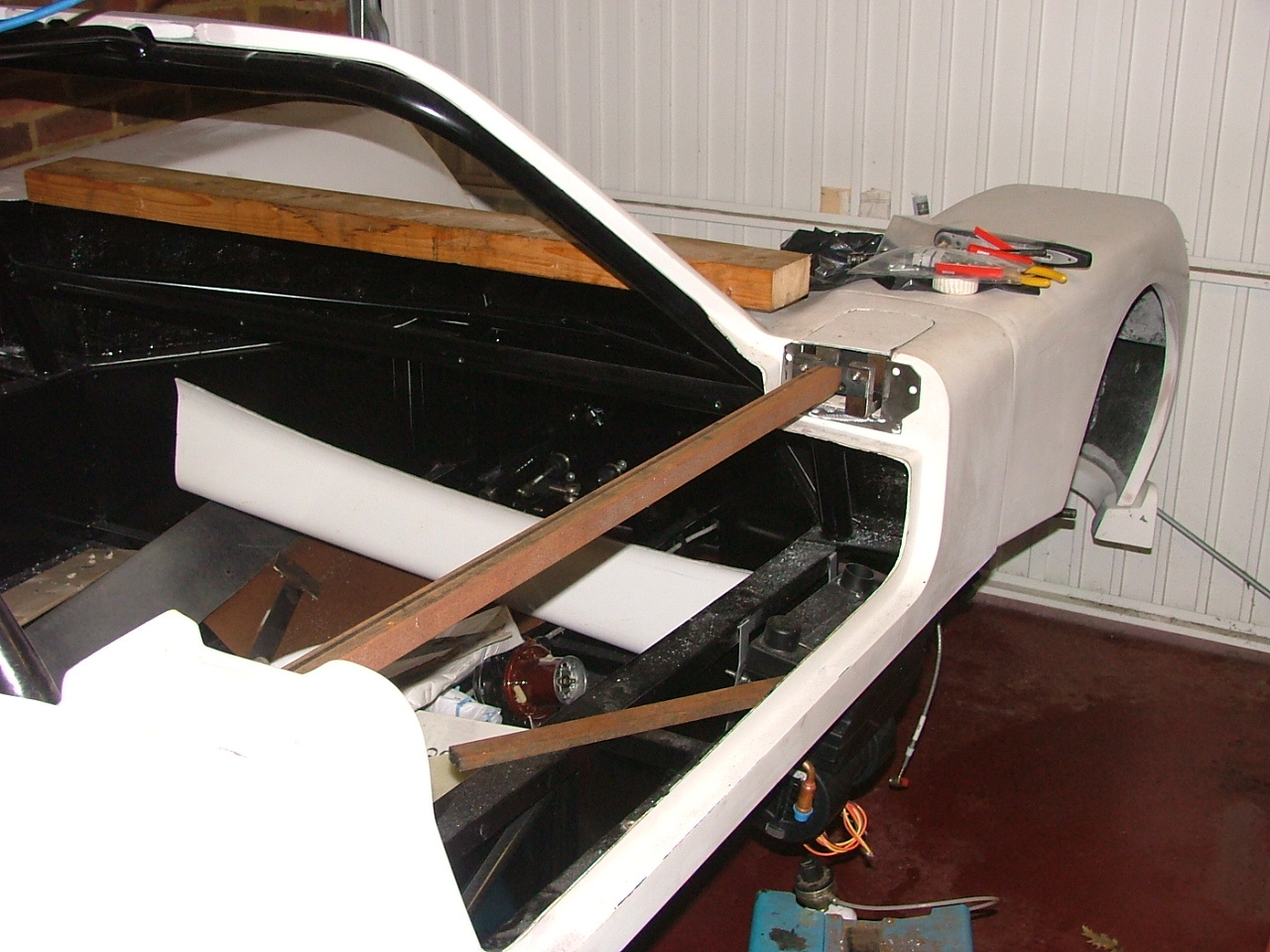

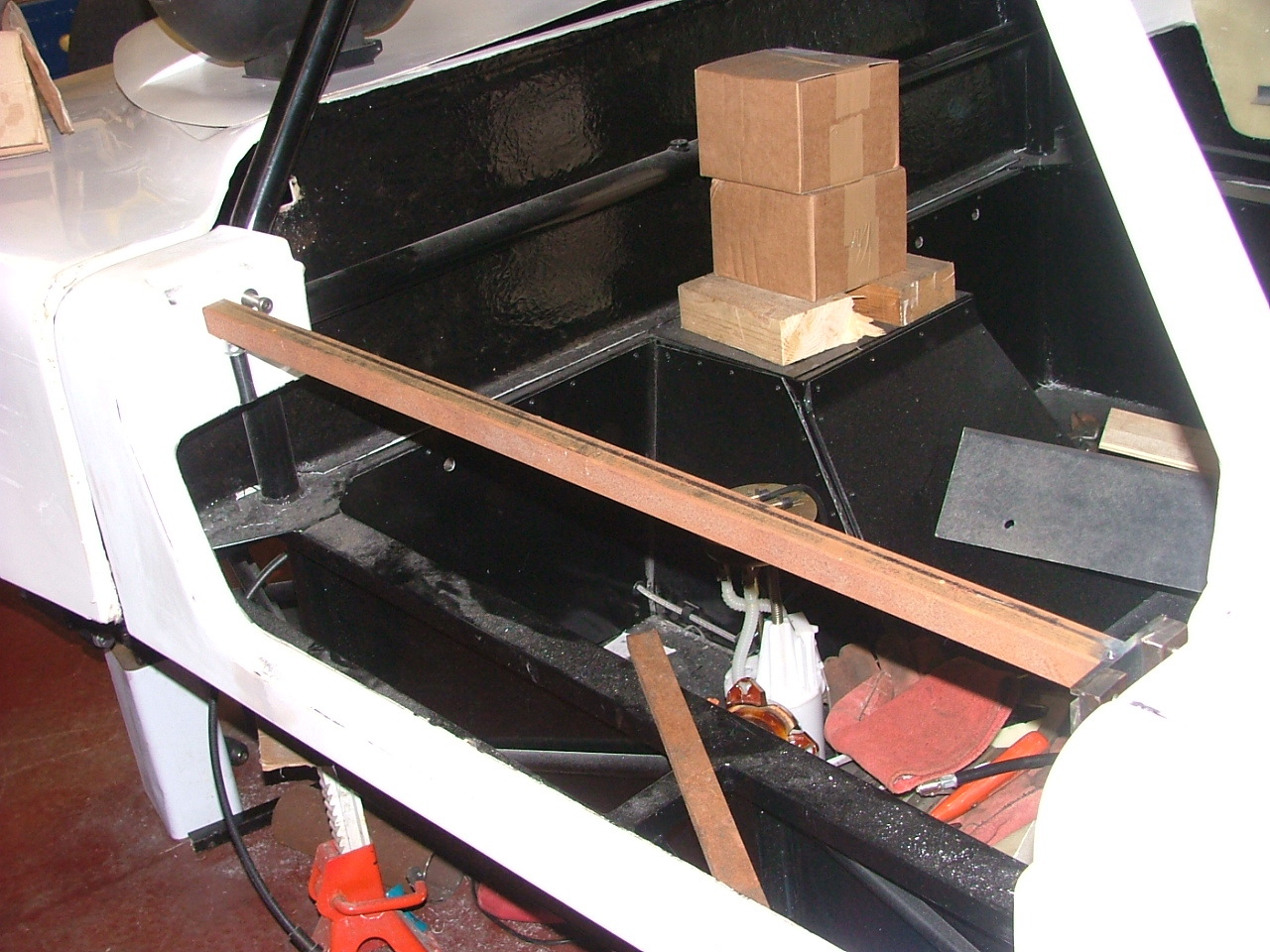

I then cut a length of 25mm square box section as the main door frame. It's only surface rust!

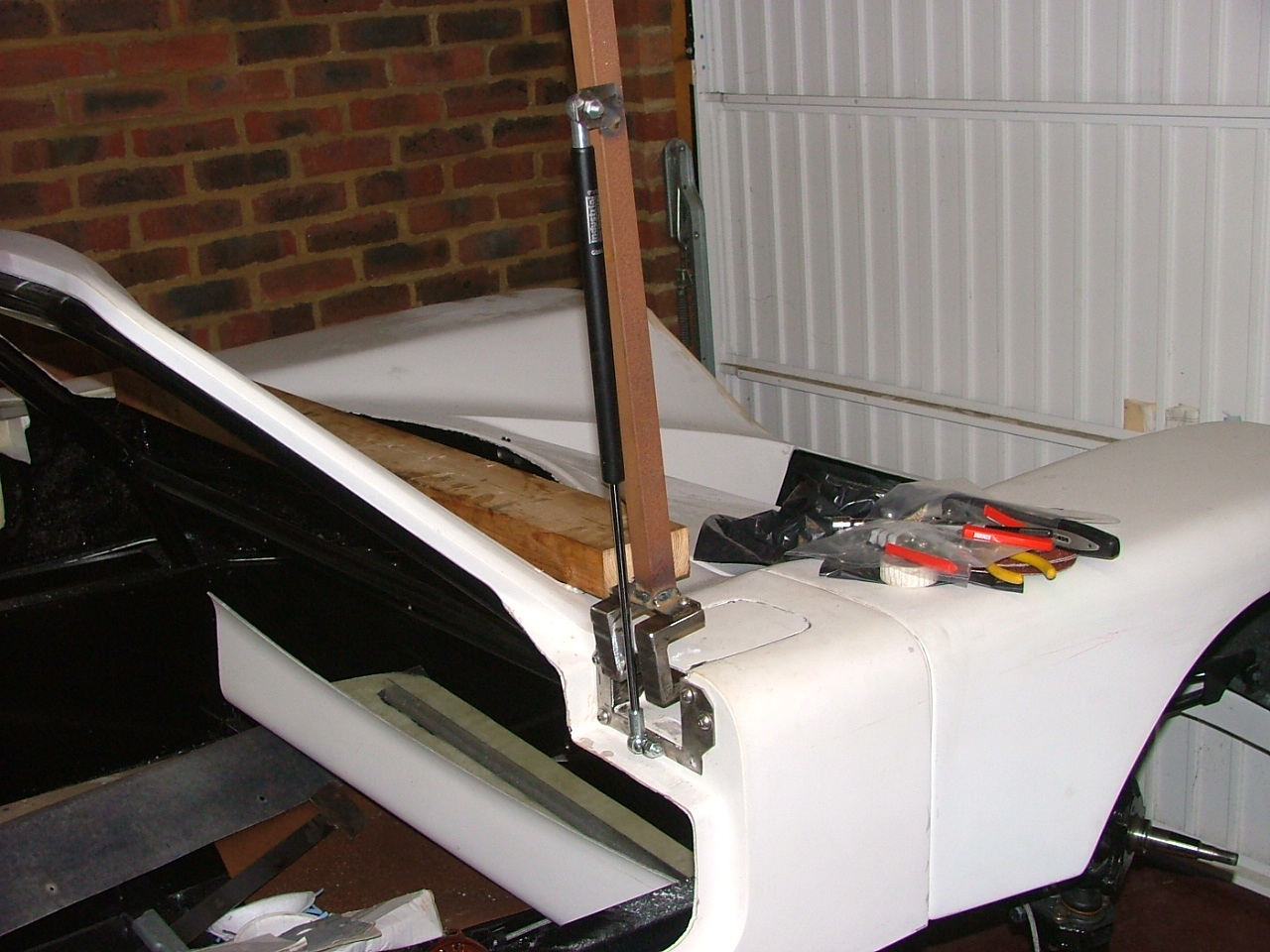

And then I attached the gas spring to it.

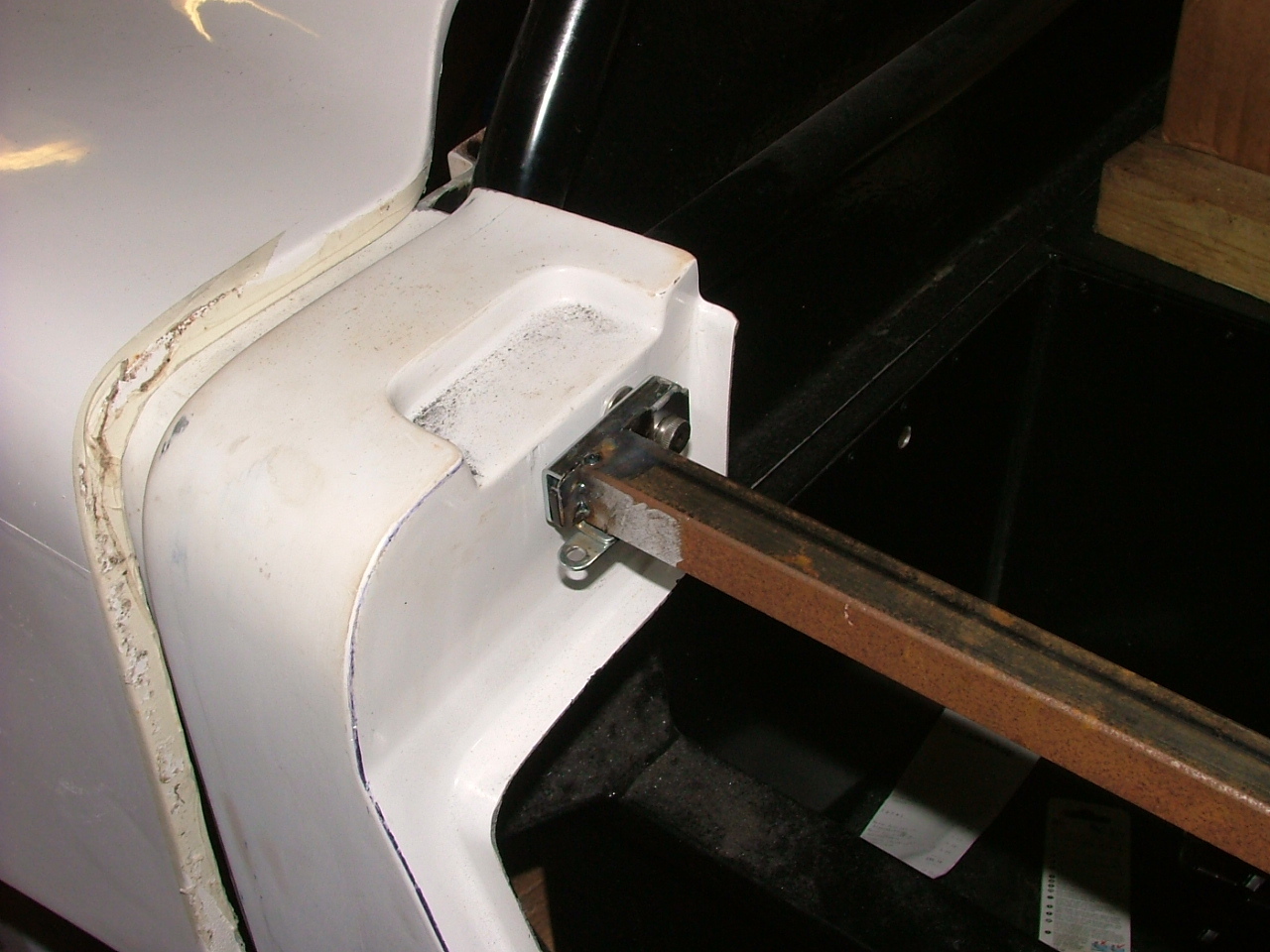

I cut off the end of the door prototype and welded it to the 25mm box section. This part holds the catch.

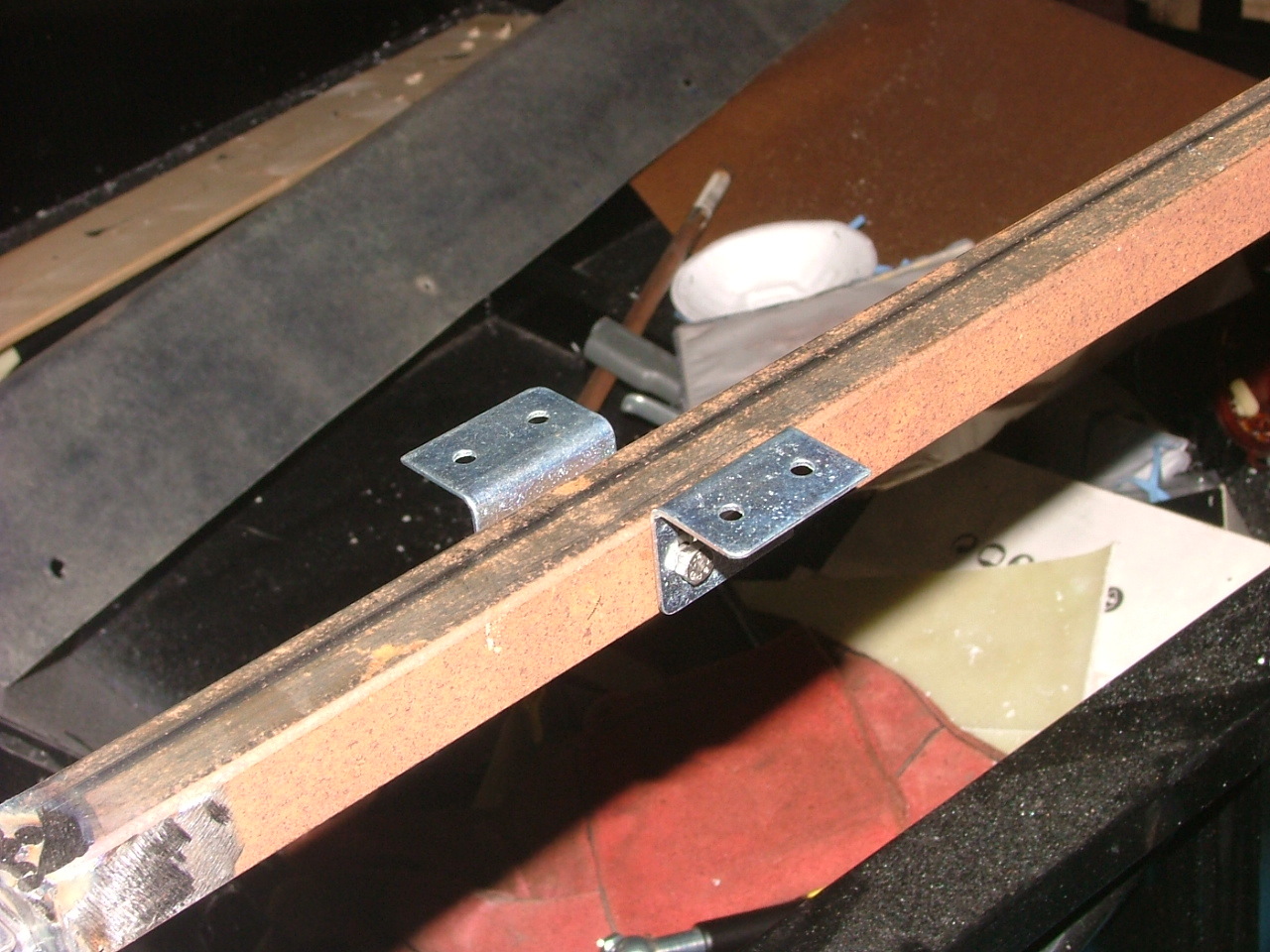

Now I needed something to join the bar to the door that can be adjusted. I found these brackets that are designed to be adjusted - spacing it with some washers allows side to side movement, and the slotted holes allow vertical. If they need to be moved back, I can insert some washers in the hinge section.

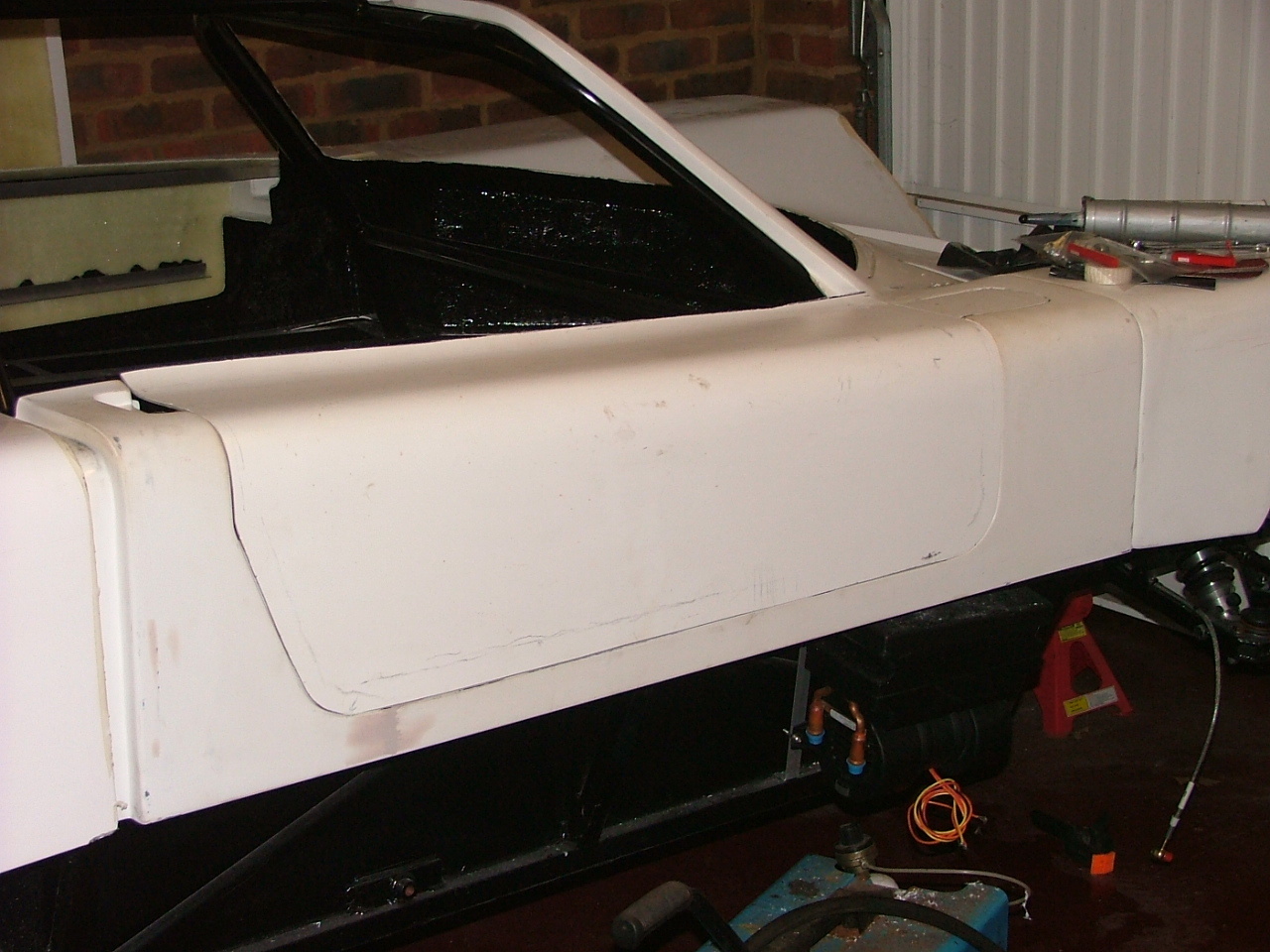

I then put some Sikaflex on the brackets, and placed the door in its desired position.

Because the door needs to be set, I decided not to do the side pods, but I'll do them when the Sikaflex has set. I'll put some GRP over the brackets to hold them very firmly in place.
|
