Day 42 - Preparing for fitting the engine

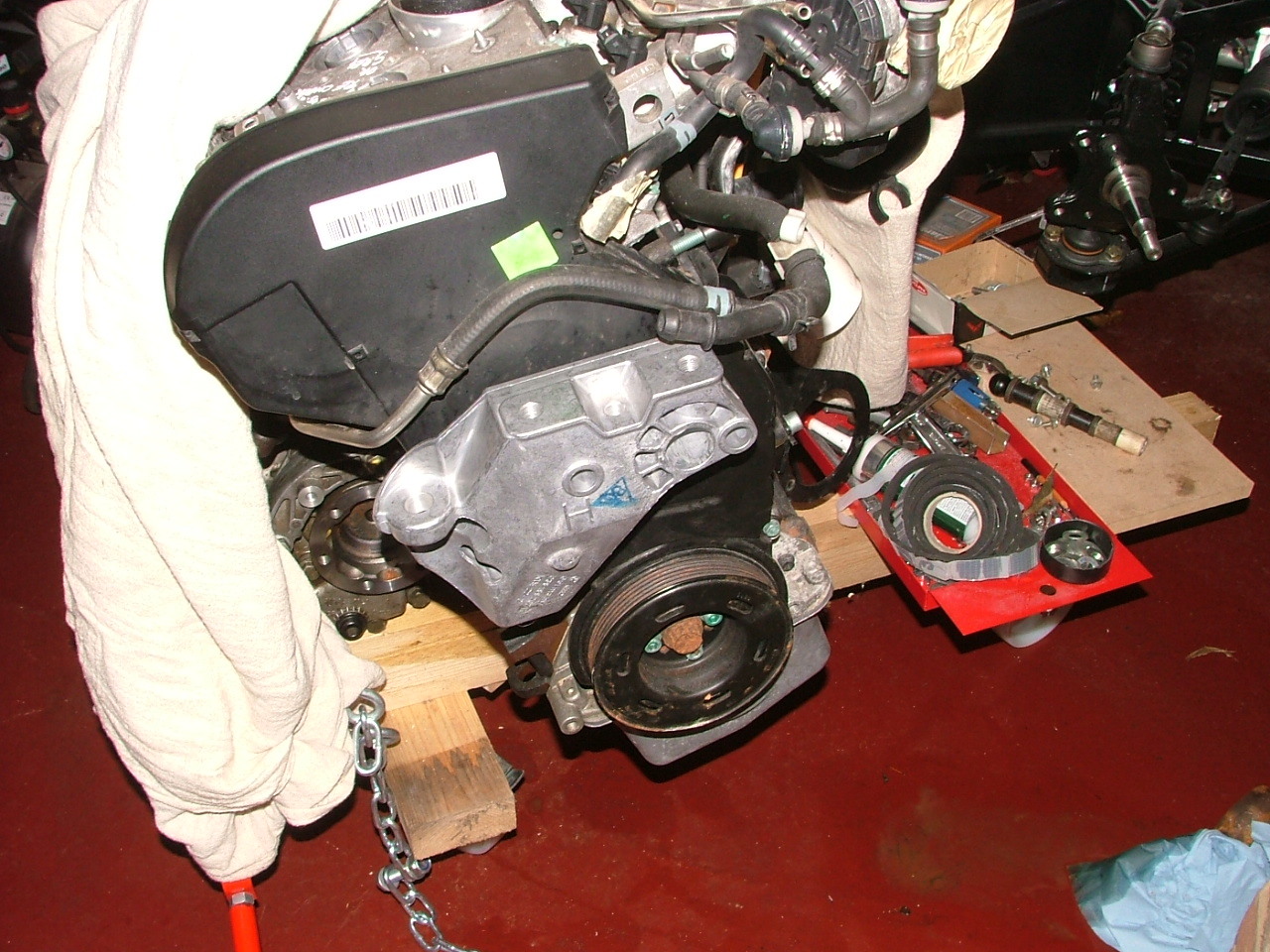

I got some bolts today - M10x75, M10x110 and M12x1.5x30. The first pair allowed me to fit the engine mount bracket to the engine.

Click to download

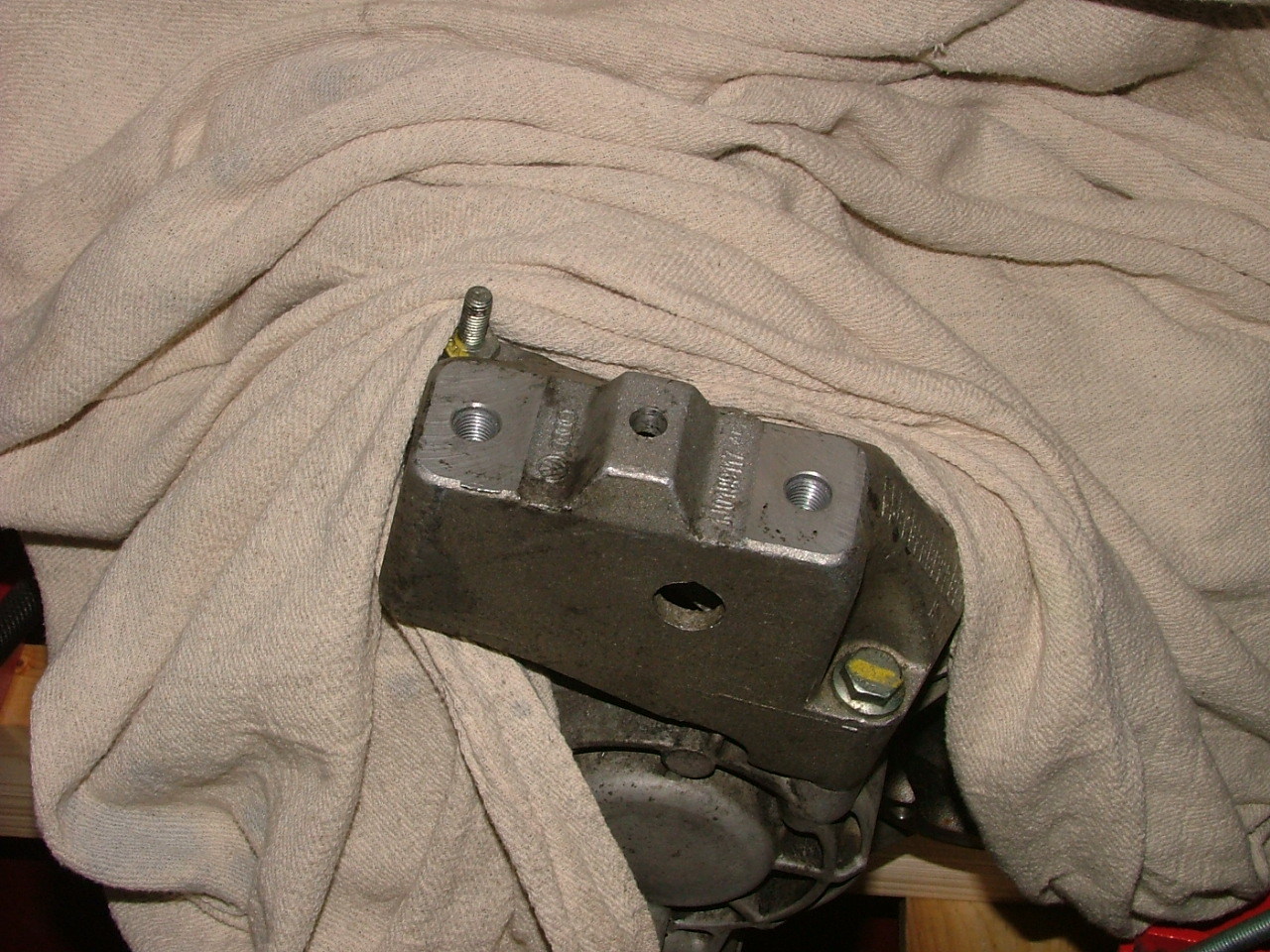

Unfortunately the gearbox has a lug in the middle of it...

Click to download

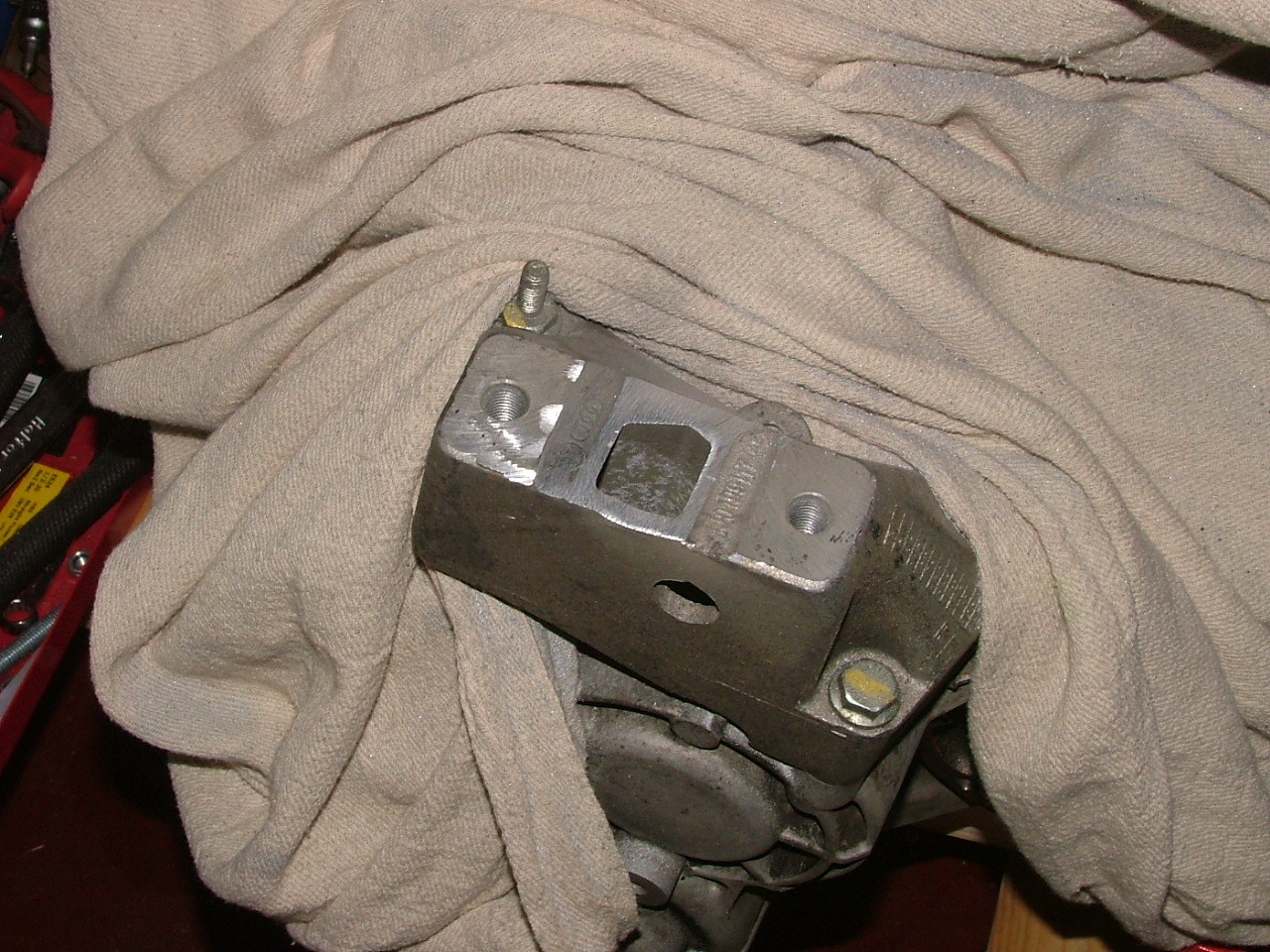

...which can be easily removed!

Click to download

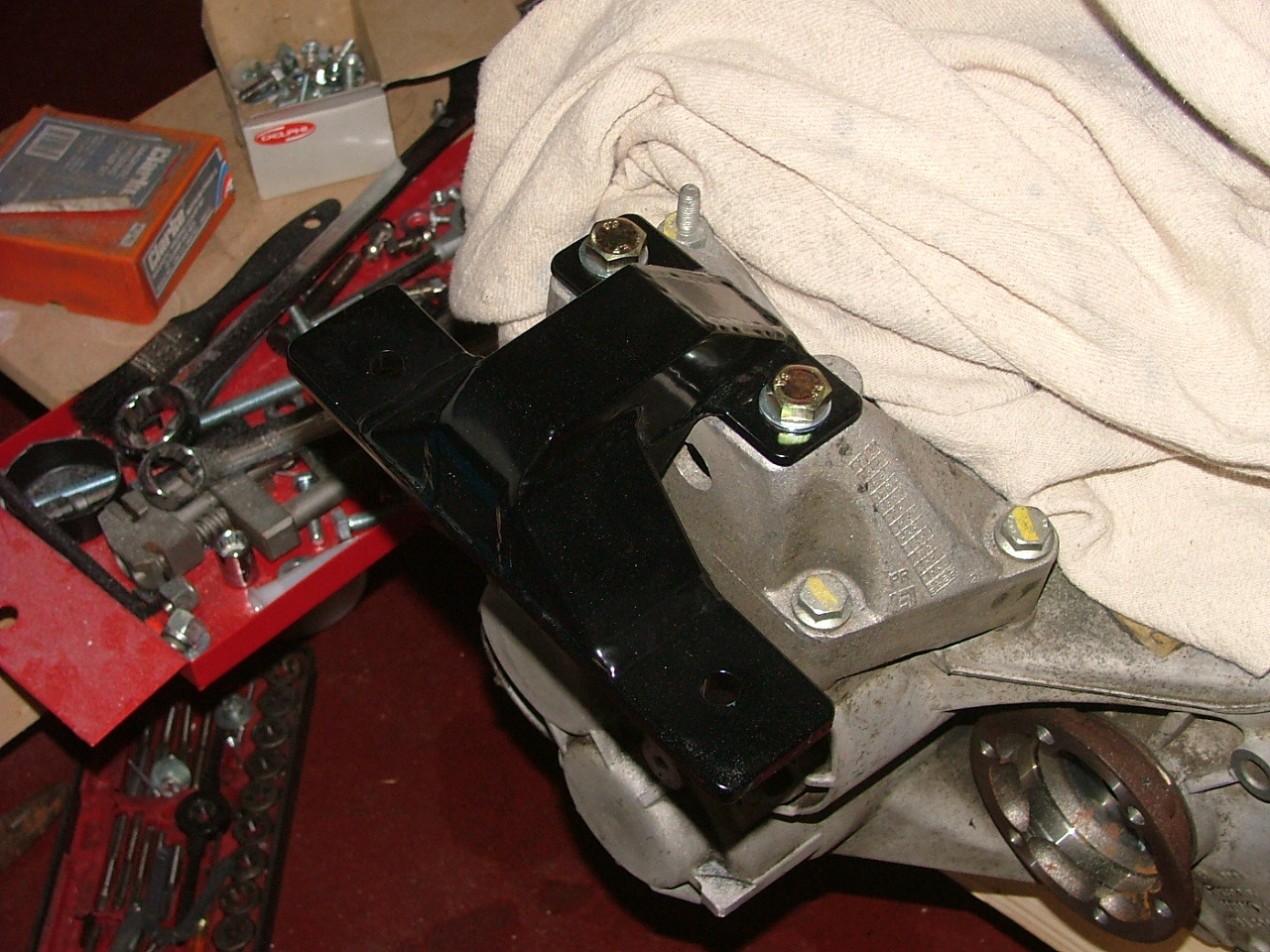

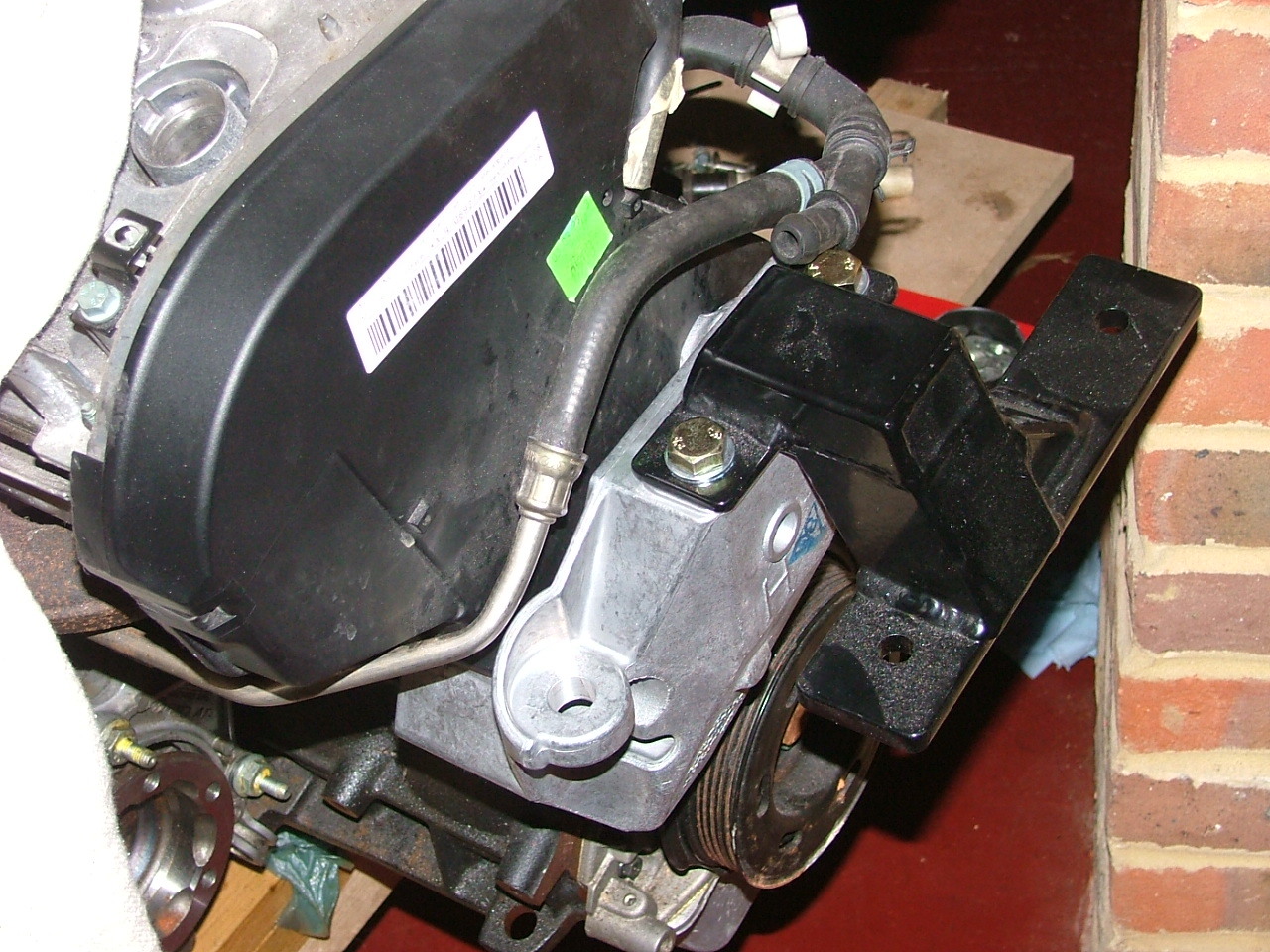

And the M12x1.5x30 bolts joins the mounts to the brackets that were made by Aeon for the VAG engine/gearbox.

Click to download Click to download

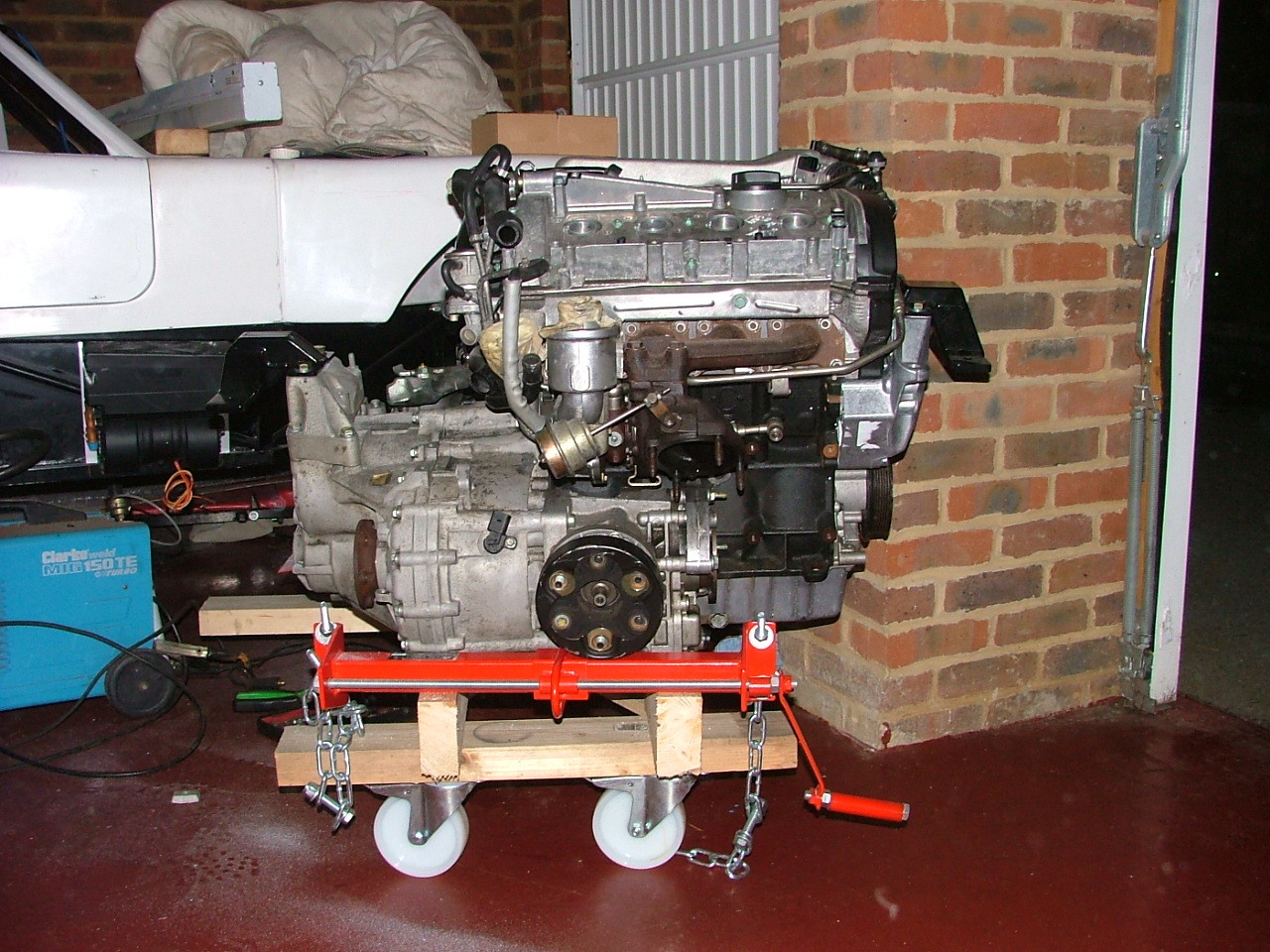

I'm slightly concerned that my gearbox may be a different size to the demonstrators, and I may need to make either a new bracket, modify this one, or create an extension.

Click to download

Looking at some of the other pictures I took of the demonstrator, it looks all right!
