Day 59 - Intercooler and 2nd intake

I had three ways I could see to mount the intercooler.

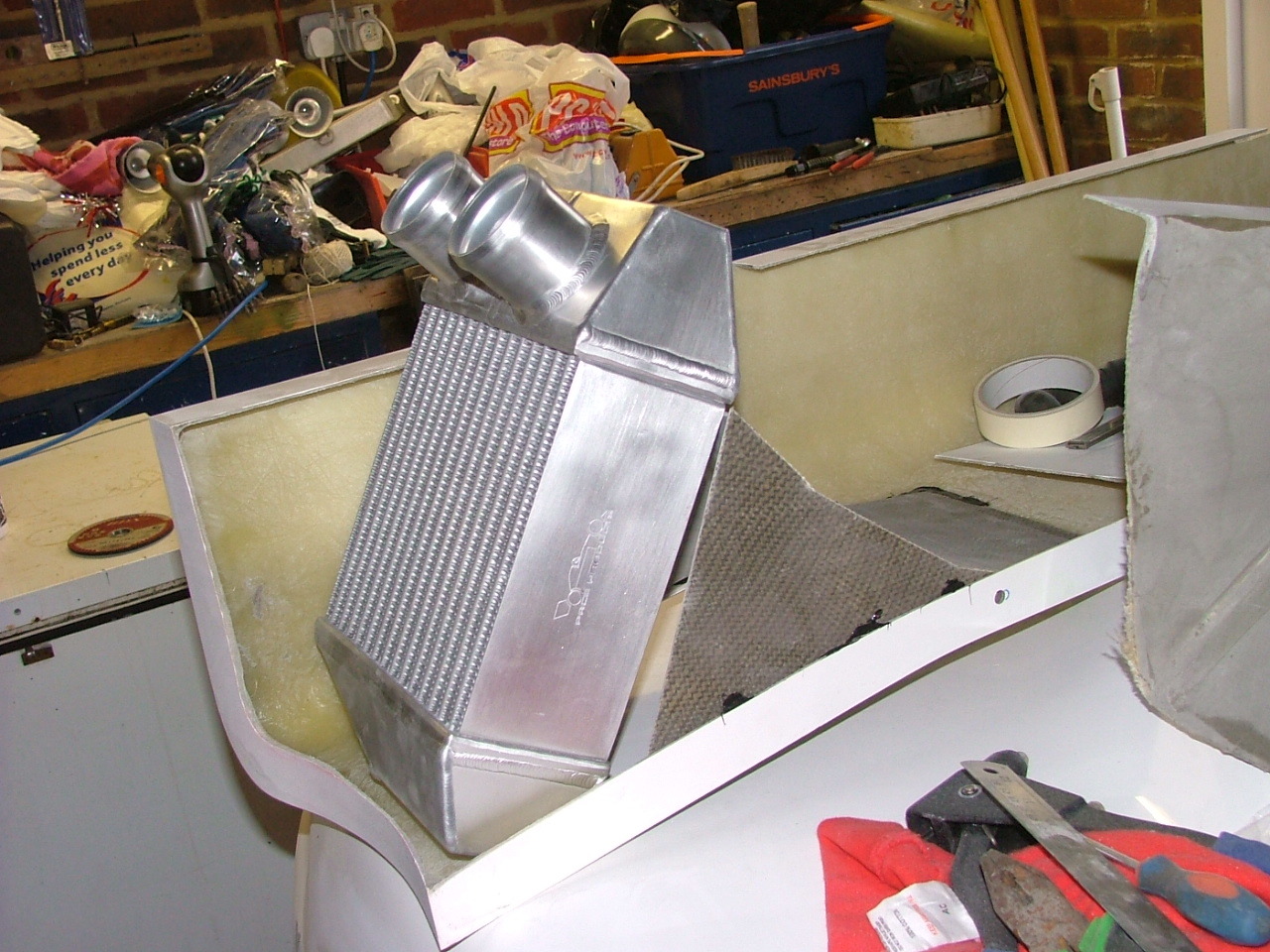

Firstly, across the intake.

Click to download

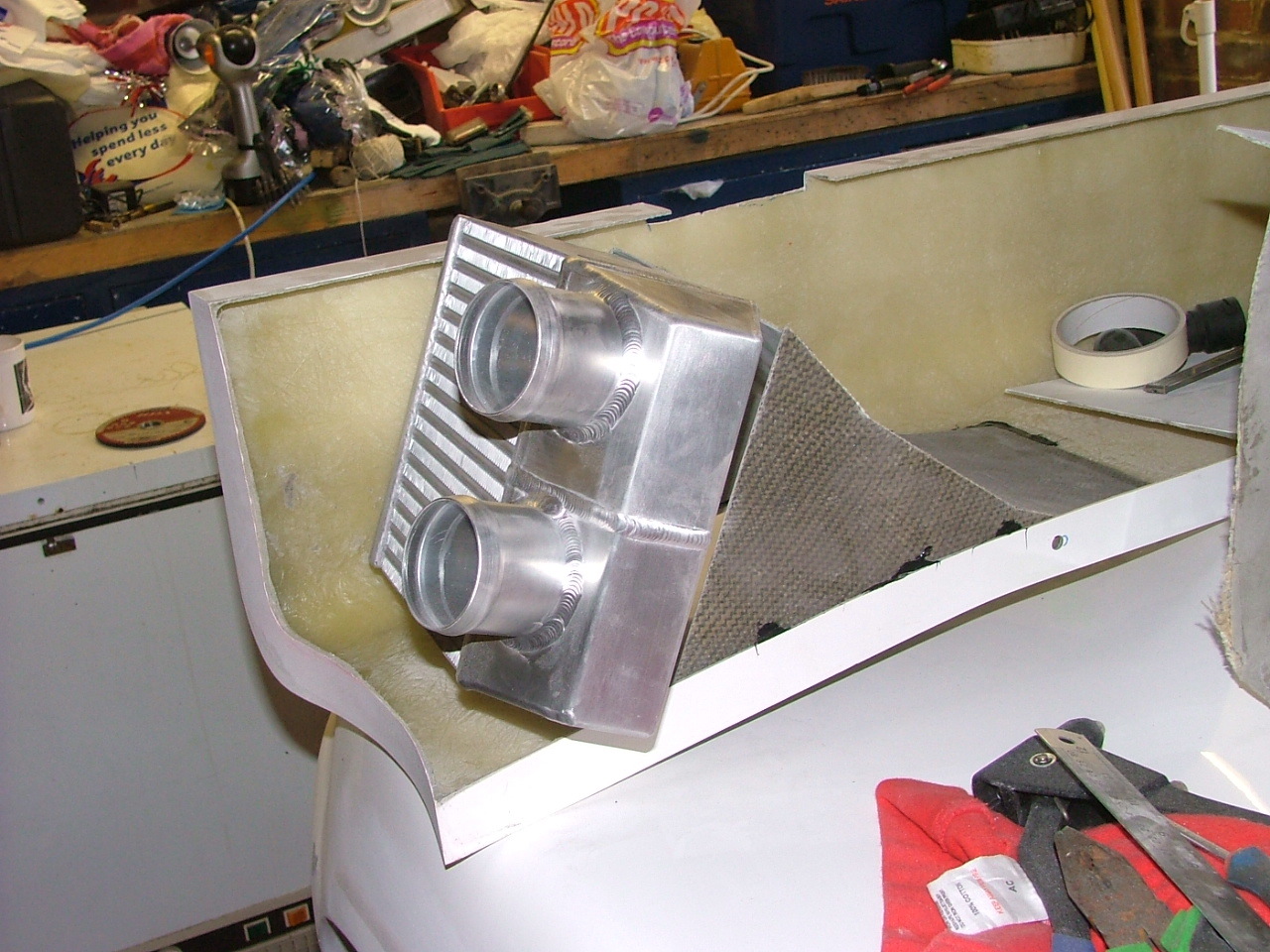

Secondly, running vertical to the intake (this was my original idea).

Click to download

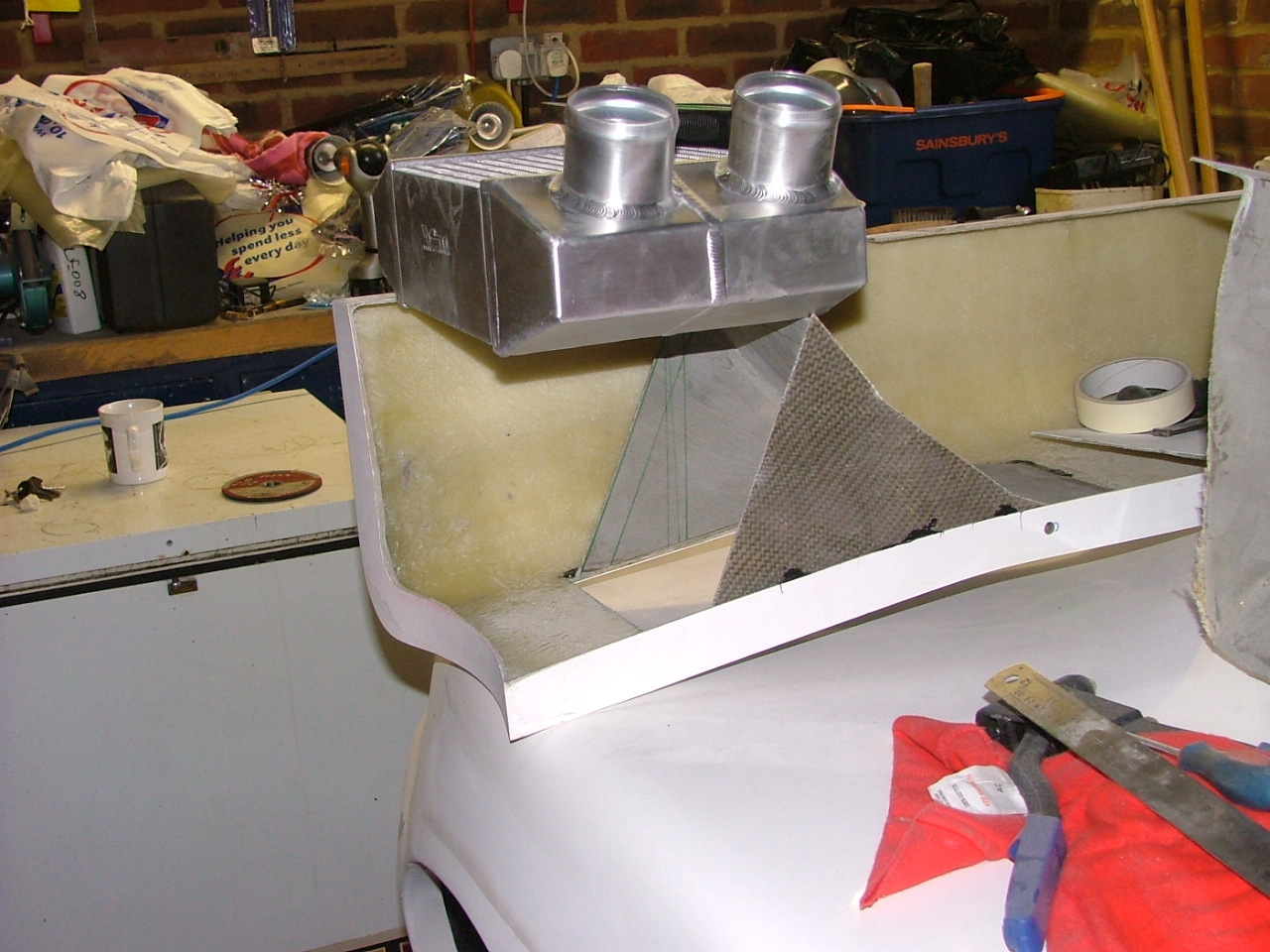

And thirdly, with an extra bit of ducting, perpendicular to the motion of travel.

Click to download

The first option means it doesn't interfere with the top section - however, there isn't enough room behind the side pod to arrange it in this way.

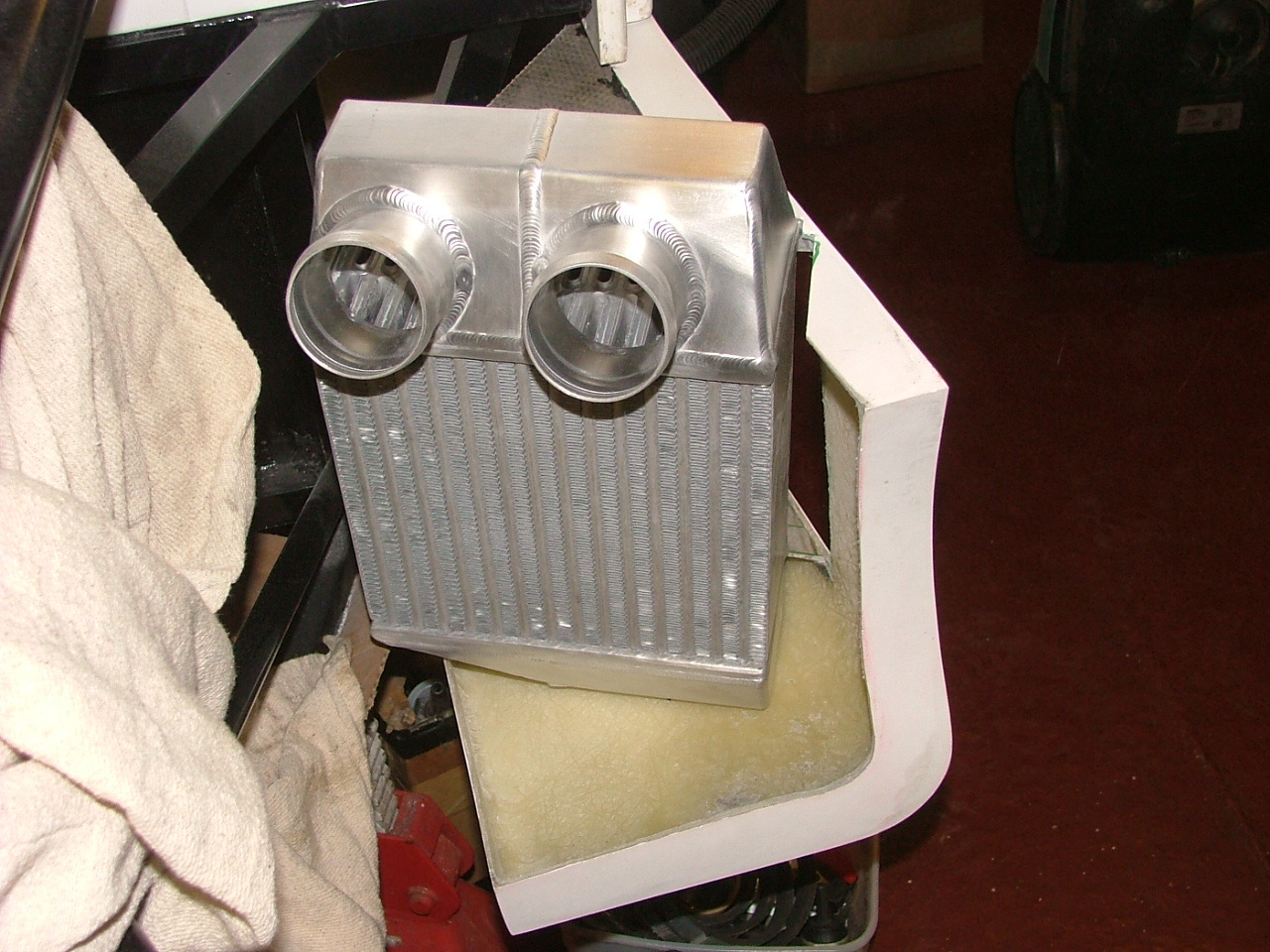

The second option doesn't require that much space behind it, but it will probably need some protection from the wheel - also, the entry/exit pipes will require a bend very shortly after their extremities.

The third option won't require this protection - however, like the first option, there isn't enough space behind it to fit it.

So, I went for the second option. If I find that I can't get a tight enough bend in the space provided, I'll have to get an intercooler made for the job.

Click to download Click to download

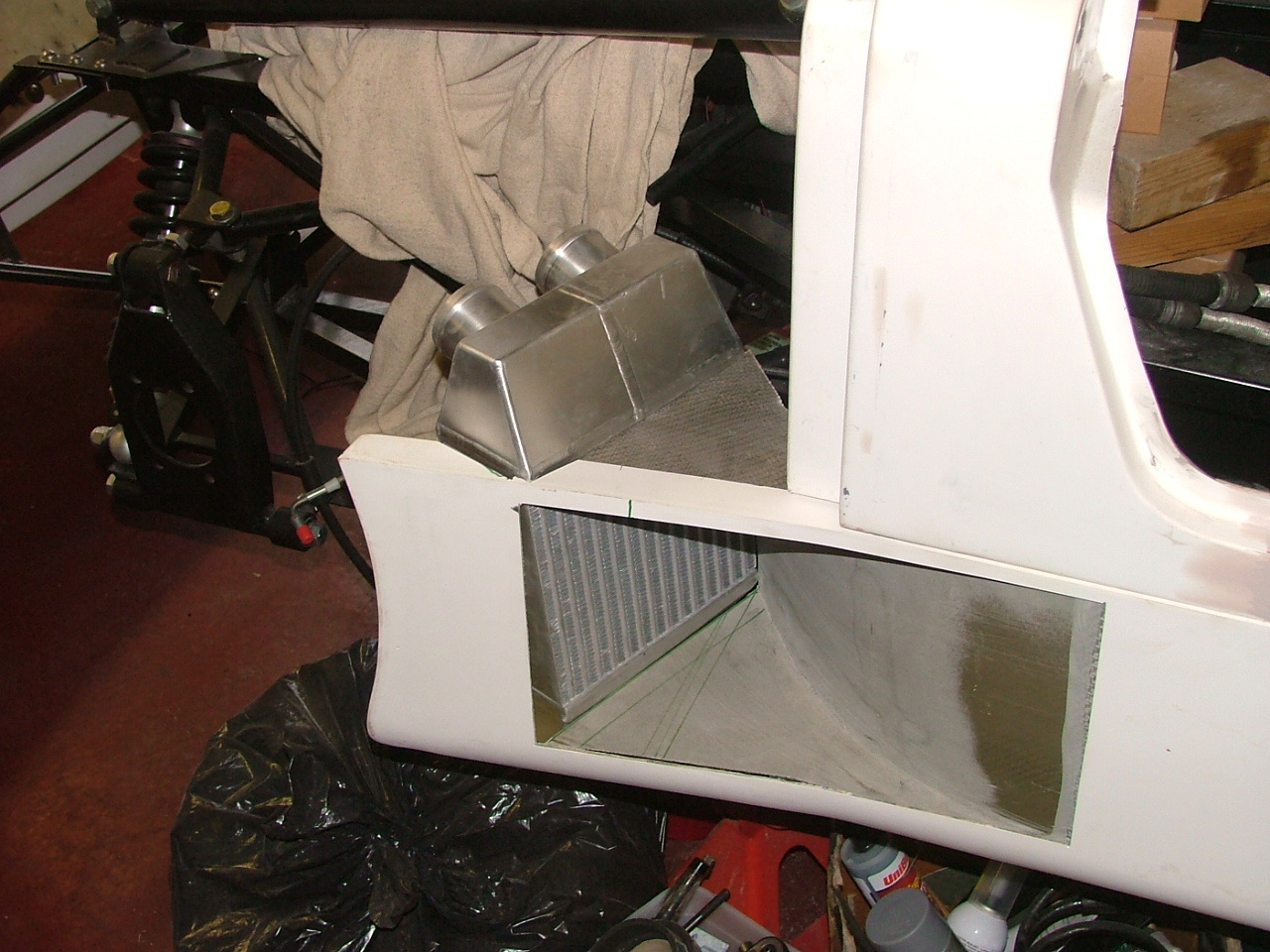

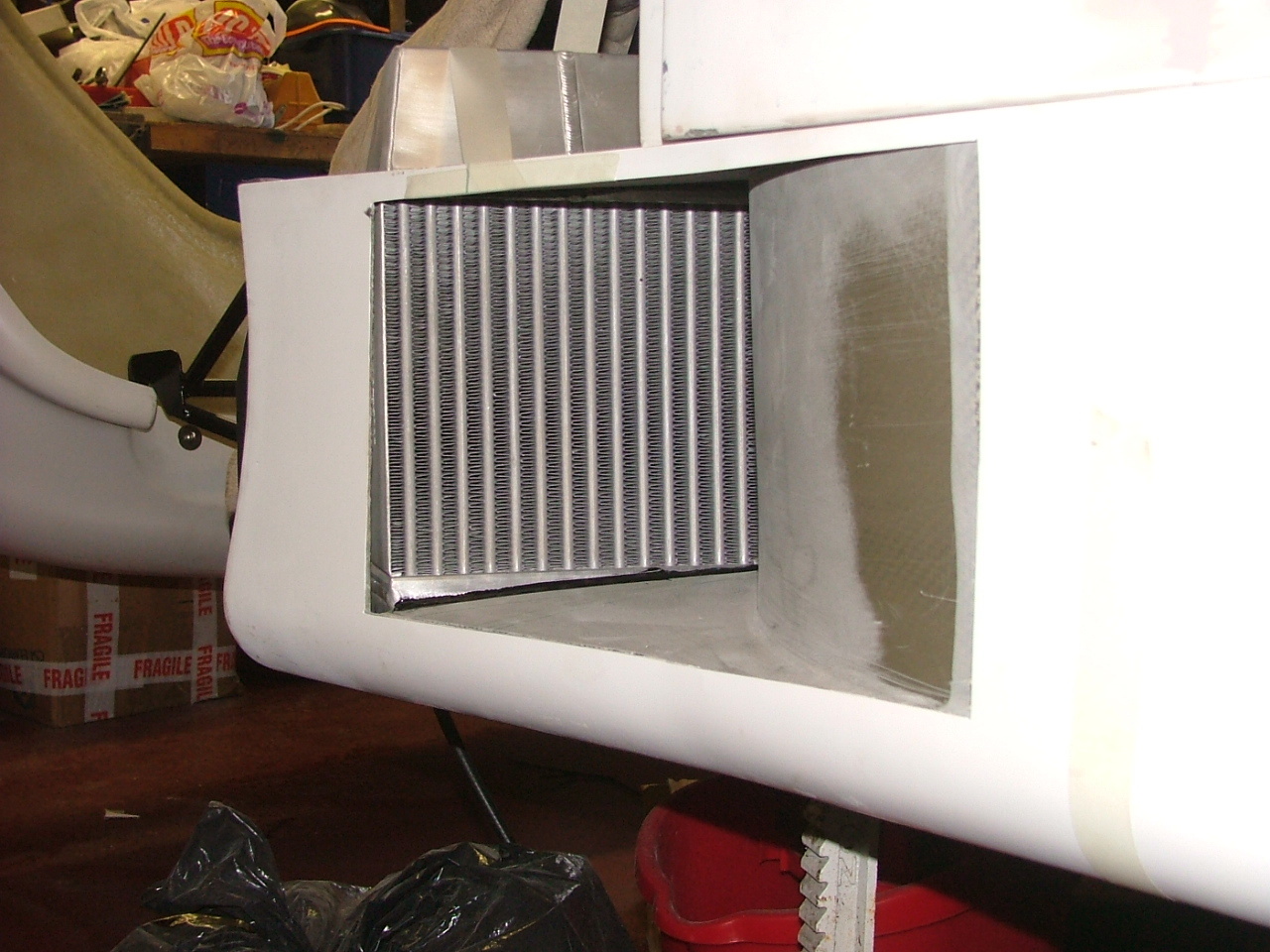

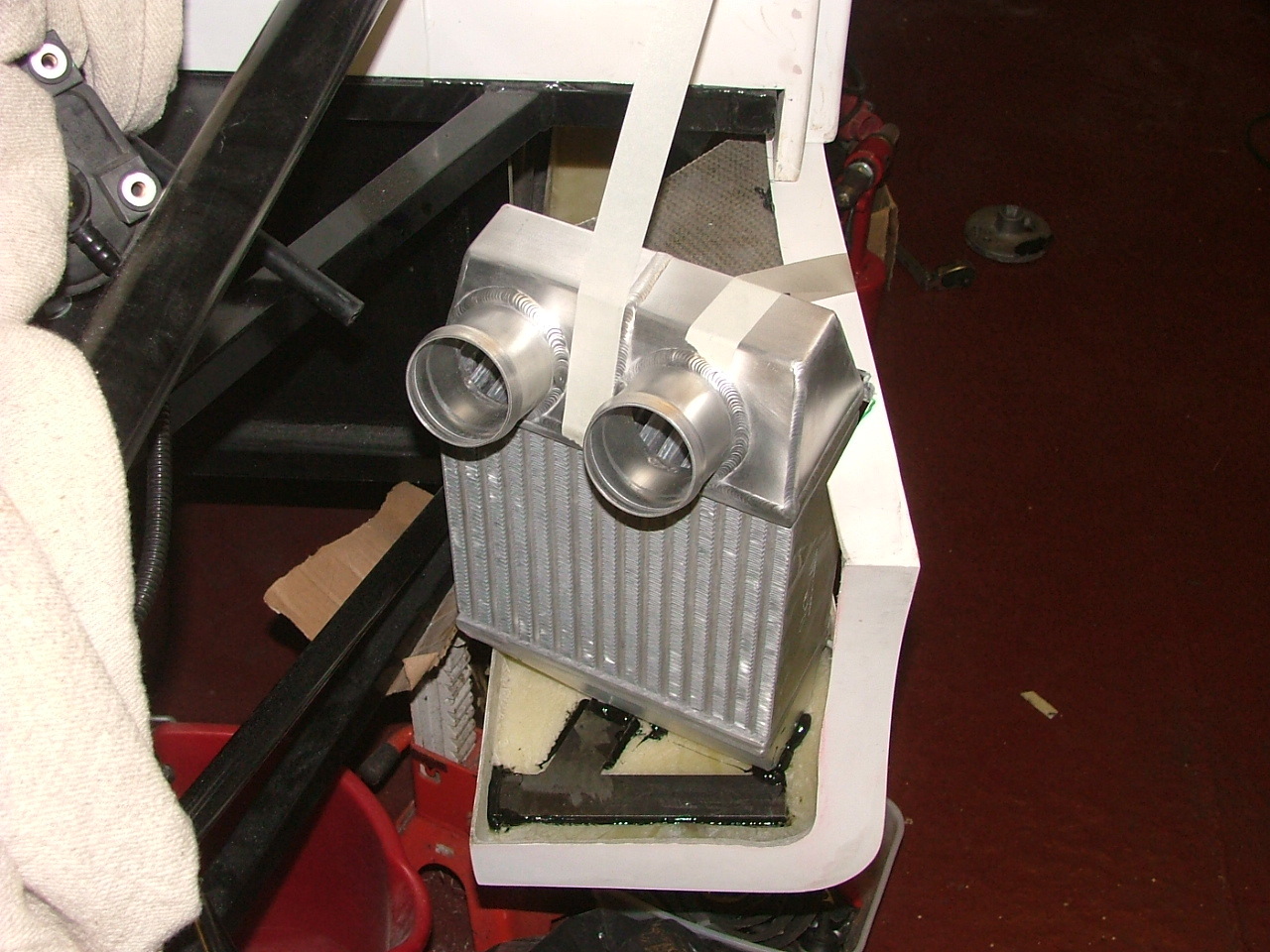

I then bonded it in place with Sikaflex - I'll have a look at it when its set to see how I can make some brackets to hold it - bonding may be strong enough though!

Click to download Click to download

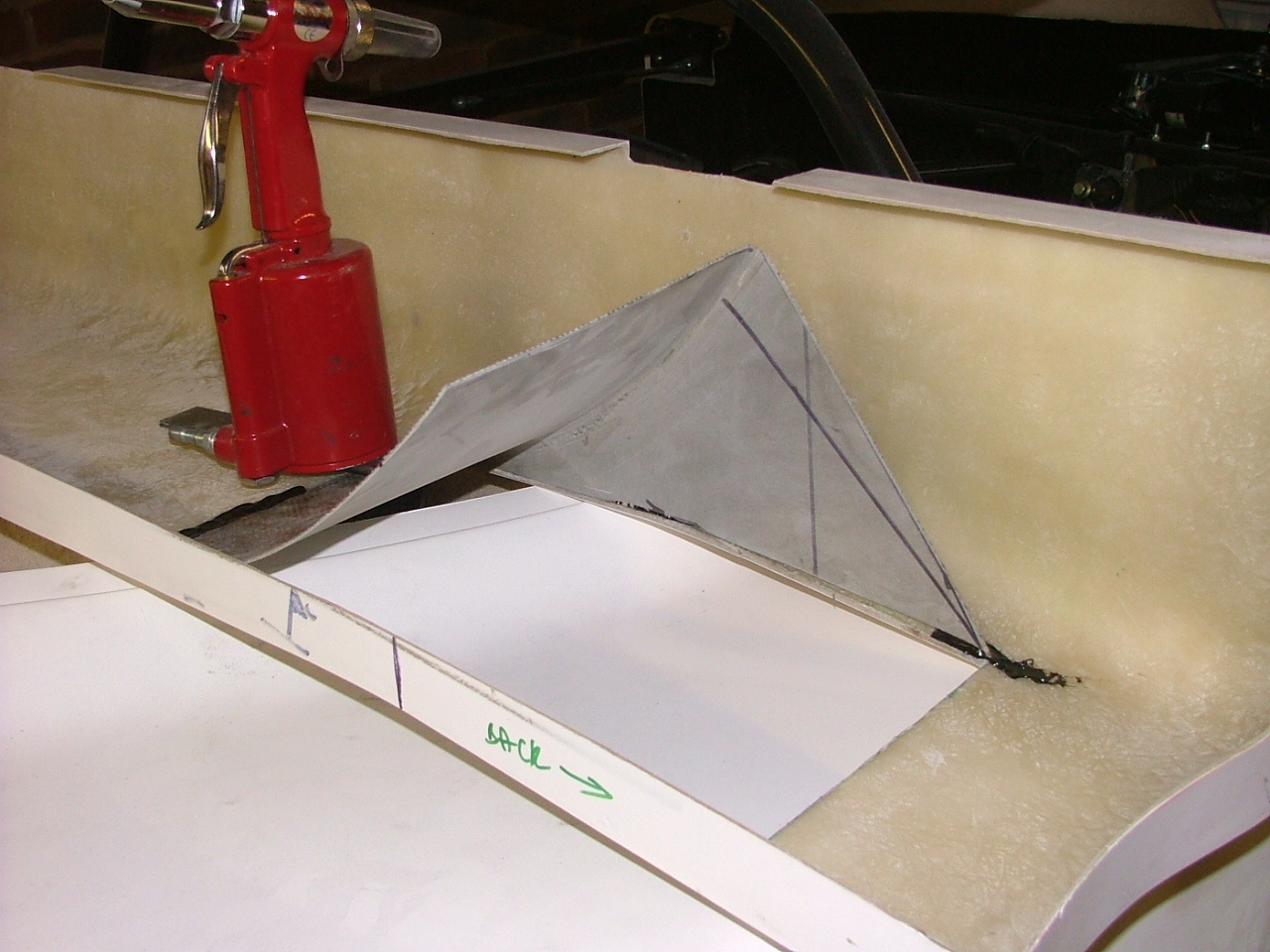

Yesterday's work on the first intake made it easy to make the second intake. This one will house the air filter.

Click to download

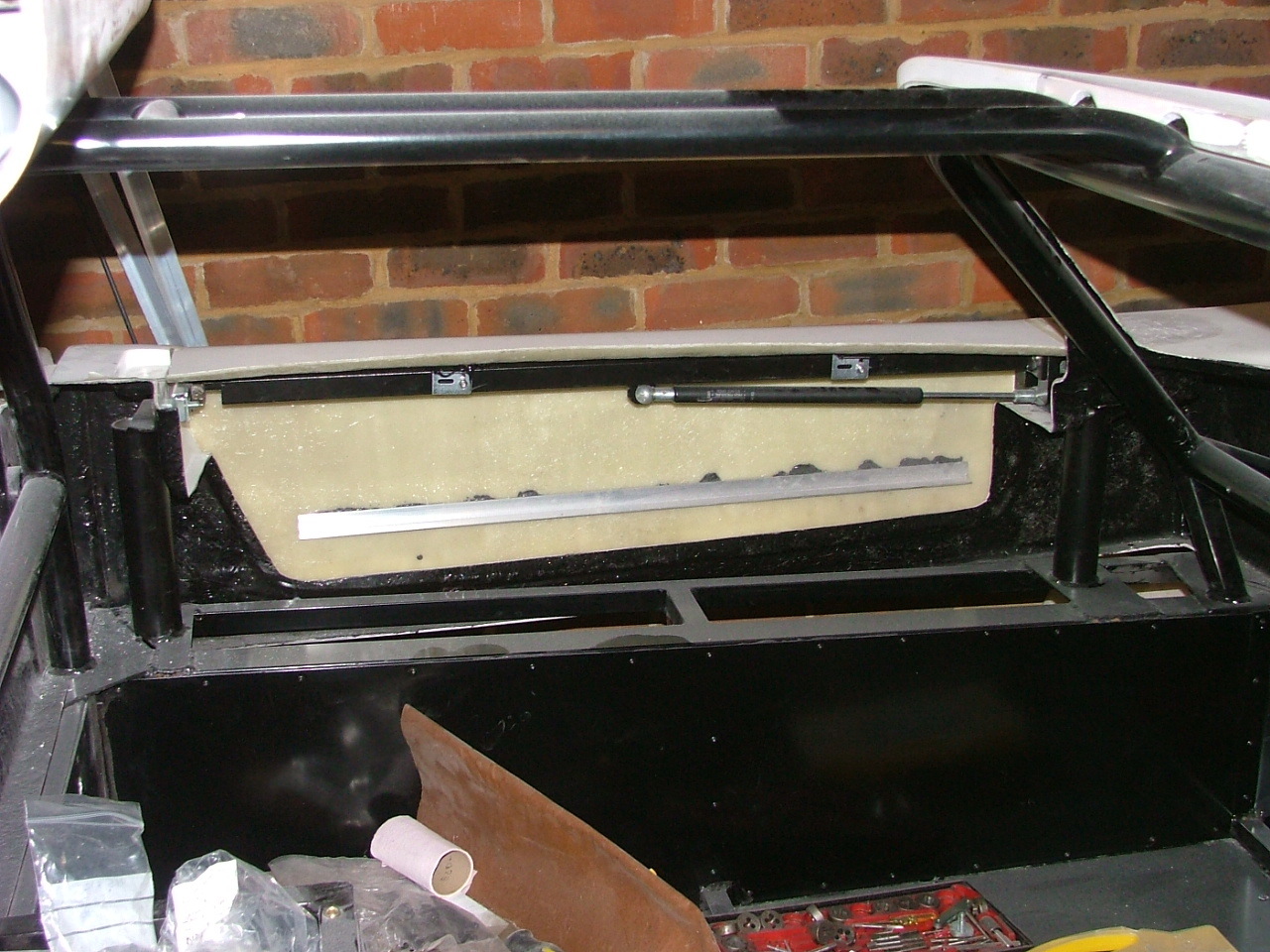

I've got a bit of a cold, so I'm taking it easy - so before finishing for the day, I glue the other door in place.

Click to download

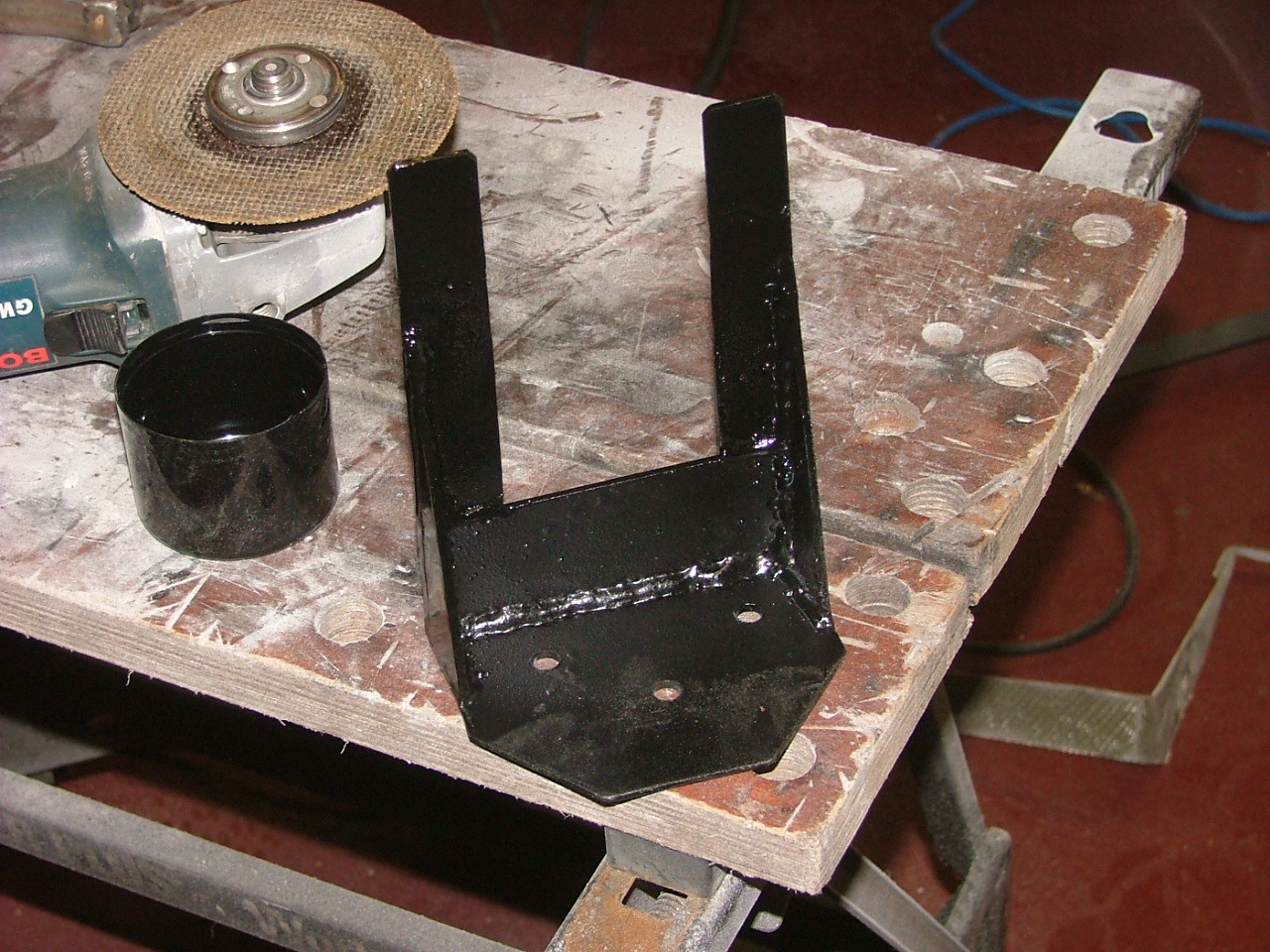

And also extended the bracket holding the filler cap, so I can mount the filler cap at a later date.

Click to download
