Day 70 - Sanding, sanding, sanding and other bits

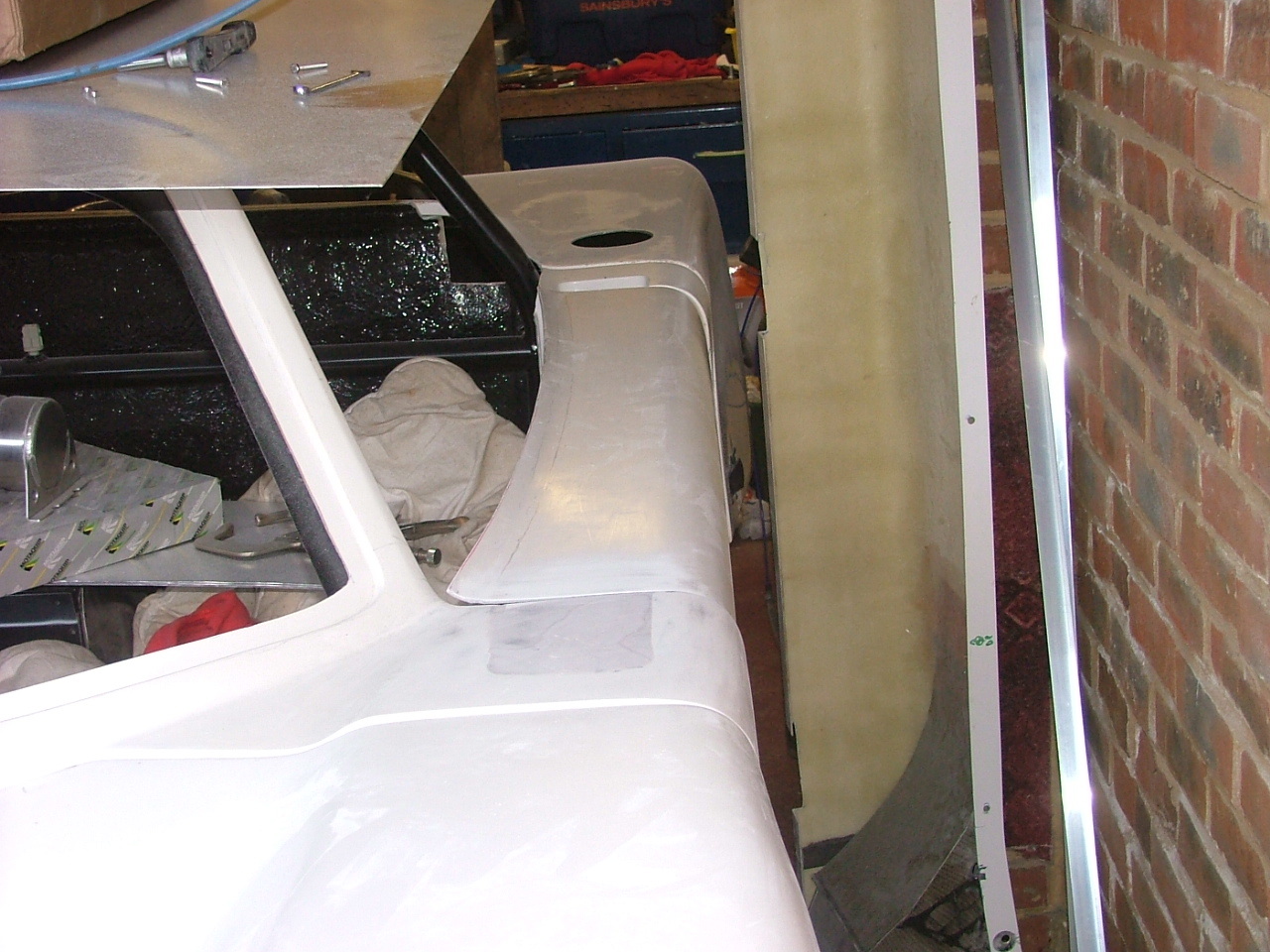

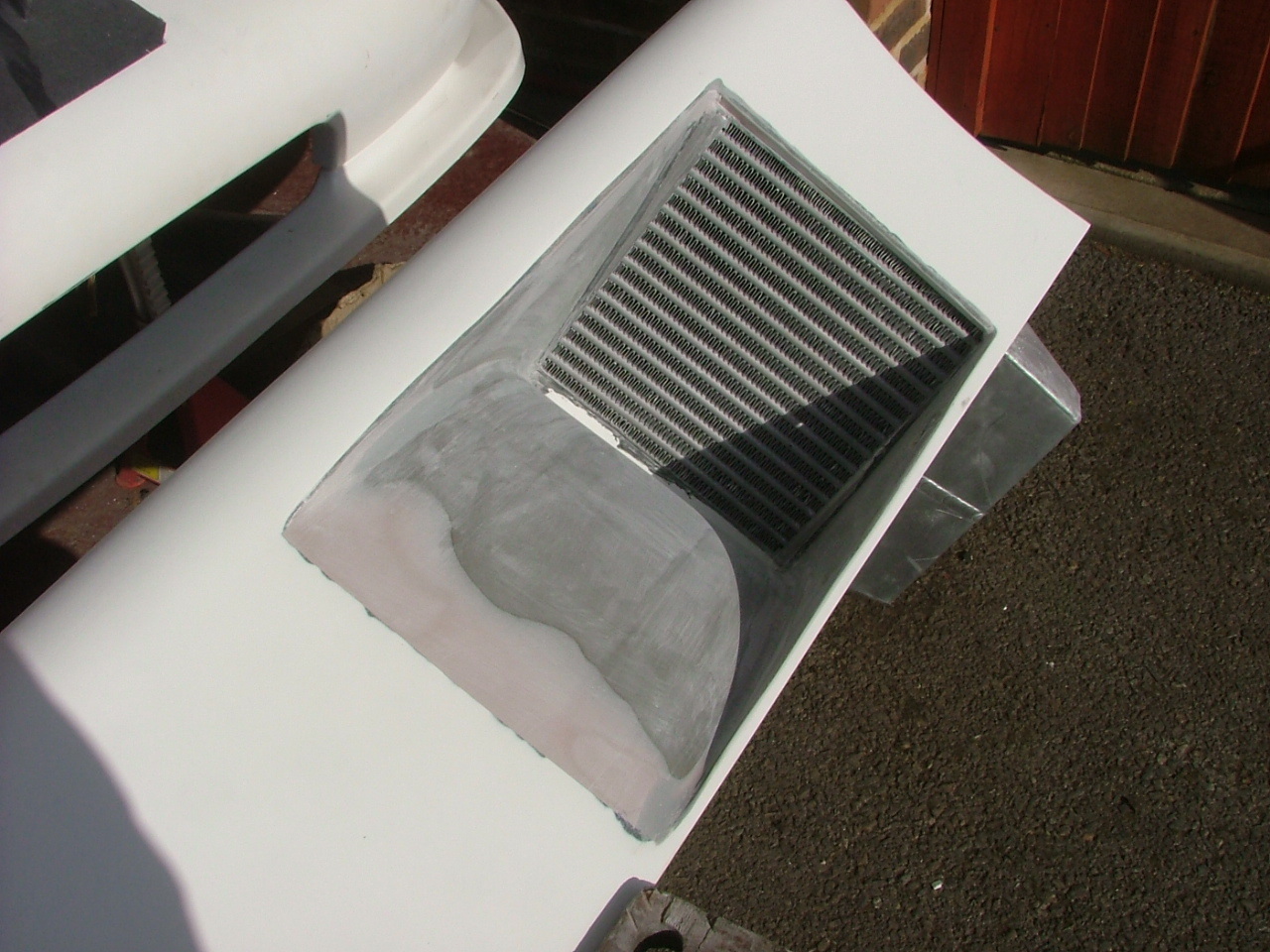

Today was spent preparing the bits of the body for painting, starting with the side pods (again!)

Click to download Click to download

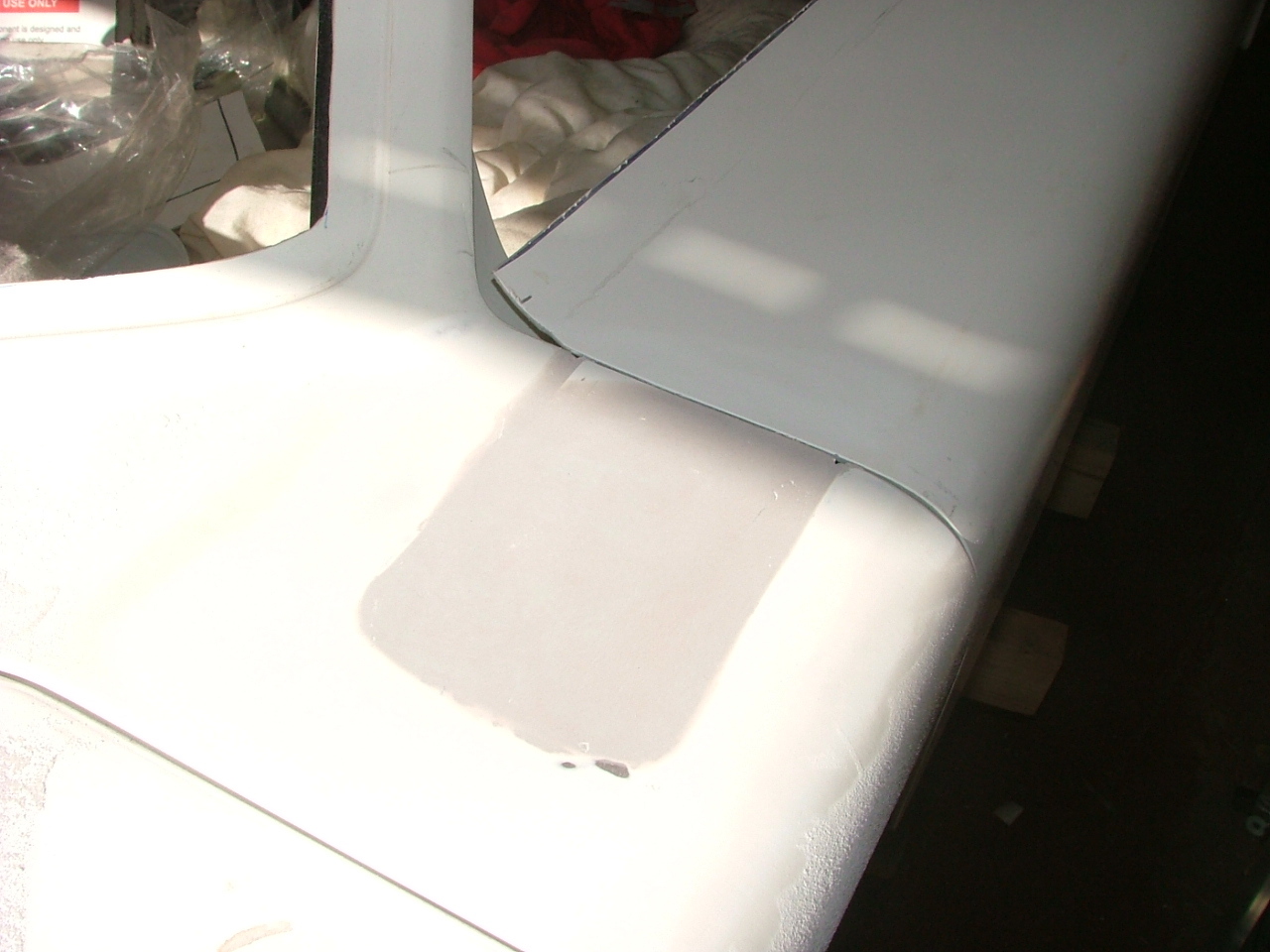

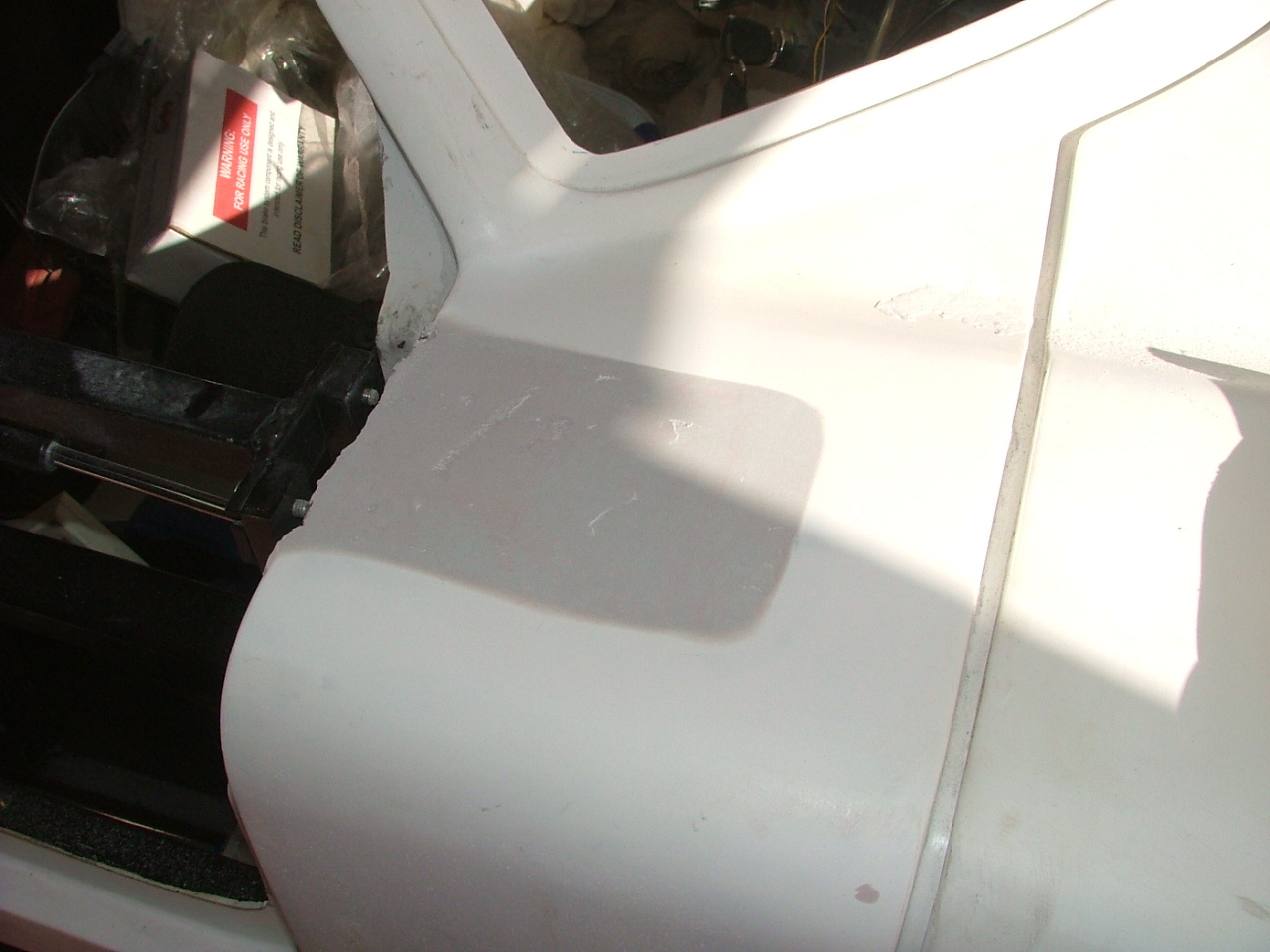

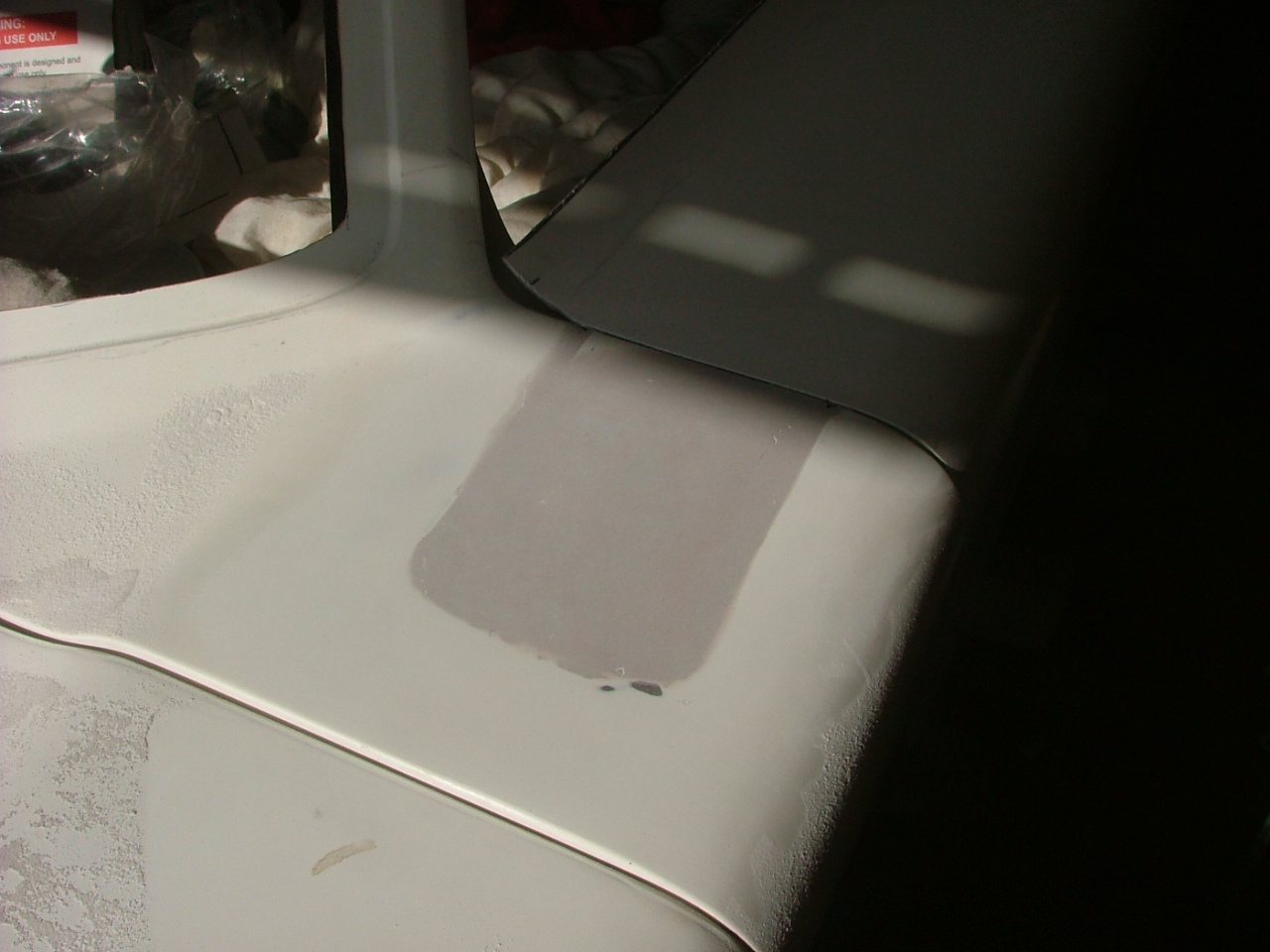

I then sanded the areas above the door hinges - using an random orbital sander (which made light work of the body filler).

Click to download Click to download

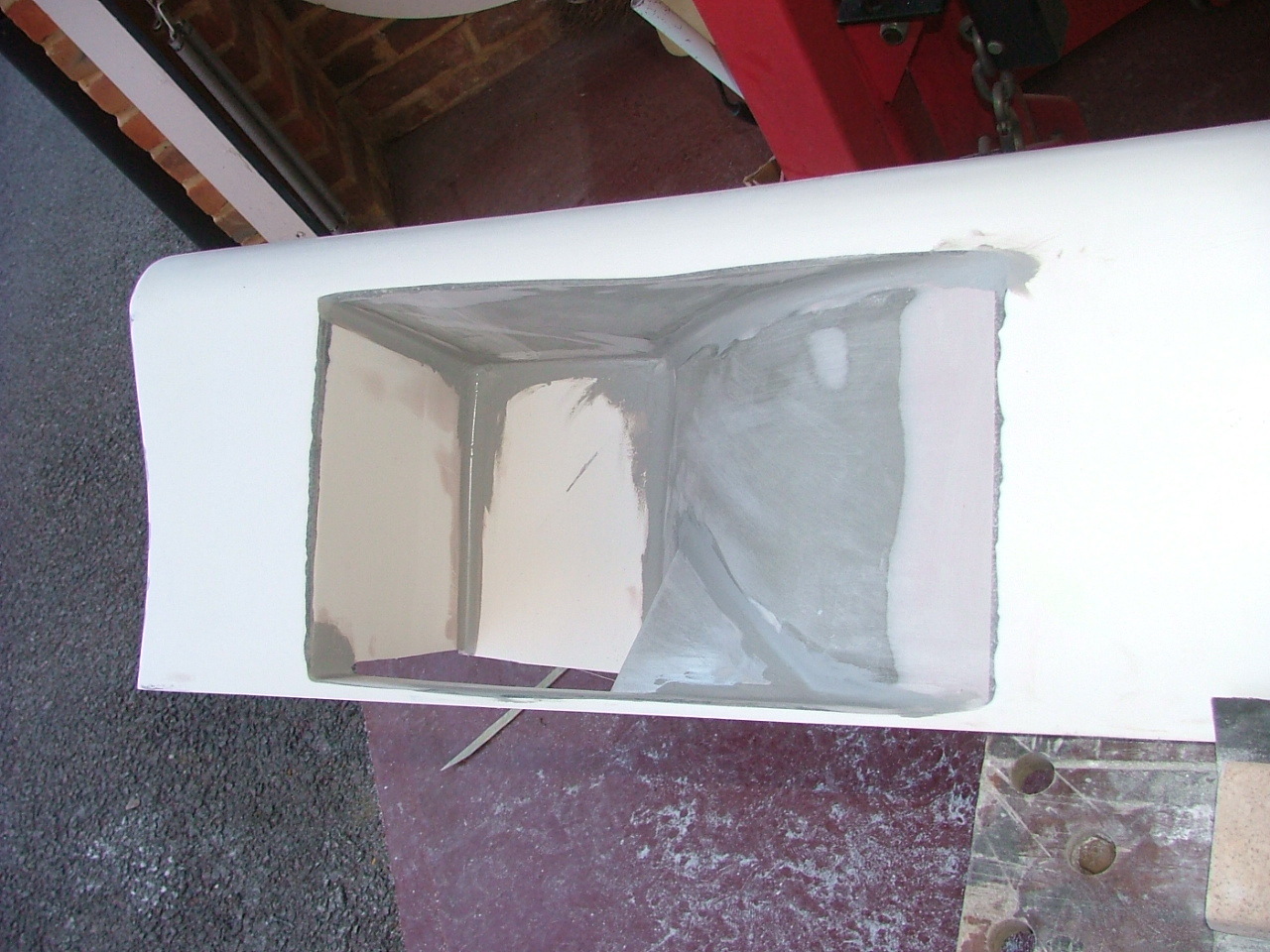

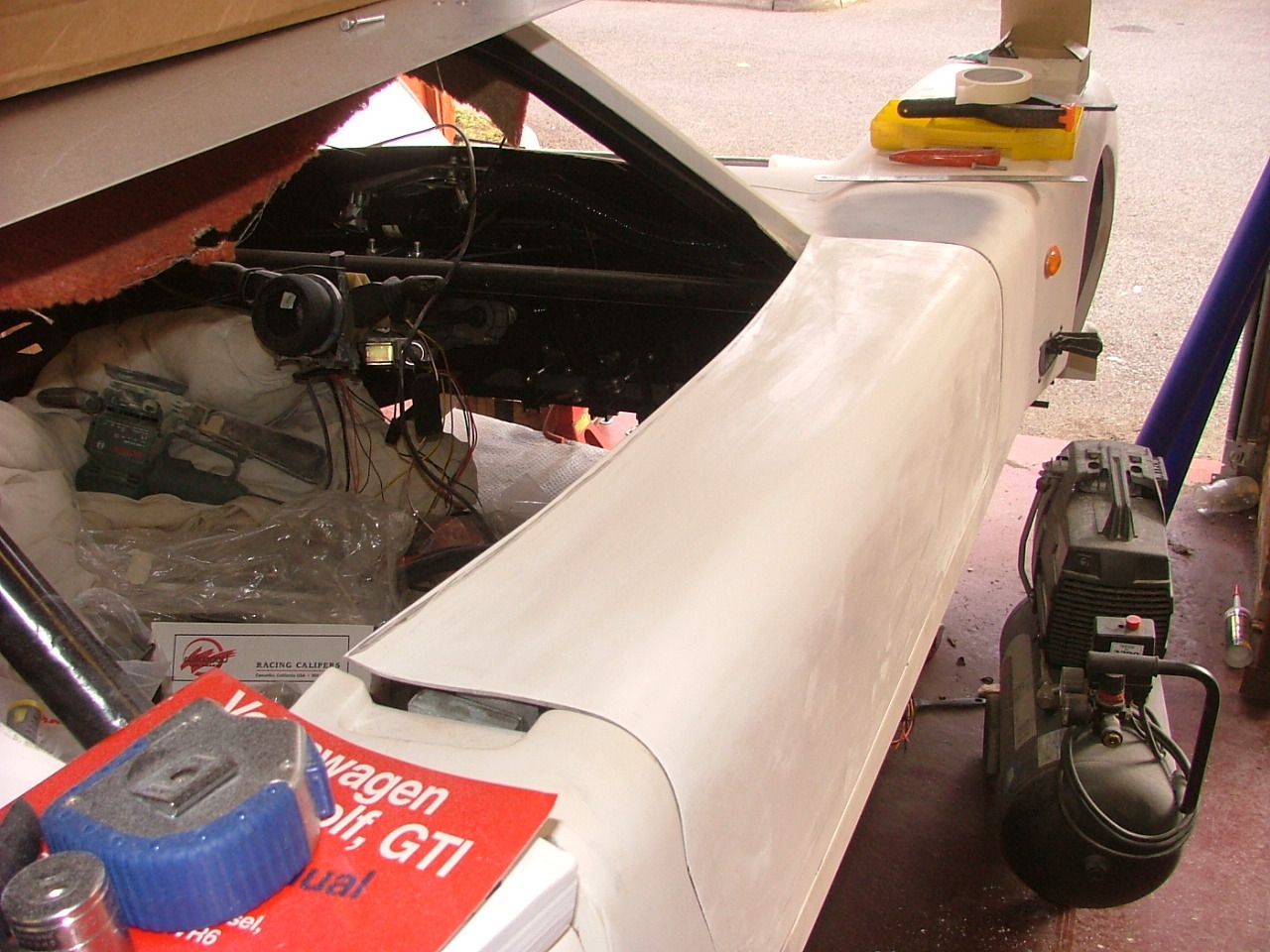

And then I put some more body filler on it, and, to keep the curve of the top, sanded it with a sanding block.

Click to download

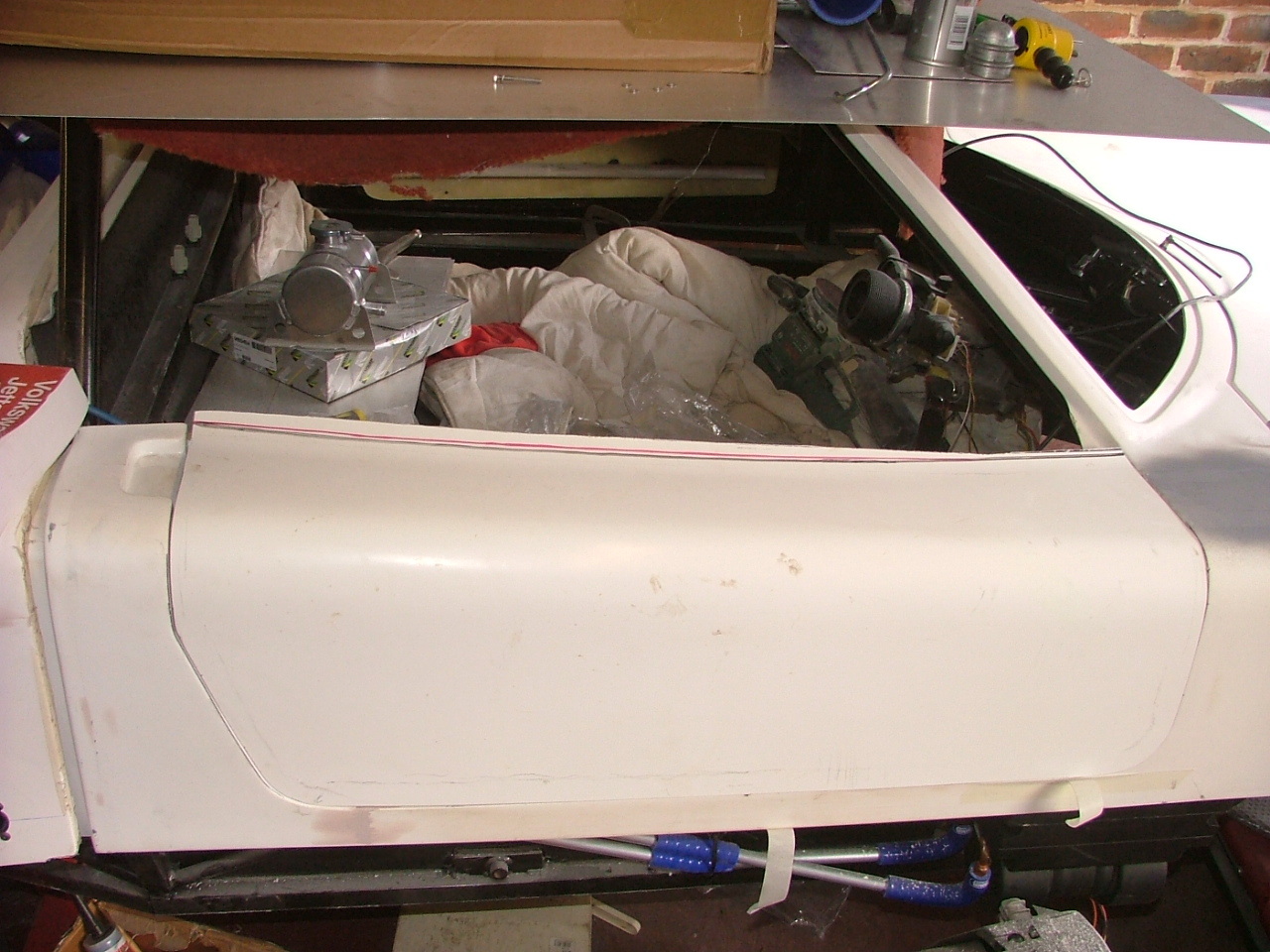

I then went to finish the doors off, marking the excess by running a pen along the flat top part. This will ensure that the door's top is level when you look at the side.

Click to download

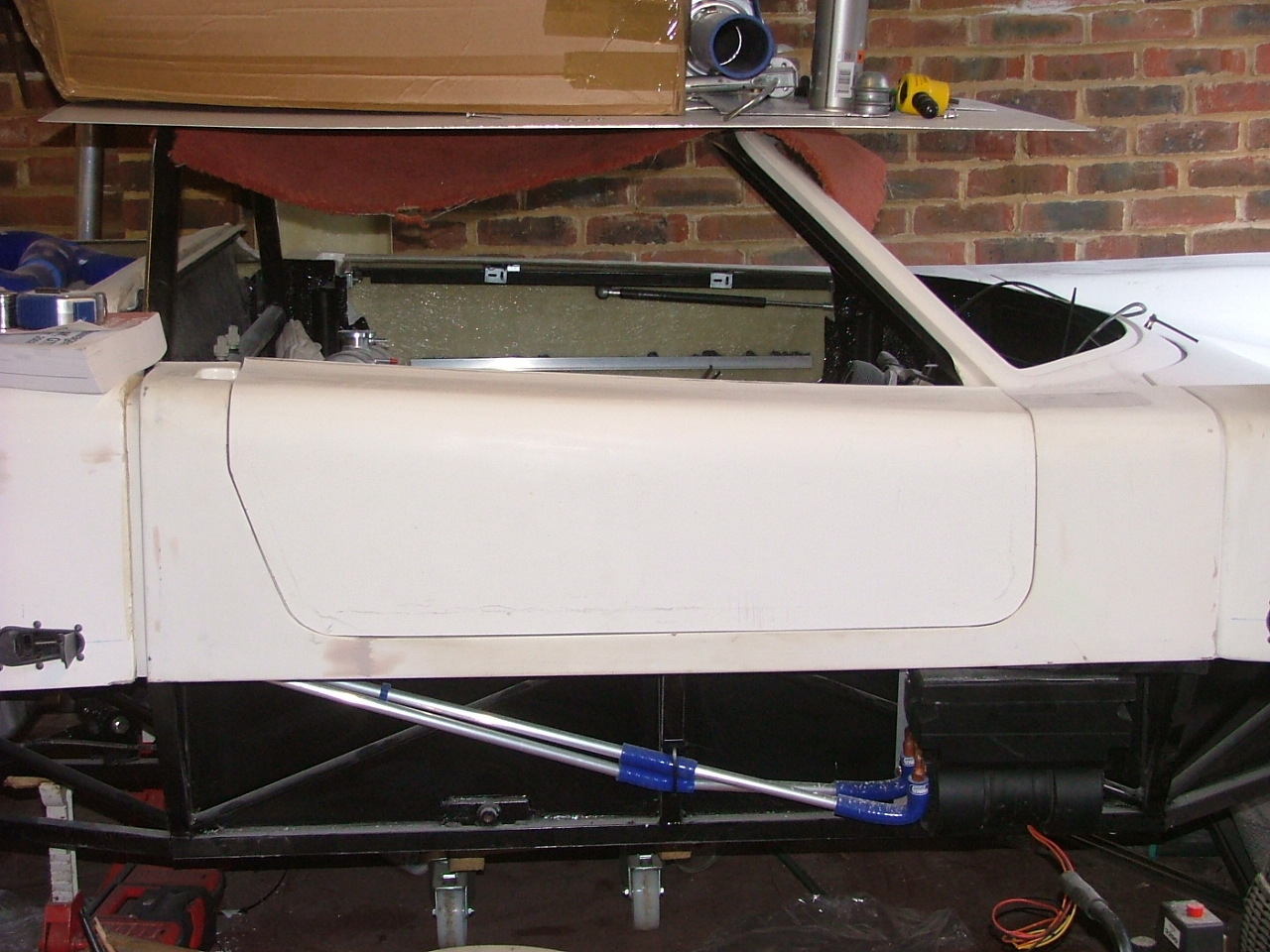

I then cut off the excess.

Click to download Click to download Click to download

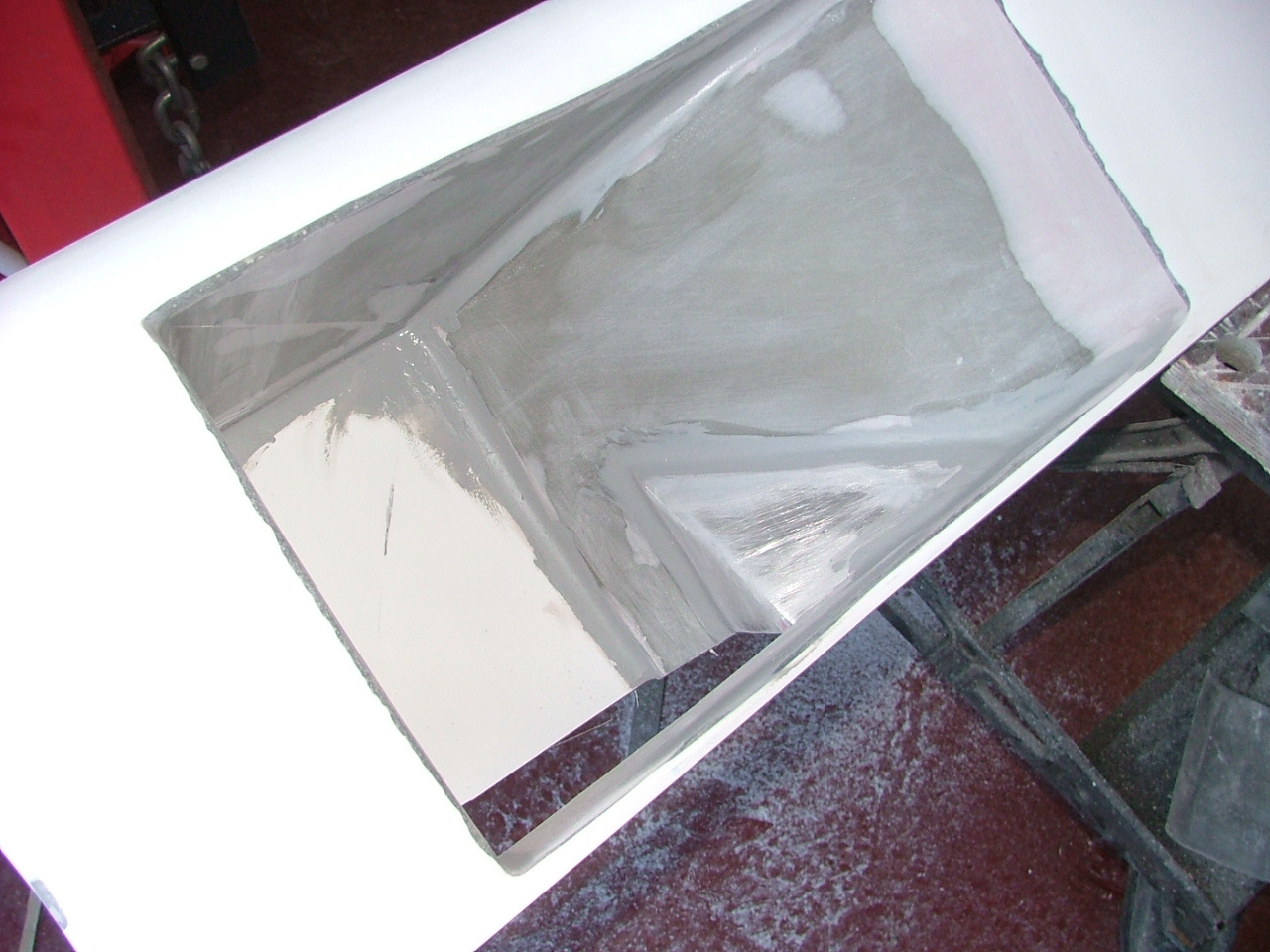

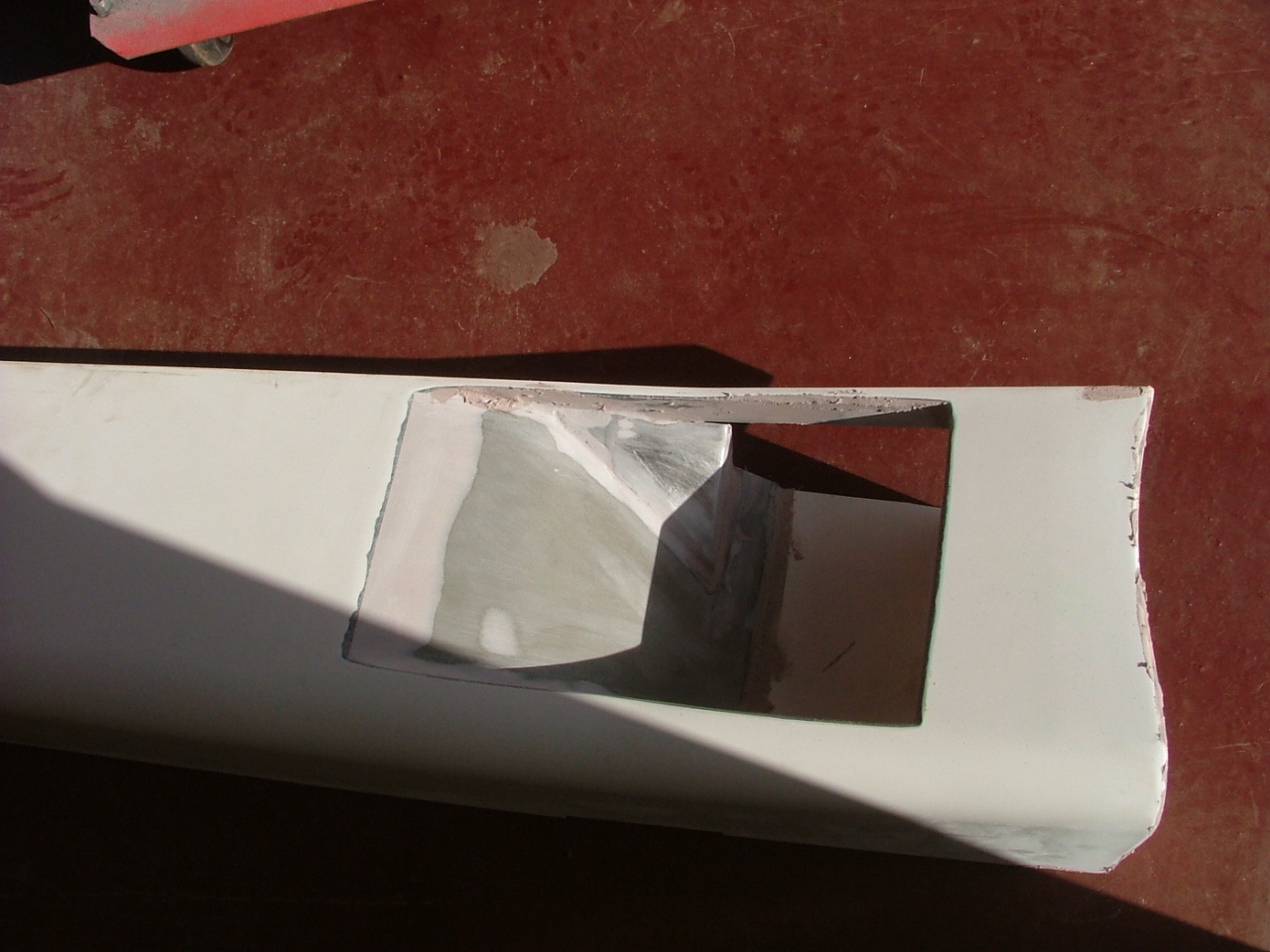

And then back to the side pods.

Click to download Click to download

The grey is some special body filler which is a single component (normal body filler you need to mix hardner with the filler to set, whereas this doesn't need mixing). It's very smooth, and has a texture like toothpaste. I filled it in with a finger, and when it sets (as it's not an accelerated reaction, it takes a while). This'll look quite smooth.

I then had an idea - at the end of each evening, I'll do a "10 minute job" - i.e. something that is meant to take 10 minutes but ends up taking longer. I decided to do three of them.

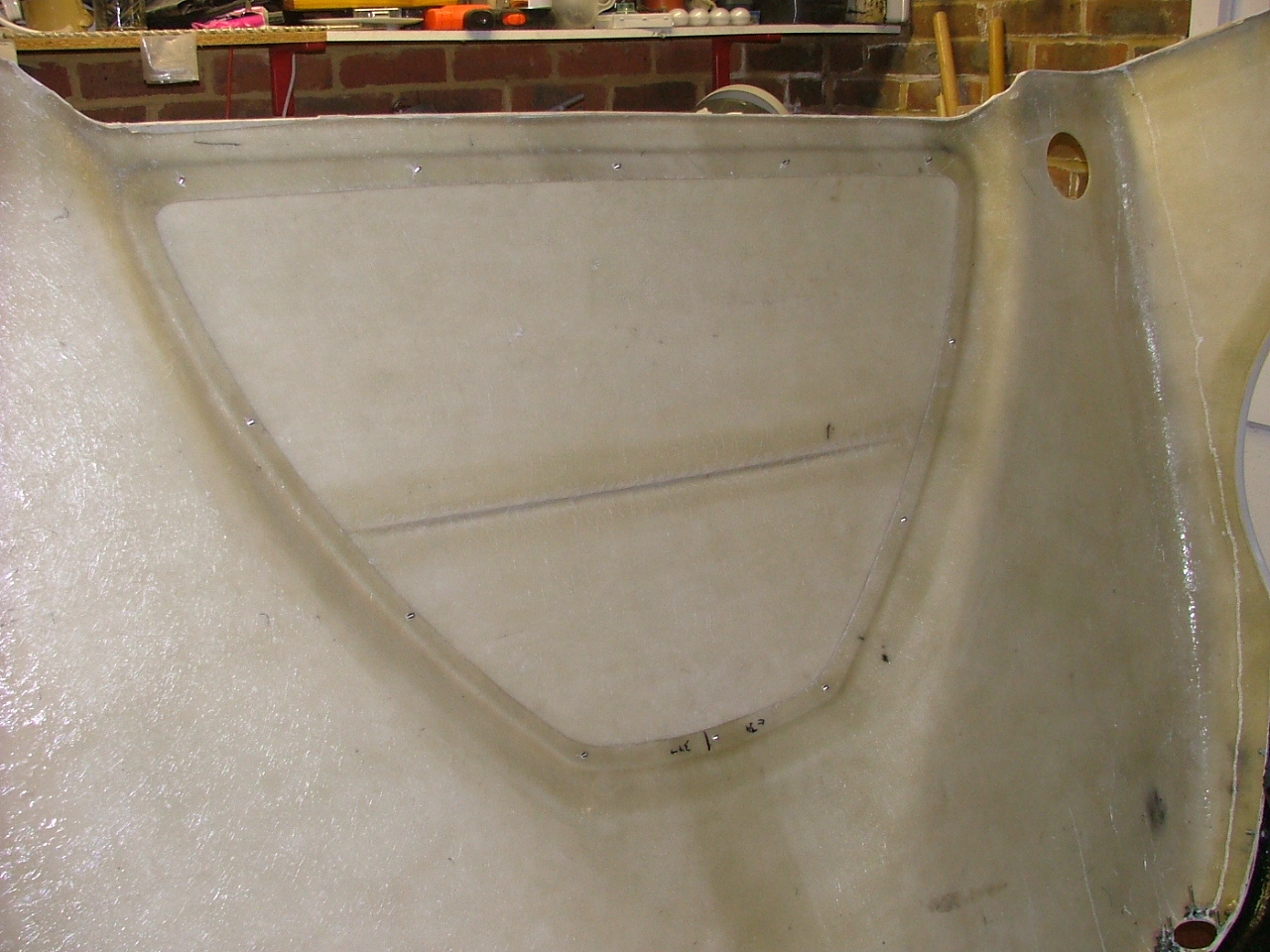

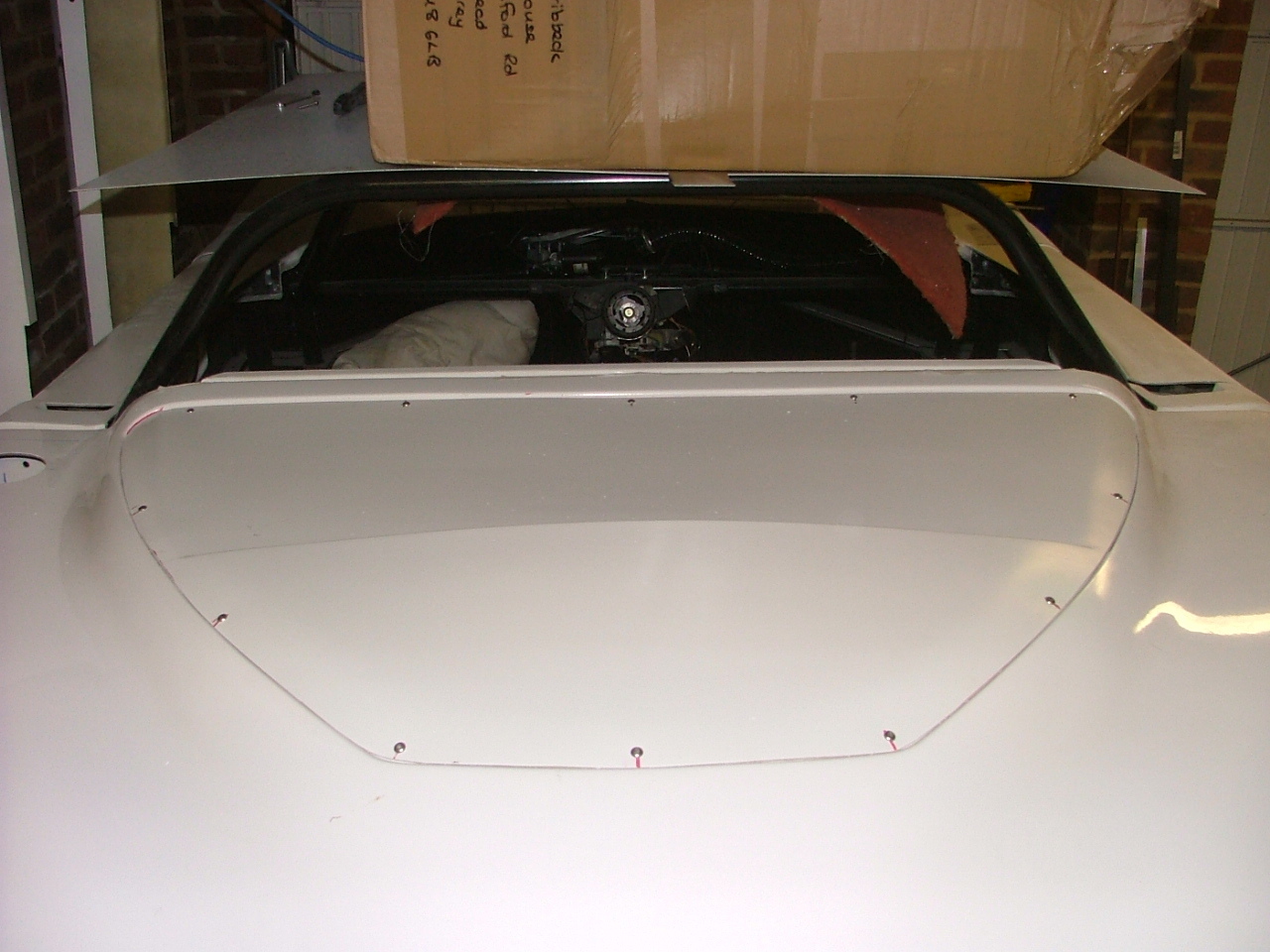

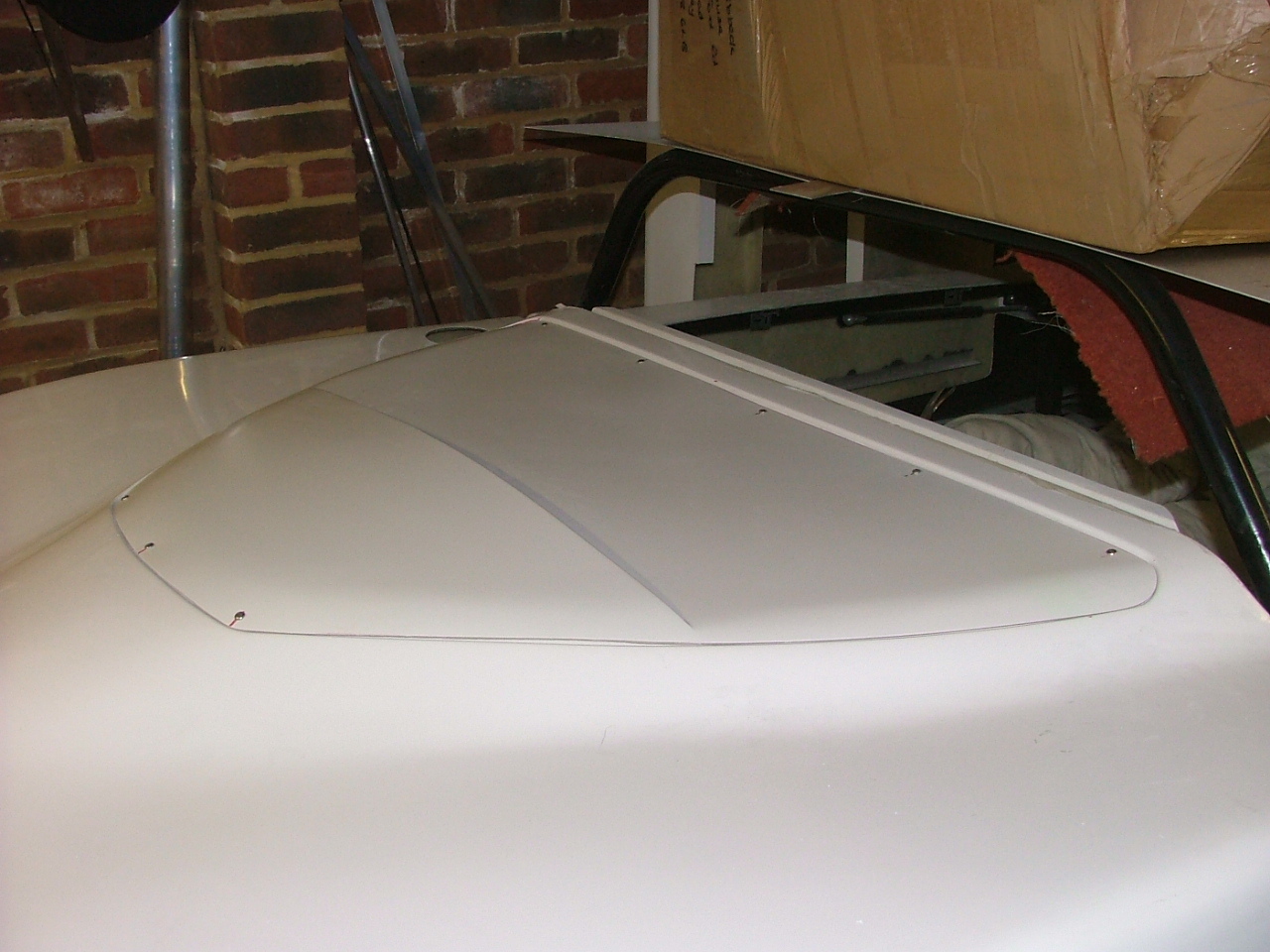

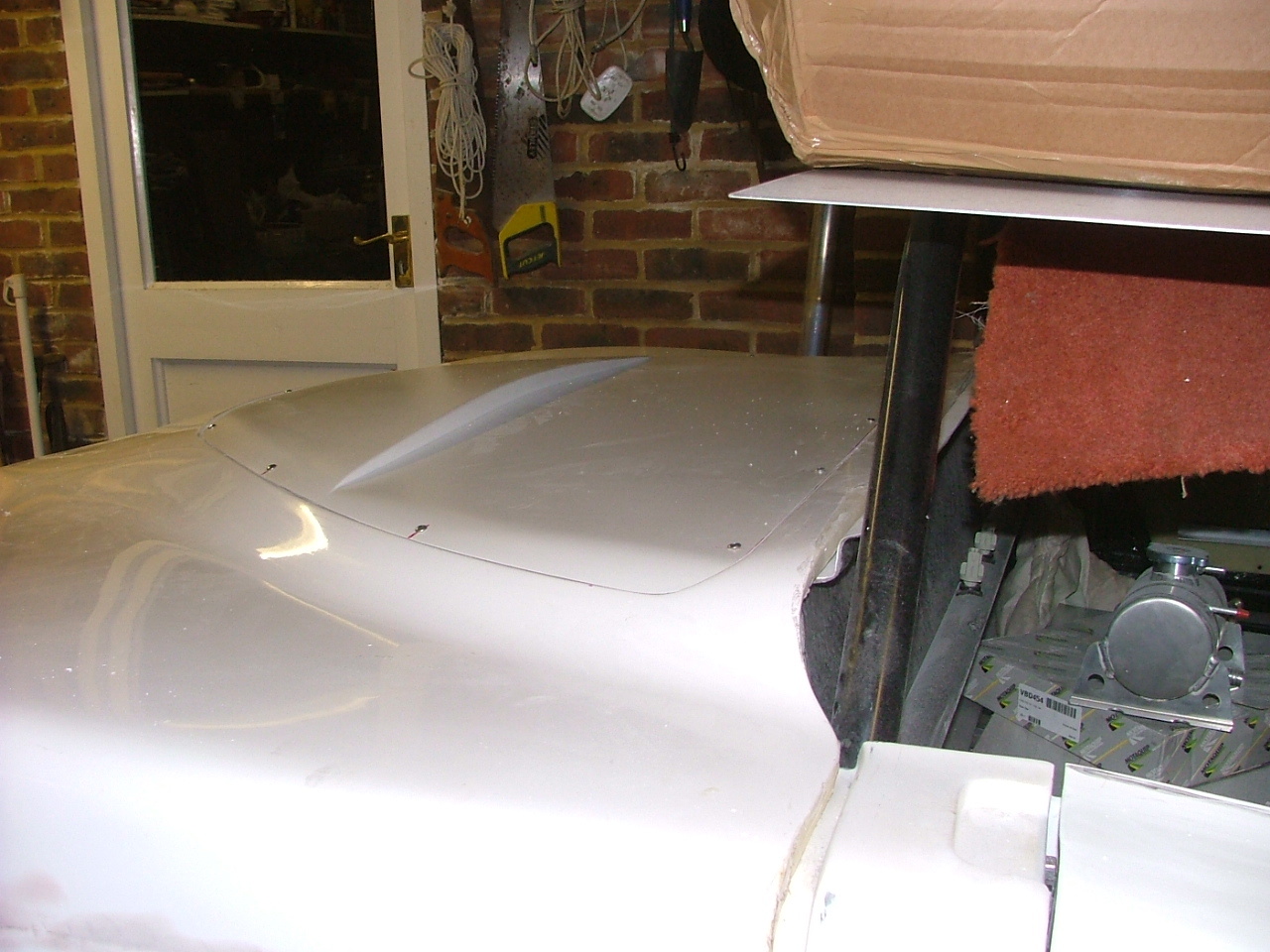

First of all, I fitted the top engine cover.

Click to download Click to download

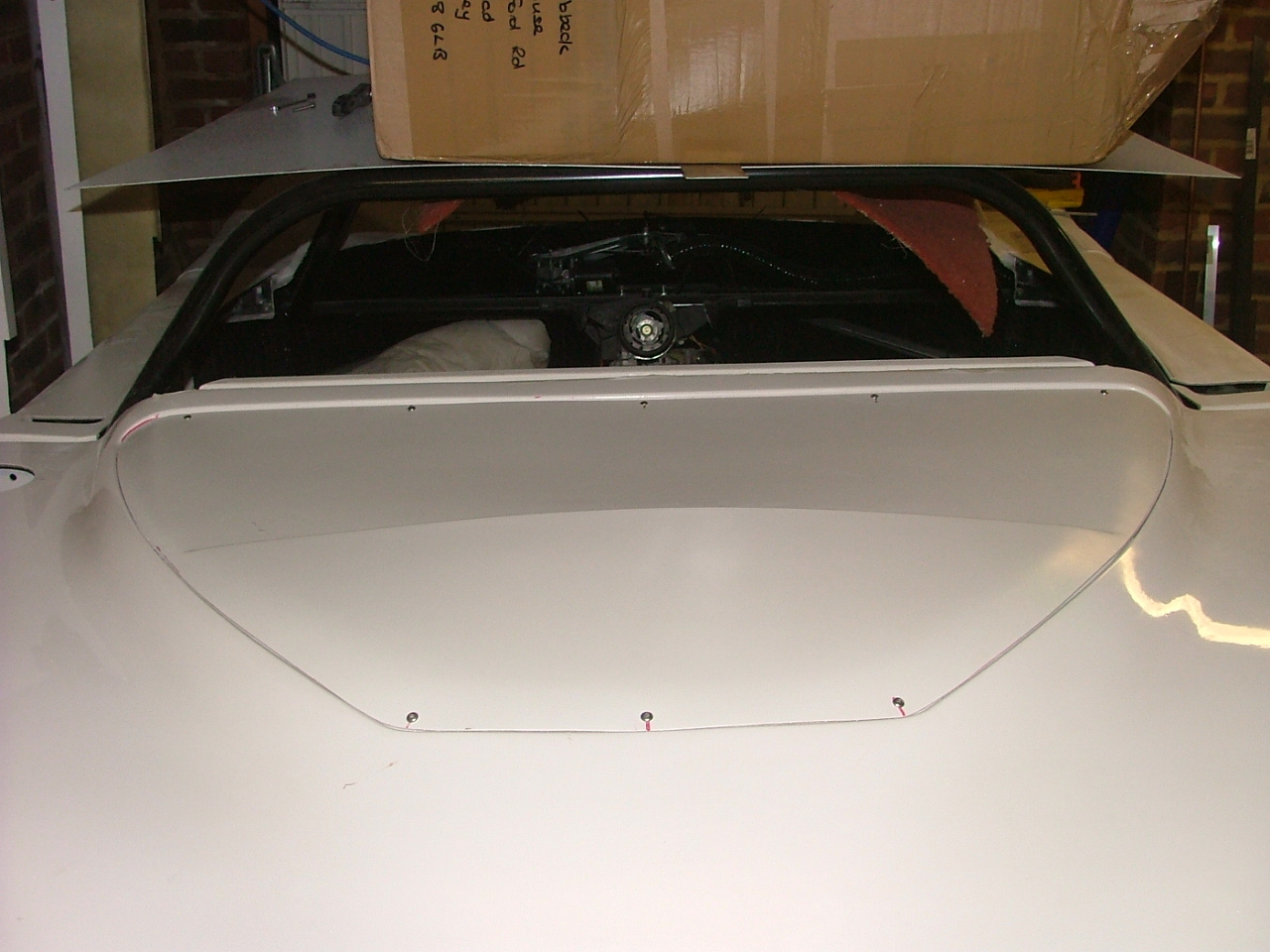

Each bolt is about 25cm away from the next one - except for the three at the bottom which are about 20cm away.

Click to download Click to download Click to download

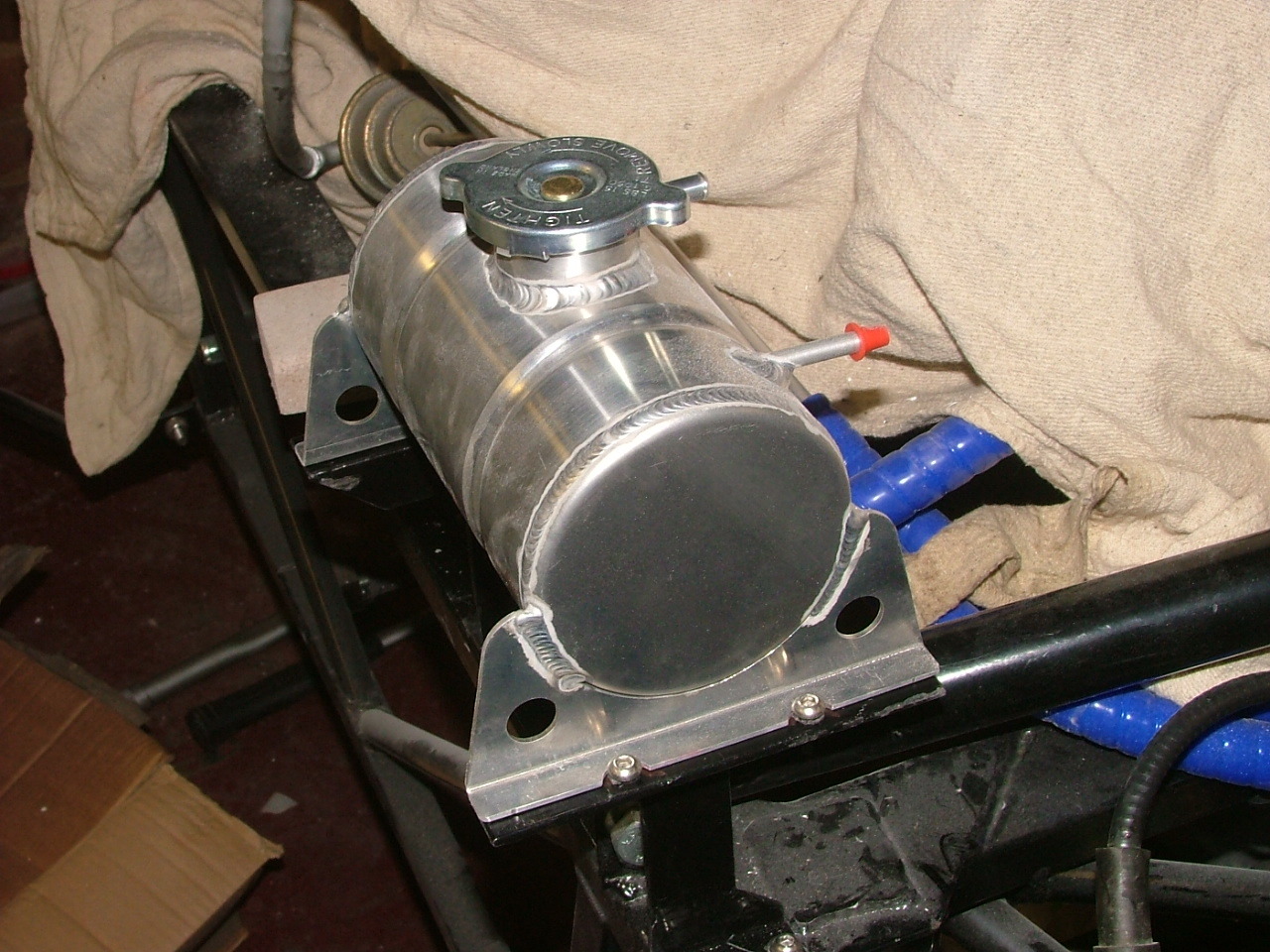

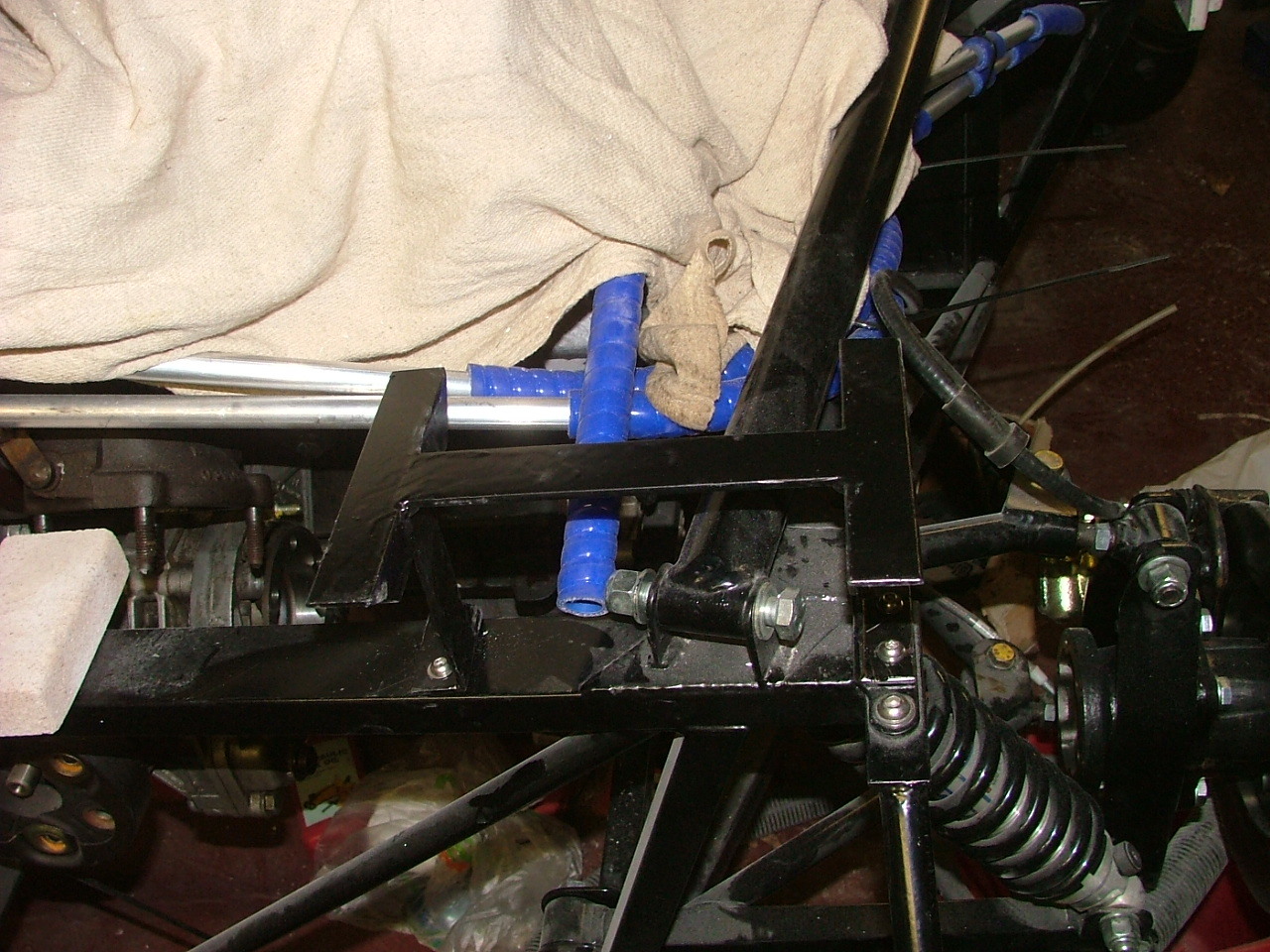

I then set about mounting the header tank properly.

Click to download

I then put bolts in the indents on the header tank - unfortunately, I've run out of washers, so I'll have to get some more.

Click to download

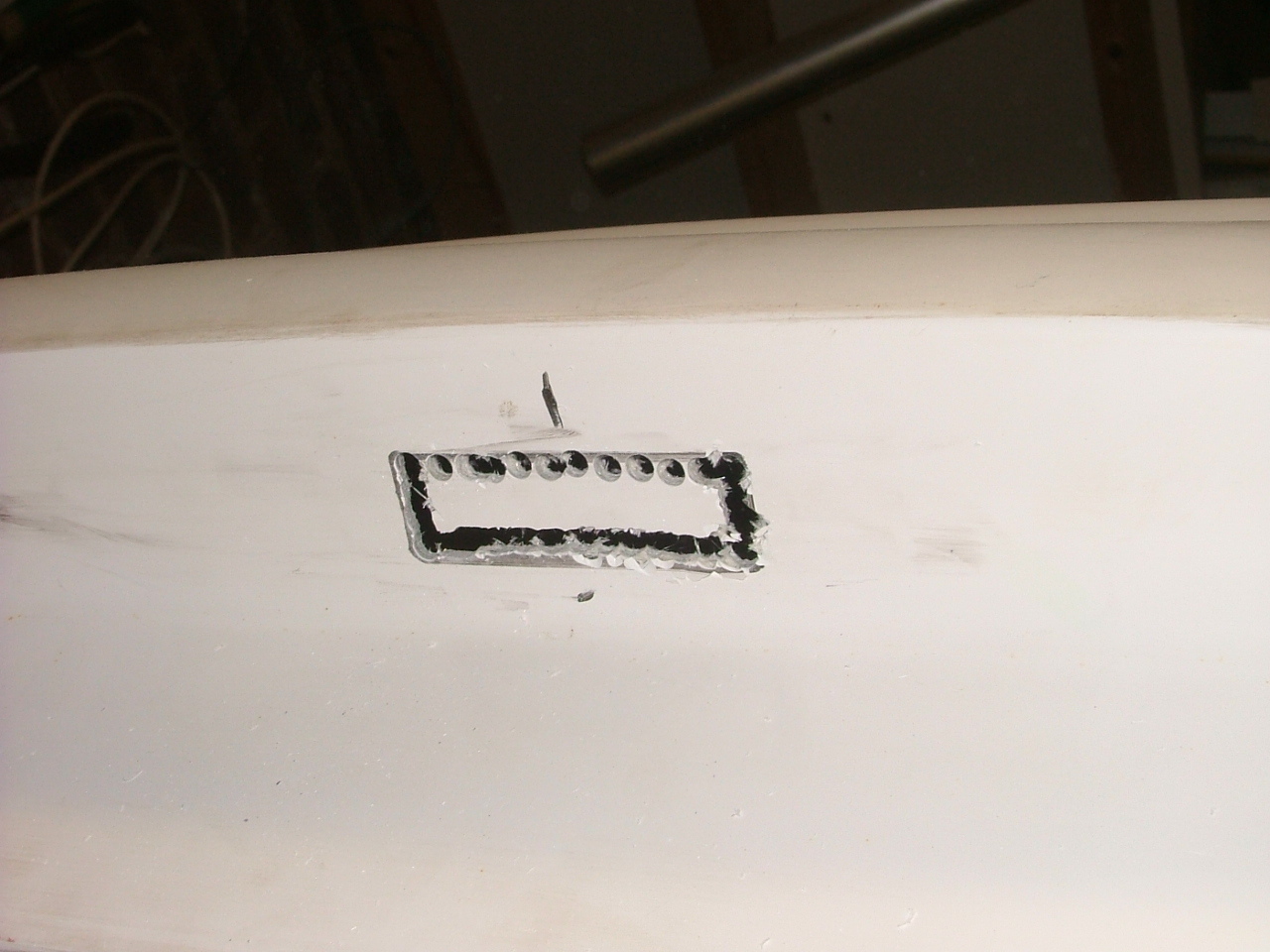

And finally, I fitted the rear number plate light. Firstly, I drilled inside the panel cutout area.

Click to download

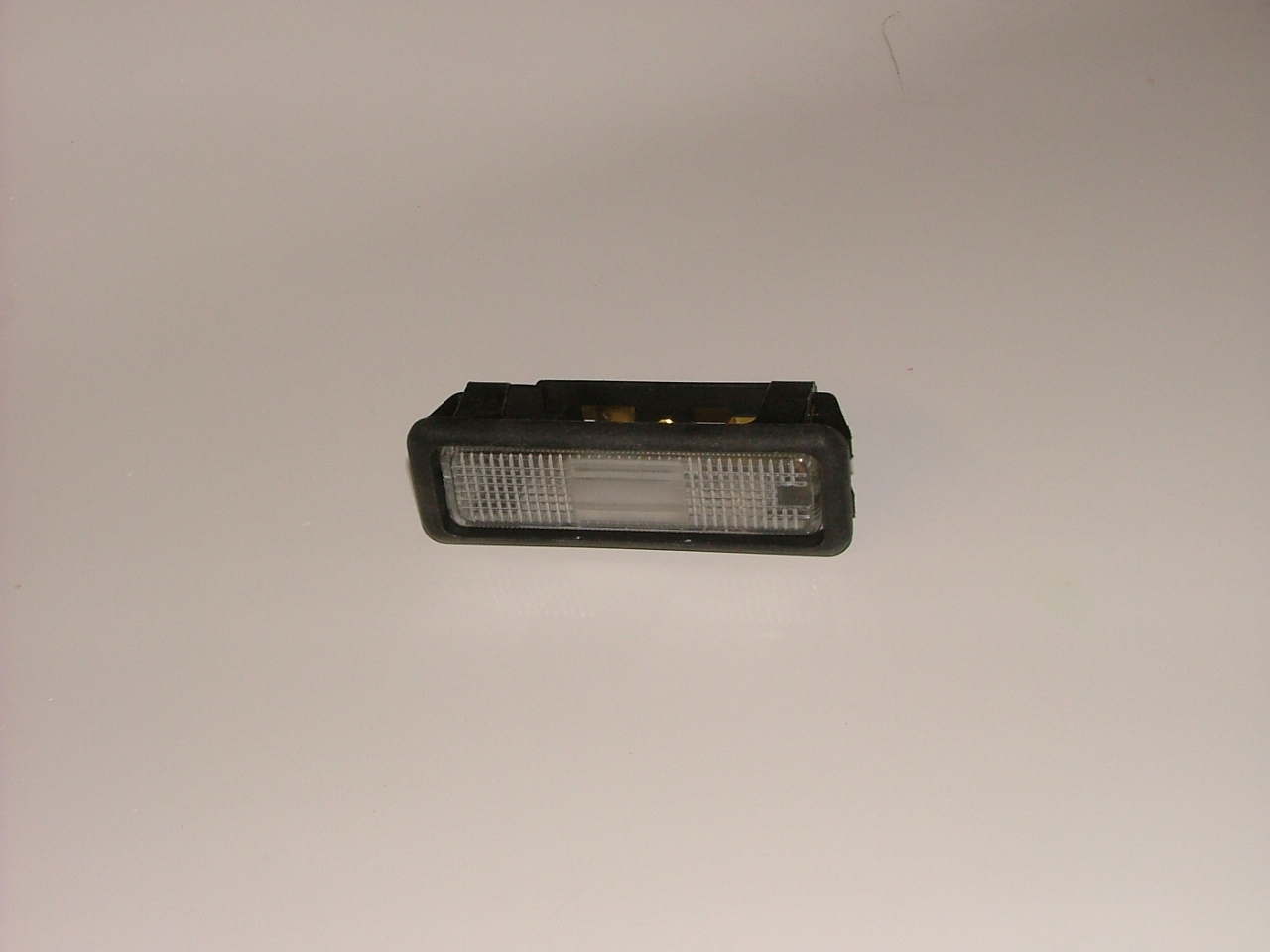

This is the light I'm using:

Click to download

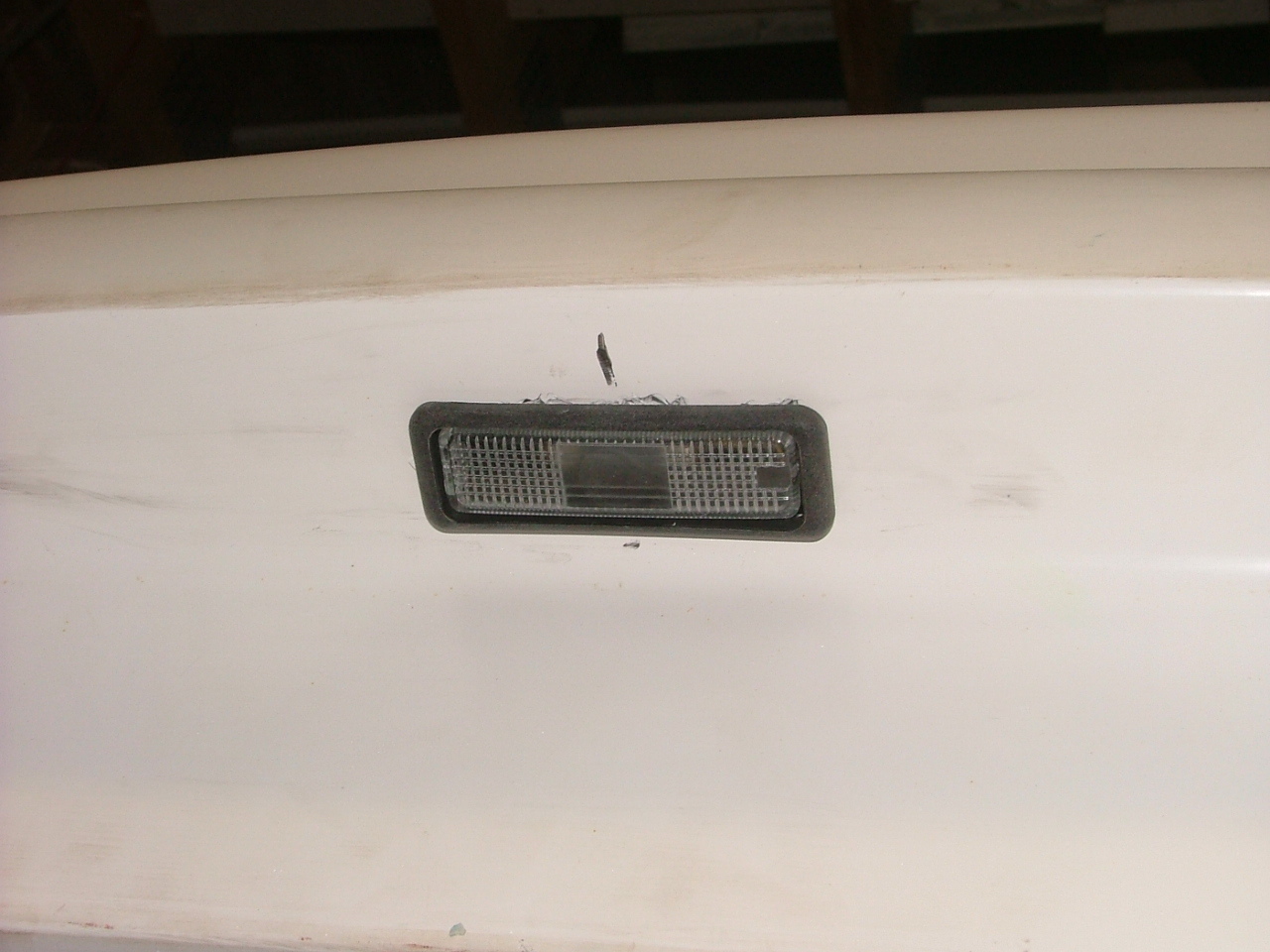

It's actually an interior light, but it'll do fine for a number plate light. And with it fitted.

Click to download

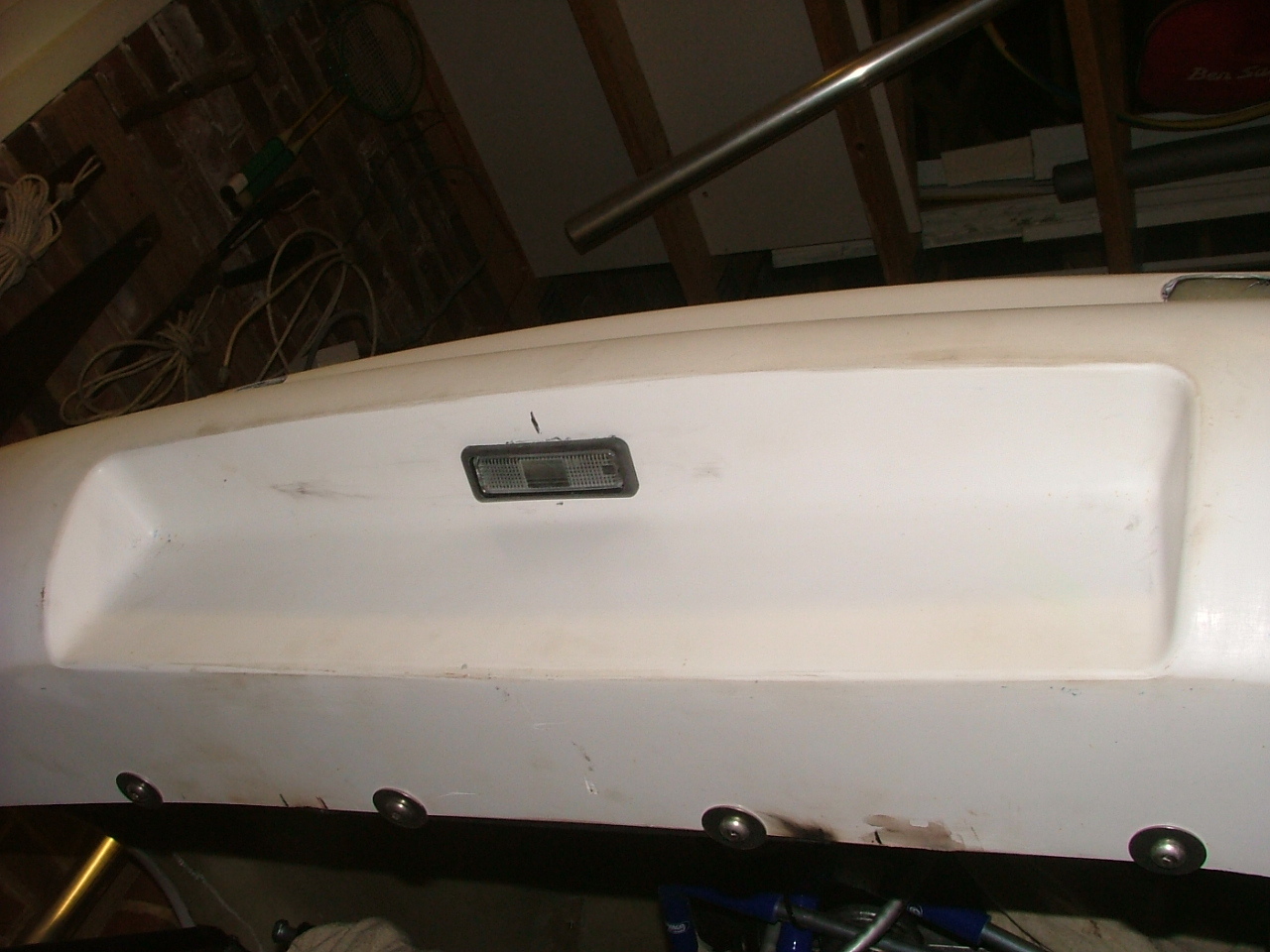

And to put it in context:

Click to download

What other 10 minute jobs are there? I'll make a list.
