Day 71 - Workshop, brakes, clips and bits

Yesterday, I bought a registration for the car - GT30 EON. My first choice of AE03 NGT wasn't available, and this was the closest I could get.

Since my Mondeo's MOT runs out on Tueday, and I couldn't get one this weekend, I went to the workshop to pick up the windscreen and some other bits - if the Mondeo fails the MOT, then I've still got the Locust to drive if I need to go anywhere.

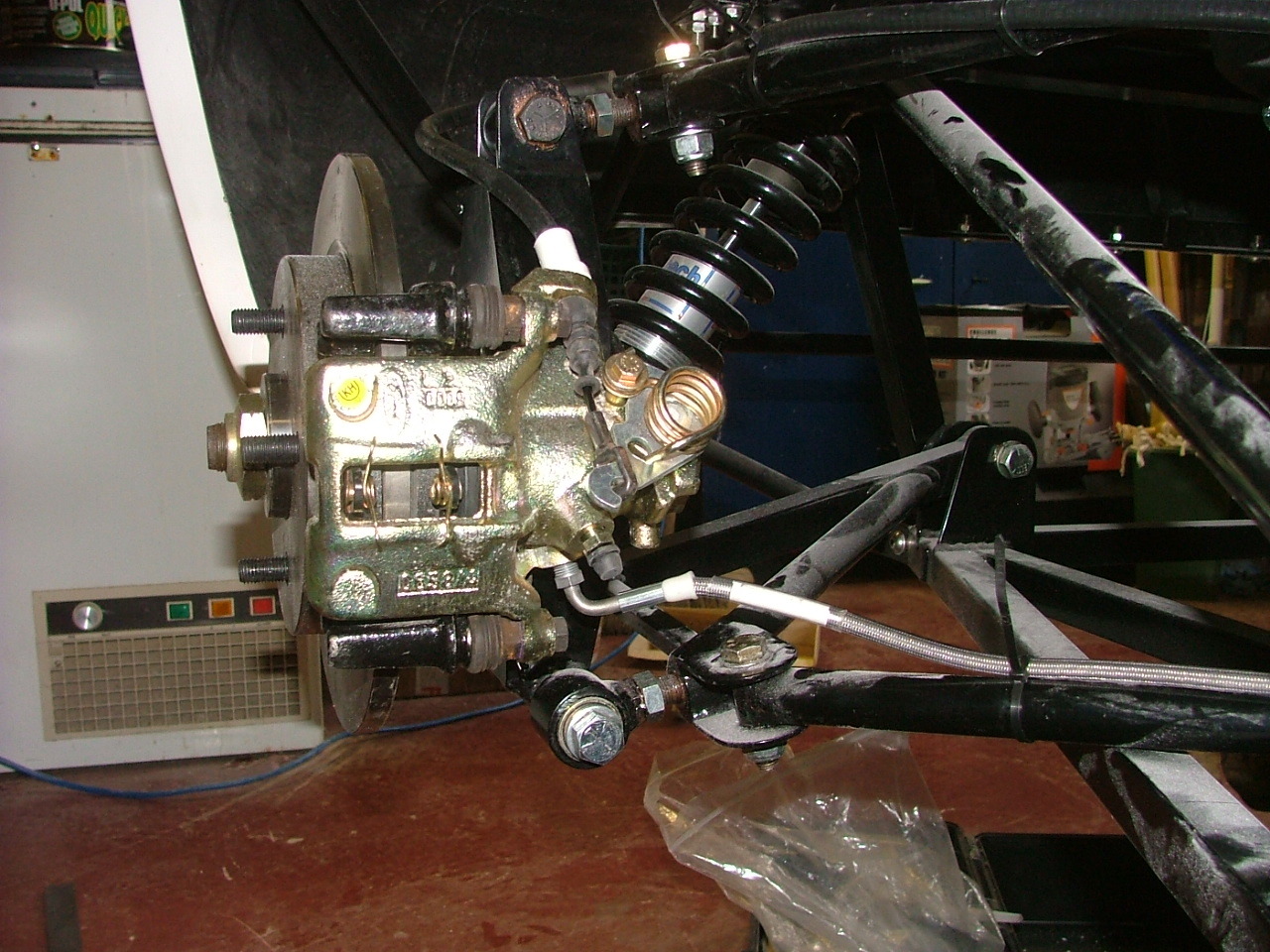

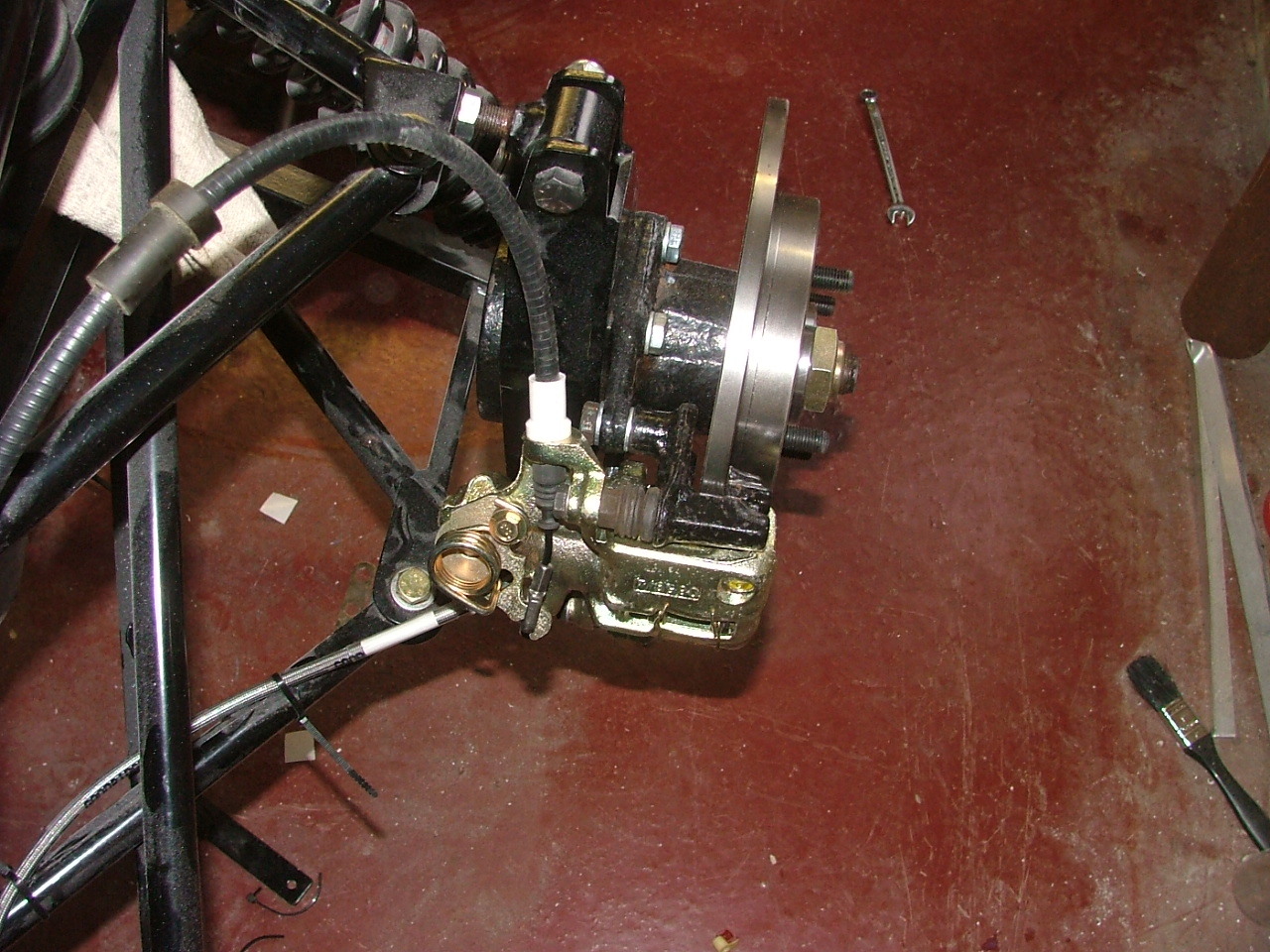

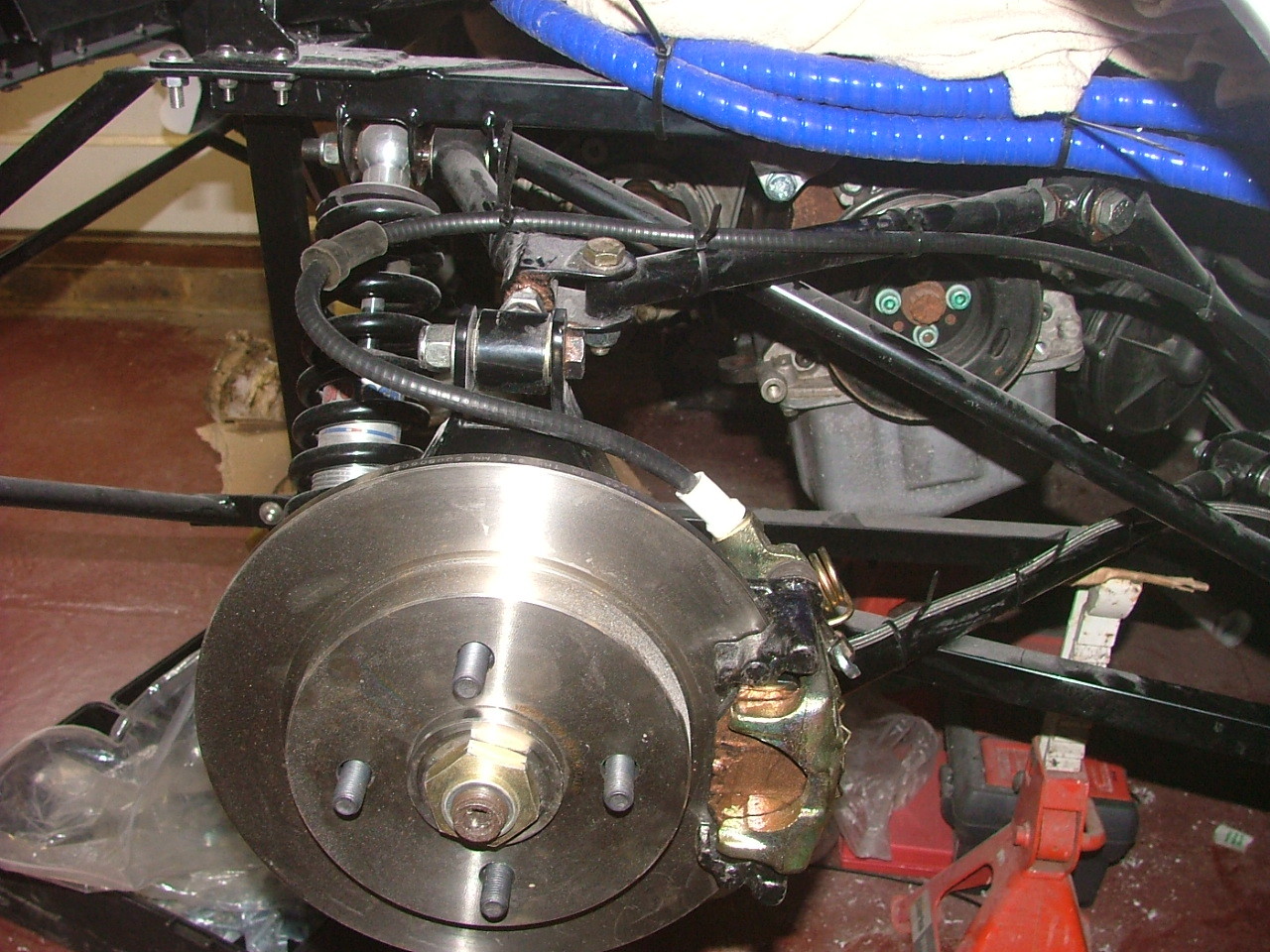

When I got back, I fitted the oil seal that had been lost, and set to work on the rear brakes, putting the pads in, and hooking up the handbrake cable.

Click to download Click to download Click to download

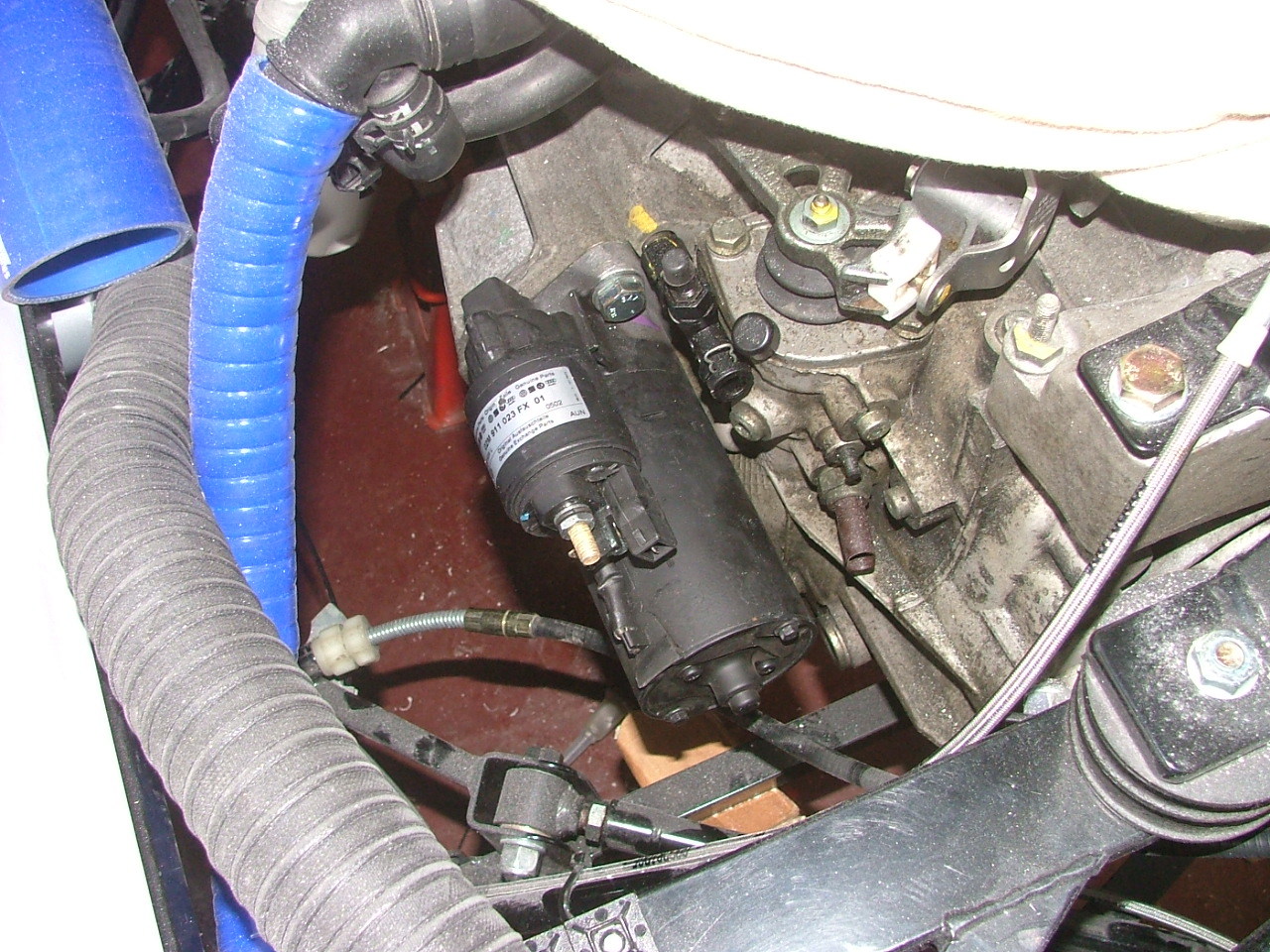

While I had the back section open, I fitted the starter motor.

Click to download

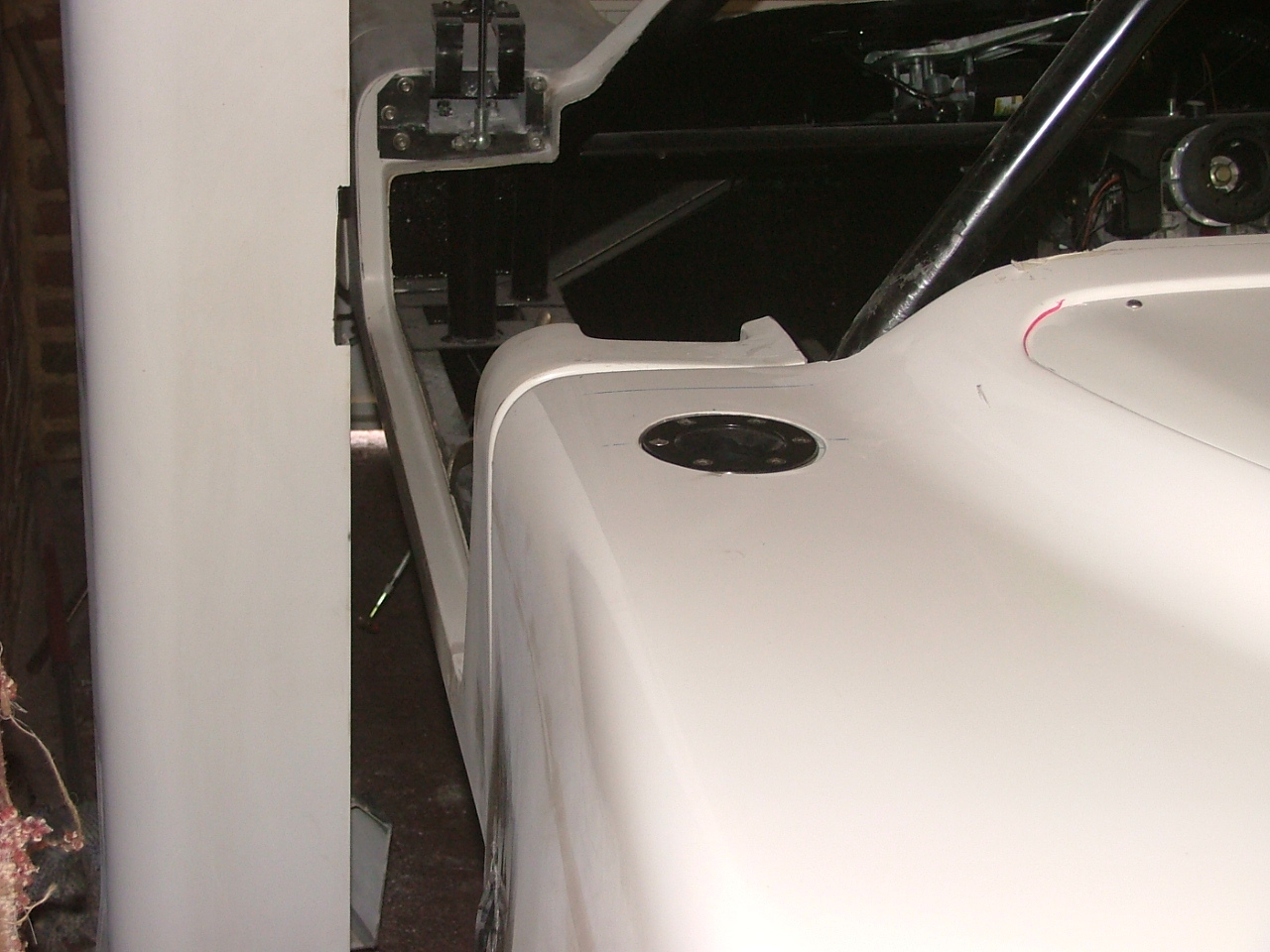

And also moved the filler cap to the left.

Click to download

I did a bit of work on the front brakes - John had told me that I'd made a mistake in the banjo fittings - however, they don't fit the inlet to the calipers, so I'll have to sort something out for that. In any case, I fitted the longer bolts to the calipers, so they're held in nice and tight.

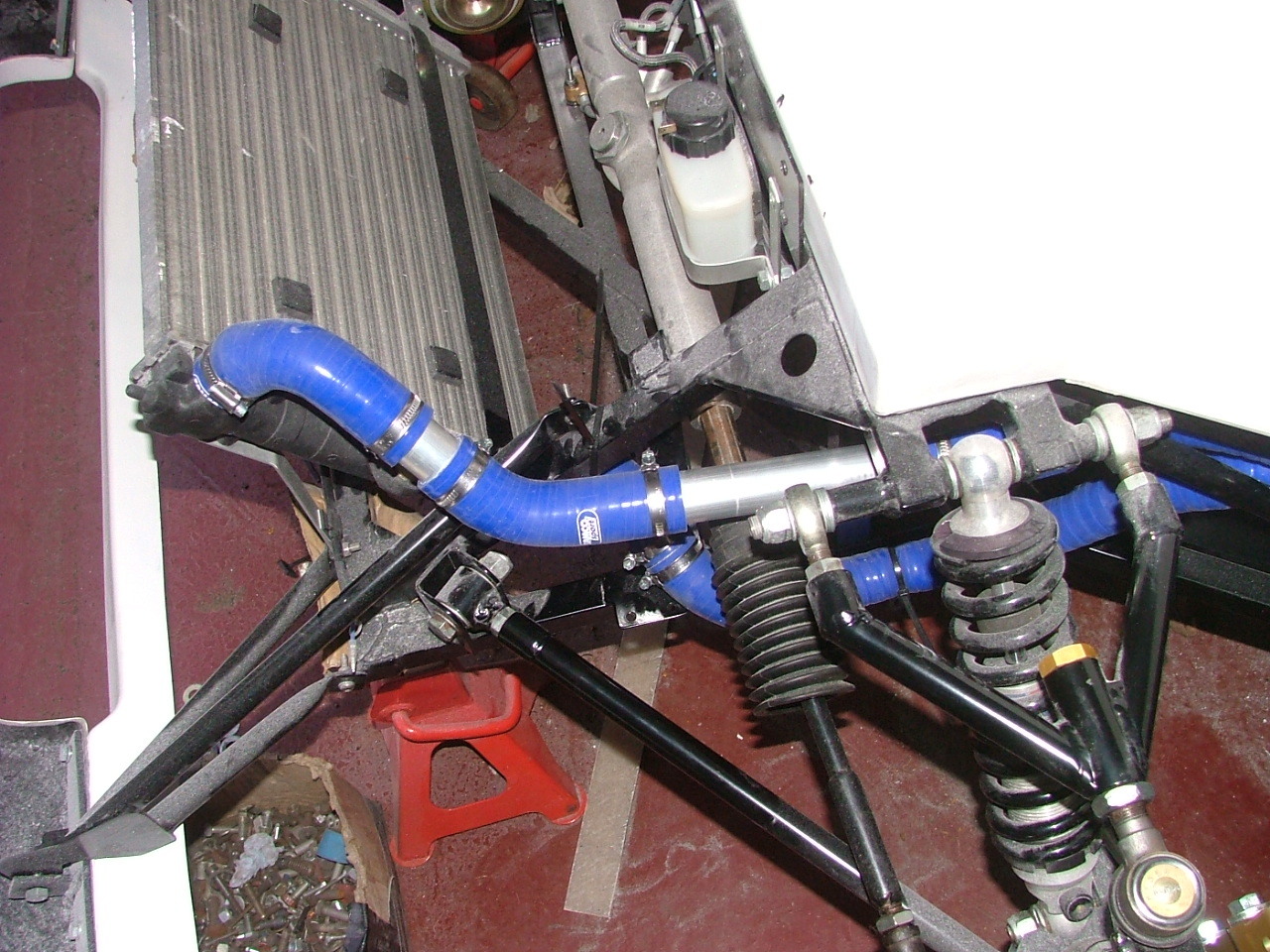

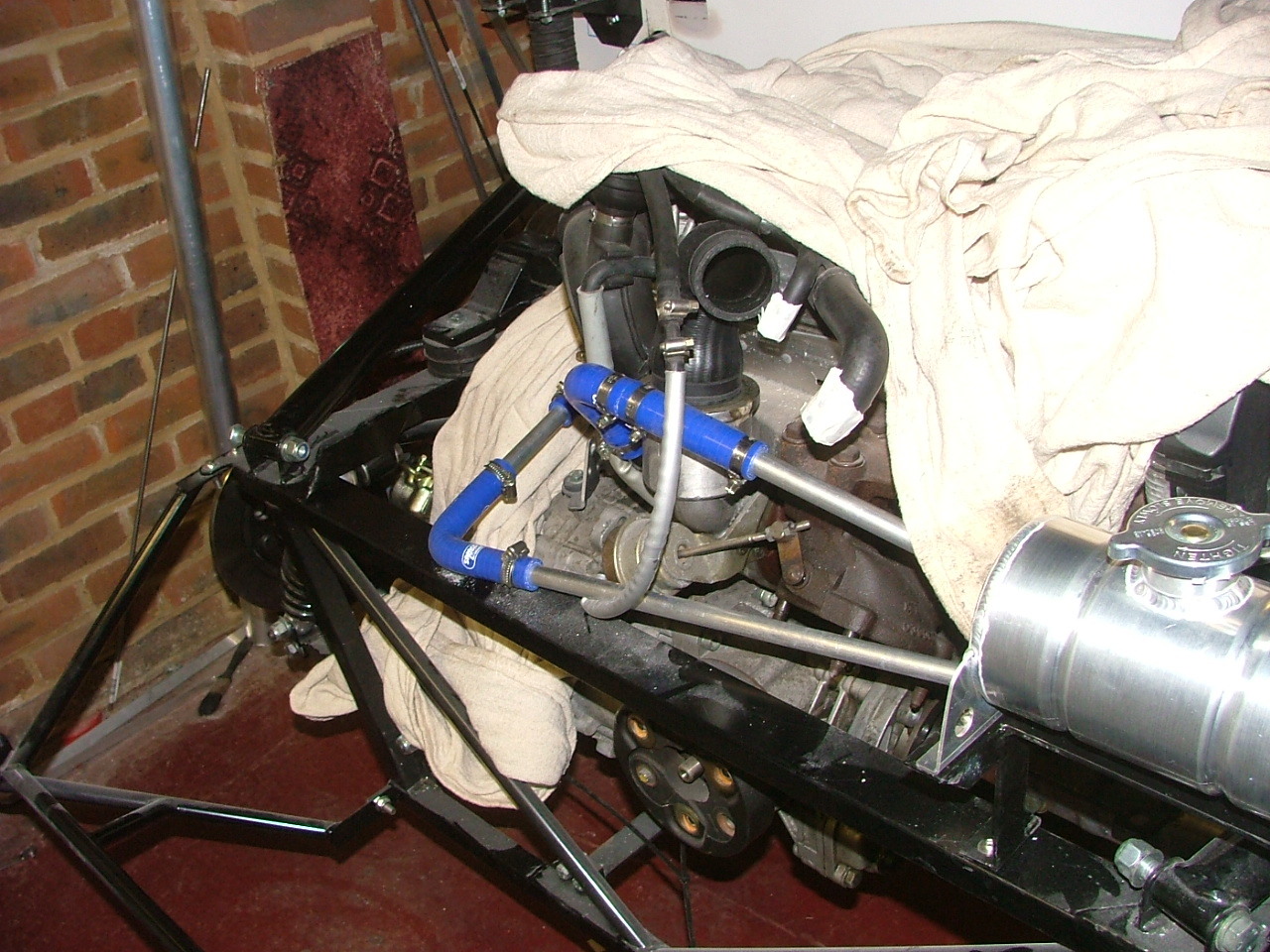

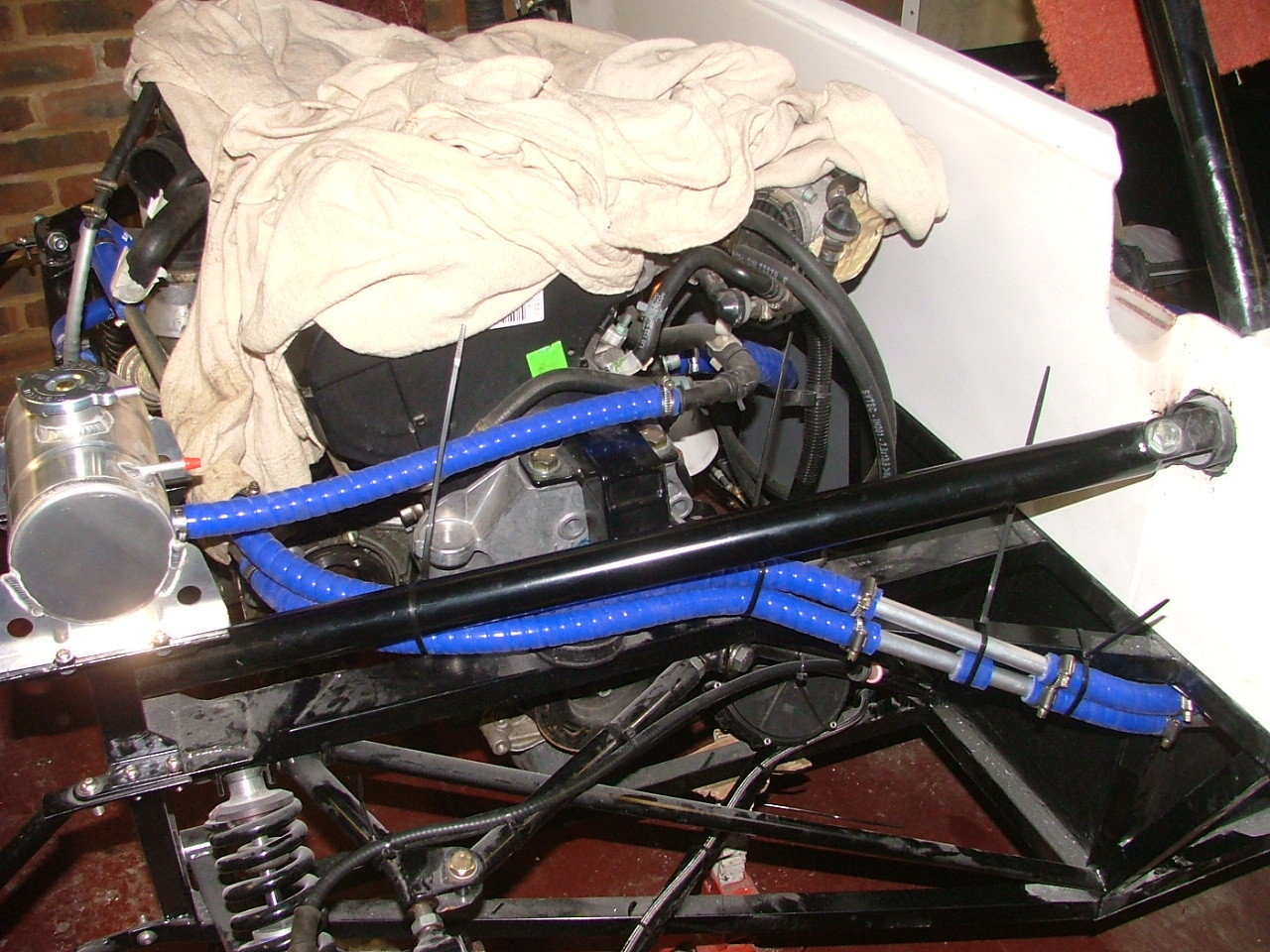

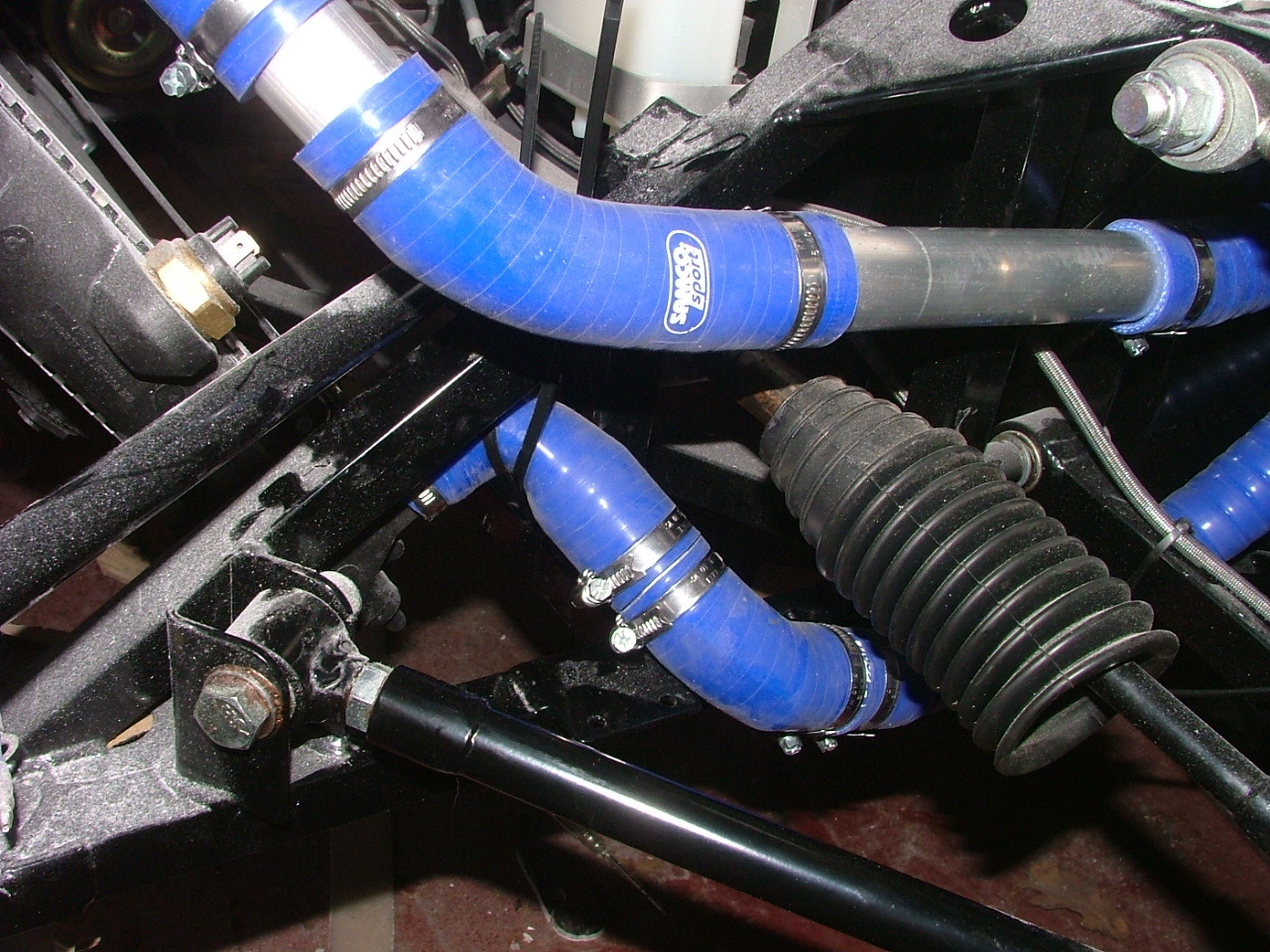

I then made a start on fitting pipe clips - firstly, to the radiator.

Click to download Click to download Click to download

Click to download Click to download

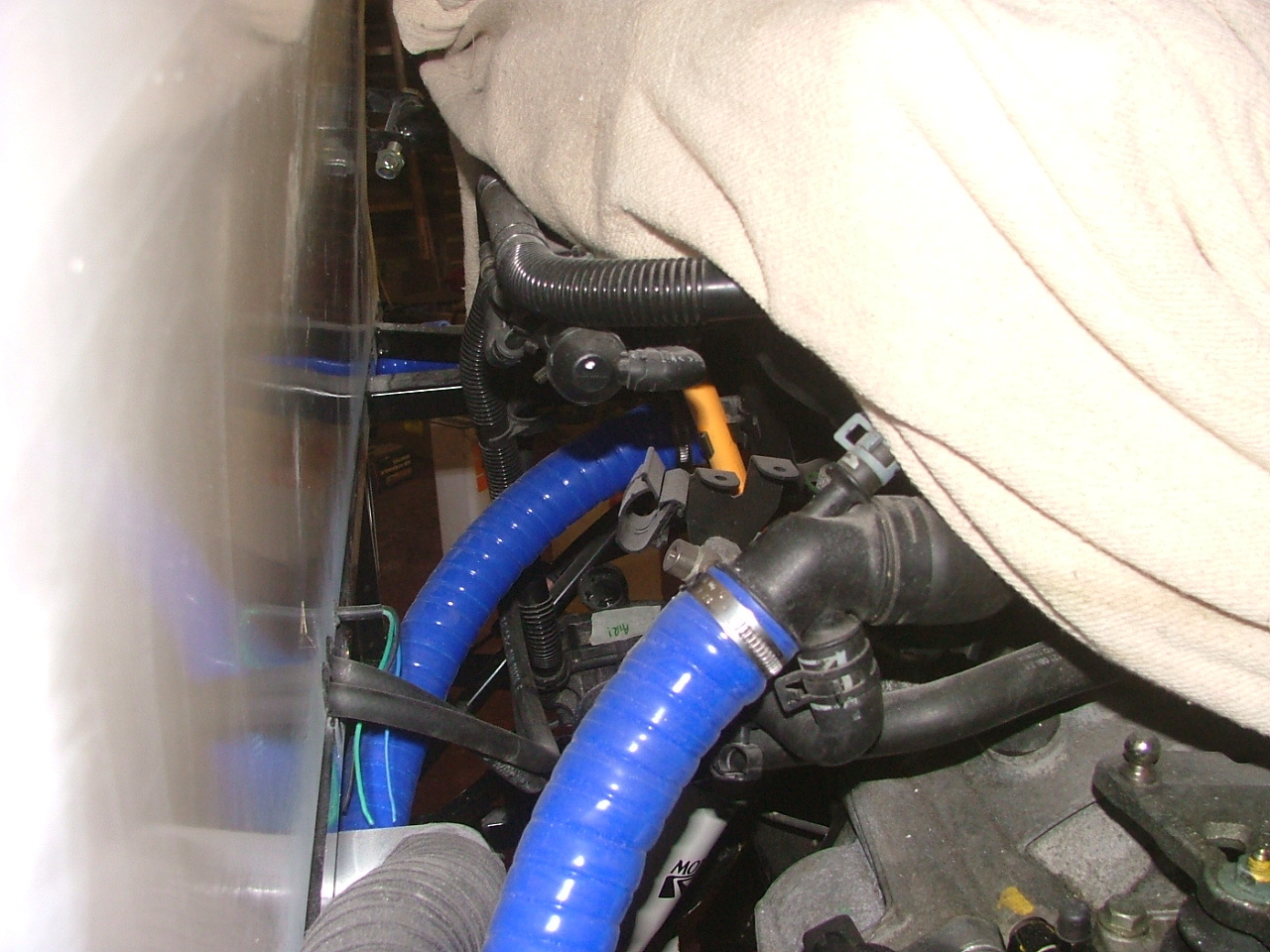

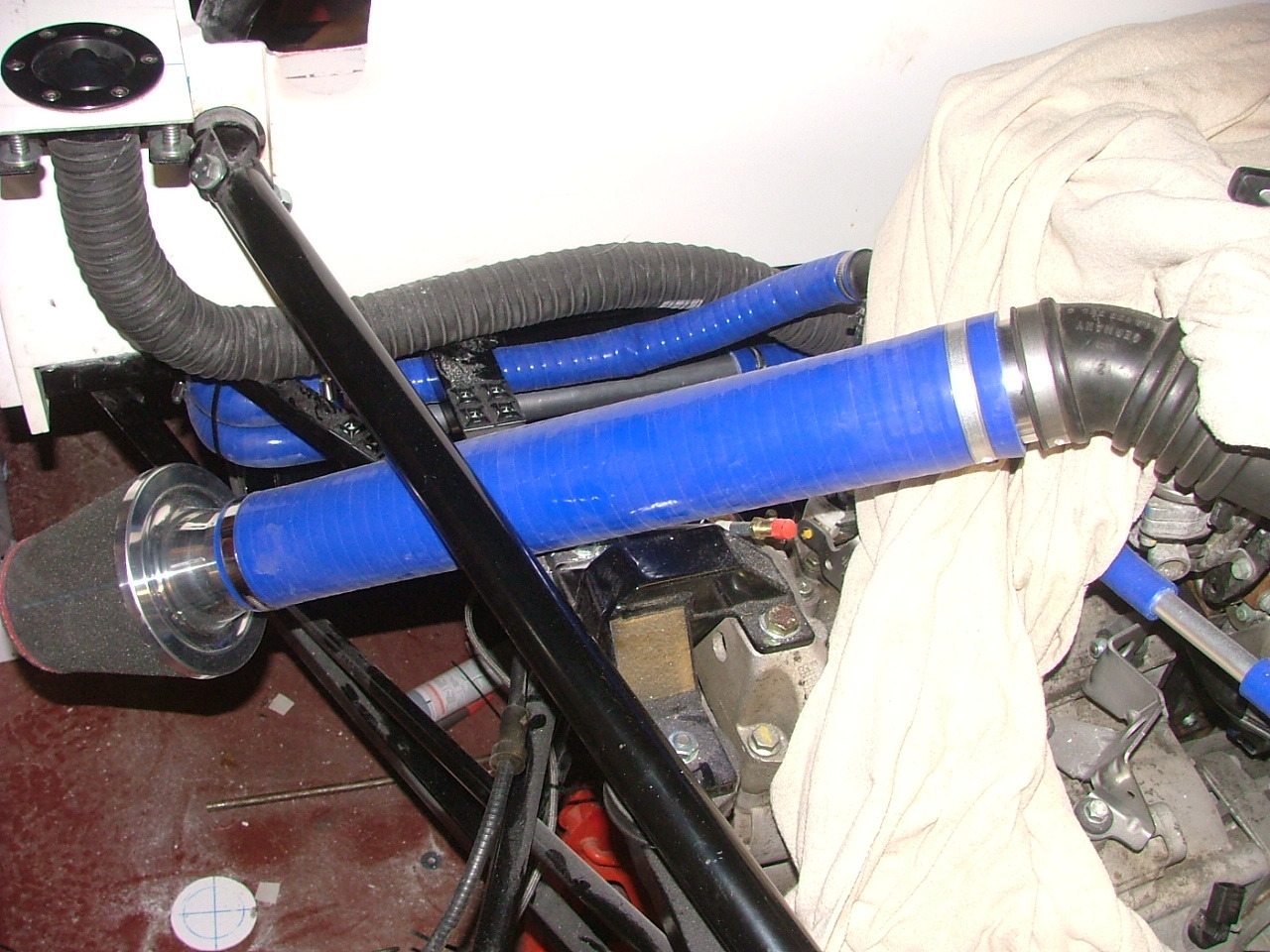

And then I put the clips on the air filter intake pipe.

Click to download

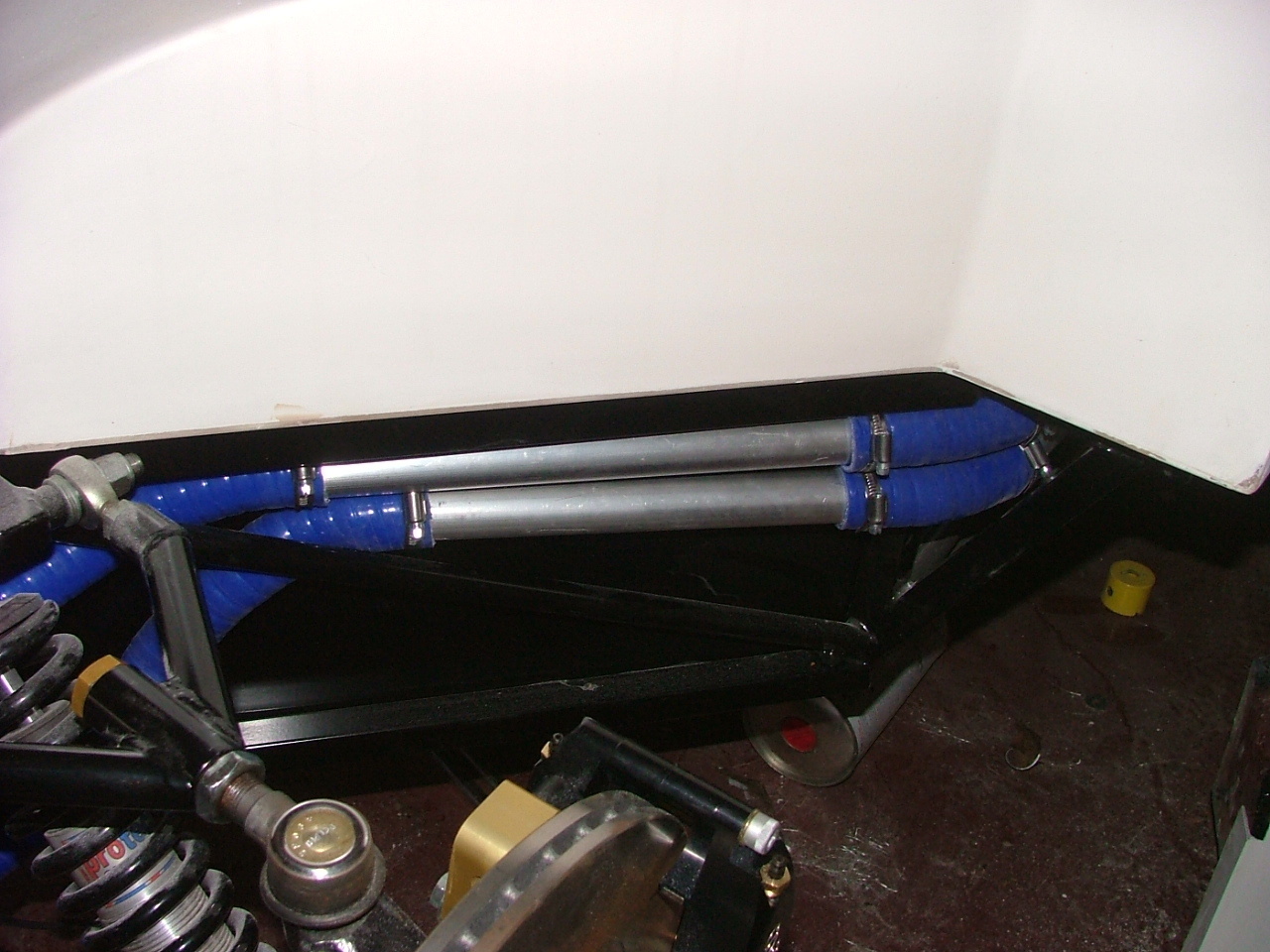

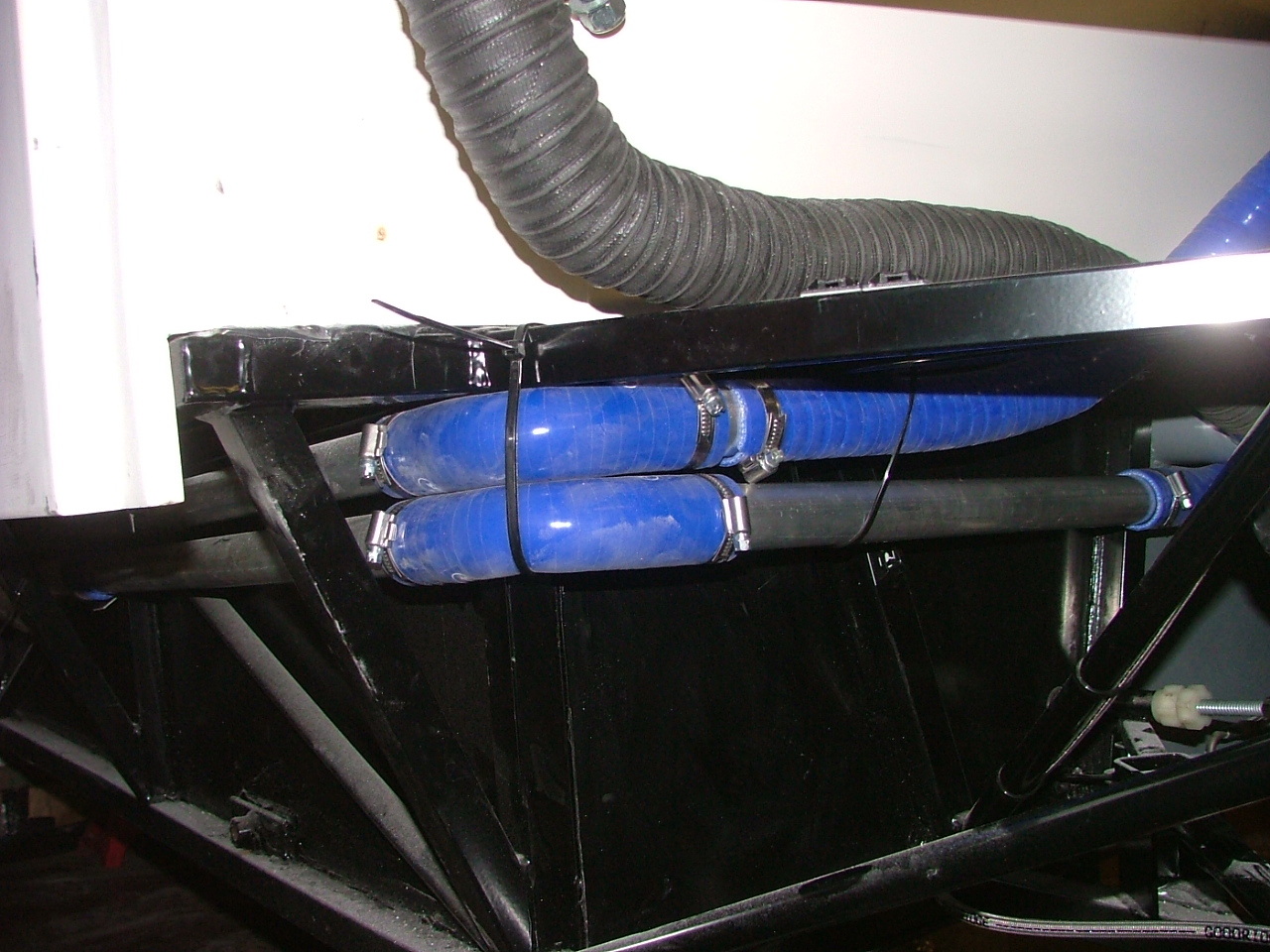

Finally, I put clips on the windscreen heater pipes.

Click to download Click to download

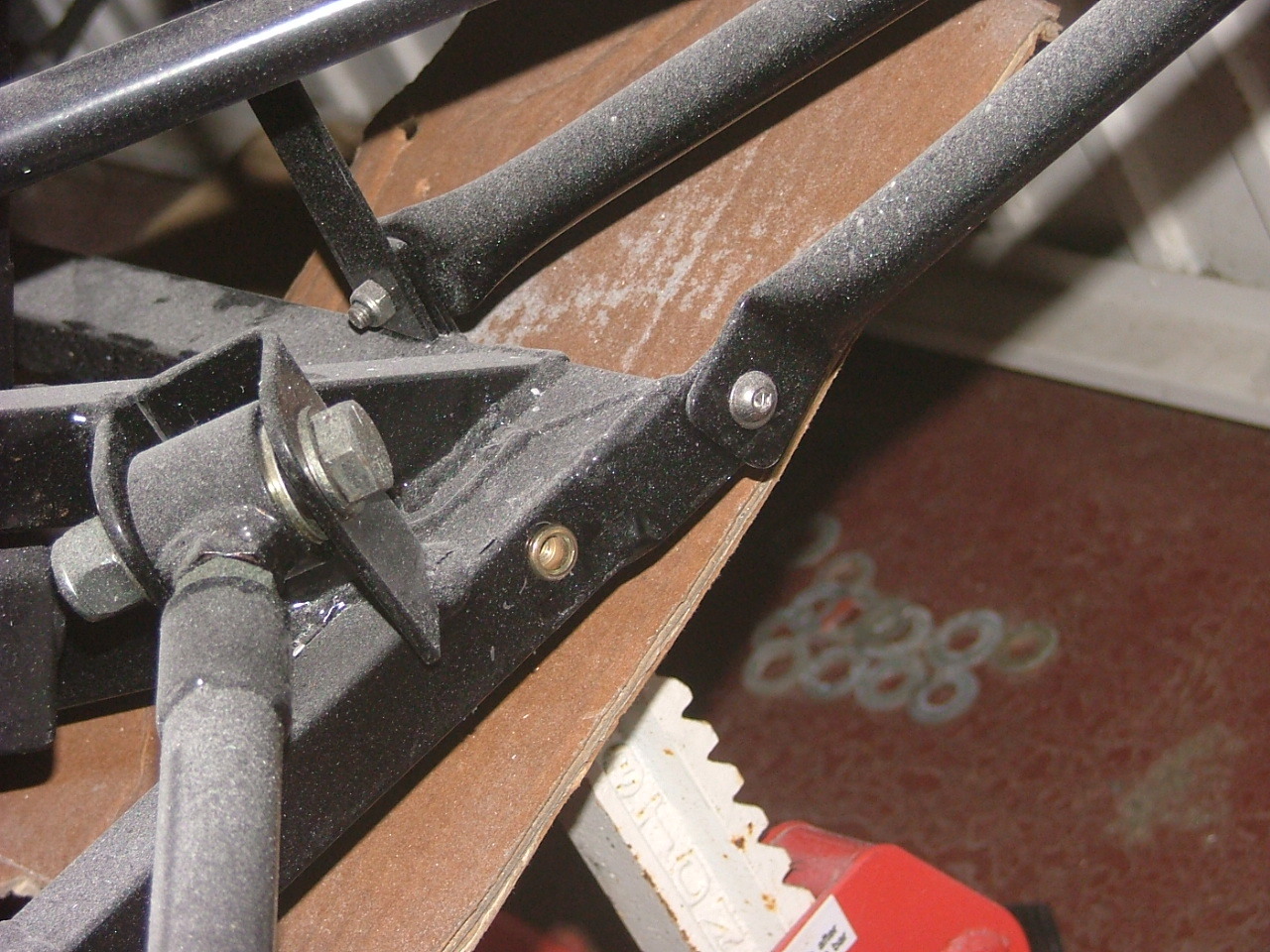

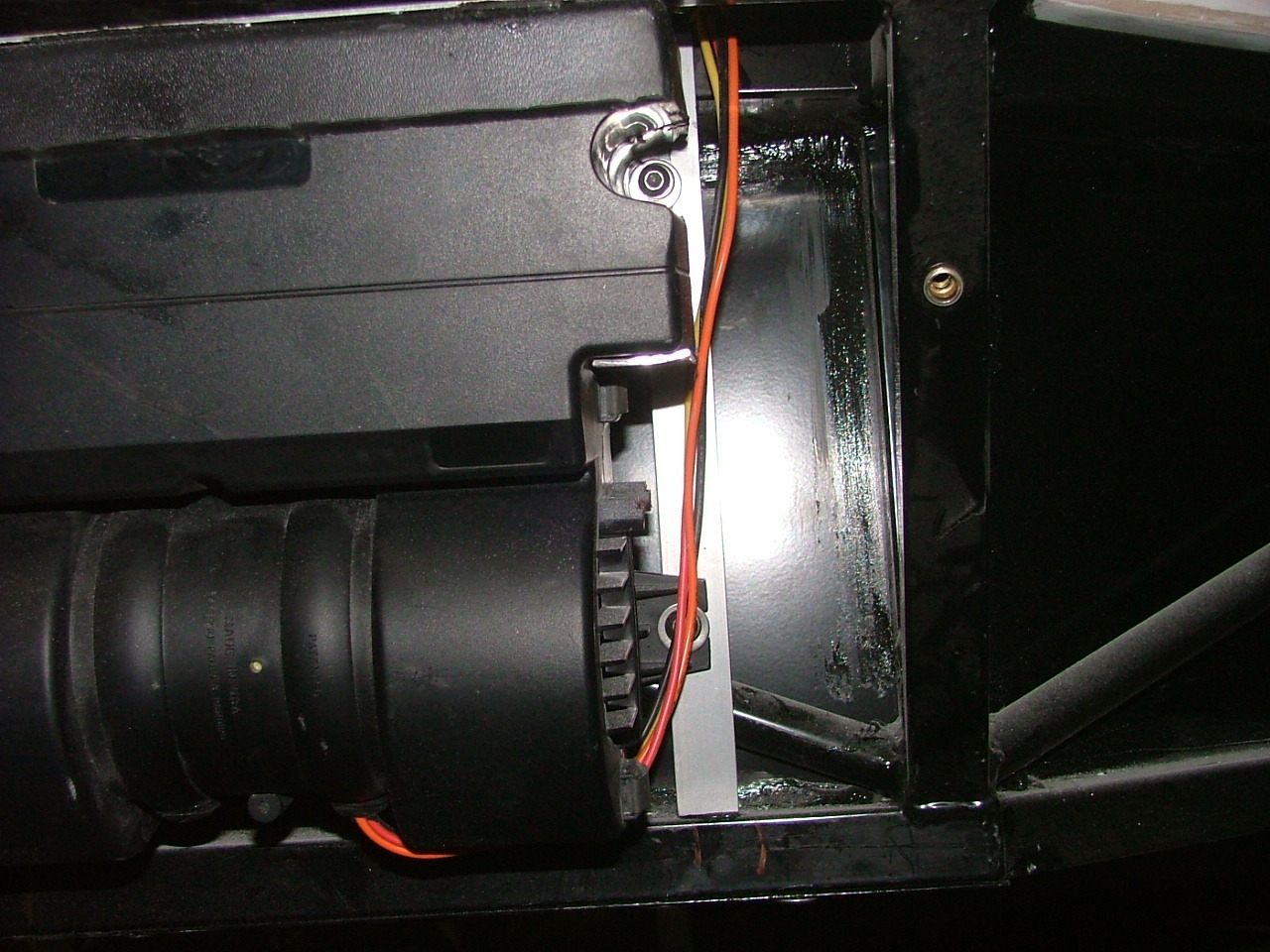

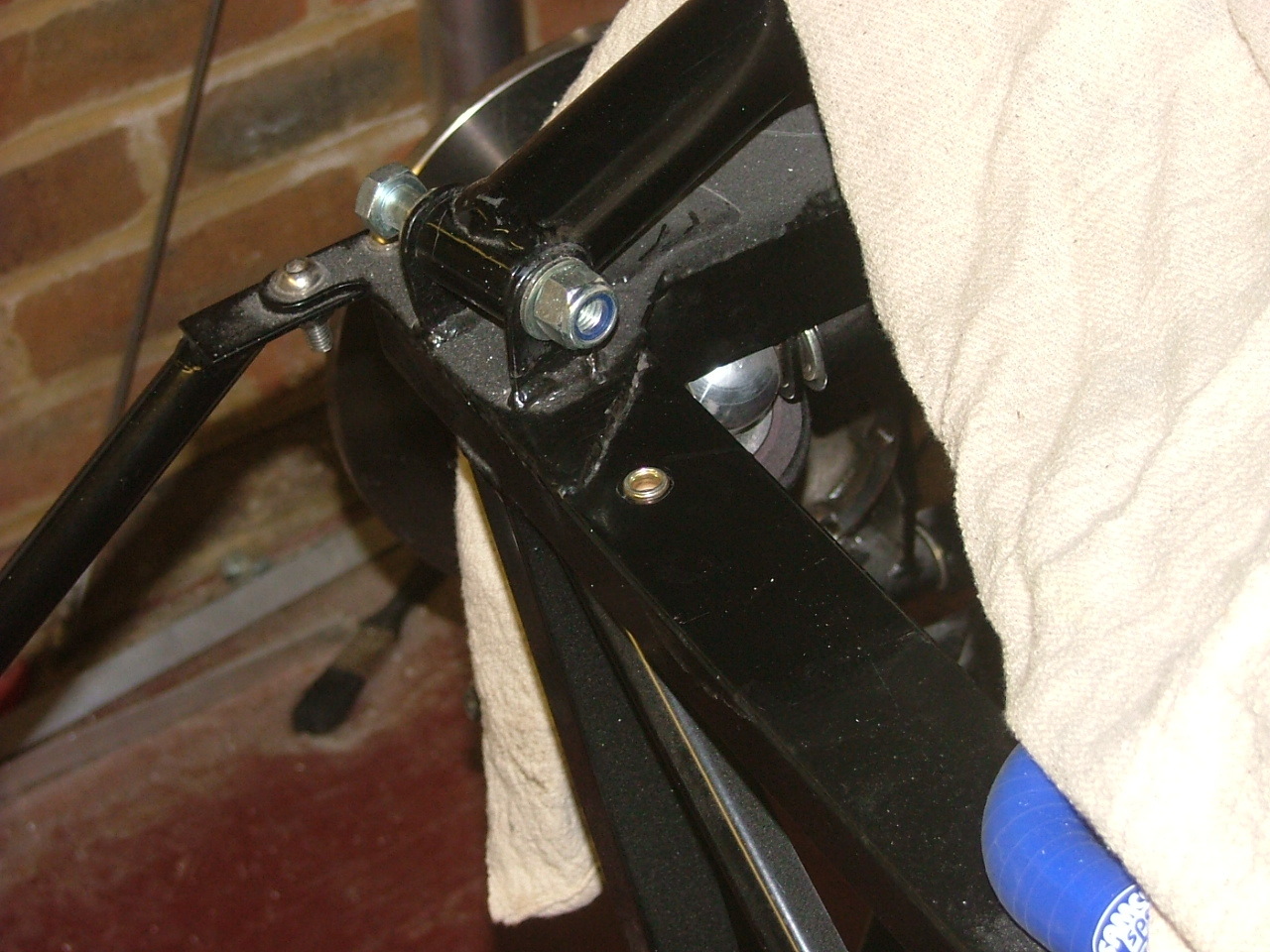

This took quite a while, and it was now getting quite late. So, I did one of the 10 minute jobs - fitting rivnuts to the front, middle and back of the car to provide earthing points for the lights and heater fan.

Click to download Click to download Click to download

While packing up, I remembered that I hadn't put any clips on the fuel filler hose, so I did that.
