Day 17 - Wiring (part 1)

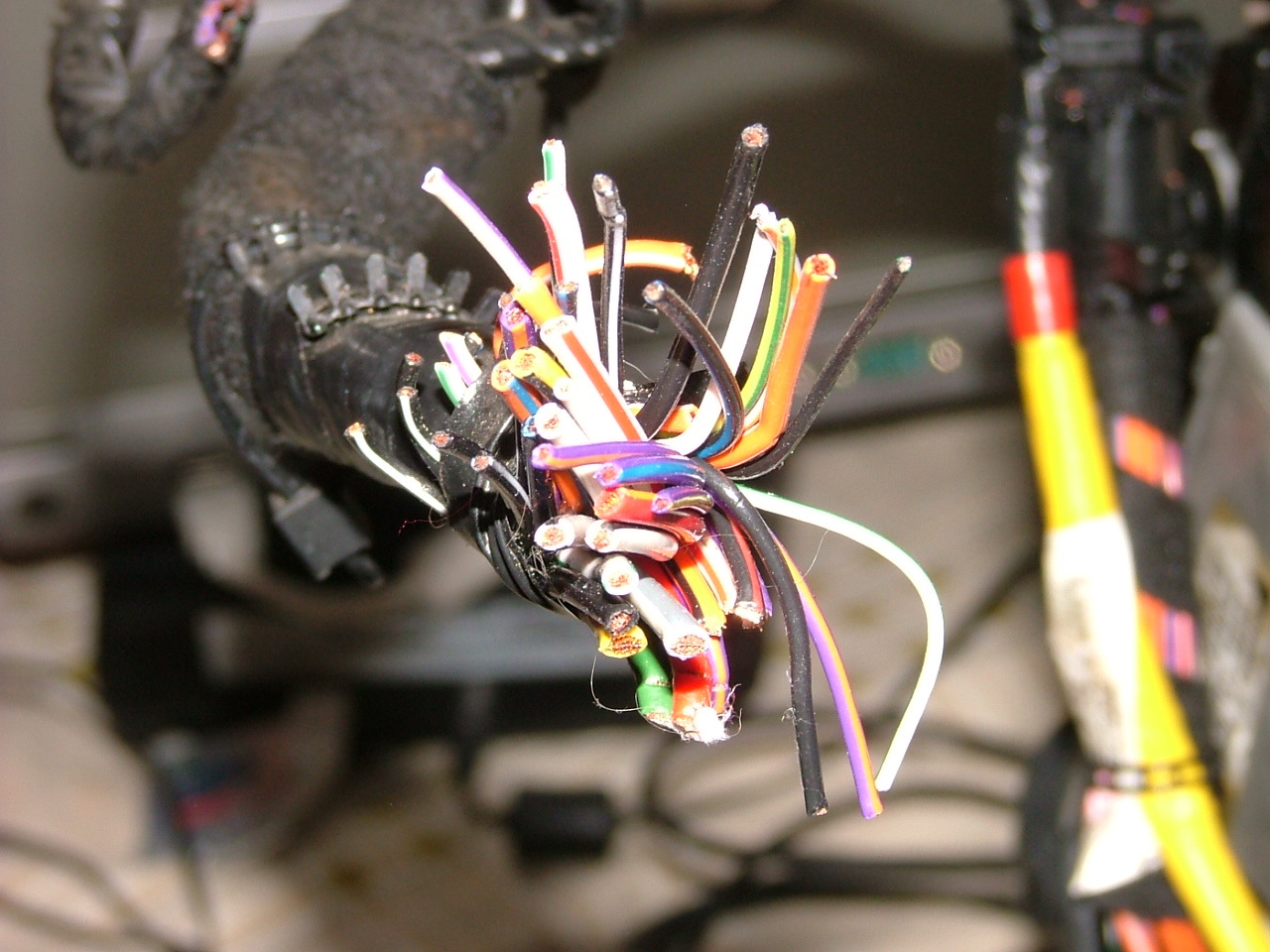

Preparing the column

As it's cold this week, I've decided to start preparing the wiring. First job is to sort out the column's wiring loom.

Click to download

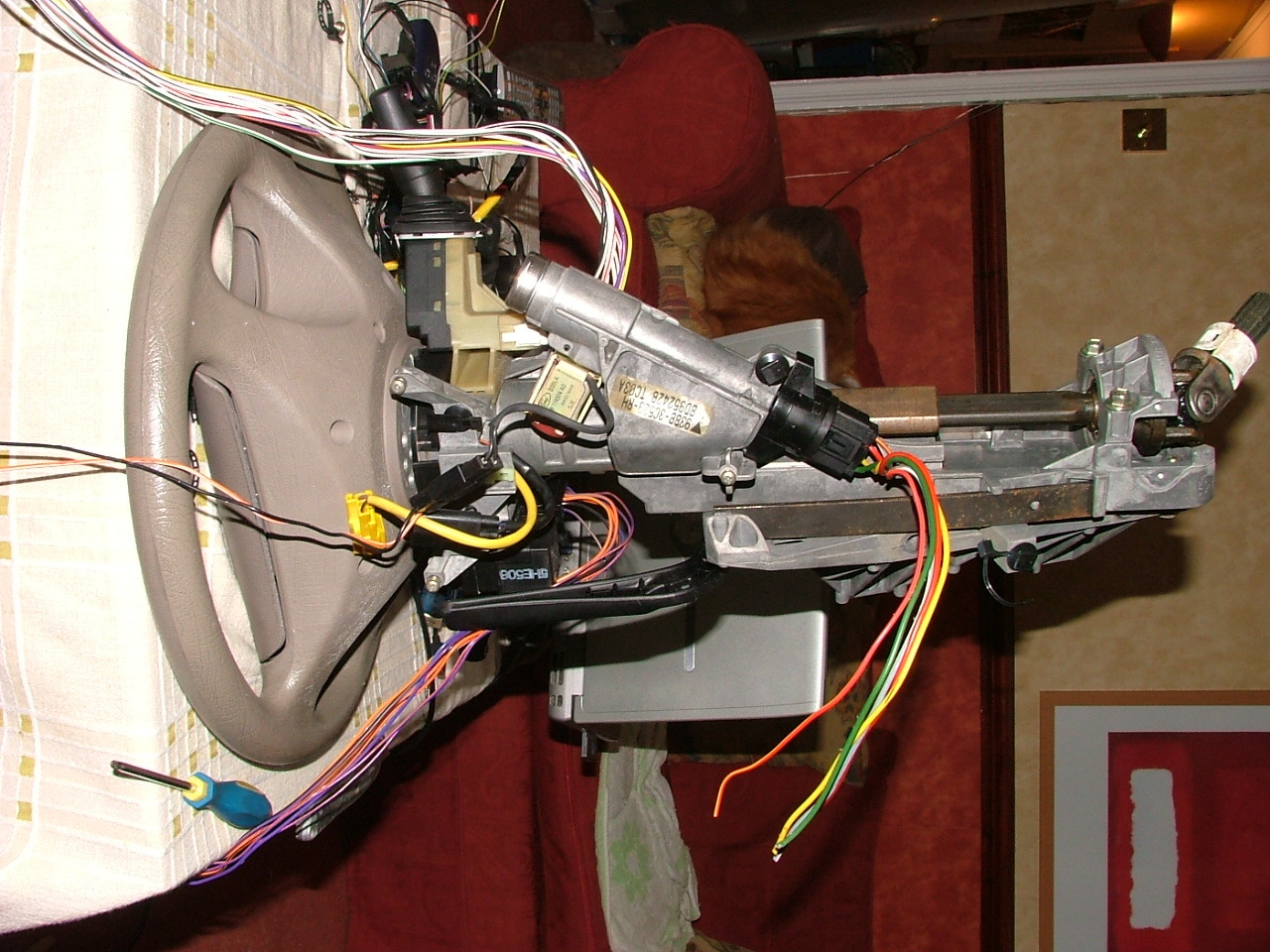

With all the tape removed

Click to download

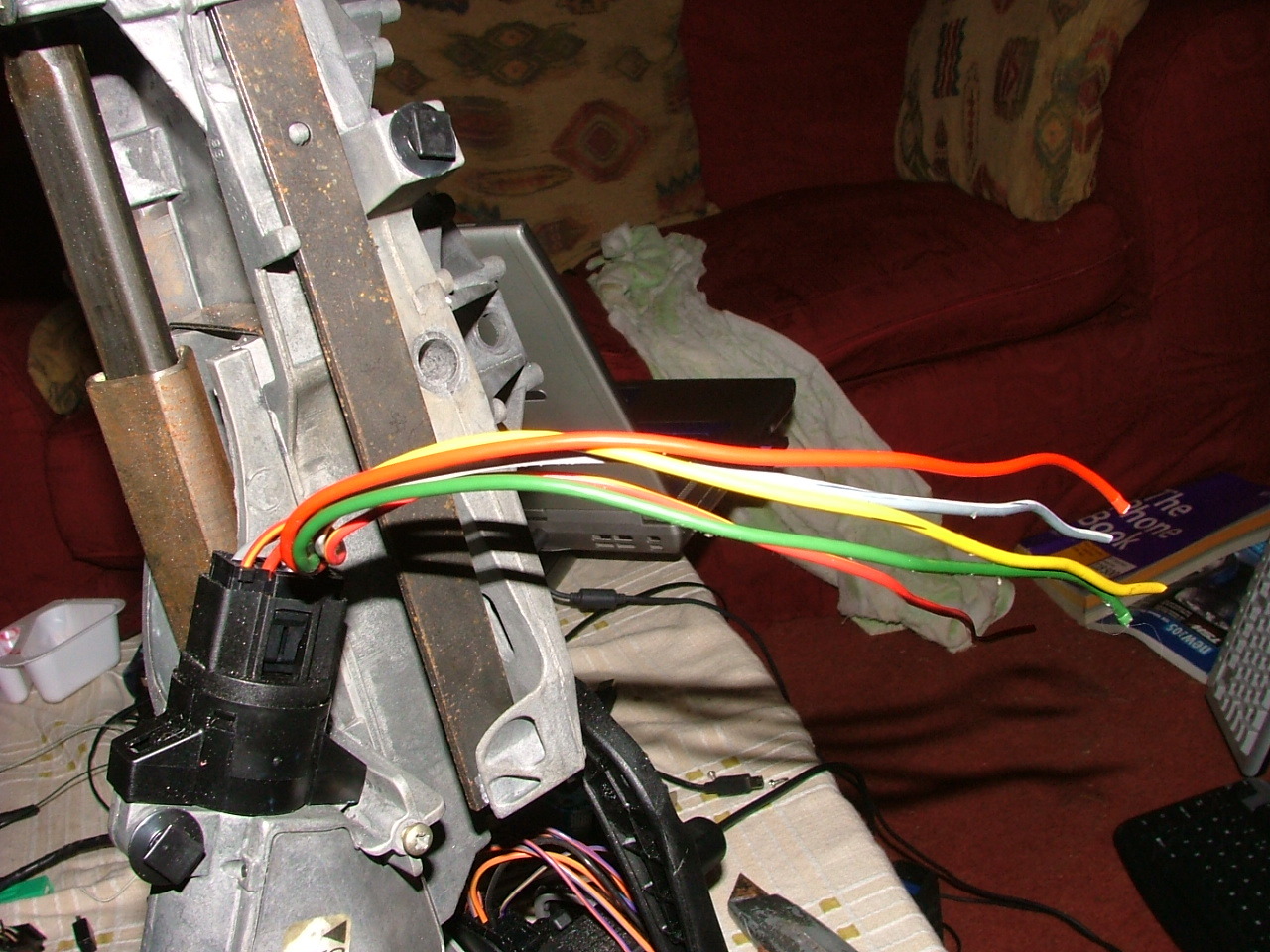

Ignition wiring

Click to download

The colours are as follows:

RedPermanent 12V supply (through immobiliser)
YellowAuxillary power
Red/yellowPower off feed

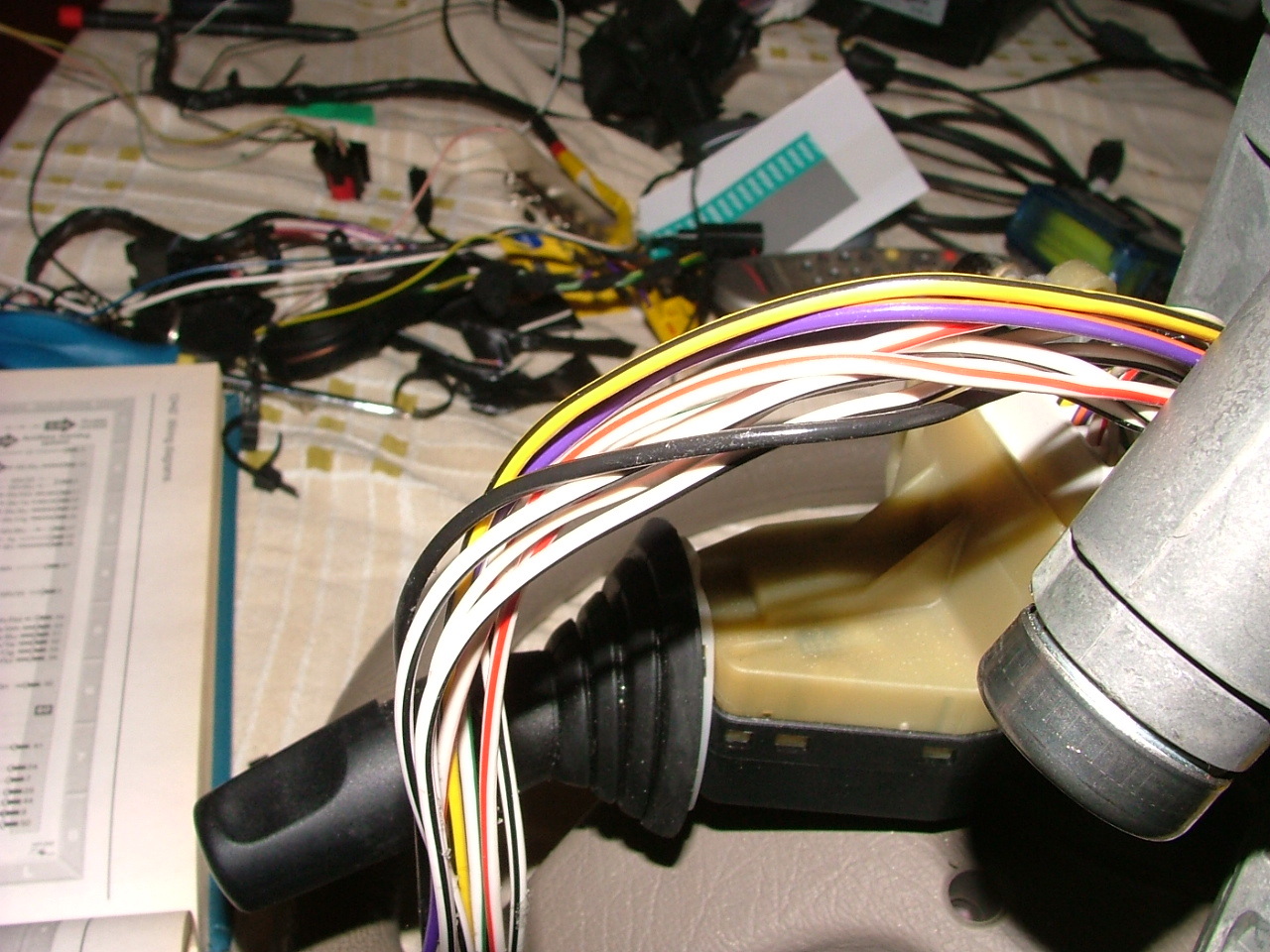

Wiper wiring

Click to download

They have individual numbers, and since there's 3 white/black cables, I've indicated the cables in the back of the switch with the numbers.

Front washerWhite/red11
5White/blackIntermediary position
4White/blackNormally connected from R15
Rear washerYellow/black9
3-Not connected
Ignition power feedPurple/orange8
2White/blackFast wipe
Rear wiperWhite/red7
1White/greenSlow wipe
Intermediary speedWhite6

These are based on the wiring diagram in the Haynes manual - wire 4 is meant to be white/green, and the intermediary speed doesn't appear to do much (on my Mondeo, there's a control for the speed).

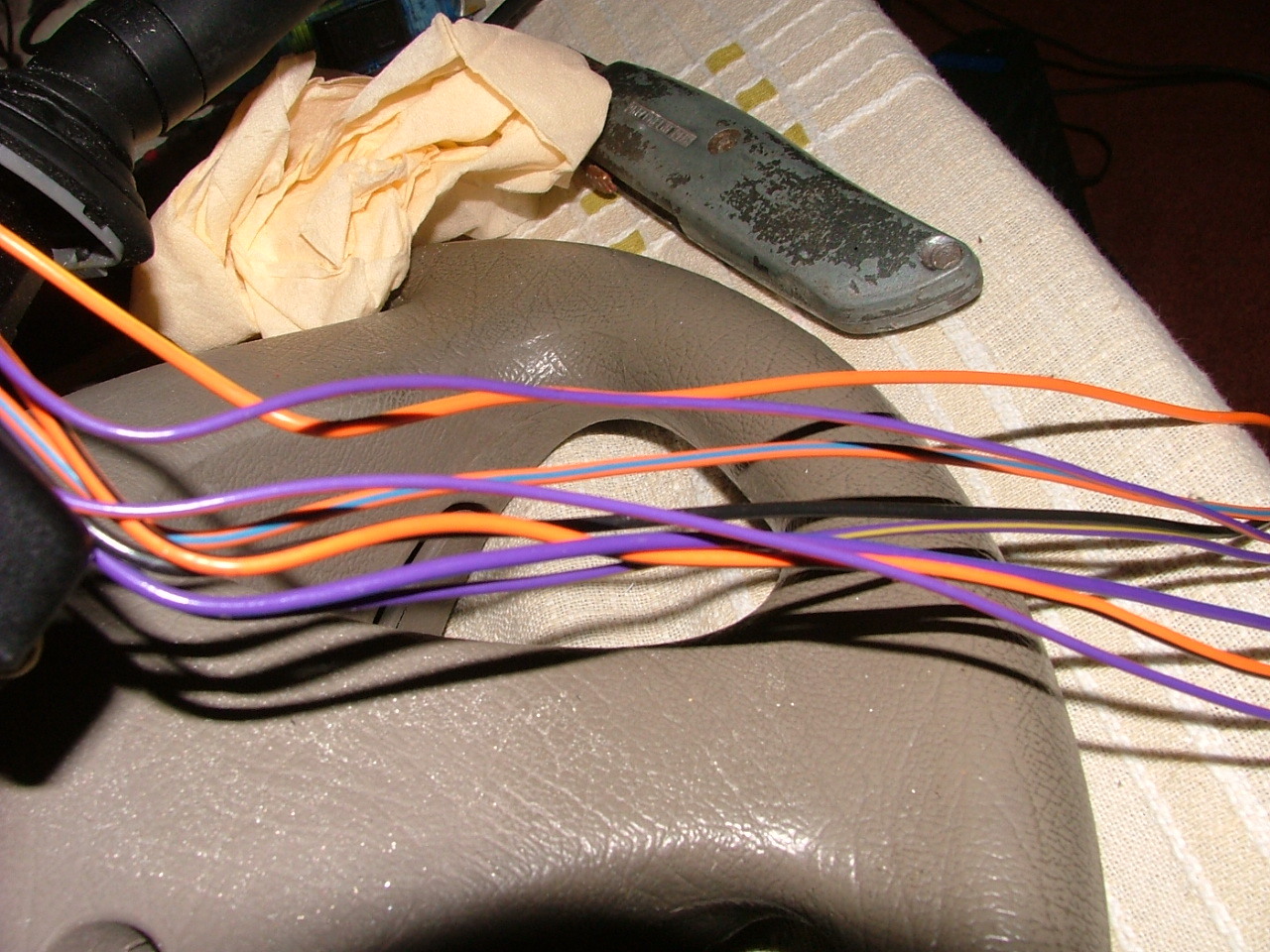

Indicator wiring

Click to download

And here, the colours are.

Orange/blackPermanent power
Orange/yellowLeft indicators
Orange/blueRight indicators
Purple/blueIgnition power
Purple/yellowMain beam power
Purple/orange (1)Dip beam power (input)
Purple/orange (2)Permanent power (for flash)


This is a simple switch - although when I replace the steering column, it may not have a horn.

Red/orangeHorn earth

What am I going to do?

What I want to do is use a PIC microcontroller to handle a lot of the work of turning things on/off.

It will have as inputs:

  1. Slow wiper input
  2. Fast wiper input
  3. Intermediary wiper input
  4. Wiper motor switch
  5. Dip light switch
  6. Side light switch
  7. Ignition power

Its outputs will be:

  1. Slow wiper output
  2. Fast wiper output
  3. Dip light output
  4. Side light output
  5. Dim/Dip output
