Day 75 - Doors, seat and gearstick

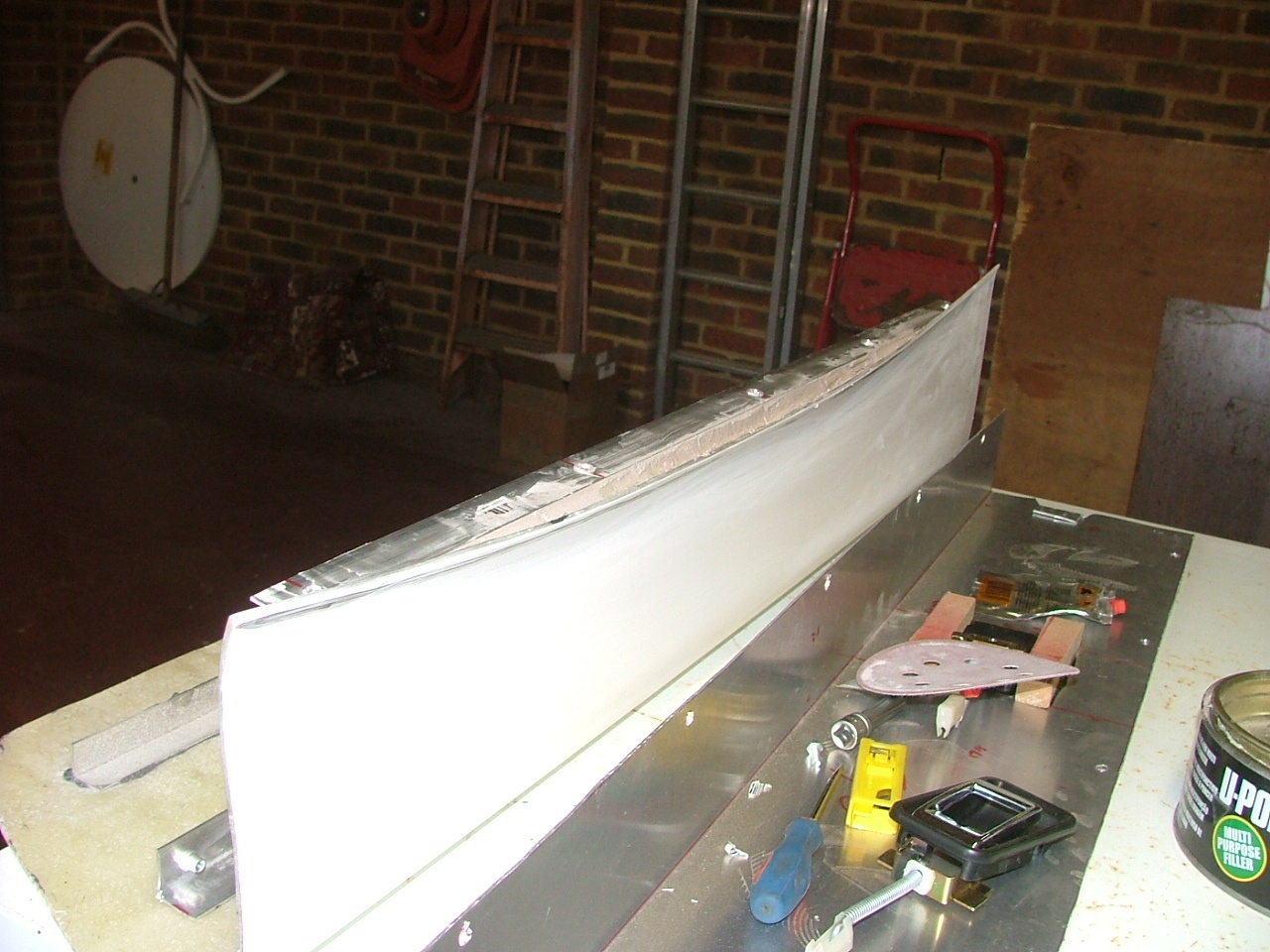

I decided to use body filler to fill the gap and then sand the edge a bit. I'll also cover that section with Alacantra to make it softer.

Click to download Click to download

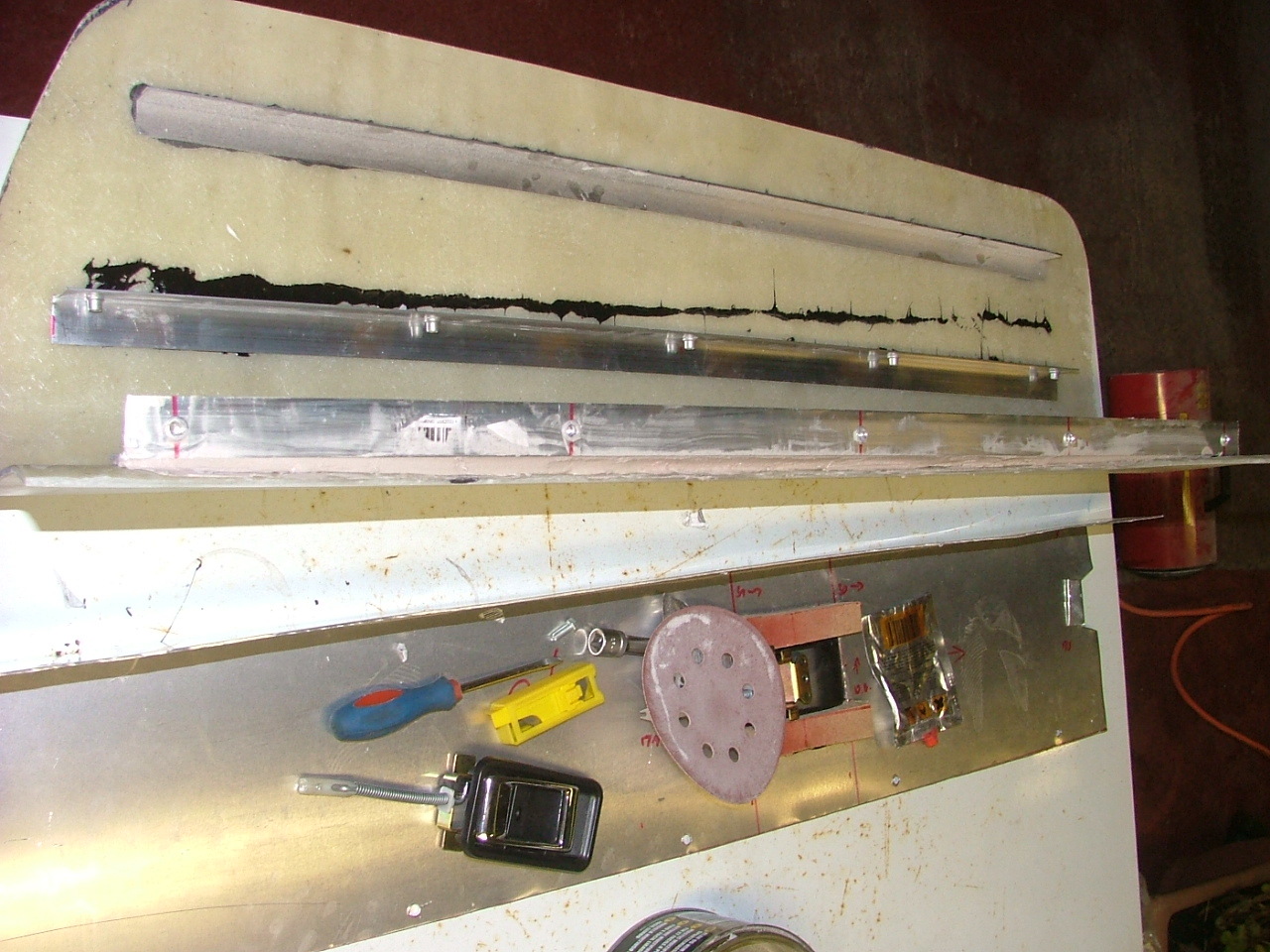

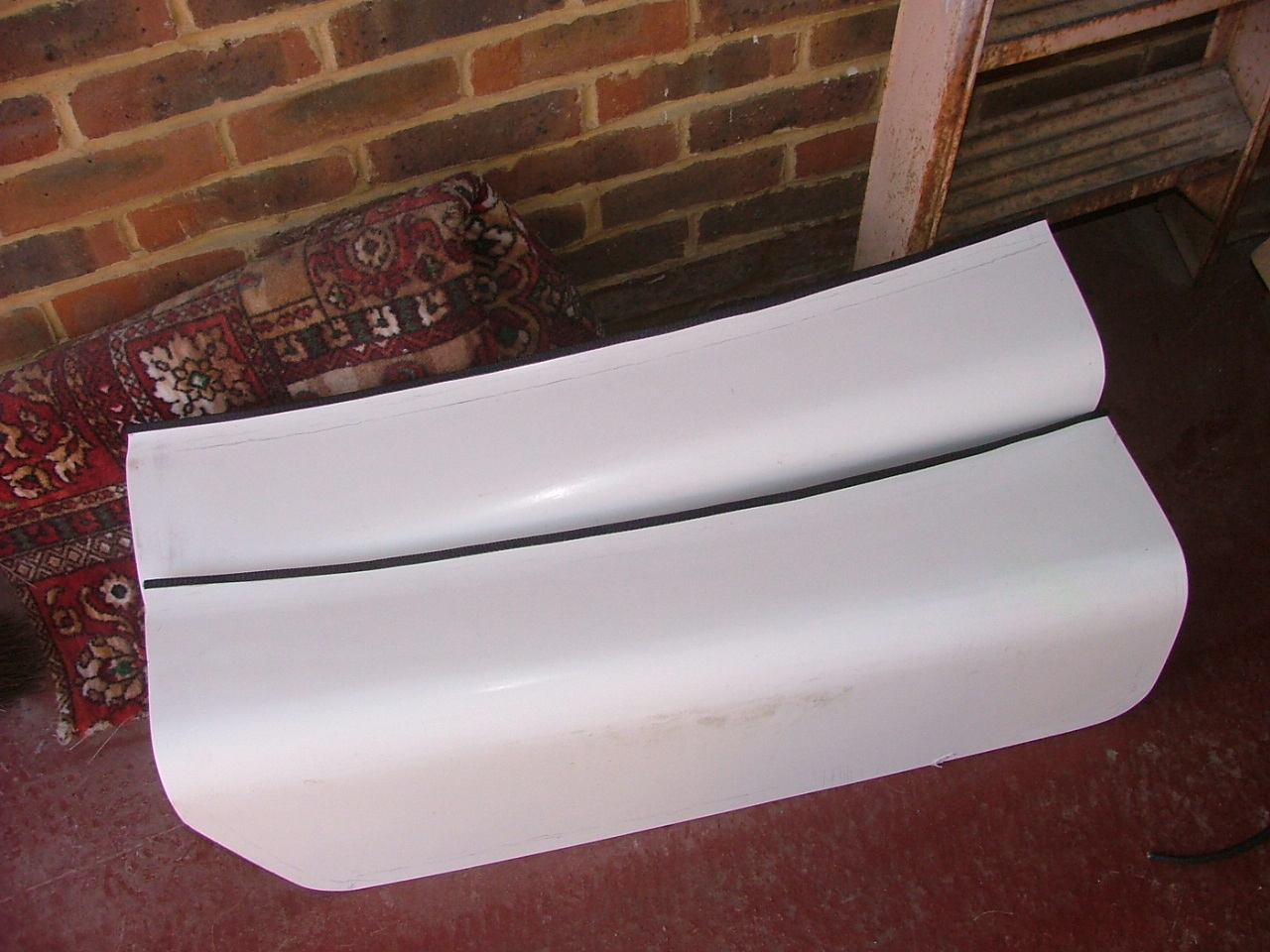

I then put some rubber edging on the door strengthening section.

Click to download

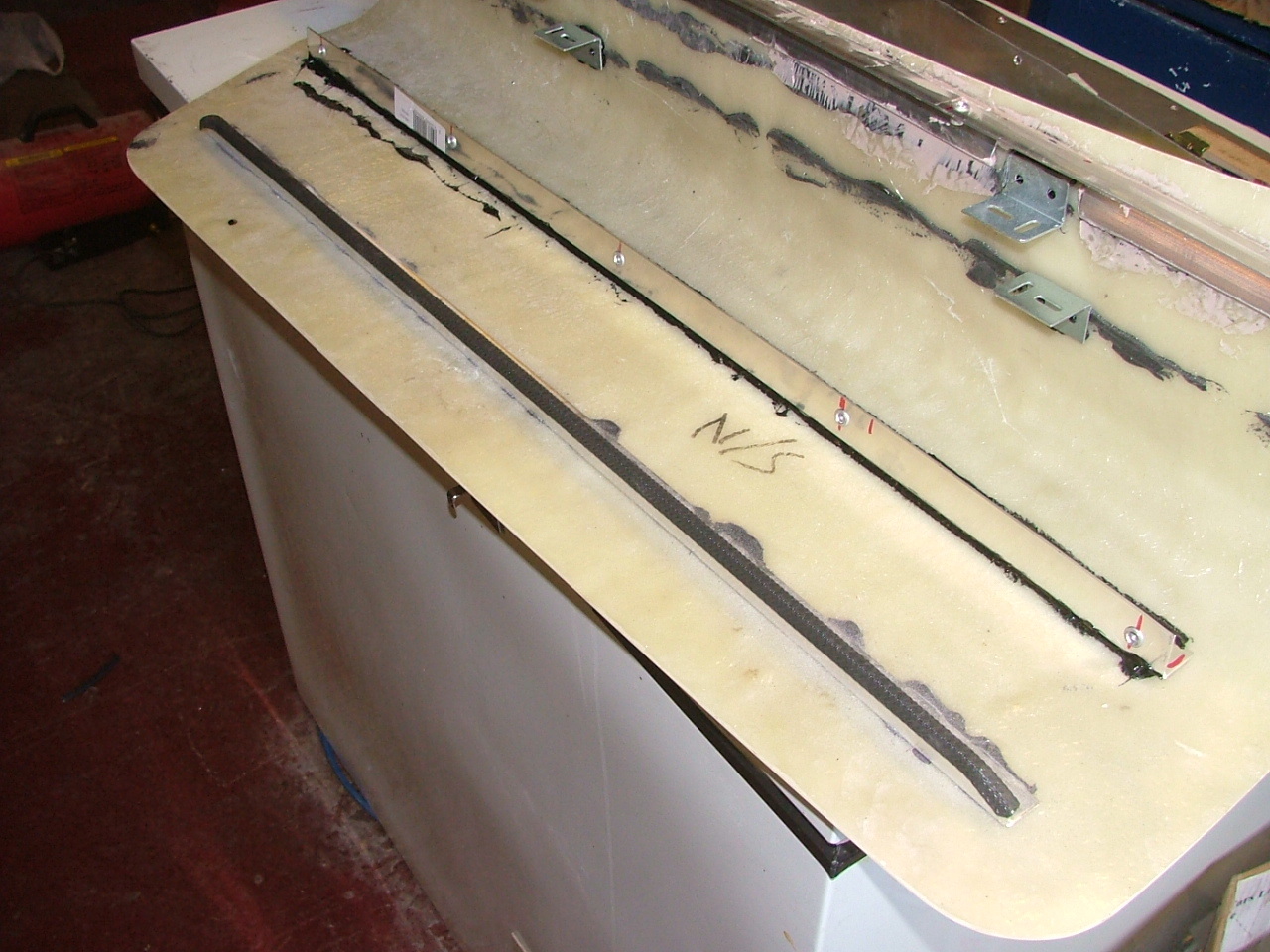

And also on the top door edge too.

Click to download

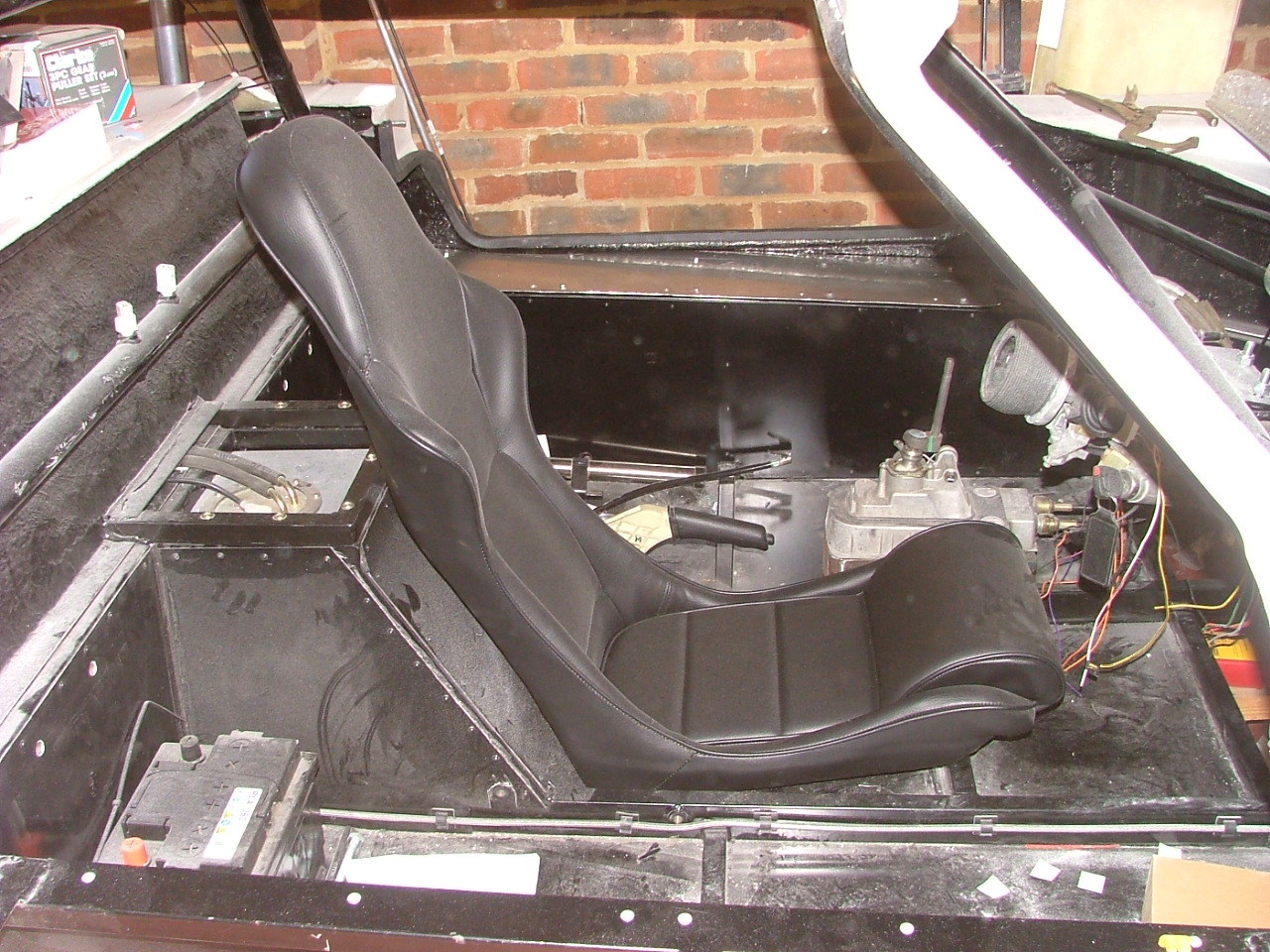

With Sikaflex setting on the doors for strengthening the bits I'd bonded last week, I started to work out where to place the gearstick. This required the rough fitting of the driver's seat.

Click to download

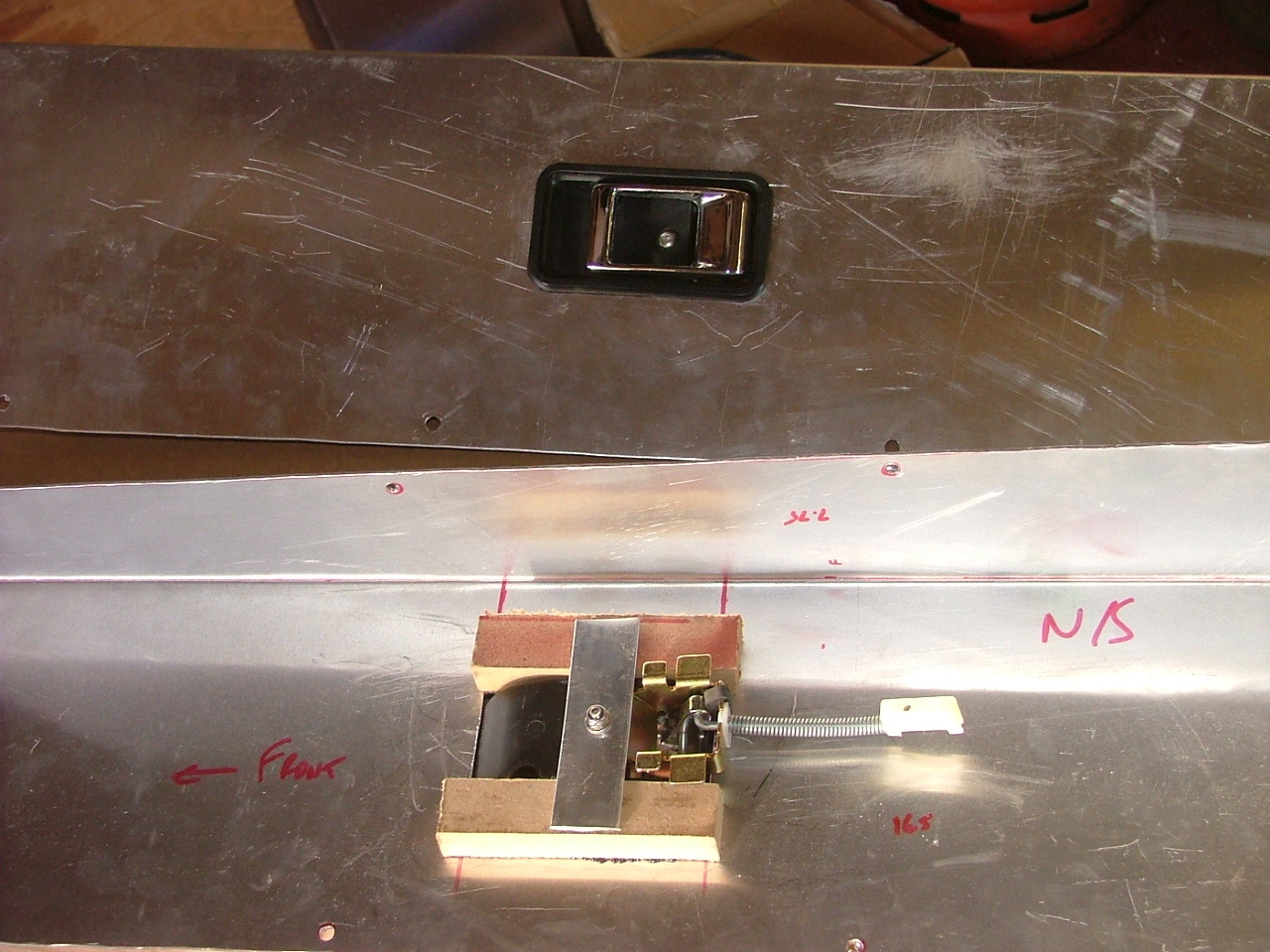

I had been looking for my M5 stainless buttonhead bolts for a while, and just before I was going to get the steering wheel, I found them. As a result, I bolted the door handles to the aluminium skins.

Click to download

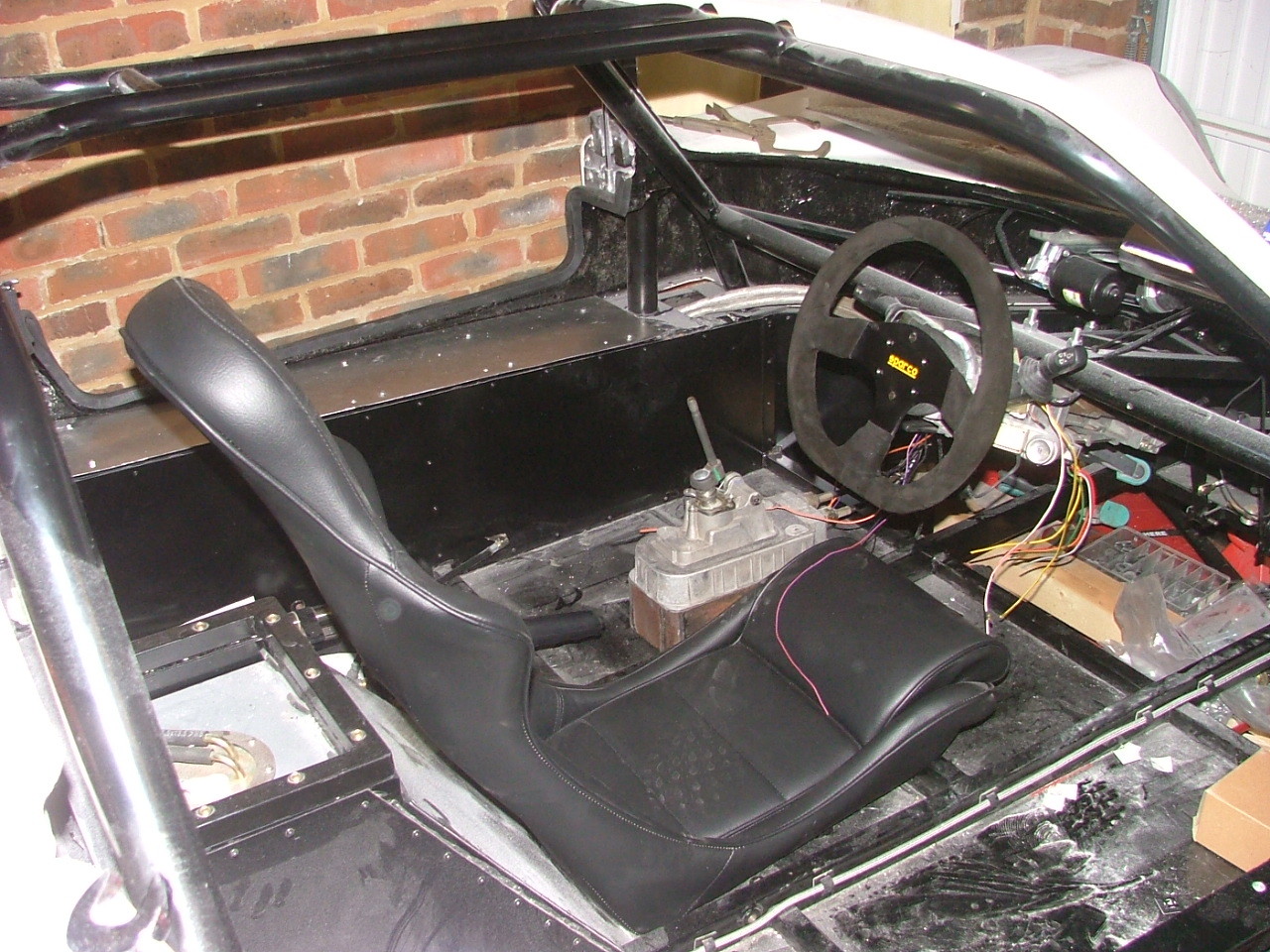

And then I fitted the steering wheel, and worked out the best place for the gearstick.

Click to download

It needed to be moved to the right, so I cut away part of the lower shell to clear the chassis rail.

Click to download

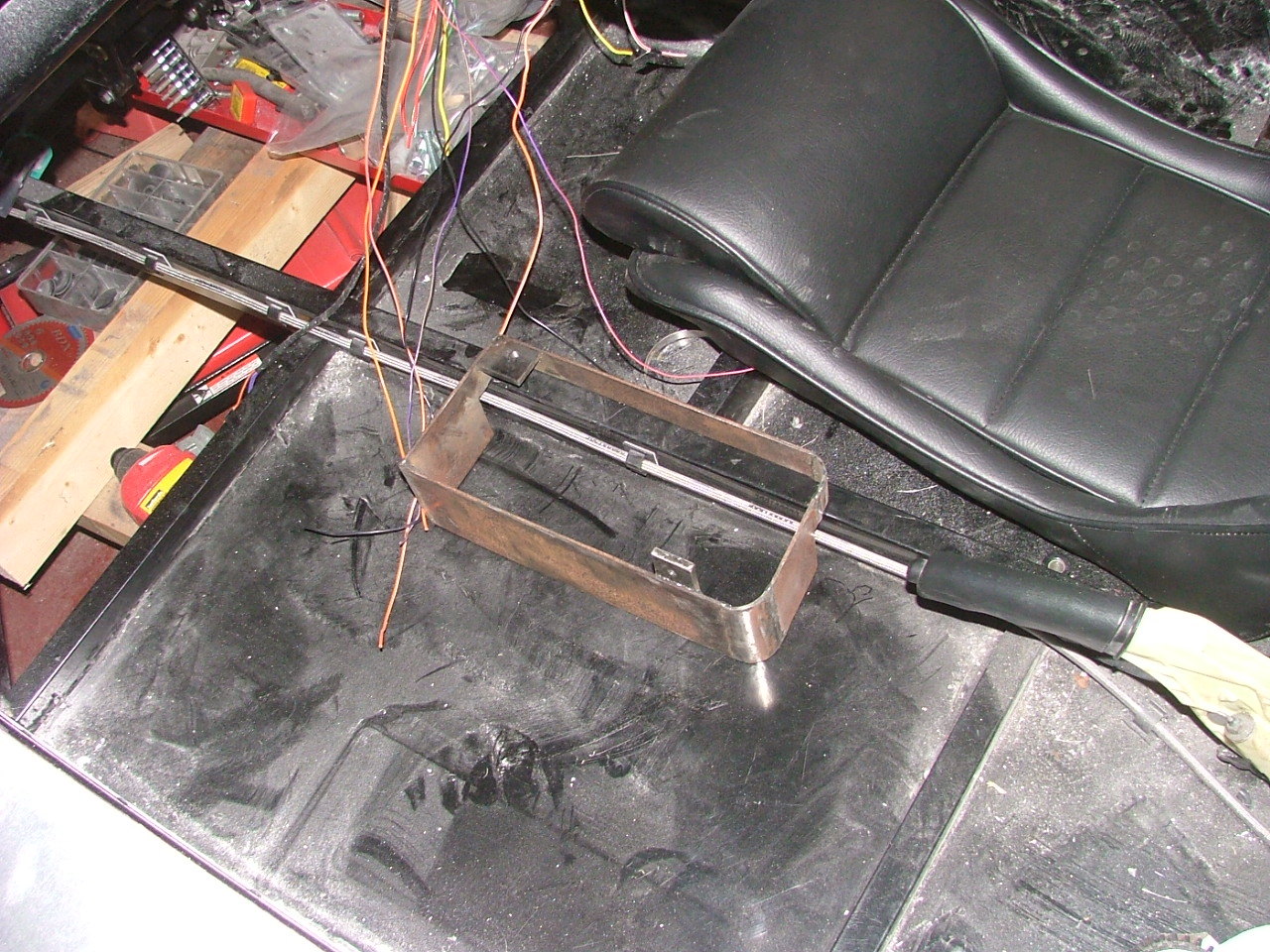

I then welded some tabs to the inside of the shell, and drilled holes in the floor for the bolts.

Click to download

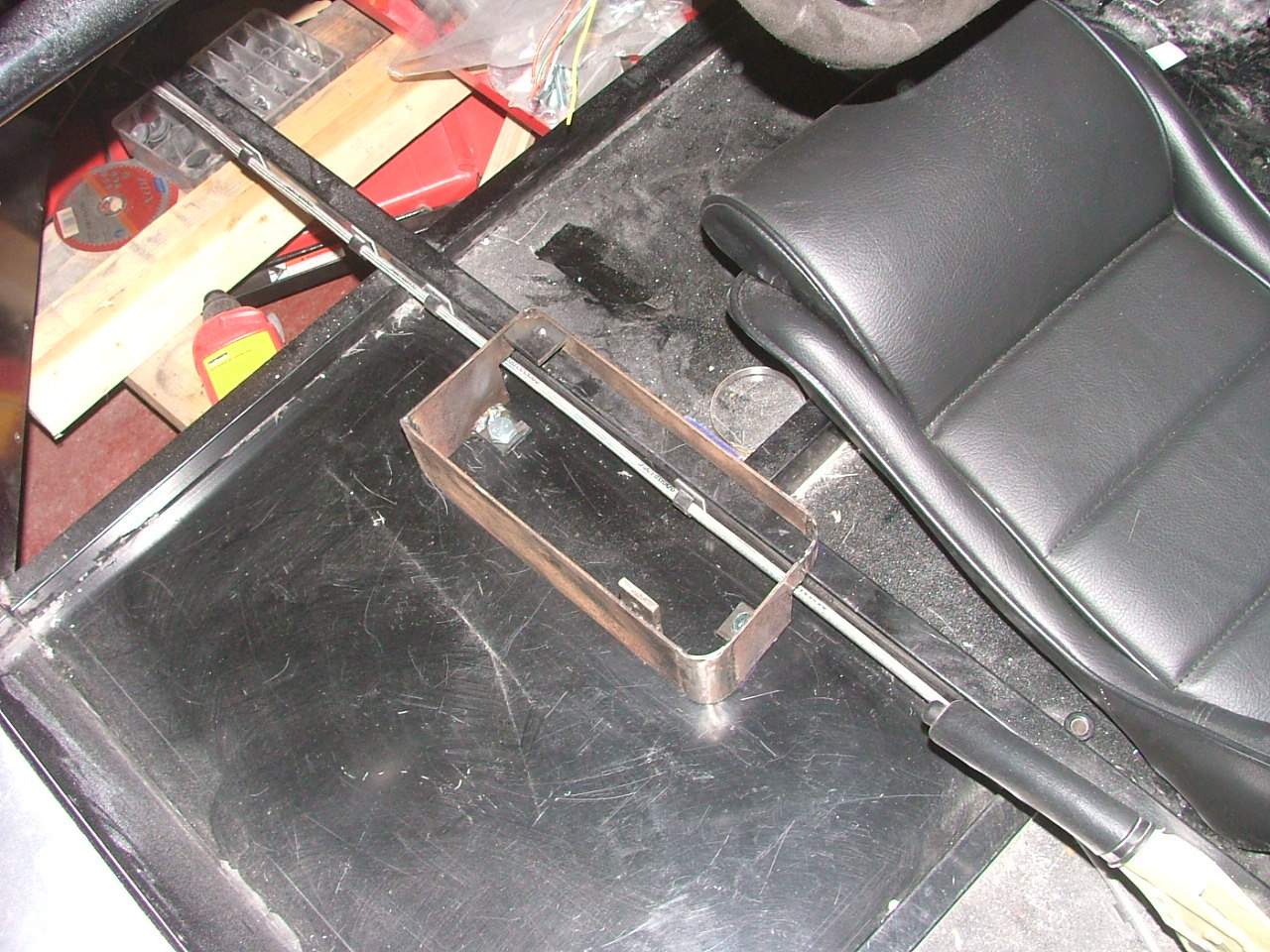

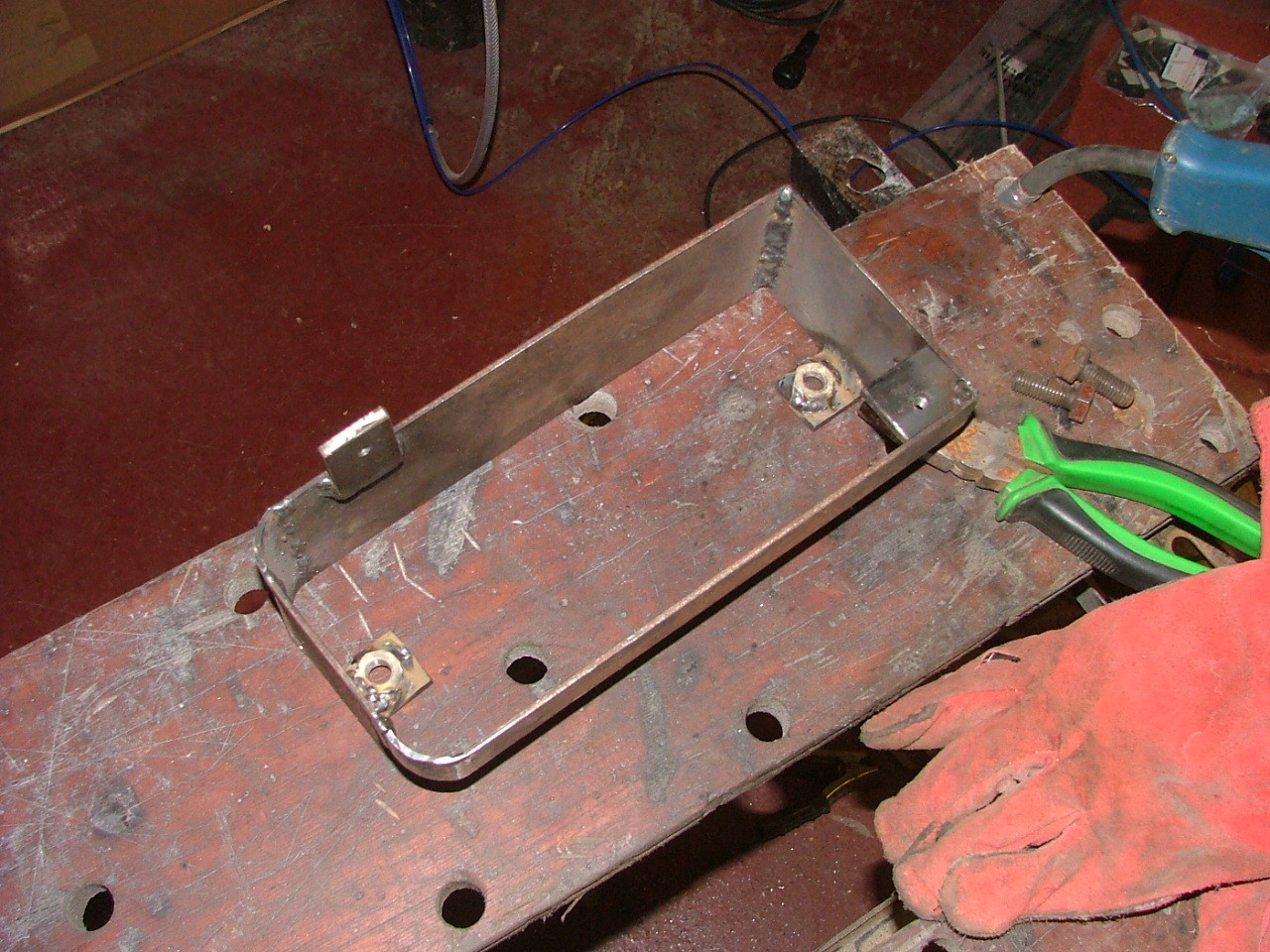

With the final position decided upon, I welded some captive nuts to the tabs, so they can be done up from underneath the floor.

Click to download

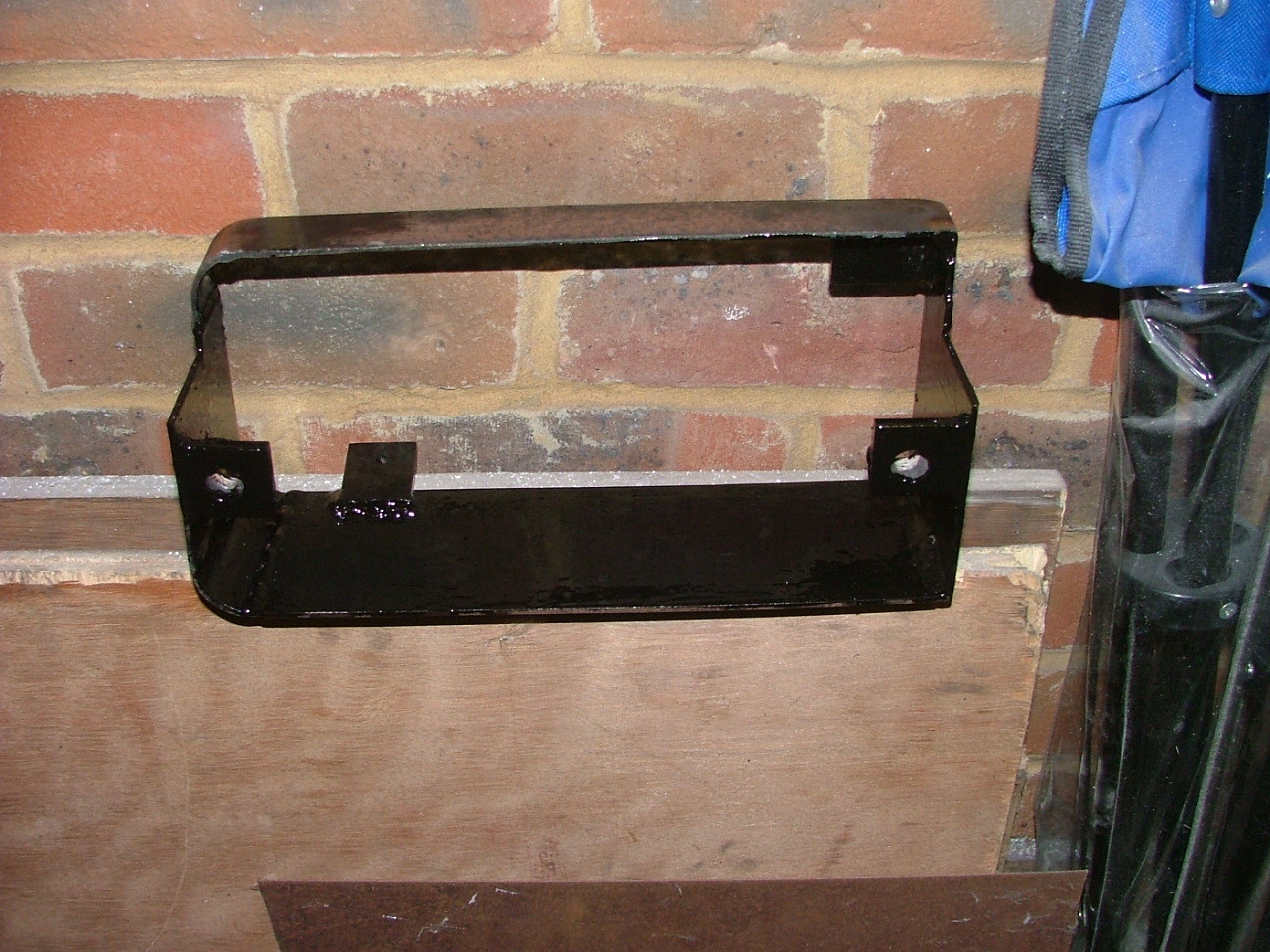

And then I painted the inside of the shell - the outside will be covered with Alacantra, and the contact adhesive will stick better to the metal than the paint.

Click to download

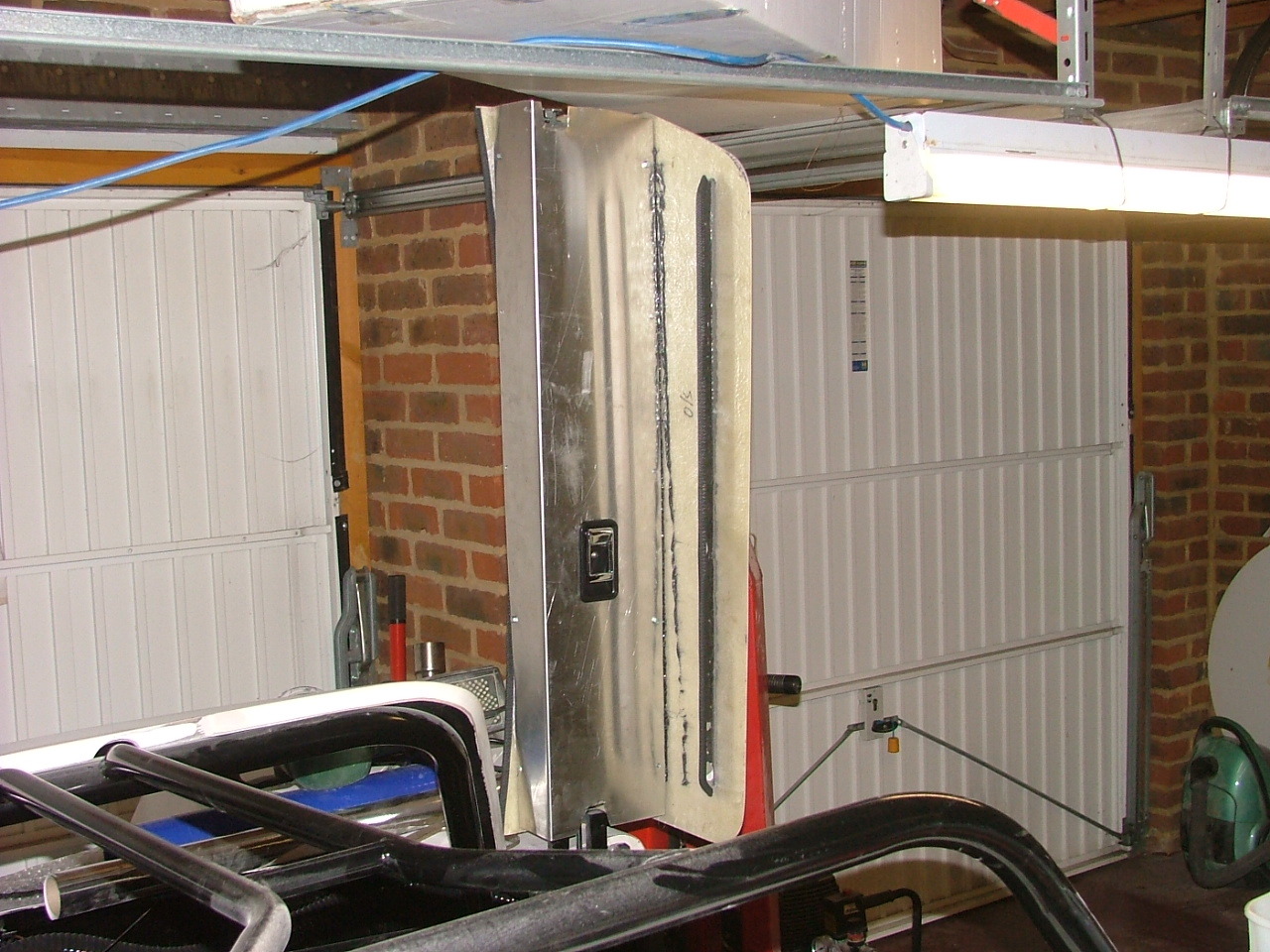

I then fitted the door properly, and checked to see how it closed - the door handle doesn't open the mechanism yet, so I've not closed it completely.

Click to download

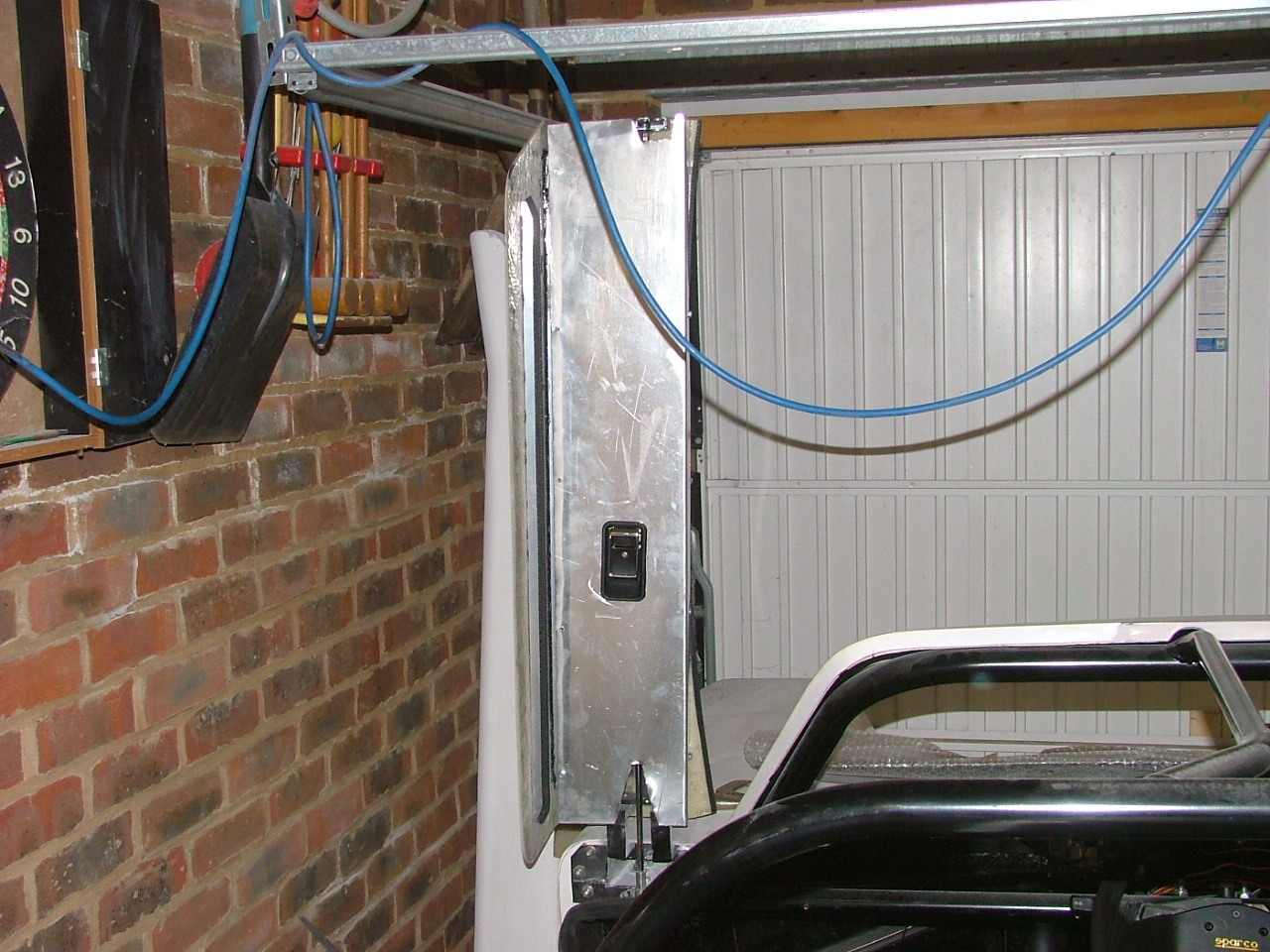

And the other side - unfortunately, the gas spring needed a bit more clearancing than the first side - I'll make a curved panel to cover it later.

Click to download

Unfortunately, my 10 minute job had to be aborted - I wanted to fit the rubber edging around the outside of the windscreen, but I need some edging material that goes over a thicker panel.
