Day 166 - Several more days

Again, due to the number of rainy days we've had, coupled with my laptop dying on me (it's now fixed), this is another accumulation of several of them.

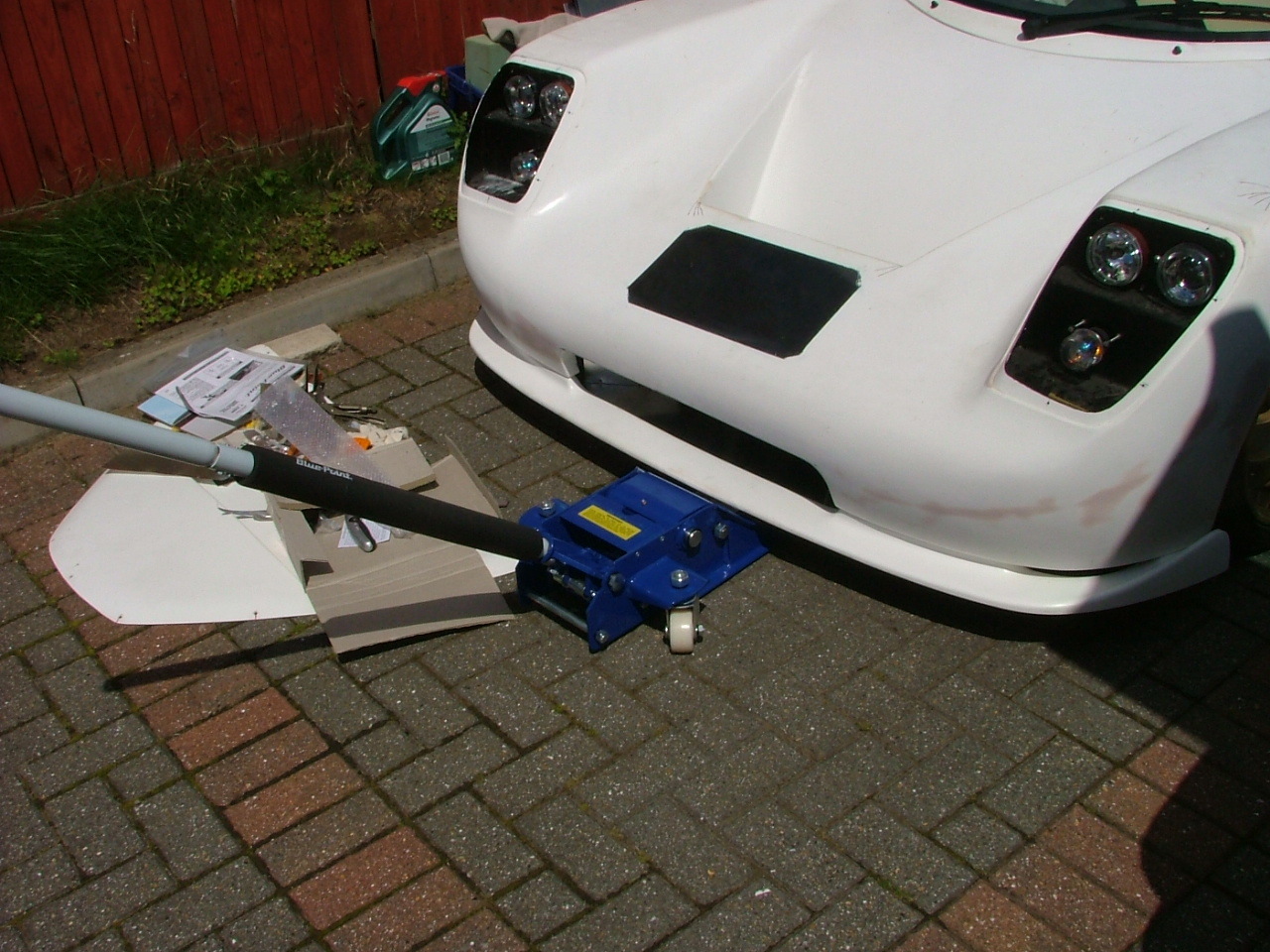

I bought a new trolley jack - a nice Snap-On one which has a very low clearance - ideal for lifting the front of the Aeon.

Click to download

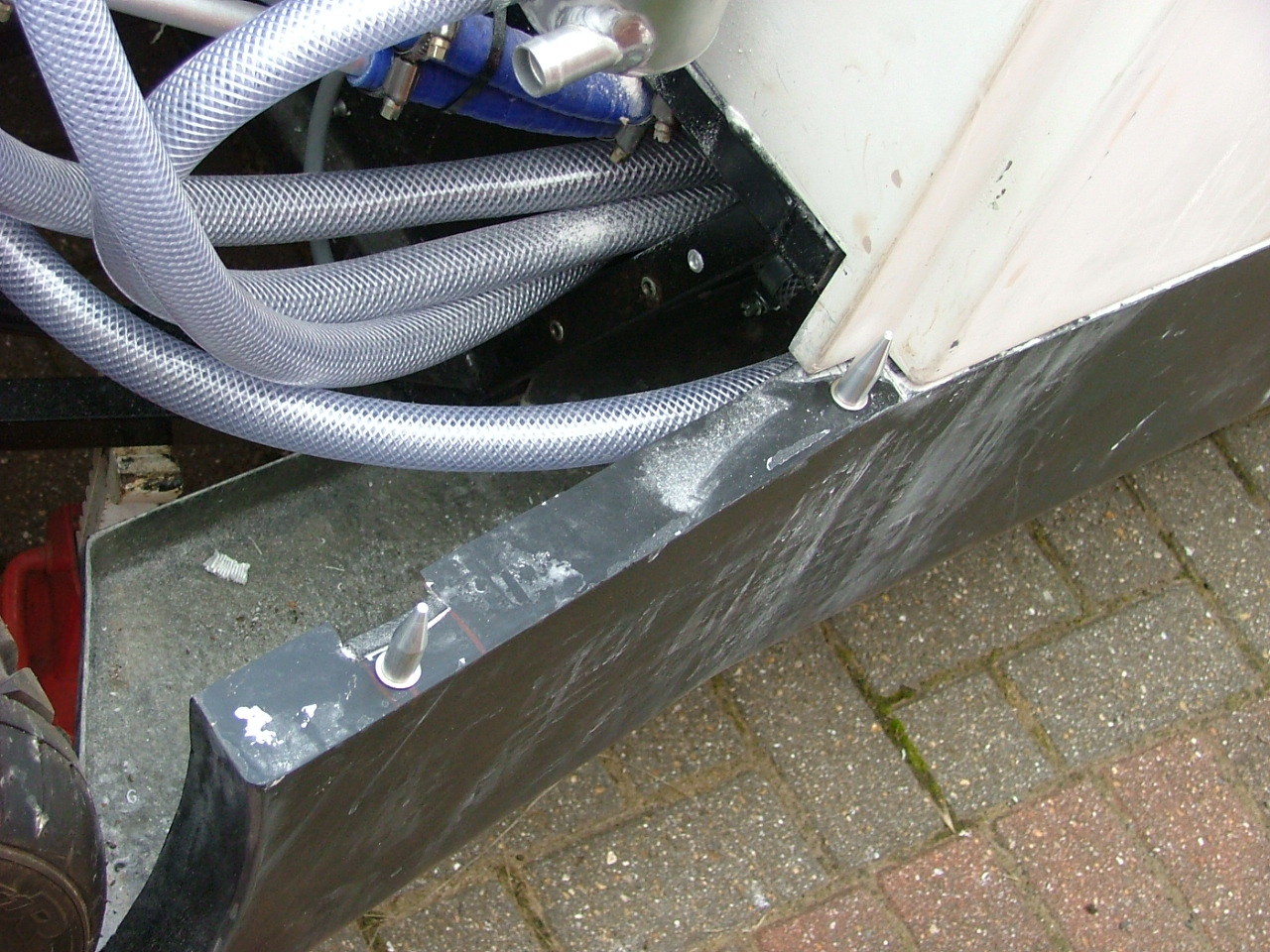

I then fitted the alignment pins I'd had made

Click to download

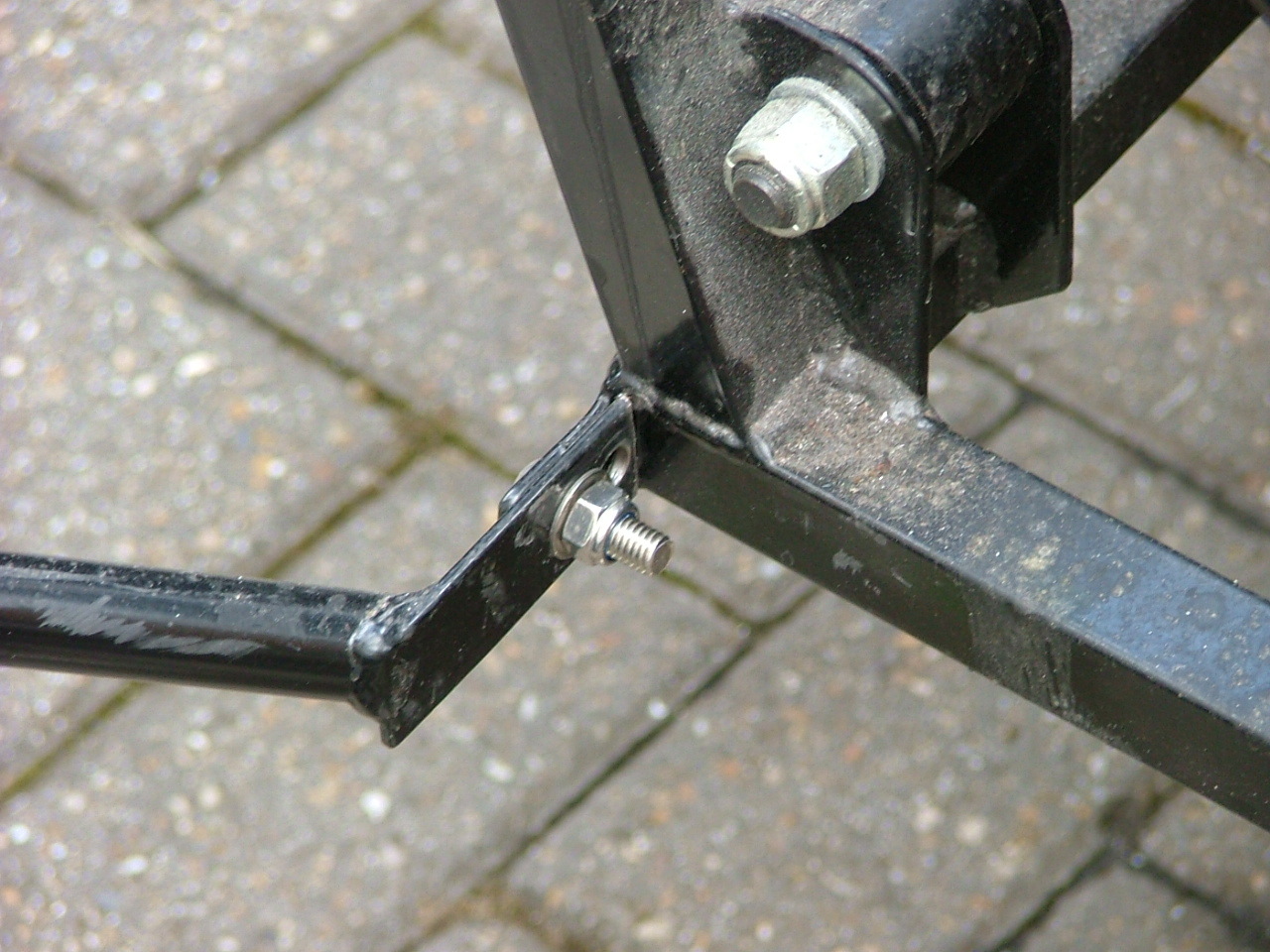

I also needed to change the angle of the near-side rear section. This was done by shortening the lower mounting plate.

Click to download

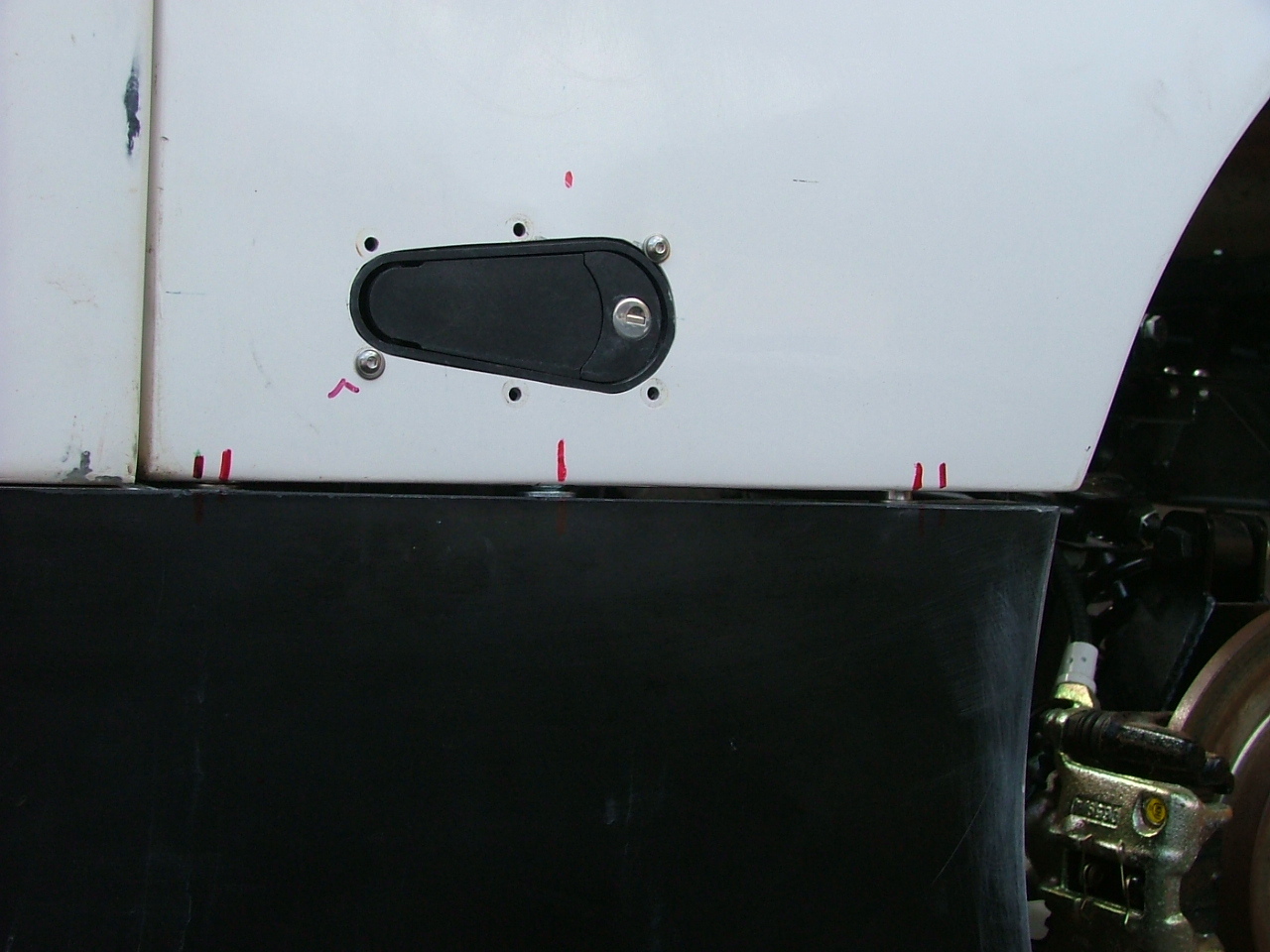

And then it was the pins for the Aerocatches - which locked quite nicely.

Click to download

Another day, I finally got around to fitting the electrics box.

Click to download

Although I'll probably put some rivnuts in place instead, to make it easier to undo.

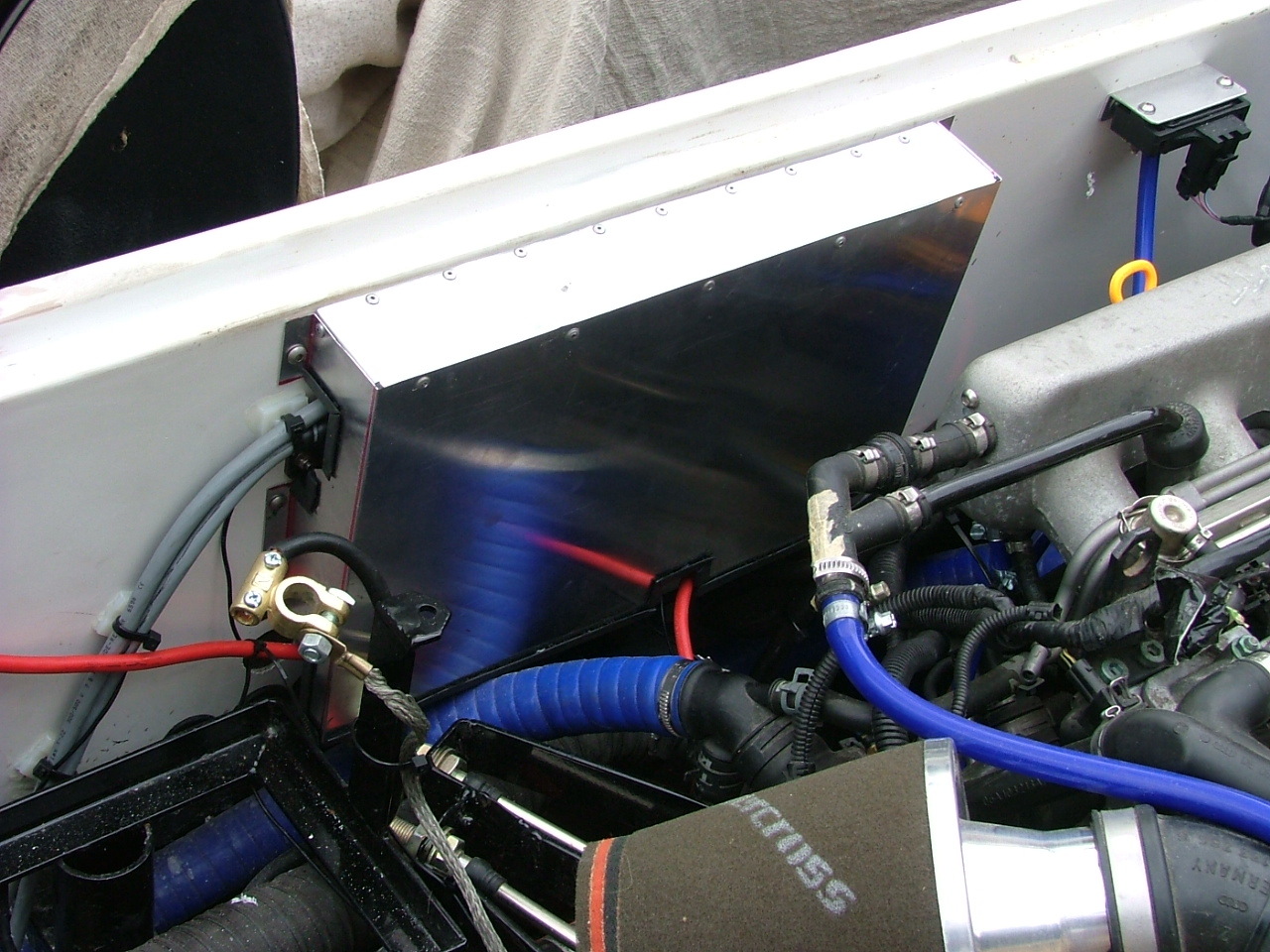

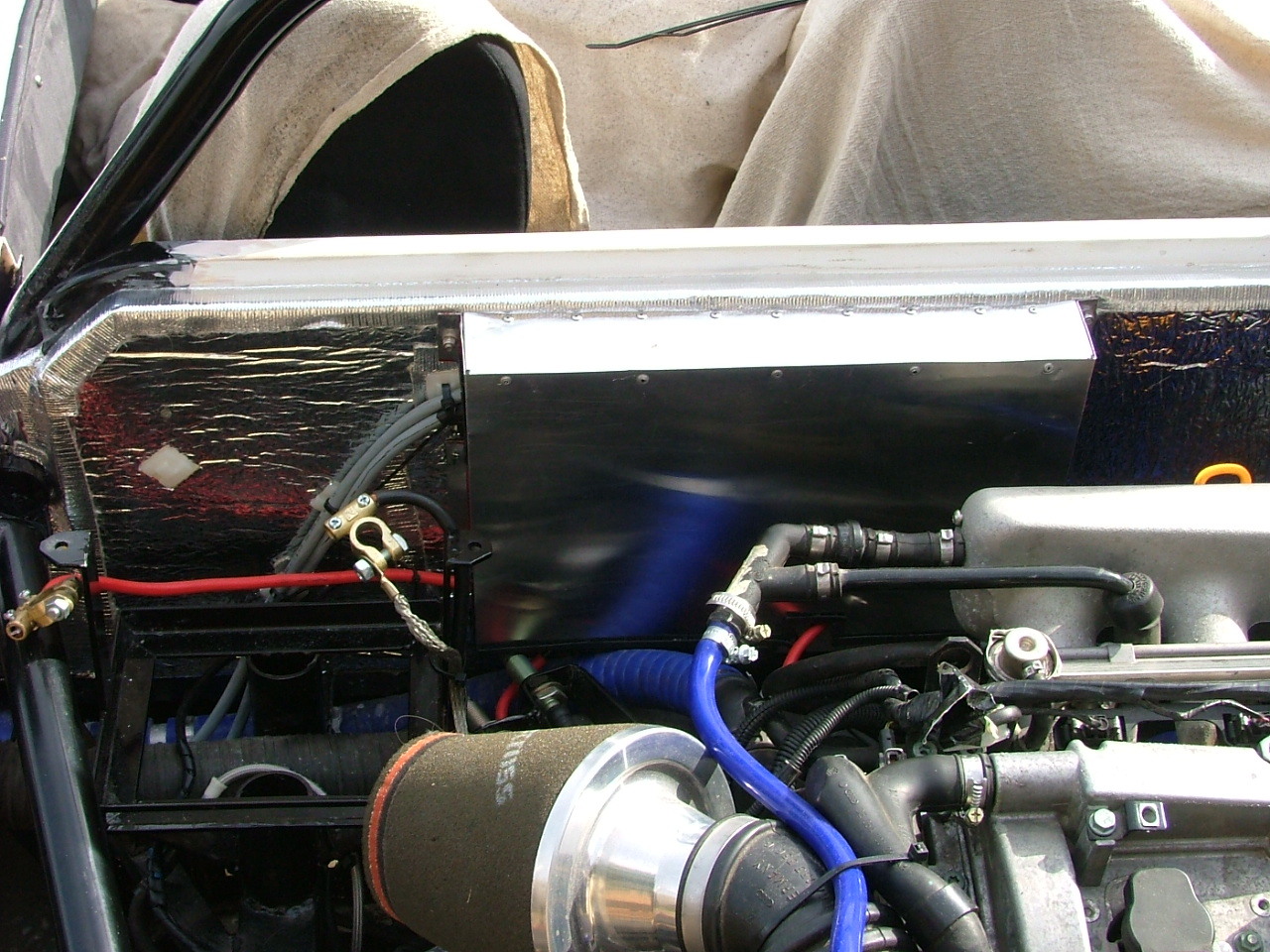

I then covered the back with aluminium shielding - this isn't high-temperature stuff as this is the intake side.

Click to download

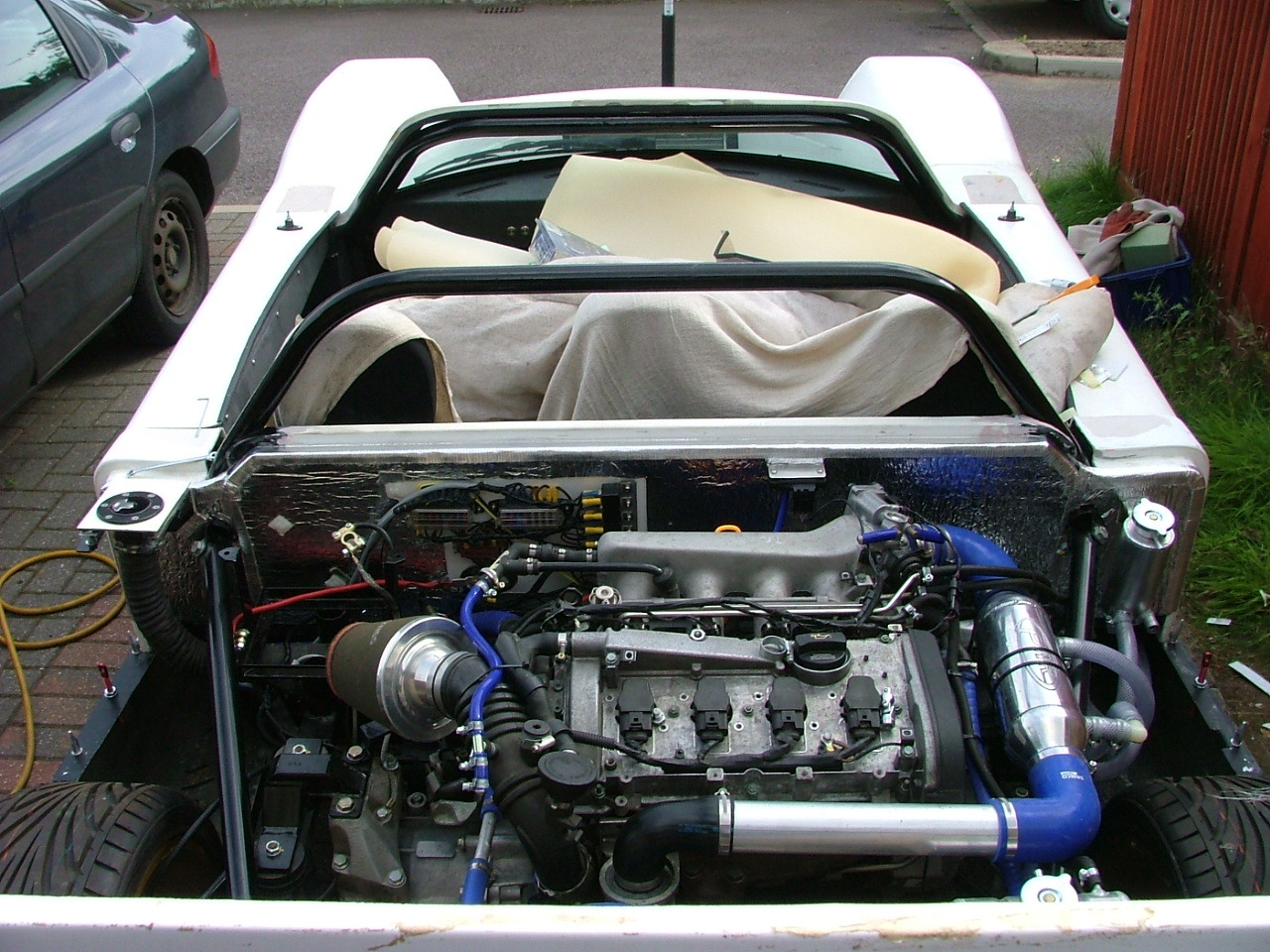

And with the cover in place.

Click to download

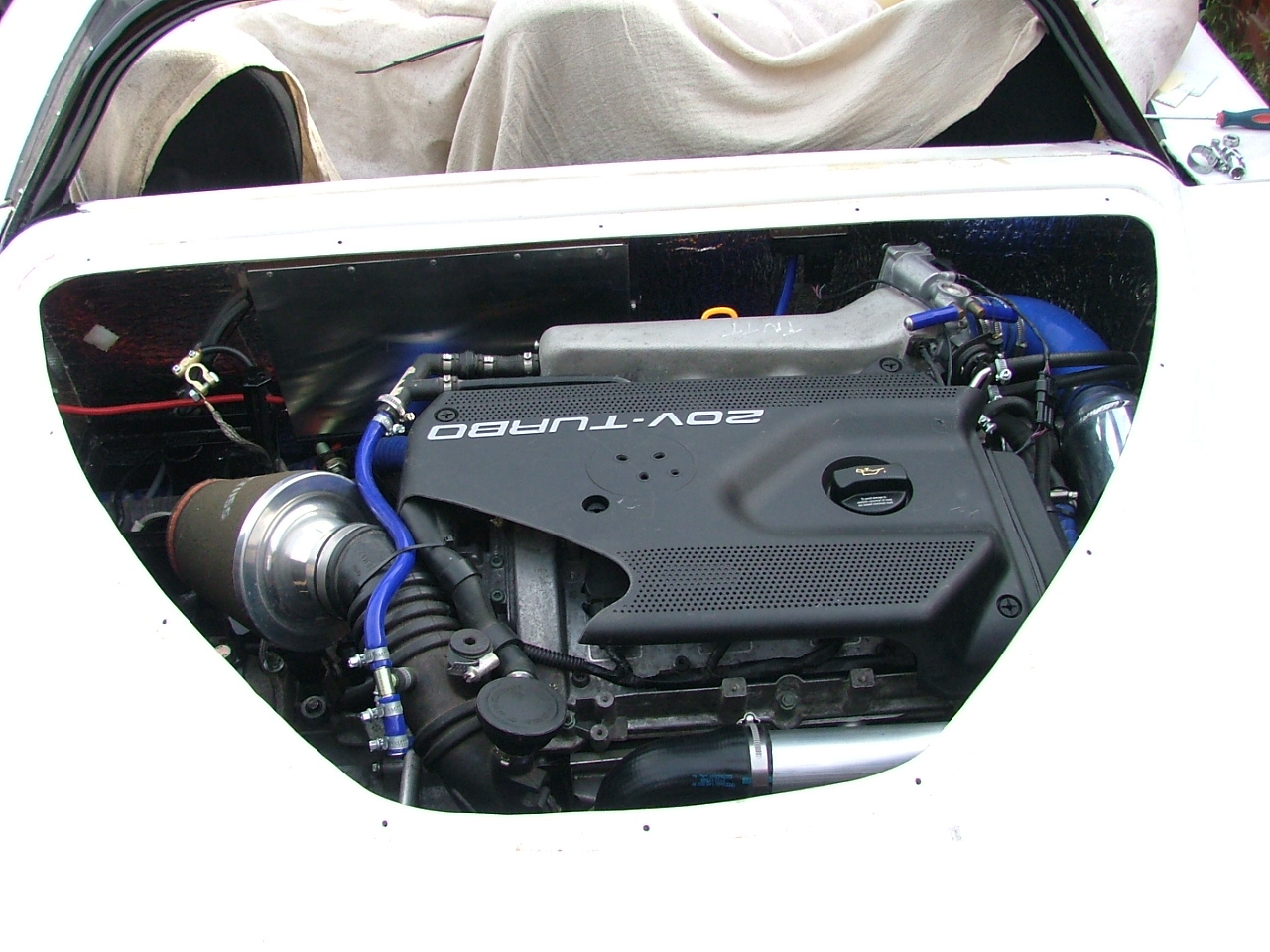

I got the engine cover, and trimmed down the corner because it sticks up too much.

Click to download

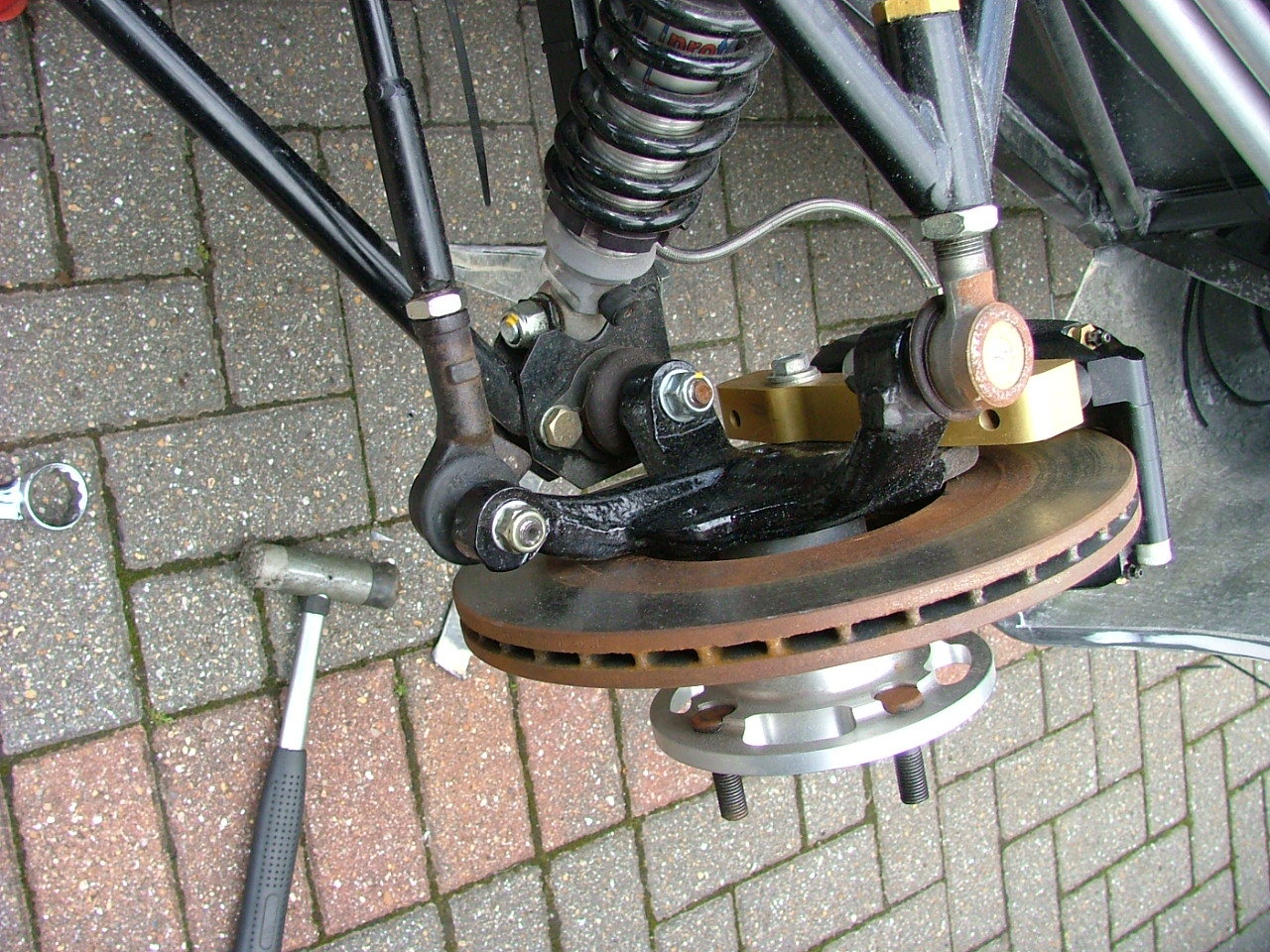

The next thing to do was put some washers on the steering mechanism - and I also managed to get a few more turns out of the rack, so it now looks a little toe-in.

Click to download

I trimmed down the inside of the sills.

Click to download

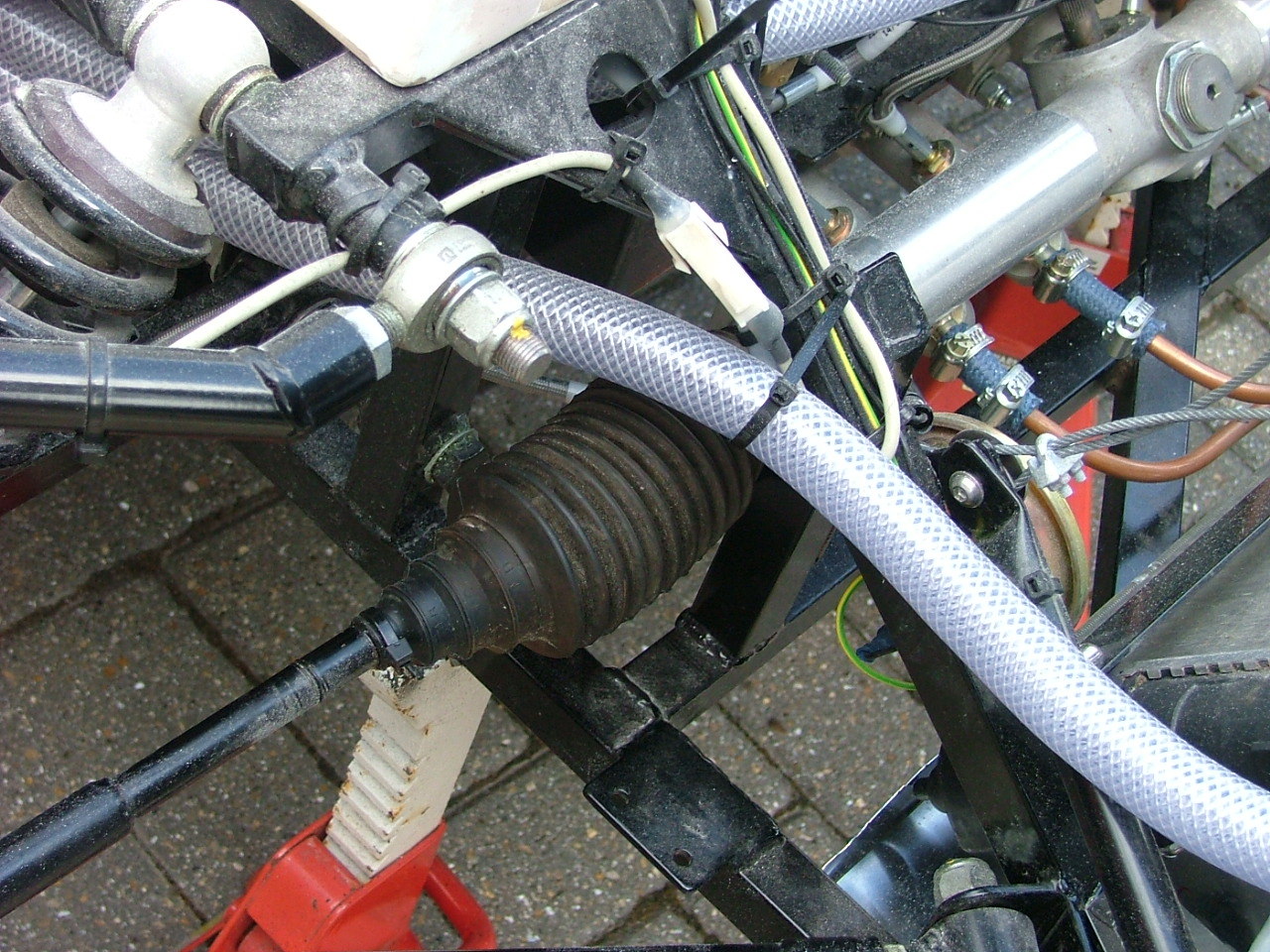

I also put the steering rack covers on.

Click to download

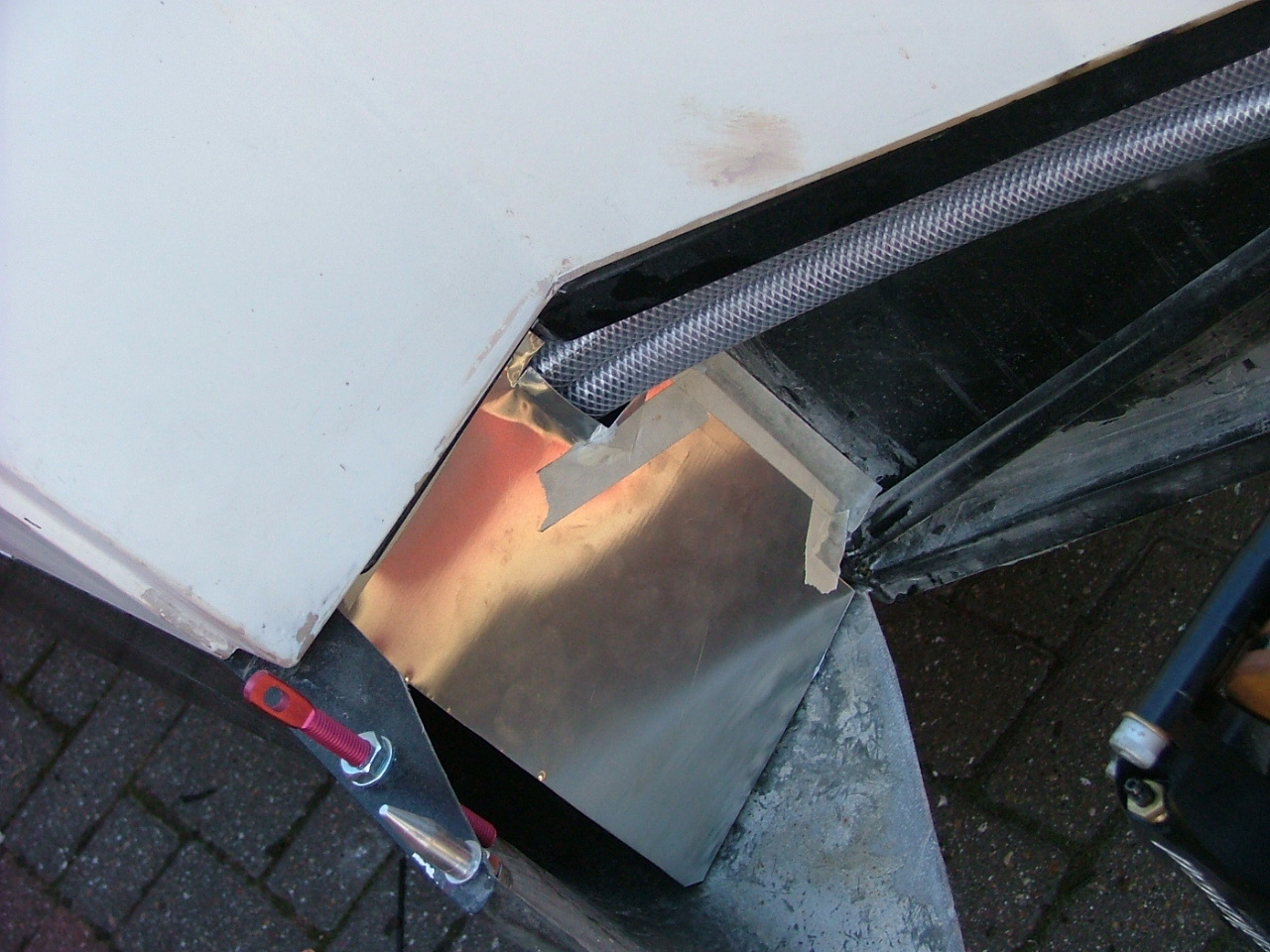

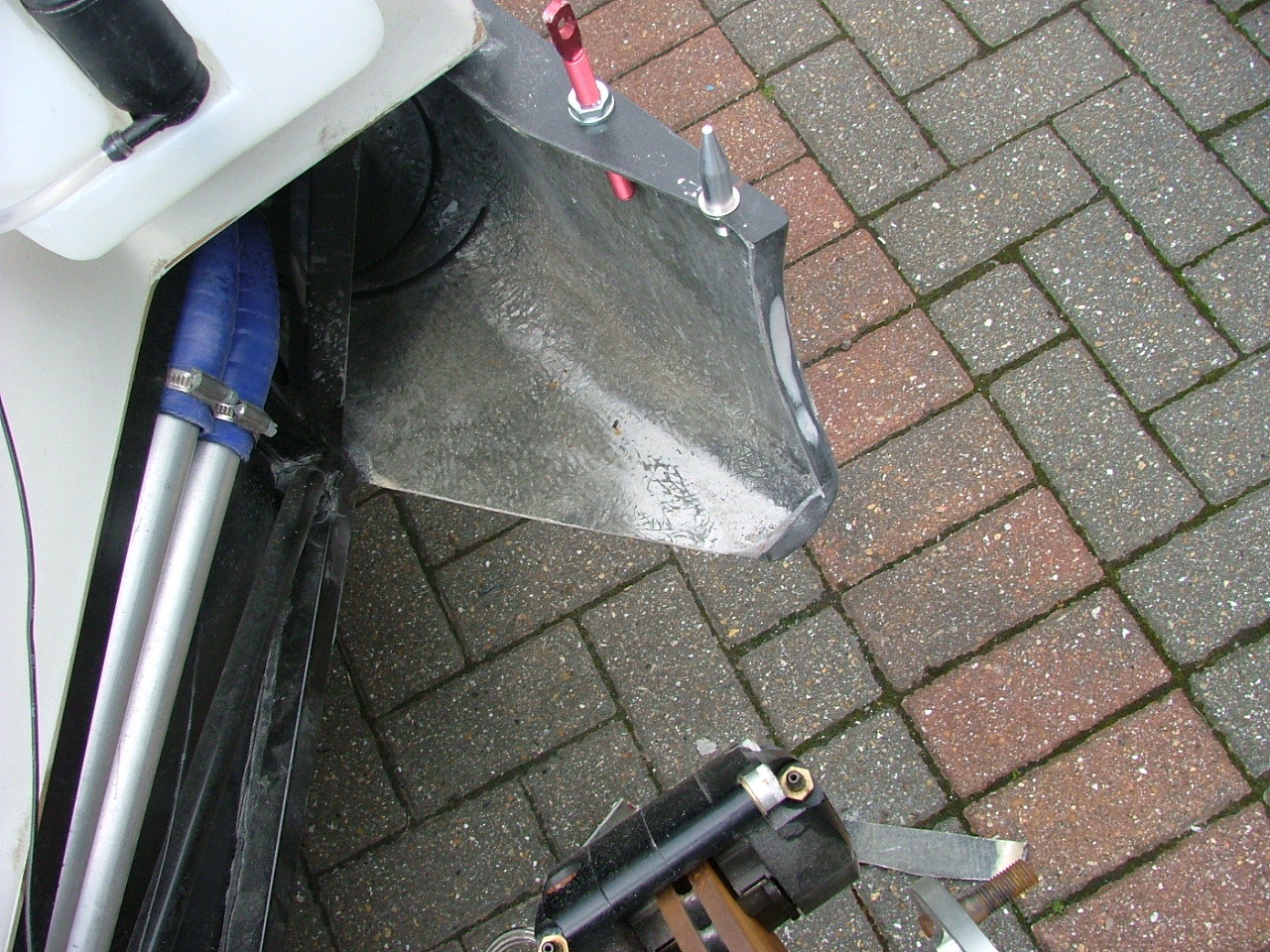

And made a panel to protect the windscreen heater/blower from being covered in dirt/water.

Click to download
