Day 12 - Rear lights (part 2) and front lights

Rear lights

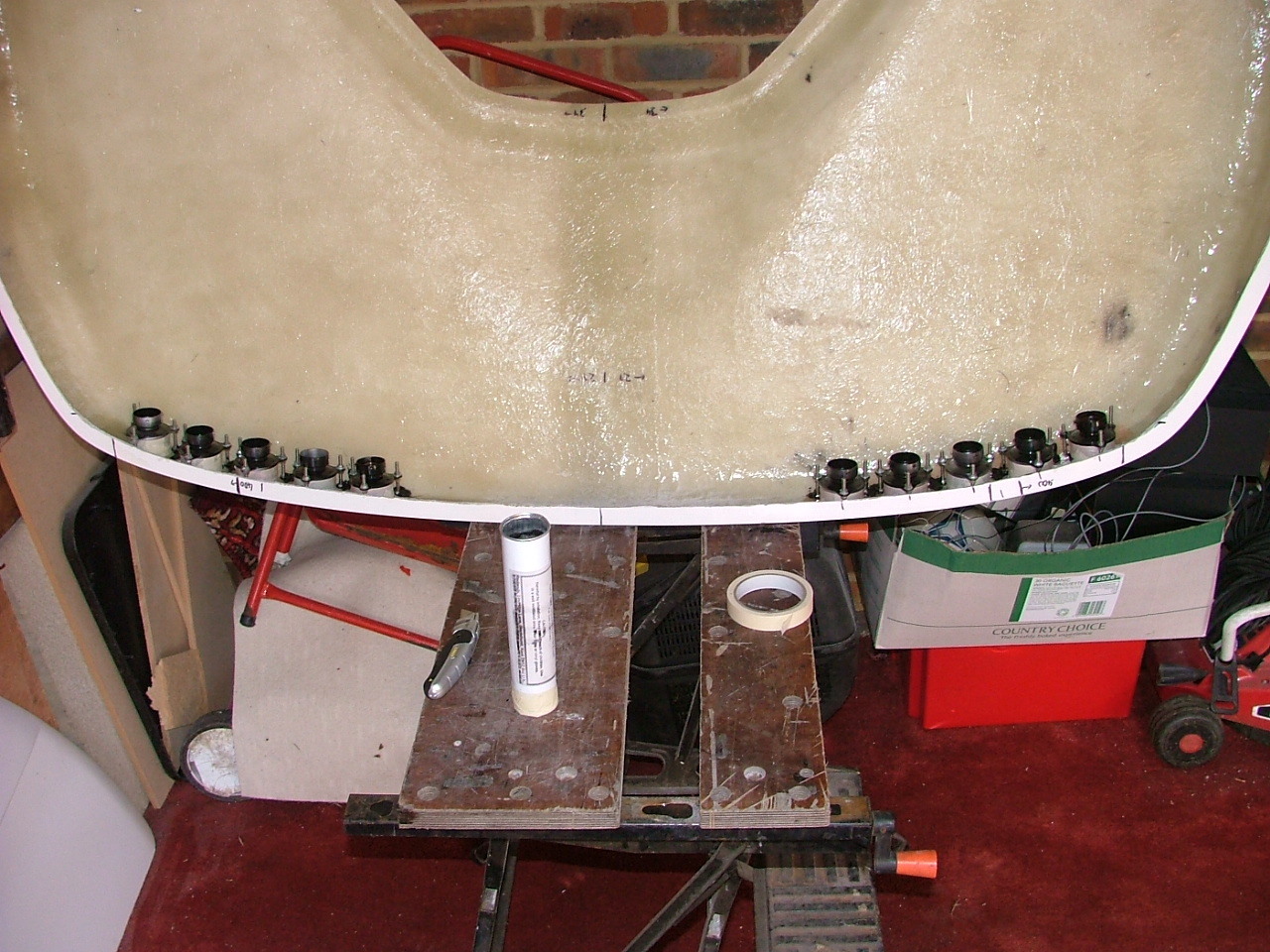

I decided to have a go with Sikaflex holding the bolts down, rather than pure GRP resin. This would take 24 hours to set, but wouldn't involve any major construction.

Click to download Click to download

Note that the lights aren't the colours they're meant to be - all they are doing is holding the bolts in the right place while the Sikaflex cures.

Front lights

With the rear lights setting, I decided to make a start on the front lights.

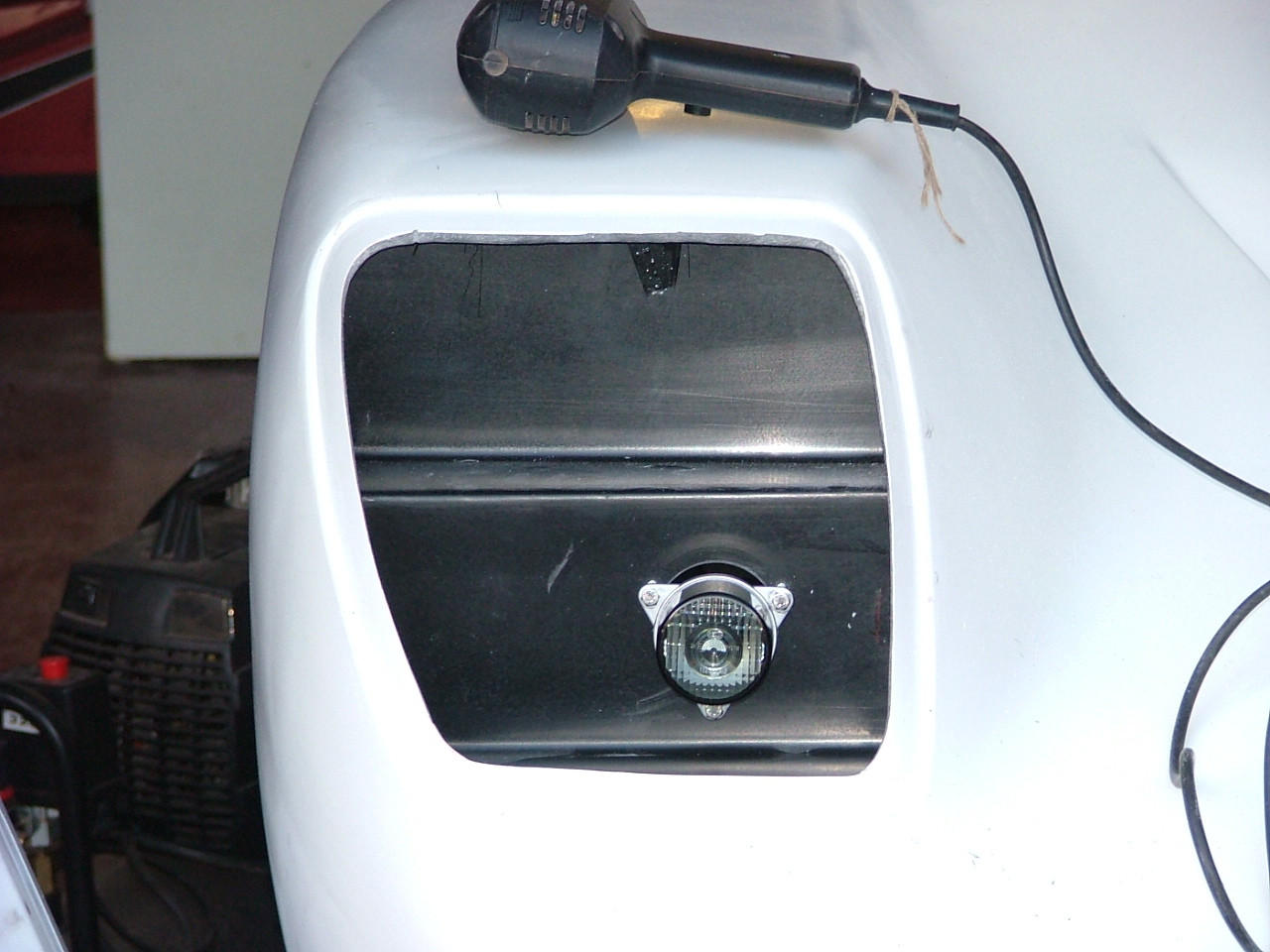

The front indictor is easy - a 57mm hole (like the rear lights), and three bolts (again, like each of the rear lights).

Click to download

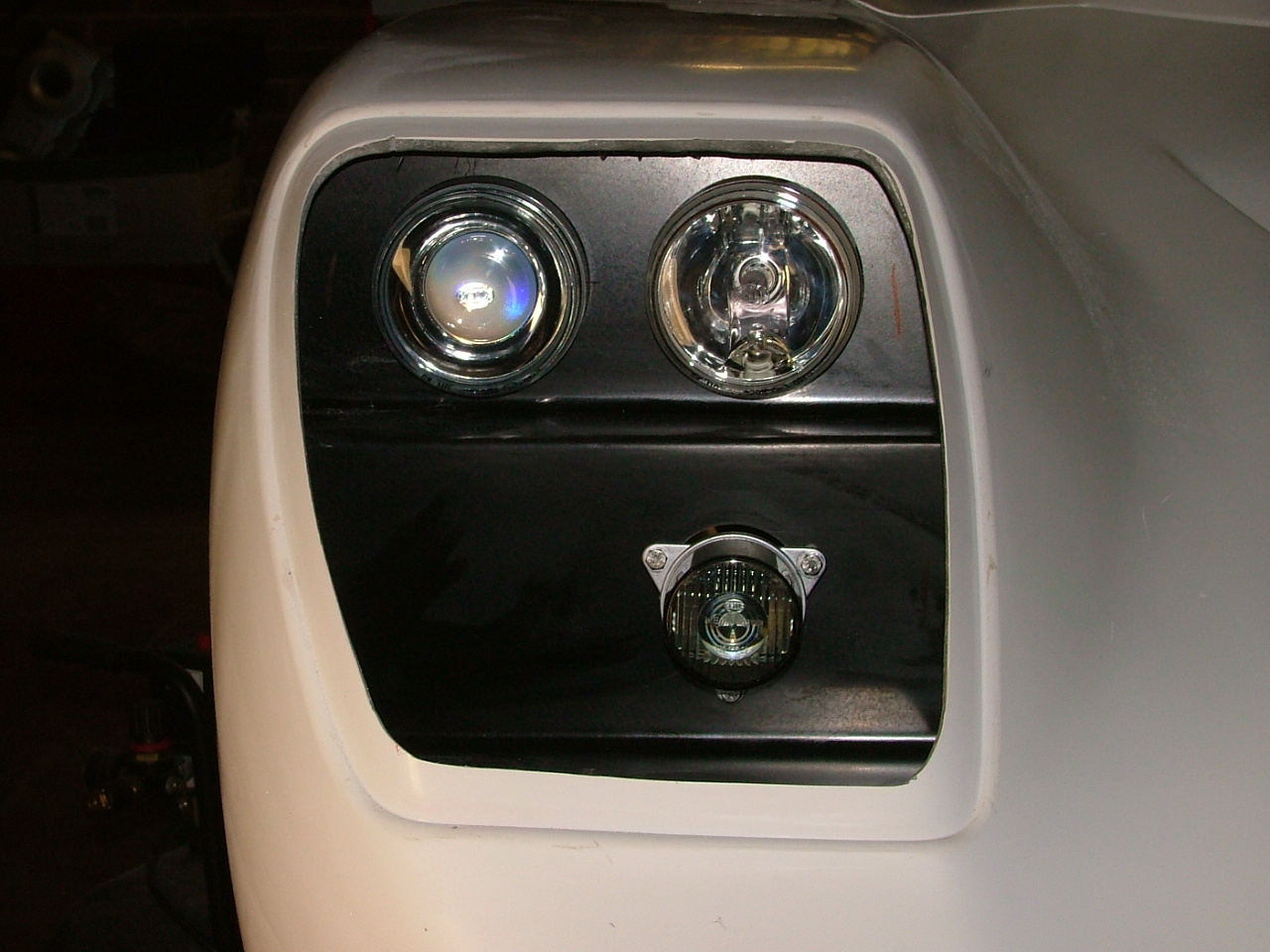

The main lights were a little more complicated - they're 90mm (plus a little bit further down the shaft). Unfortunately, the only hole cutters I could get were 89mm or 103mm. I went for the 89mm, and a bit of 120 grit wet and dry paper...

Click to download

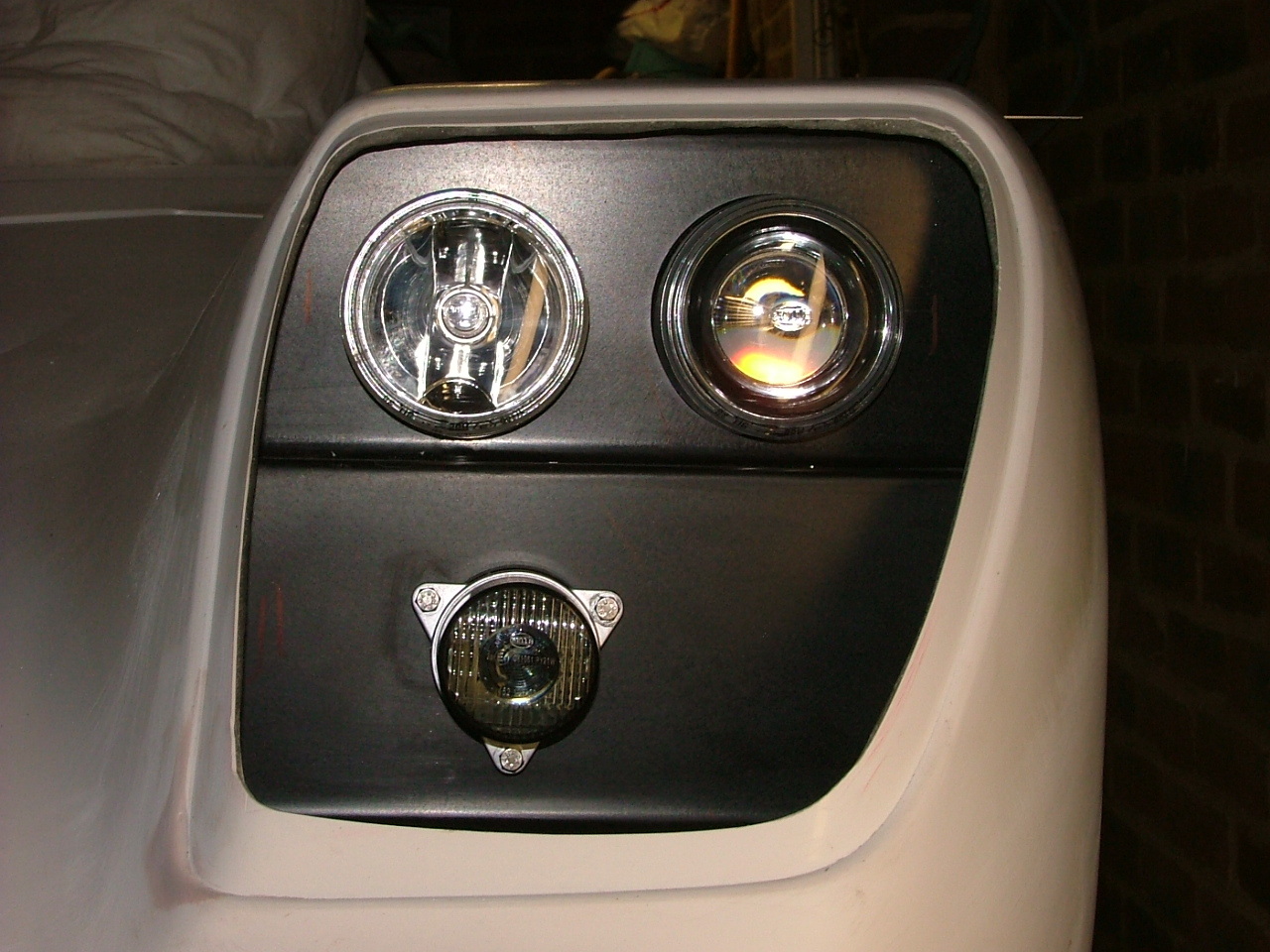

And then the other side

Click to download

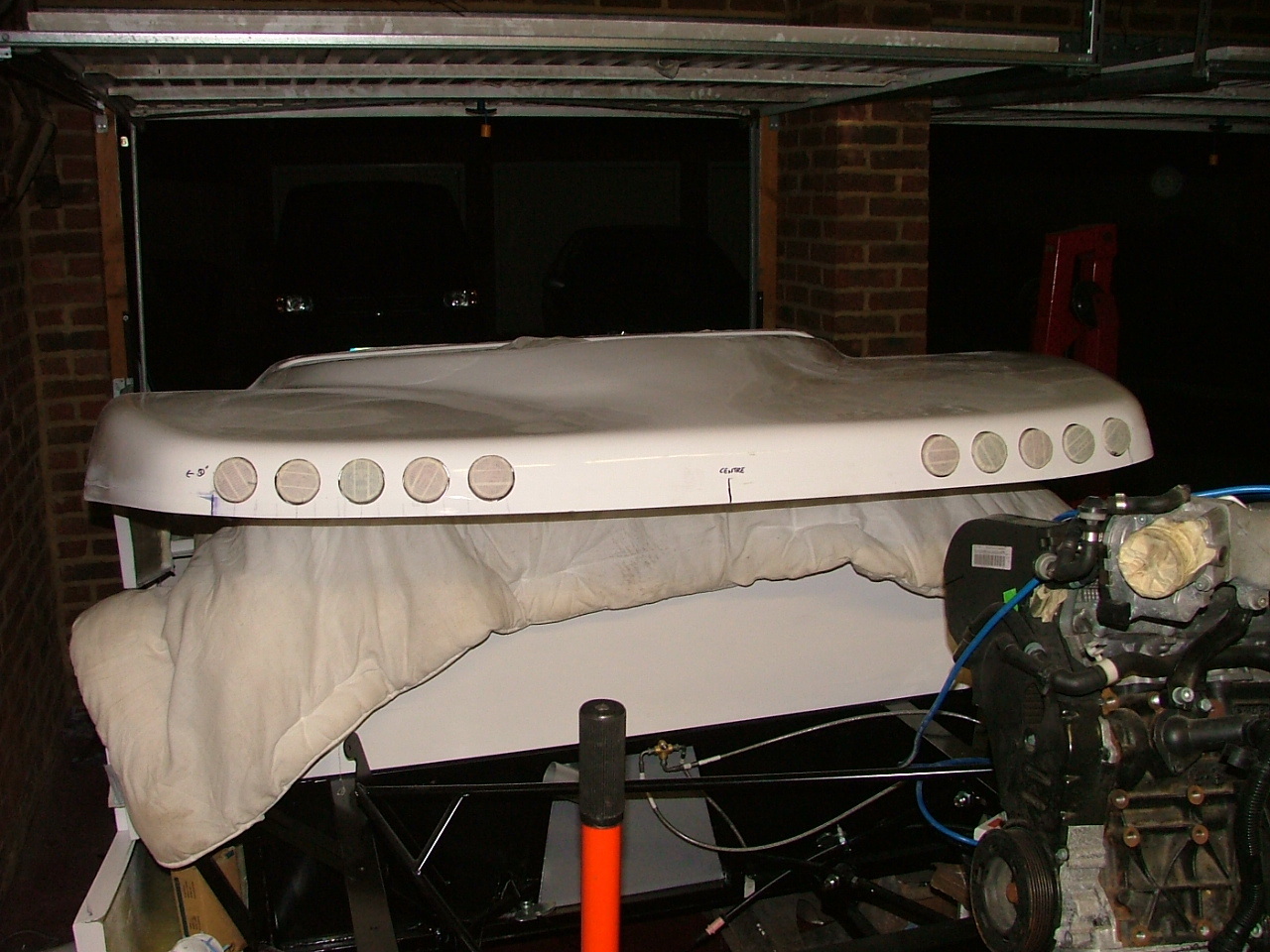

A last look at the rear

With the Sikaflex reasonably cured, I put the rear section away, and had one last look at the lights until tomorrow...

Click to download
